*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2053 |

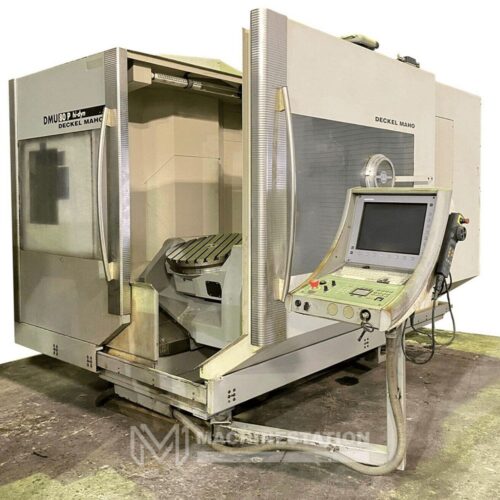

| Make: | Deckel Maho |
| Model: | DMU-80P |
| Year: | 2002 |
| Serial: | 11170001233 |
| Cutting Hours: | 9472 |
| Features: |
|---|
| Heidenhain CNC Control |

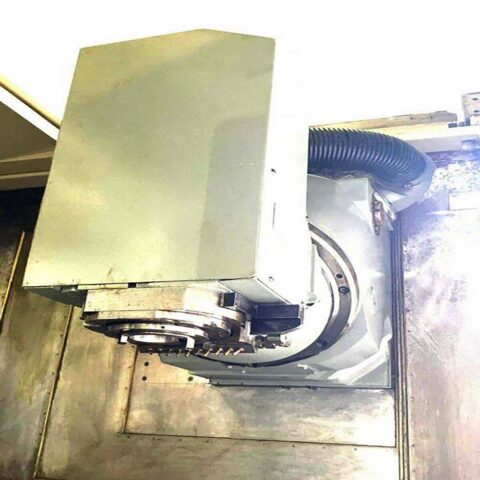

| 33.59″ Trunnion Table |
| 12,000 RPM High Precision Spindle |
| Coolant through Spindle |
| 30 Tools High Speed Tool Changer |
| MPG Control |
| PCMCIA Card Slot |
| Spindle Chiller |
| Thermal Compensation |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Work light |
| Books and Manuals |
| CE Marked |
| Table: |
|---|
| Table size: 12.59″ |
| Max. Swing: 16.1″ |
| Max. Workpiece: 15.75″ X 11.81″ |
| Max Weight on Table: 113.4 kg |
| Table to Spindle Nose: 0.78″ – 20.87″ |
| Travel: |
|---|
| X Axis: 16.1″ |
| Y Axis: 24.1″ |
| Z Axis: 20.7″ |
| A Axis: +30° – 130° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 20 – 12,000 RPM |
| Spindle Power: 14.9 kW |
| Feed rates: |
|---|
| Rapid X & Y : 1417 Inch Per Minute |
| Rapid Z : 984 Inch Per Minute |
| Rapid A : 2000° Per Minute |
| Rapid C : 6000° Per Minute |
| Tool changer: |
|---|
| Capacity: 30 Tools |
| Taper: 40 |
| Max Tool Size: 4.9″ X 11.08″ |
| Max Tool Weight: 6.8 kg. |
| Tool Change Time: 2.7 Second |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 46kva / 220v / 3-Phase |
| Overall Dimensions: ??″ High |
| Weight: 11793.4 kg |
