Doosan Puma 300LC CNC Turning Center

1 in stock
Location: Lake Elsinore, CA
SKU: 105611
Make/Model: Doosan Puma 300LC
Condition: MLS
Video: On Request
SKU: 105611
DOOSAN PUMA 300LC CNC TURNING CENTER
MakeDoosan
Model No.Puma 300LC
Year 2011, installed 2012
ConditionMLS

Comes with 12″ Chuck, Tailstock & Chip Conveyor
Replacement Cost is approx. $165,000.00 with similar options.

“This One Owner machine is in Mint running condition. Less than 300 hours, It is equipped with 12″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

  • Doosan Puma 300LC Equipped With:
  • Fanuc i series CNC Control
  • Box way construction
  • Rigid Tapping
  • 12″ 3 Jaw Hydraulic Chuck
  • A2-11 Spindle
  • Auto Tool Presetter
  • Hydraulic Programmable Tailstock and Quill
  • PCMCIA Card Slot
  • Coolant System
  • Barfeed Interface
  • 12 Station Automatic Turret
  • Foot Switch
  • Turbo Chip Conveyor
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: 150″ x 77″ x 80″ High
  • Overall Dimensions: 168″ x 77″ x 80″ High with Chip Conveyor
  • Weight: 15000 lbs
  • Doosan Puma 300LC Specifications:
  • Capacity:
  • Max Turning Diameter: 15.7″
  • Max Turning Length: 50.4″
  • Max Bar Capacity: 4.05″
  • Swing Over Bed: 22.4″
  • Distance Between Centers: 52.8″
  • X Axis Travel: 11.1″
  • Z Axis Travel: 52.4″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-11
  • Spindle Bore: 4.5″
  • Spindle Speed: 0 – 2800 RPM
  • Spindle Motor: 35 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.15 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 3.97″
  • Tailstock Quill Travel: 4.7″

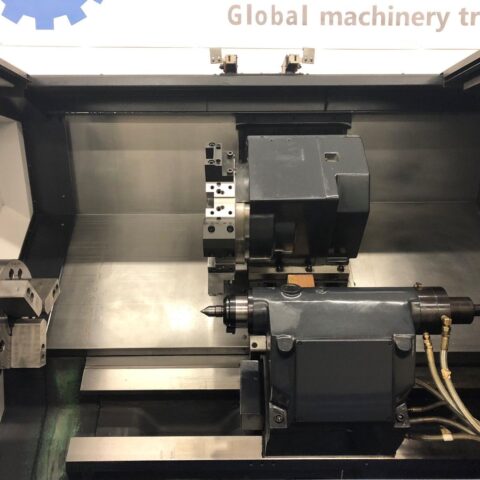

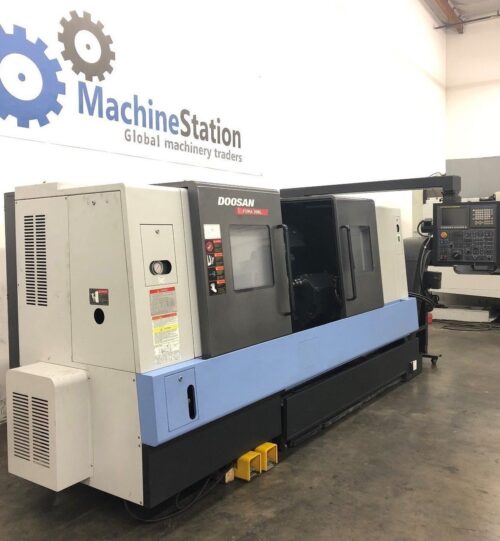

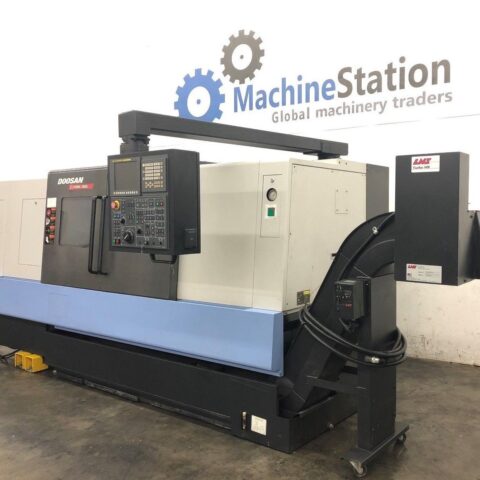

Doosan Puma 300LC Comes as shown in pictures..
