*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112592 |
| Make: | Fadal |
| Model: | 4020D3HT |
| Year: | 2008 |
| Condition: | Used – Good |
| Features: |
|---|
| Box Way construction |

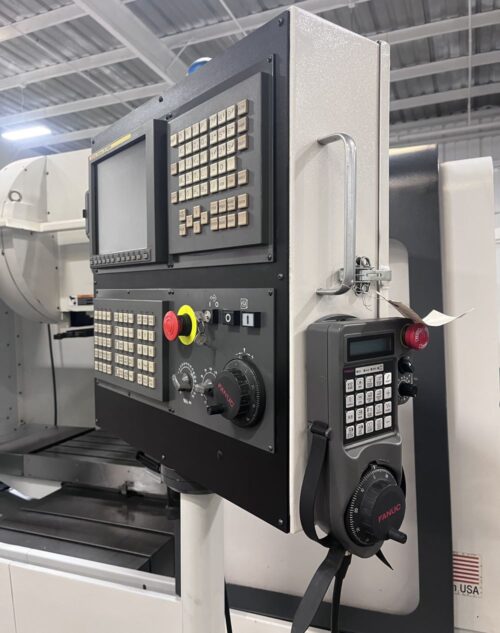

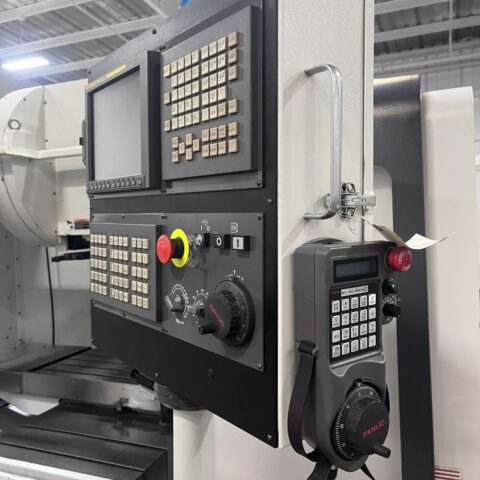

| Fanuc 18iMB5 series CNC Control |
| 24 Station Automatic tool changer |
| 10,000 RPM High Torque Spindle |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Telescopic way covers |
| Coolant System |
| Travels: |
|---|
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ |
| Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″ |
| Rapid Traverse rates: 2286 cm/min |
| Cutting Feedrate: 1016 cm/min |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 11.2 kW |

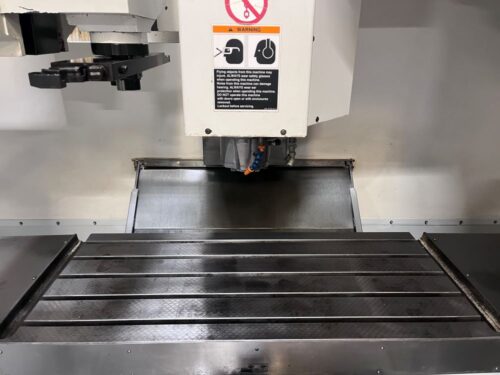

| Table : |
|---|
| Length: 48″ |
| Width: 20″ |
| Max Weight on Table: 1360.8 kg |
| Automatic Tool Changer: |
|---|
| cat-40 Taper |
| Capacity: 24 Station Side Mounted |
| Tool Weight: 6.8 kg |
| Max Tool Length: 15″ |
| Max Tool Dia.: 4.33″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 3-Phase, 35 Kva |
| Overall Dimensions: 122″ x 100″ x 100″ High |
| Weight: 5669.9 kg |
