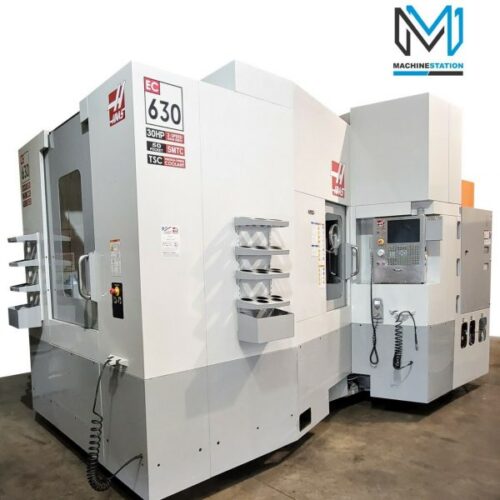

Haas EC-630 Horizontal Machining Center

HAAS EC-630 HORIZONTAL MACHINING CENTER
SKU	105105
Make	HAAS
Model No.	EC-630
Year of Manufacture	2008/2009
Condition	MLS

All specifications are approximations and are subject to verification.

Features:

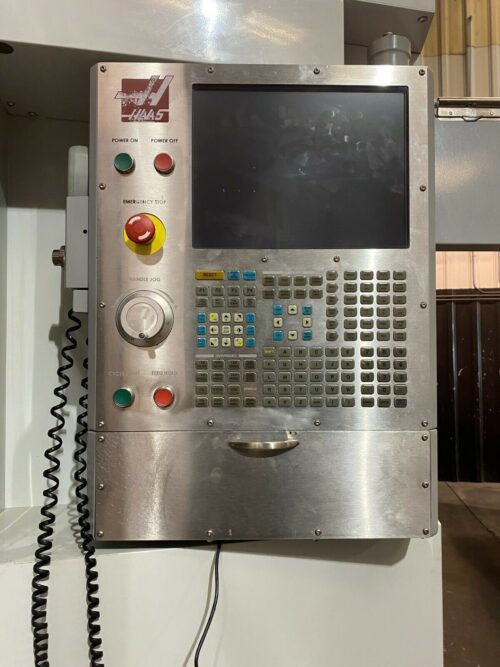

Haas CNC Control
Full 4th Axis
22.4 kW, 50 Taper Spindle
6,000 RPM Gear Head Spindle
Through Spindle Coolant
High Speed Machining
WIPS Probing System
Coordinate Rotation & Scaling
Twin Pallet Changer
50 Station Tool Changer
Programmable Coolant Nozzle
MPG Control w/ Color Display
Macros
8 Spare M Functions
Second Home Position
Early Power Detection Module
USB Drive, Hard Drive, Ethernet Connectivity
16MB Upgraded Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Flood coolant with large coolant tank
High Pressure Coolant Pump

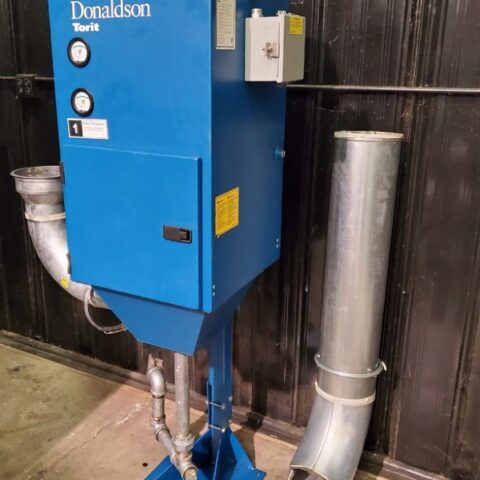

Donaldon Air Filteration
Haas Coolant Filteration
Chip Conveyor
Work light

Specifications:

Travels:
X Axis: 40.4″
Y Axis: 33.5″
Z Axis: 35.4″
B Axis: 0.001° (Full 4th)
Spindle Nose to Table Center: 3.9″ – 43.3″
Spindle Center to Table Top: 2.9″ – 36.4″

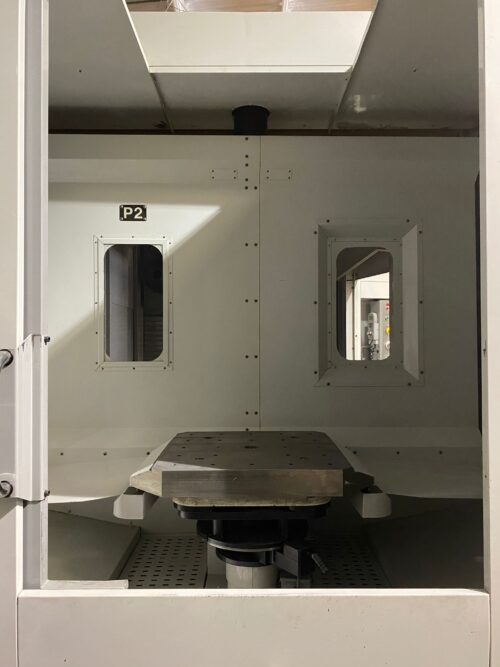

Pallet Table:

Length: 24.8″
Width: 24.8″
Max Weight on Table: 1197.5 kg
Max Workpiece Width X Height: 39.8″ X 39.8″
Index Time: 10.5 seconds

Spindle:

Taper Size: 50
Max. Speed: 6,000 RPM
Power: 22.4 kW
Torque: 678 ft/lb

Feed rates:

Rapid X & Y : 710 Inch Per Minute
Rapid Z : 710 Inch Per Minute
Cutting Feedrate: 630 Inch Per Minute

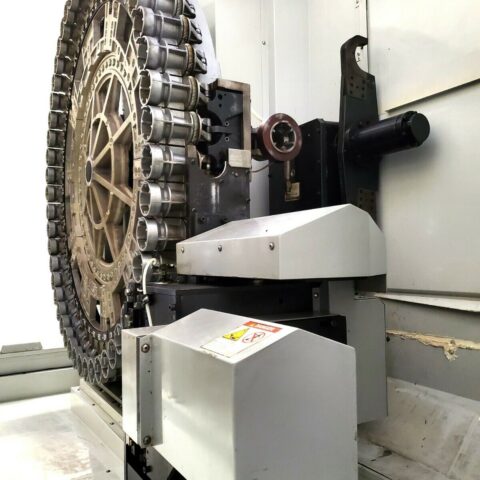

Tool changer:

Capacity: 50 Tools
Taper: CAT-50
Max Tool Size: 12.6″
Max Tool Length: 16.8″
Max Tool Weight: 13.8 kg.
Tool Change Time: 4.2 Second

General:

Air Required: 90 psi, 4 scfm
Power: 75kva / 480v / 3-Phase
Overall Dimensions: 275″ X 144″ x 140″ High ?
Weight: 23133.2 kg

“No Charges for loading at list Price”
