*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2399 |
| Make: | Haas |
| Model No.: | TM-1 |
| Year of Manufacture: | 2006 |
| Equipped With: |
|---|
| Haas CNC Control |
| 4000 RPM Spindle |
| 5.6 kW High Torque Spindle |
| Rigid Tapping |
| Spindle Orientation |
| USB Port |

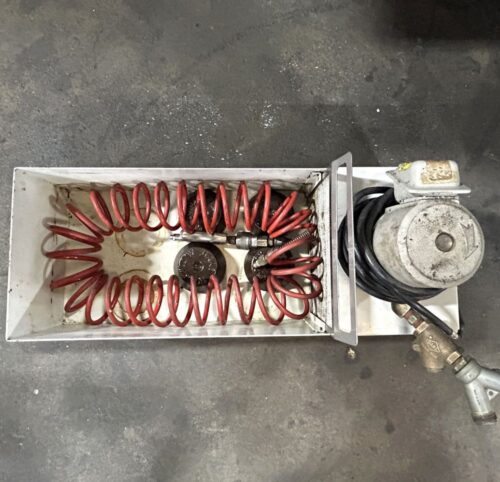

| Coolant System |
| Travel: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 16″ |
| Rapid Traverse Rates: 200 Inch Per Minute |
| Cutting Feed Rates: 200 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 20″ |

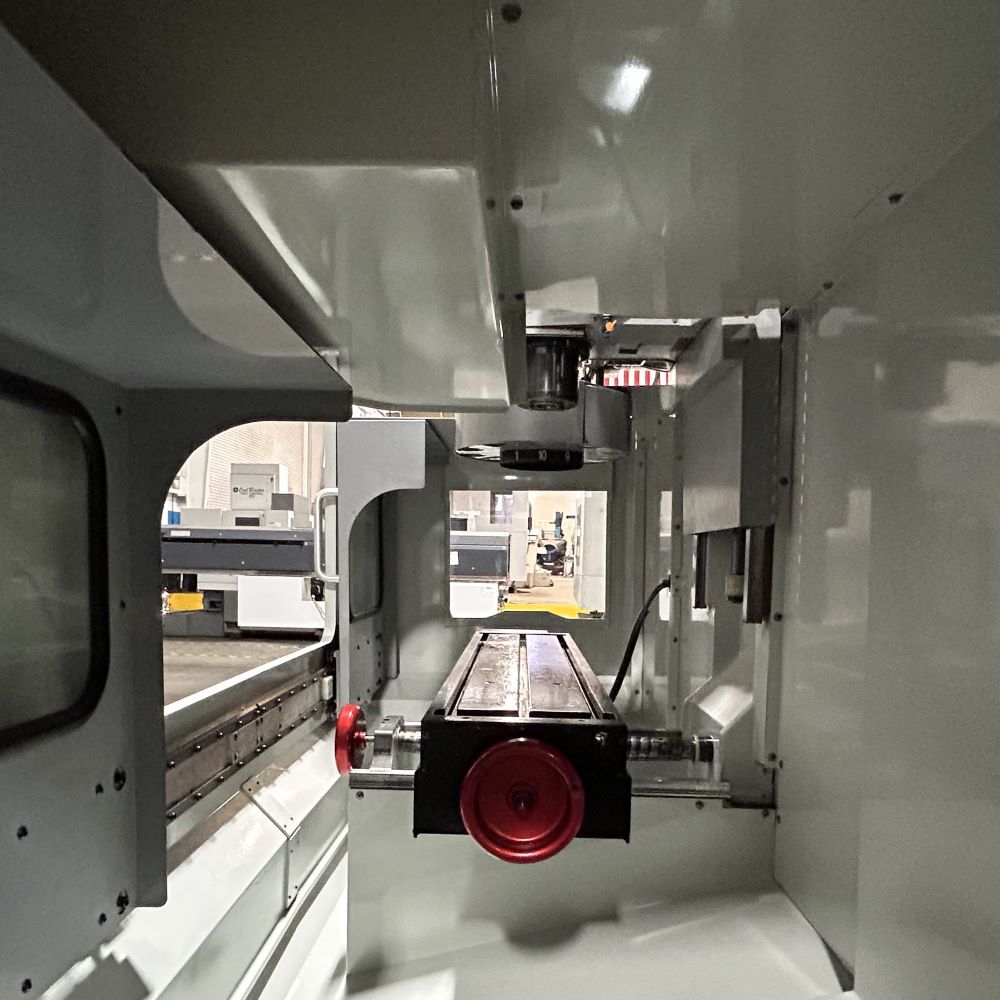

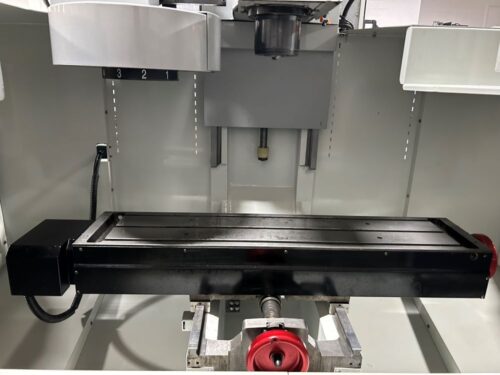

| Table: |
|---|
| Length: 47.8″ |
| Width: 10.5″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 158.8 kg |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 4000 RPM |
| Spindle Power: 5.6 kW |
| Automatic Tool Changer: |
|---|

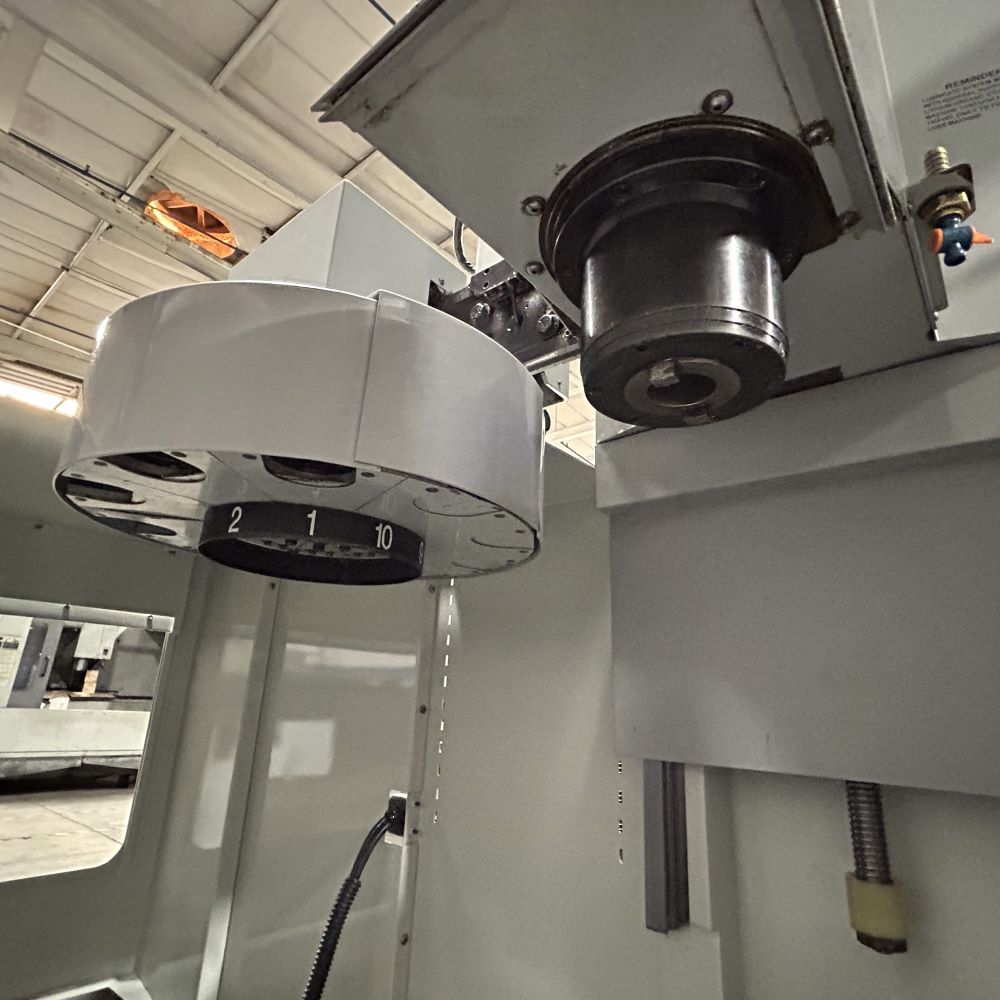

| Capacity: 10 Station Umbrella Type |
| Max Tool Weight: 5.4 kg |
| Max Tool Dia: 3.5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 112″ x 80″ x 100″ High |
| Weight: 1995.8 kg |
