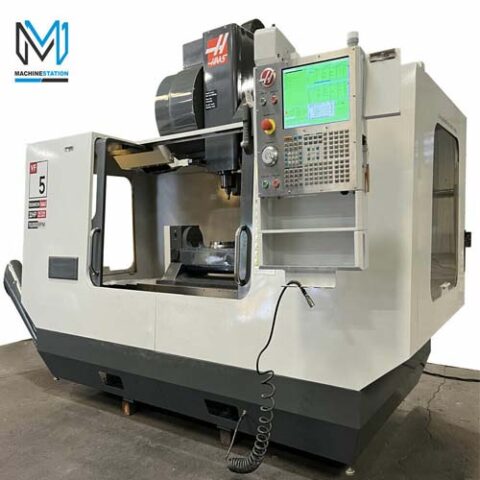

| HAAS VF-5/40TR 5 AXIS MACHINING CENTER CNC TRUNNION MILL | |
|---|---|
| SKU | 105276 |
| Make | Haas |
| Model No. | VF-5/40TR |
| Year | 2006/2008 |
| Condition | MLS |
| Cutting Hours: | 3923 Only |
Features:
- Haas CNC Control with Color LCD
- 10000 RPM Spindle
- Linear Scales
- 24 + 1 Side Mount Automatic tool changer
- Thru Spindle Coolant
- MPG Control with Display
- High Speed Machining
- USB Drive
- Expanded Memory
- Rigid Tapping
- Programmable Coolant
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros
- Spindle Orientation
- Coordinate Rotational Scaling
- Programmable Coolant
- Brushless-type servo drive motors on all axis
- Telescopic way covers
- Chip auger
Specifications:
- Travels:
- X-Axis: 50″
- Y-Axis: 26″
- Z-Axis: 25″
- A-Axis: ±120°
- B-Axis: 360°
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 29.2″

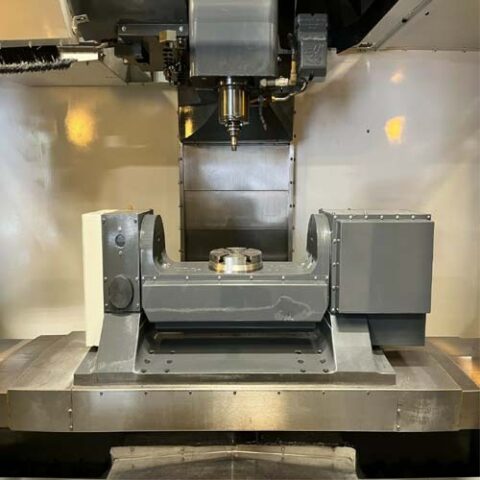

Table/Trunnion
- Length: 54″
- Width: 24″
- Number of Std T-Slots: 7 in Y & 3 in X
- T-Slot Width: 5/8″
- Max Weight on Table: 1814.4 kg
- Platter Diameter: 8.30 “
- Max Weight on Platter: 90.7 kg
- Max Part Swing (reduced at tilt angles > ± 90°): 24 “
- T-Slot Width: 0.625″/span>
- Number of Std T-Slots: 8
- Pilot Bore Depth: 4.90″
- Rapids on A: 60 °/sec
- Rapids on B: 60 °/sec
- Max Cutting A: 33 °/sec
- Max Cutting B: 33 °/sec
Spindle:
- Taper Size: 40
- Speed Range: 10000 RPM
- Spindle Power: 22.4 kW
Automatic Tool Changer:
- Capacity: 24 Side Mount
- Max Tool Weight: 5.4 kg
- Max Tool Dia: 2.5″
- Max Tool Length: 11″
- Tool Changing Time: 2.8 Seconds
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 160″ x 100″ x 106″ High
- Weight: 5760.6 kg
“No Charges for loading at list Price”
