*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai |
| Model: | Wia F400 |
| Year: | |
| Condition: | Used – Good |

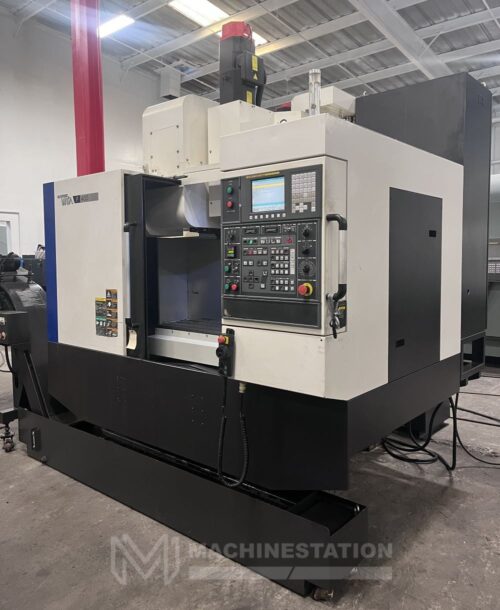

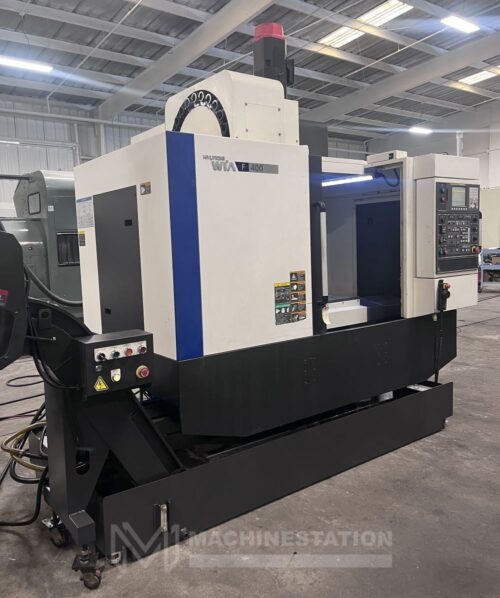

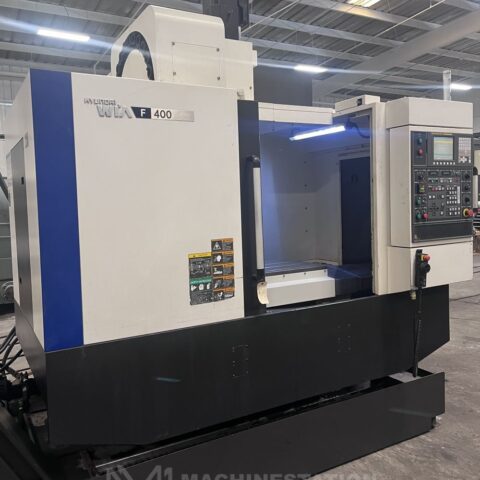

Key Features of the Hyundai Wia F400:

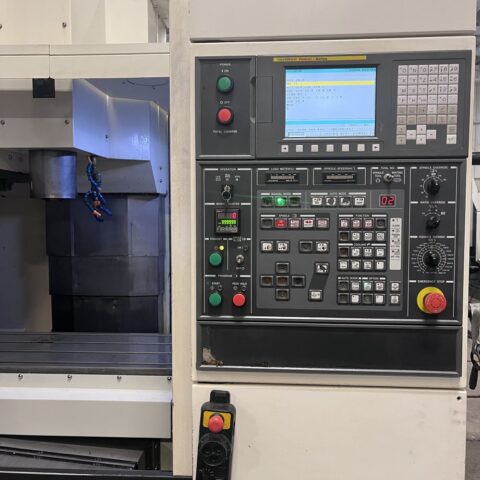

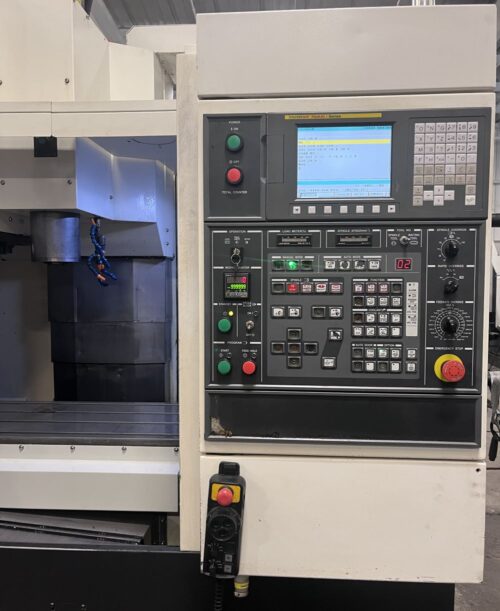

- Fanuc i-series CNC Control
- 12,000 RPM Gear Head Spindle
- Through Spindle Coolant
- CAT-40 Taper Spindle
- 24 Station Automatic Tool Changer
- 14.9 kW High Torque Spindle
- MPG Handwheel Control
- PCMCIA Card Slot
- RS-232 Port
- Ethernet
- Rigid Tapping

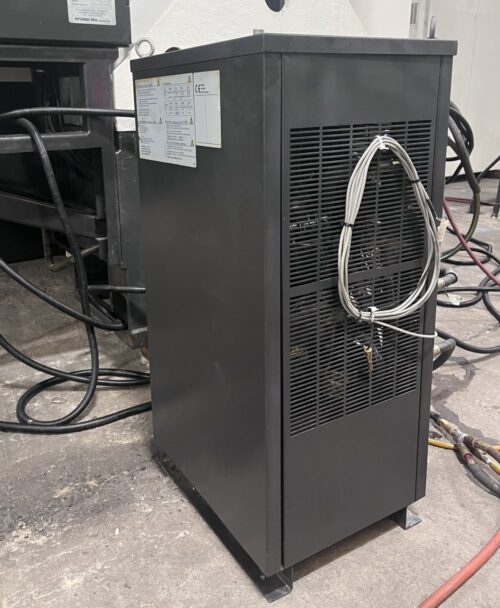

- Spindle Chiller Unit
- Coolant System
- Chip Conveyor
|
Travel:
- X-Axis: 31.5″
- Y-Axis: 18.1″
- Z-Axis: 20.5″
- Rapid Traverse Rates X, Y Z Axis: 1260 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5.1″ – 25.6″
|

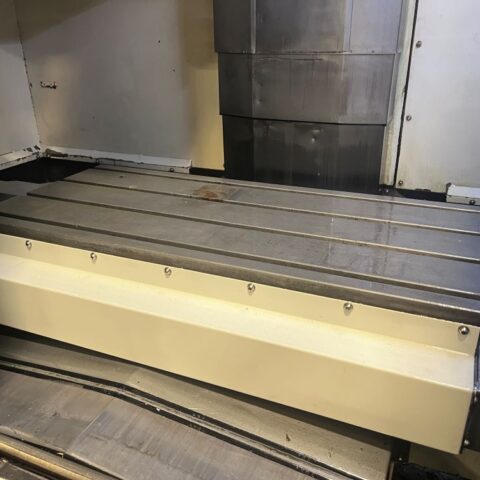

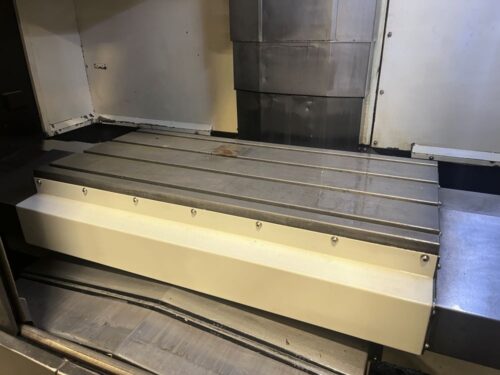

Table:
- Length: 39.4″
- Width: 18.1″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 600.1 kg
|
Spindle:
- Taper Size: CAT-40
- Speed Range: 12,000 RPM
- Spindle Power: 14.9 kW
|

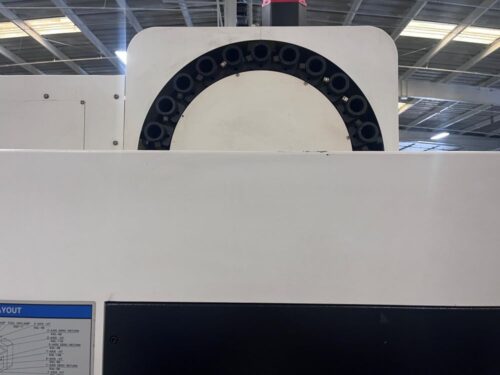

Automatic Tool Changer:
- Capacity: 24 Tools
- Max Tool Weight: 8 kg
- Max Tool Dia: 3.5″ – 5.9″
- Max Tool Length: 11.8″
- Tool Changing Time: 1.3 Seconds
|

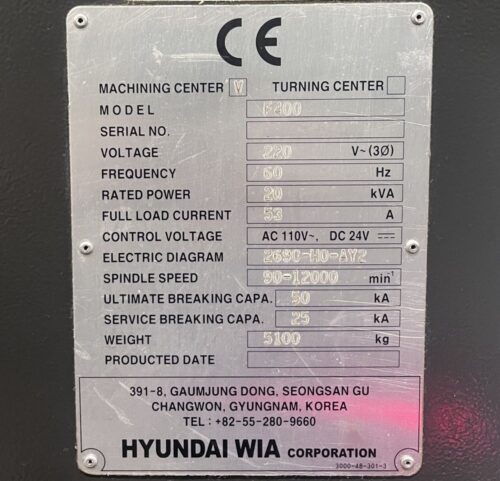

General:
- Air Required: 100 psi 4 scfm
- Power: 220v / 66FLA / 3-Phase / 20 kva
- Overall Dimensions: 96.5″ x 82.7″ x 111.5″ High
- Weight: 5100.2 kg Approx.
|
