*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

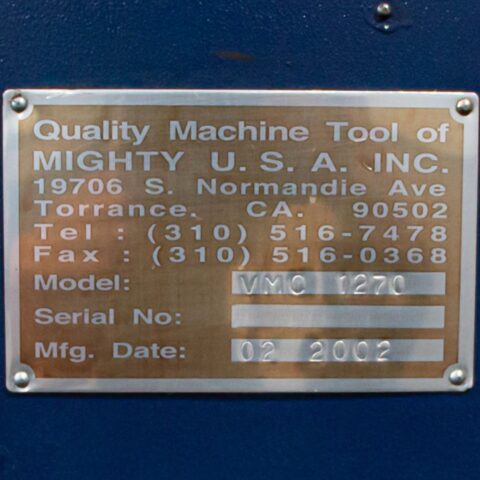

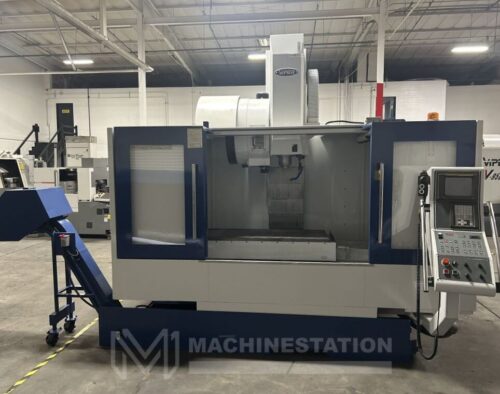

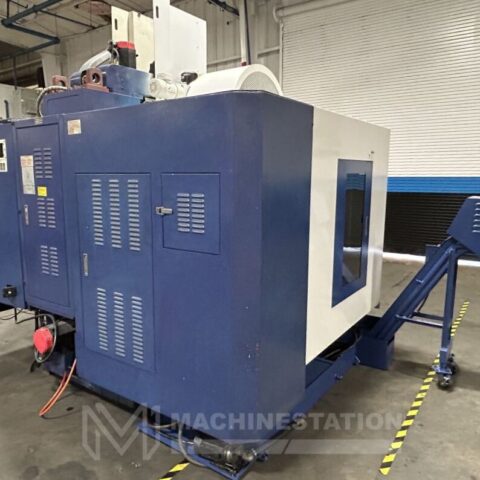

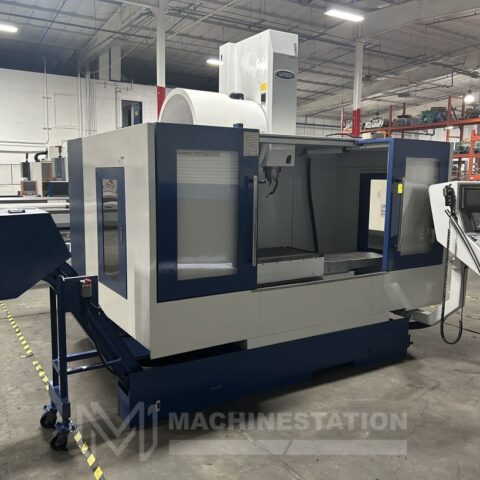

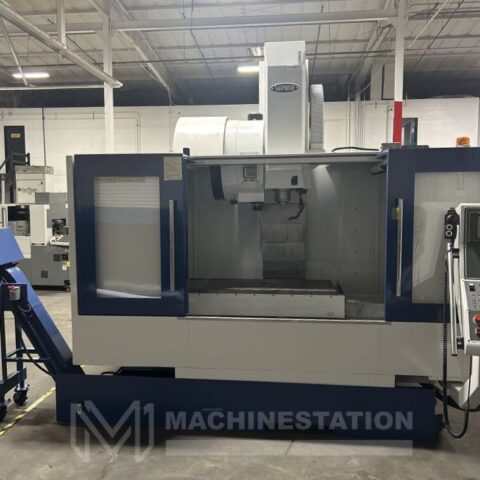

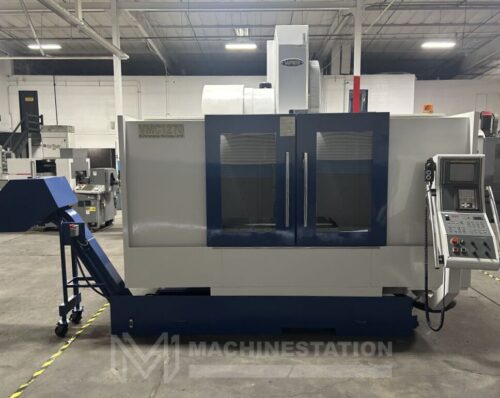

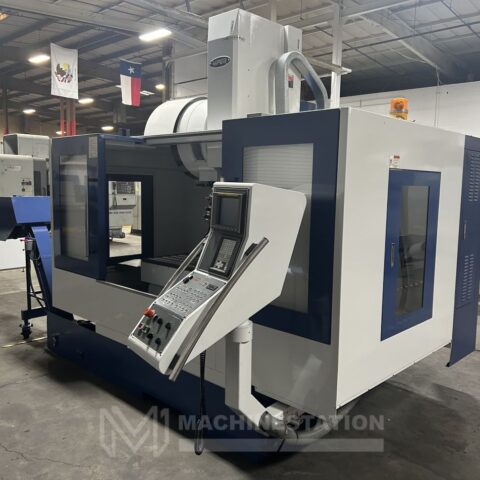

| Make: | Mighty Viper |
| Model: | VMC-1270A |
| Year: | 2002 |
| Condition: | Used – Good |
| Features: |
|---|
| Box Way construction |

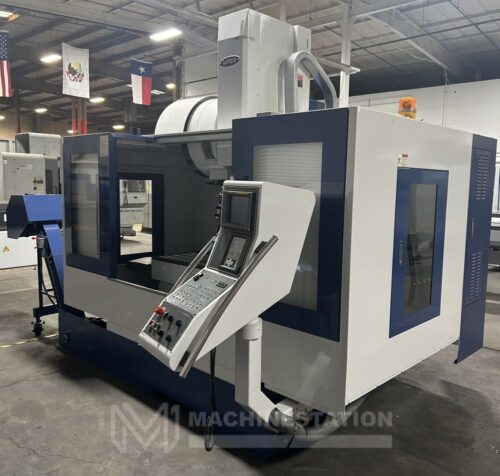

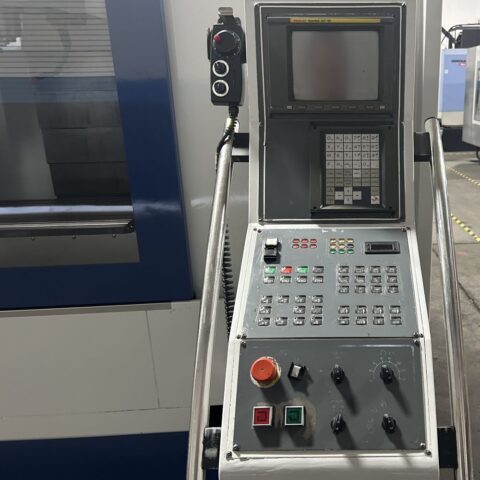

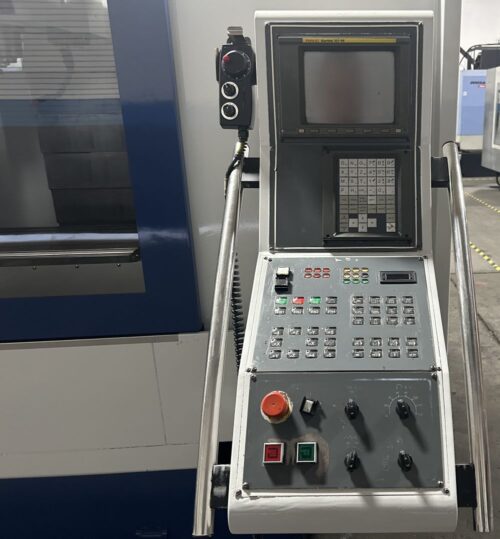

| Fanuc Oi-M series CNC Control |

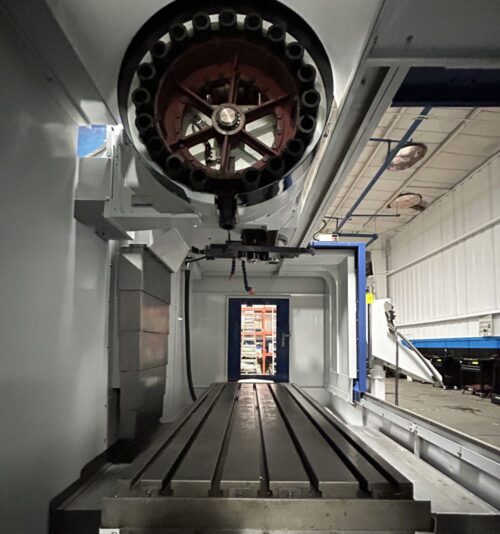

| 20 Station Automatic tool changer |
| 6,000 RPM Spindle |
| PCMCIA Card Slot |
| RS-232 Port |
| MPG Handwheel Control |
| Rigid Tapping |
| Telescopic way covers |
| Coolant System |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 50″ |
| Y-Axis: 25″ |
| Z-Axis: 25″ |
| Spindle Nose to Table (Min.- Max.): 3.94″ – 30.7″ |
| Rapid Traverse Rates X, Y Axis: 1181″ Per Minute |
| Rapid Traverse Rates Z Axis: 787″ Per Minute |
| Cutting Feed Rates: 400″ Per Minute |

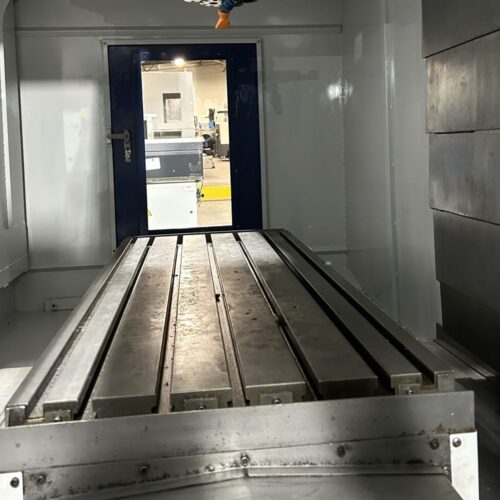

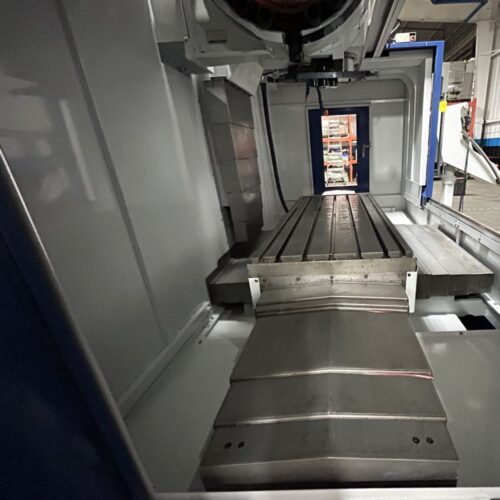

| Table: |
|---|
| Length: 54″ |
| Width: 23″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1360.8 kg |

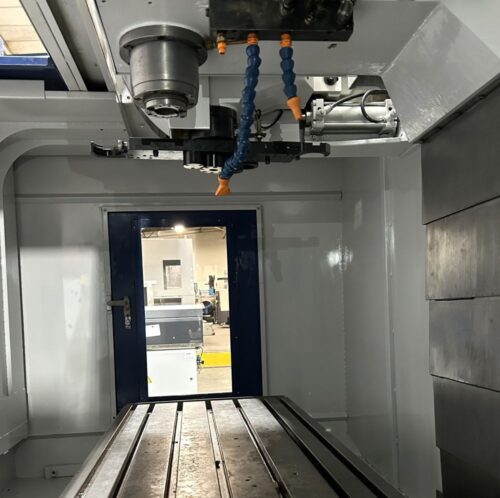

| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 6,000 RPM |
| Spindle Power: 11.2 kW |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Station |
| Tool Weight: 6.4 kg |
| Max Tool Dia: 3.95″ |
| Max Tool Length: 9.84″ |
| General: |
|---|

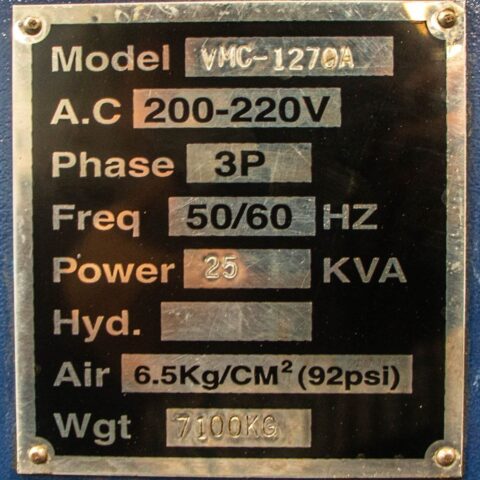

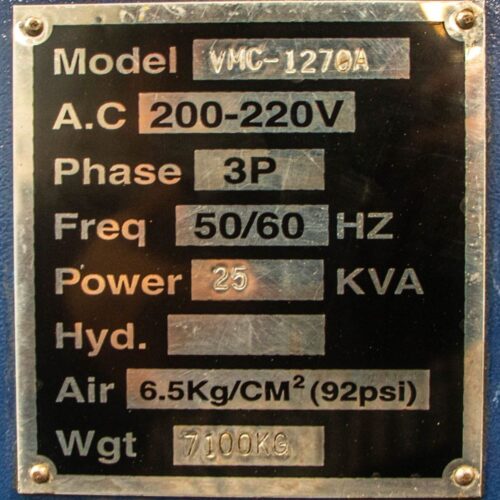

| Air Required: 92 psi, 4 scfm |
| Power: 220v / 3-Phase / 25 kva |
| Overall Dimensions: 170″ x 96″ x 106″ High |
| Weight: 7099.6 kg |
