*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 1985 |

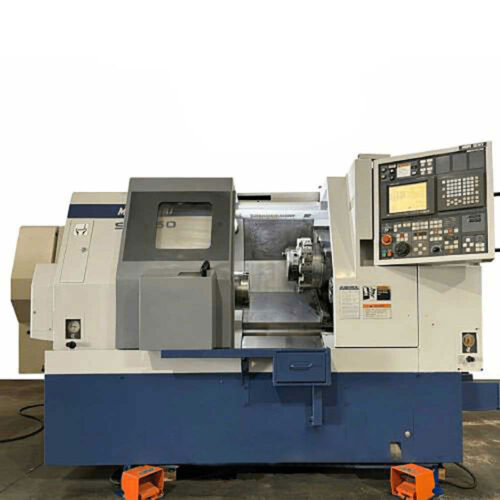

| Make: | Mori Seiki |
| Model: | SL-250BSMC |
| Year: | 1997 |
| Cutting Hours: | 7290 |
| Features: |
|---|

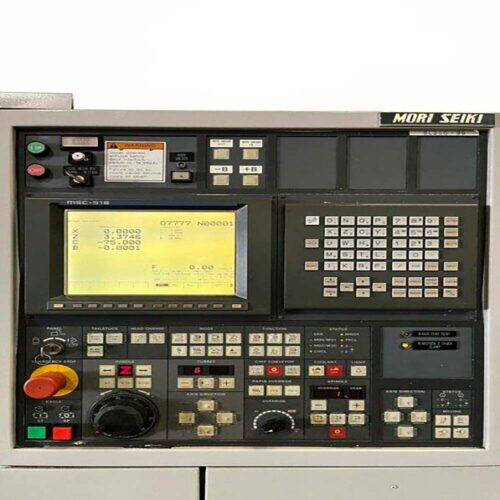

| Fanuc MSC-518 CNC Control |

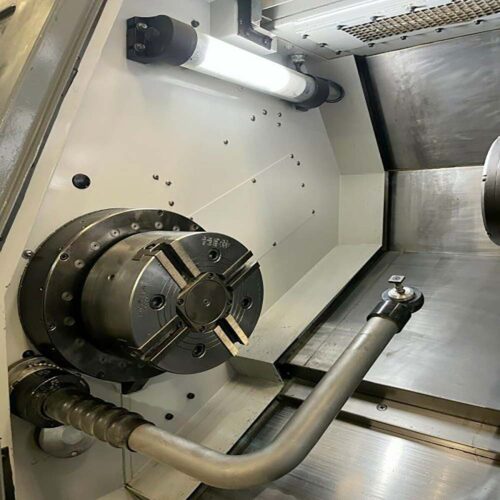

| 10″ 3-Jaw Kitagawa Hydraulic Chuck |

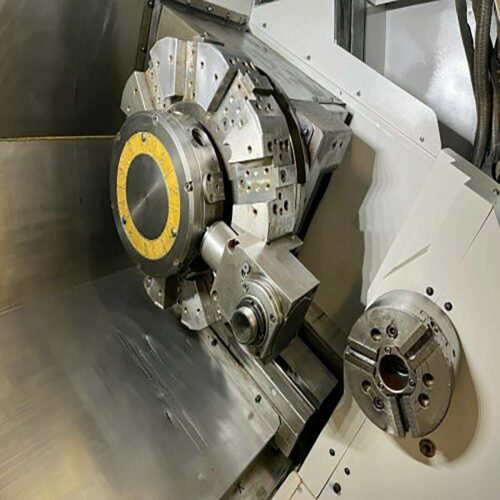

| 10-Live Station Turret |

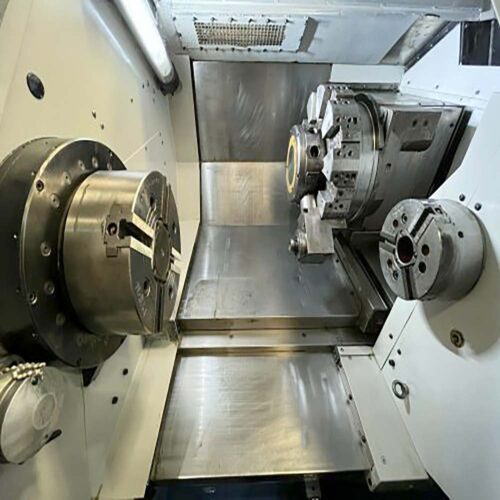

| Sub Spindle with 8″ chuck |
| Tool Presetter |
| 2 Step Gear Spindle for Powerful Torque |
| Chip Pan |
| Coolant System |
| Automatic Lubrication System |
| Foot Operated Control |
| 1 Live Tool Holder |
| Specifications: |
|---|
| Capacity: |
| Max Turning Diameter: 15.35″ |
| Max Turning Length: 22.64″ |
| Max Bar Capacity: 2.87″ |
| Swing Over Cross Slide: 20.08″ |
| Swing Over Bed: 26.77″ |
| Distance Between Spindles: 22.64″ |
| Turret: |
|---|
| Turret Capacity: 10 Live Stations |
| Turret Index Time: 0.5 Second |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.38″ |
| Spindle Speed: 35-3500 RPM |
| Spindle Motor: 14.9 kW |
| Sub Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: ″ |
| Spindle Speed: 35-3500 RPM |
| Spindle Motor: 11.2 kW |
| Travel: |
|---|
| X Axis Travel: 9.25″ |
| Z Axis Travel: 22.64″ |
| B Axis Travel: 19.84″ |
| C Axis: 0.001° |
| Rapid Traverse X Axis: 2007 cm/min |
| Rapid Traverse Z Axis: 2400 cm/min |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 35 kva |
| Overall Dimensions: 94.69″ x 69.29″ x 74.21″ High |
| Weight : 5896.7 kg Approx. |
