*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

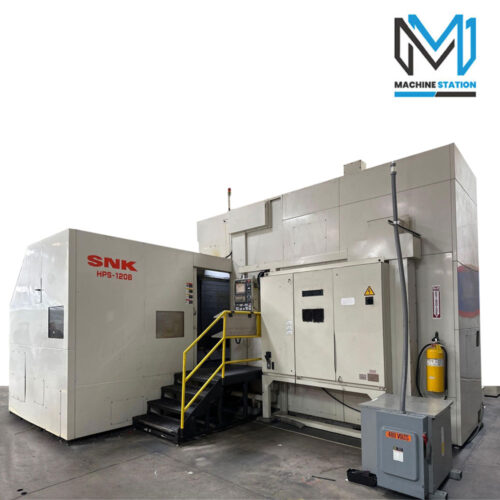

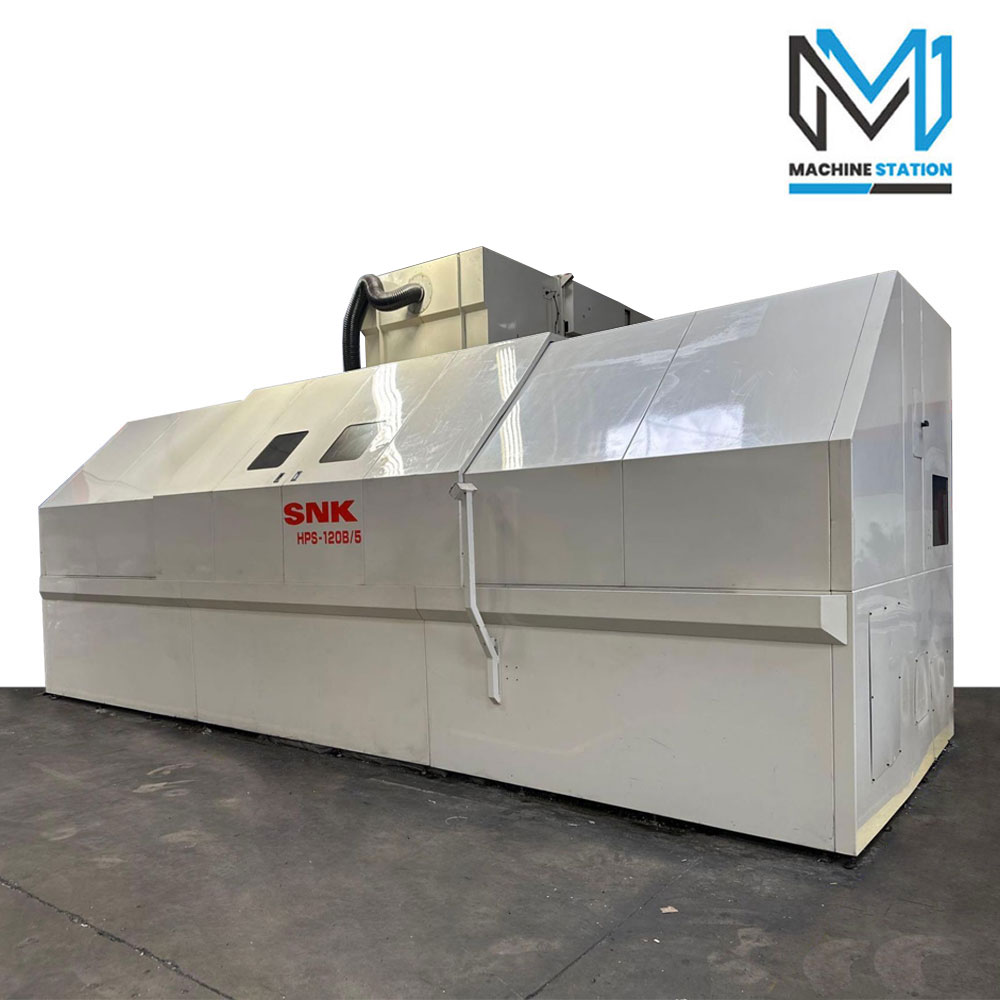

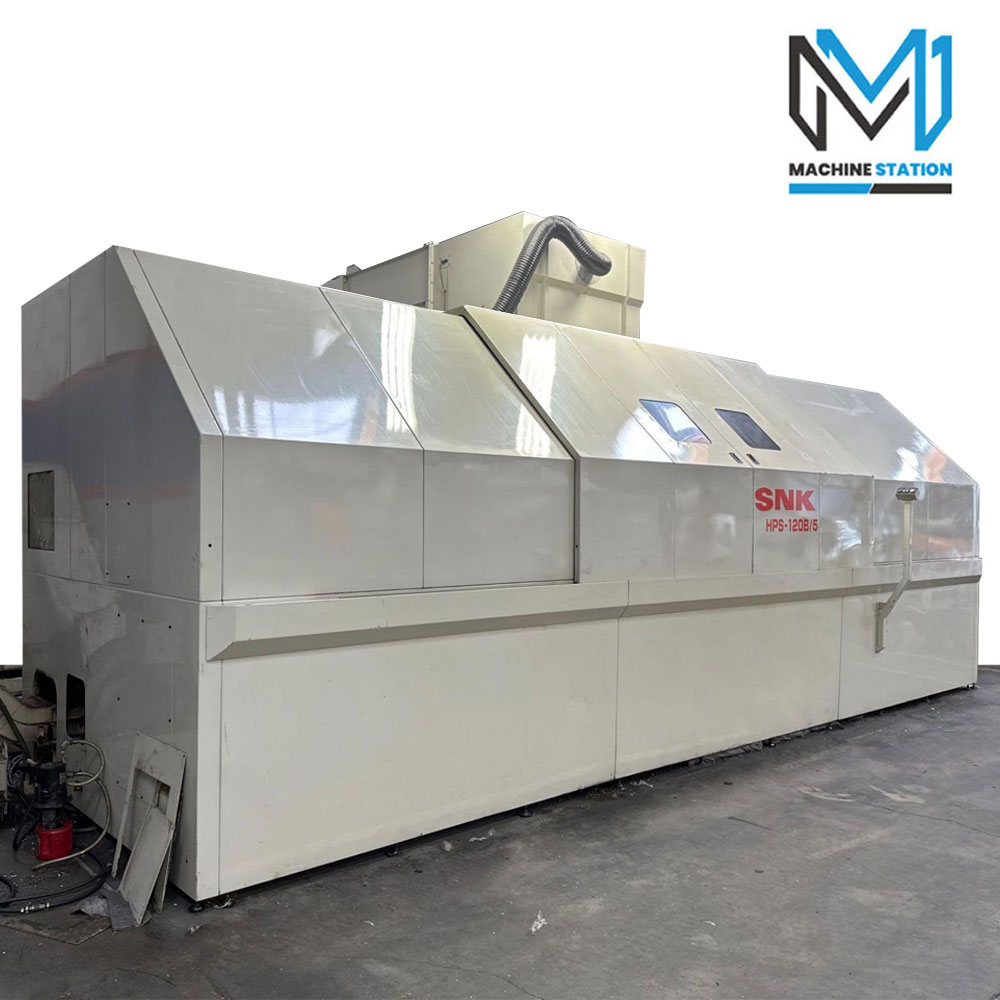

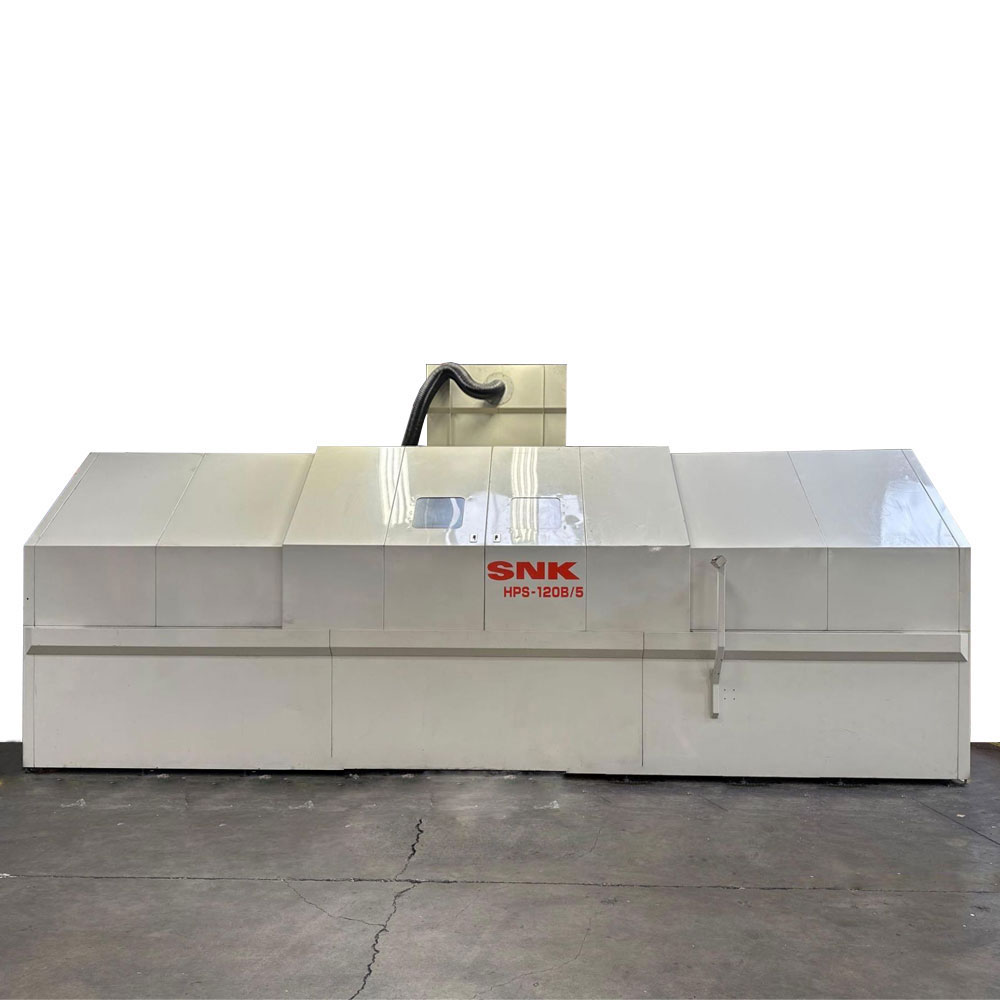

| Make: | SNK |
| Model: | HPS120B/5 |

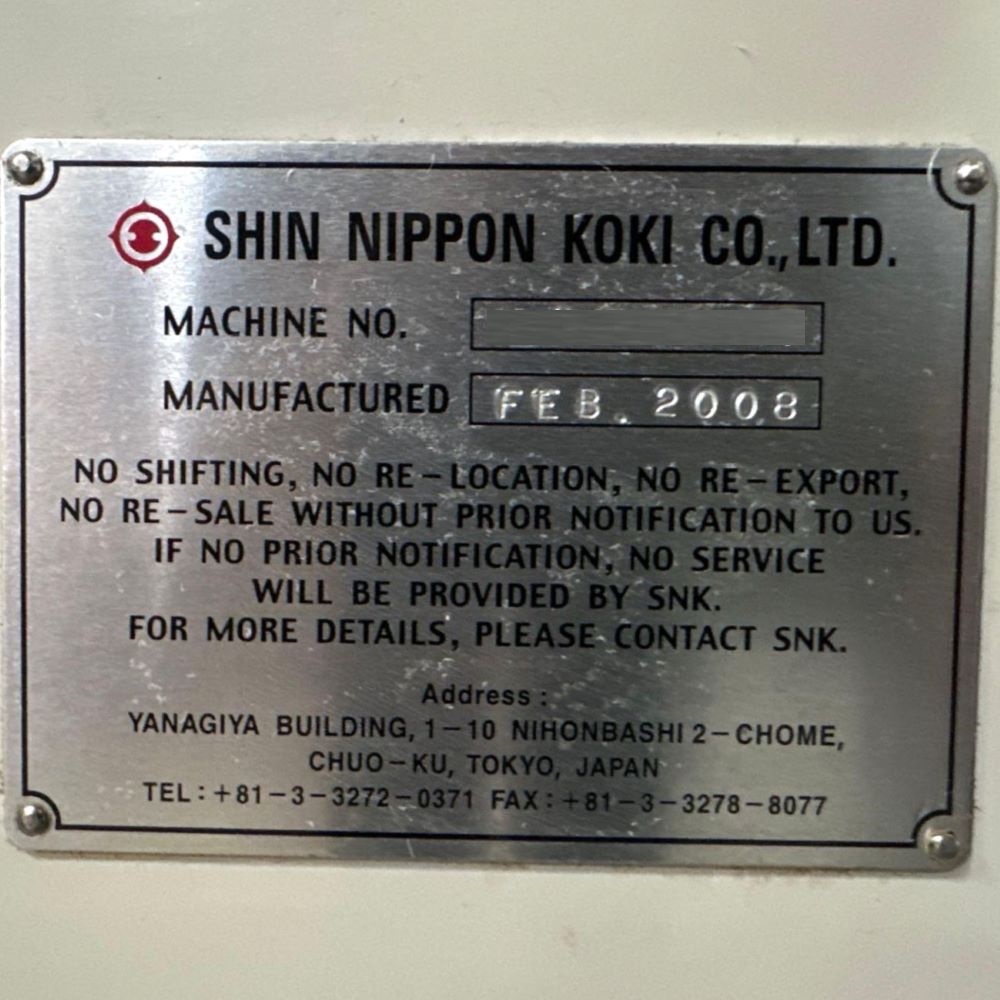

| Year: | 2008 |
| Condition: | Used – Good |
| Equipped With: |
|---|

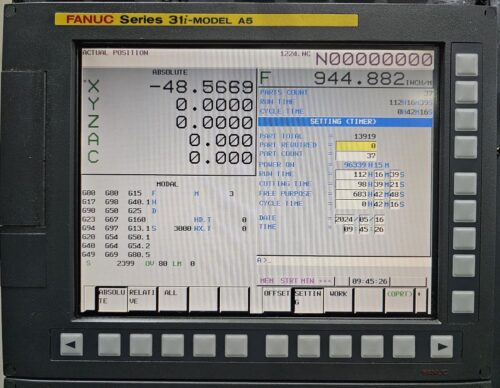

| Fanuc 31iM 5 Axis Simultaneous Contouring Control |

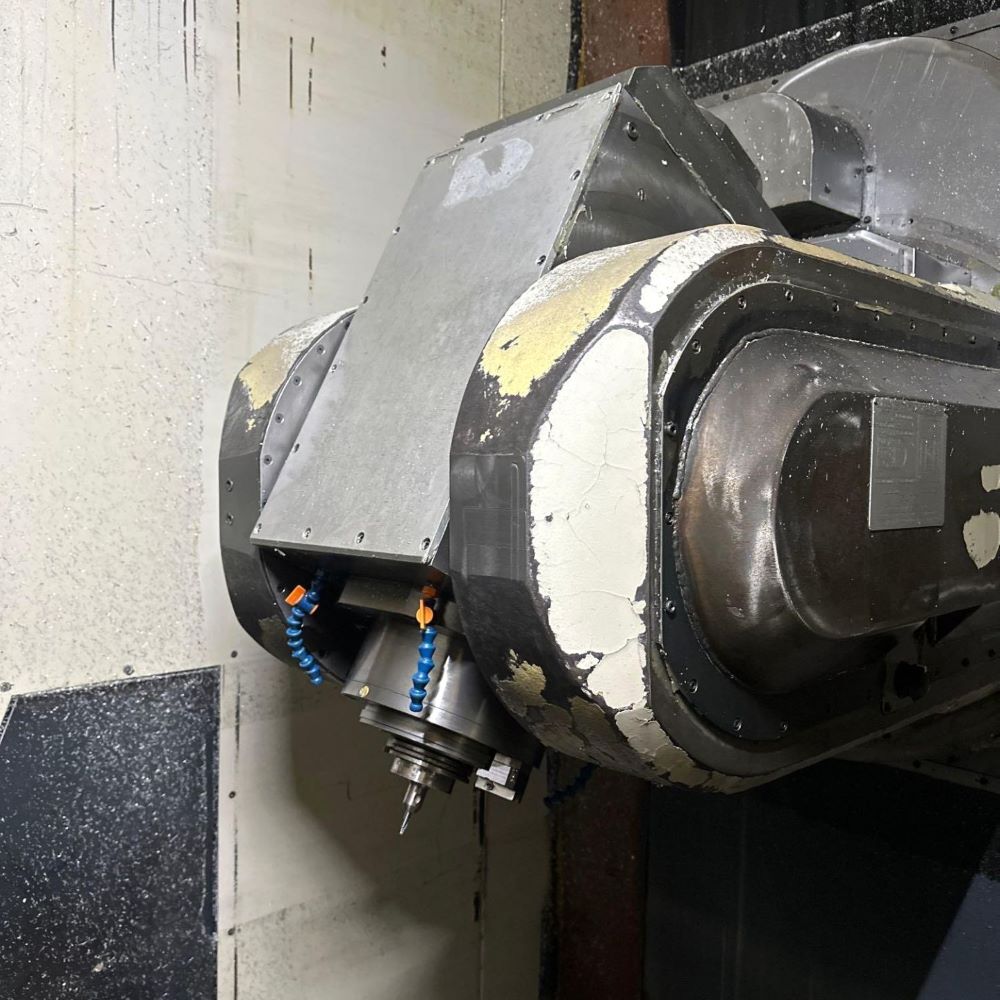

| Articulating Spindle Head (A & C Axis) |

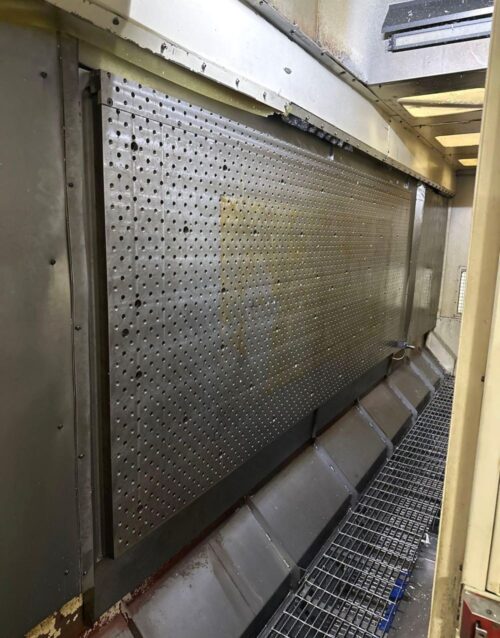

| 120” x 48” Hydraulic Tilt Table |
| 37.3 kW High Torque Spindle Motor |
| 50 Taper 15000 RPM Gear Head Spindle |
| Through Spindle Coolant |
| Box Way Heavy Construction |
| MPG Control |
| Rigid Tapping |
| PCMCIA Card Slot |
| Telescopic way covers |

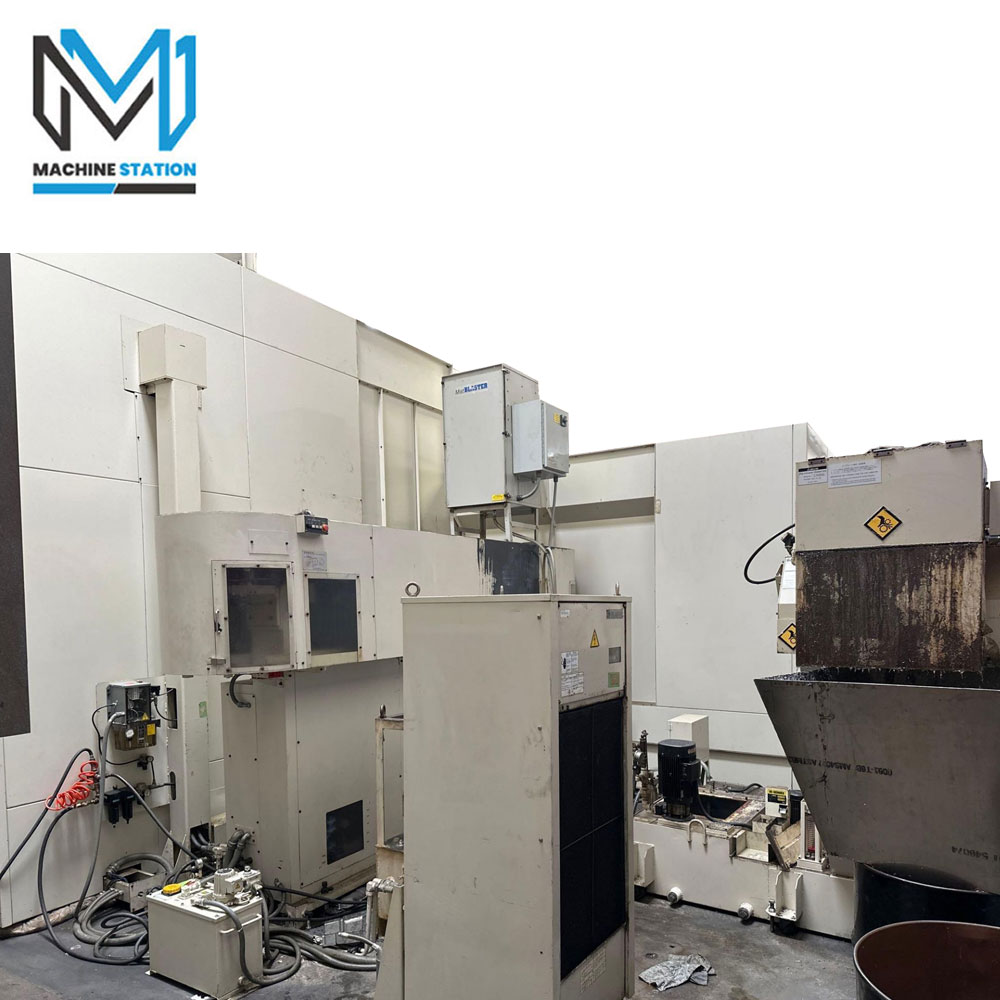

| Chip Blaster Mist Collector |

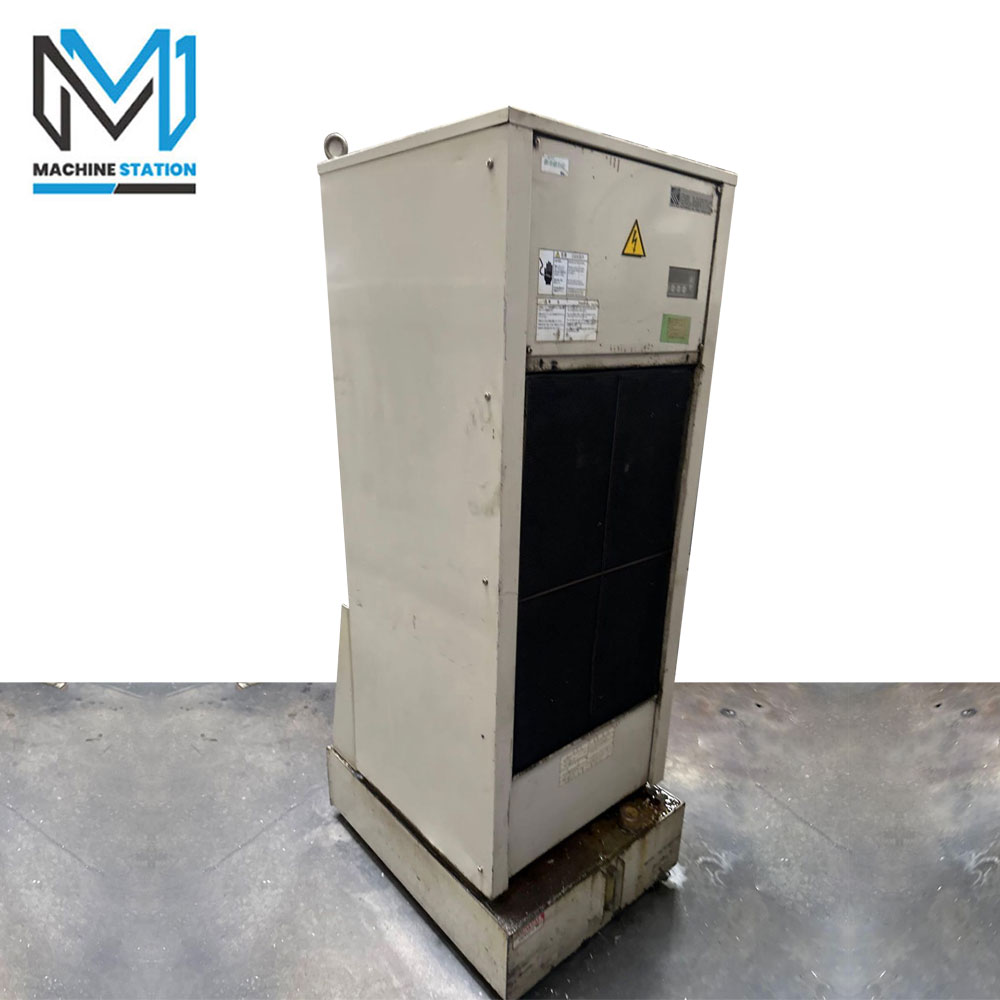

| Chiller Unit |
| Coolant Tank |
| Chip Conveyor |
| Travels: |
|---|
| Table Longitudinal (X-Axis): 124.0″ |
| Spindle Head Vertical (Y-Axis): 52.0″ |
| Column Transverse (Z-Axis): 30.0″ |
| Spindle Head Tilt (A-Axis): +/- 90° degrees |
| Spindle Head Rotation (C-Axis): +/- 360° degrees |
| Spindle Nose to Table (Min.- Max.): 5.0″ – 33.0″ |
| Feedrates: |
|---|
| Rapid Traverse Rates (X, Z Axis): 945 Inch Per Minute |
| Rapid Traverse Rates (Y Axis): 787 Inch Per Minute |
| Rapid Traverse Rates (A, C Axis): 1800 Degree Per Minute |
| Cutting Feed Rates (X, Y, Z Axis): 393 Inch Per Minute |
| Cutting Feed Rates (A, C Axis): 1800 Degree Per Minute |
| Table: |
|---|
| Work Mounting Surface of Table: |
| Length: 120.0″ |
| Width: 48.0″ |
| Max Weight on Table: 4989.5 kg. |
| Table Positioning: |
|---|
| At Time of Work Piece Setting: 0 Degree (In Horizontal Position) |
| At Time of Work Piece Machining: 90 Degree (In Vertical Position) |
| Spindle: |
|---|
| Articulated 5 Axis |
| Taper Size: CAT-50 |
| Speed Range: 15,000 RPM |
| Spindle Power: 37.3 kW |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 379″ x 308″ x 153″ High |
| Weight: lbs ? |
