Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |
| 3.94″ Spindle Diameter |
| 4th Axis Rotary Table |
| Heavy Table Load Capacities |
| Gear Head Spindle for Powerful Torque |
| Facing Chuck |

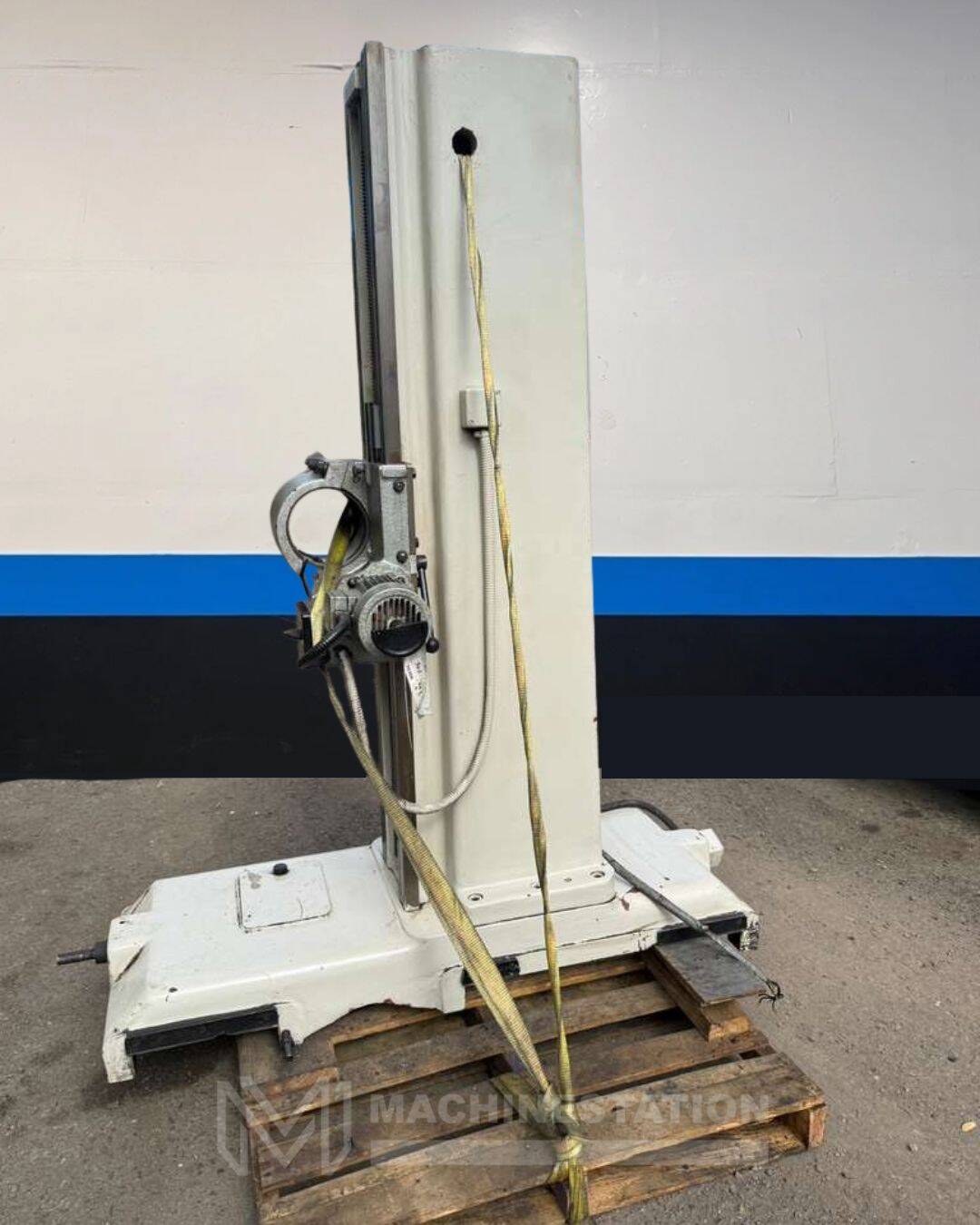

| Tailstock |

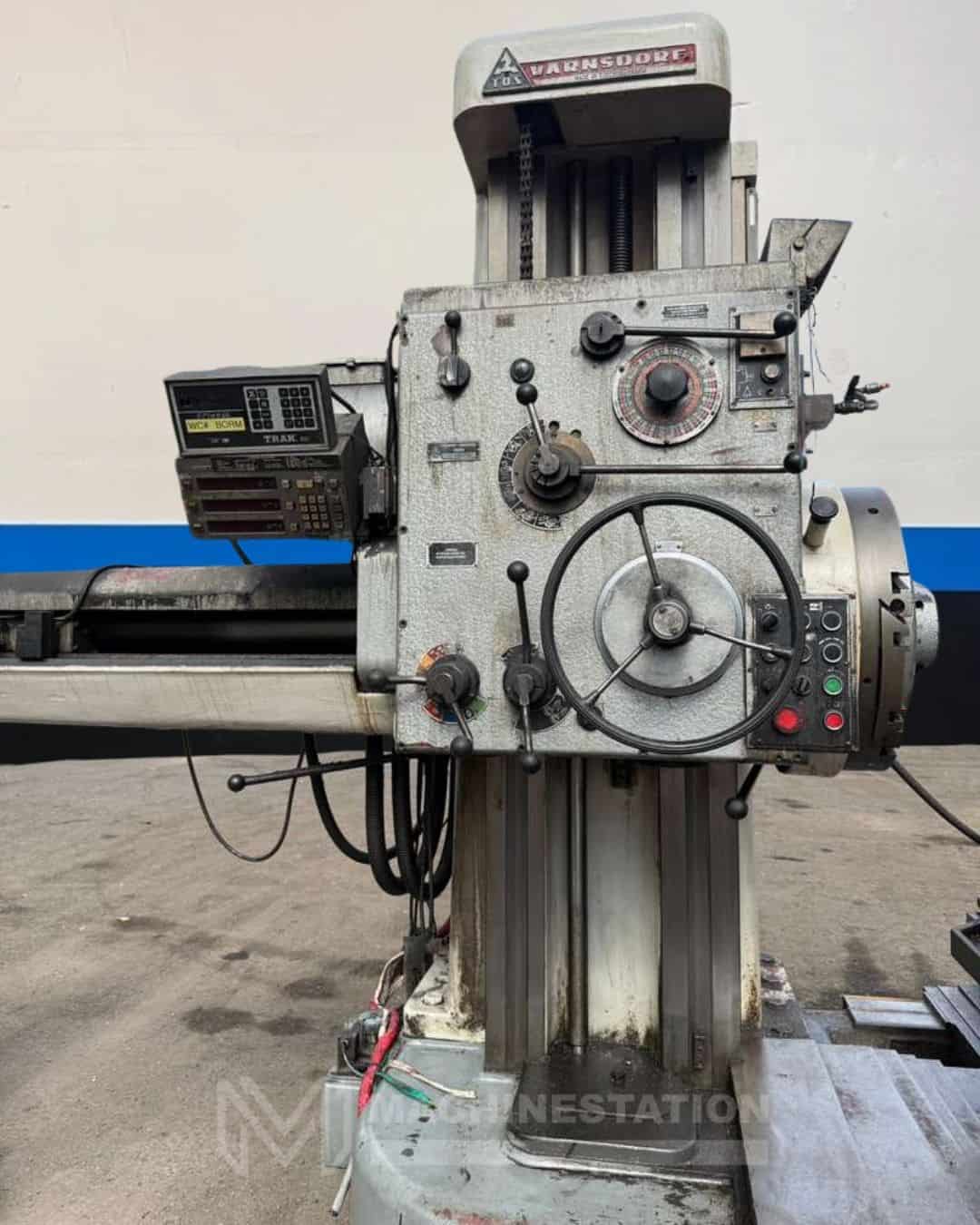

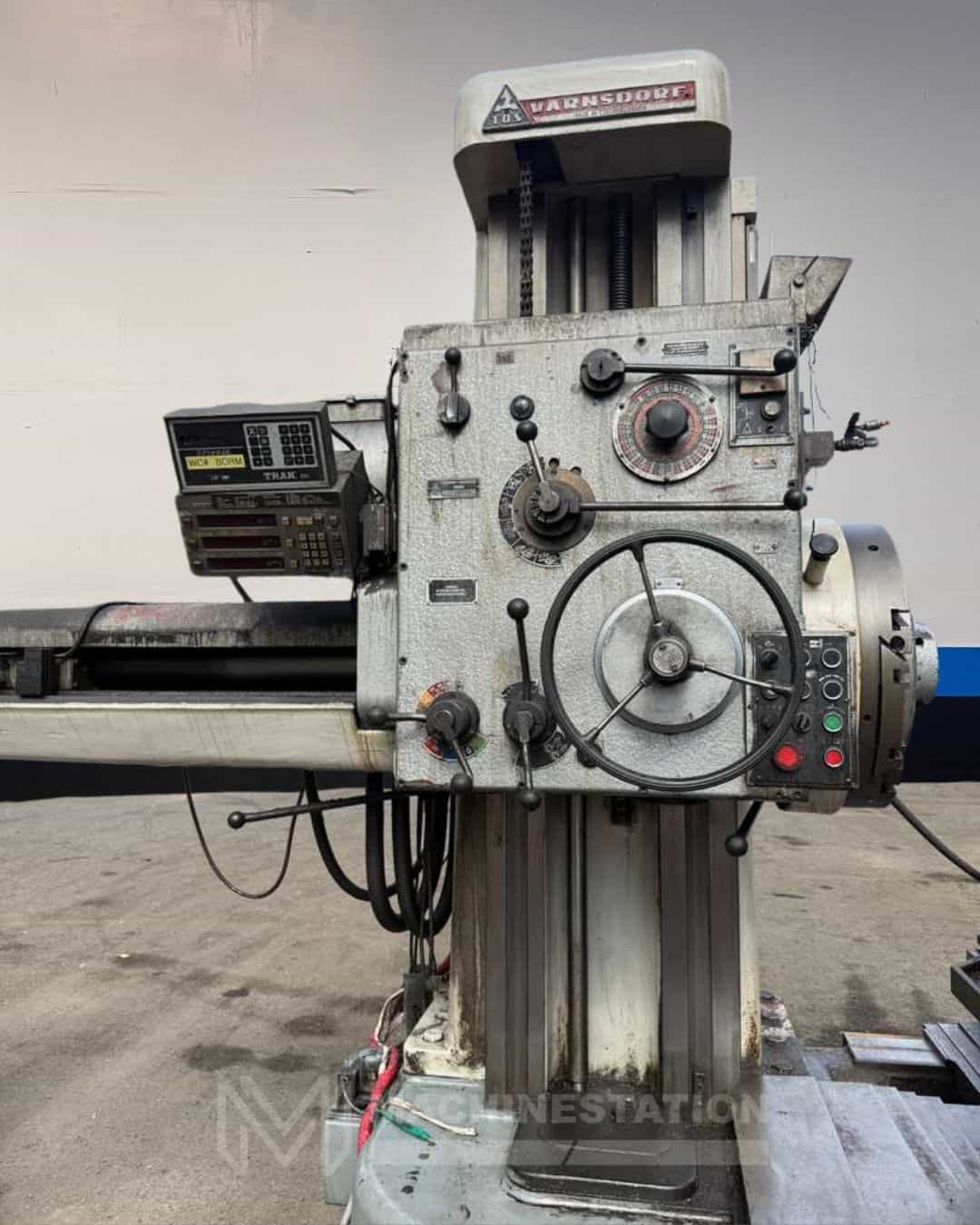

| DRO |
| Note: Machine is dismantled and Ready to be loaded on the Truck |
| Travels: |
| X Axis (Table Traverse Travel): 63.00″ |
| Y Axis (Headstock Vertical Travel): 44.09″ |
| Z Axis (Table Longitudinal Travel): 49.21″ |
| W Axis (Spindle Stroke): 27.6″ |
| Feed Rates: |
| Feeds For Boring – 32 Stages: 0.0008 – 0.47 inch/rev. |
| Feeds For Milling – 18 Stages: 0.71 – 35.43 inch/min |
| Rapid Traverse (Spindle Stroke, Headstock and Table): 110.24 inch/min |

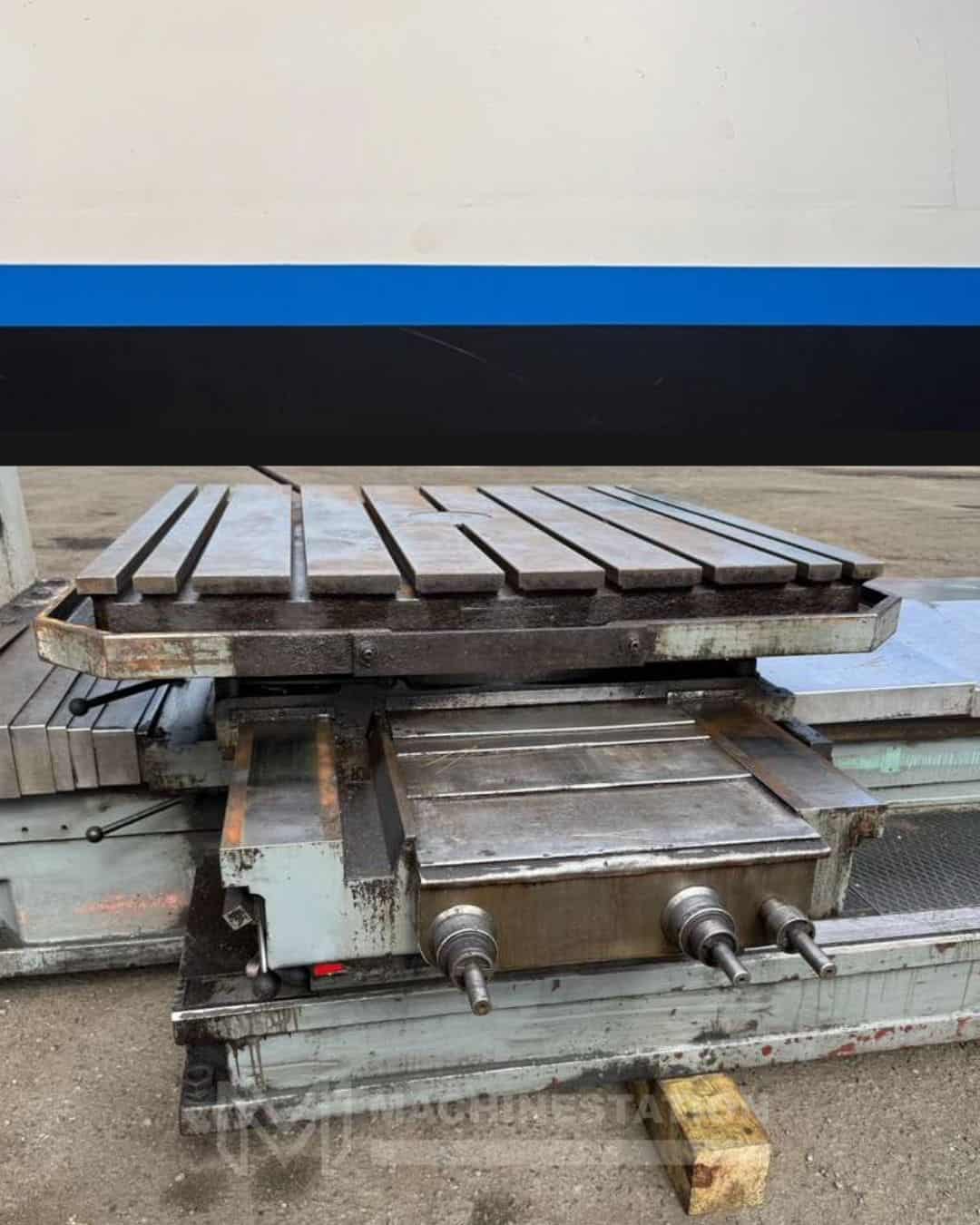

| Rotary Table: |
| Length: 49.21″ |
| Width: 49.21″ |
| Max Weight on Table: 6,624 lbs |
| Indexing: 1 Degree |
| Spindle: |
| Spindle Diameter: 3.94″ |
| Spindle Range: 7.1 – 1,120 RPM |
| Spindle Taper: 50 |
| Power: 15 HP |

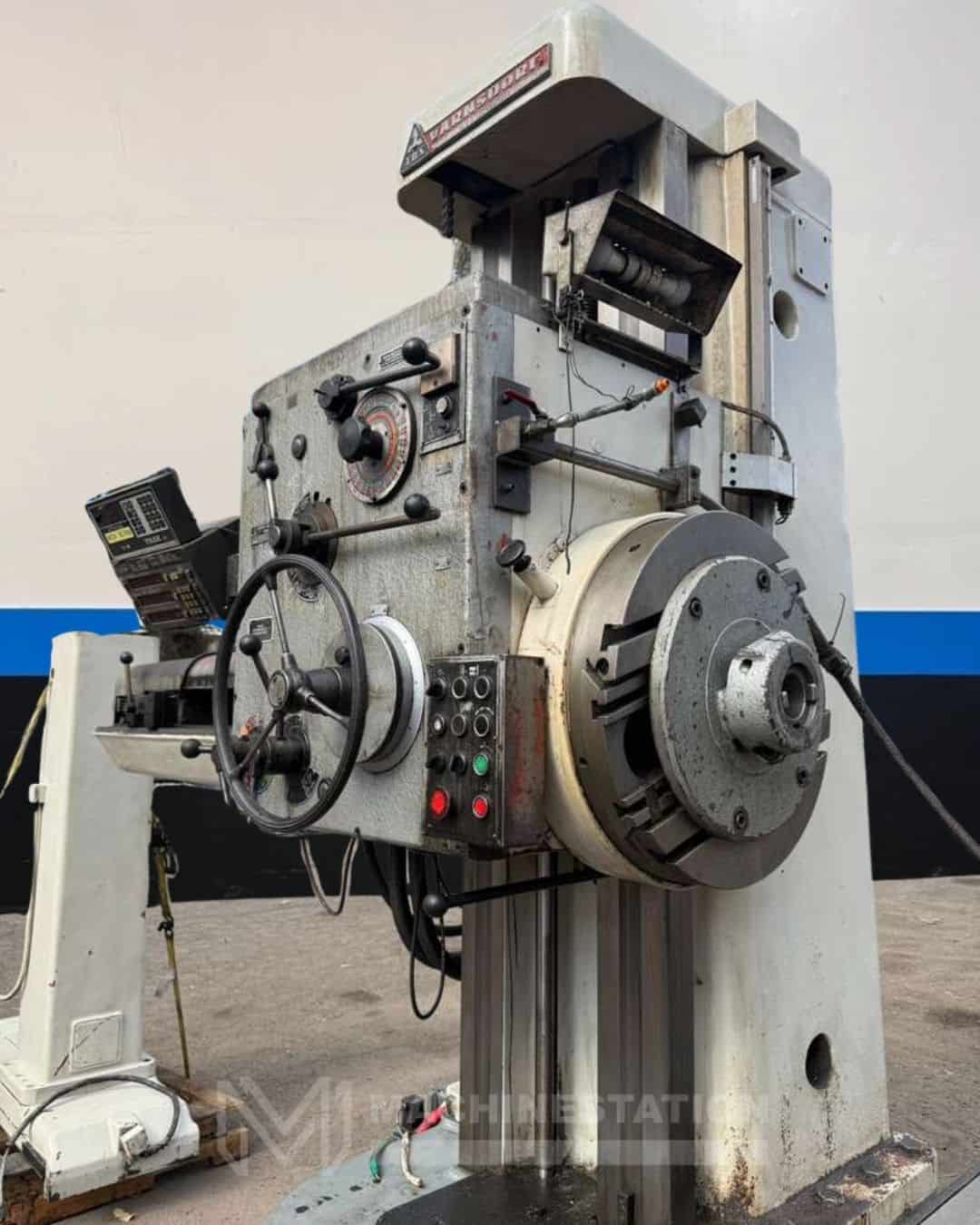

| Facing Head: |
| Diameter: 23.62″ |
| Slide Travel: 8.26″ |
| Facing Diameter Max: 35.43″ |
| Speed Range: 7.1 – 224 RPM |
| General: |
| Power: 66FLA / 205-220v / 3-Phase |
| Machine Dimensions: 234″ x 118″ x 118″ High |
| Machine Weight: 30,905 lbs. Approx. |
