Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

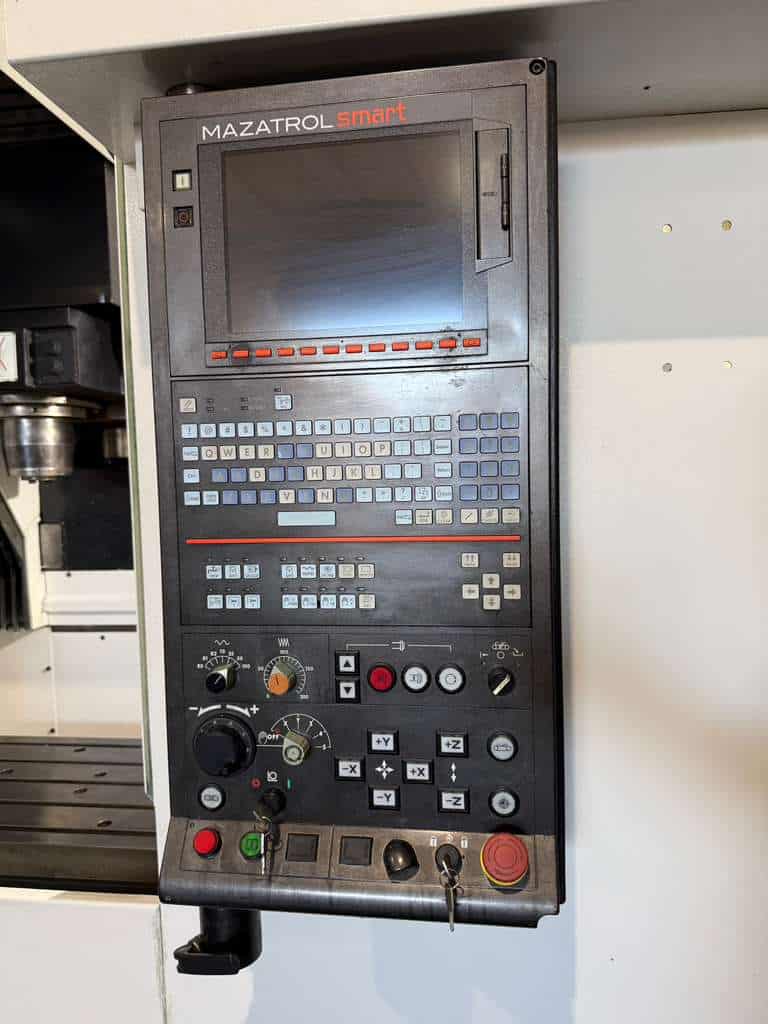

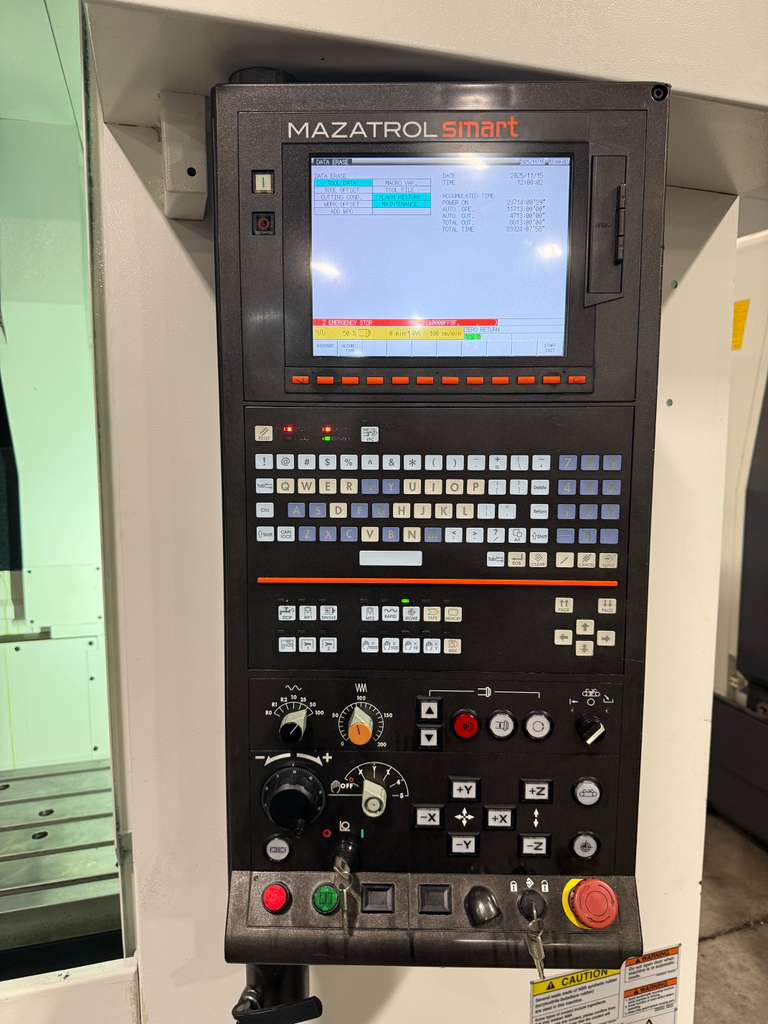

| Mazatrol Smart CNC Control |
| 12,000 RPM High Speed Spindle |
| Renishaw Probing System (Probe Needed) |

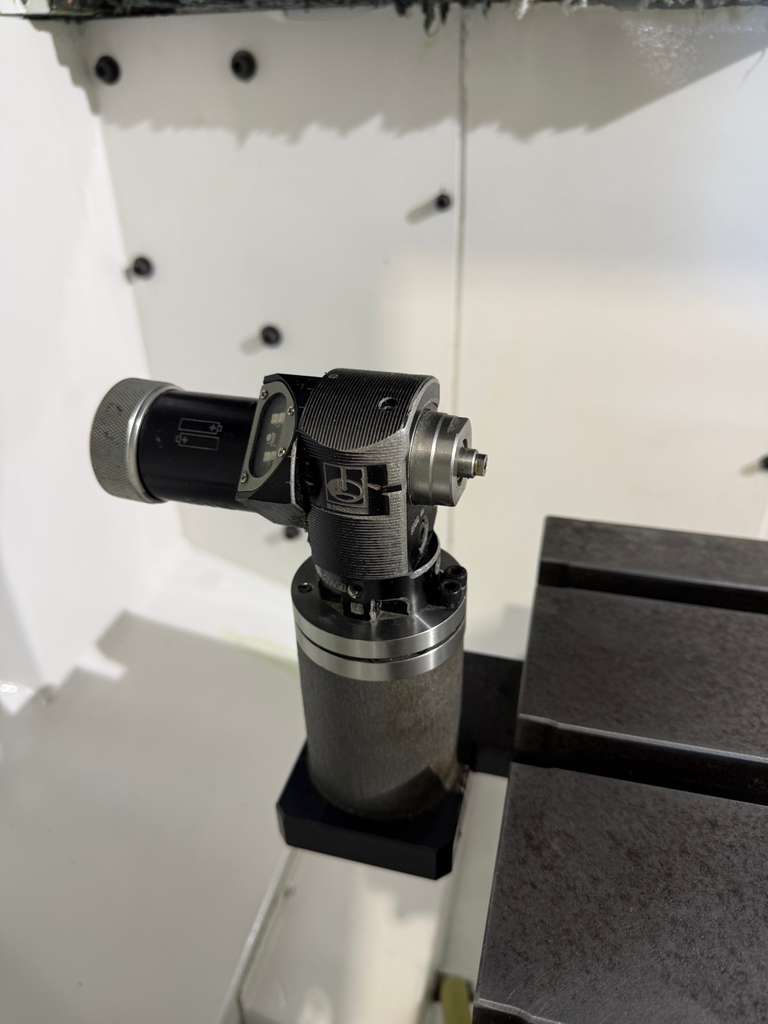

| Tool Presetter |
| Through Spindle Coolant |
| 30 Station Automatic tool changer |
| 25 HP High Torque Spindle |
| CAT-40 Taper Spindle |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |

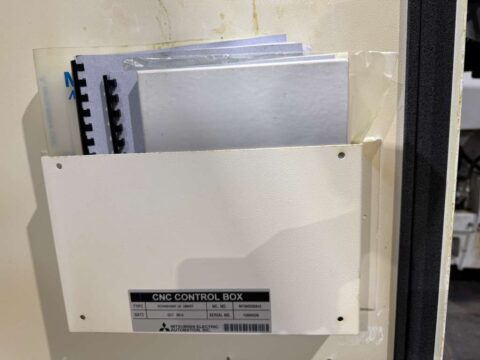

| Books & Manuals |
| Travels: |
| X-Axis: 39.37″ |
| Y-Axis: 19.88″ |
| Z-Axis: 20.07″ |
| Rapid Traverse Rates Axis: 1181 IPM |
| Spindle Nose to Table (Min.- Max.): 4.52″ – 24.60″ |

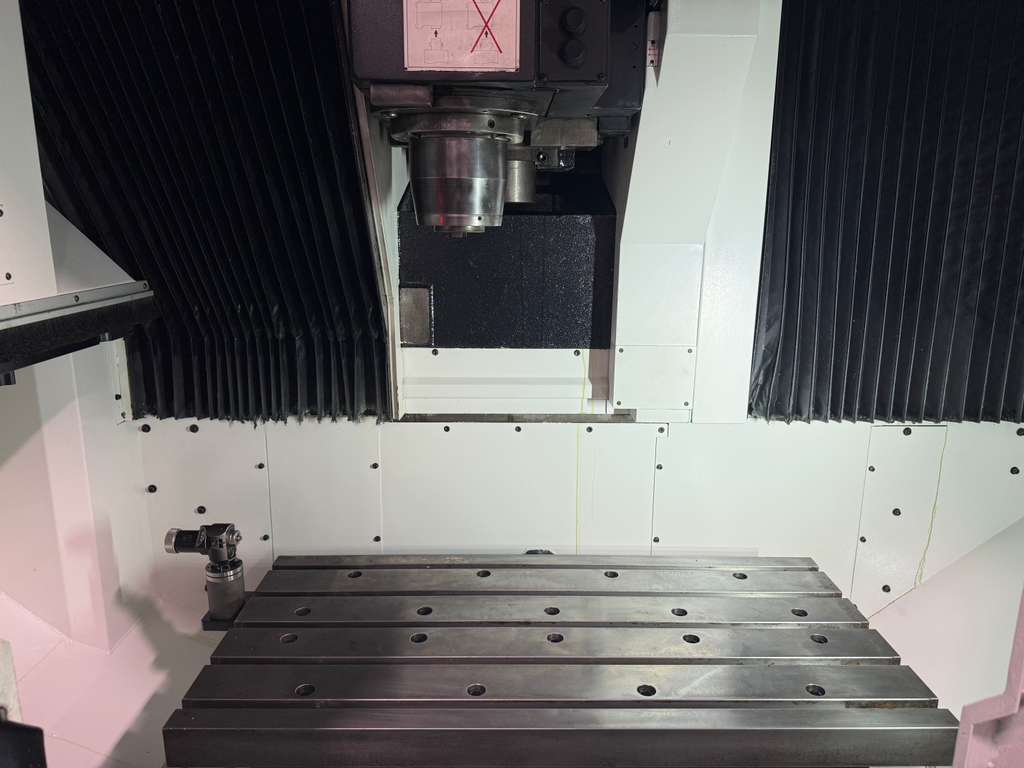

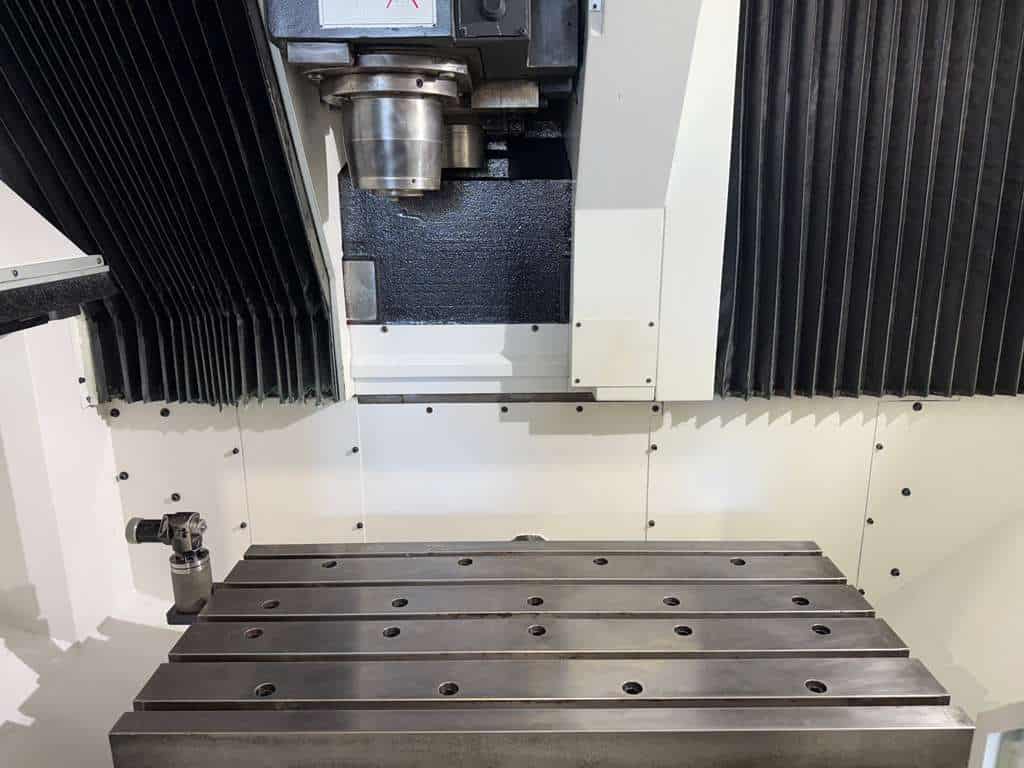

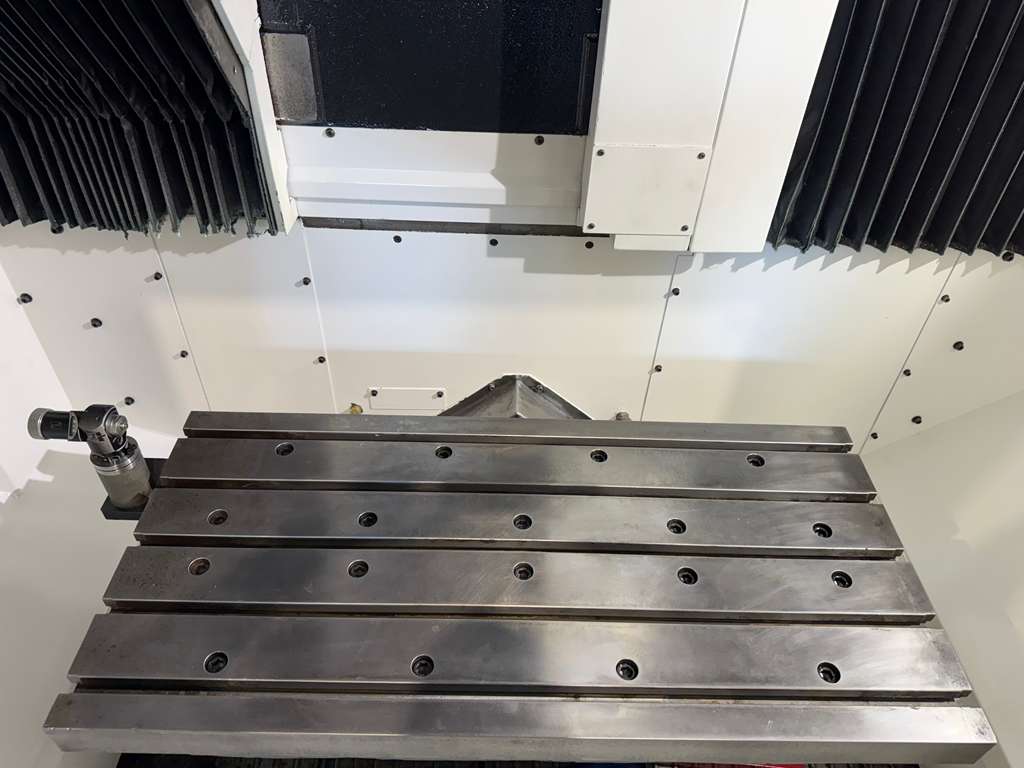

| Table: |
| Length: 39.37″ |
| Width: 19.68″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1322 lbs |
| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 12000 RPM |
| Spindle Power: 25 HP |

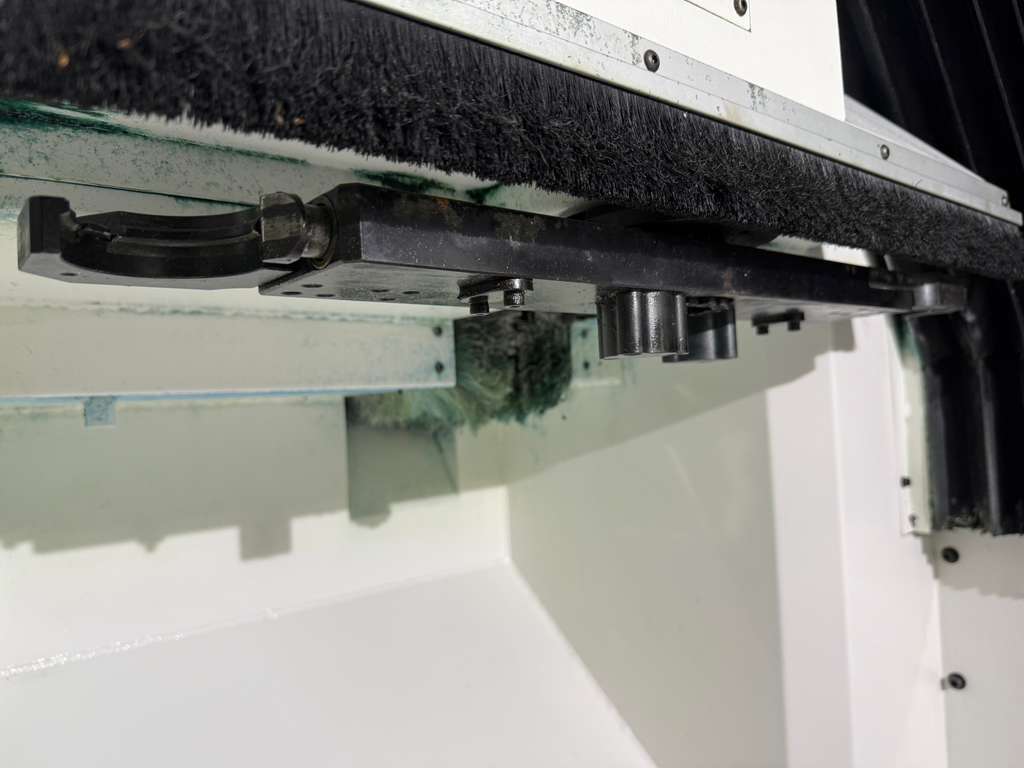

| Automatic Tool Changer: |
| Capacity: 30 Station Side Mounted |
| Max Tool Dia: 3.15″ – 4.92″ |
| Max Tool Length: 10.23″ |
| Max Tool Weight: 17.63 lbs |
| General: |
| Air Required: 80 psi, 4 scfm |

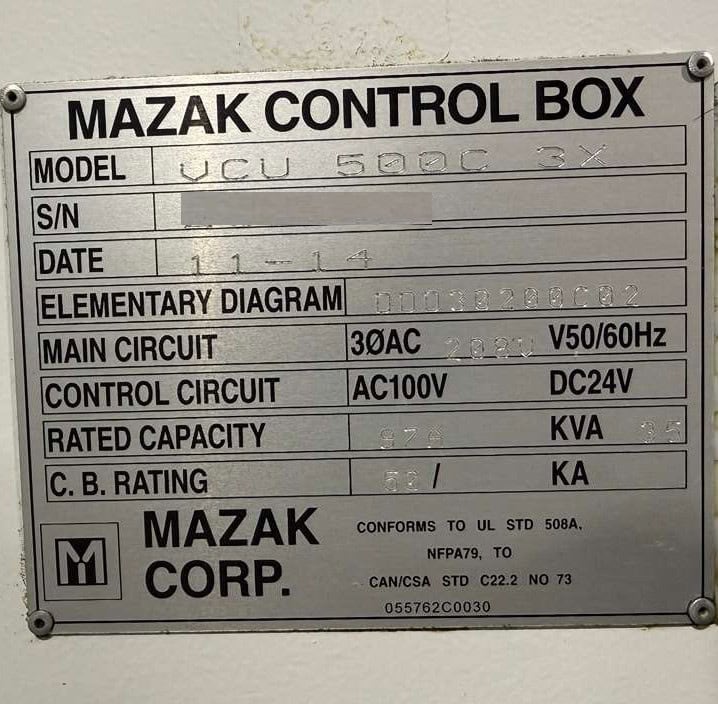

| Power: 208v / 35 kva / 3-Phase / 50/60 Hz |
| Overall Dimensions: 108.27″ x 125″ x 131.81″ High |

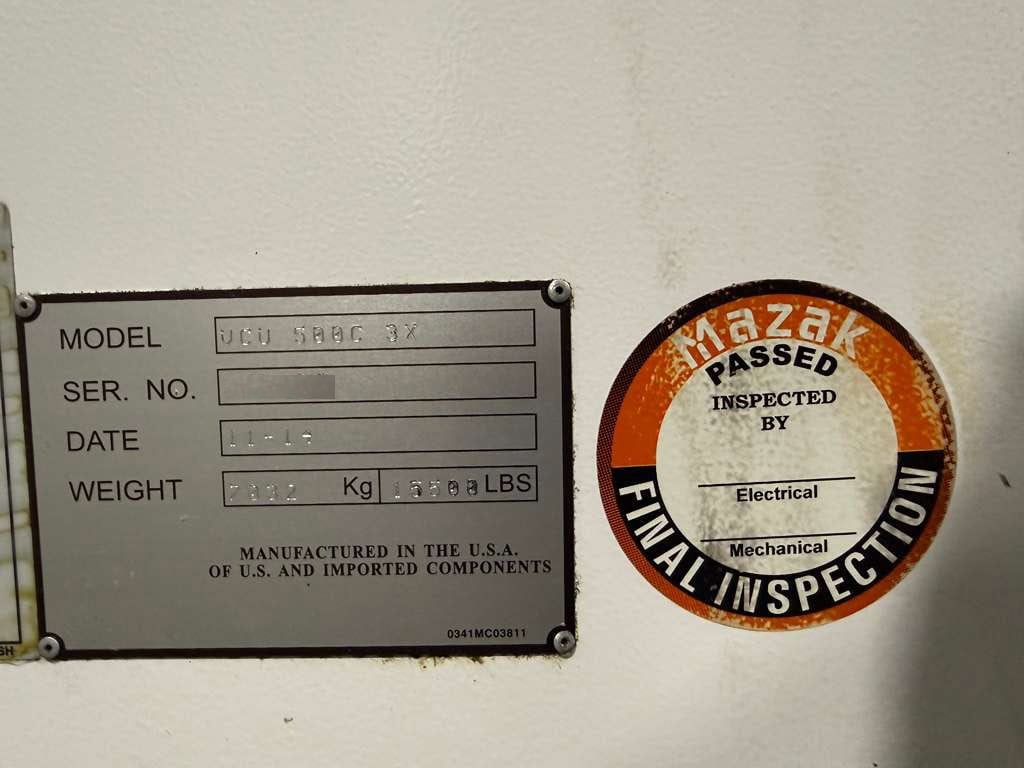

| Weight: 14,000 lbs Approx. |
