Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.

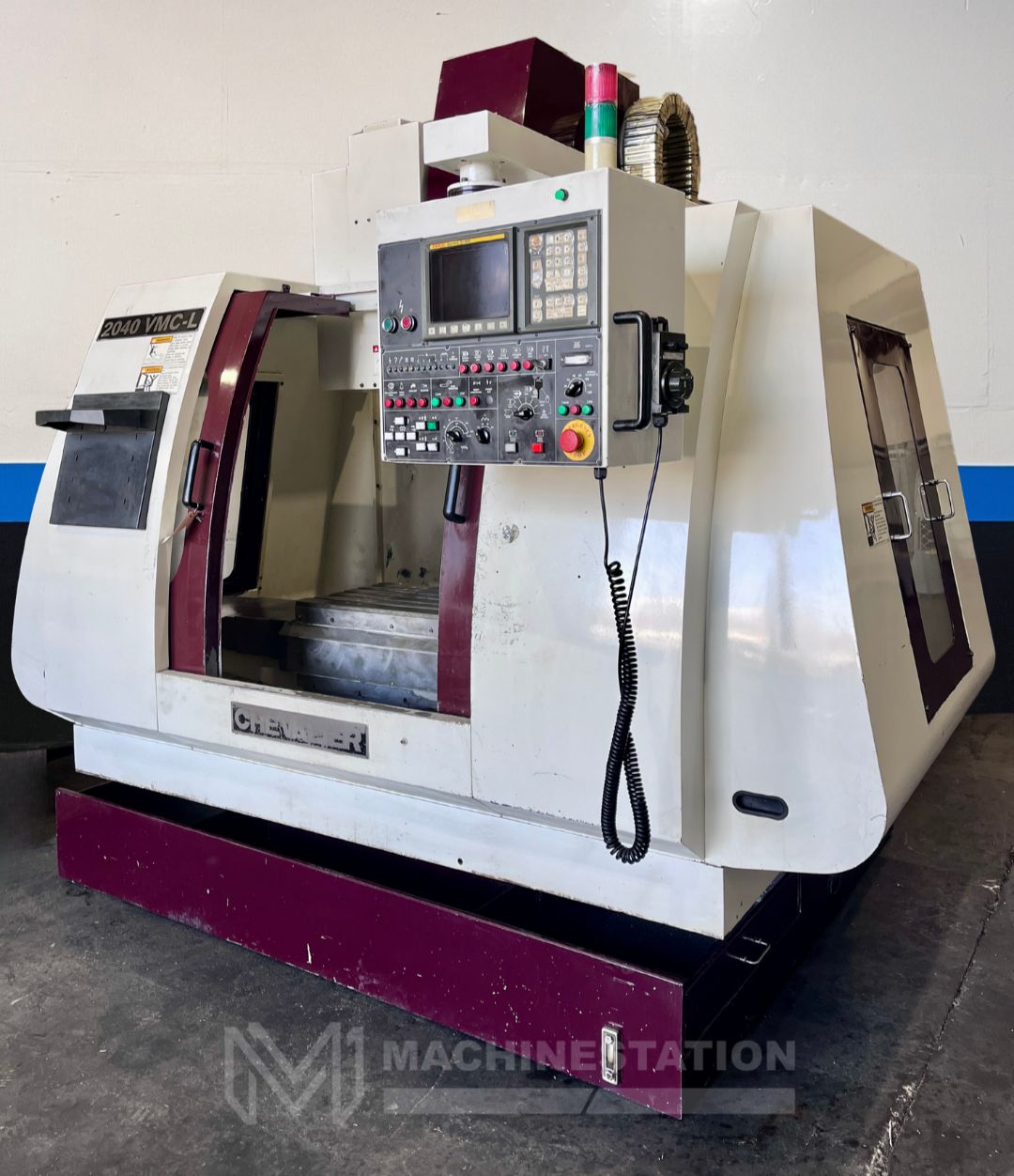

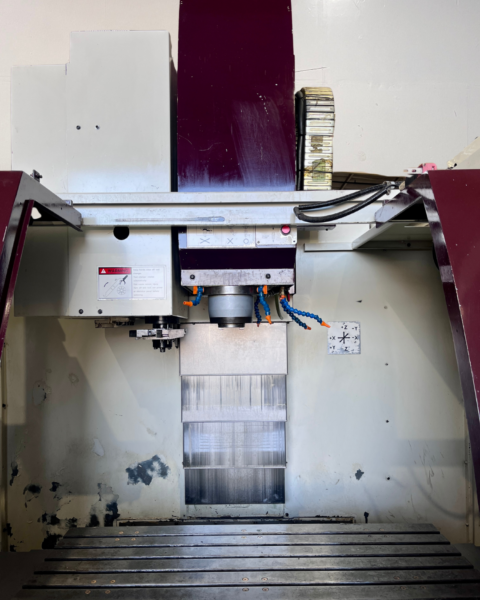

| Key Features of the Chevalier 2040 VMC-L: |

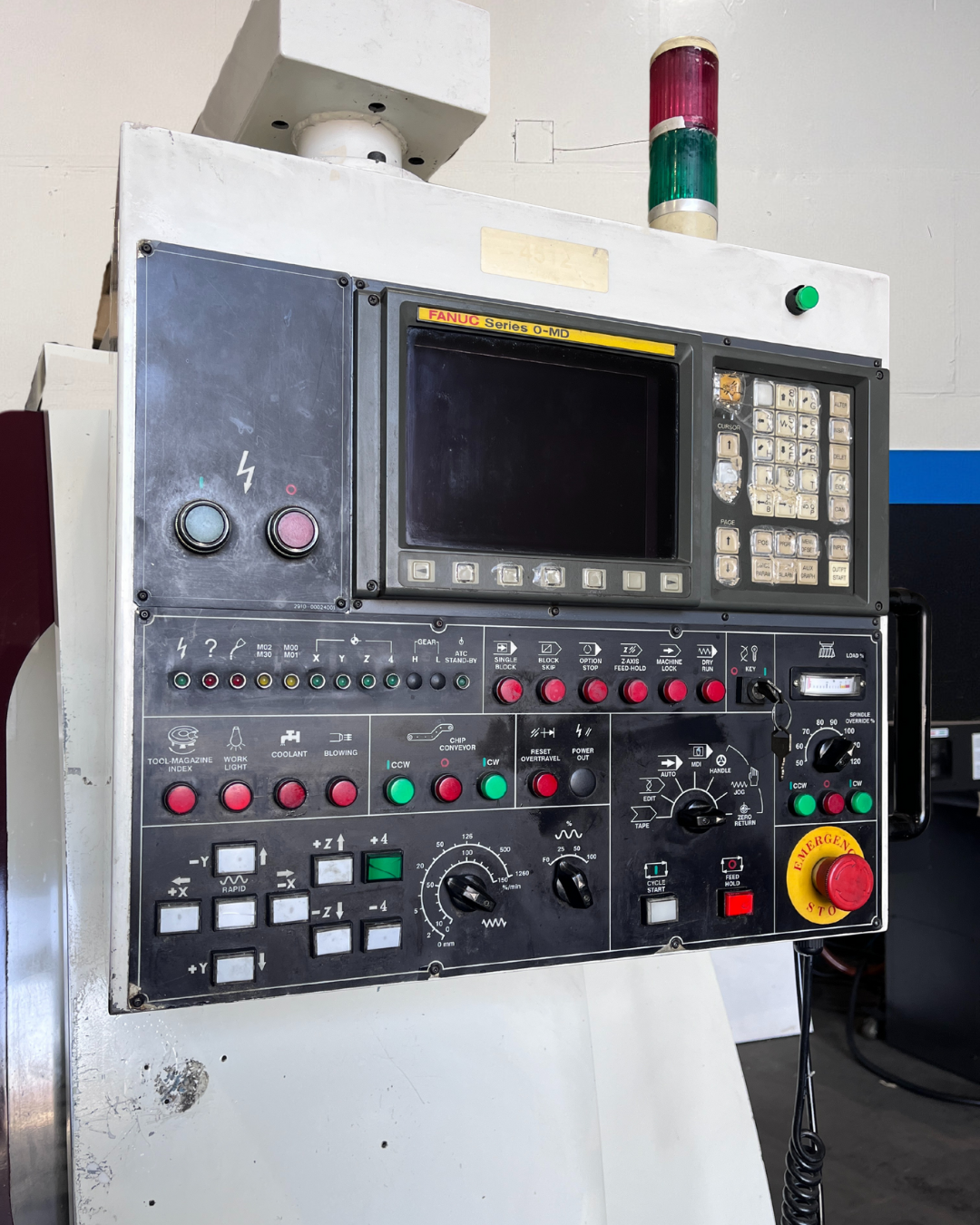

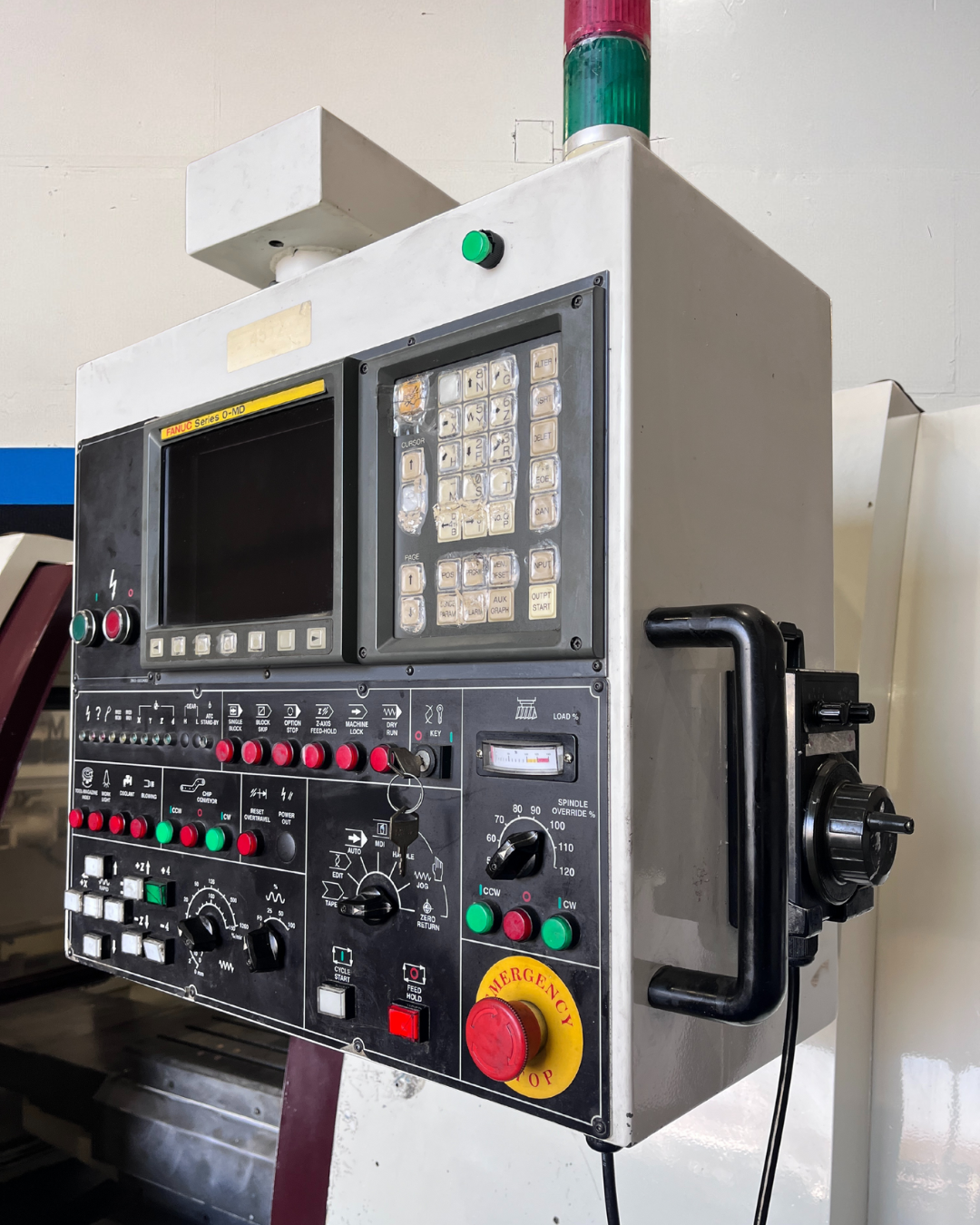

| Fanuc OM-D CNC Control |
| 8,000 RPM High-Speed Spindle |
| 24 Station Automatic Tool Changer |
| 15 HP High Torque Spindle |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |
| Automatic Lubrication System |
| Travel: |
| X-Axis: 40.2″ |
| Y-Axis: 20.1″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates: 944 Inch Per Minute |
| Cutting Feedrates: 393 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.1″ – 25.2″ |

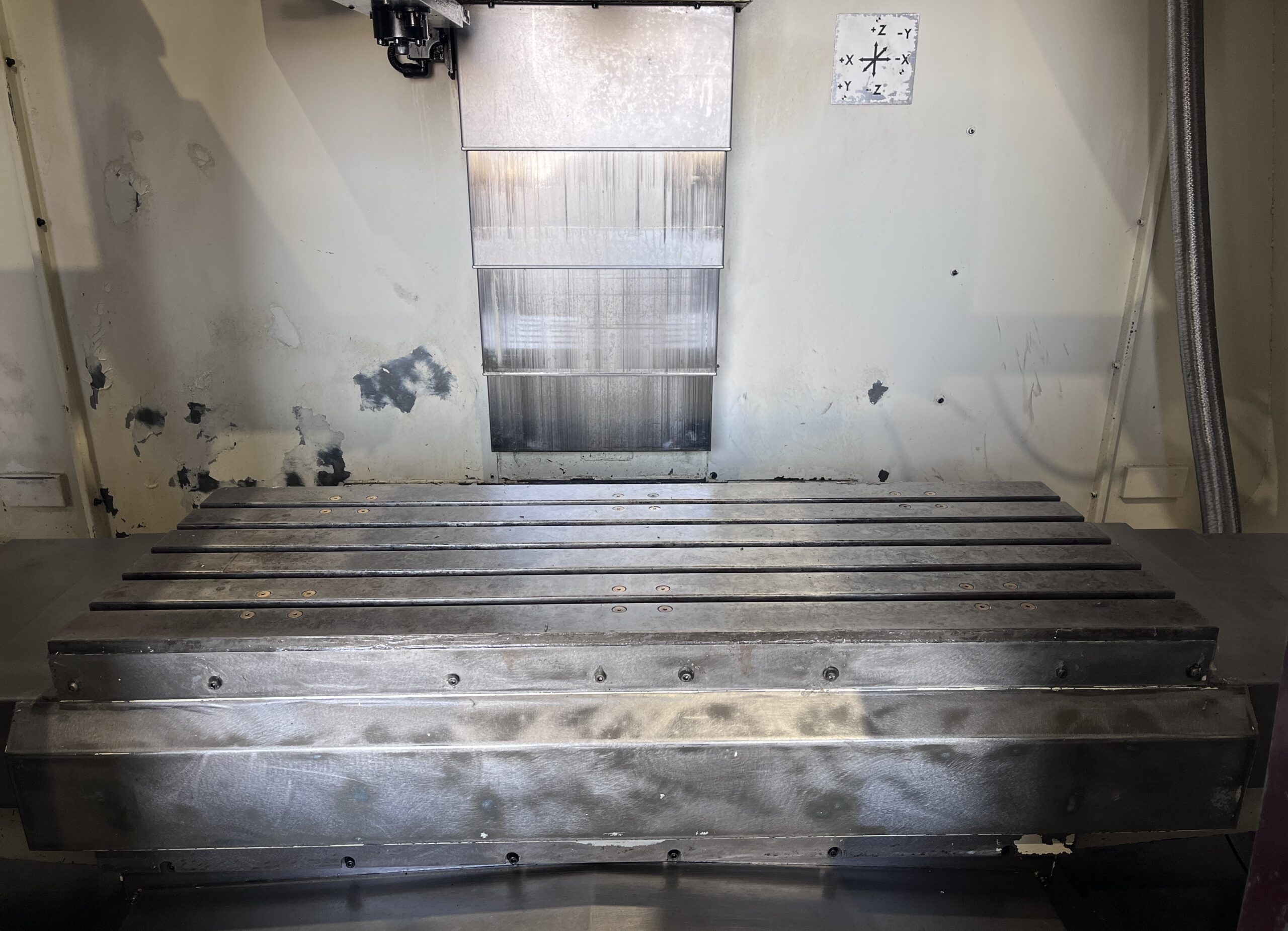

| Table: |
| Length: 40.2″ |
| Width: 20.1″ |
| Number of Std T-Slots: 5 |
| Max Weight on Table: 1102 lbs |

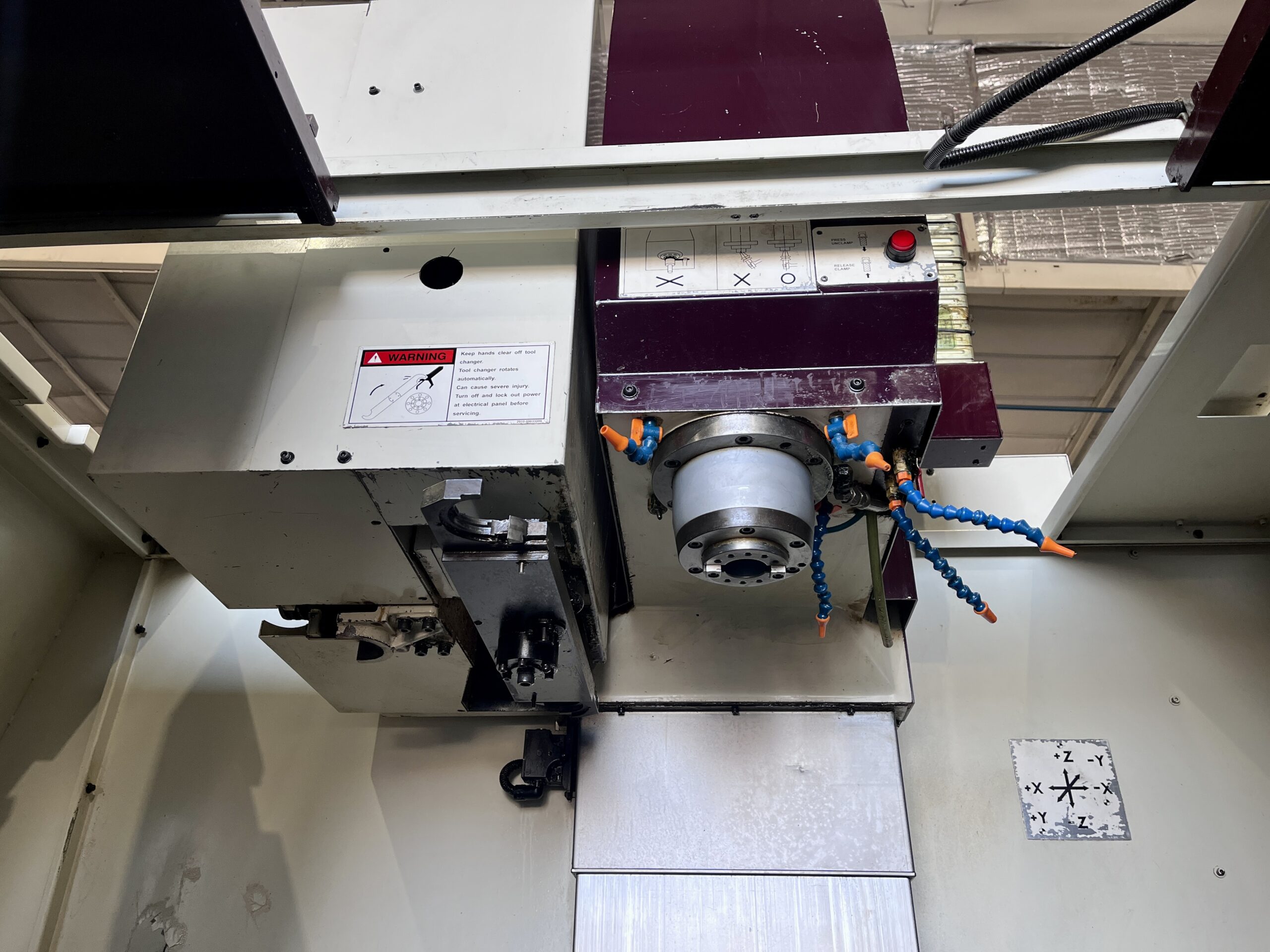

| Spindle: |
| Taper Size: 40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 15 HP |

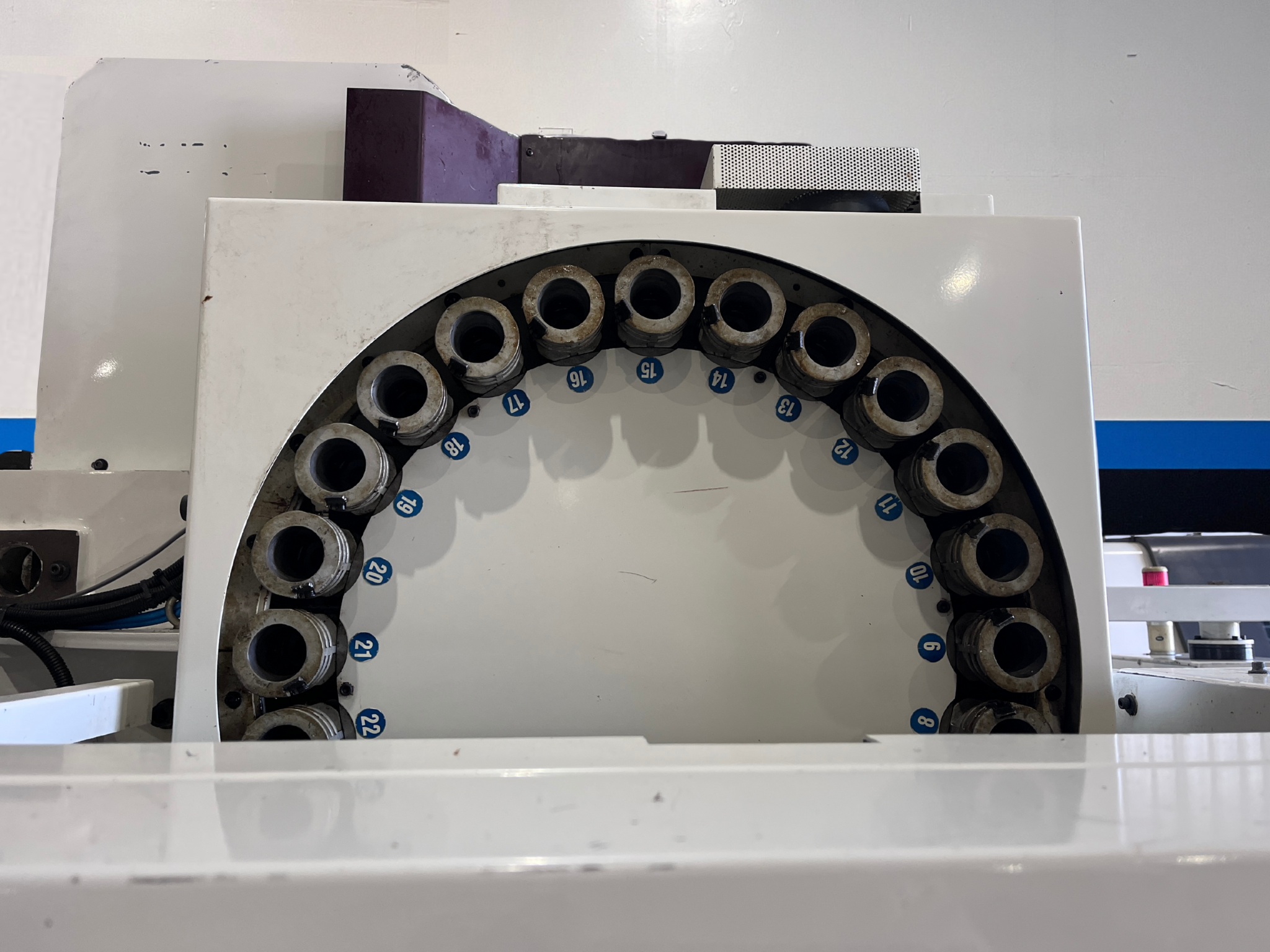

| Automatic Tool Changer: |
| Capacity: 24 Tools |
| Max Tool Weight: 15.4 lbs |
| Max Tool Dia: 3.1″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 3 Seconds |
| General: |
| Air Required: 100 psi 4 scfm |
| Power: 220v / 3-Phase |
| Overall Dimensions: 107″ x 91″ x 95″ High Approx. |
| Weight: 11,023 lbs Approx. |
