Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
|---|
| Fanuc 31iM 5 Axis Simultaneous Contouring Control |

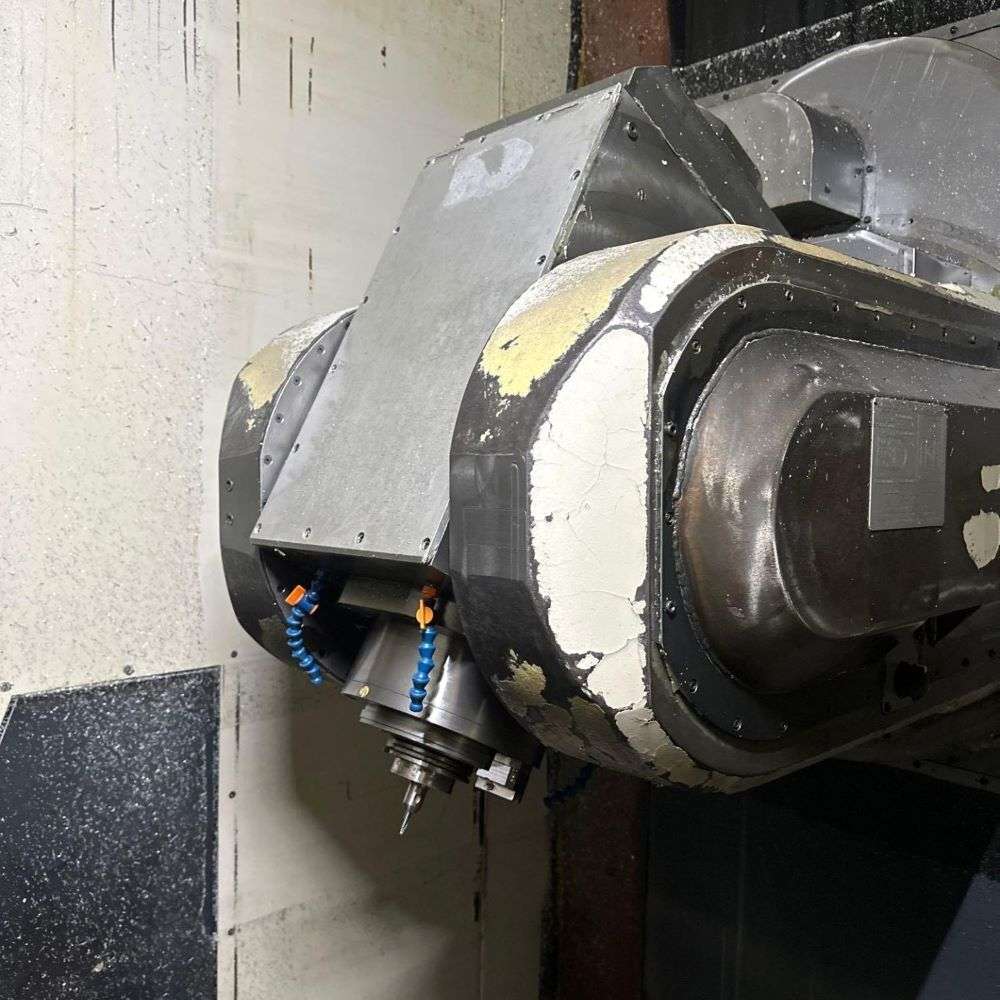

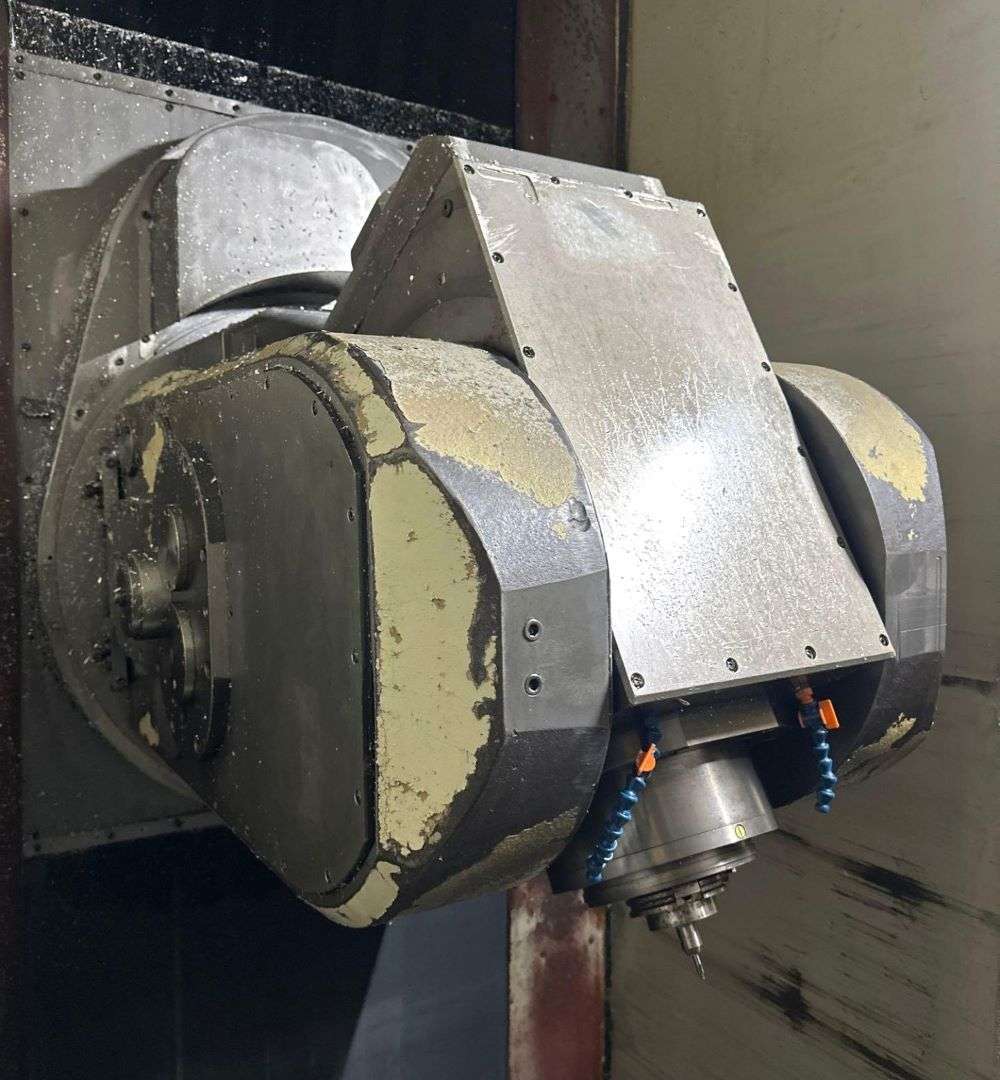

| Articulating Spindle Head (A & C Axis) |
| 120” x 48” Hydraulic Tilt Table |
| 50 HP High Torque Spindle Motor |
| 50 Taper 15000 RPM Gear Head Spindle |
| Through Spindle Coolant |
| Box Way Heavy Construction |
| MPG Control |
| Rigid Tapping |
| PCMCIA Card Slot |
| Telescopic way covers |
| Chip Blaster Mist Collector |

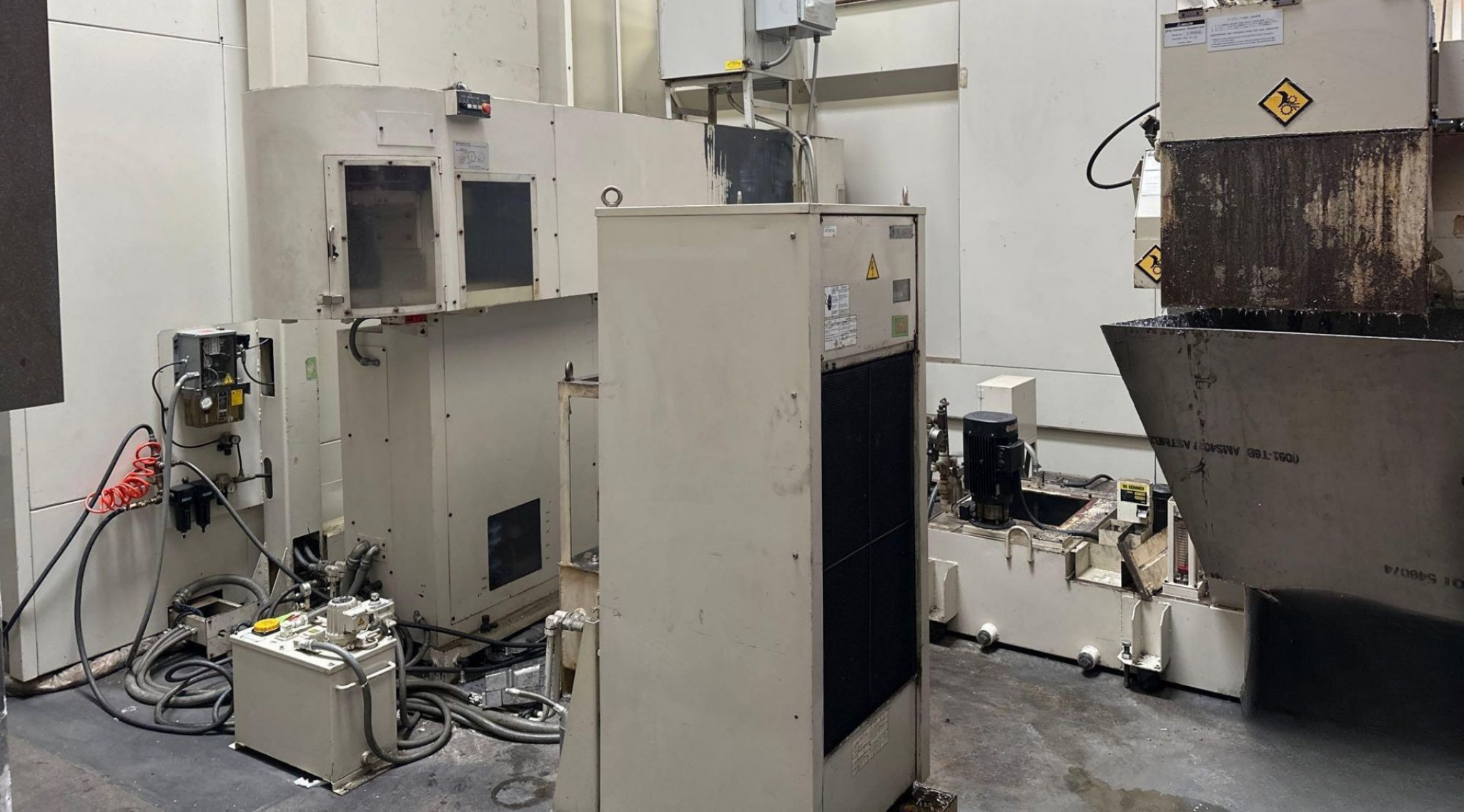

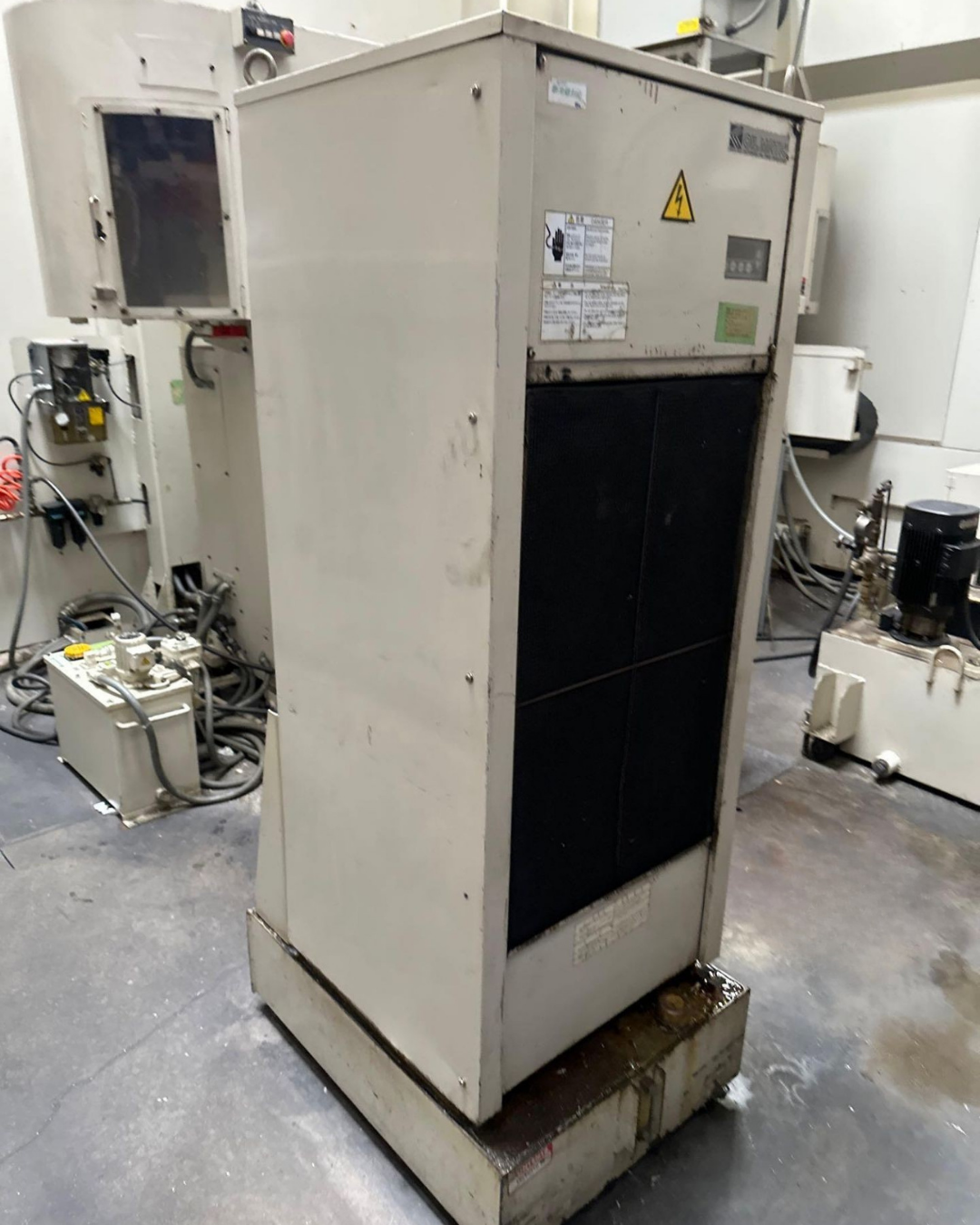

| Chiller Unit |
| Coolant Tank |
| Chip Conveyor |
| Travels: |
|---|
| Table Longitudinal (X-Axis): 124.0″ |
| Spindle Head Vertical (Y-Axis): 52.0″ |
| Column Transverse (Z-Axis): 30.0″ |
| Spindle Head Tilt (A-Axis): +/- 90° degrees |
| Spindle Head Rotation (C-Axis): +/- 360° degrees |
| Spindle Nose to Table (Min.- Max.): 5.0″ – 33.0″ |
| Feedrates: |
|---|
| Rapid Traverse Rates (X, Z Axis): 945 Inch Per Minute |
| Rapid Traverse Rates (Y Axis): 787 Inch Per Minute |
| Rapid Traverse Rates (A, C Axis): 1800 Degree Per Minute |
| Cutting Feed Rates (X, Y, Z Axis): 393 Inch Per Minute |
| Cutting Feed Rates (A, C Axis): 1800 Degree Per Minute |

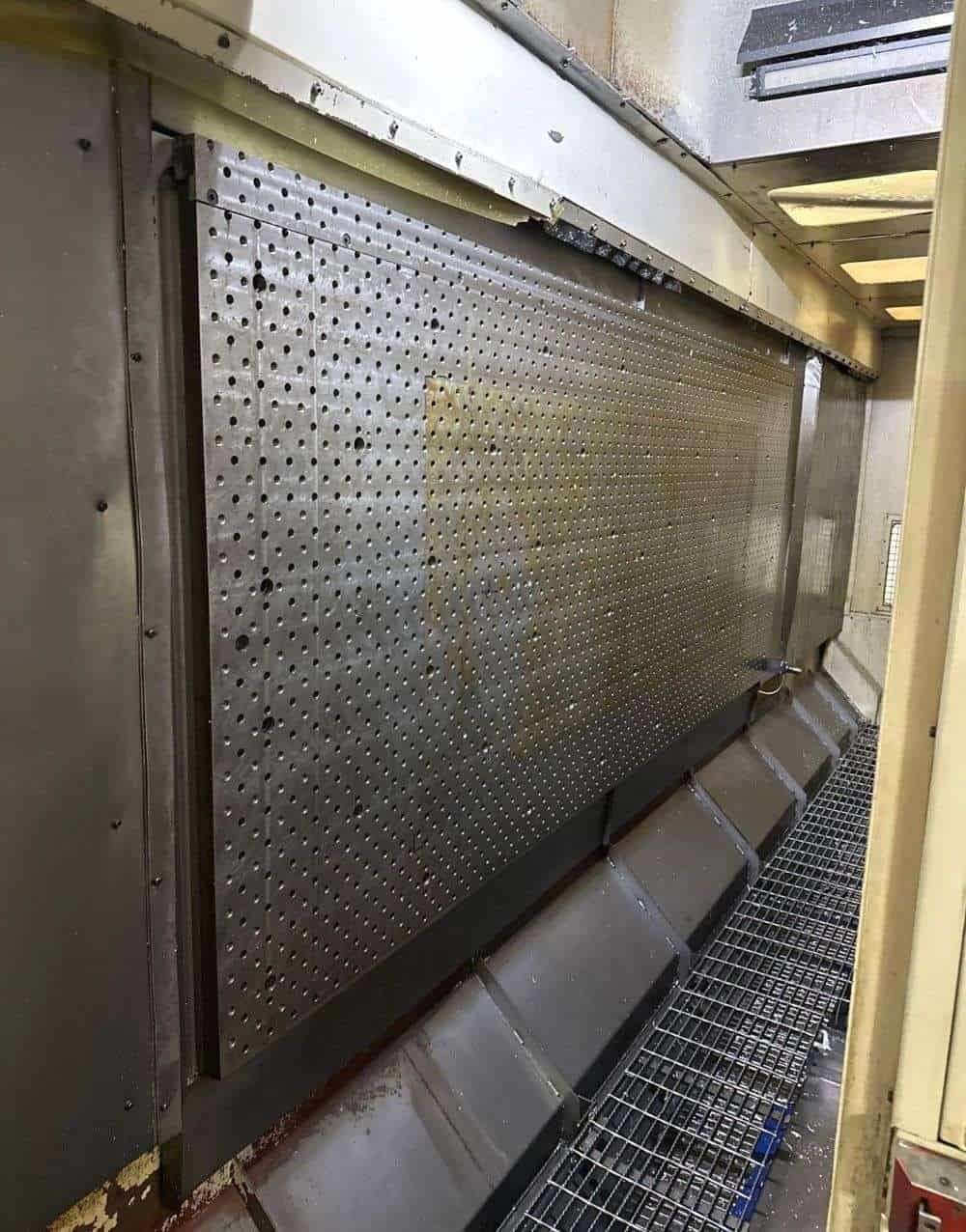

| Table: |
|---|
| Work Mounting Surface of Table: |
| Length: 120.0″ |
| Width: 48.0″ |
| Max Weight on Table: 11,000 lbs. |
| Table Positioning: |
|---|
| At Time of Work Piece Setting: 0 Degree (In Horizontal Position) |
| At Time of Work Piece Machining: 90 Degree (In Vertical Position) |
| Spindle: |
|---|
| Articulated 5 Axis |
| Taper Size: CAT-50 |
| Speed Range: 15,000 RPM |
| Spindle Power: 50 HP |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 379″ x 308″ x 153″ High |
| Machine Weight: 100,000 lbs – 120,000 lbs. Approx. |
