*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

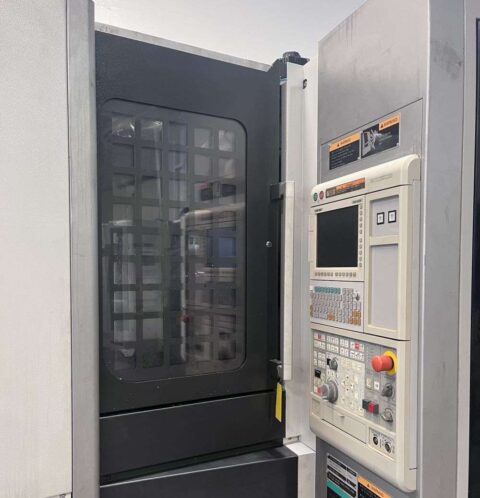

| Make: | DMG Mori Seiki |
| Model: | NHX4000 |
| Year: | 2011 |
| Features: |
|---|

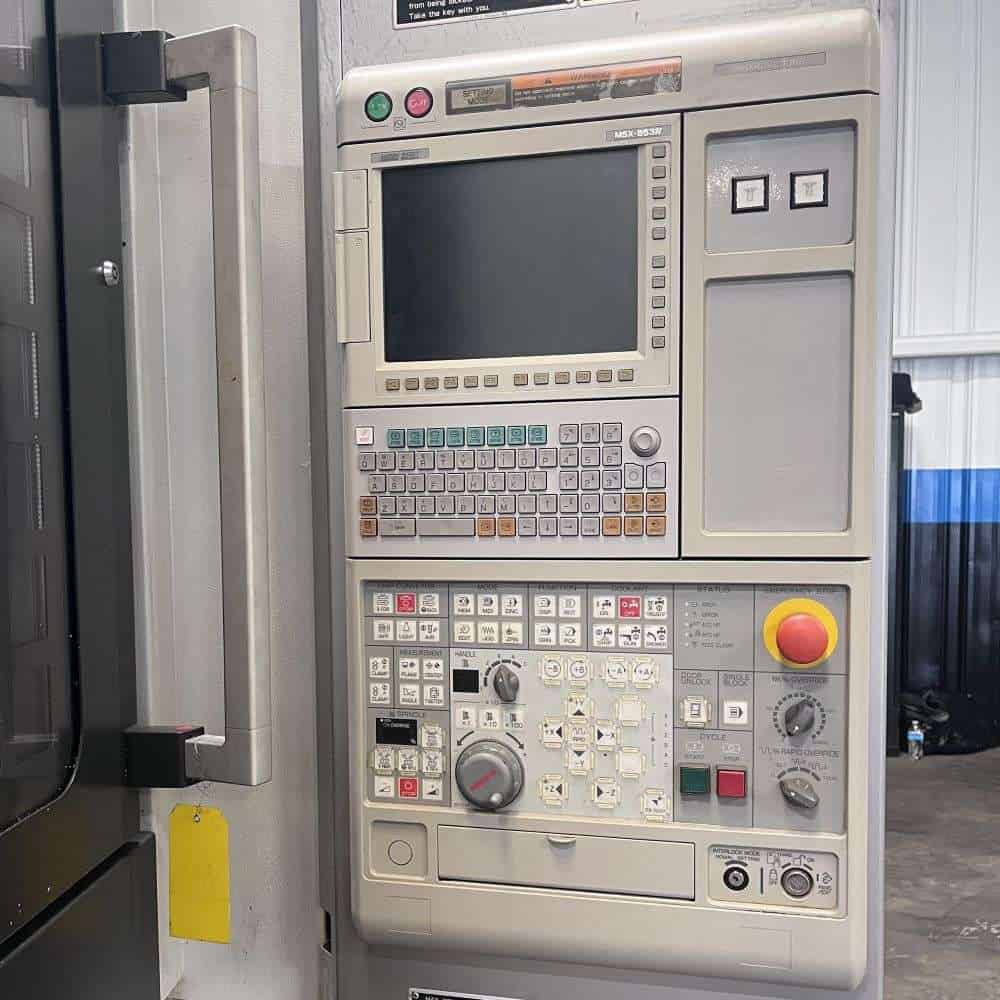

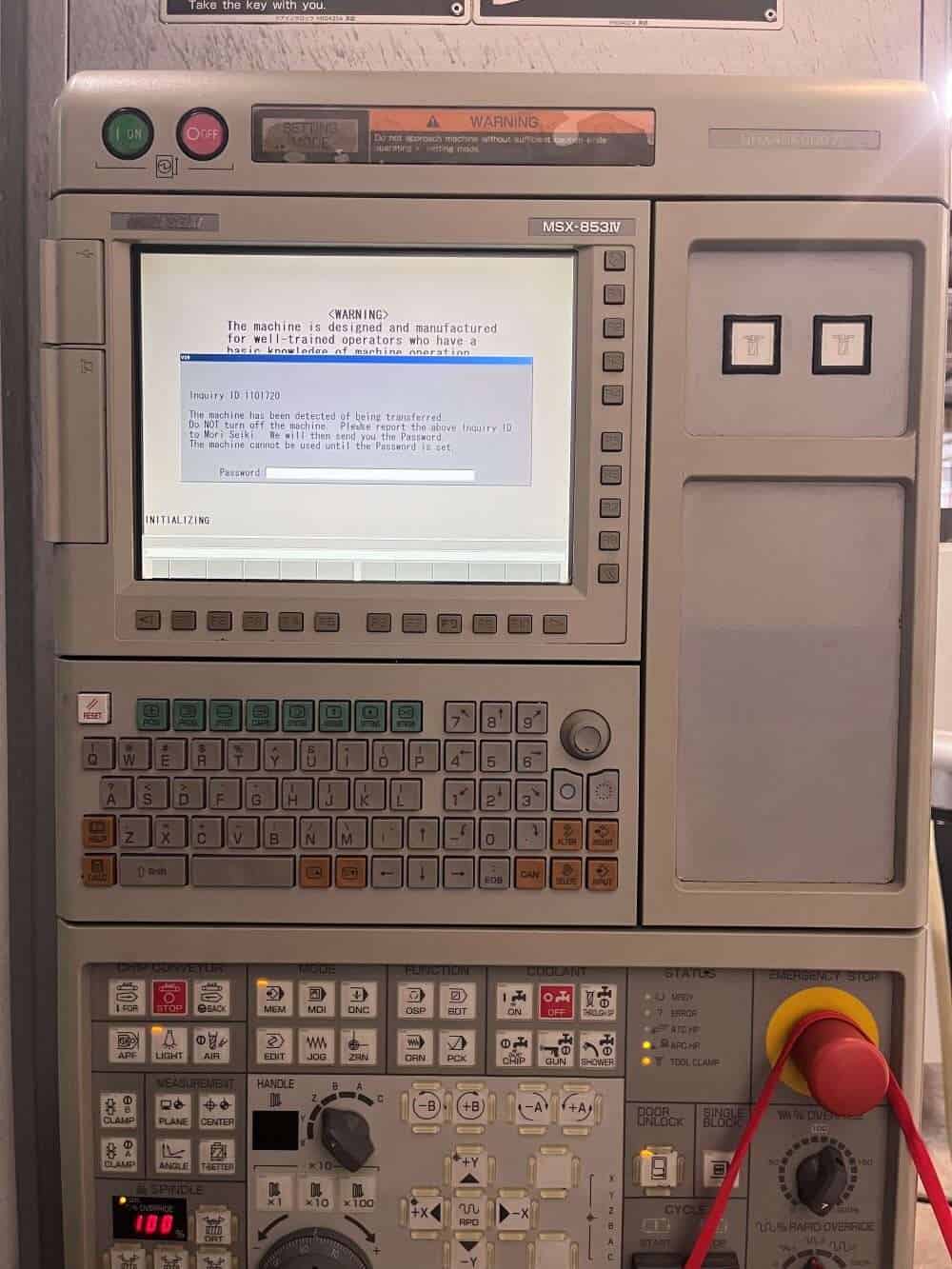

| Mori Seiki MSX-853IV CNC Control |
| Full 4th Axis |
| 12,000 RPM High Precision Spindle |
| Through Spindle Coolant |

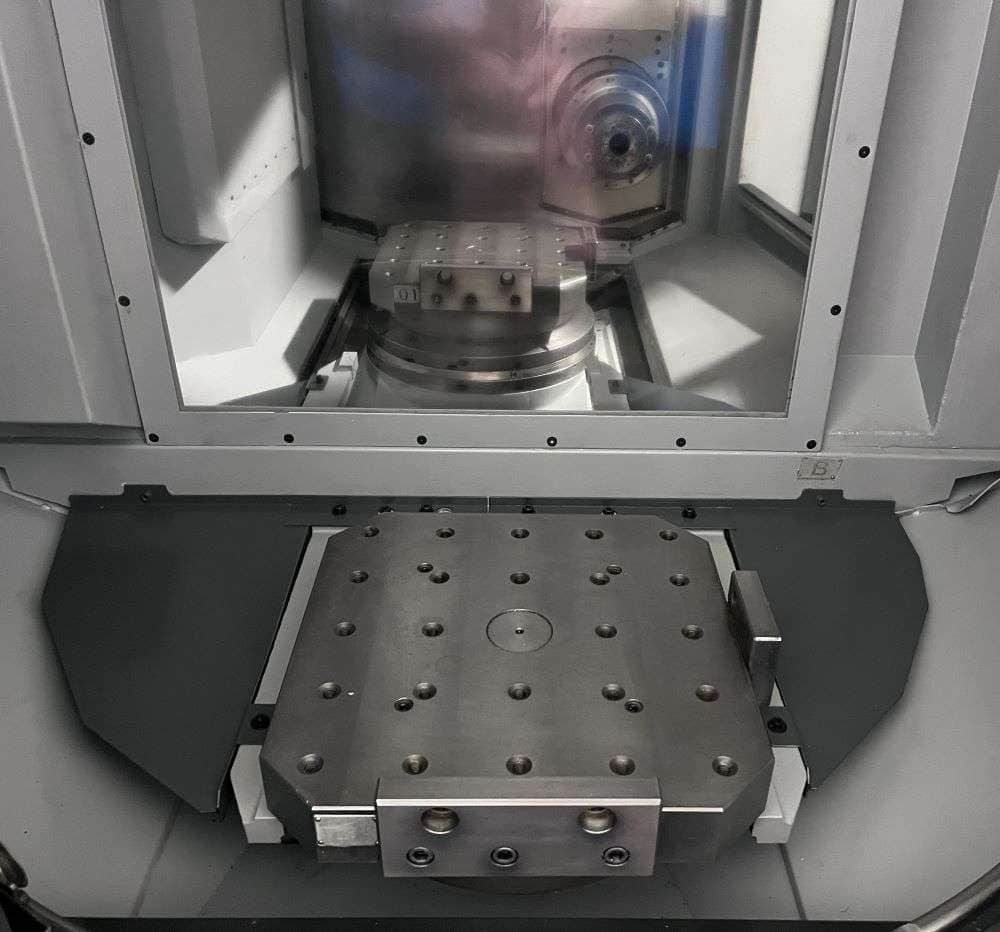

| Twin Pallet Changer |
| 40 Station High Speed Tool Changer |
| USB Ports |
| 50 MB Memory |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Custom Macros |
| Fast Rapid Traverse Rate |
| Flood coolant with large separate coolant tank |

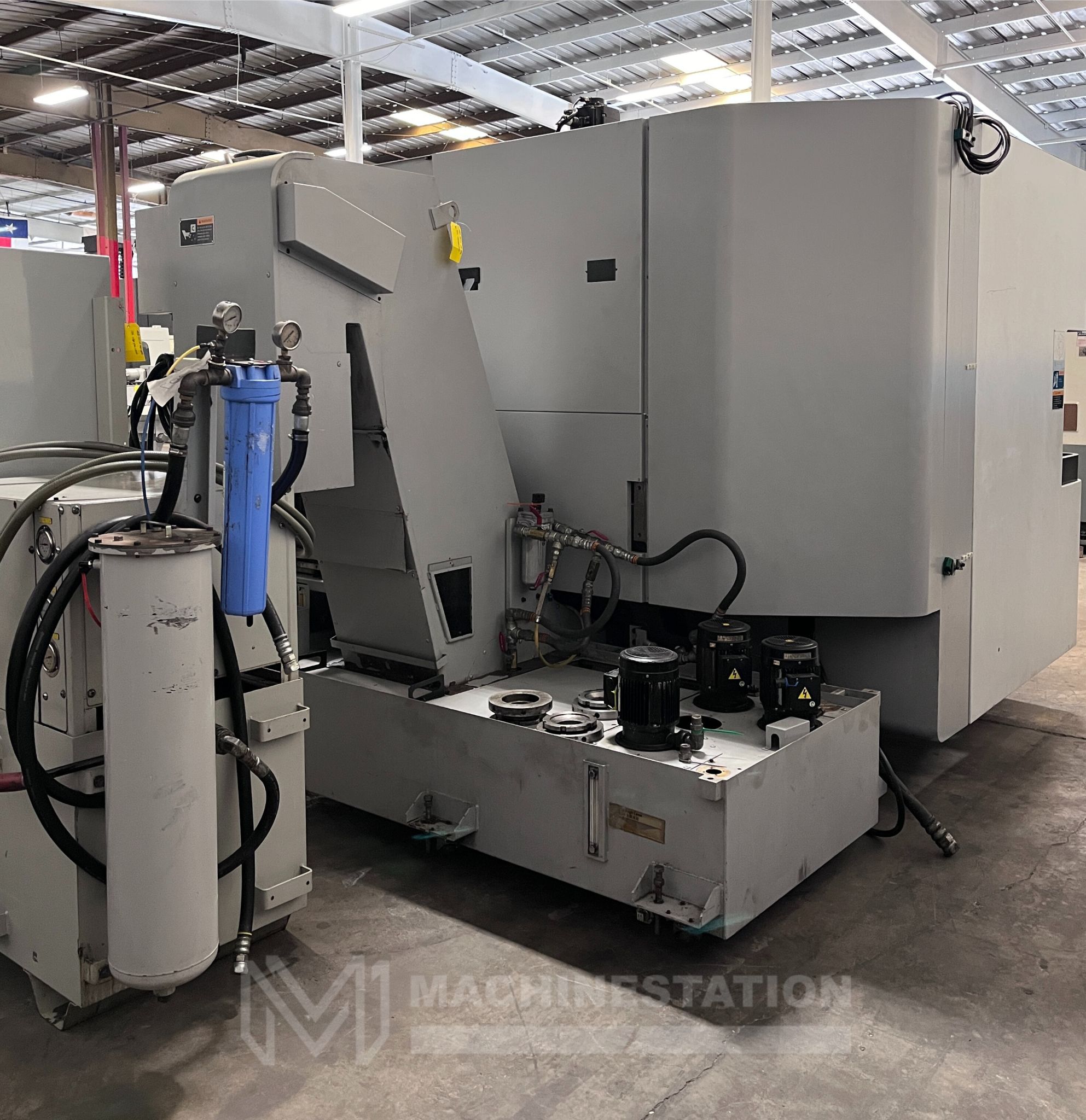

| Chip Conveyor |
| Work light |
| Travels: |
|---|
| X Axis: 22.0″ |
| Y Axis: 22.0″ |
| Z Axis: 26.0″ |
| B Axis: 0.001° ( Full 4th ) |

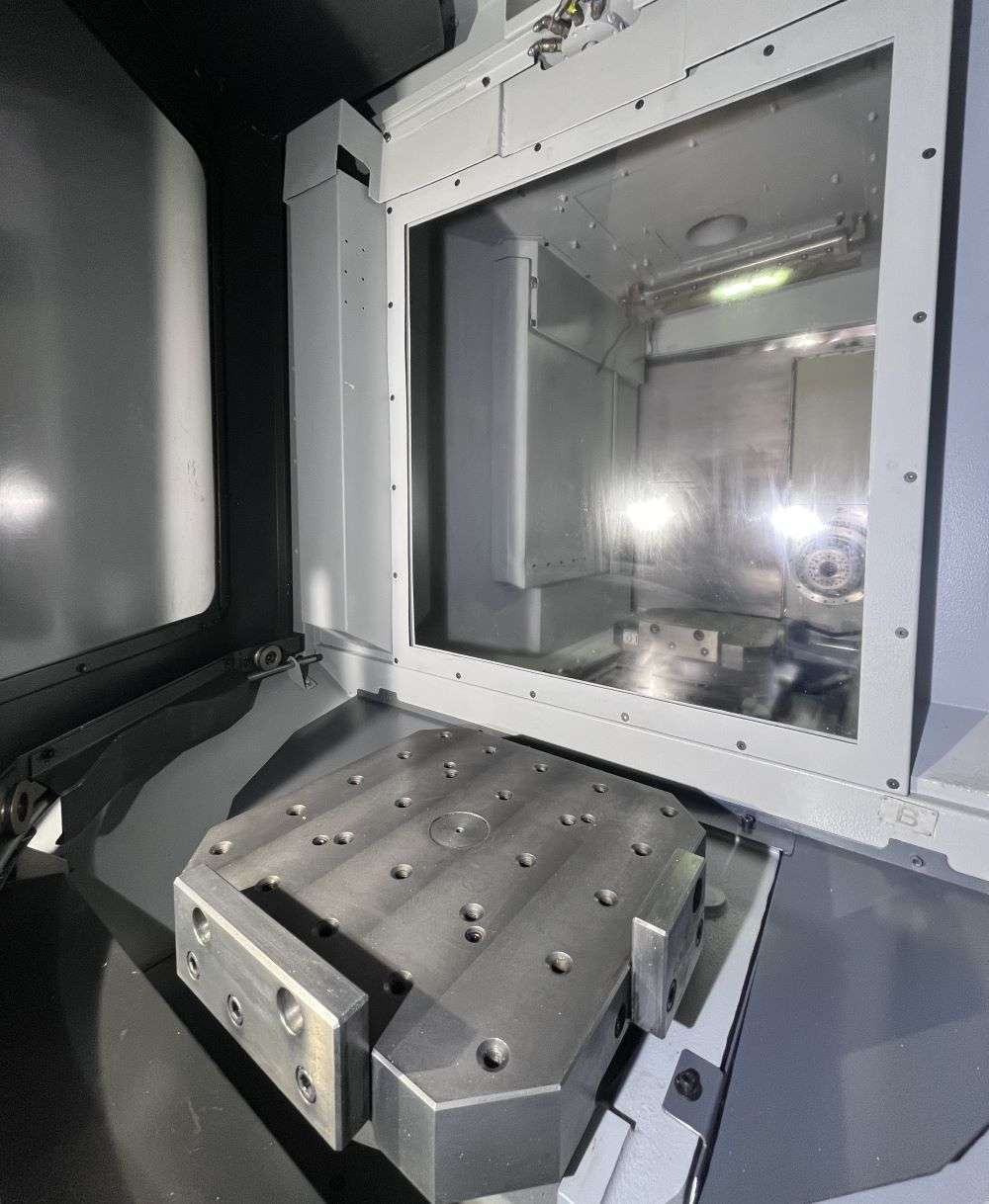

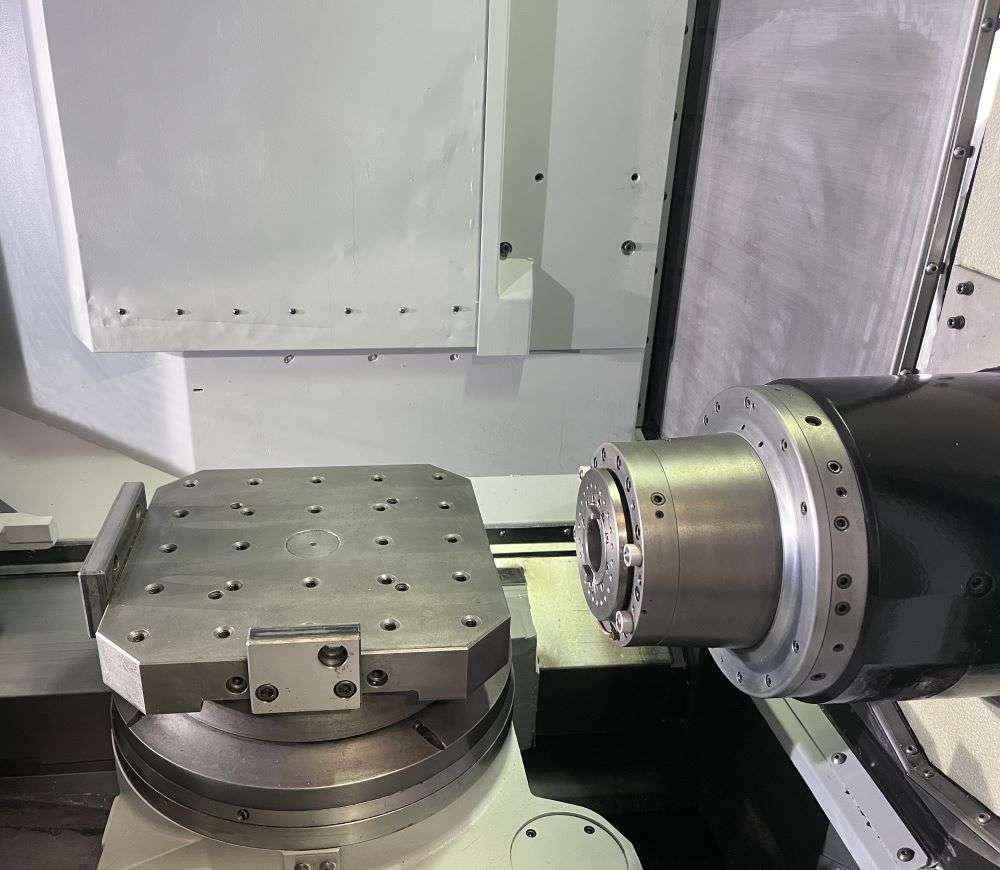

| Table: |
|---|
| Length: 15.7″ |
| Width: 15.7″ |
| Max Weight on Table: 882 lbs |
| Max Workpiece Height: 35.4″ |
| Index Time: 8 seconds |

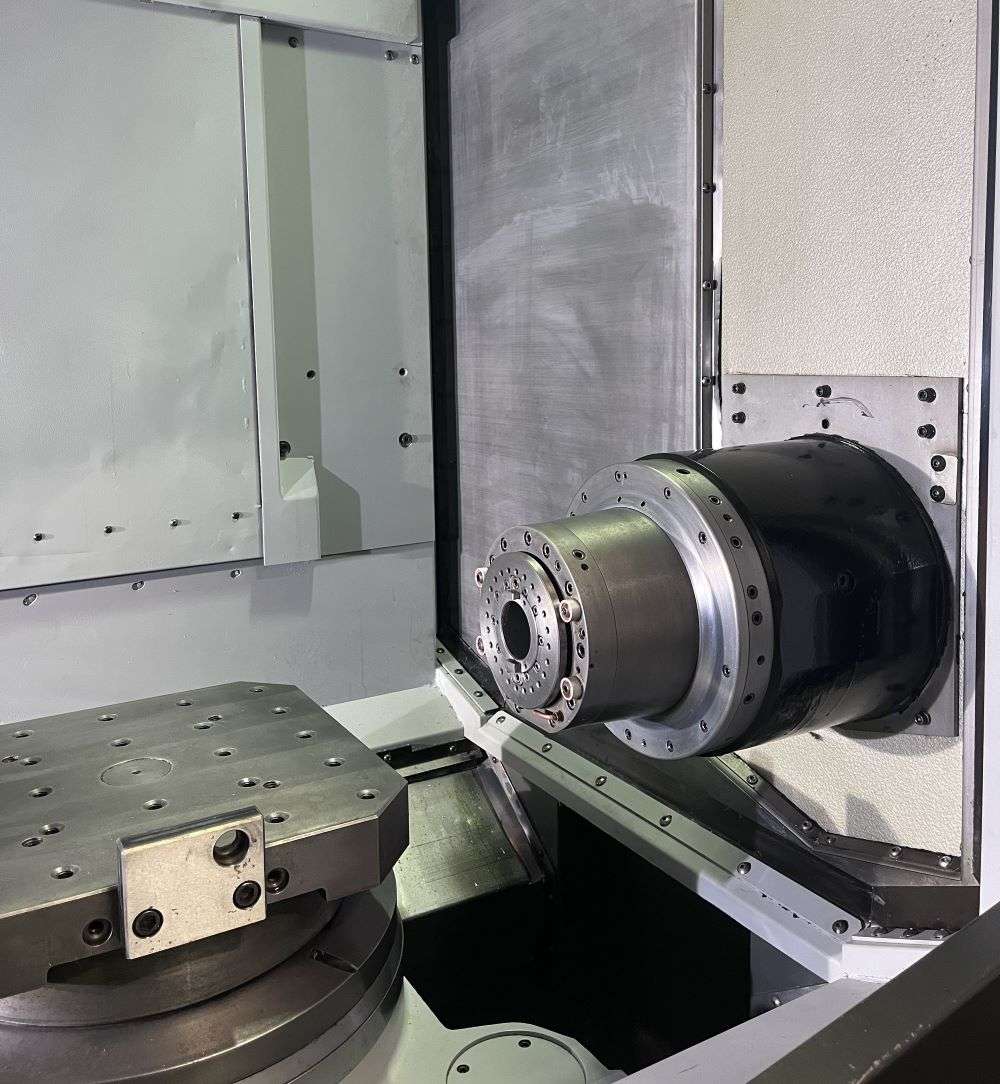

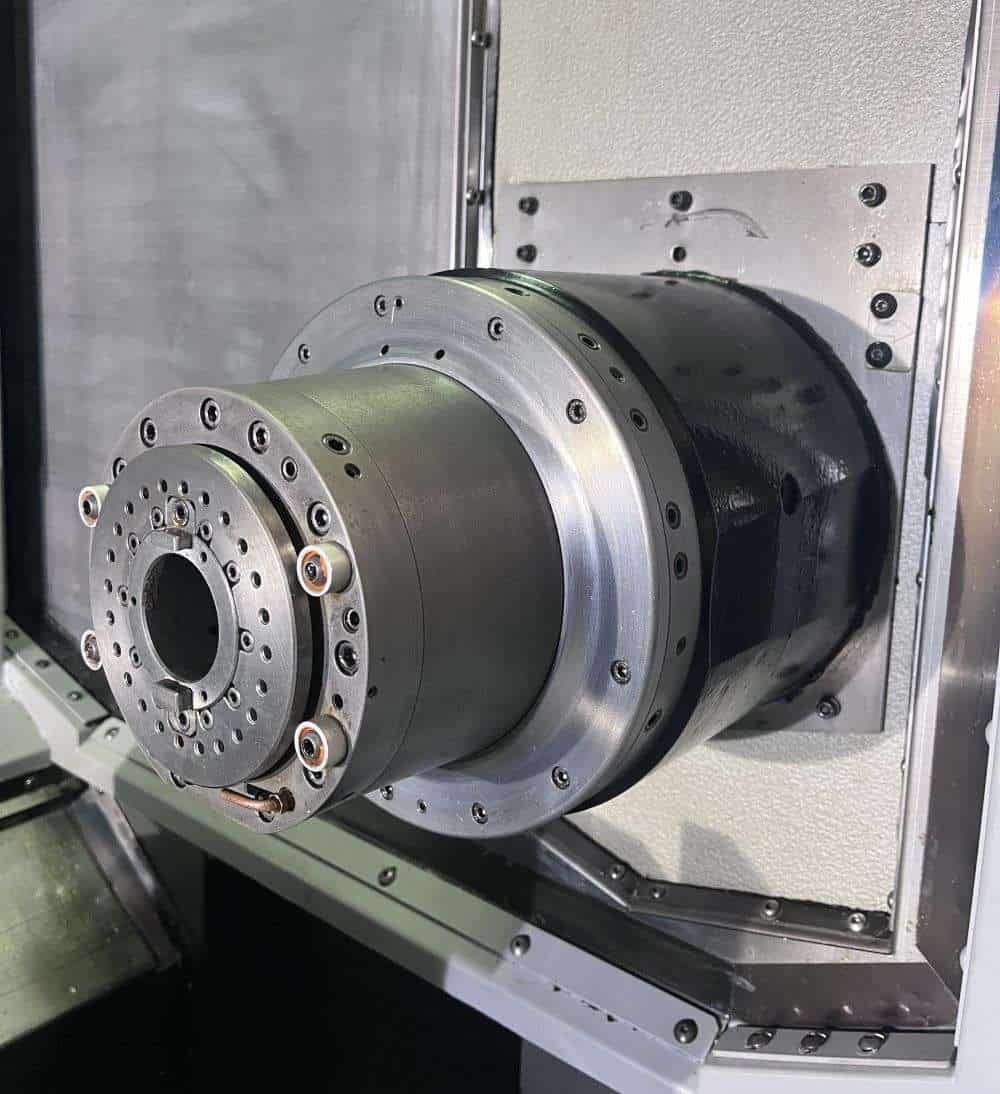

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Max. Speed: 12,000 RPM |
| Power: 40 HP |
| Torque: 76.7 ft/lbs |
| Feed rates: |
|---|
| Rapid X & Y : 2352 Inch Per Minute |
| Rapid Z : 2352 Inch Per Minute |
| Cutting Feedrate : 984 Inch Per Minute |

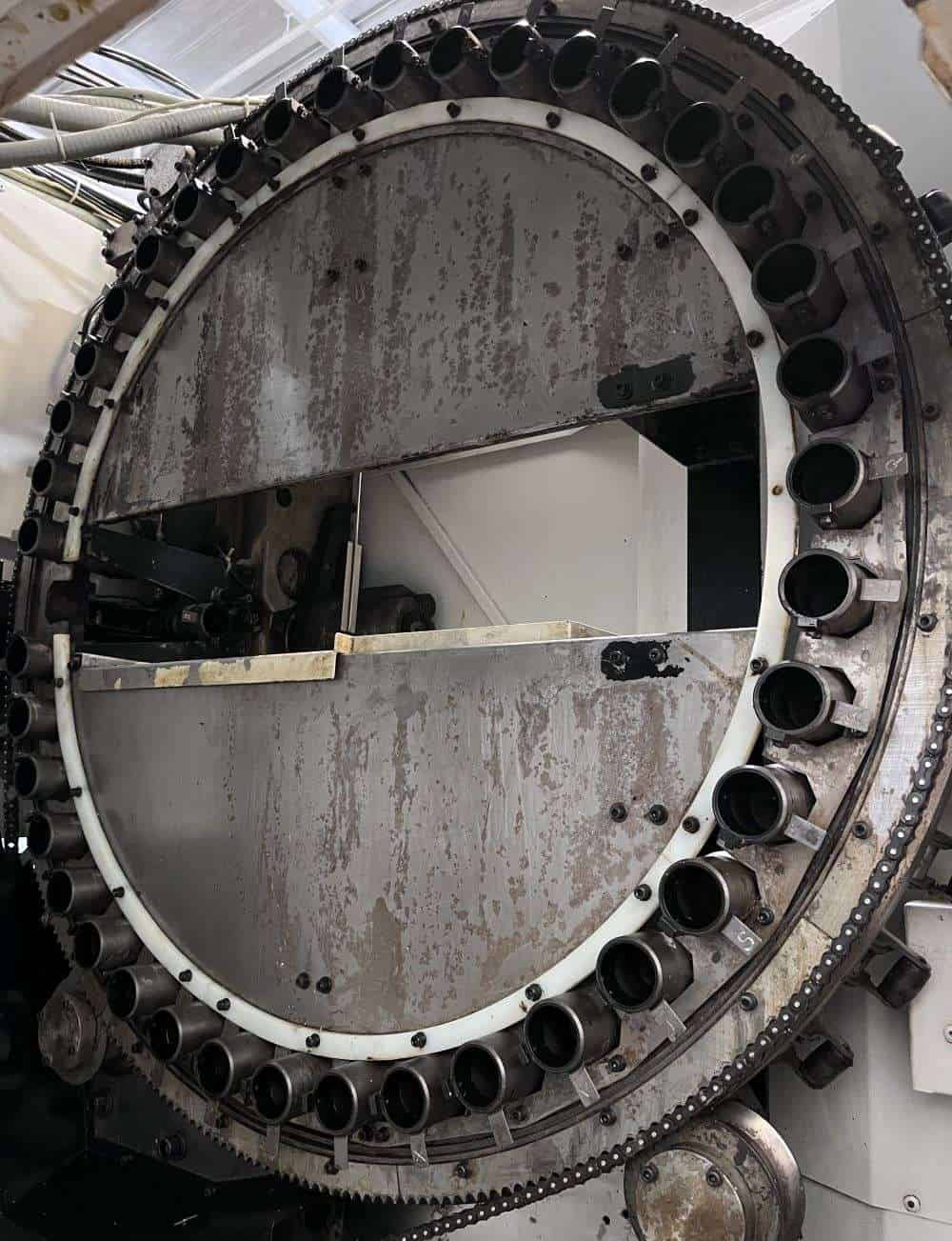

| Tool changer: |
|---|
| Capacity: 40 Tools |
| Taper: CAT-40 |
| Max Tool Size: 6.6″ |
| Max Tool Length: 17.7″ |
| Max Tool Weight: 18 lbs. |
| Tool Change Time: 0.9 Second |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: 38 kva / 205-220v / 3-Phase |
| Overall Dimensions: 165″ X 105″ x 100″ High |
| Weight: 16,755 lbs |
