Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

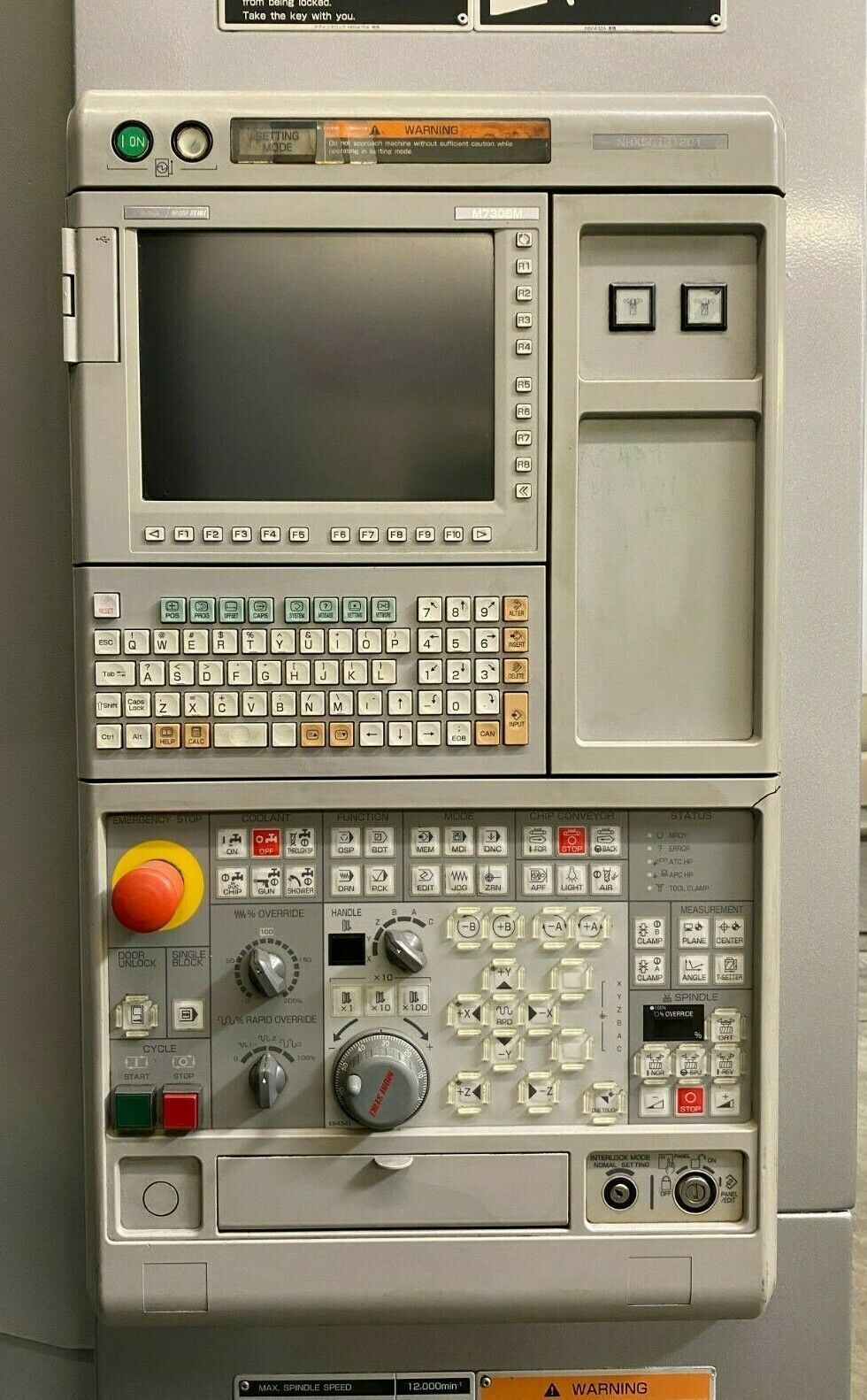

| M730BM CNC Control with MAPPS |
| Full 4th Axis |

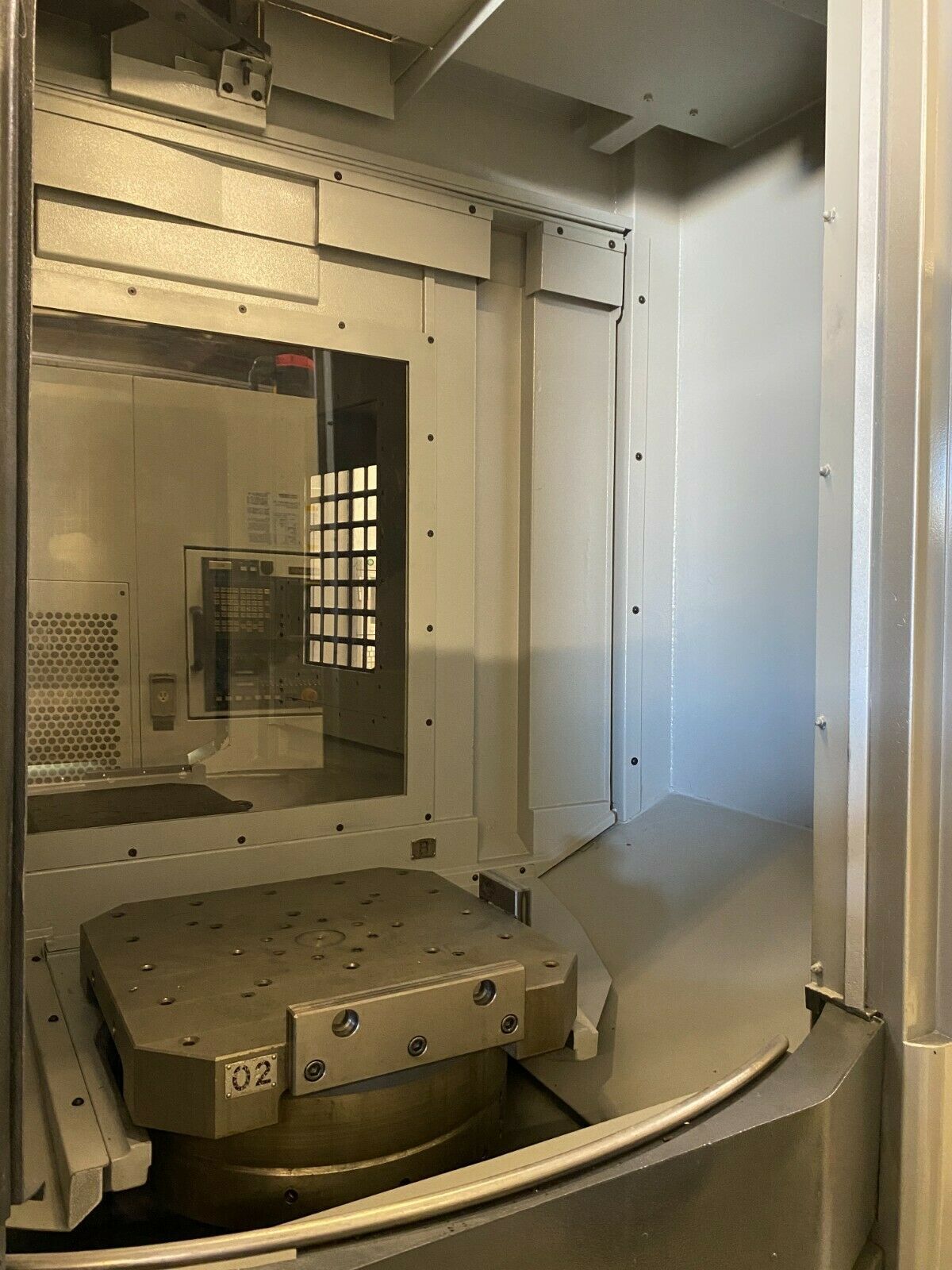

| Twin Pallet Changer |
| 12,000 RPM High Precision Spindle |
| Through Spindle Coolant |

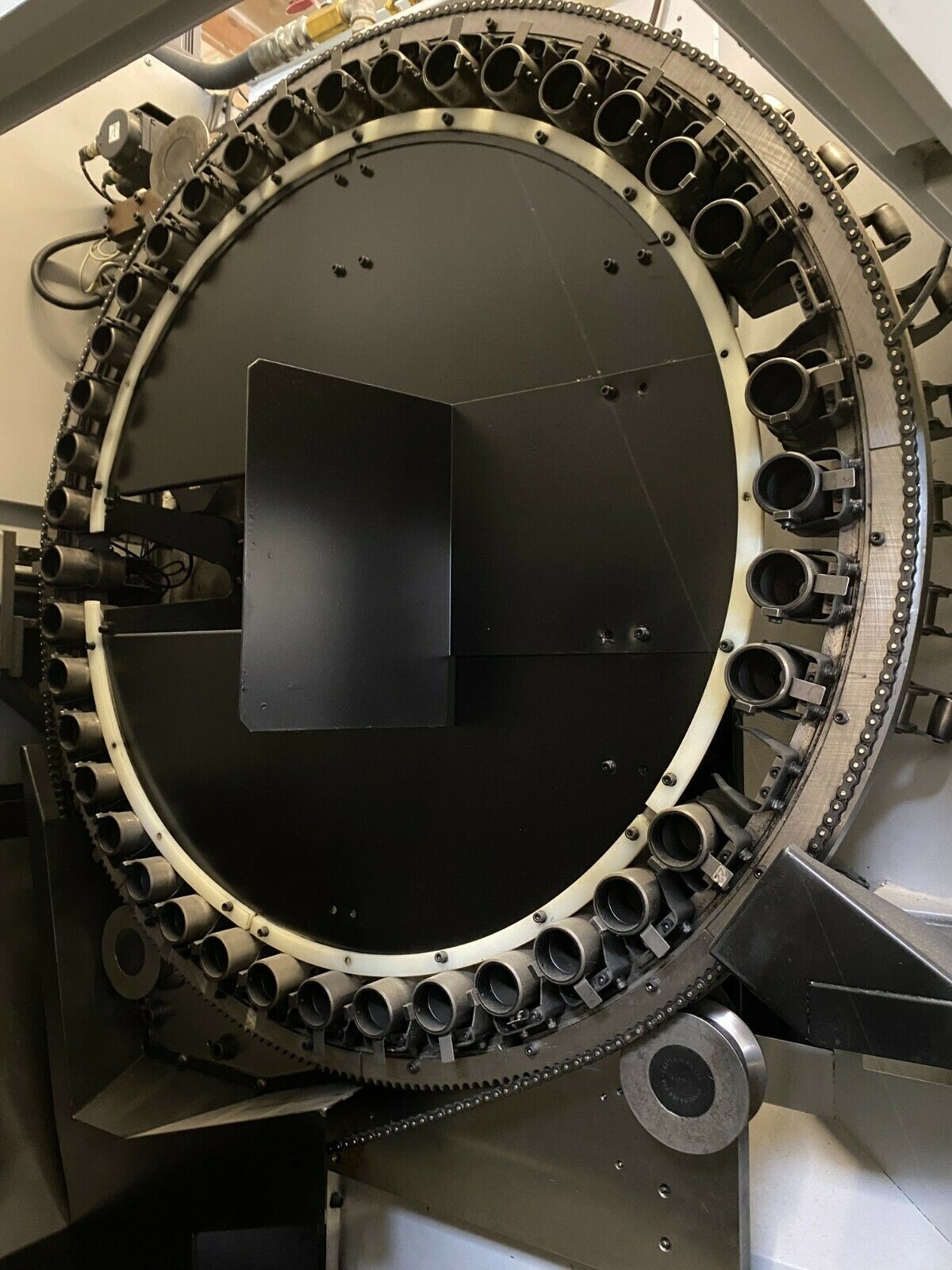

| 40 High Speed Tool Changer |
| Scales on the Axis |
| USB Ports |
| 50 MB Memory |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Custom Macros |
| 48 Work Coordinate / Offset System |
| 200 Tool Coordinate / Offset |
| Fast Rapid Traverse Rate |
| Flood Coolant with Large Separate Coolant Tank |
| Chip Conveyor |
| Travels: |
| X Axis: 28.7 inch |
| Y Axis: 28.7 inch |
| Z Axis: 34.5 inch |
| B Axis: 0.001° (Full 4th Axis) |
| Table: |
| Length: 19.7 inch |
| Width: 19.7 inch |
| Max Weight on Table: 882 lbs |
| Max Workpiece Height: 35.4 inch |
| Index Time: 8 Seconds |
| Spindle: |
| Taper Size: 40 |
| Max Speed: 12,000 RPM |
| Spindle Power: 40 HP |
| Torque: 76.7 ft-lbs |
| Feed Rates: |
| Rapid Traverse X & Y Axis: 2,352 IPM |
| Rapid Traverse Z Axis: 2,352 IPM |
| Cutting Feedrate: 984 IPM |
| Tool Changer: |
| Capacity: 40 Tools |
| Max Tool Size: 6.6 inch |
| Max Tool Length: 17.7 inch |
| Max Tool Weight: 18 lbs |
| Tool Change Time: 0.9 Second |
| General: |
| Air Required: 90 PSI, 4 SCFM |
| Power: 45 kVA / 205-220V / 3-Phase |
| Overall Dimensions: 165 inch x 105 inch x 100 inch High |
| Weight: 22,000 lbs Approx. |
| Categories | CNC Horizontal Machining Center - HMC |
|---|
| Categories | CNC Horizontal Machining Centers - HMC |
|---|
