Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

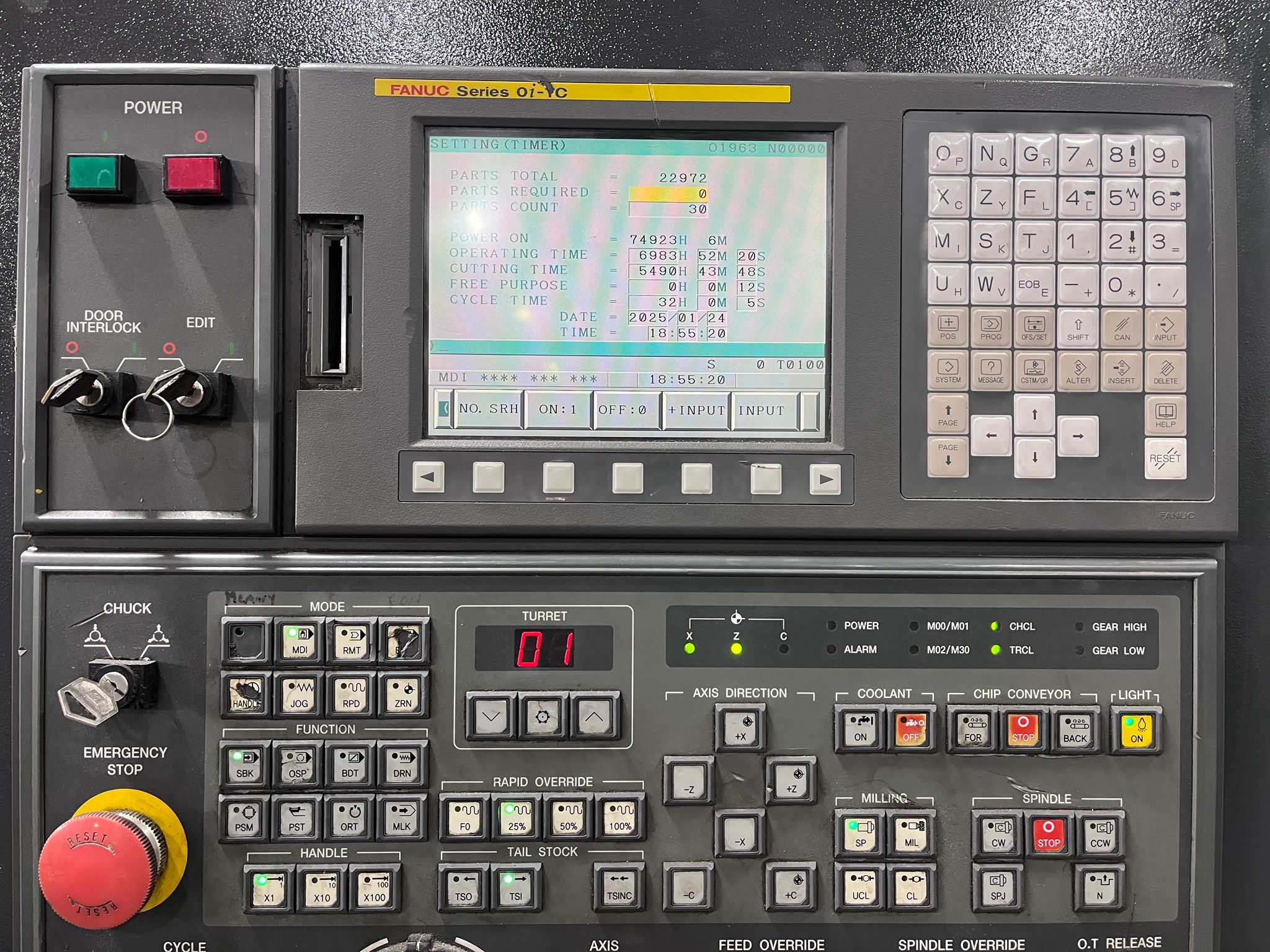

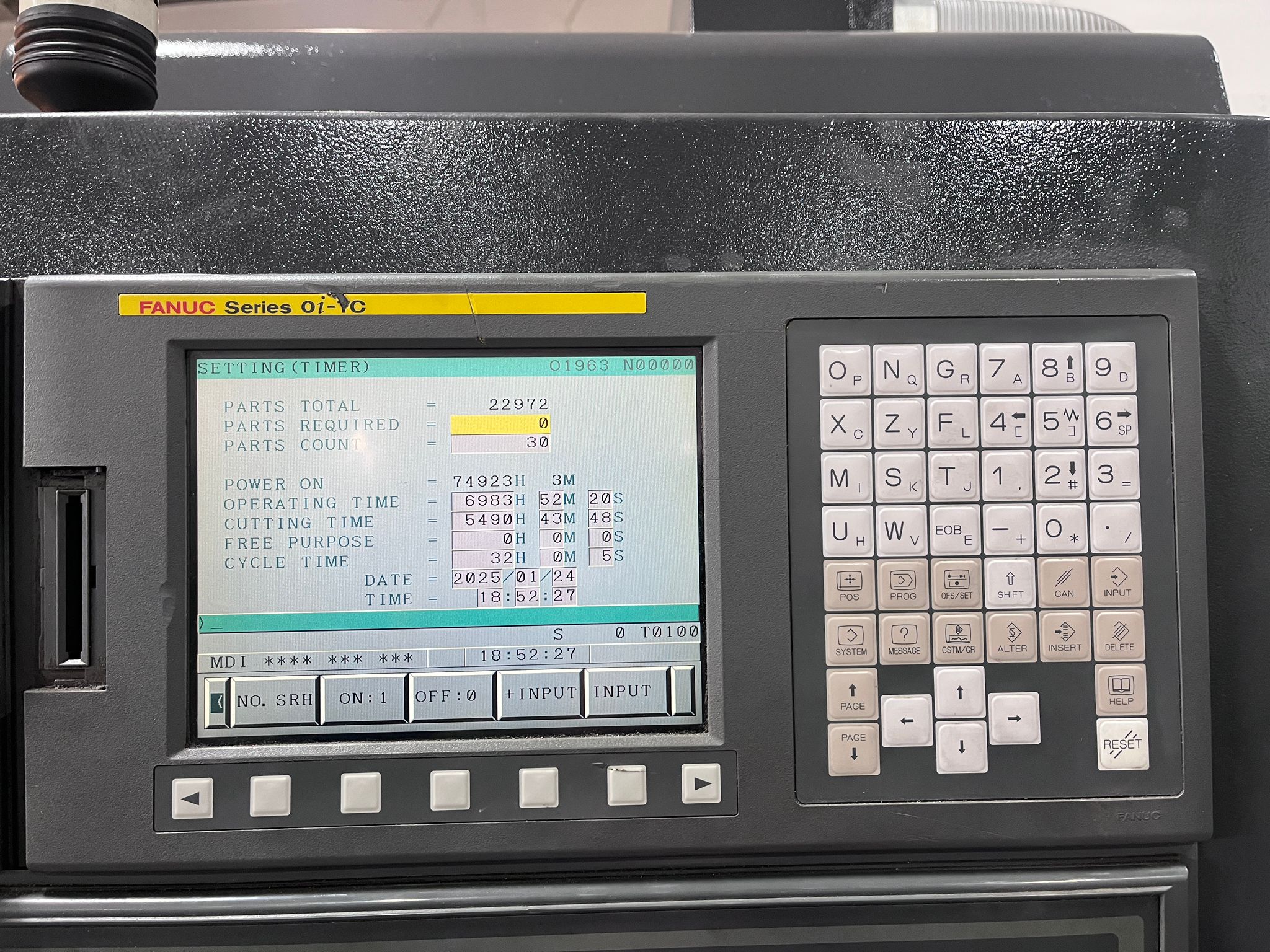

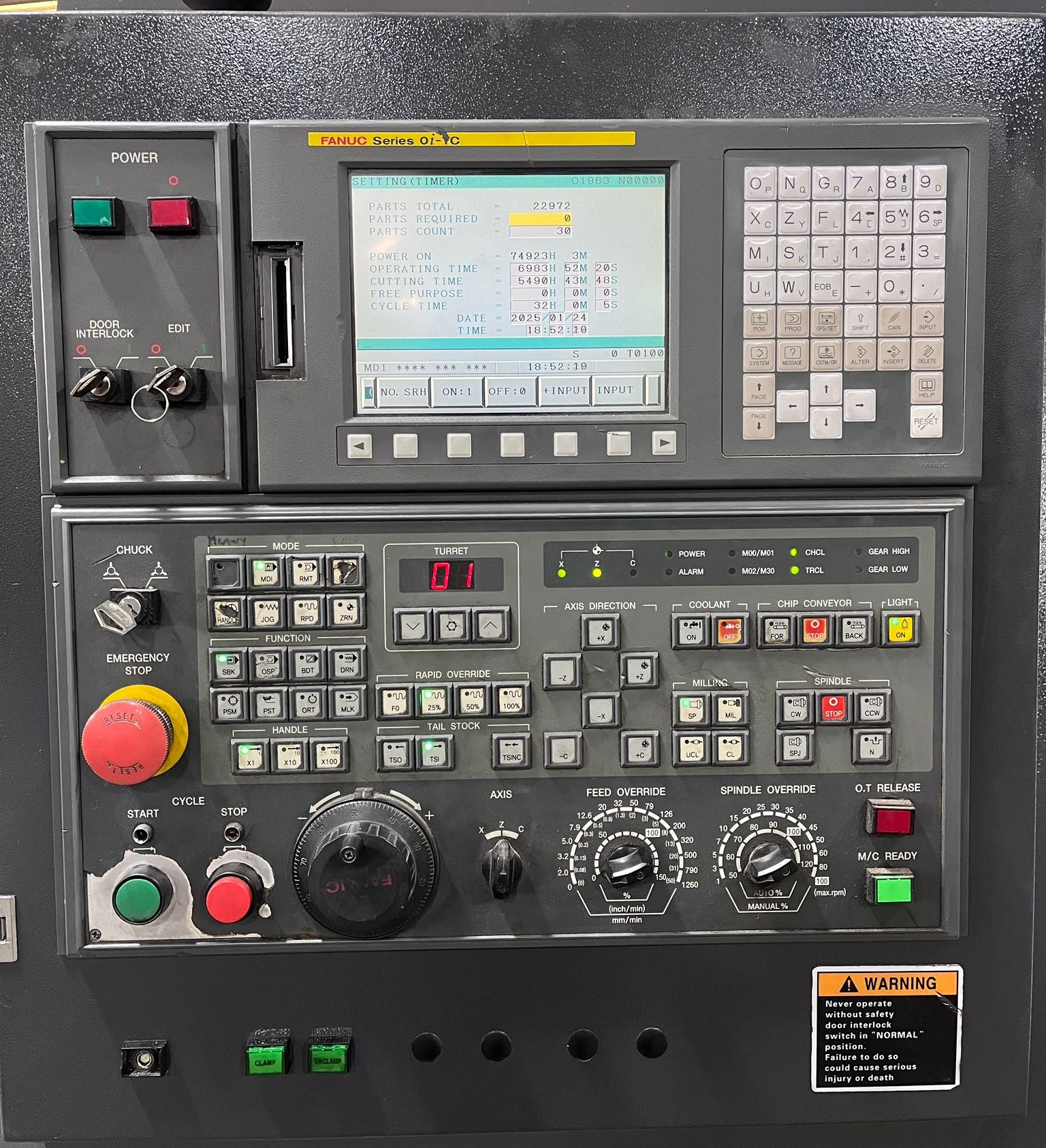

| Fanuc 0i-TC CNC Control |
| Long Bed Box Way Machine |

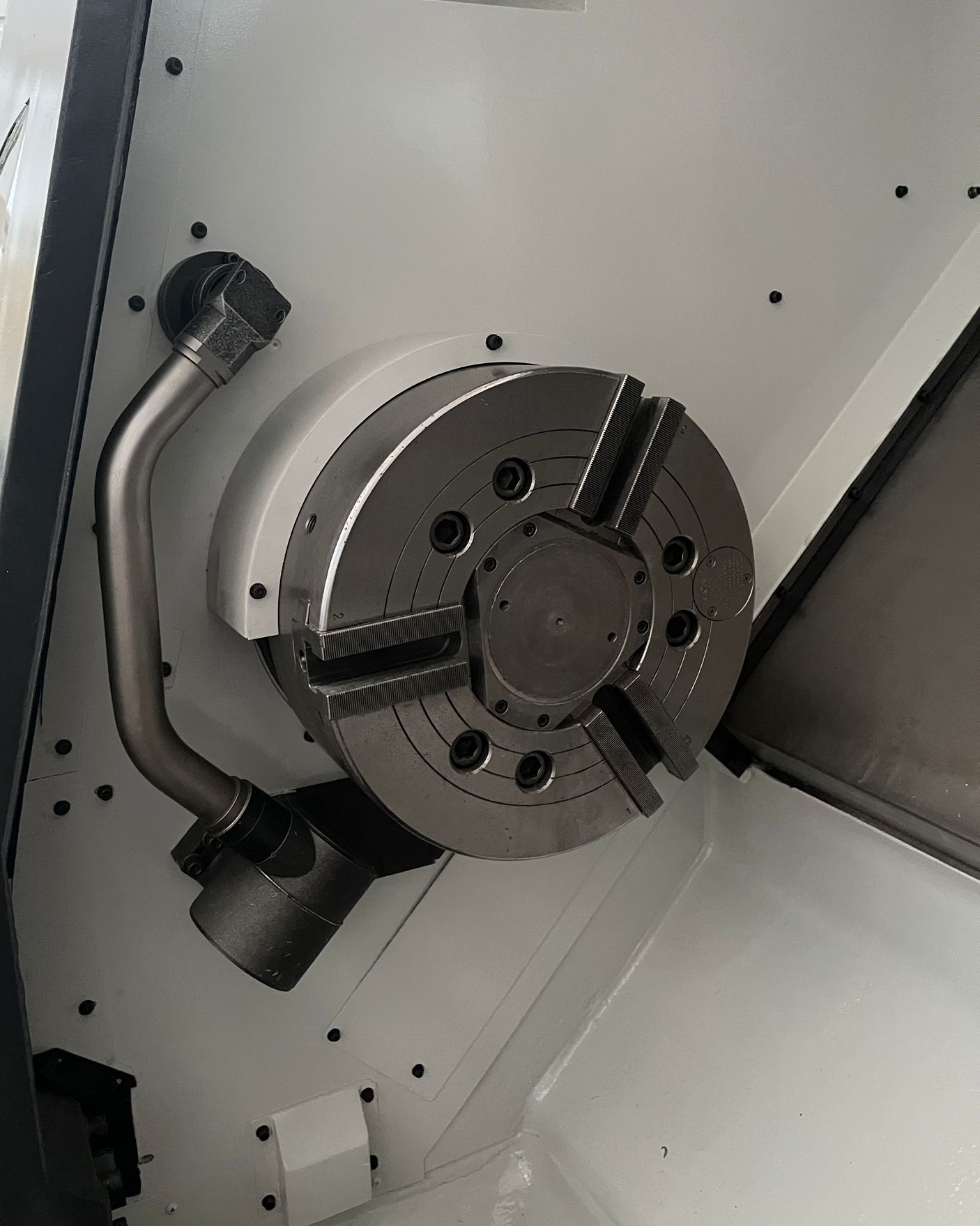

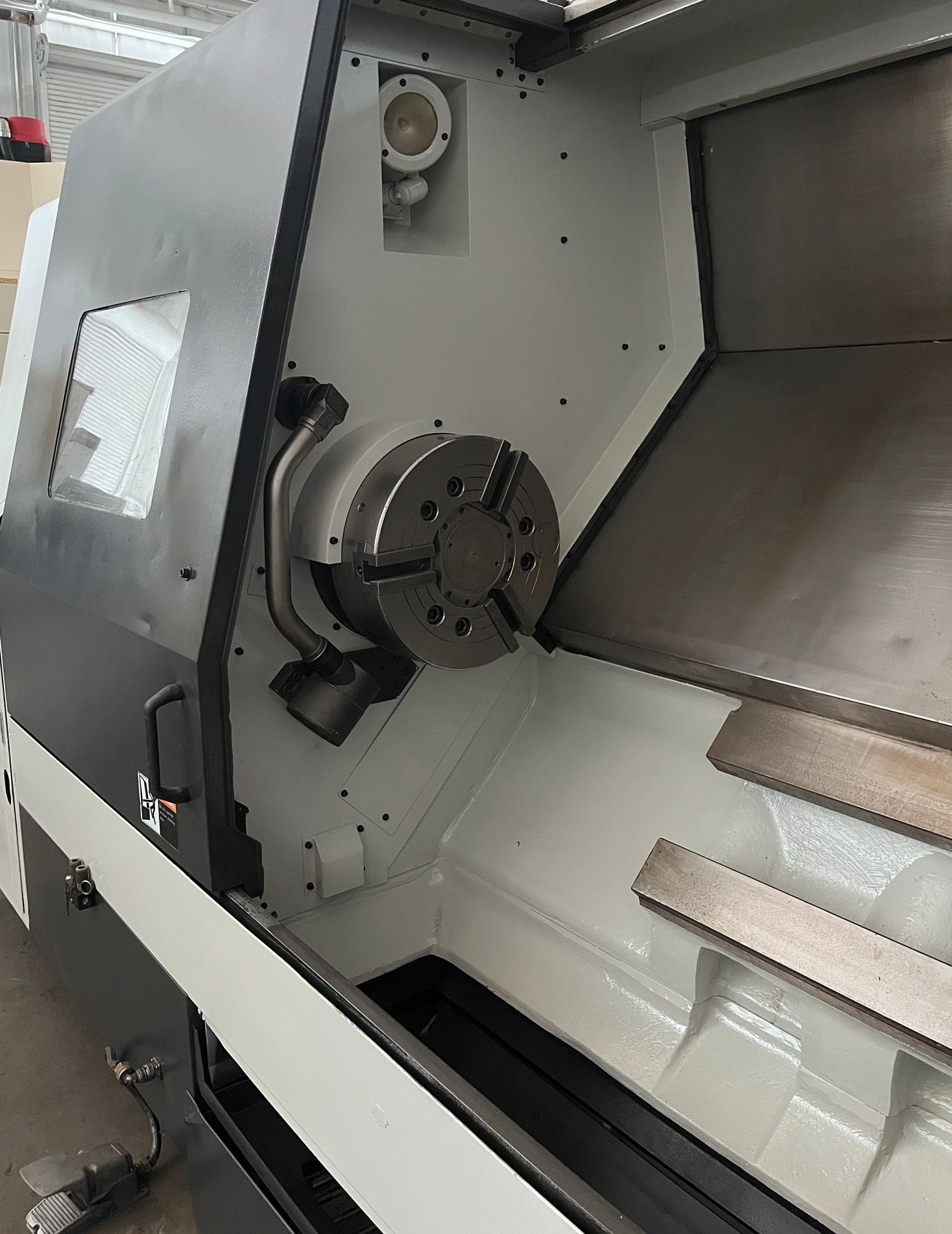

| 15″ 3-Jaw Hydraulic Chuck |
| 5.20″ Big Bore, A2-11 Spindle |

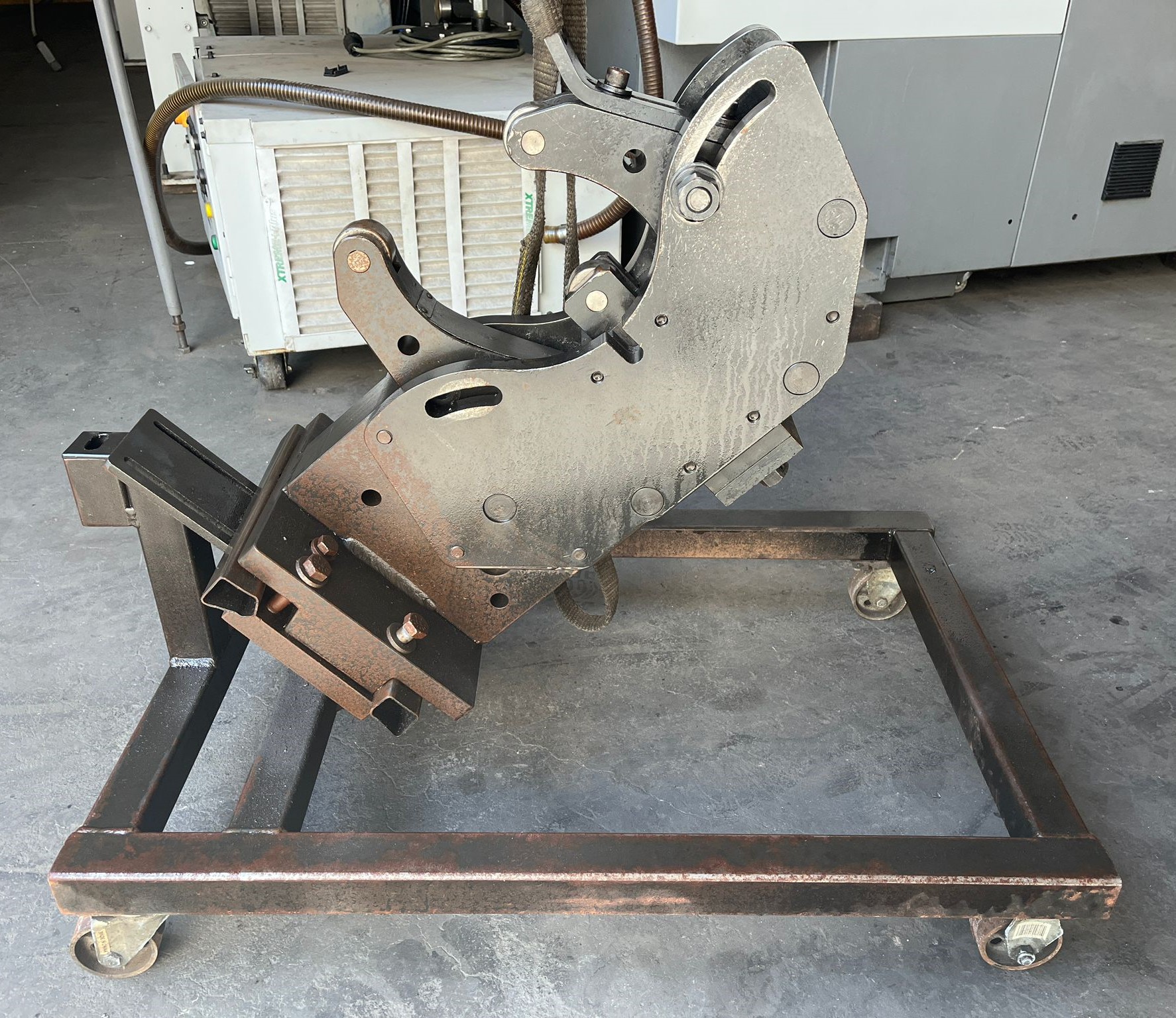

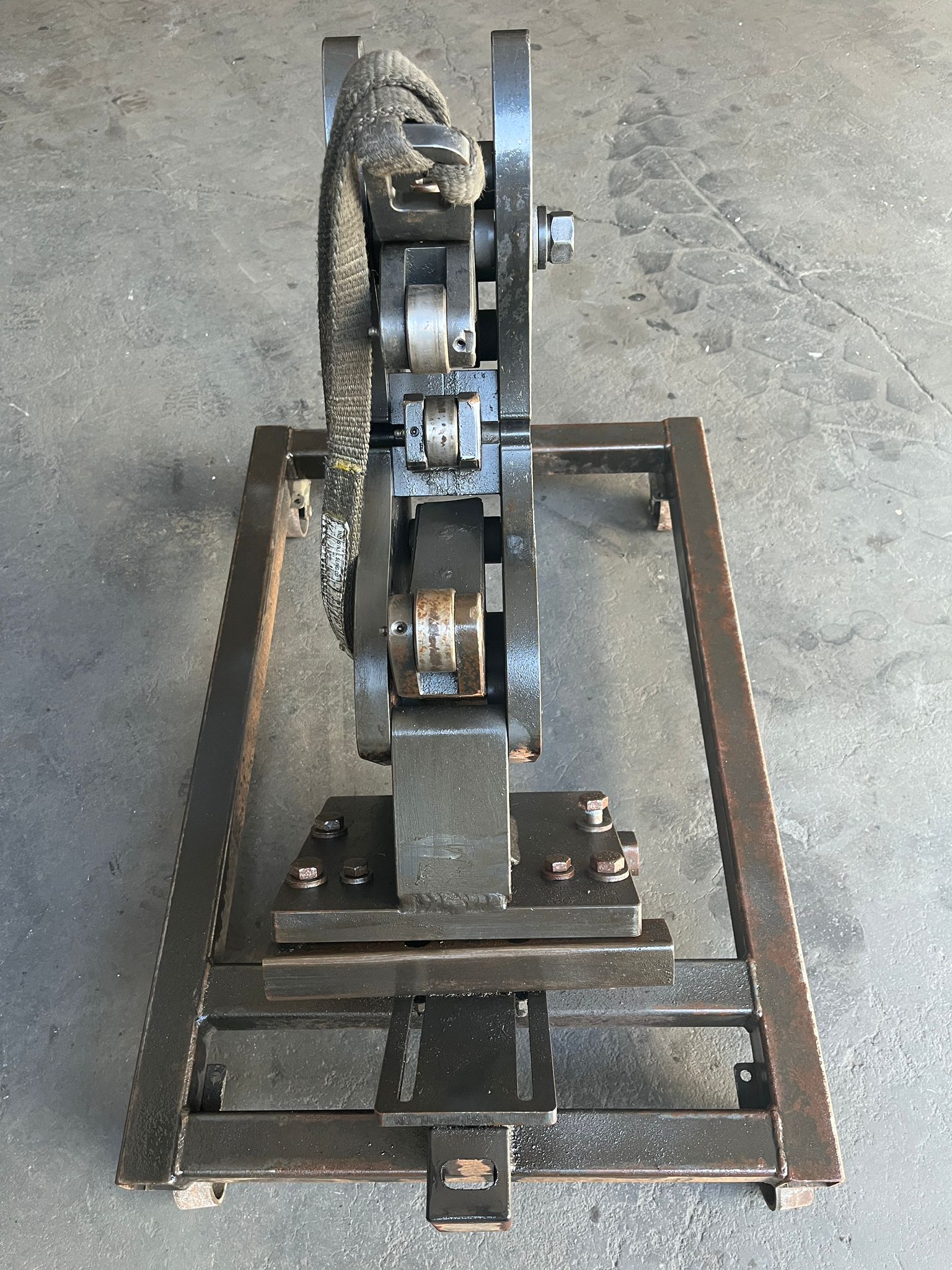

| 1″ – 12″ (Min – Max) Diameter Schmidt RIP – 112 Hydraulic Steady Rest |
| 30 HP High Torque Spindle |

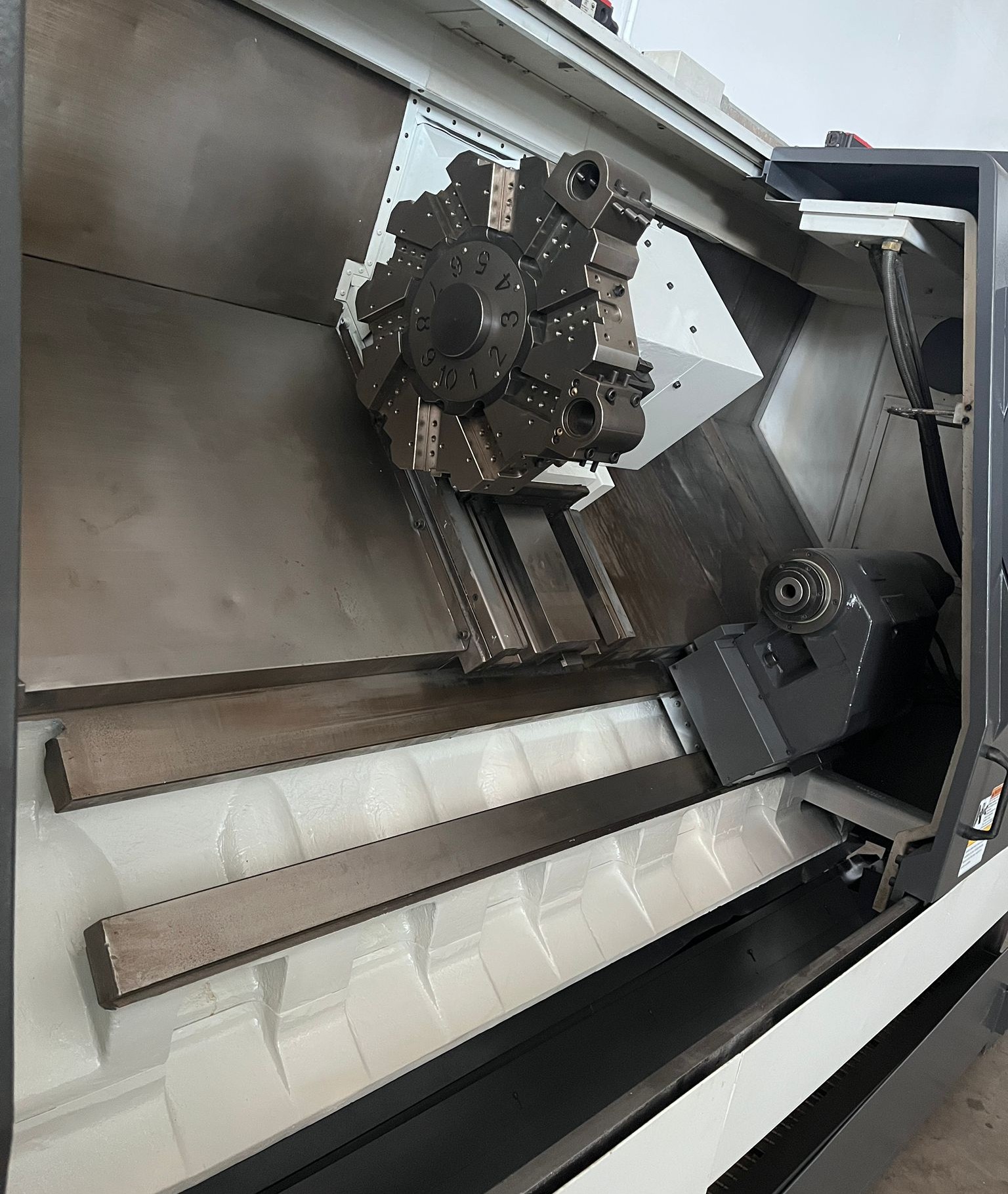

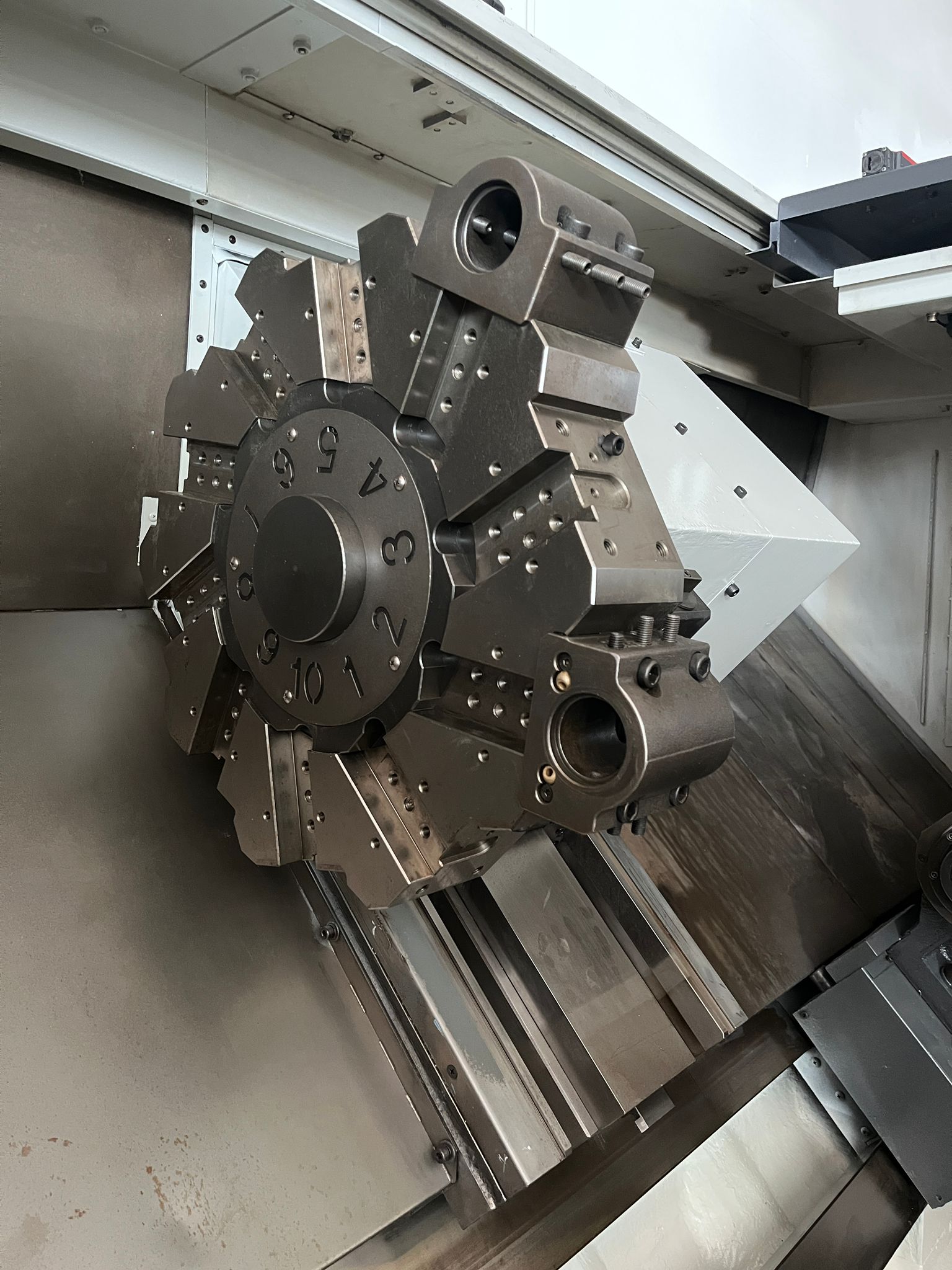

| 10 Station Automatic Turret |
| Tool Presetter |

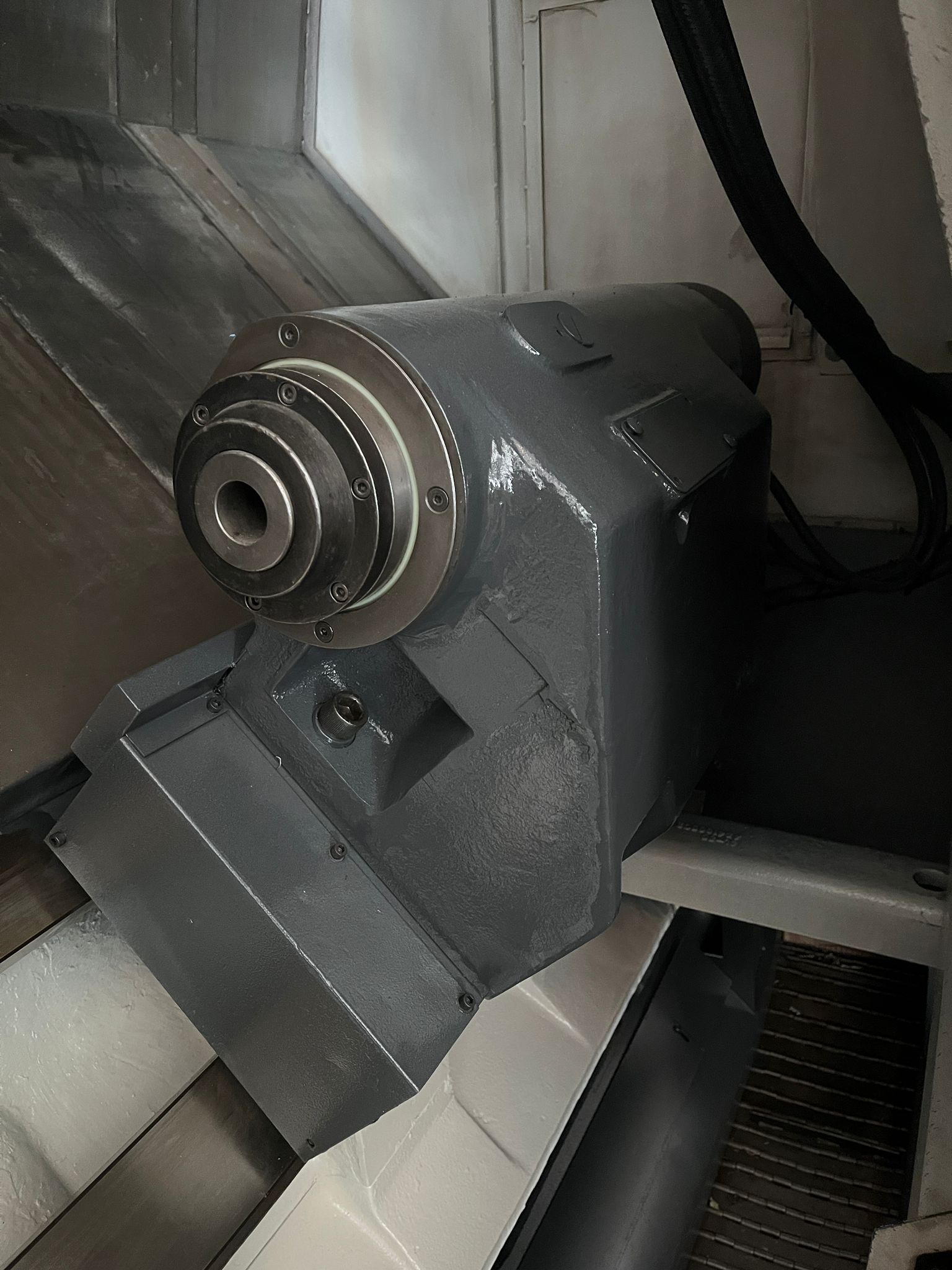

| Tailstock |
| PCMCIA Card Interface |
| Coolant System |
| Chip conveyor |
| (2) Boring Tool Holders Mounted on Turret (As shown in the images) |
| Capacity: |
| Max Turning Diameter: 16.5″ |
| Max Turning Length: 60.2″ |
| Max Bar Capacity: 4.63″ |
| Swing Over Bed: 23.62″ |
| Travel: |
| X Axis Travel: 9.47″ |
| Z Axis Travel: 63.19″ |
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Z Axis: 591 IPM |
| Spindle: |
| Spindle Nose: A2-11 |
| Spindle Bore: 5.20″ |
| Spindle Speed: 2000 RPM |
| Spindle Motor: 30 HP |
| Turret: |
| Capacity: 10 Station Turret |
| Turret Index Time: 0.15 Second |
| Tool Holders Type: BMT |
| Tailstock: |
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 5.12″ |
| Tailstock Quill Travel: 4.70″ |
| General: |
| Power: 220v / kva / 3-Phase |
| Overall Dimensions: 197″ x 73″ x 80″ High Approx. |
| Weight: 19,800 lbs. Approx. |
