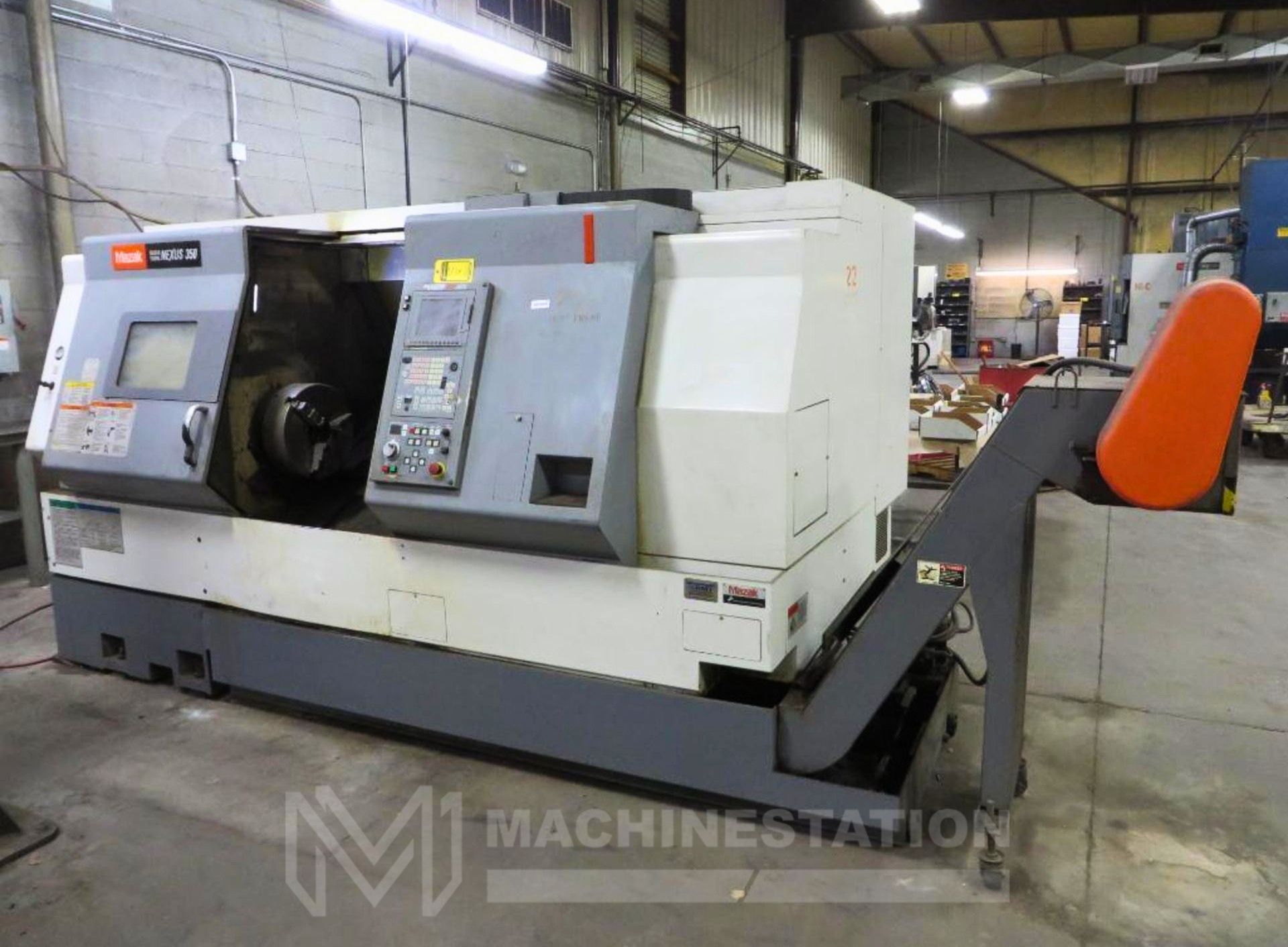

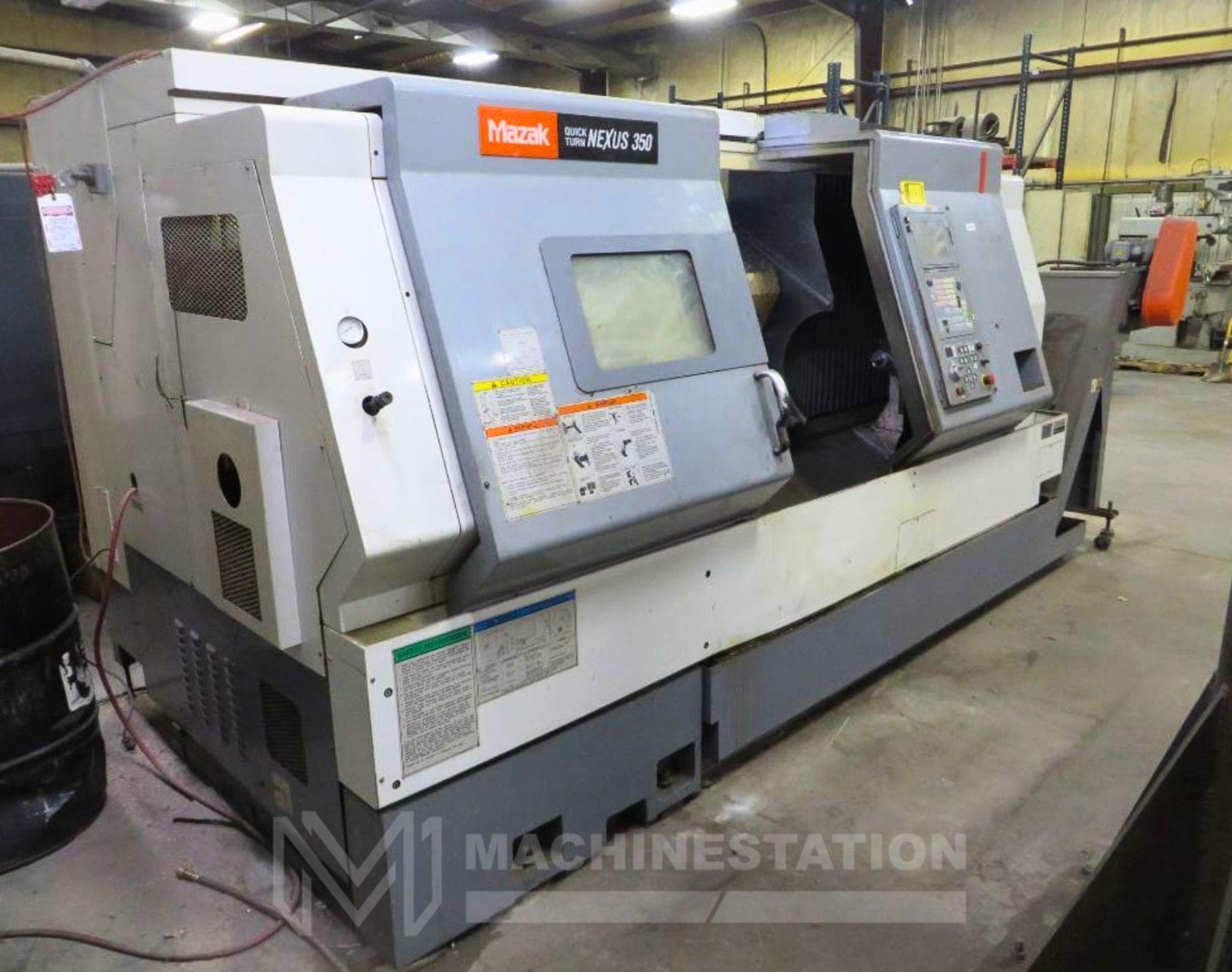

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
| Mazatrol PC Fusion CNC Control |

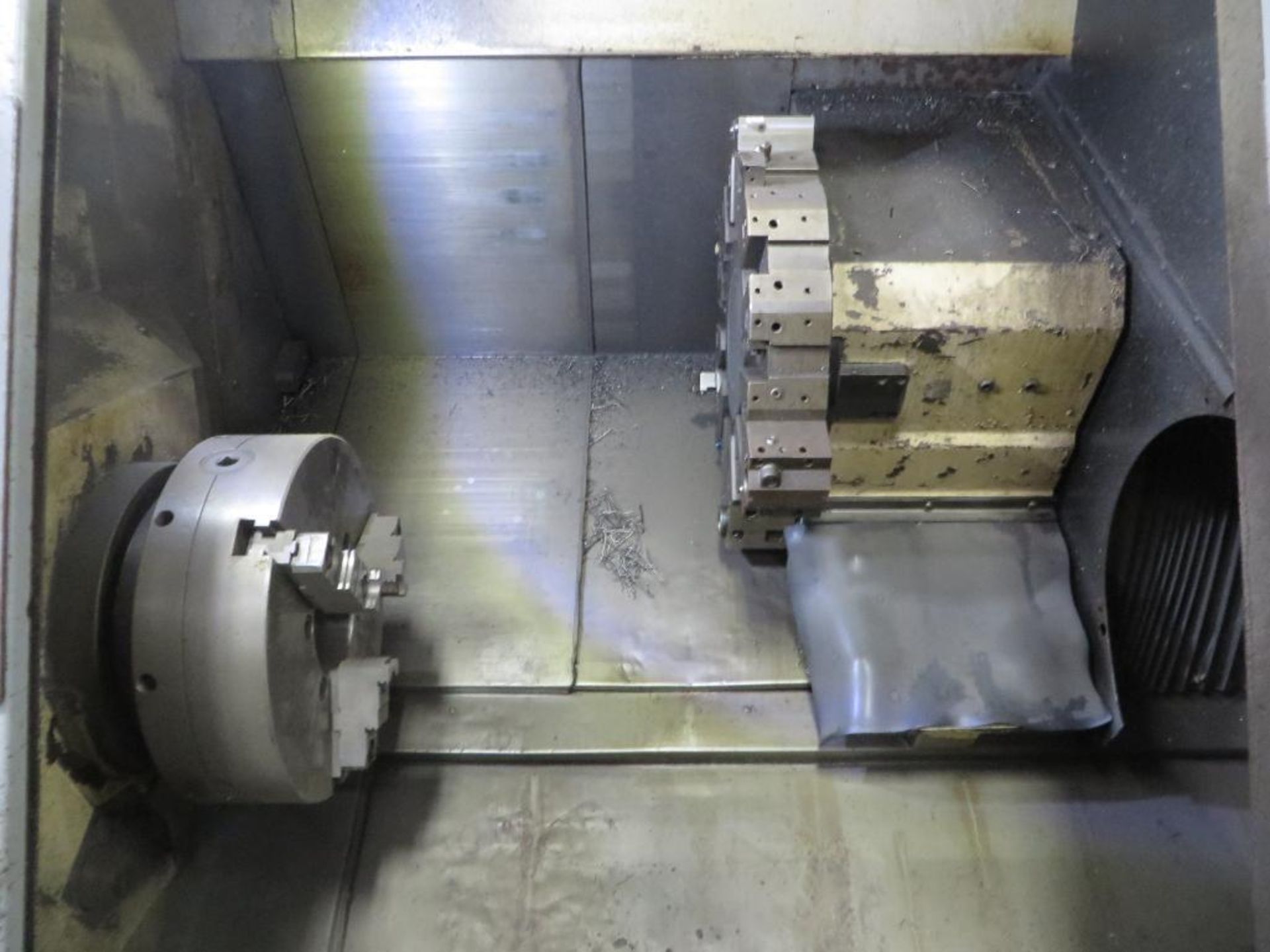

| 381 mm Hydraulic 3-Jaw Chuck |
| 12-Station Automatic Turret |
| Hydraulic Programmable Tailstock |
| Automatic Tool Presetter |
| Automatic Lubrication System |
| Foot-Operated Chuck Control |
| Coolant System |
| Chip Conveyor |
| Capacity: |
| Maximum Turning Diameter: 420 mm |
| Maximum Turning Length: 1250 mm |
| Maximum Swing Over Bed: 680 mm |
| Maximum Swing Over Cross Slide: 510 mm |
| Maximum Bar Capacity: 102 mm |
| Travels: |
| X-Axis Travel: 280 mm |
| Z-Axis Travel: 1280 mm |
| Feed Rates: |
| Rapid Traverse X-Axis: 1181 IPM |
| Rapid Traverse Z-Axis: 1299 IPM |
| Spindle: |
| Chuck Size: 381 mm |
| Spindle Bore: 112 mm |
| Spindle Nose: A2-11 |
| Spindle Speed: 3300 RPM |
| Spindle Power: 30 kW |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.2 Seconds |
| Tailstock: |
| Tailstock Type: Hydraulic Programmable |
| Tailstock Taper: MT-5 |
| Tailstock Quill Diameter: 100 mm |
| Tailstock Quill Travel: 120 mm |
| General: |
| Power Source (Approx.): 55 kVA / 220V / 50/60 Hz / 3-Phase |
| Machine Dimensions (Approx.): 4370 mm × 2210 mm × 2290 mm High |
| Machine Weight (Approx.): 5,670 kg |
