Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

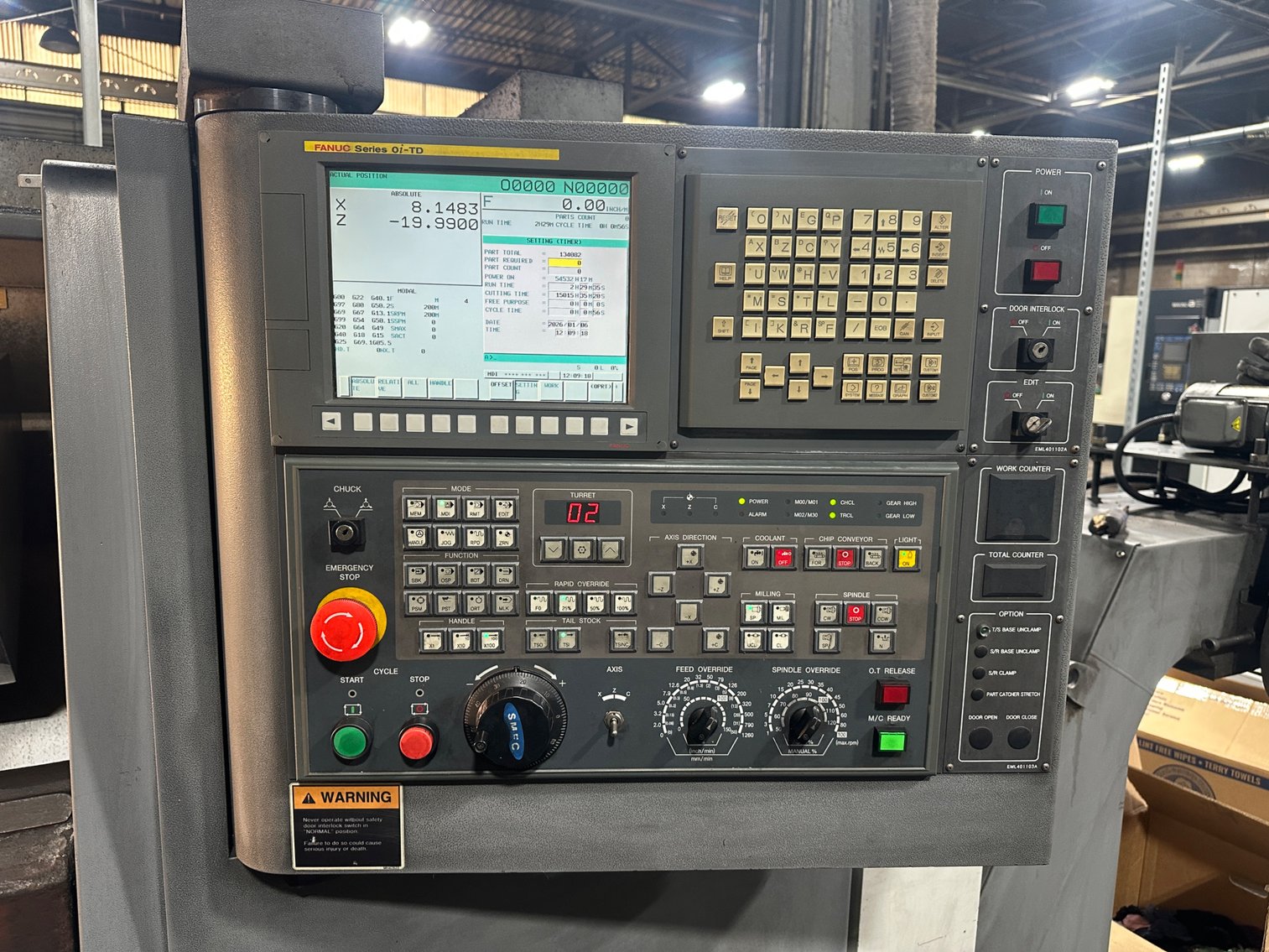

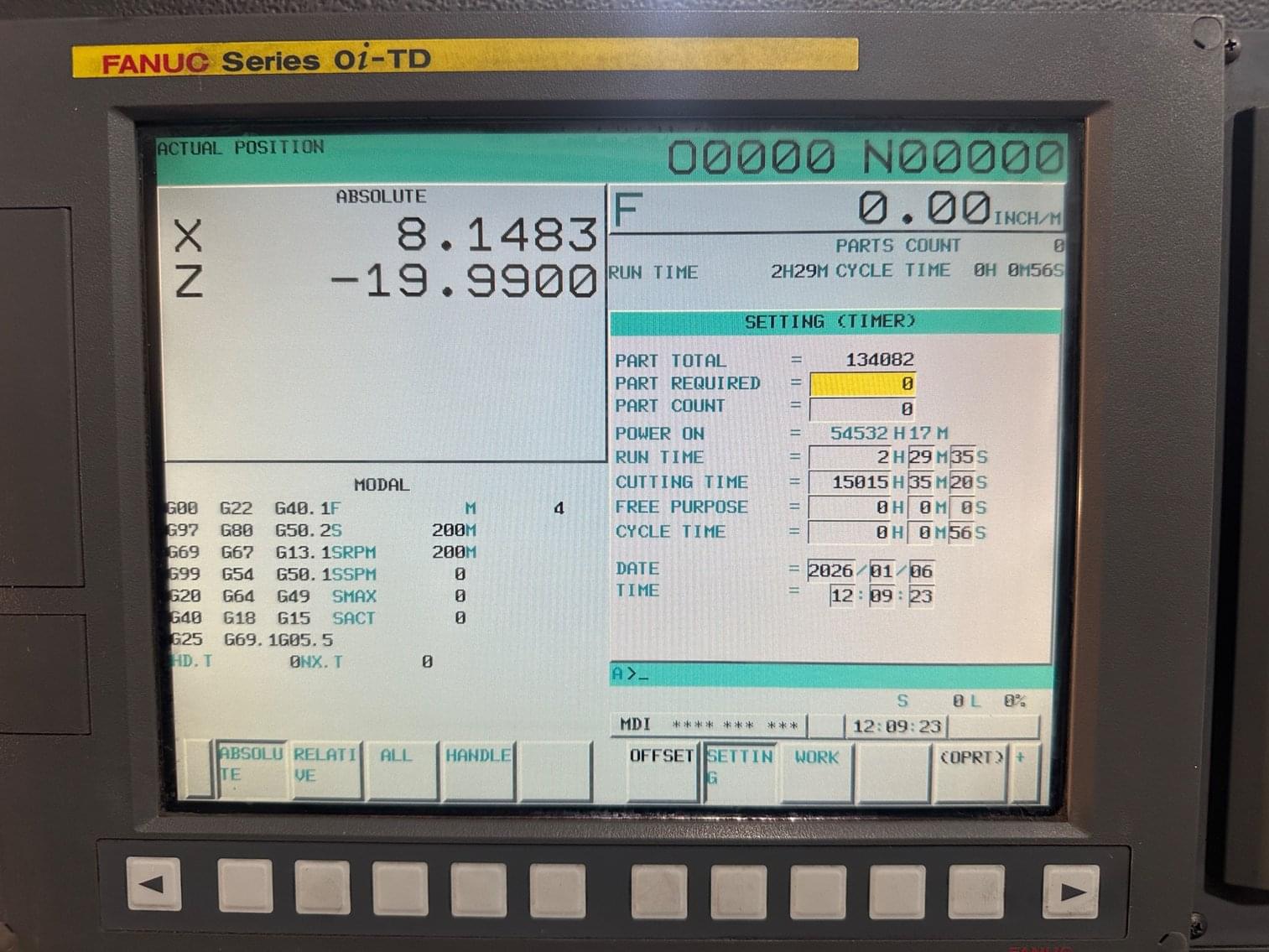

| Fanuc Series 0i-TD CNC Control |

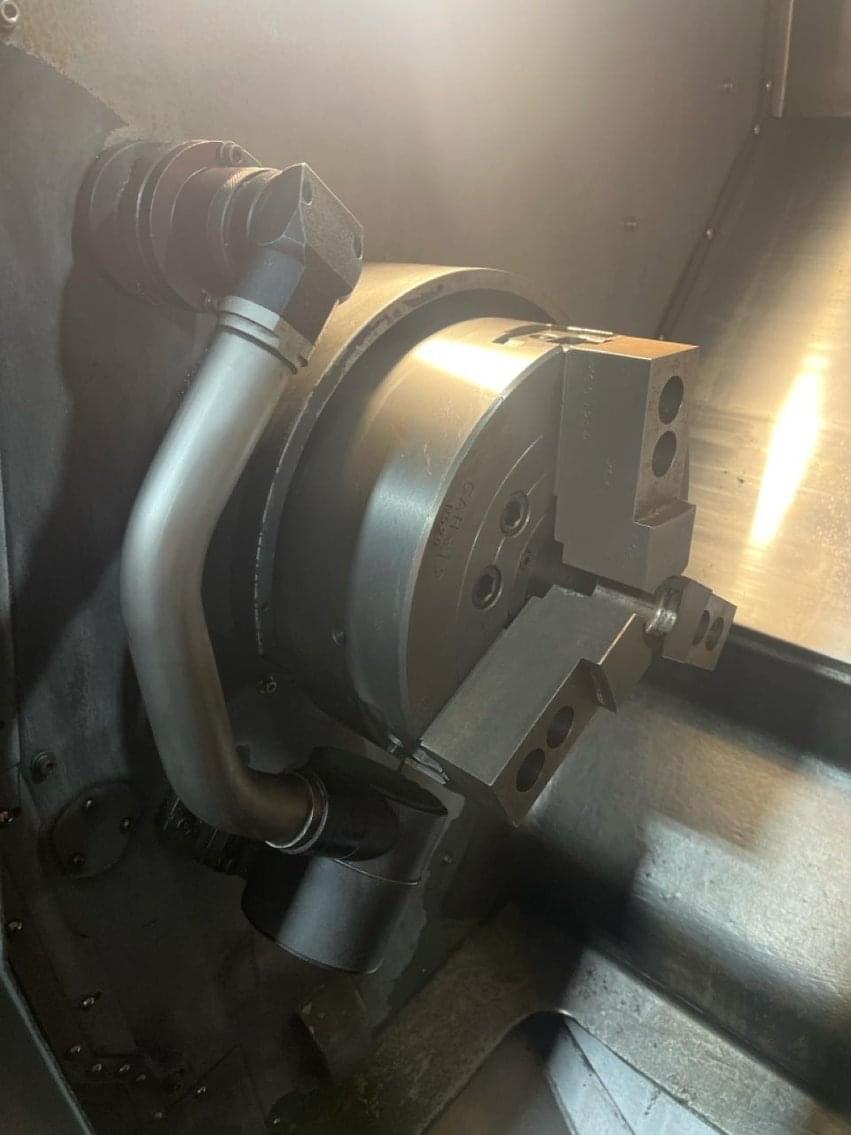

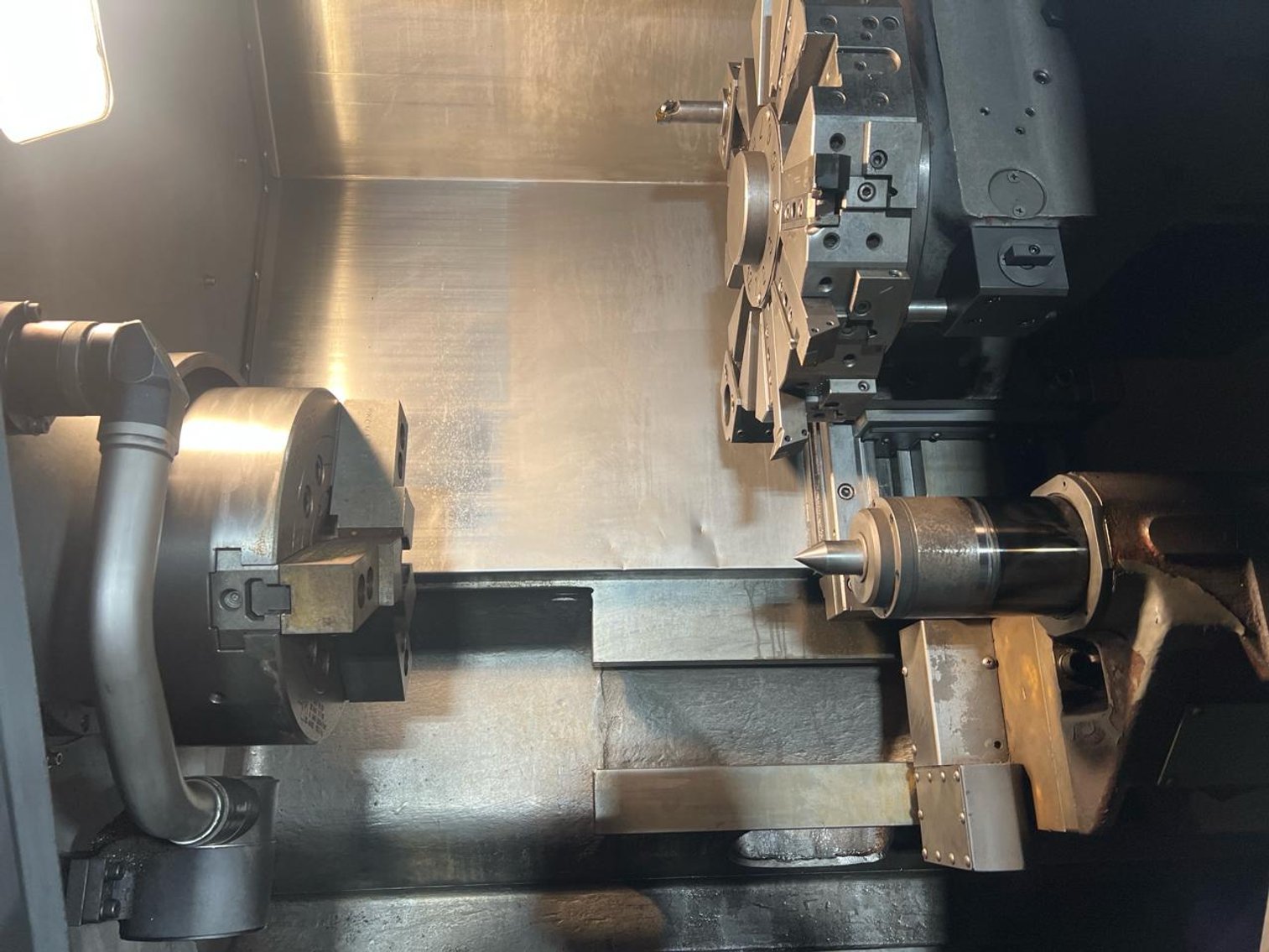

| 305 mm Hydraulic 3-Jaw Chuck |

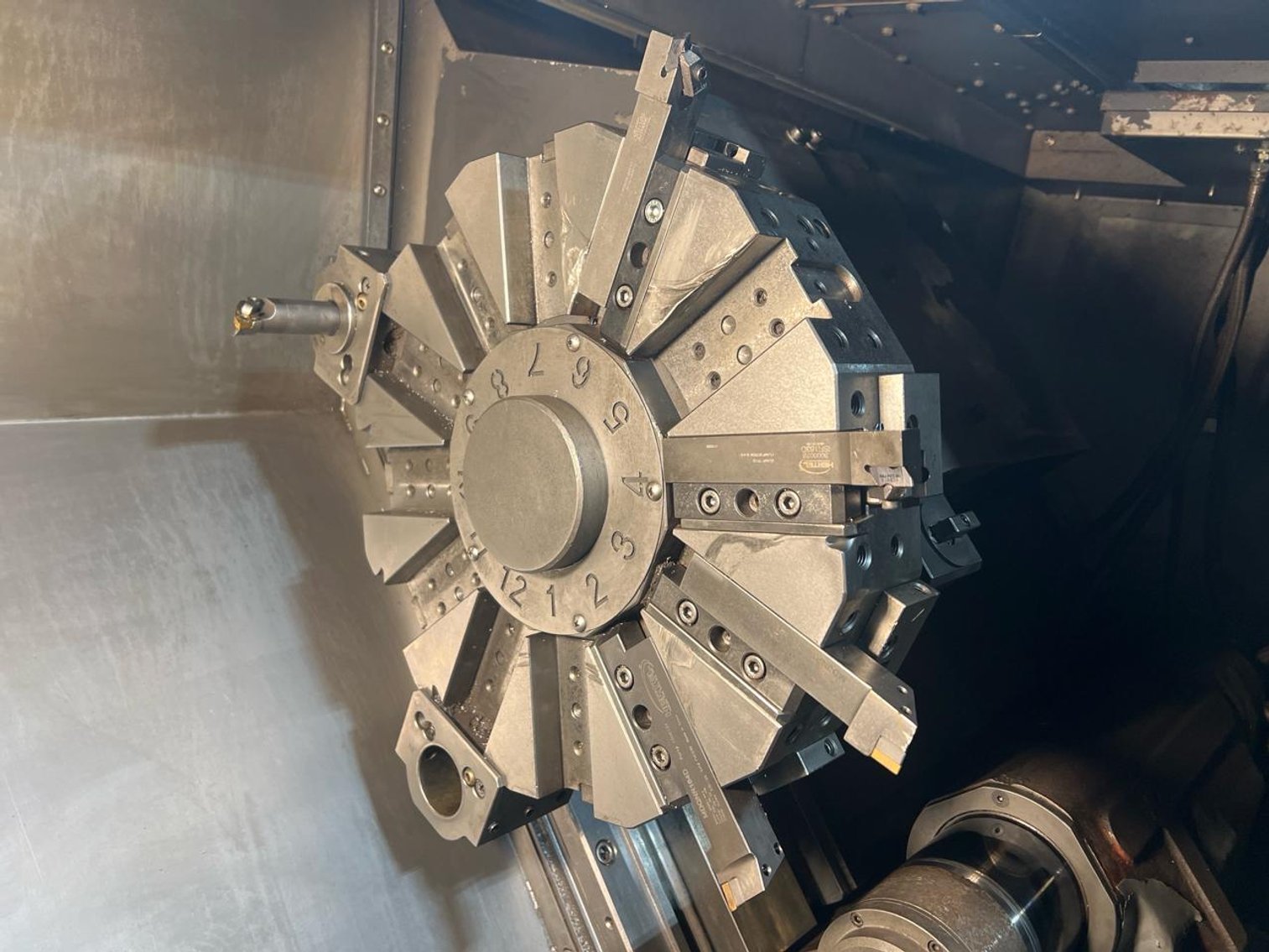

| 10-Station Automatic Turret |

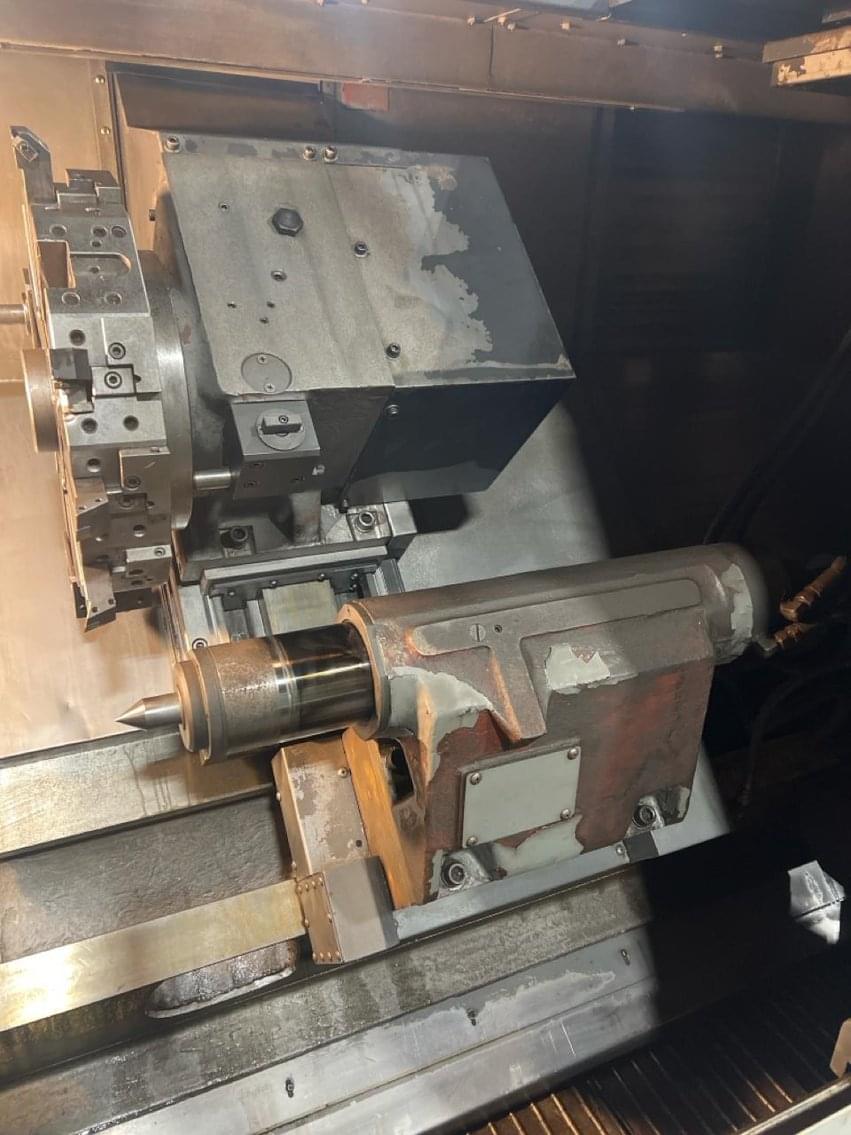

| Hydraulic Tailstock |
| Automatic Tool Presetter |
| Automatic Lubrication System |
| Foot-Operated Chuck Control |
| Coolant System |

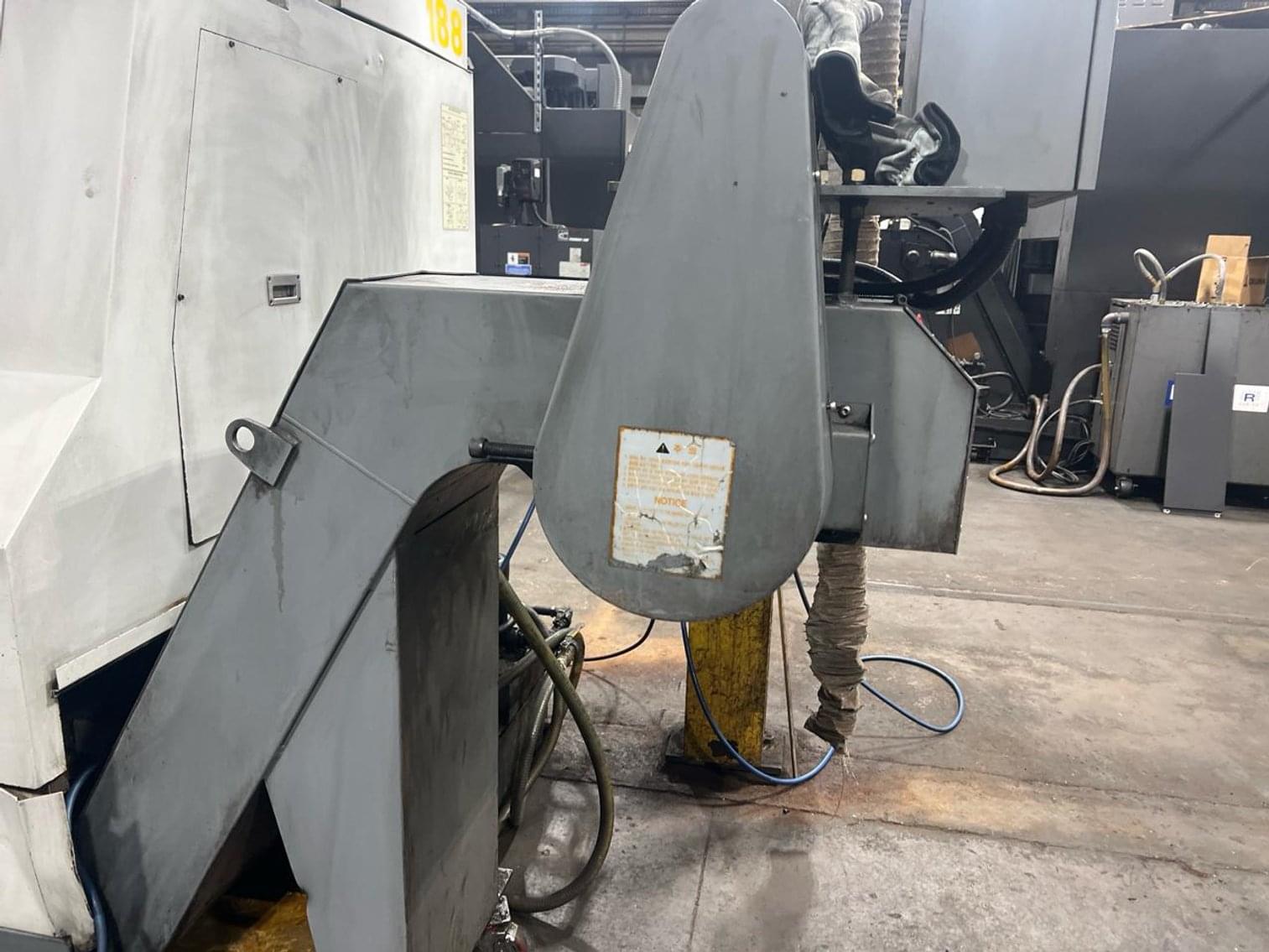

| Chip Conveyor |
| Capacity: |
| Maximum Turning Diameter: 400 mm |
| Maximum Turning Length: 1000 mm |
| Maximum Swing Over Bed: 600 mm |
| Maximum Swing Over Saddle: 390 mm |
| Maximum Bar Capacity: 76 mm |
| Travels: |
| X-Axis Travel: 245 mm |
| Z-Axis Travel: 1050 mm |
| Feed Rates: |
| Rapid Traverse X-Axis: 787 IPM |
| Rapid Traverse Z-Axis: 945 IPM |
| Spindle: |
| Chuck Size: 305 mm |
| Spindle Bore: 91 mm |
| Spindle Nose: A2-8 |
| Spindle Speed: 3,000 RPM |
| Spindle Power: 22 kW |
| Turret: |
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.5 Seconds |

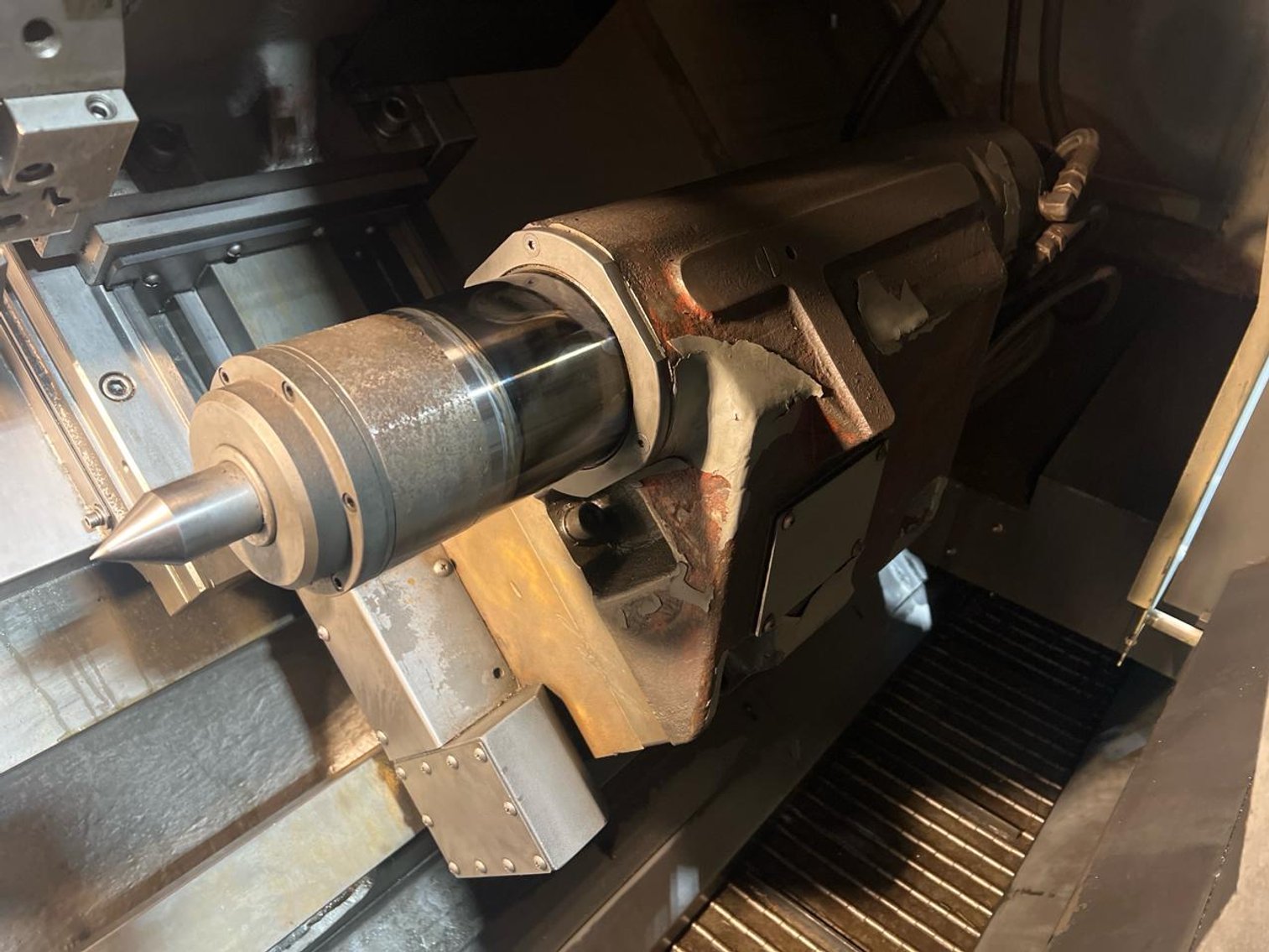

| Tailstock: |
| Tailstock Type: Hydraulic Programmable |
| Tailstock Taper: MT-5 |
| Tailstock Quill Diameter: 100 mm |
| Tailstock Quill Travel: 100 mm |
| General: |

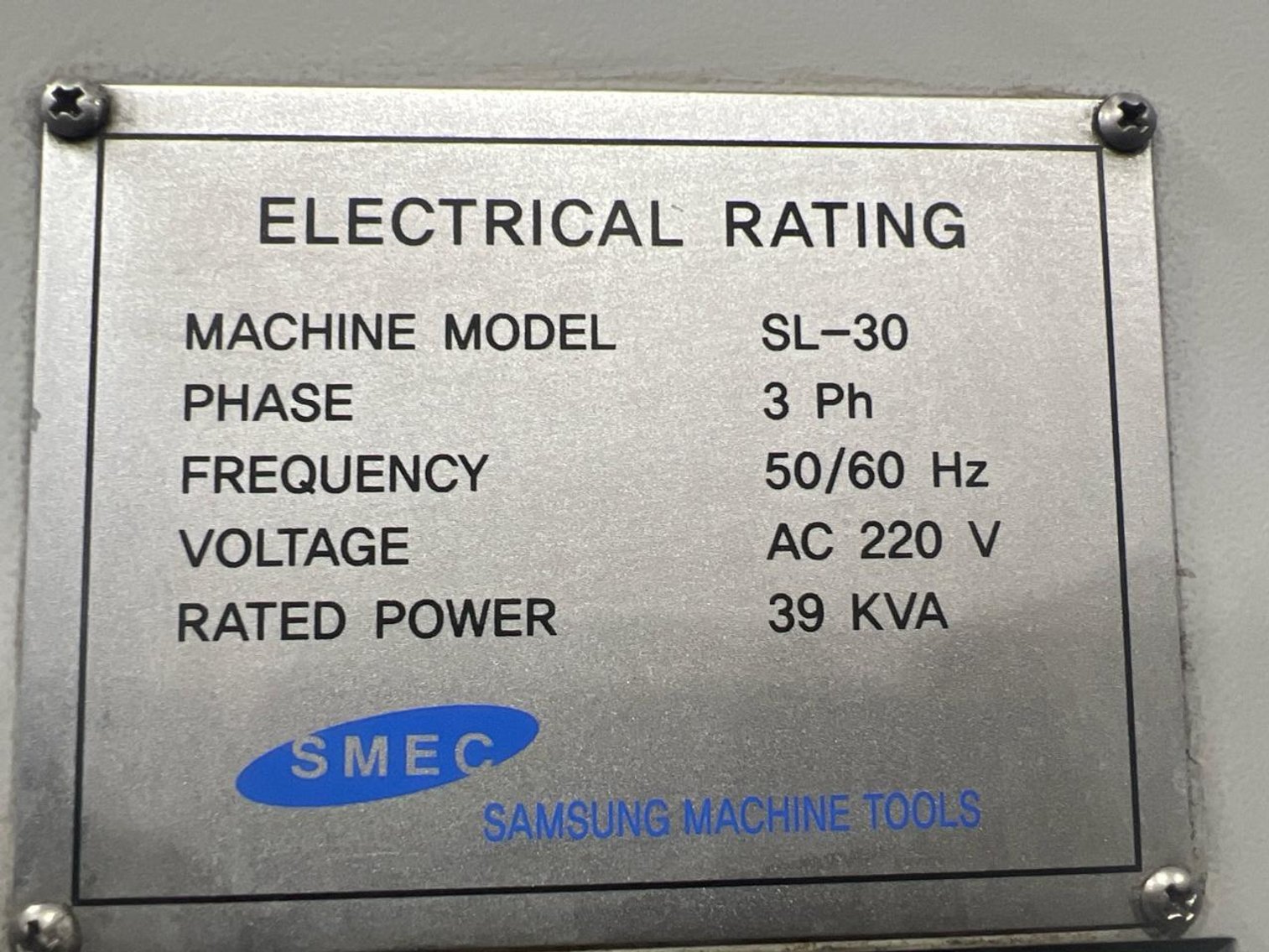

| Power Source: 39 kVA / 220V / 50/60 Hz / 3-Phase (Approx.) |
| Overall Dimensions (Approx.): 4150 mm × 2000 mm × 2100 mm High |
| Machine Weight (Approx.): 6000 kg |
