Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

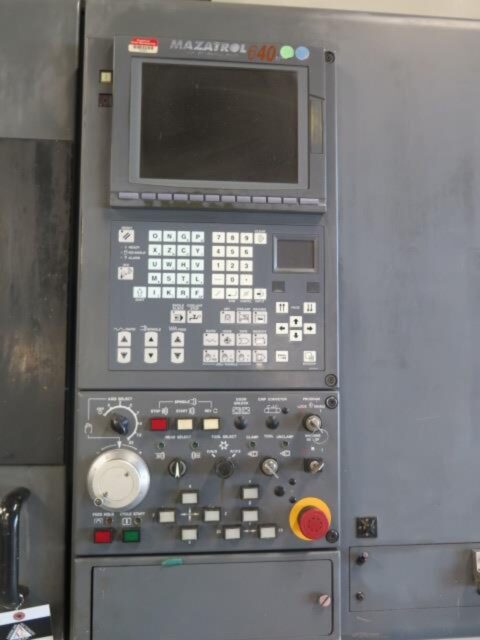

| Mazatrol Fusion 640MT CNC Control |

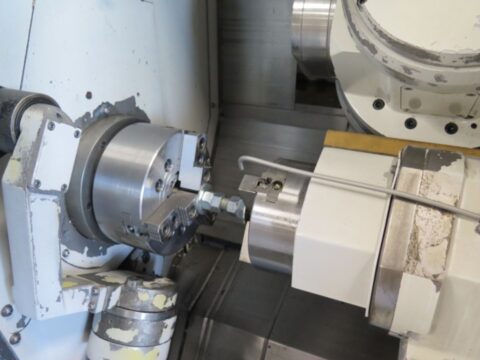

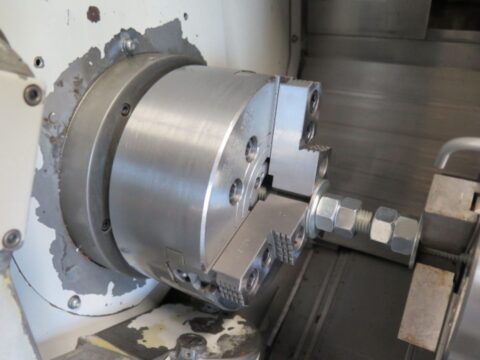

| 203 mm 3-Jaw Chuck on Main Spindle |

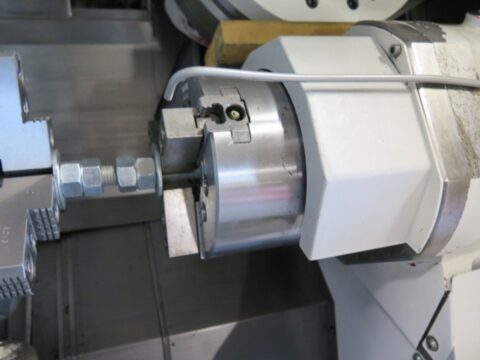

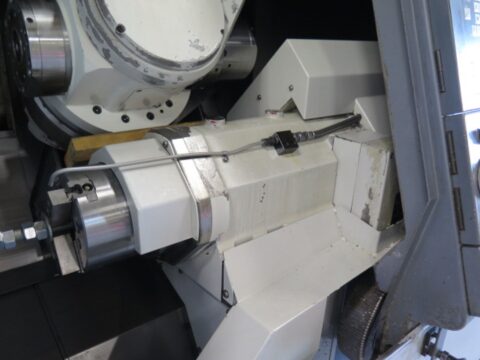

| 203 mm 3-Jaw Chuck on Sub Spindle |
| Full C-Axis on Both Spindles |
| Sub Spindle |
| C-Axis Live Tool |
| Y-Axis Capability |

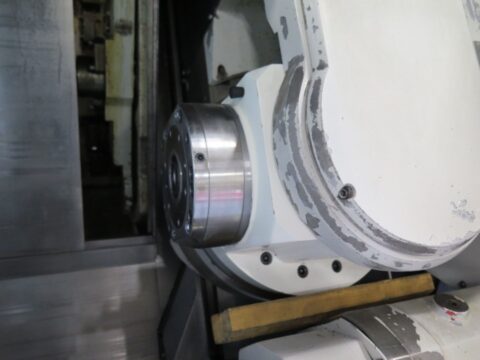

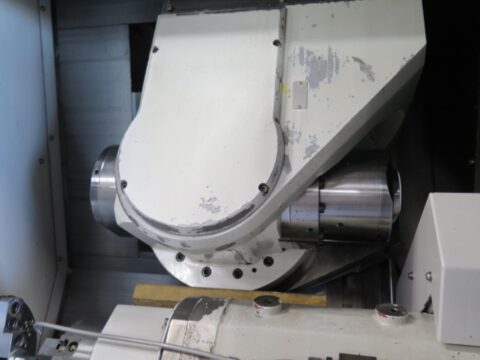

| 6,000 RPM Pendulum Milling Head |
| 40-Station Automatic Tool Changer |
| Rigid Tapping |
| Coolant Tank |
| Capacity: |
| Maximum Swing: 538 mm |
| Maximum Turning Diameter: 538 mm |
| Maximum Turning Length: 1016 mm |
| Main Spindle Bar Capacity: 50 mm |
| Main Spindle Bore: 61 mm |
| Sub Spindle Bore: 44 mm |
| Travels: |
| X-Axis Travel: 531 mm |
| Y-Axis Travel: 70 mm |
| Z-Axis Travel: 1064 mm |
| B-Axis Rotation: 225° |
| Main Spindle: |
| Spindle Nose: A2-6 |
| Spindle Speed: 5,000 RPM |
| Spindle Motor: 25 HP |
| Sub Spindle: |
| Spindle Speed: 5,000 RPM |
| Spindle Motor: 10 HP |
| Milling Spindle: |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 15 HP |
| Tool Taper: Kennametal KM63 |
| Automatic Tool Changer: |
| Capacity: 40 Tools |
| Tool System: Kennametal KM63 |
| Maximum Tool Length: 250 mm |
| Maximum Tool Weight: 15.4 lbs. |
| General: |

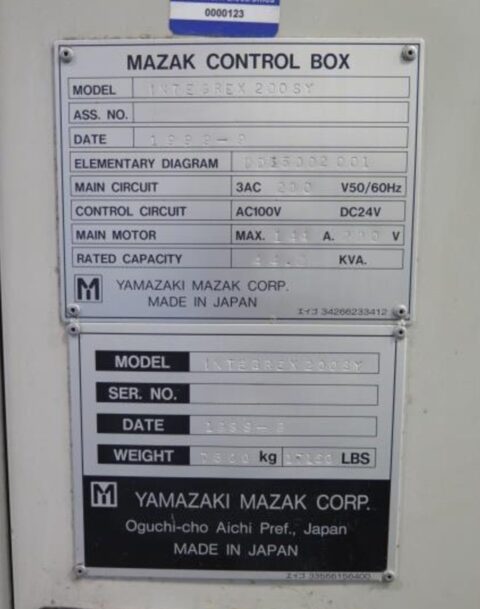

| Power Requirement: 200V / 3 Phase / 50–60 Hz |
| Machine Dimensions (Approx.): 3251 mm × 1829 mm × 2743 mm High |
| Machine Weight (Approx.): 7800 kg |
