Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
|---|

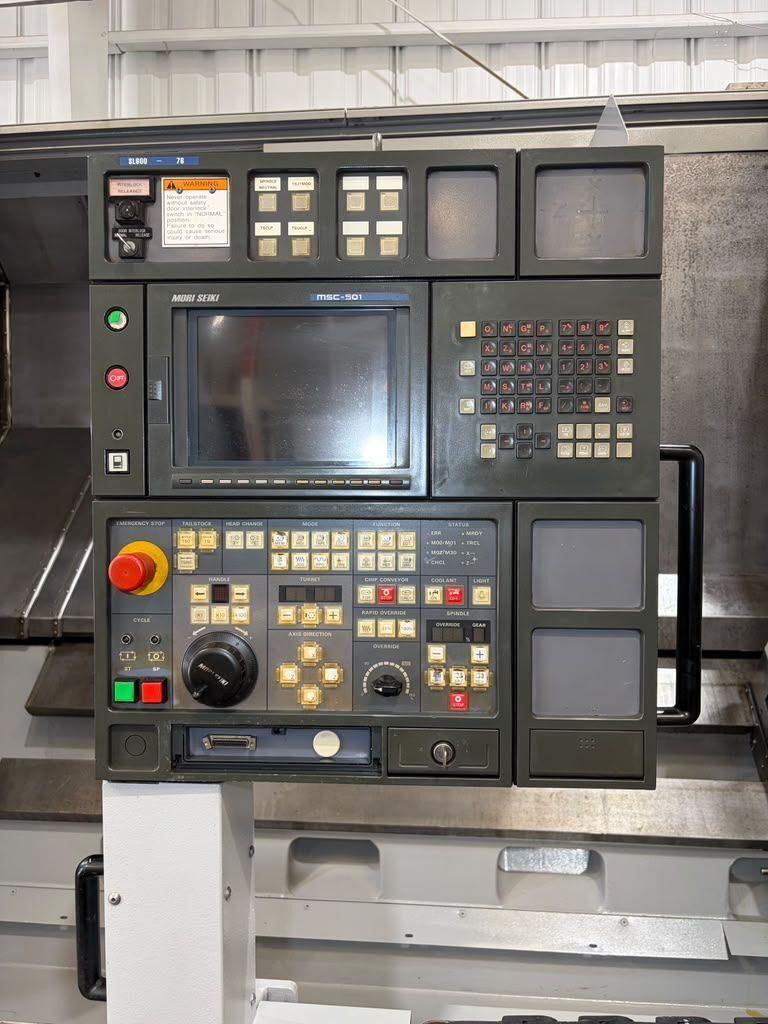

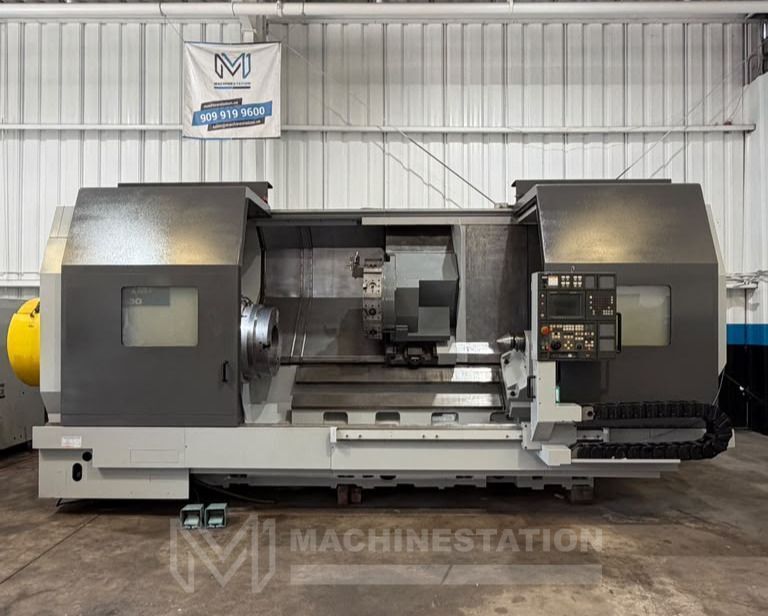

| Mori Seiki MSC-501 (Fanuc) CNC Control |

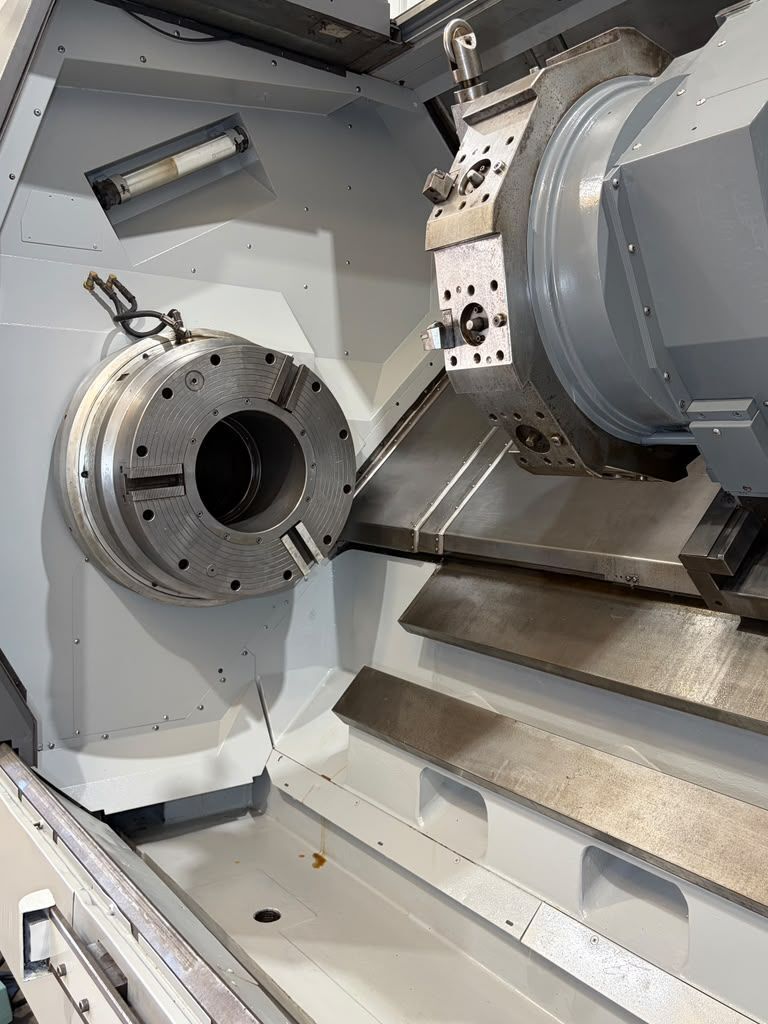

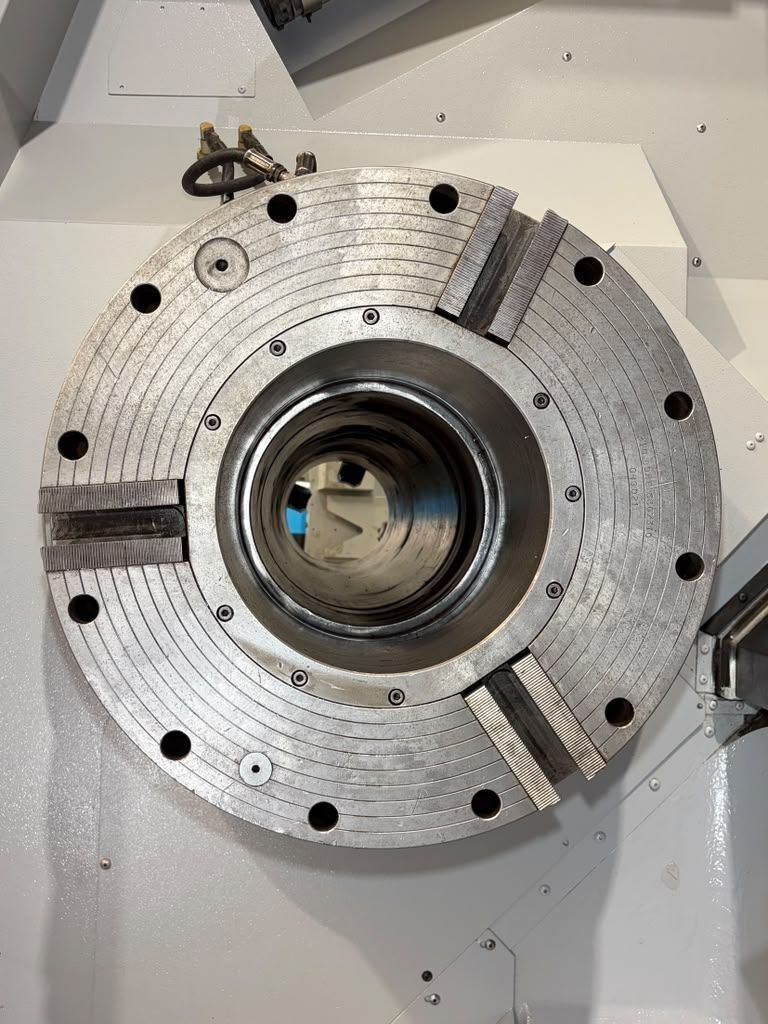

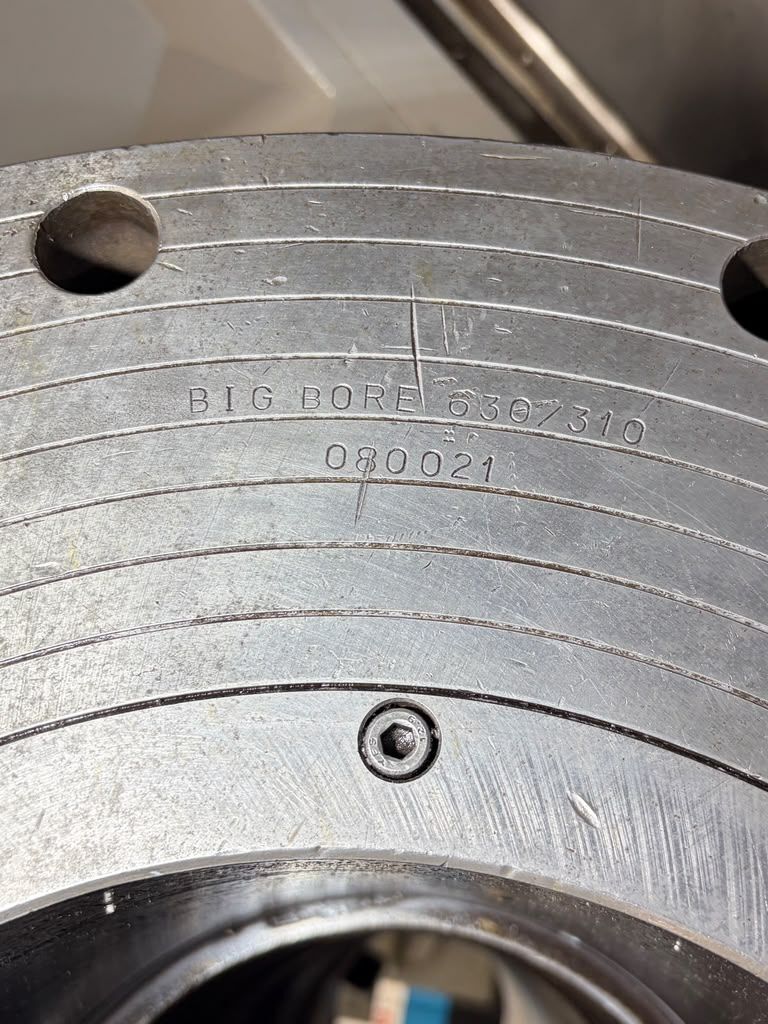

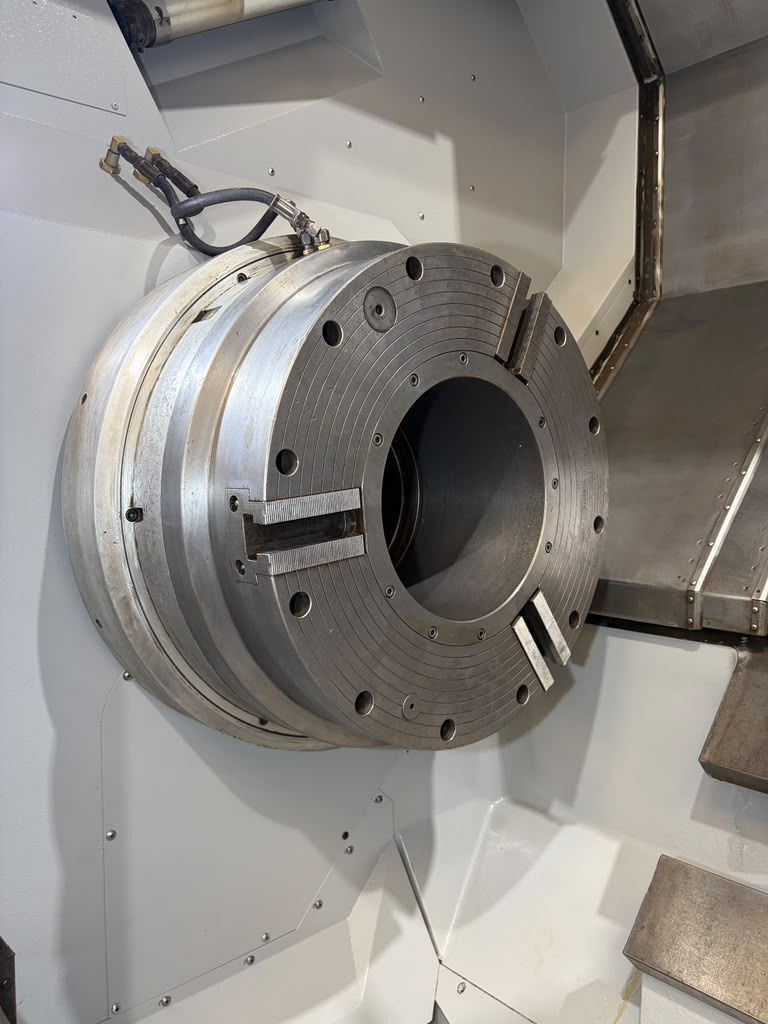

| 24.8″ 3-Jaw Big Bore Front Chuck with 12.20″ Bore |

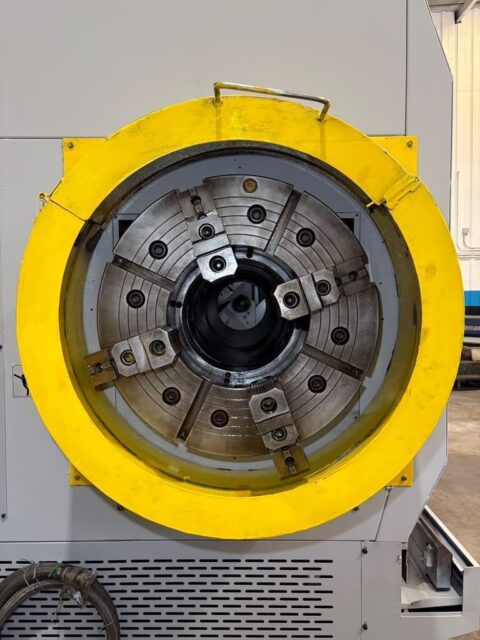

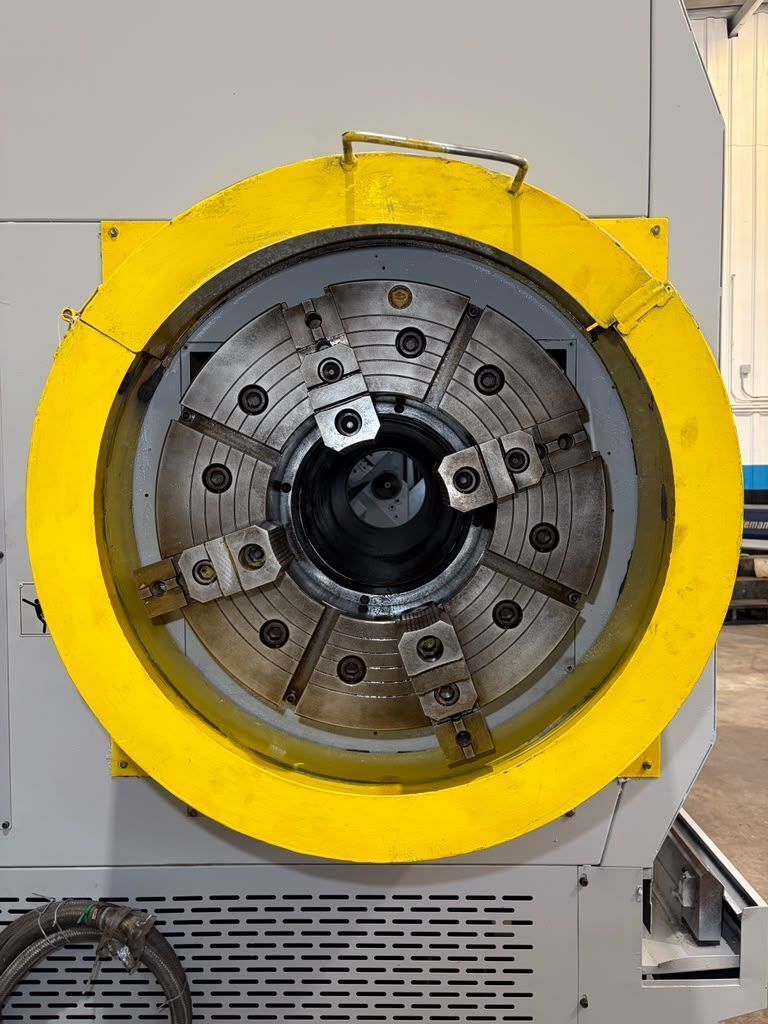

| 24.8″ 4-Jaw Big Bore Rear Chuck |
| A1-20 Spindle with 12.20″ Bore |
| 60/50 HP Gearbox Spindle |

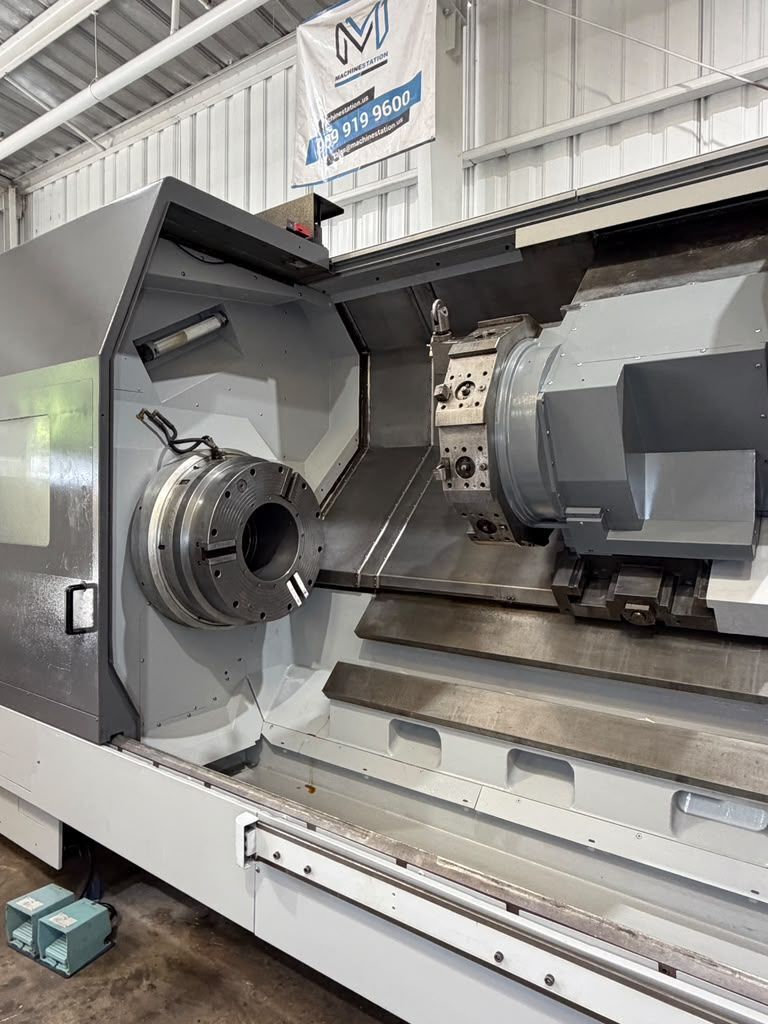

| 10-Station Turret |

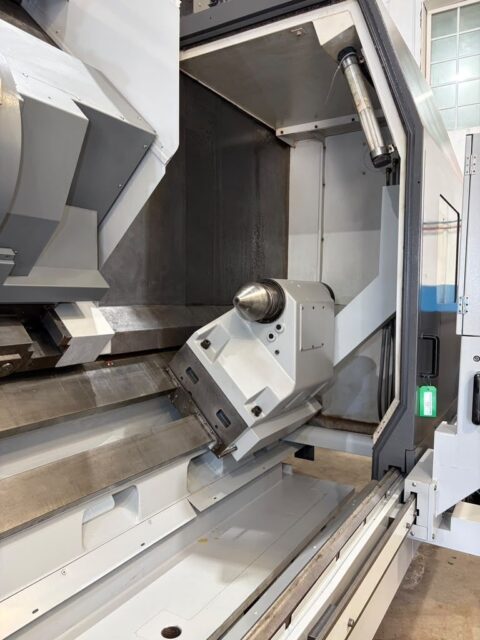

| Programmable Tailstock |
| Rigid Tapping |
| Coolant Tank |
| Chip Conveyor |

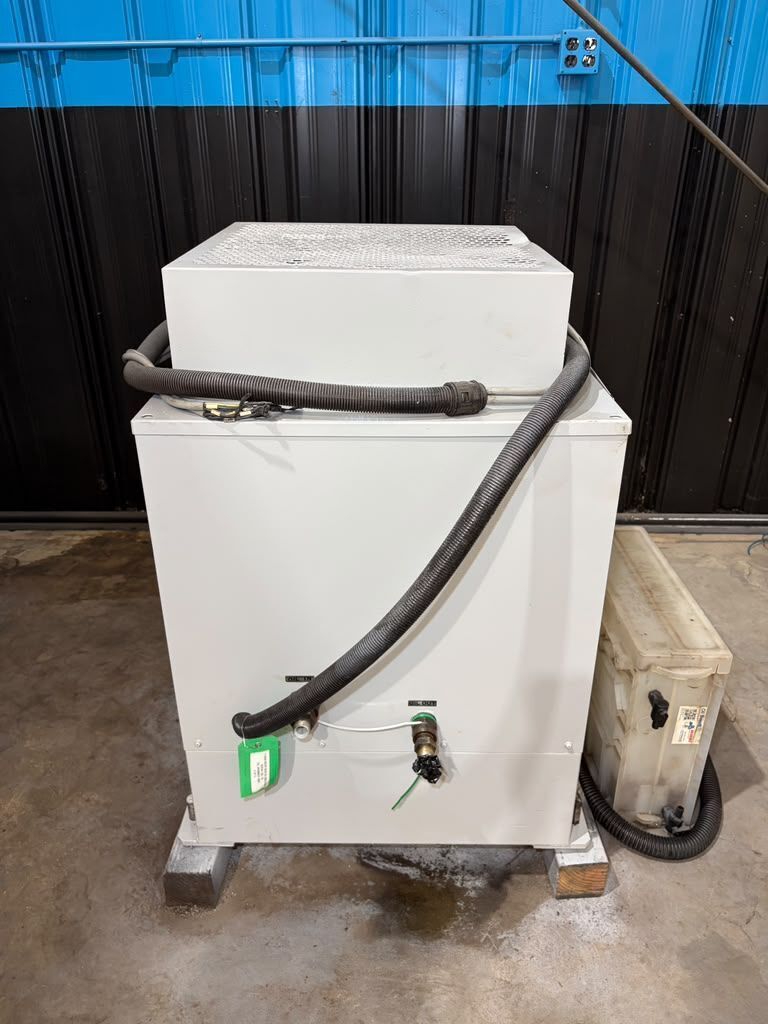

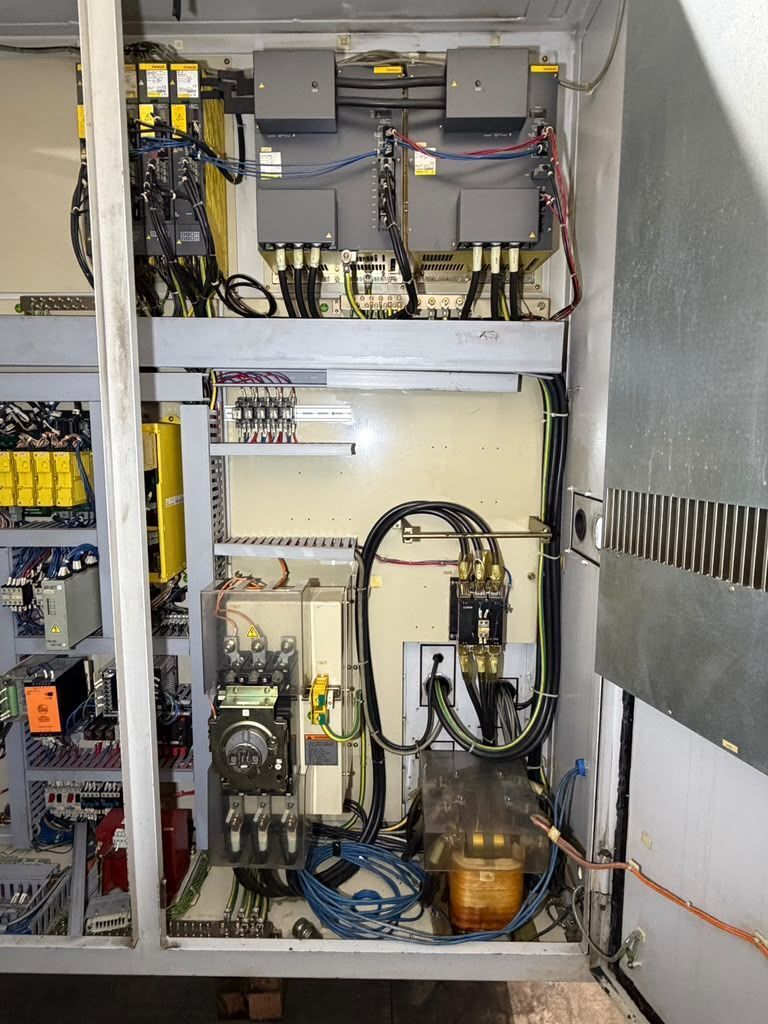

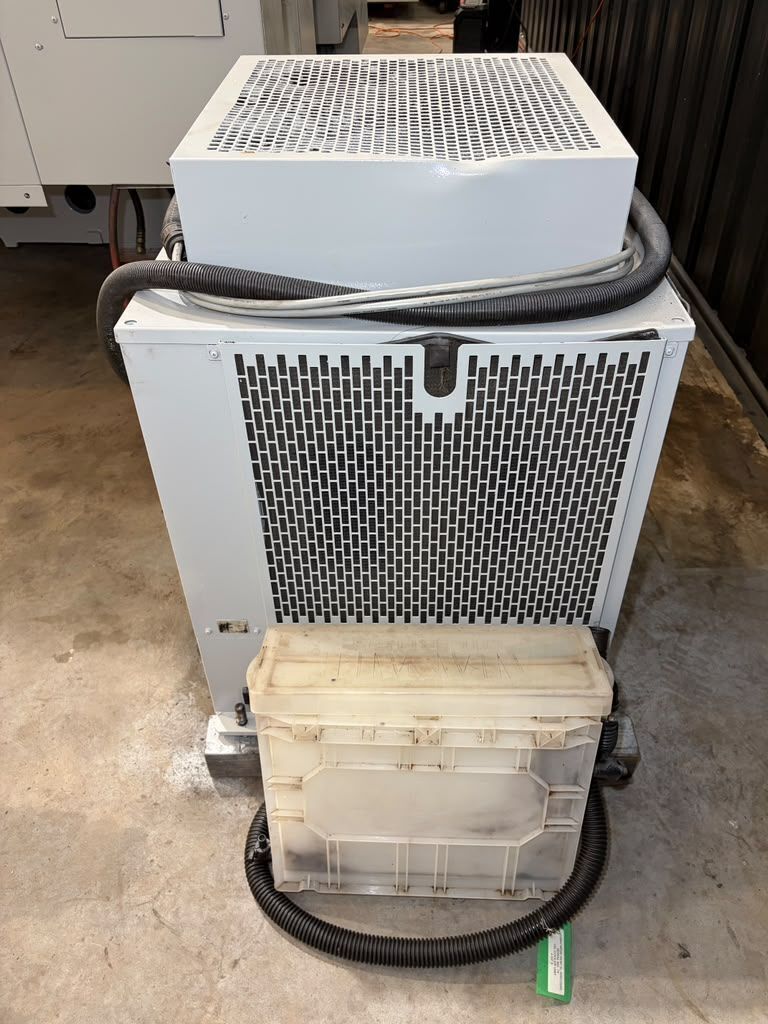

| Transformer |
| Capacity: |
|---|
| Maximum Turning Diameter: 35.4″ |
| Maximum Turning Length: 78.7″ |
| Swing Over Bed: 39.1″ |
| Swing Over Cross Slide: 28.9″ |
| Distance Between Centers: 90.6″ |
| Travels: |
|---|
| X-Axis Travel: 19.1″ |
| Z-Axis Travel: 84.6″ |
| Rapid Traverse X-Axis: 787 IPM |
| Rapid Traverse Z-Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A1-20 |
| Spindle Bore: 10.8″ |
| Spindle Speed: 1,000 RPM |
| Spindle Motor: 60/50 HP |

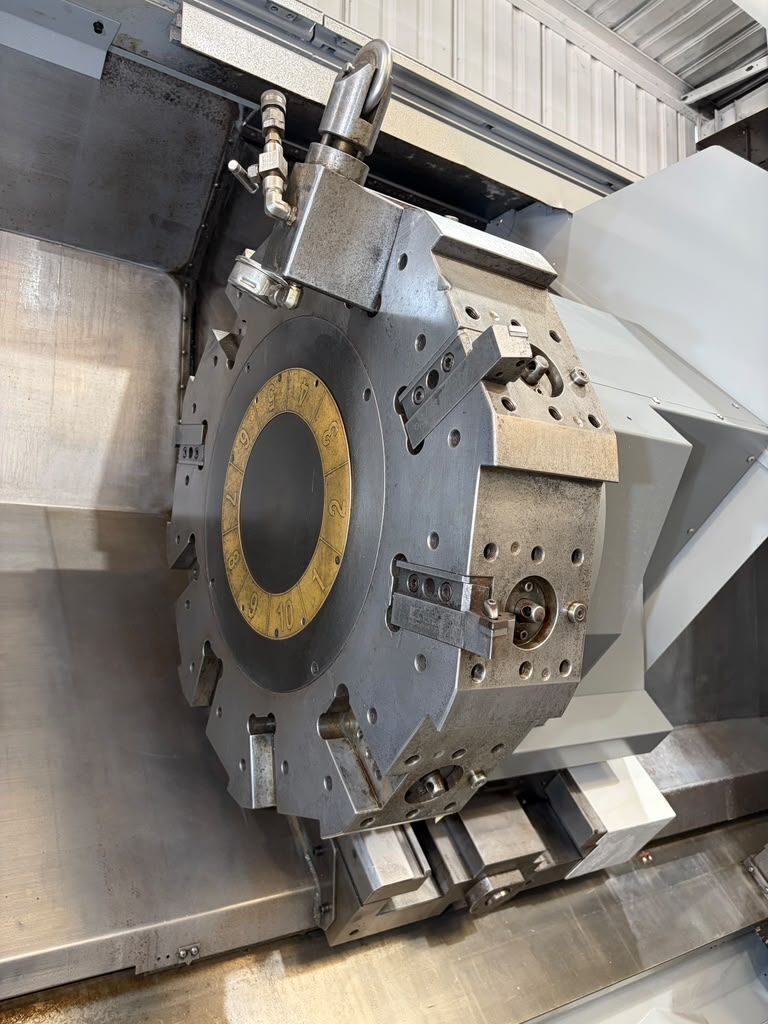

| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Shank Height for Square Tool: 1.25″ |
| Shank Diameter for Boring Bar: 2.06″ |
| Turret Index Time: 0.4 Second |

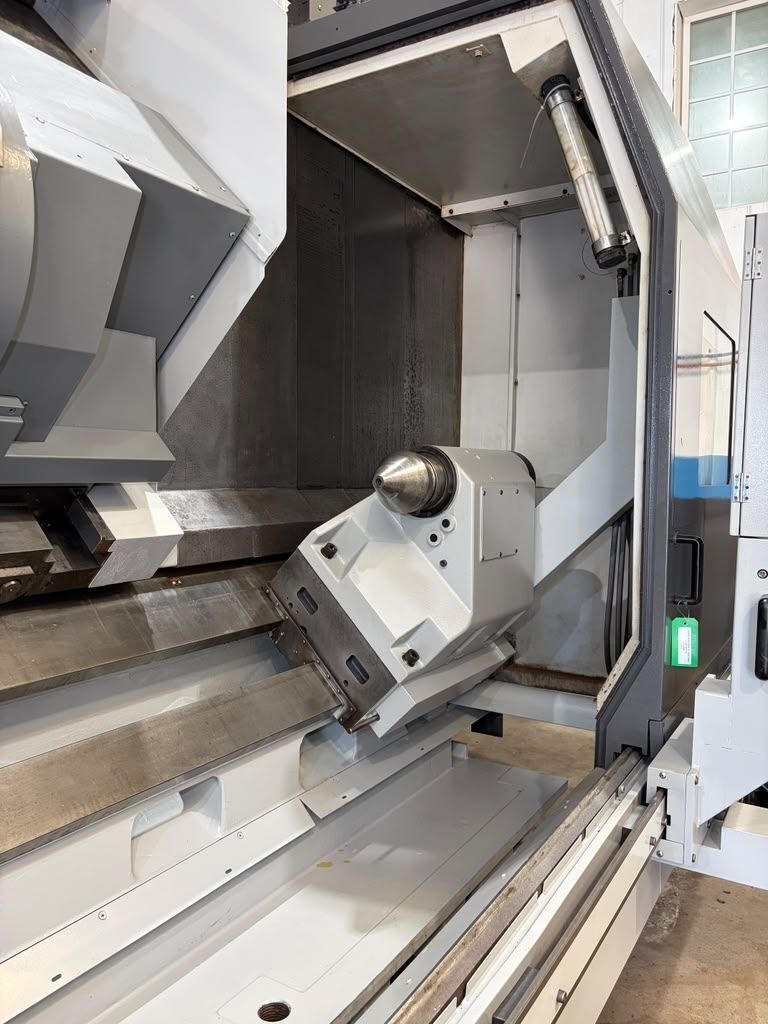

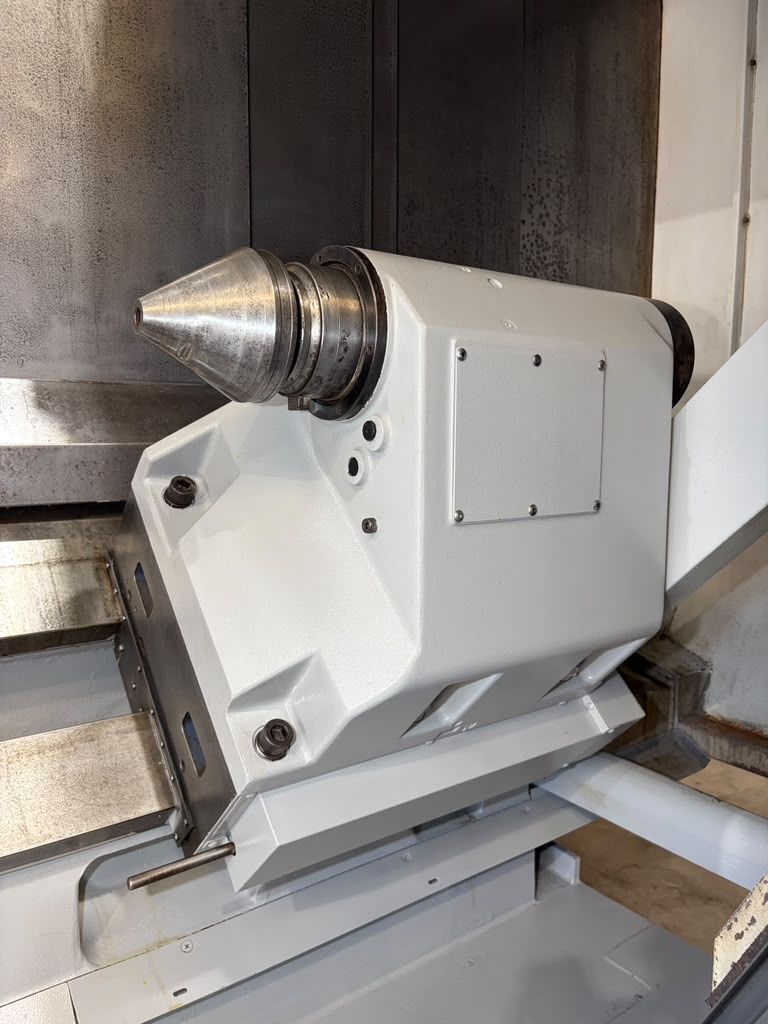

| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Quill Diameter: 5.9″ |
| Quill Travel: 5.9″ |
| Tailstock Body Travel: 82.7″ |
| General: |
|---|

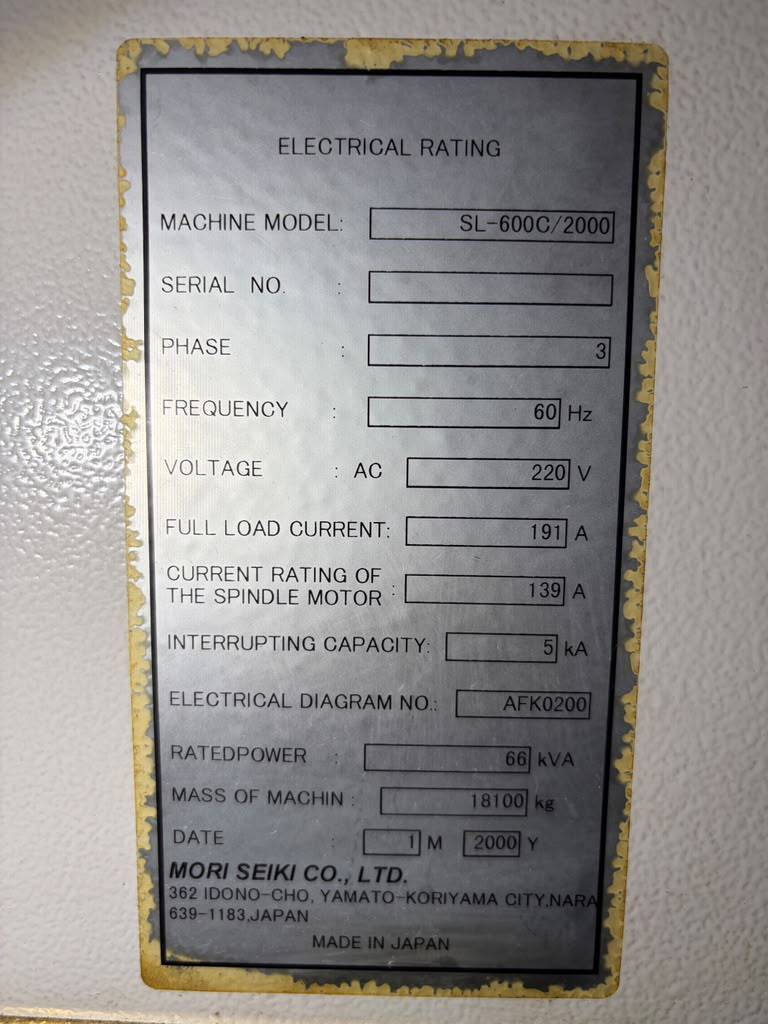

| Power: 66 kVA / 220V / 3-Phase / 60 Hz |
| Dimensions: 275″ × 146″ × 114″ High Approx. |
| Weight: 39,900 lbs Approx. |
