Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
|---|

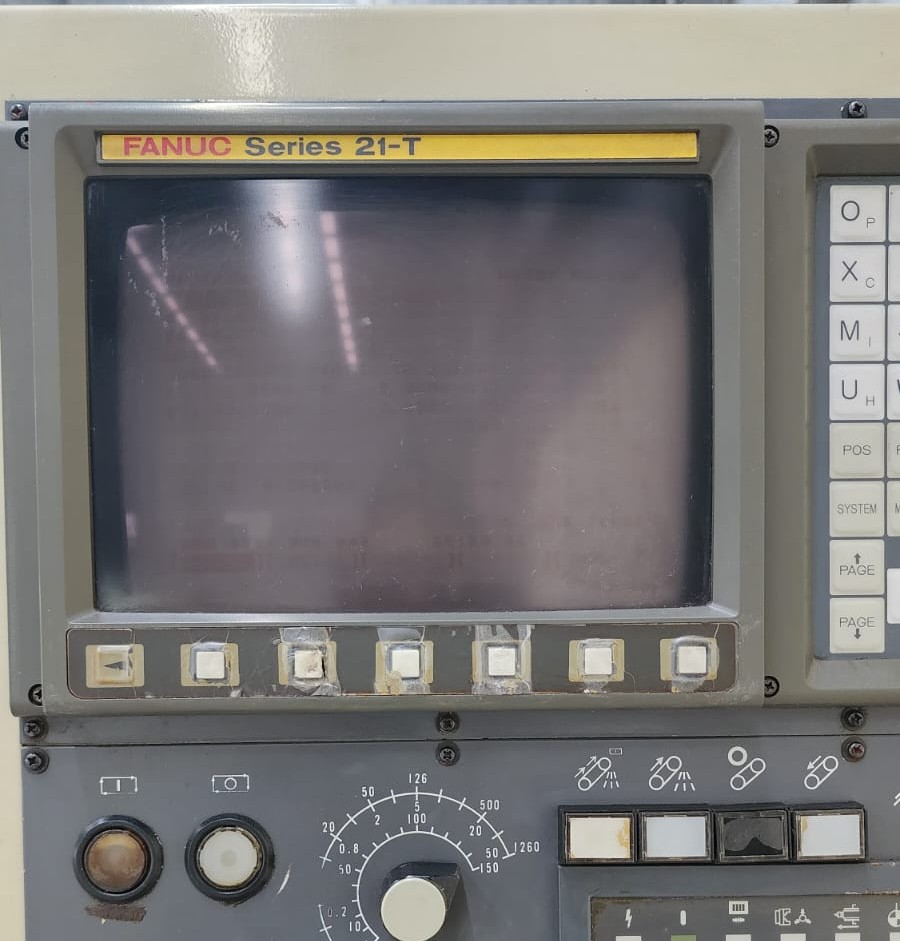

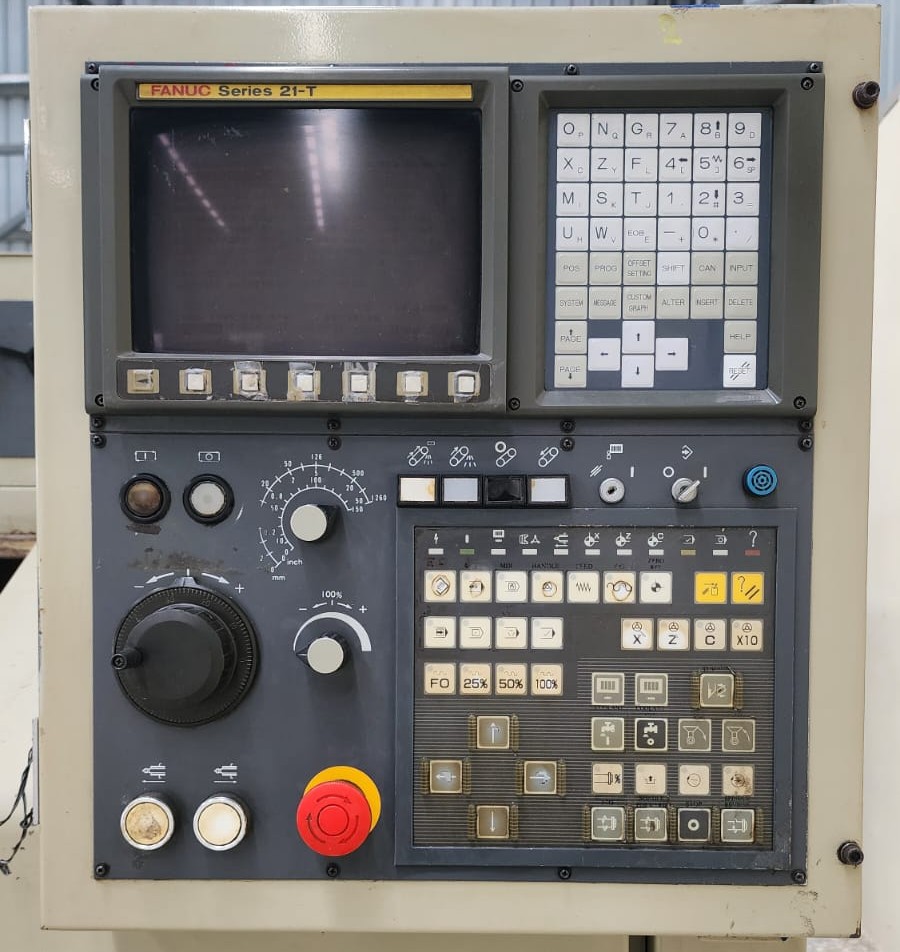

| Fanuc 21T CNC Control |

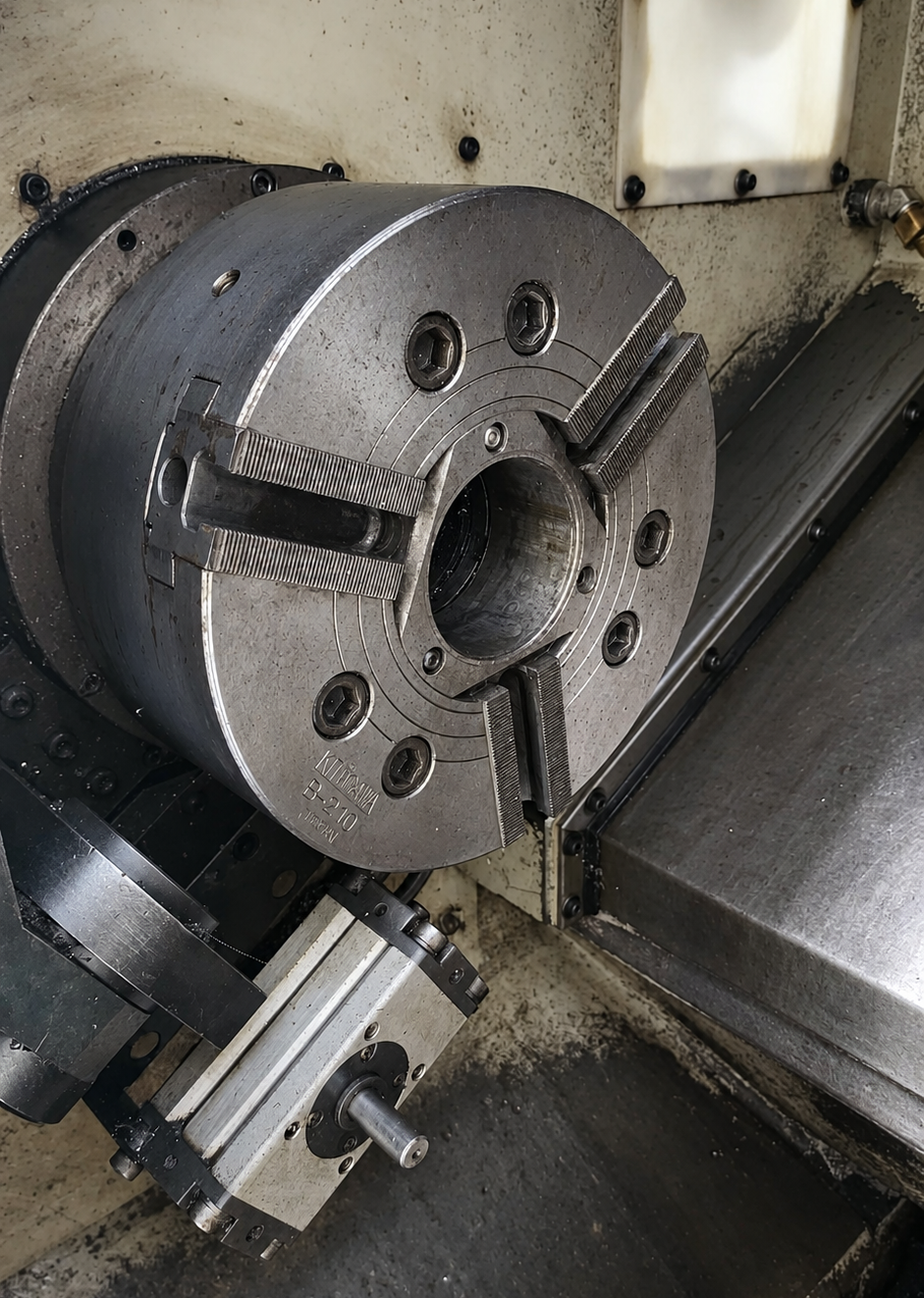

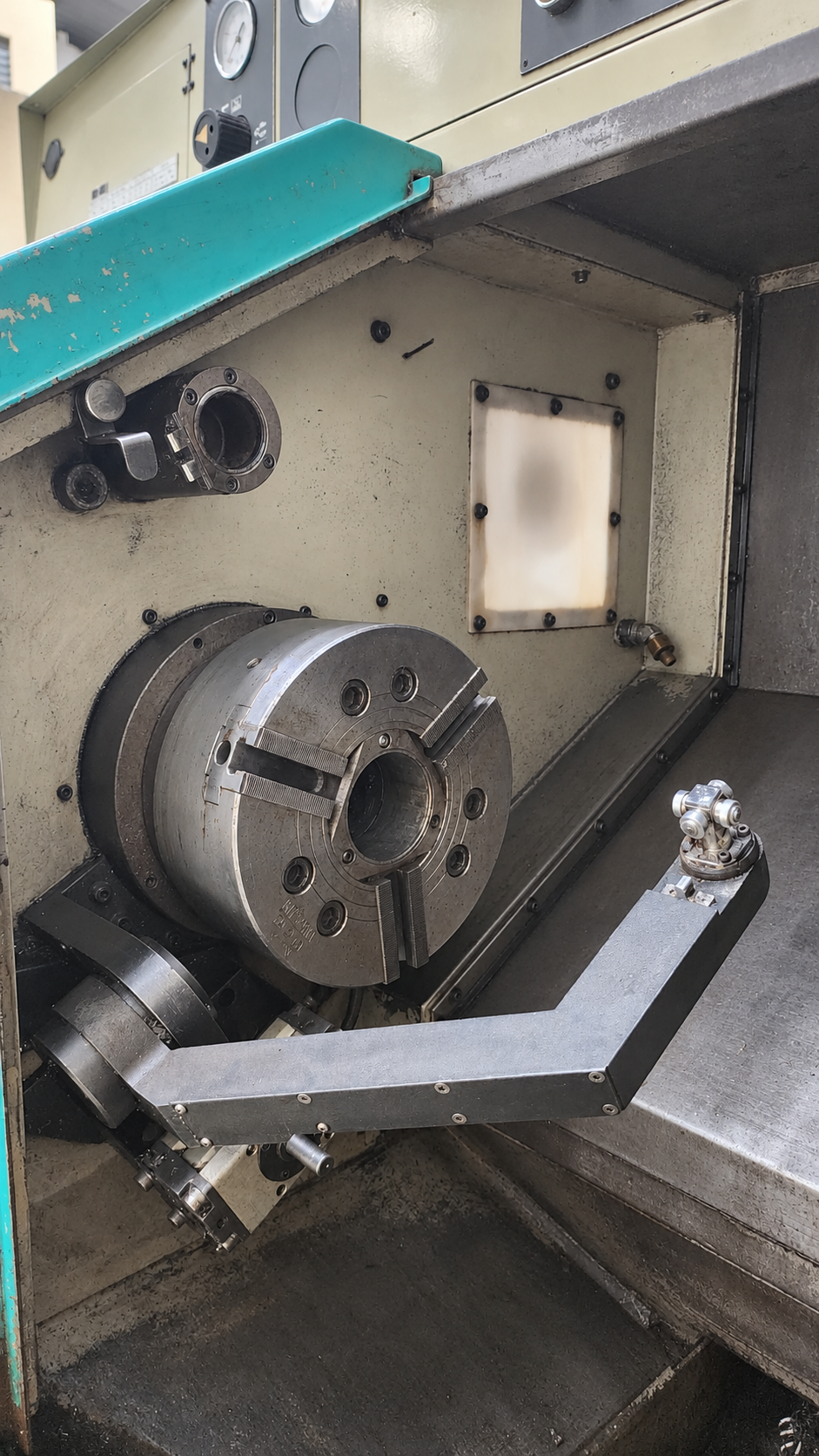

| 9.84″ 3-Jaw Chuck |
| 10-Station Automatic Turret |
| Tool Presetter |
| Tailstock |
| Rigid Tapping |
| Coolant Tank |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 12.6″ |
| Max Turning Length: 21.26″ |
| Max Bar Capacity: 3.0″ |
| Swing Over Bed: 21.26″ |
| Travels: |
|---|
| X Axis Travel: 6.7″ |
| Z Axis Travel: 24.0″ |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Max Spindle Speed: 3,000 RPM |
| Spindle Motor: 20.1 HP |

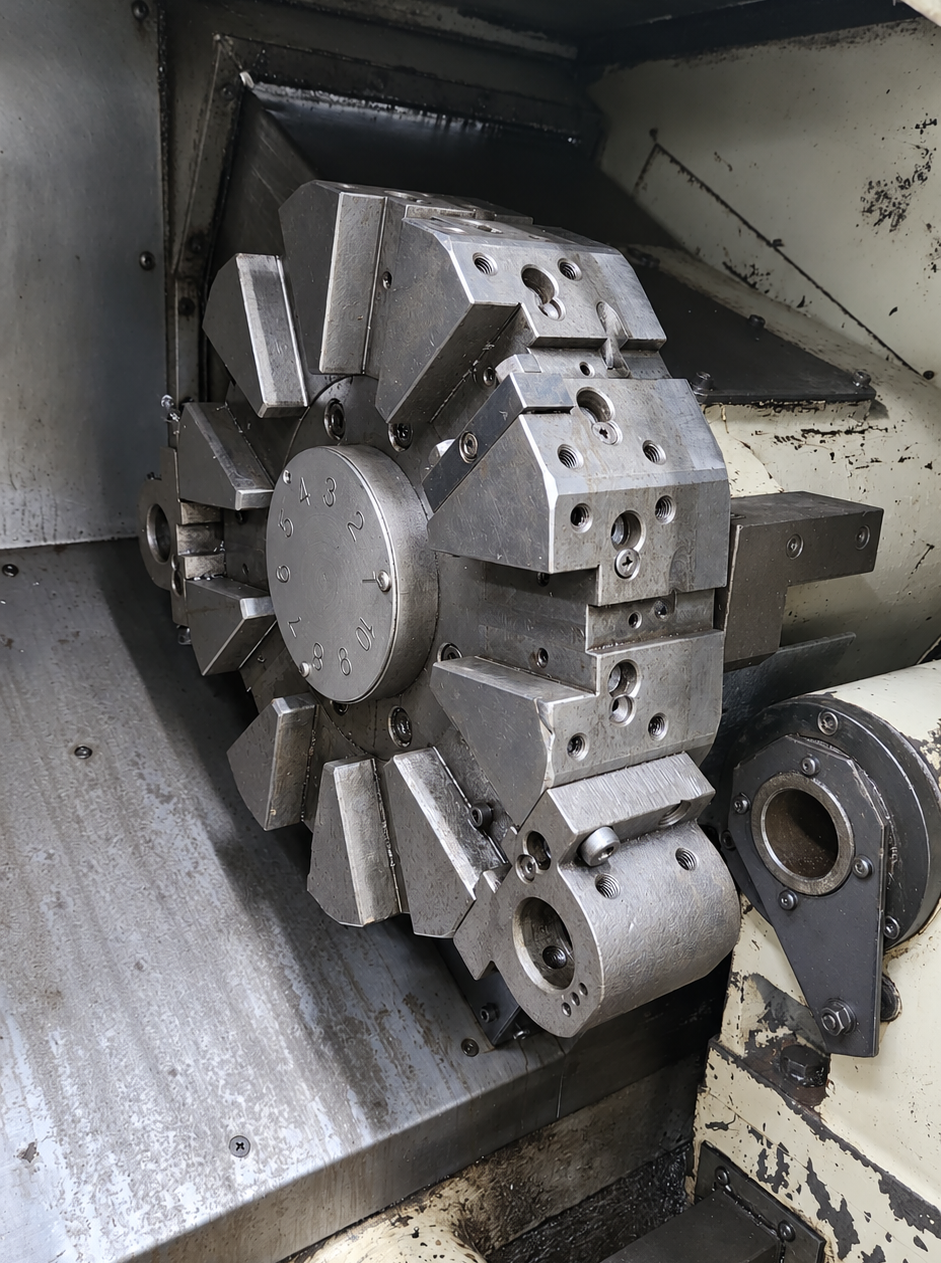

| Turret: |
|---|
| Capacity: 10 Stations Turret |
| Turret Tool Type: Bolt Mounted |

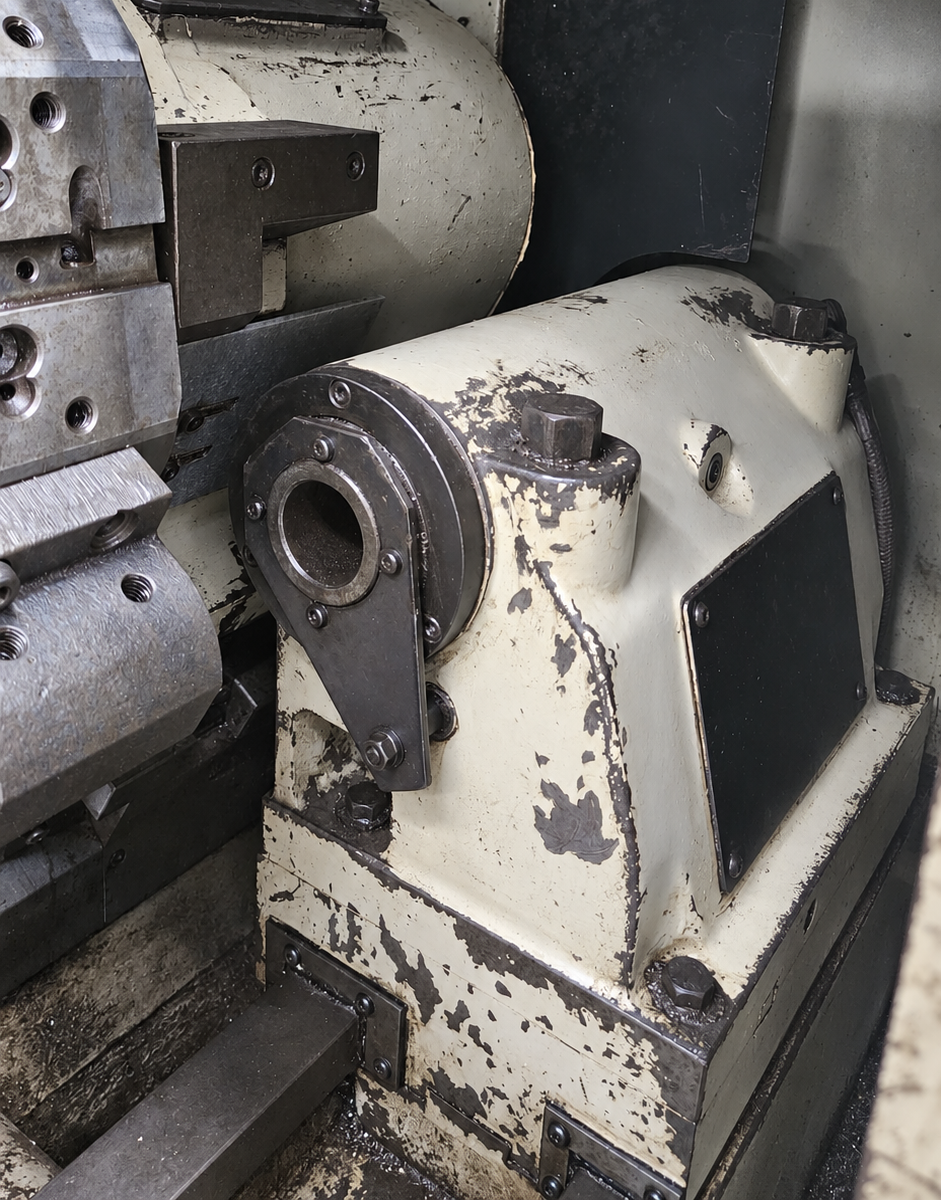

| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Overall Dimensions: 131.9″ x 63.0″ x 66.93″ High |
| Weight : 10,803 lbs Approx. |
