Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
|---|

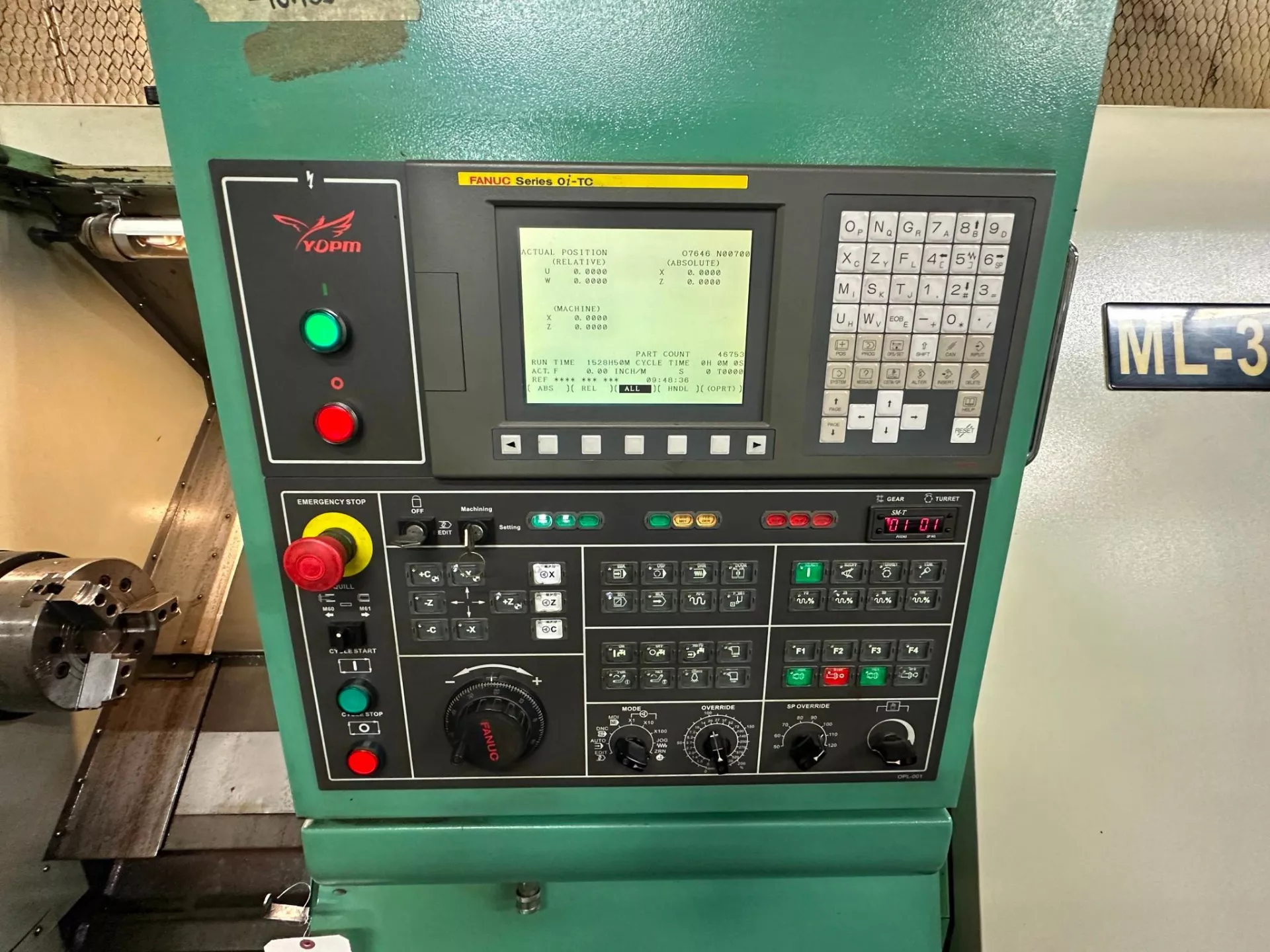

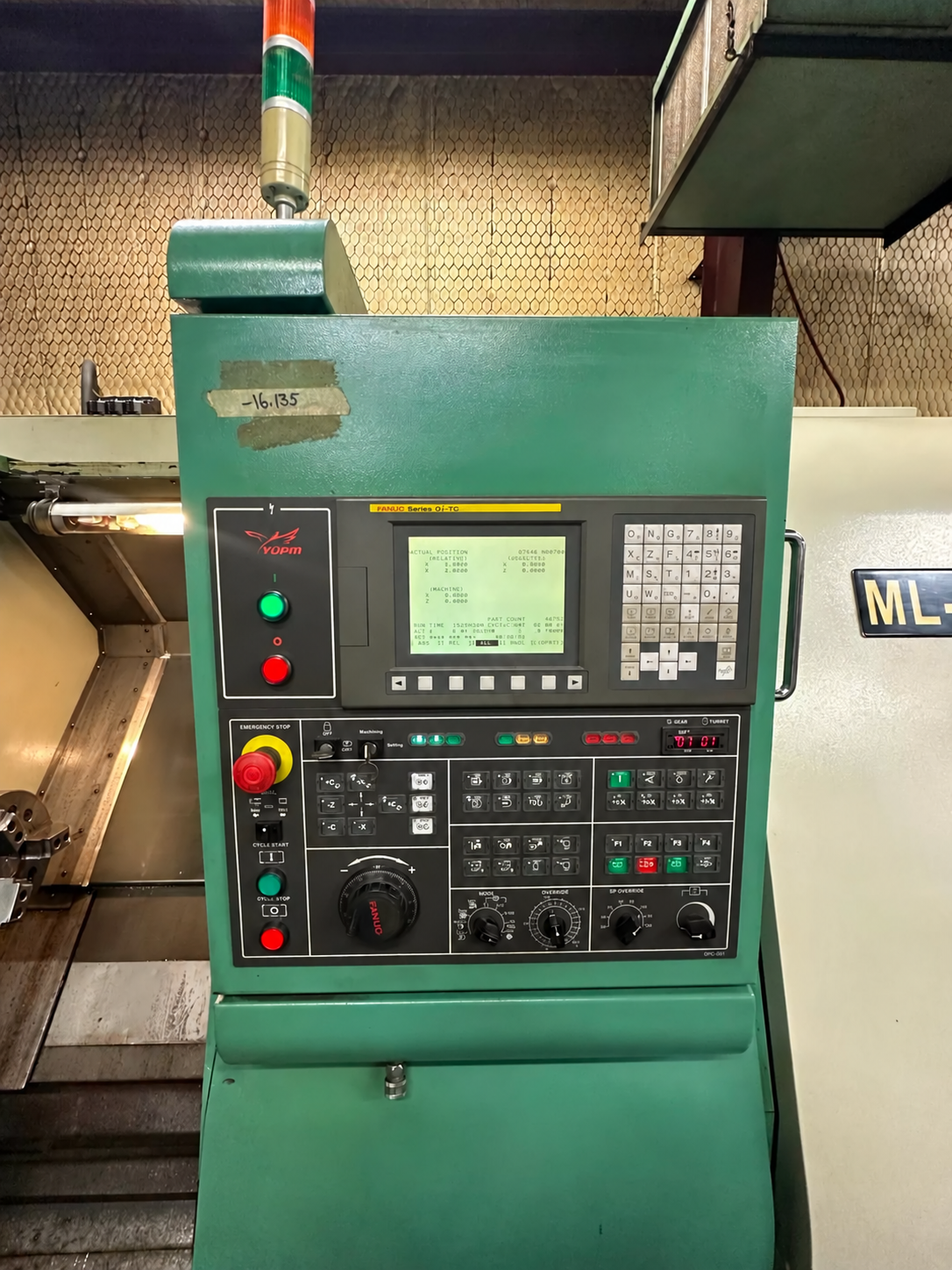

| Fanuc 0i-TC CNC Control |

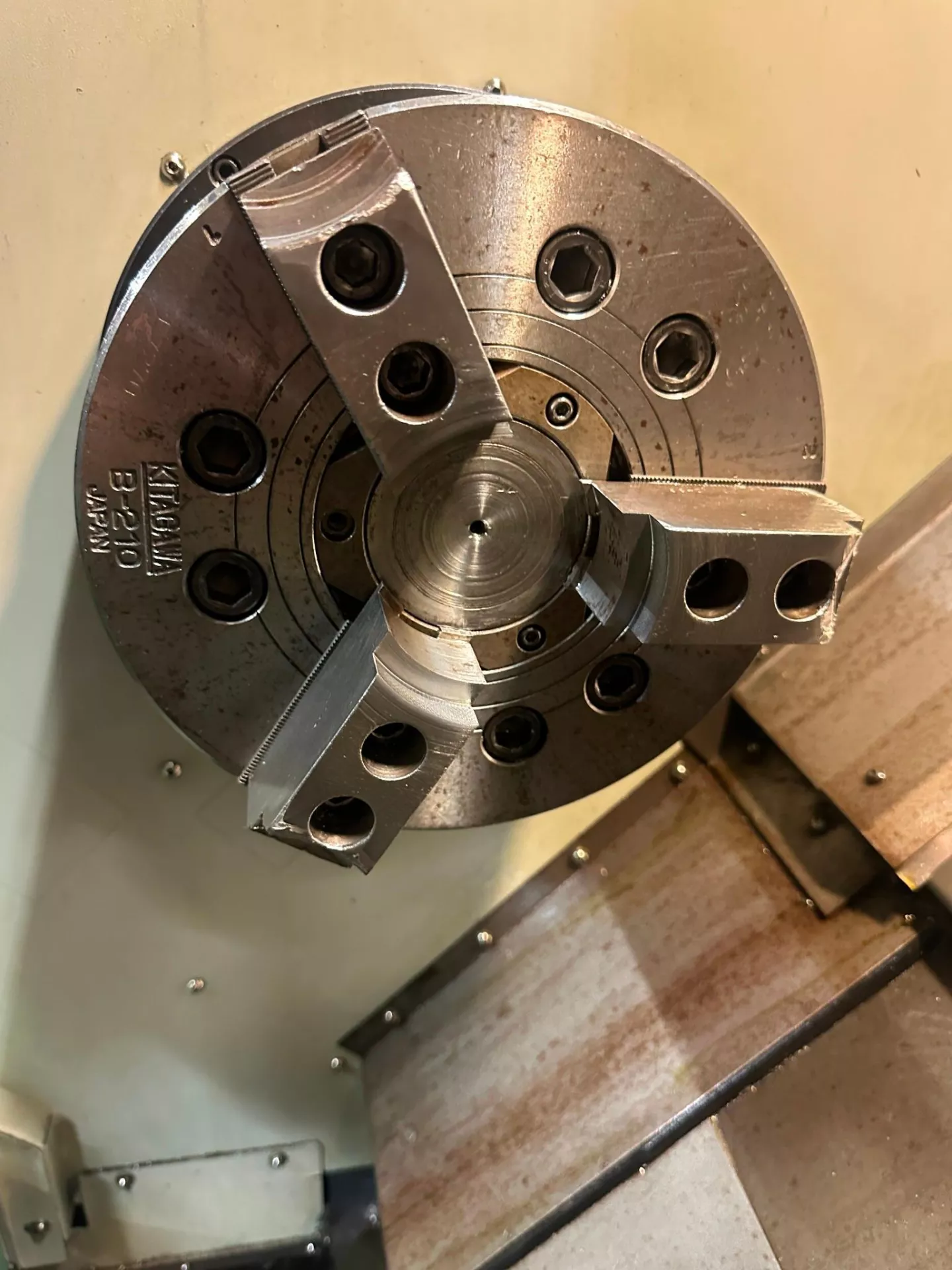

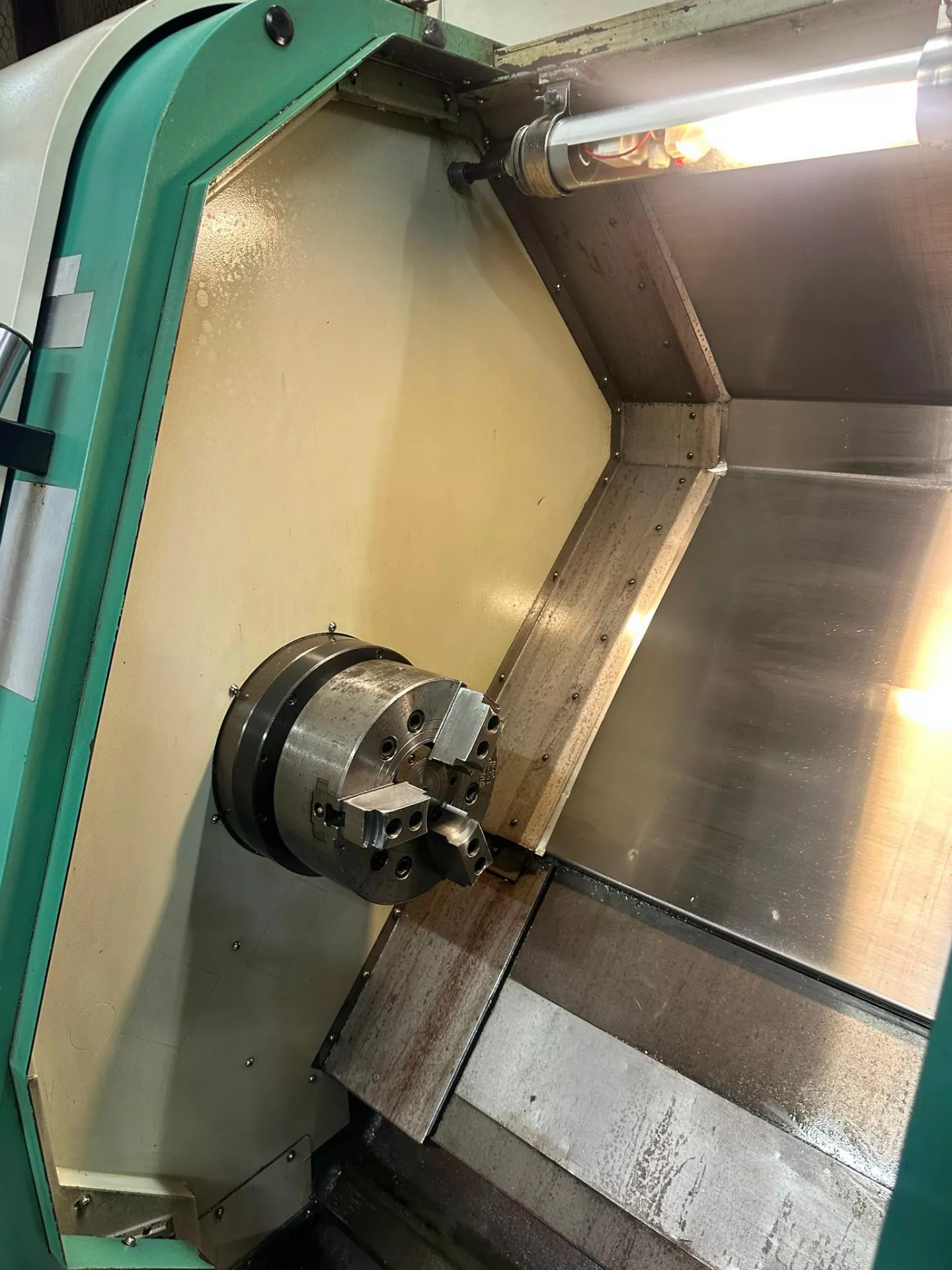

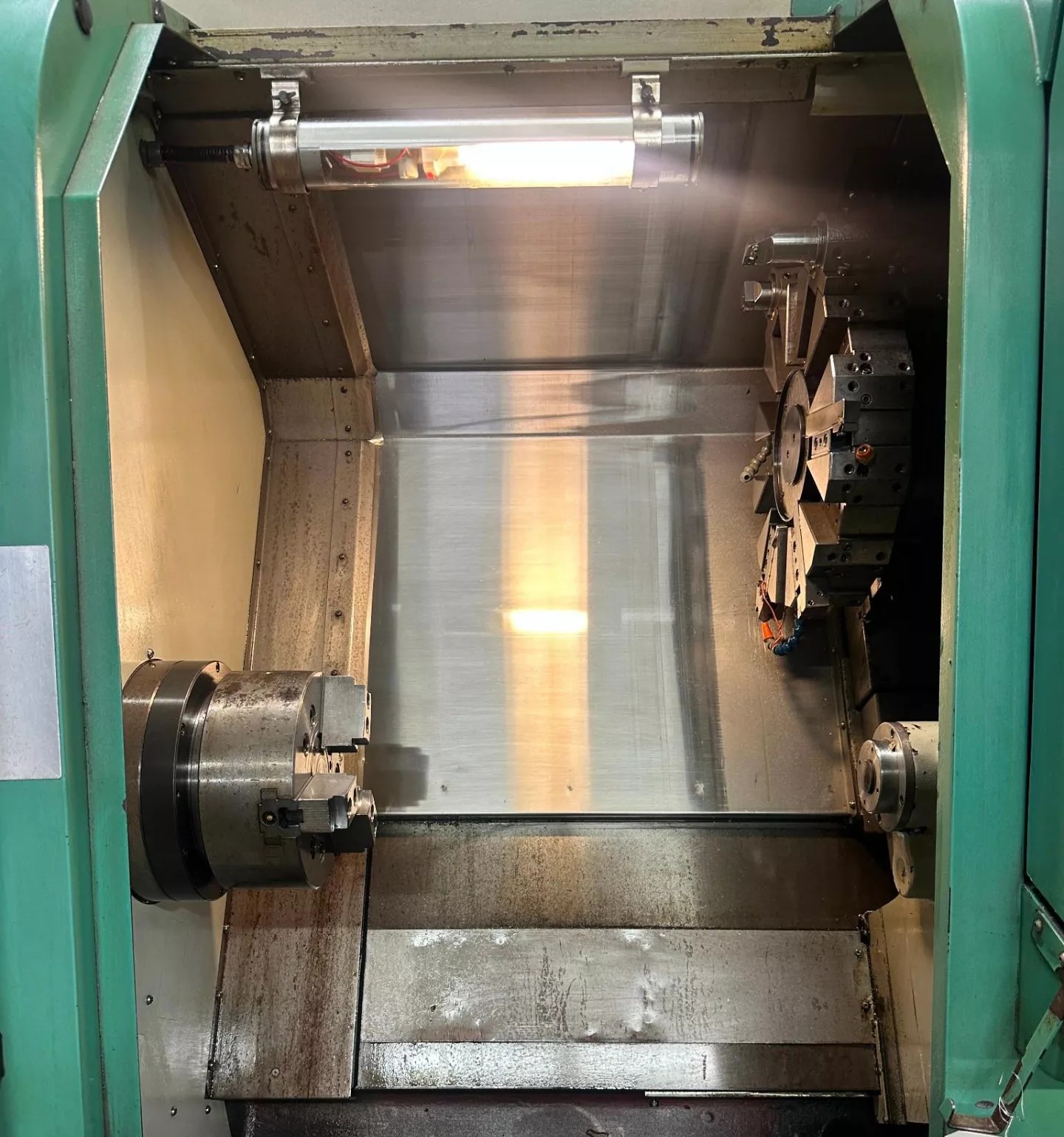

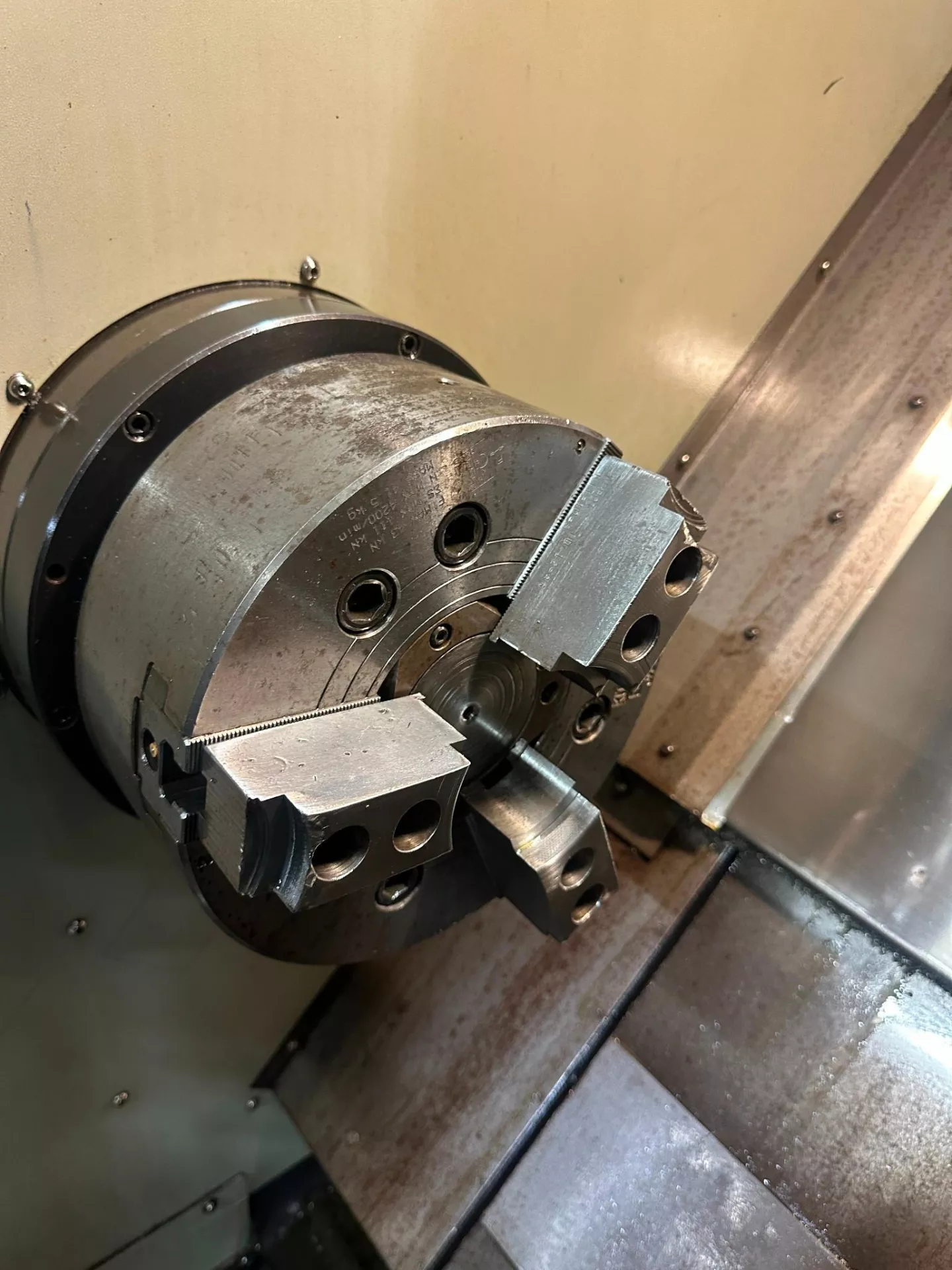

| 9.84″ 3-Jaw Kitagawa B-210 Power Chuck |

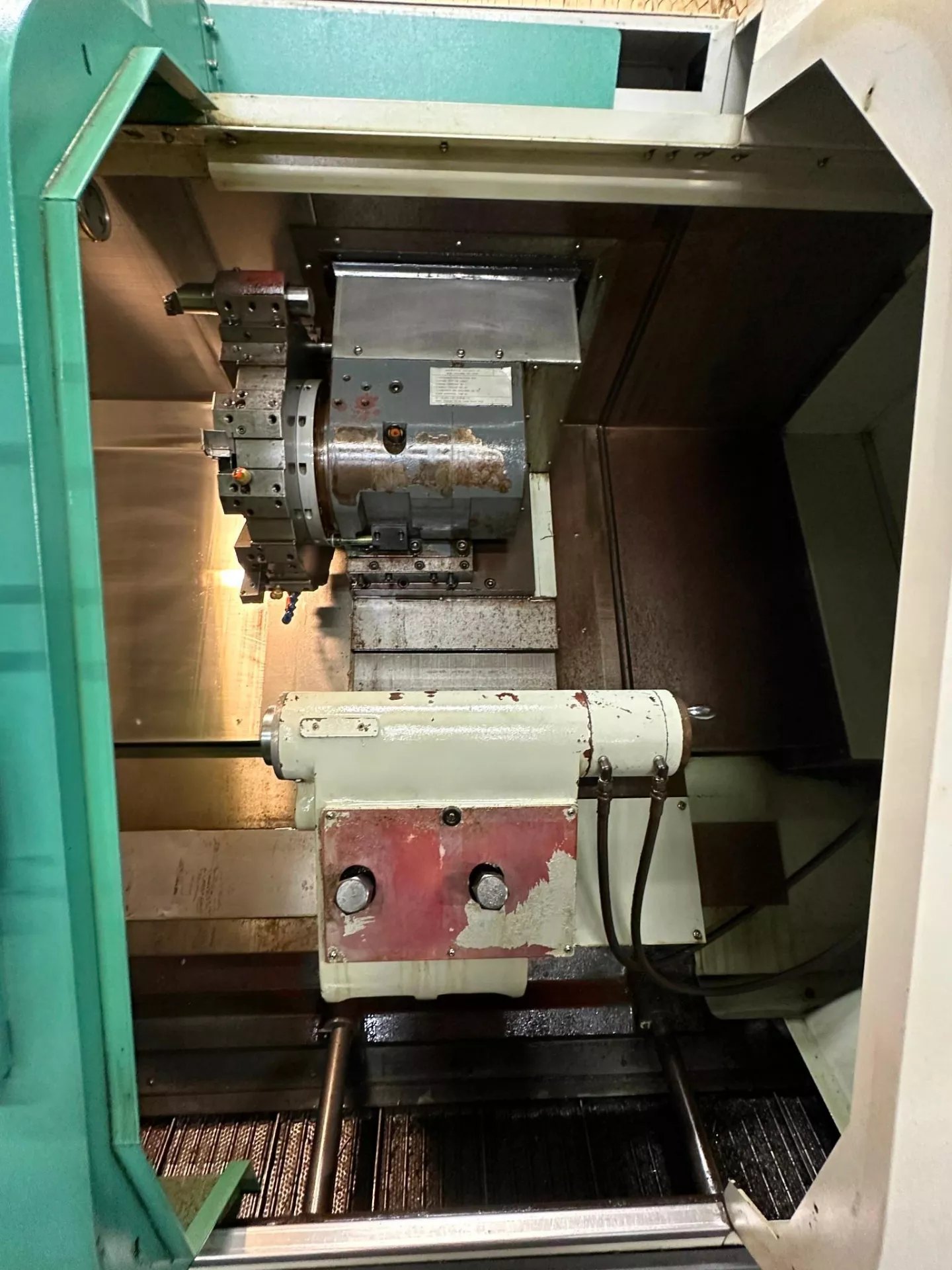

| 12-Station Automatic Turret |
| Rigid Tapping |
| RS-232 Port |
| Tailstock |

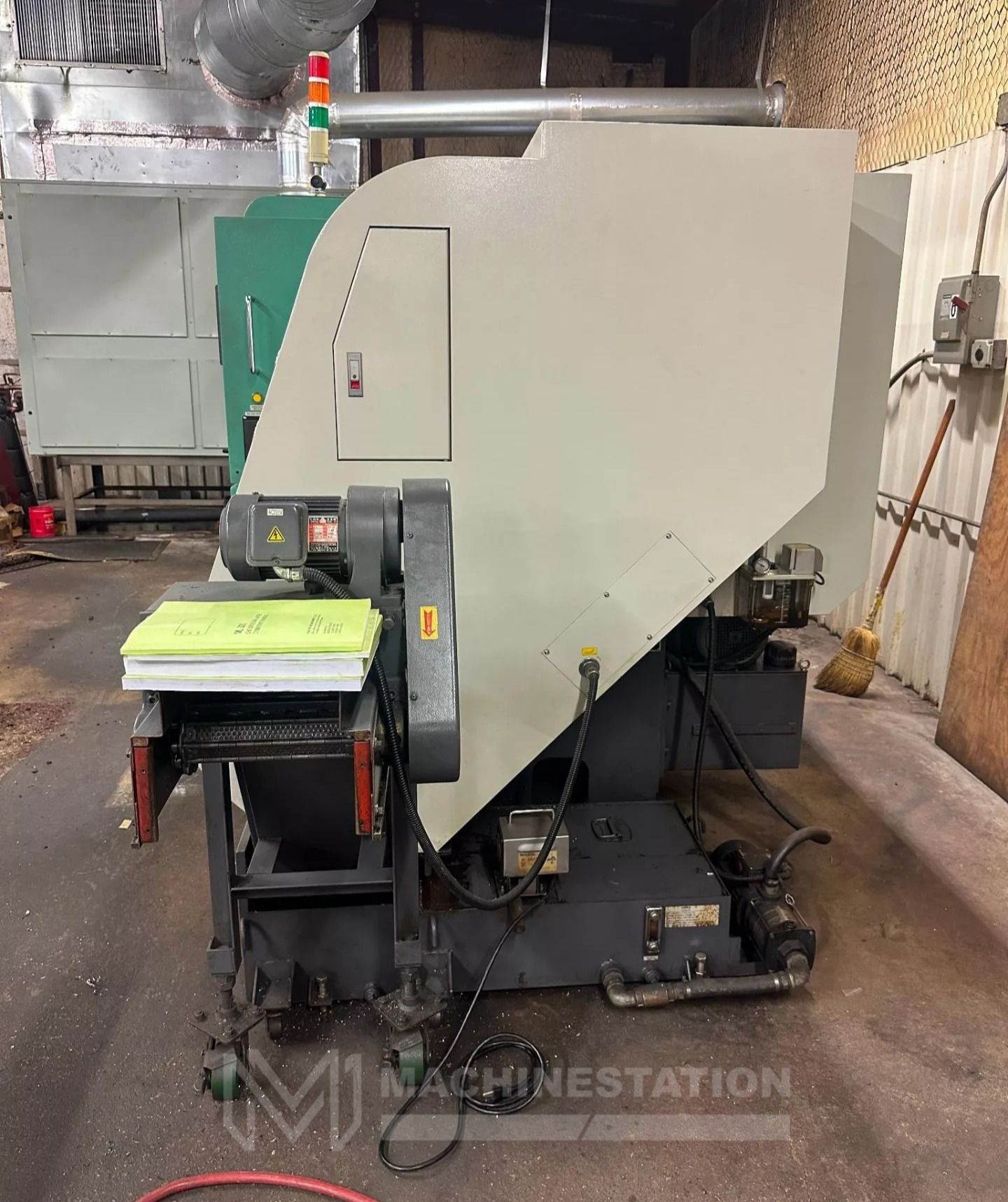

| Chip Conveyor |
| Coolant Tank |
| Foot Switch |

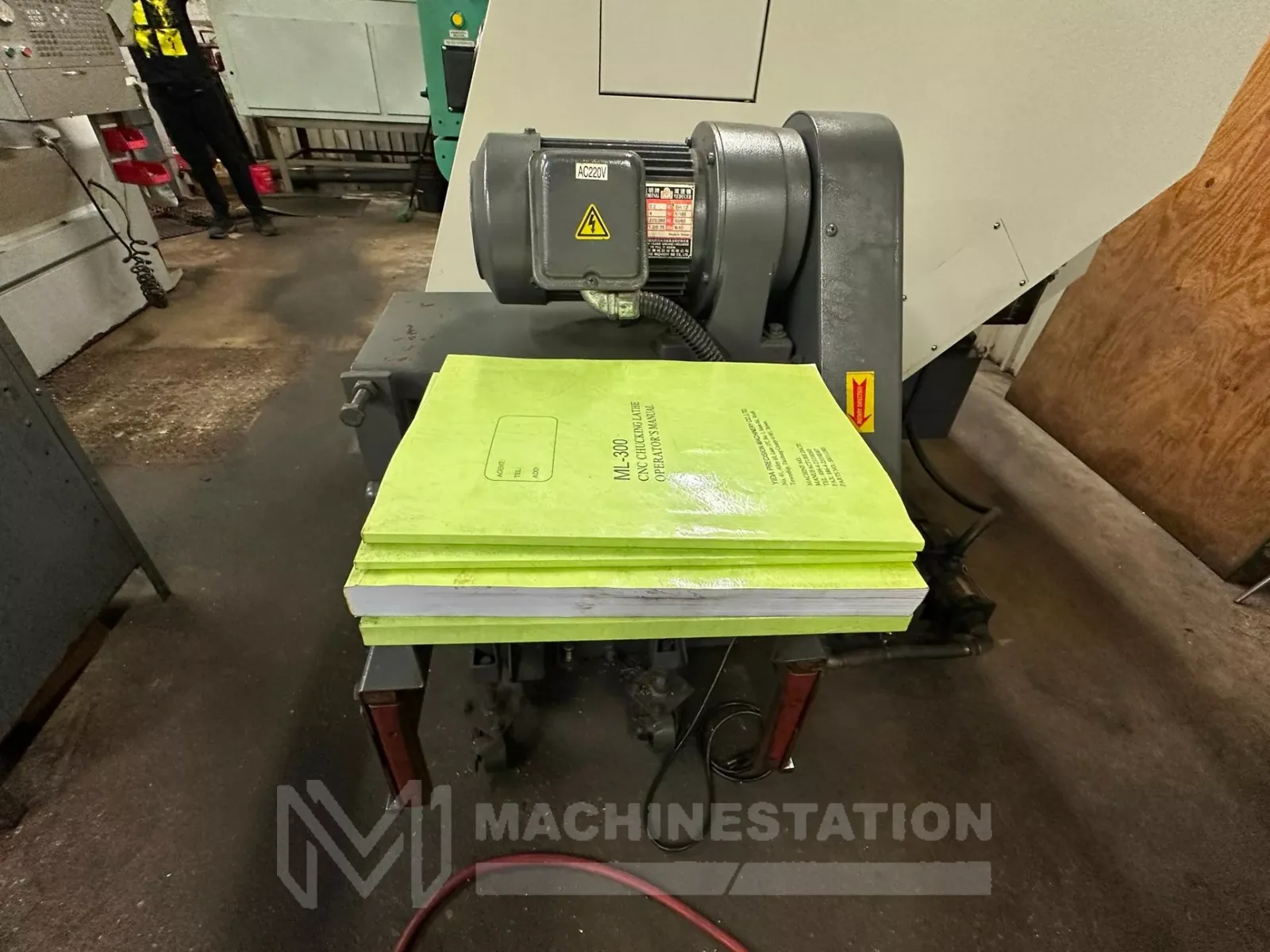

| Books & Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 11.8″ |
| Max Turning Length: 23.62″ |
| Max Bar Capacity: 2.05″ |
| Swing Over Bed: 23.62″ |
| Travels: |
|---|
| X Axis Travel: 9.45″ |
| Z Axis Travel: 23.62″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.03″ |
| Max Spindle Speed: 3,500 RPM |
| Spindle Motor: 20.1 HP |

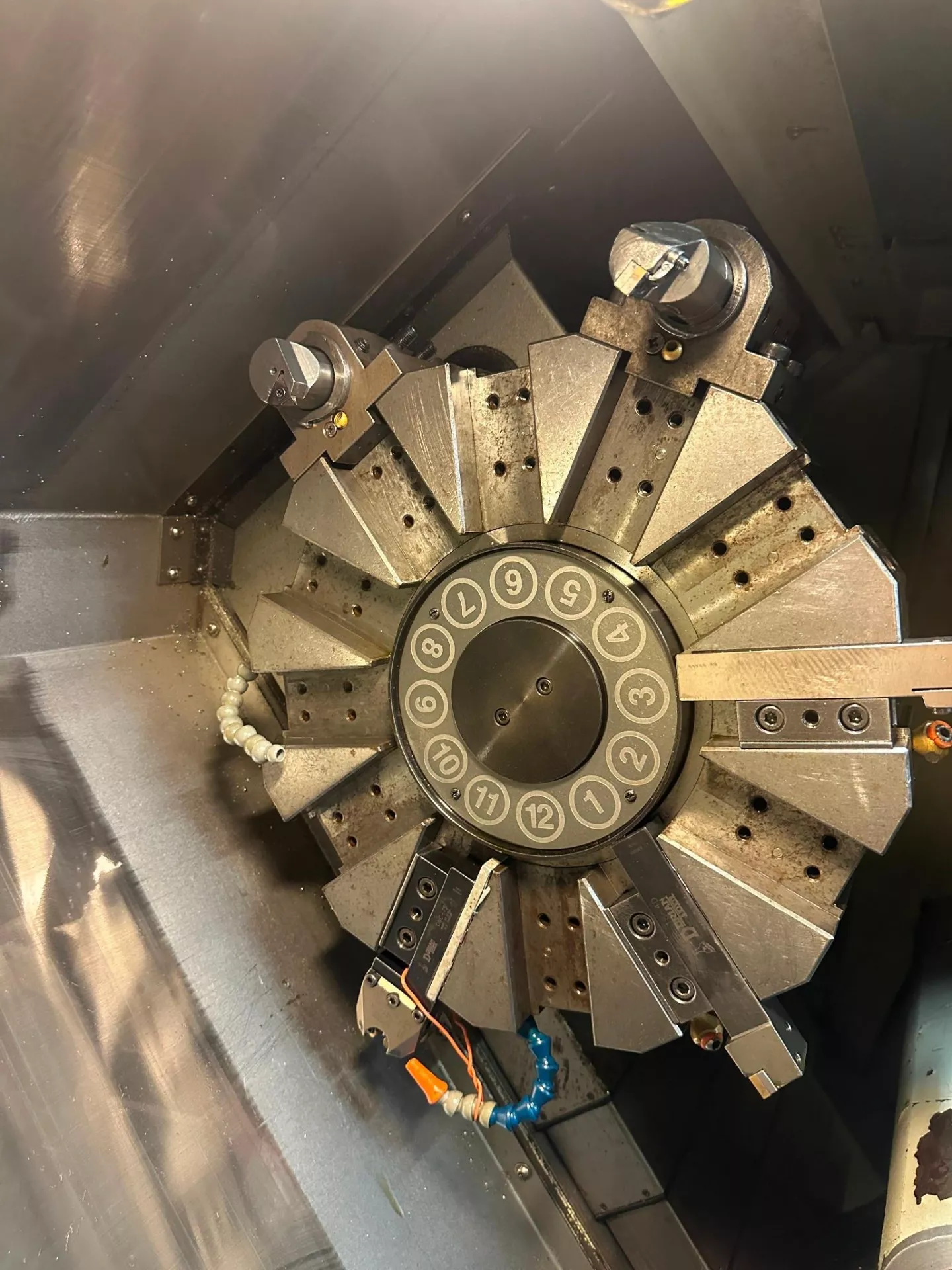

| Turret: |
|---|
| Capacity: 12 Stations Turret |
| Tool Shank Size: 1″ x 1″ |

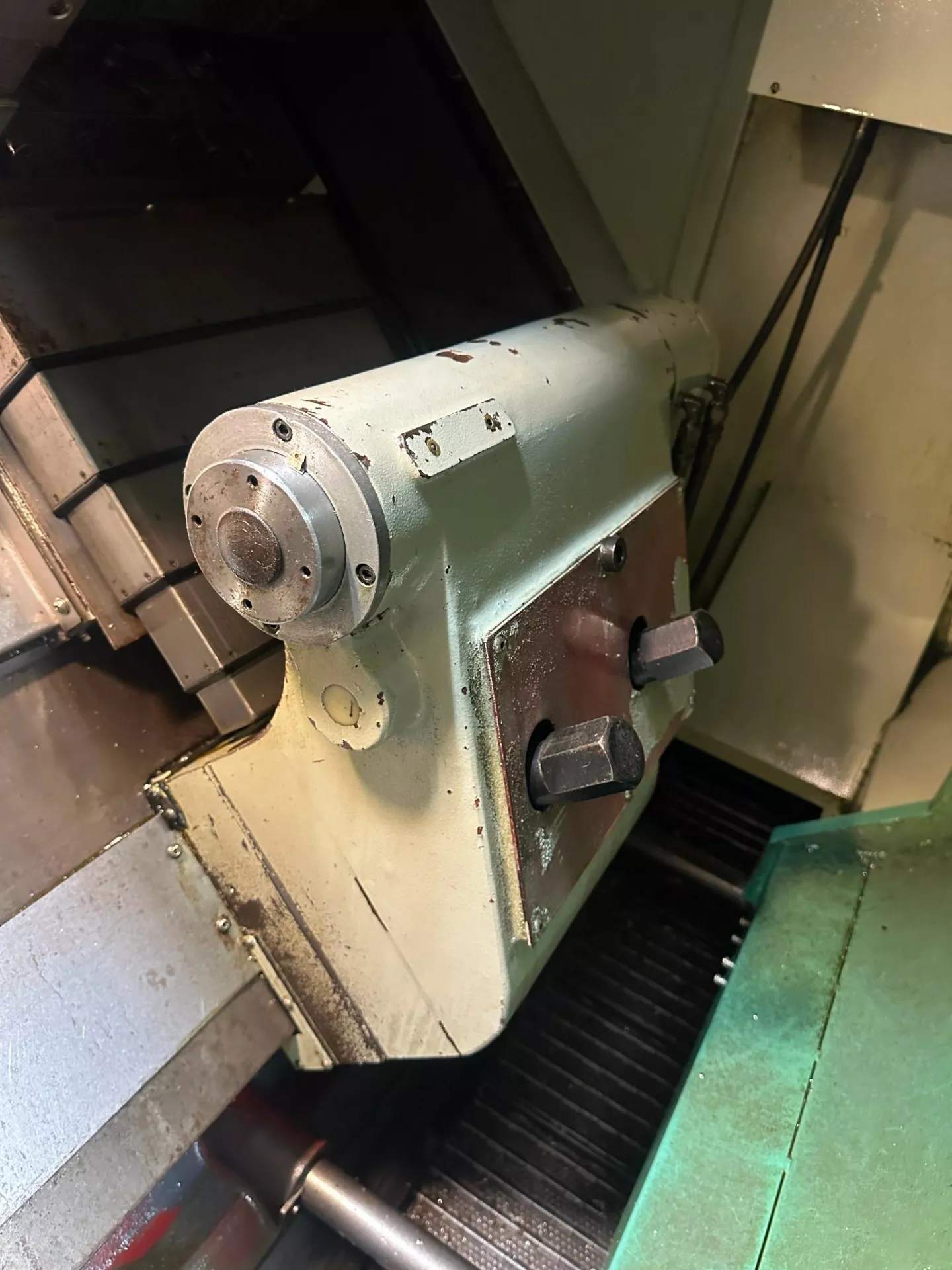

| Tailstock: |
|---|
| Tailstock Body Travel: 18.3″ |
| Quill Diameter: 3.35″ |
| Quill Travel: 5.9″ |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Dimensions: 131.3″ x 70.47″ x 72.48″ High (Without Chip Conveyor) |
| Weight : 10,571 lbs Approx. |
