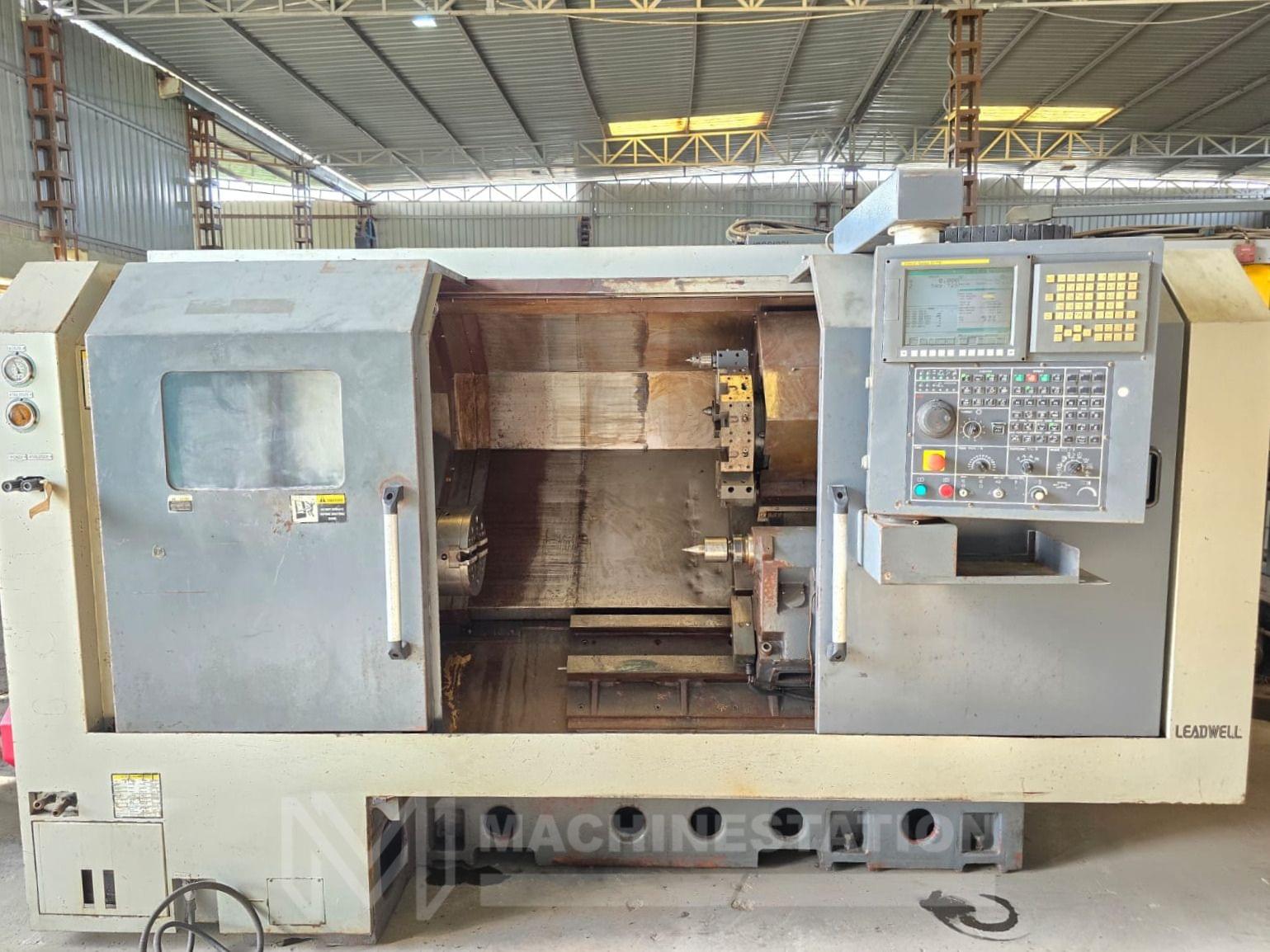

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

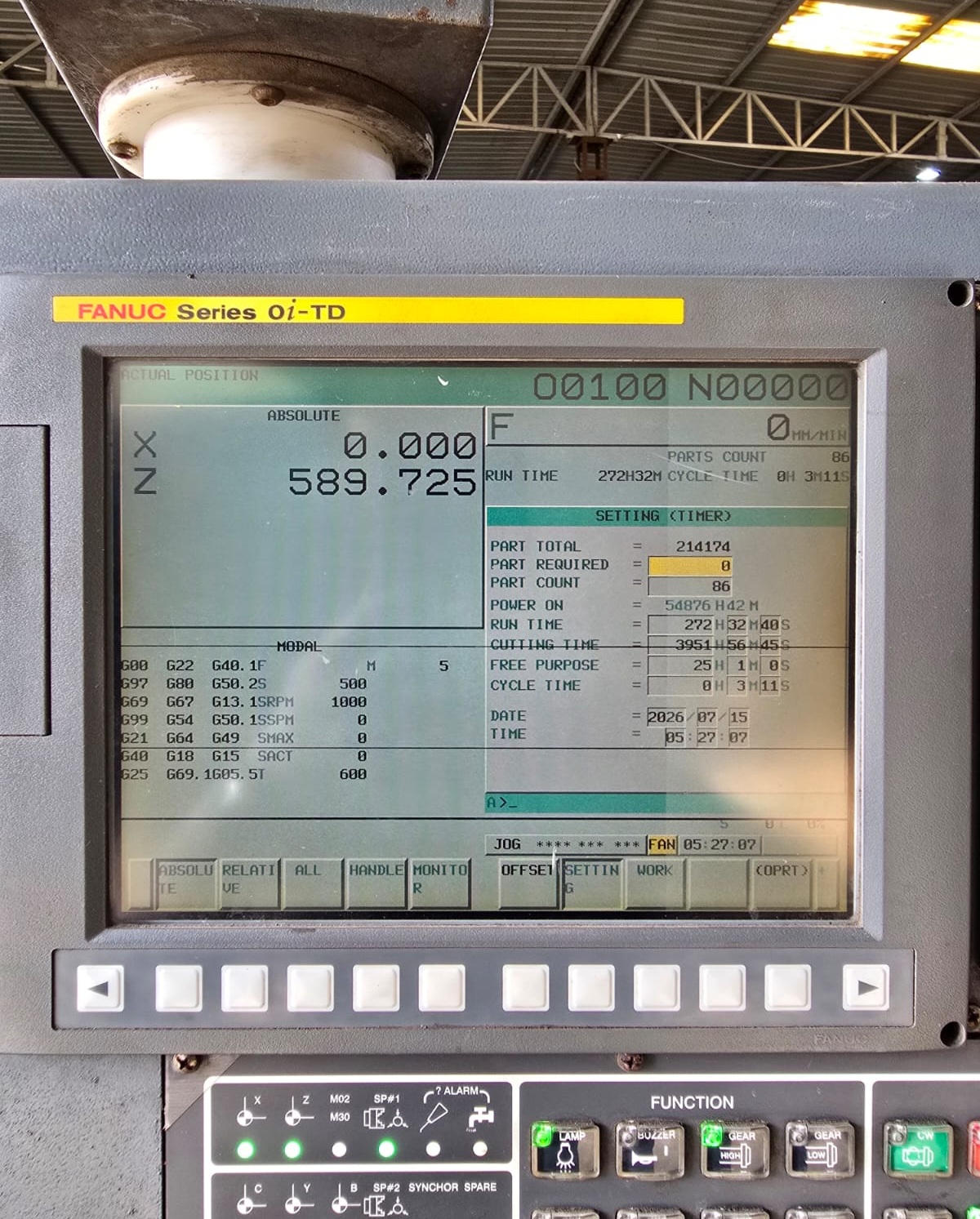

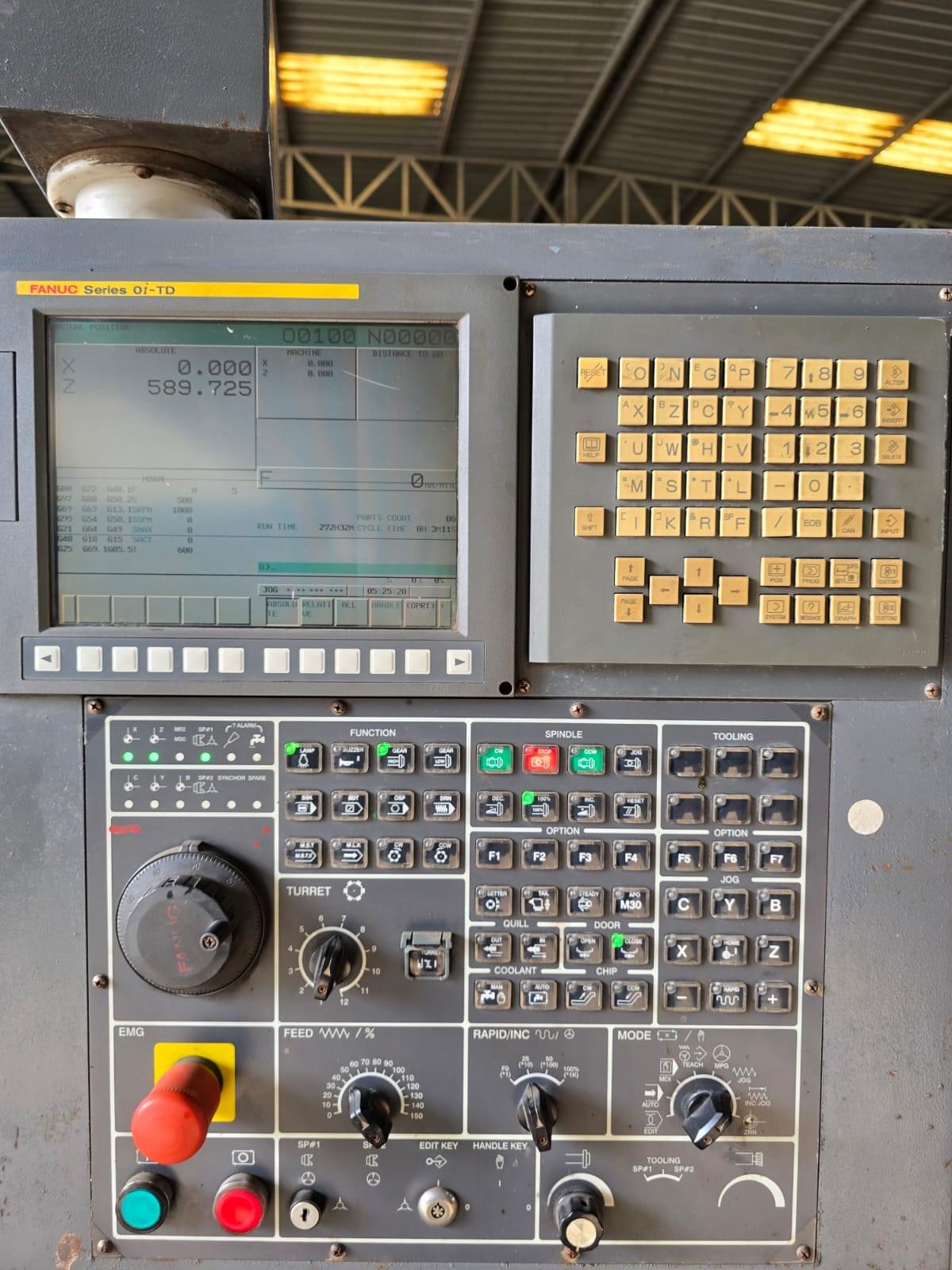

| Fanuc Series 0i-TD CNC Control |
| 254 mm 2-Jaw Hydraulic Chuck |
| 12-Station Hydraulic Turret |
| Rigid Tapping |
| Hydraulic Programmable Tailstock |
| Capacity: |
| Maximum Swing Over Bed: 668 mm |
| Maximum Turning Diameter: 457 mm |
| Maximum Turning Length: 640 mm |
| Maximum Bar Capacity: 76 mm |
| Travels: |
| X-Axis Travel: 226 mm |
| Z-Axis Travel: 790 mm |
| Rapid Traverse (X-Axis): 15 m/min |
| Rapid Traverse (Z-Axis): 20 m/min |
| Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 85 mm |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 15 kW |
| Turret: |
| Number of Stations: 12 |
| Square Tool Size: 25 mm |
| Boring Bar Capacity: 40 mm |
| Tailstock: |
| Hydraulic Programmable Tailstock |
| Quill Taper: MT-5 |
| General: |

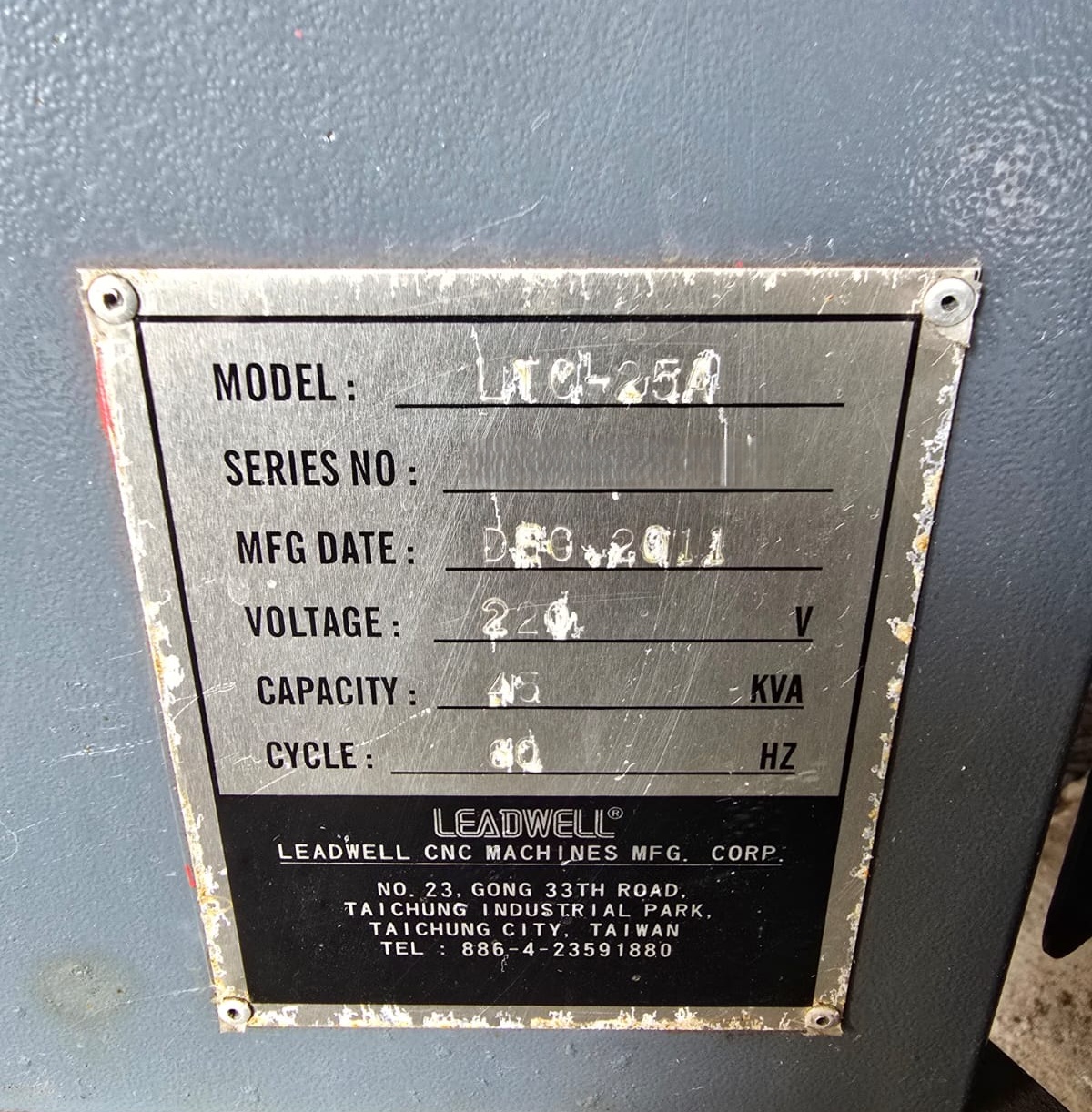

| Power Requirement: 220V / 3-Phase / 60 Hz |
| Overall Dimensions (L × W × H): 3912 mm × 1930 mm × 1981 mm |
| Machine Weight: 5987 kg |
