Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

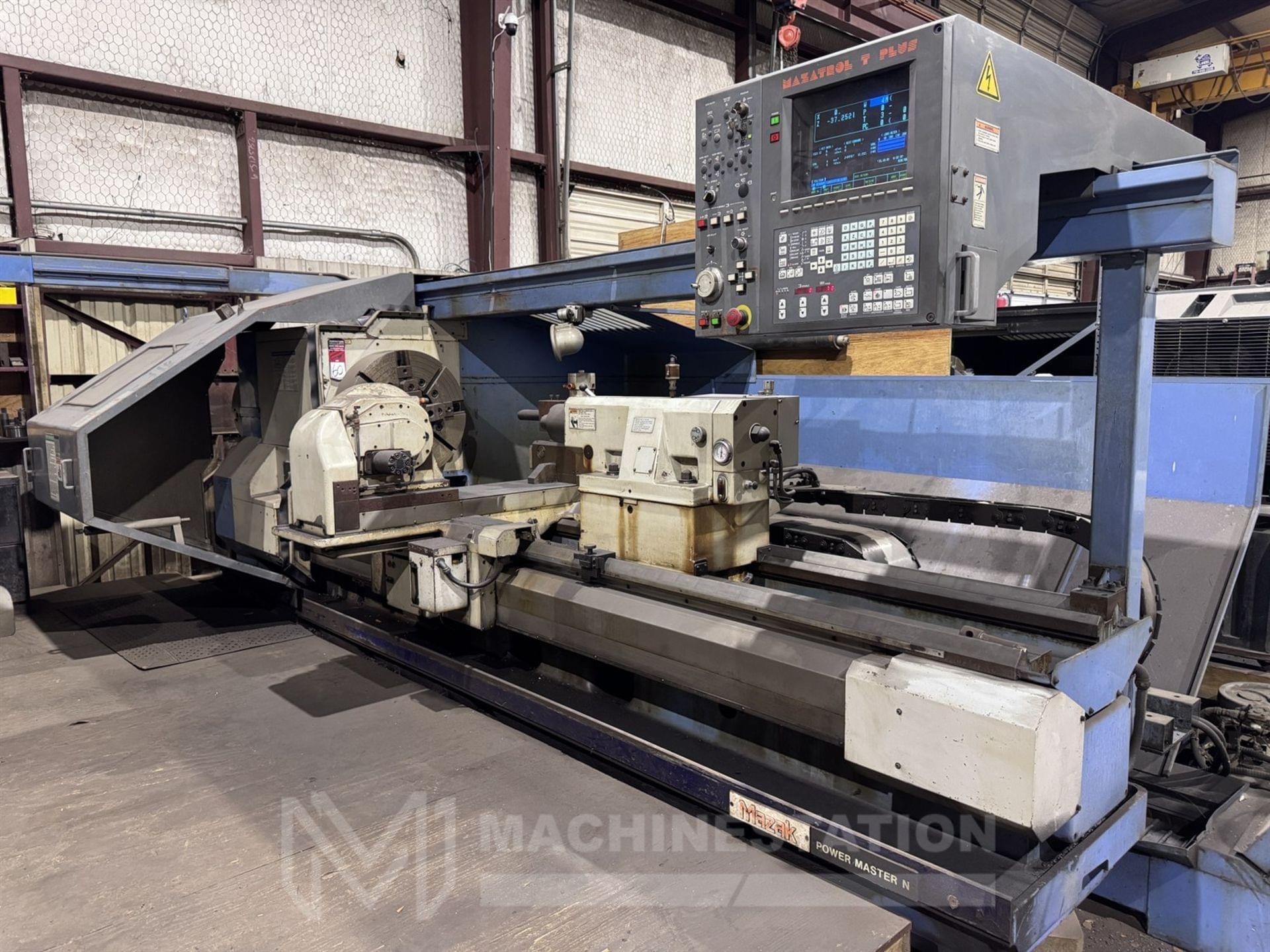

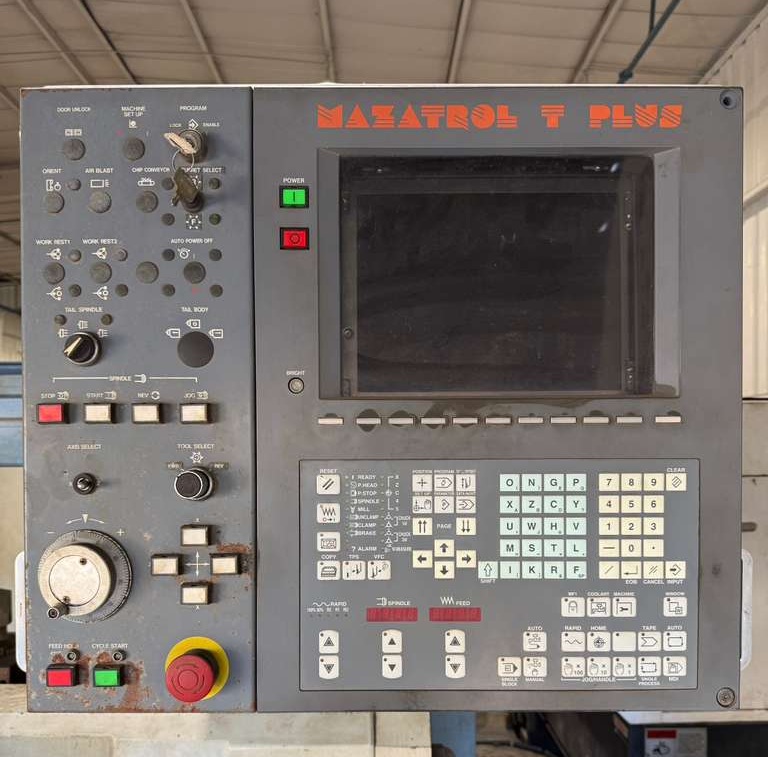

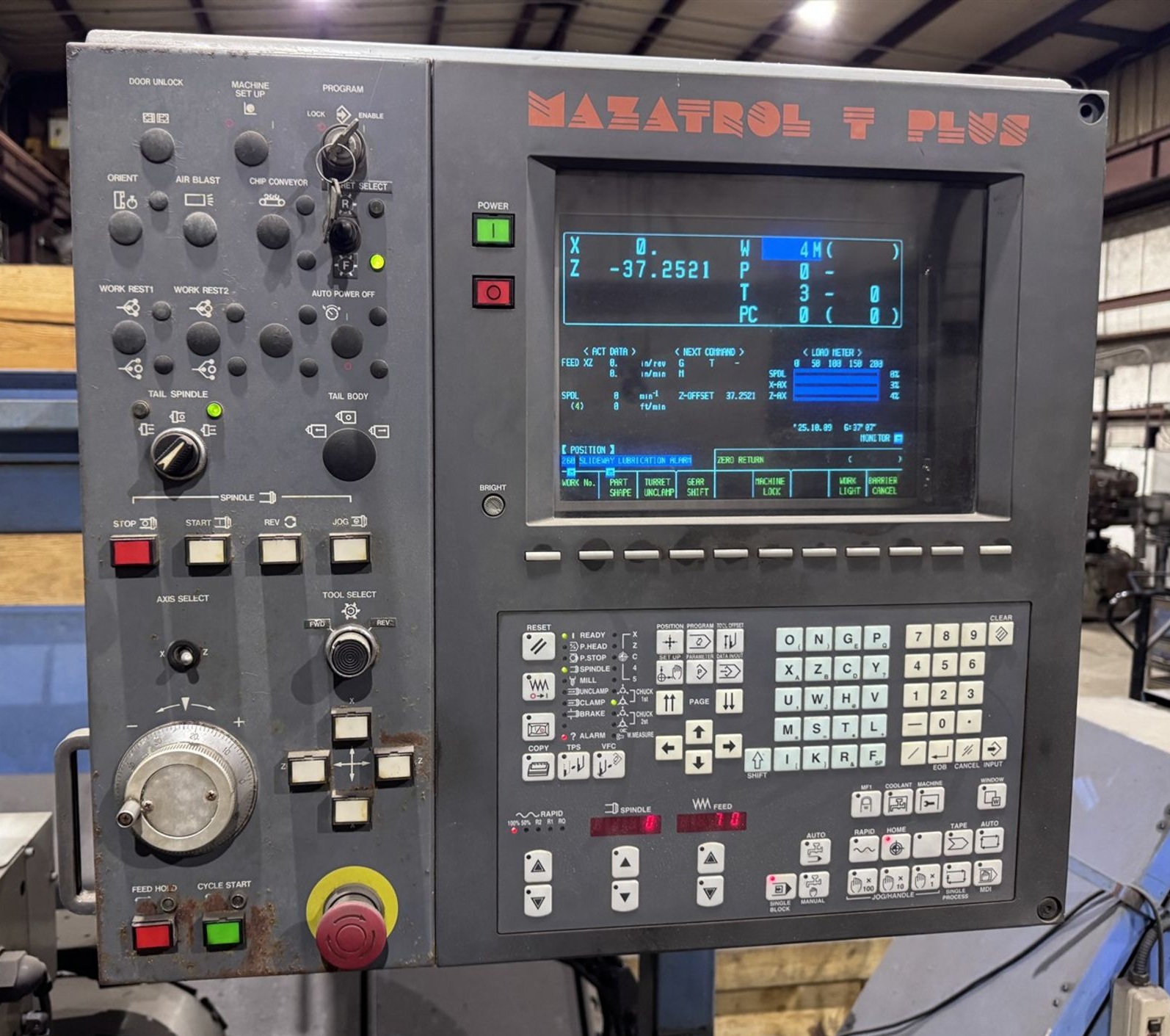

| Mazatrol T Plus CNC Control |
| Heavy-Duty Flat Bed Construction |

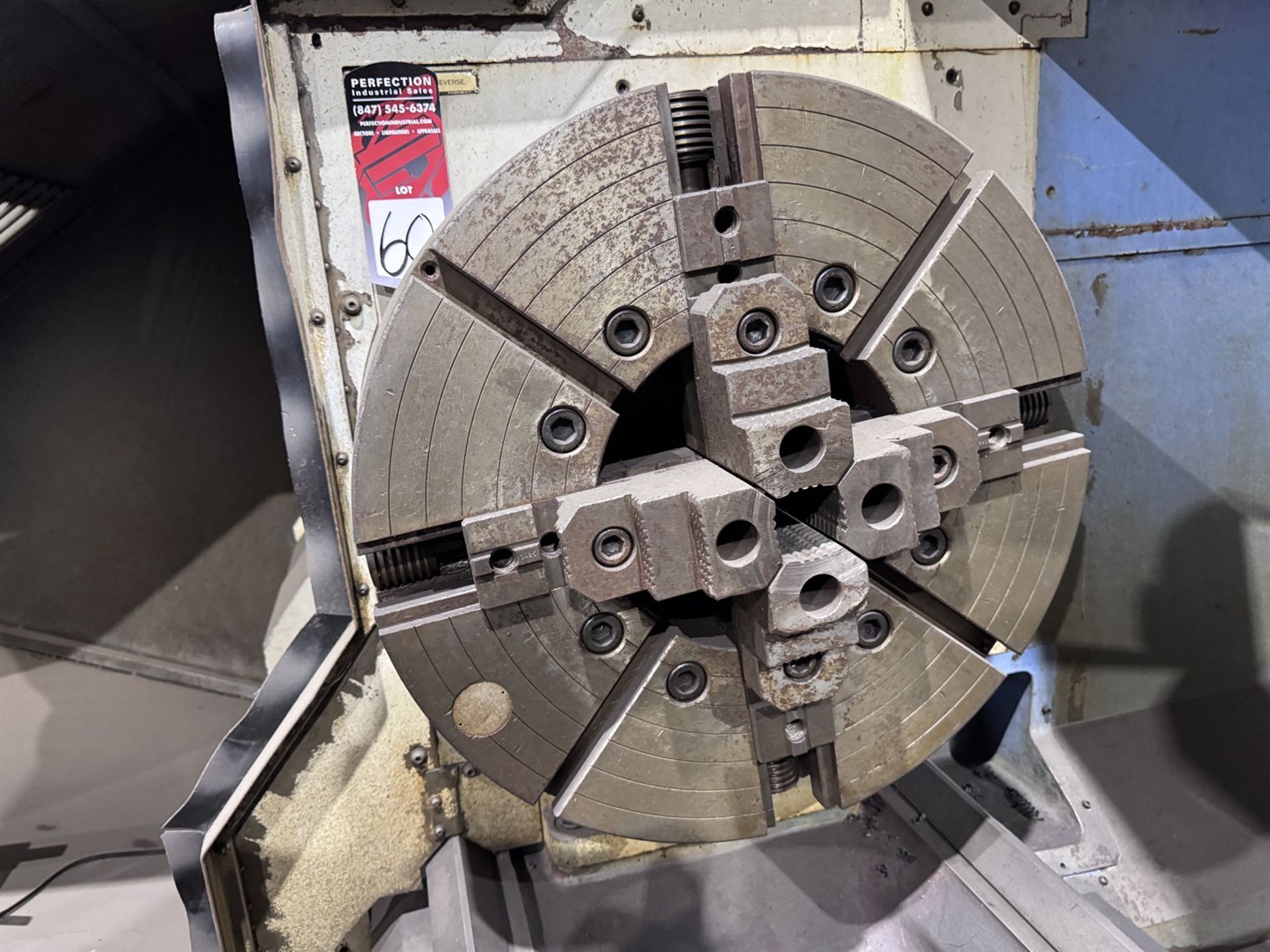

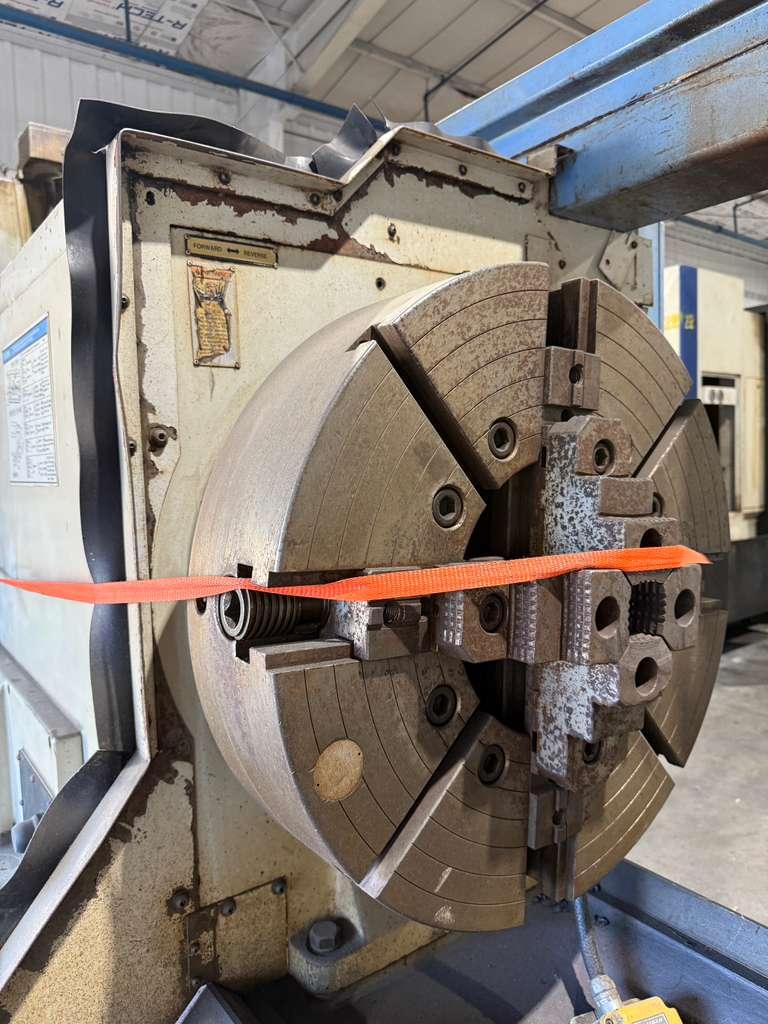

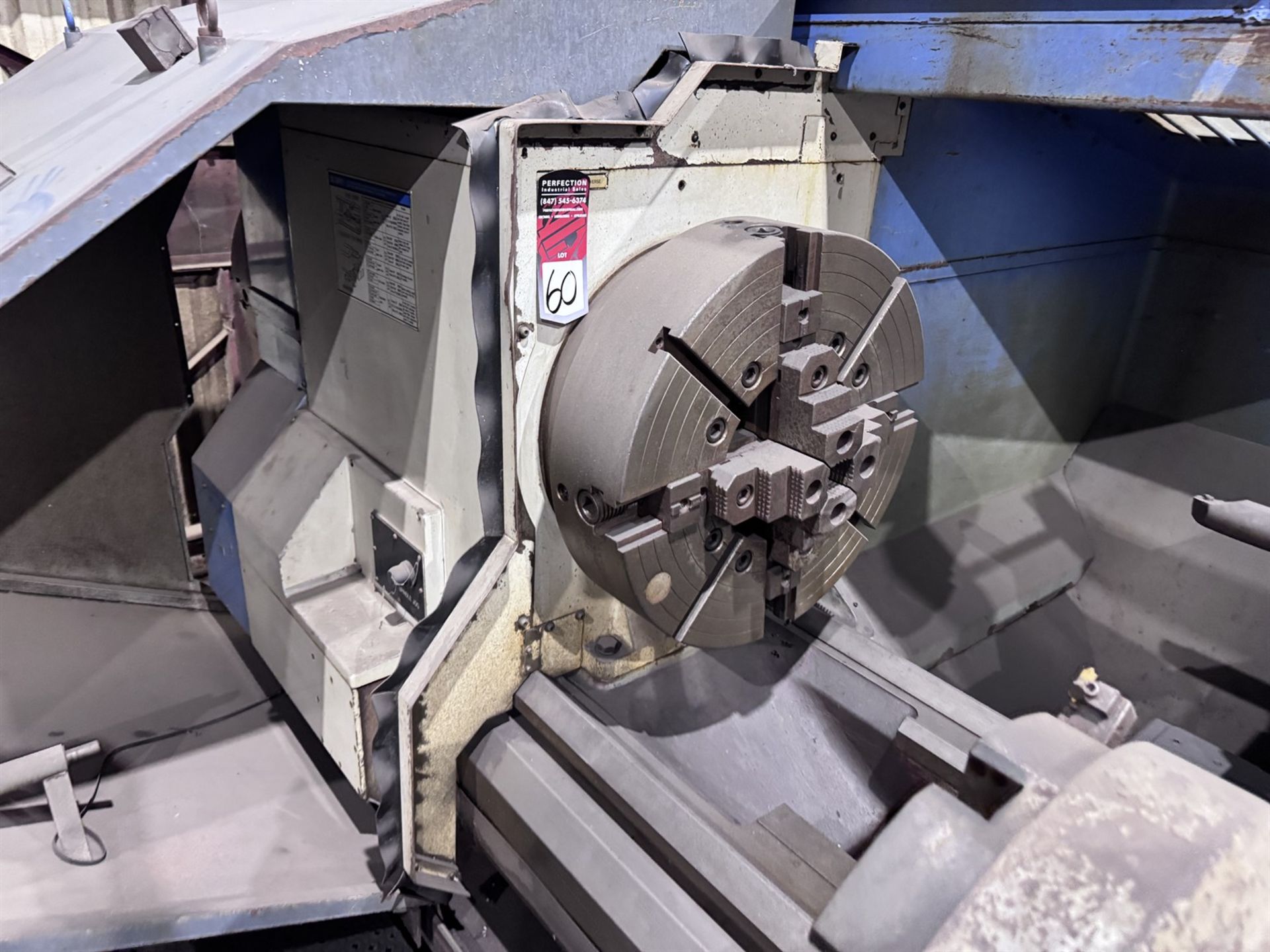

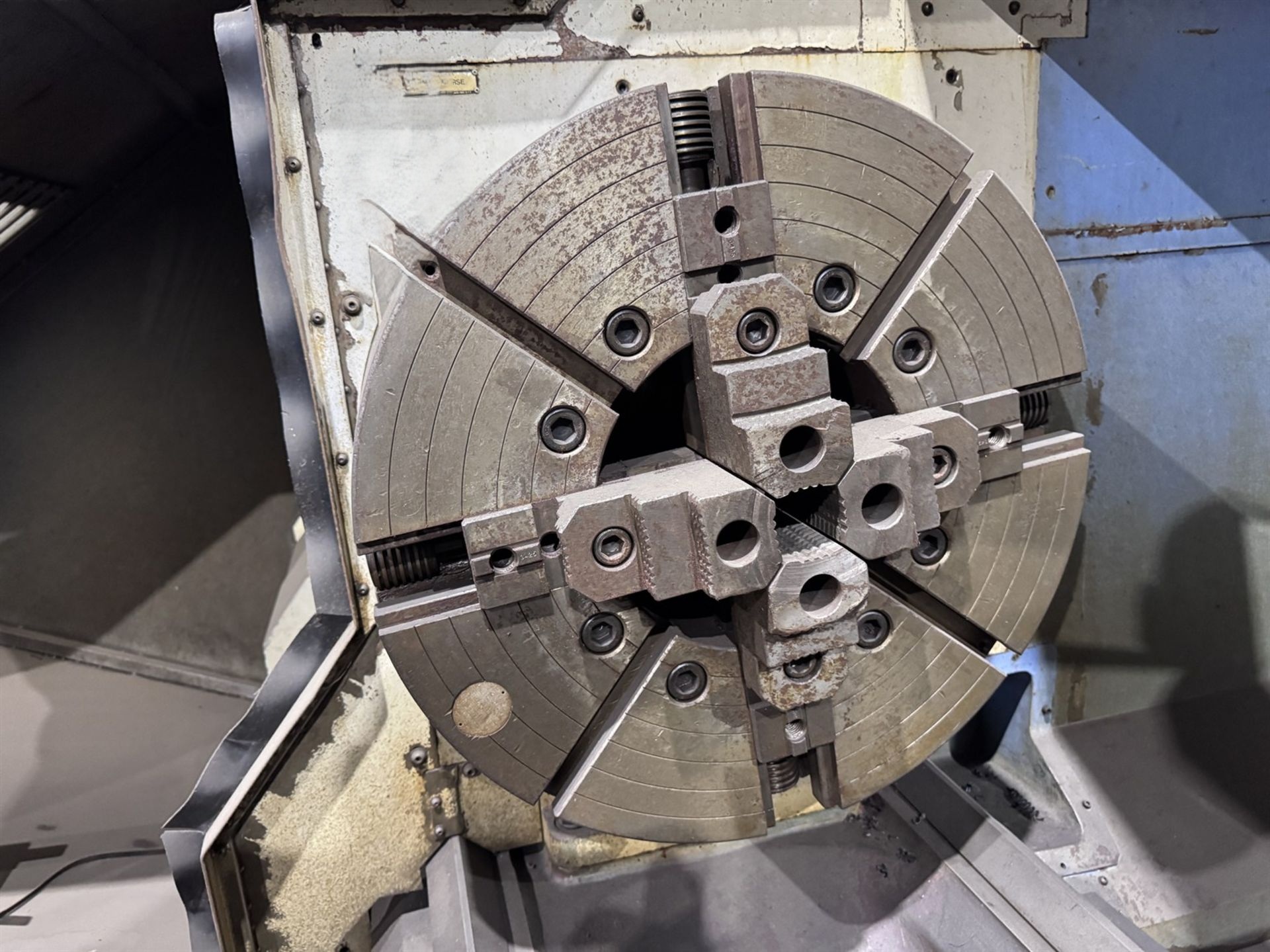

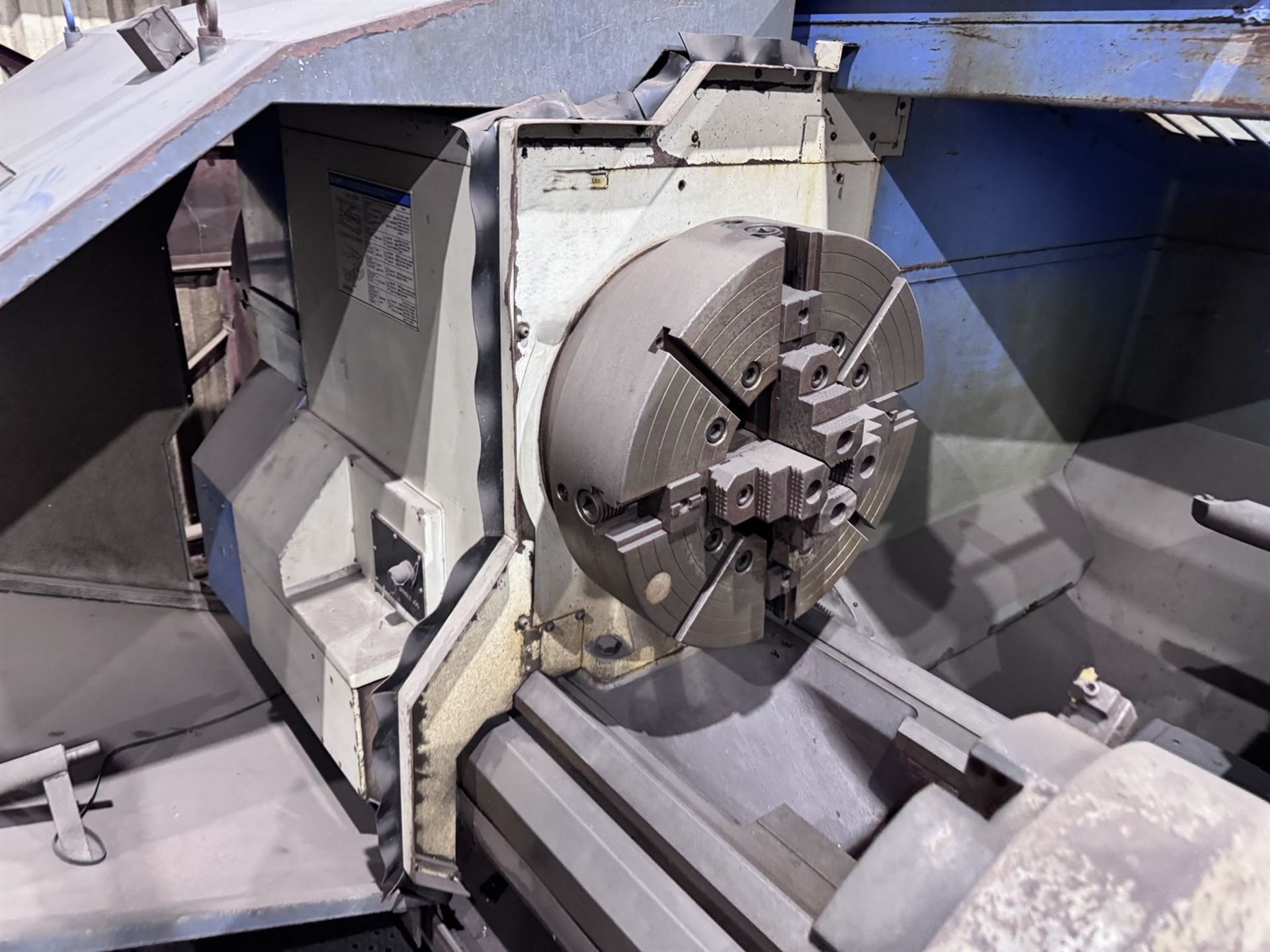

| 610 mm 4-Jaw Independent Main Chuck |

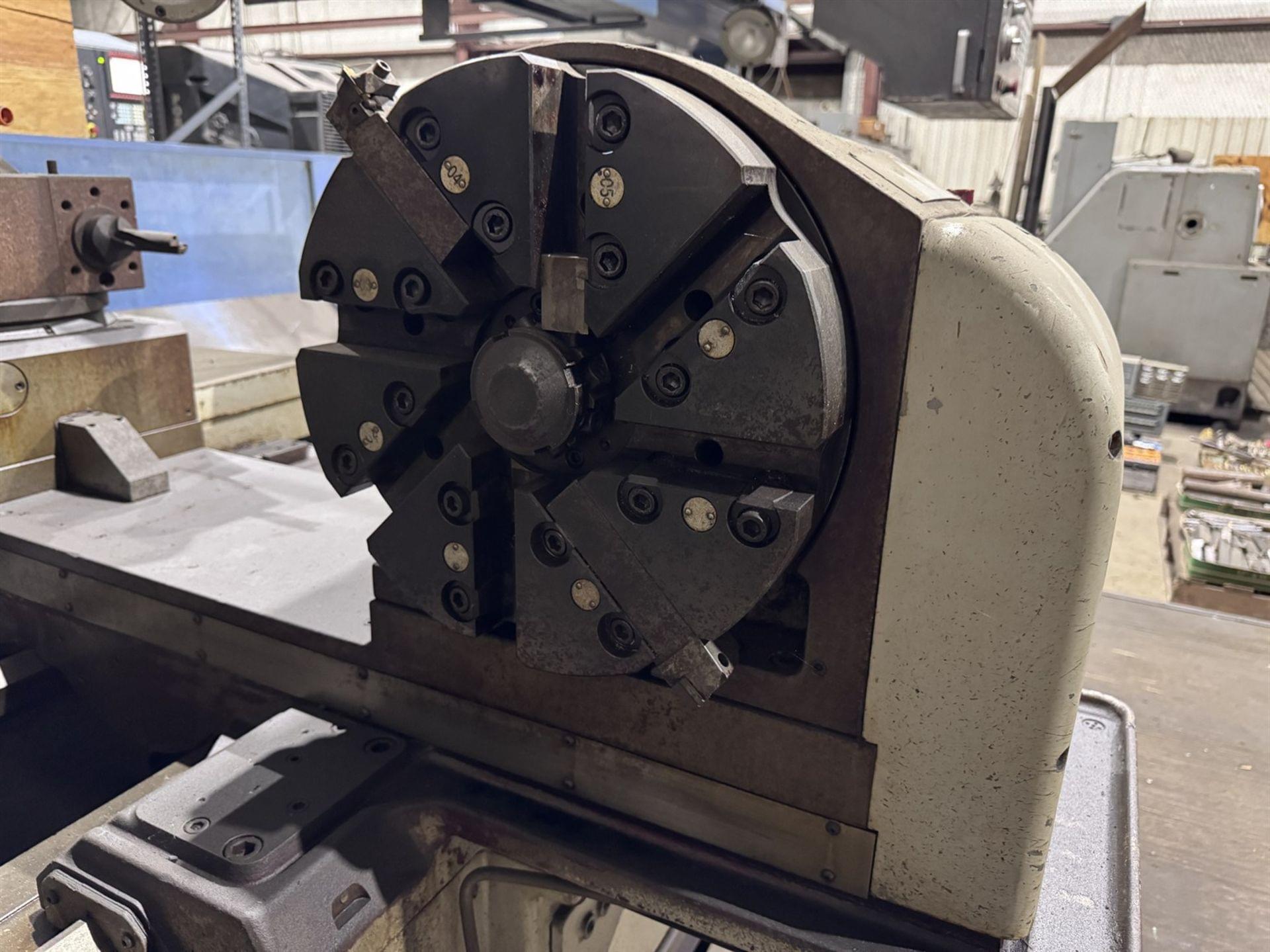

| 610 mm 4-Jaw Independent Rear Chuck |
| 254 mm Big Bore Spindle |
| A1-15 Gear Head Spindle |

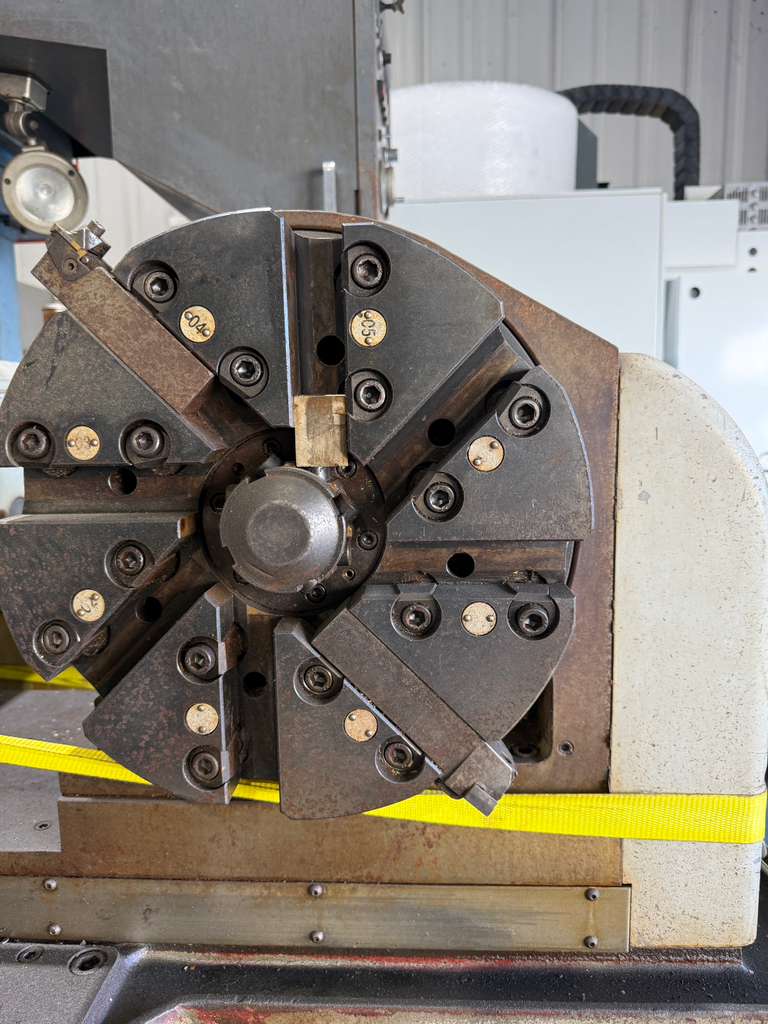

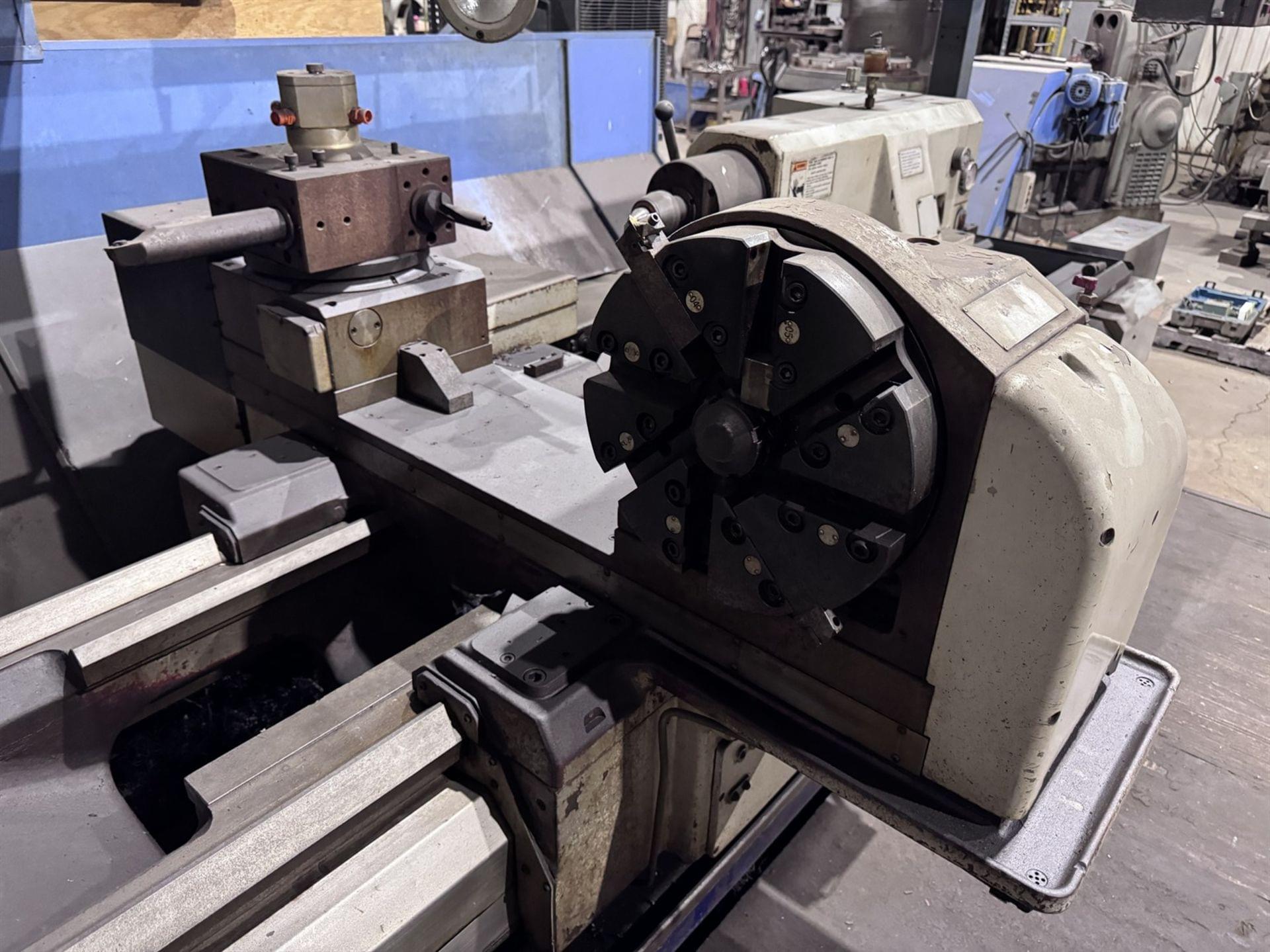

| 8-Position Automatic Indexing Turret |

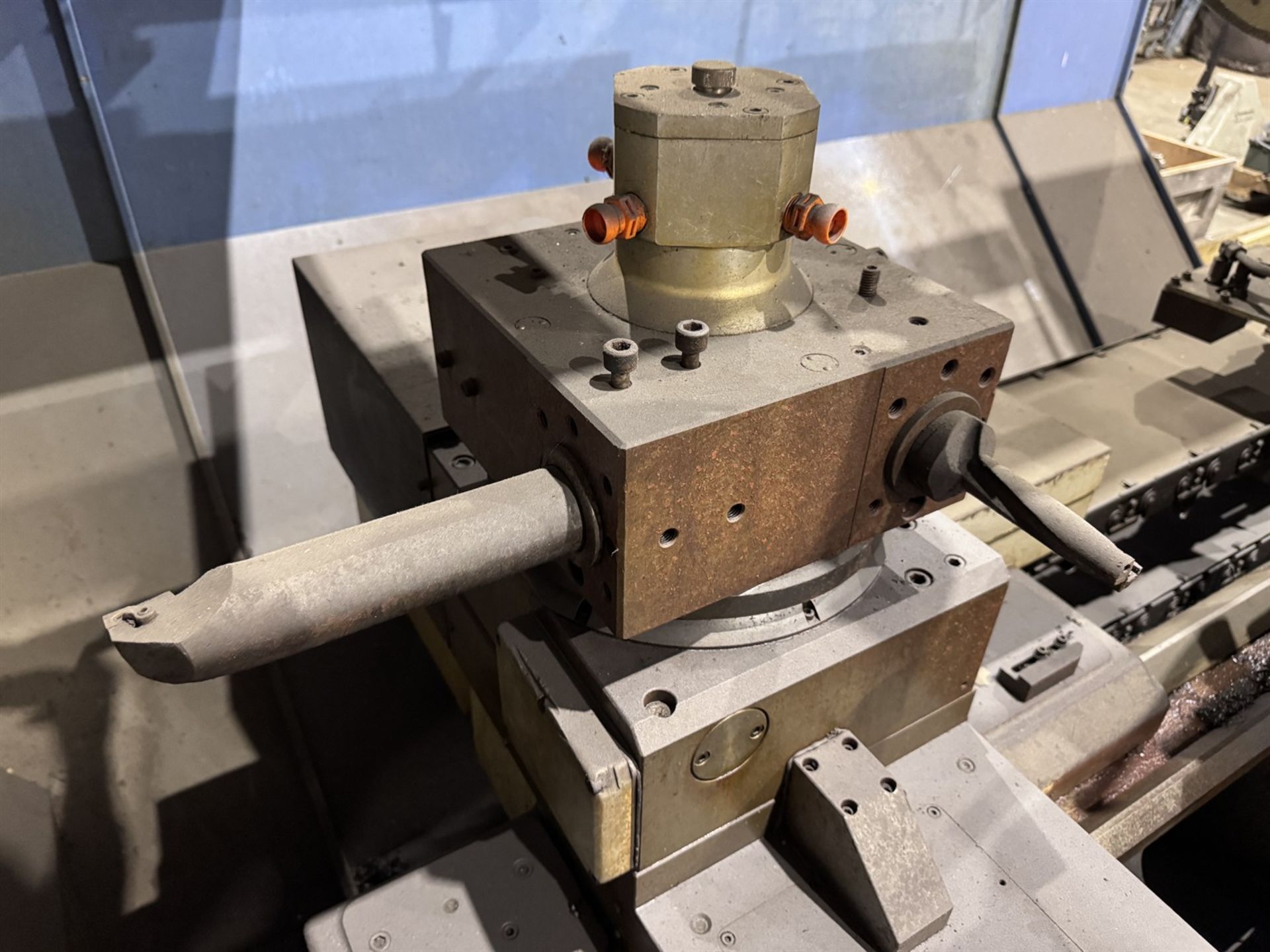

| 4-Position Heavy-Duty Turret |
| Rigid Tapping |
| Hydraulic Tailstock |
| Coolant Tank |

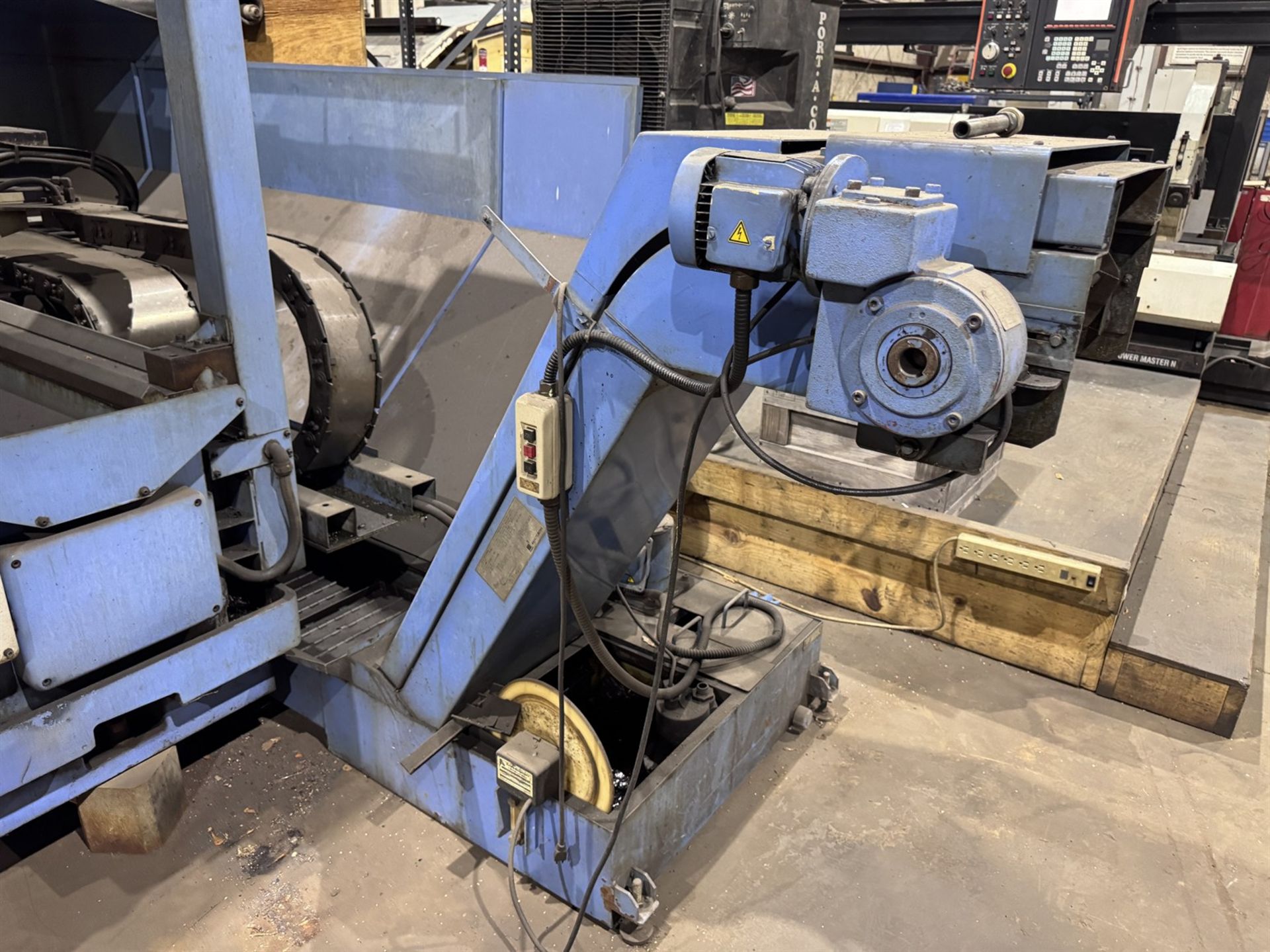

| Chip Conveyor |
| Capacity: |
| Swing Over Bed: 869 mm |
| Maximum Turning Diameter: 869 mm |
| Distance Between Centers: 2032 mm |
| Spindle Bore: 254 mm |
| Maximum Workpiece Weight Between Centers: Approx. 1996 kg |
| Travels: |
| X-Axis Travel: 457 mm |
| Z-Axis Travel: 2083 mm |
| Spindle: |
| Spindle Bore: 254 mm |
| Spindle Nose: A1-15 |
| Spindle Speed Range: 5–850 RPM |
| Main Motor: 44.7 kW AC Drive |
| Gear Head Spindle |
| Turret: |
| 8-Station Automatic Indexing Turret |
| Turning Tool Size: 32 mm |
| Boring Bar Capacity: 64 mm |
| Tool Post: |
| 4-Position Heavy-Duty Turret |
| Suitable for Heavy Rough Turning |
| Tailstock: |

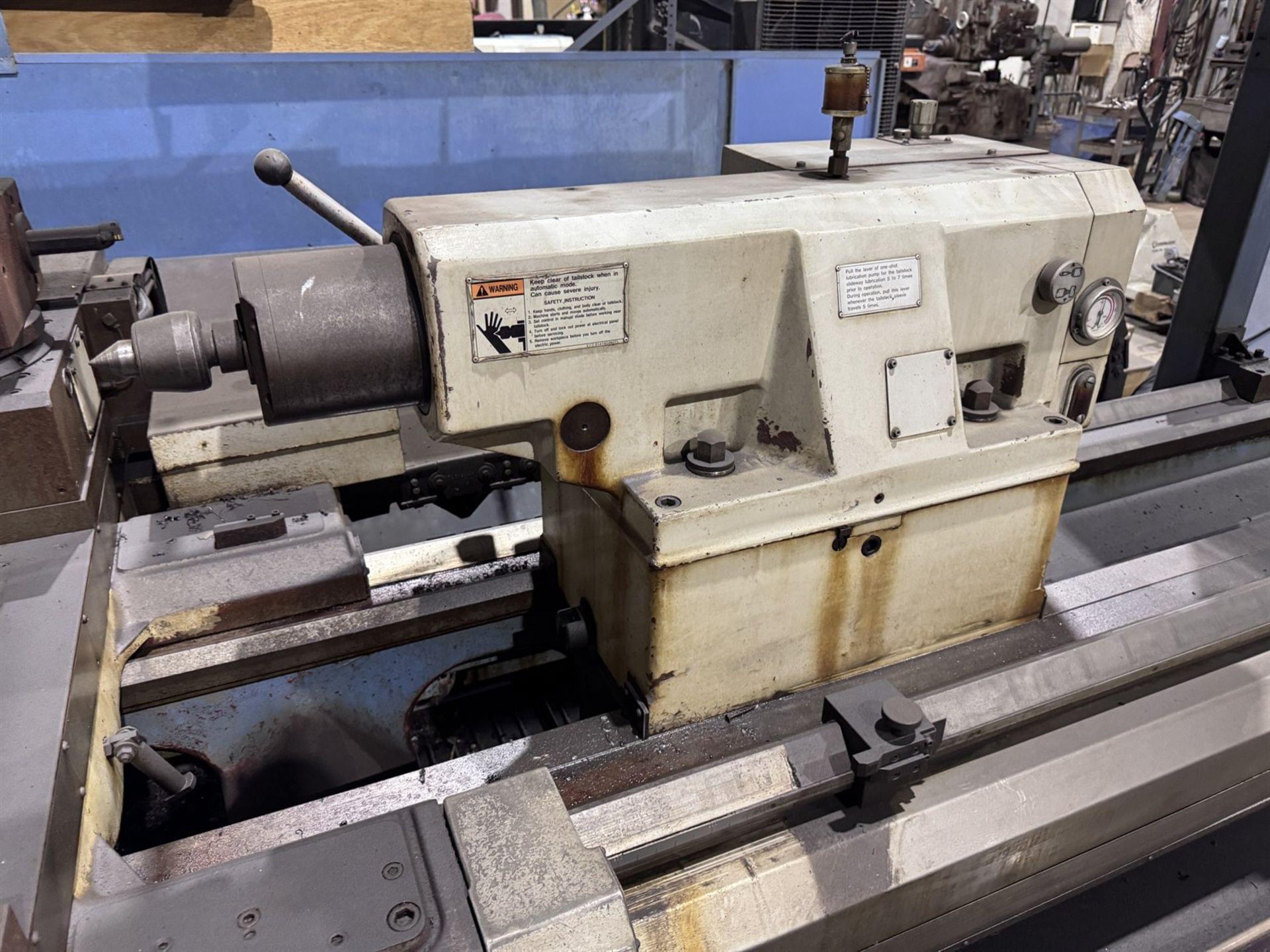

| Hydraulic Tailstock |
| Quill Diameter: 150 mm |
| Quill Travel: 201 mm |
| Morse Taper: MT-6 |
| General: |

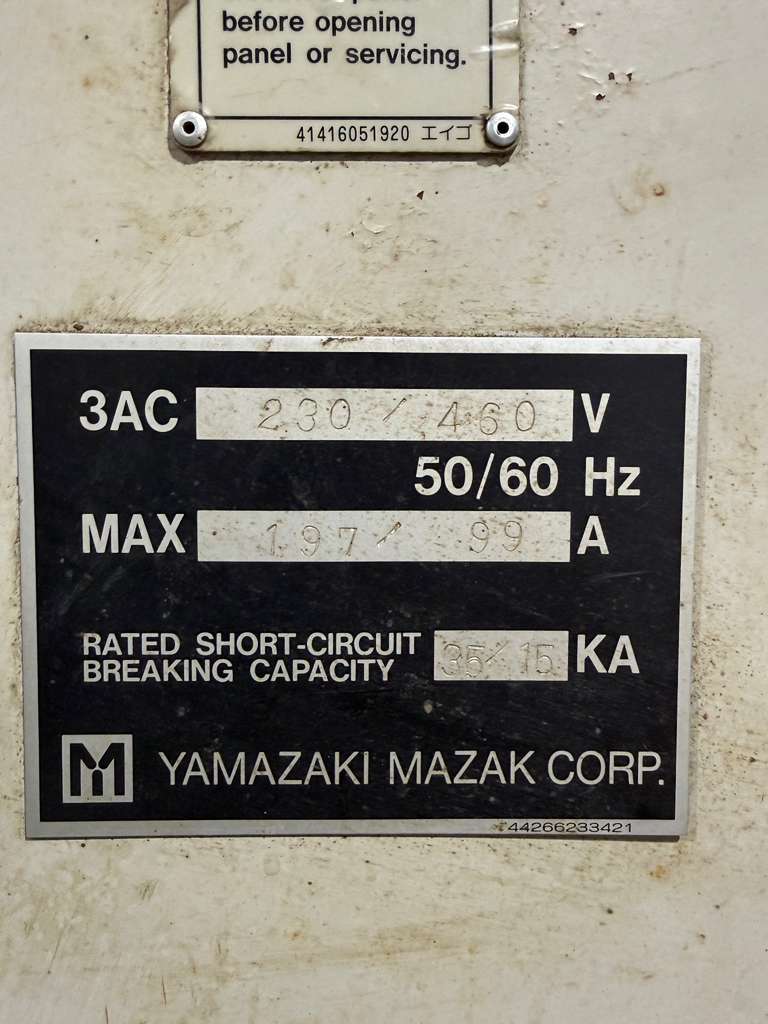

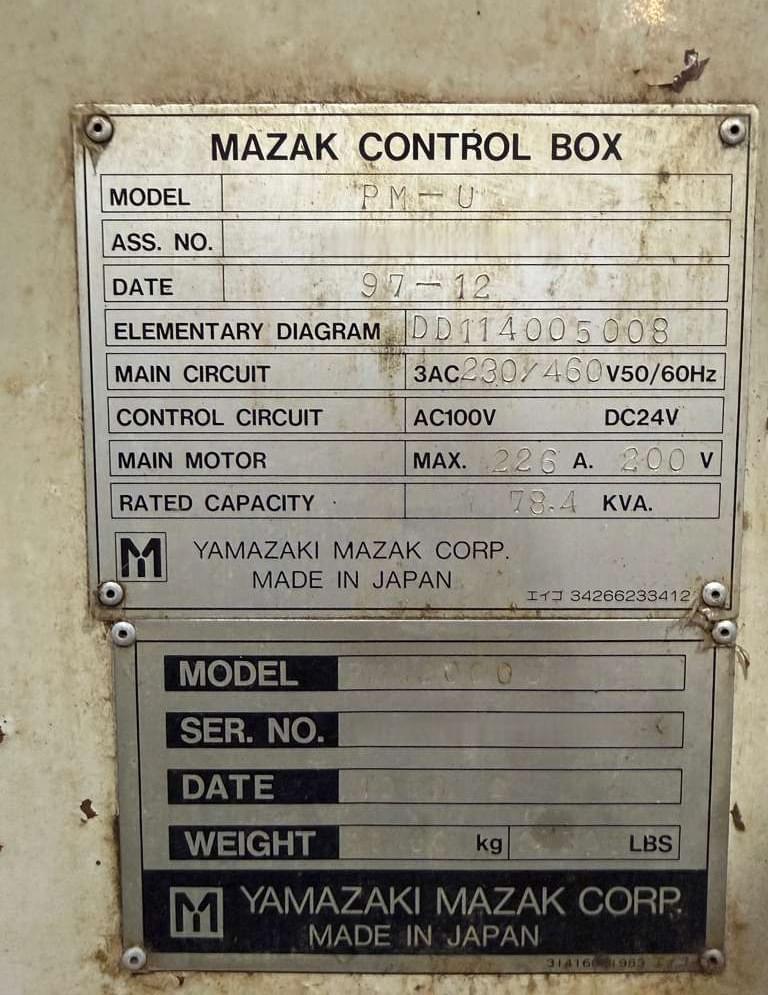

| Power Requirement: 230/460V / 3-Phase / 50/60 Hz |
| Rated Capacity: 78.4 kVA |
| Machine Dimensions (Approx.): 5893 mm × 2489 mm × 2438 mm High |
| Machine Weight (Approx.): 10115 kg |
