*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

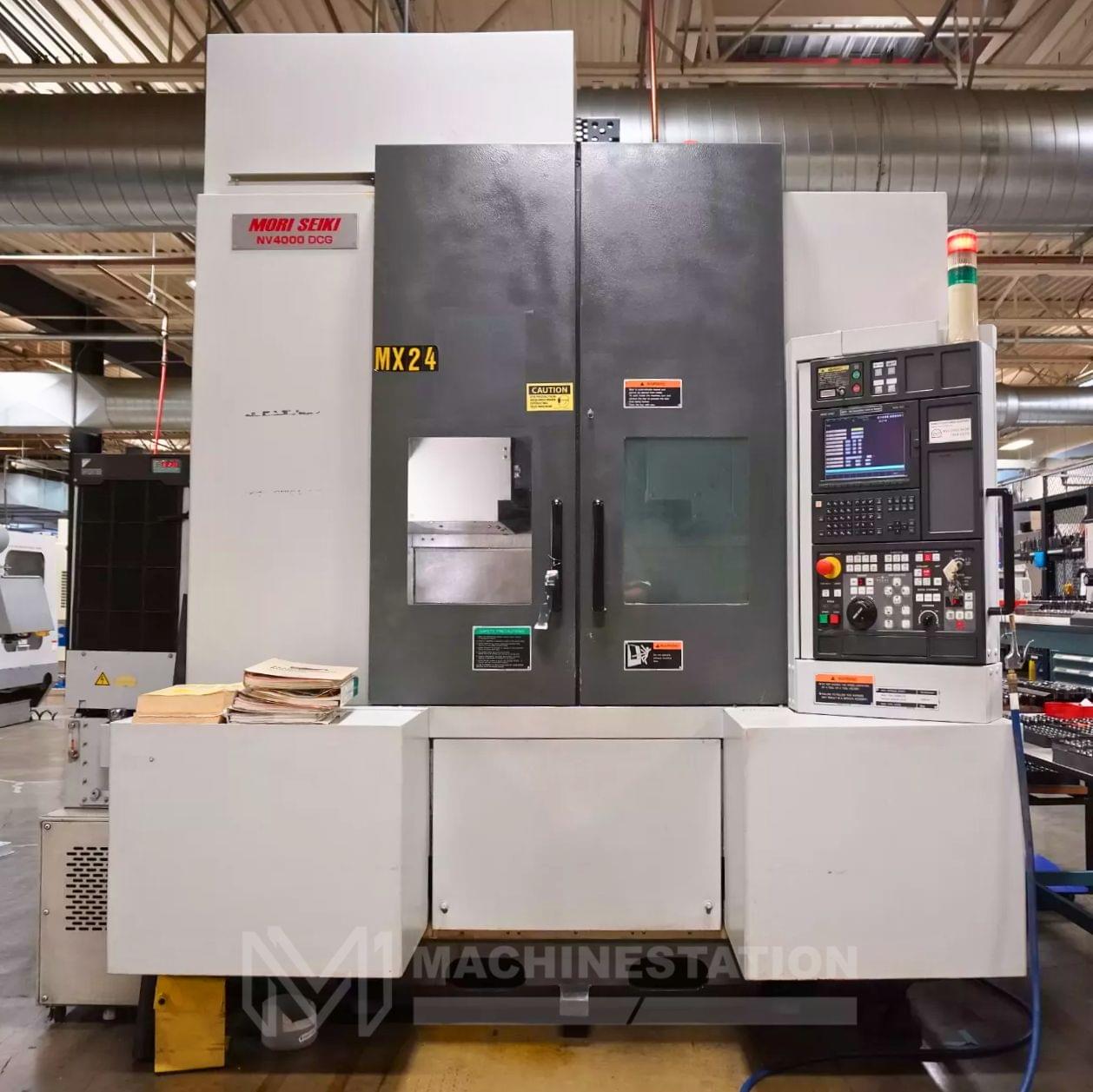

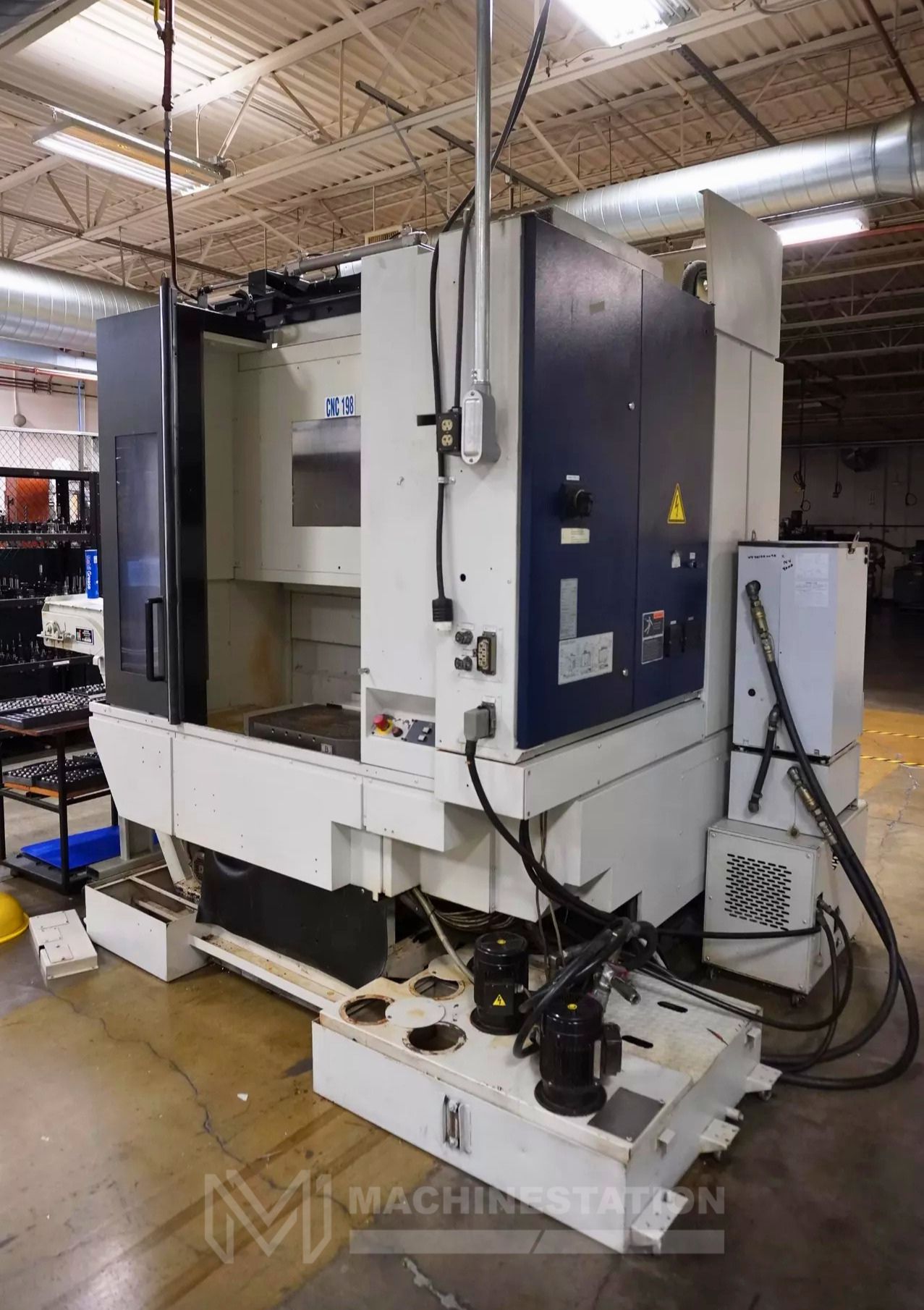

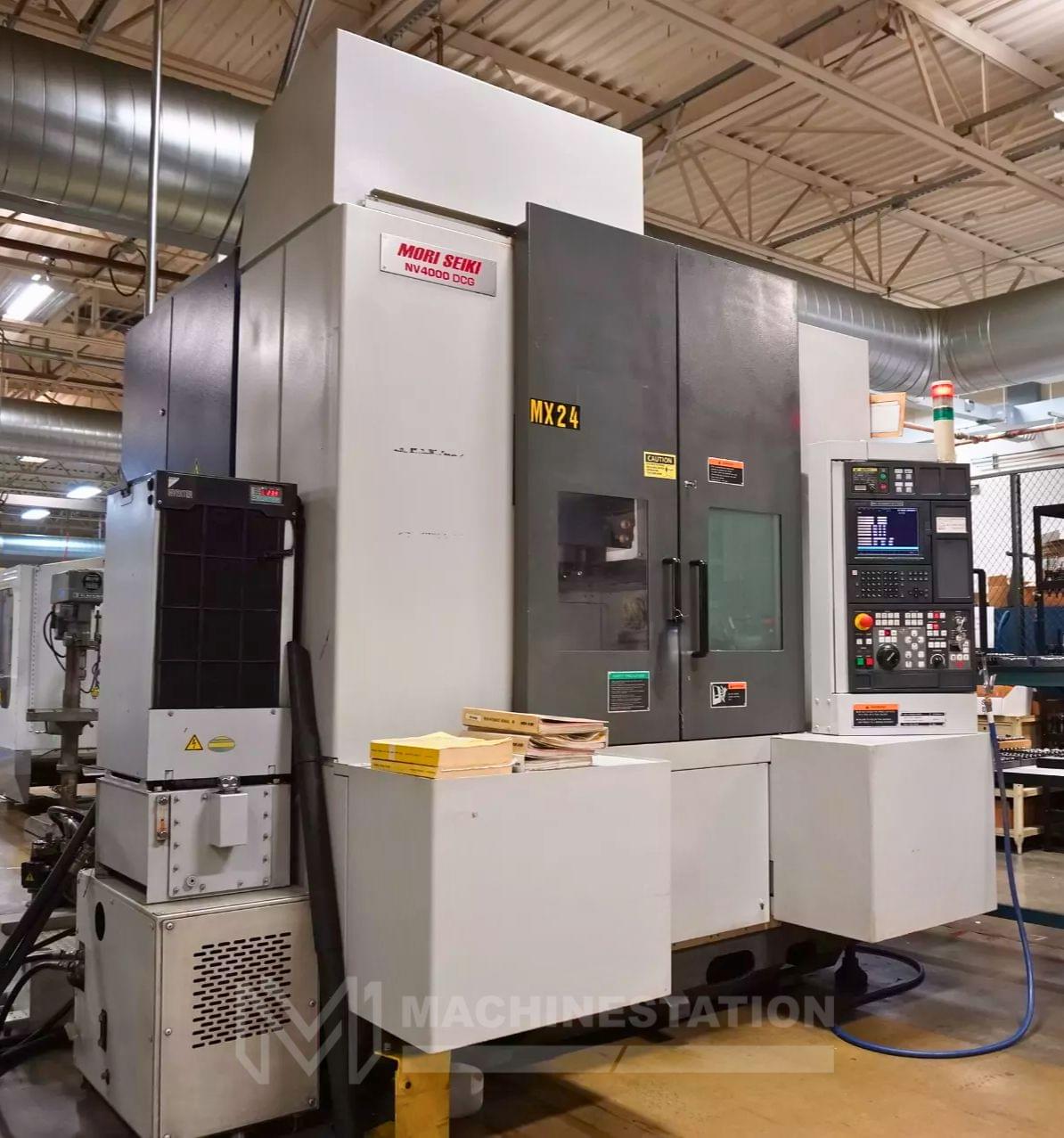

| Make: | Mori Seiki |
| Model: | NV4000 DCG |
| Year: | 2004 |
| Features: |
|---|

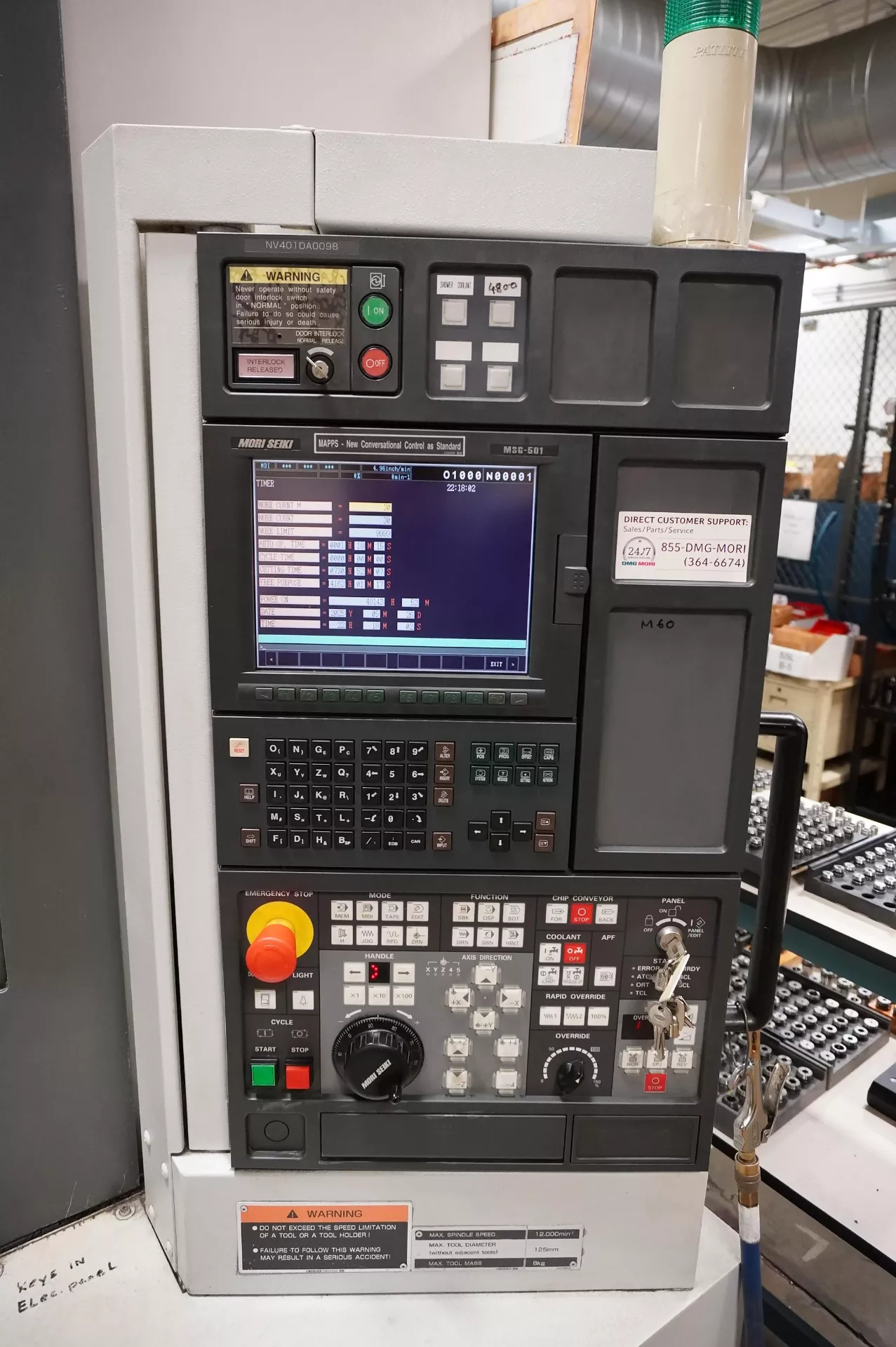

| Mori Seiki MAPPS MSX-501 CNC Control |
| DCG (Driven at the Center of Gravity) Construction |
| Automatic Pallet Changer |
| 12,000 RPM High-Speed Spindle |
| CAT-40 Taper Spindle |
| 30-Station Automatic Tool Changer |
| Spindle Chiller Unit |
| Rigid Tapping |
| Coolant Tank |

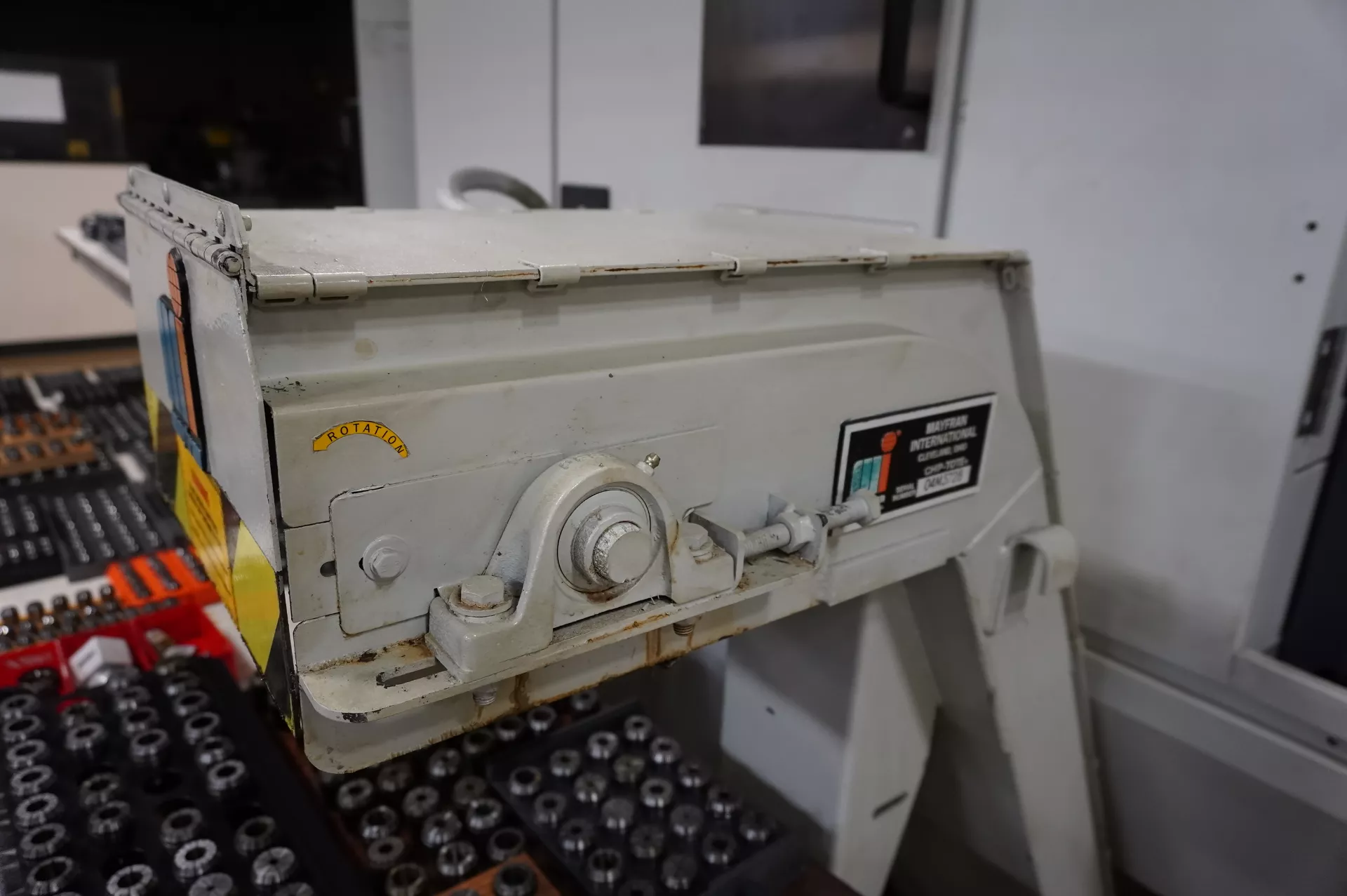

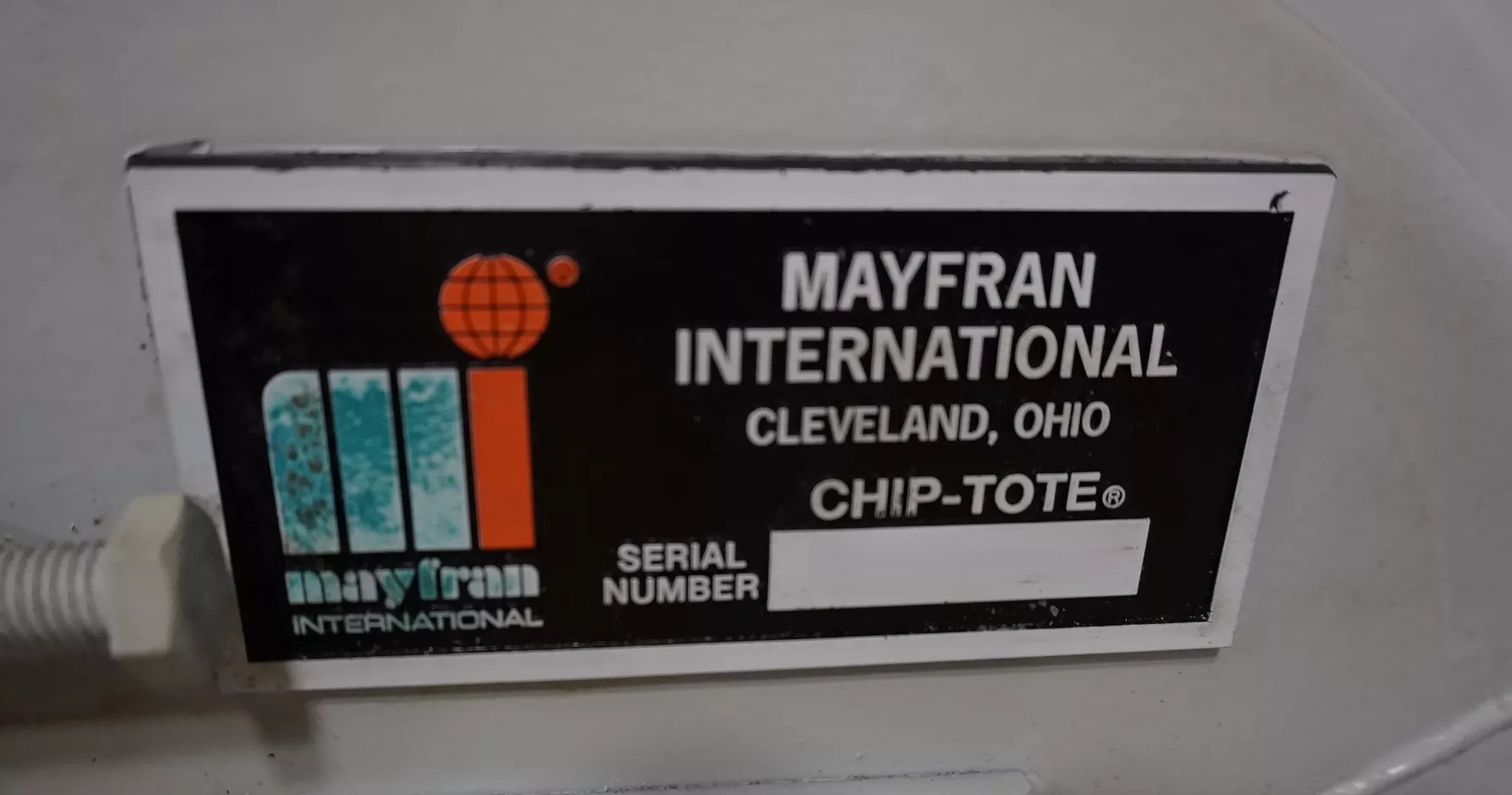

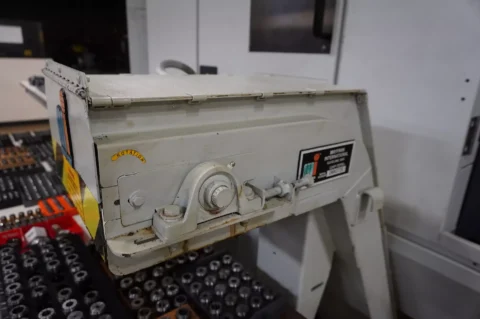

| Chip Conveyor |
| Travels: |
|---|
| X-Axis Travel: 600 mm |
| Y-Axis Travel: 400 mm |
| Z-Axis Travel: 510 mm |
| Rapid Traverse (X/Y/Z): 60 m/min (2,362 IPM) |

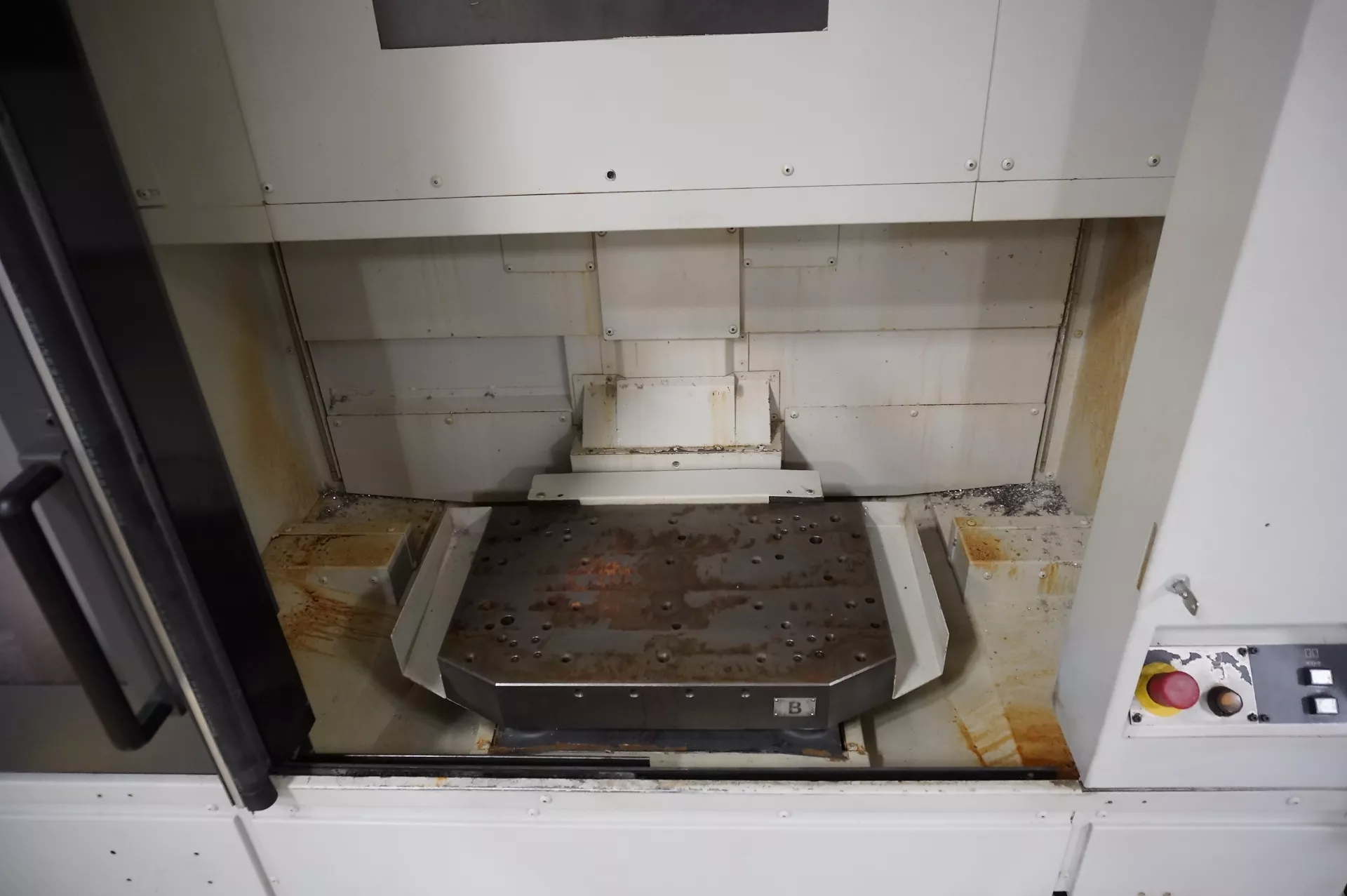

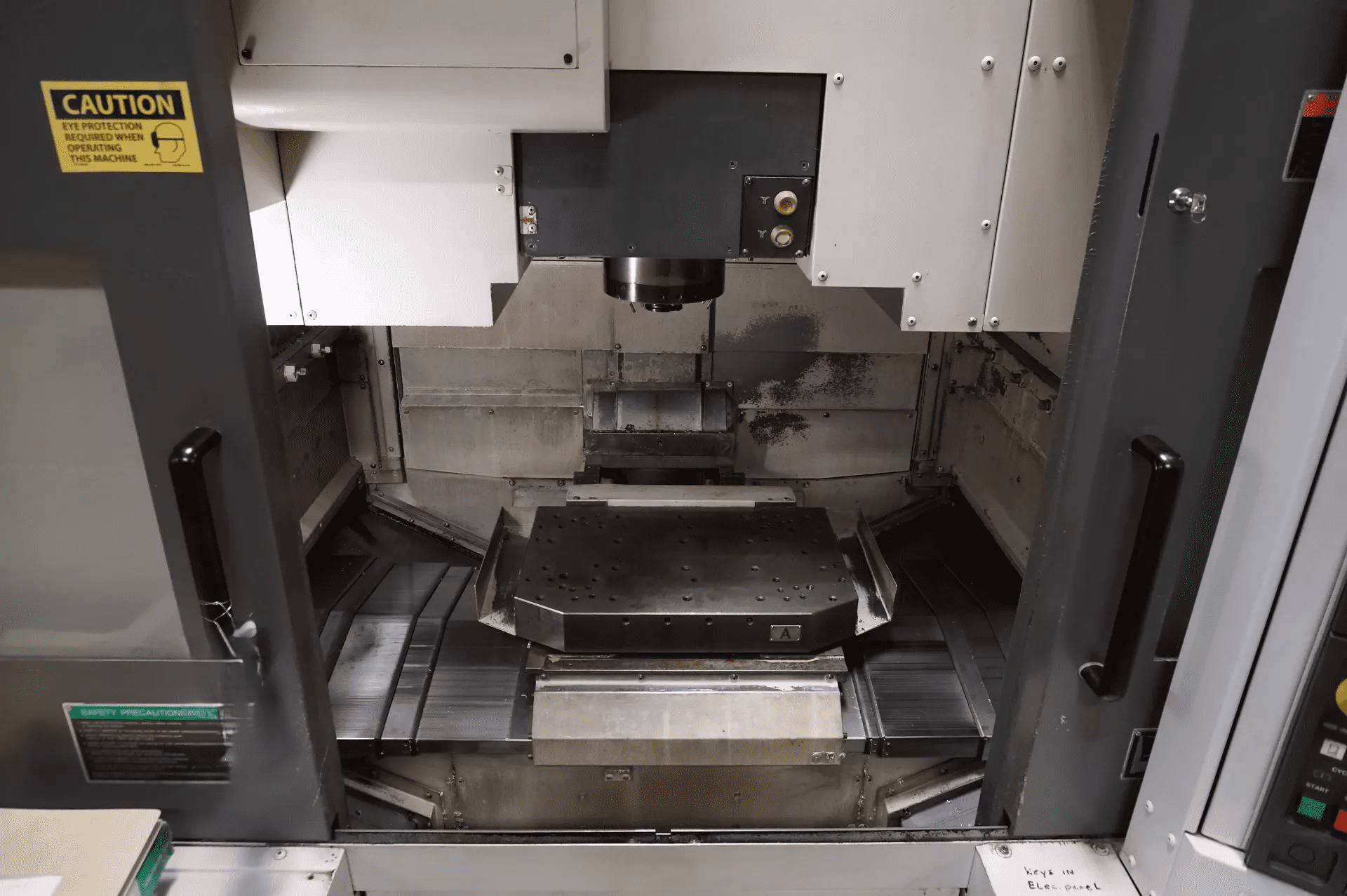

| Pallet: |
|---|
| Number of Pallets: 2 |
| Pallet Size: 400 mm × 400 mm |
| Maximum Pallet Load: 400 kg |

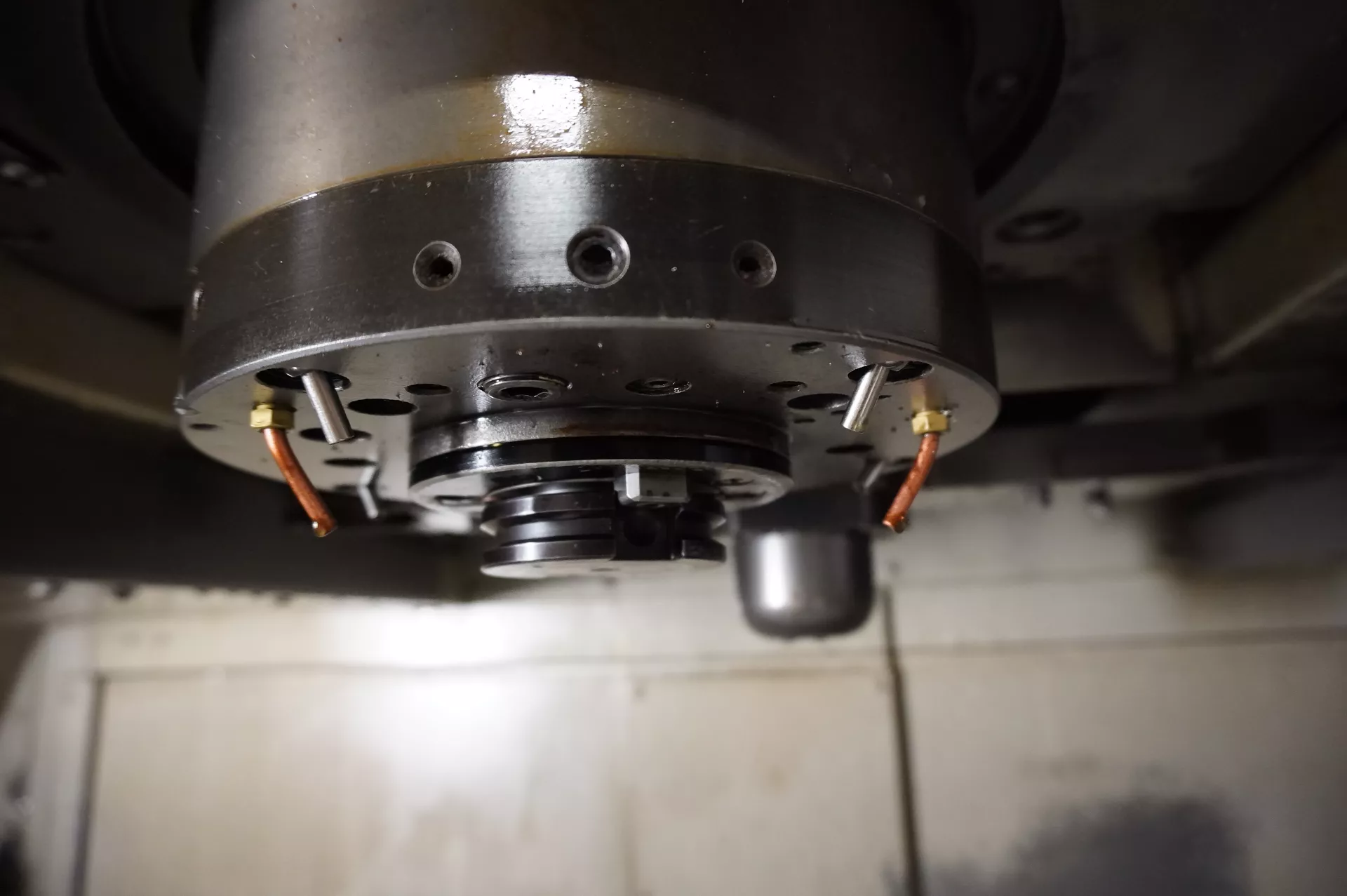

| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT-40 |
| Spindle Motor: 22 kW |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Maximum Tool Diameter: 125 mm (without adjacent tools) |
| Maximum Tool Weight: 8 kg |
| General: |
|---|

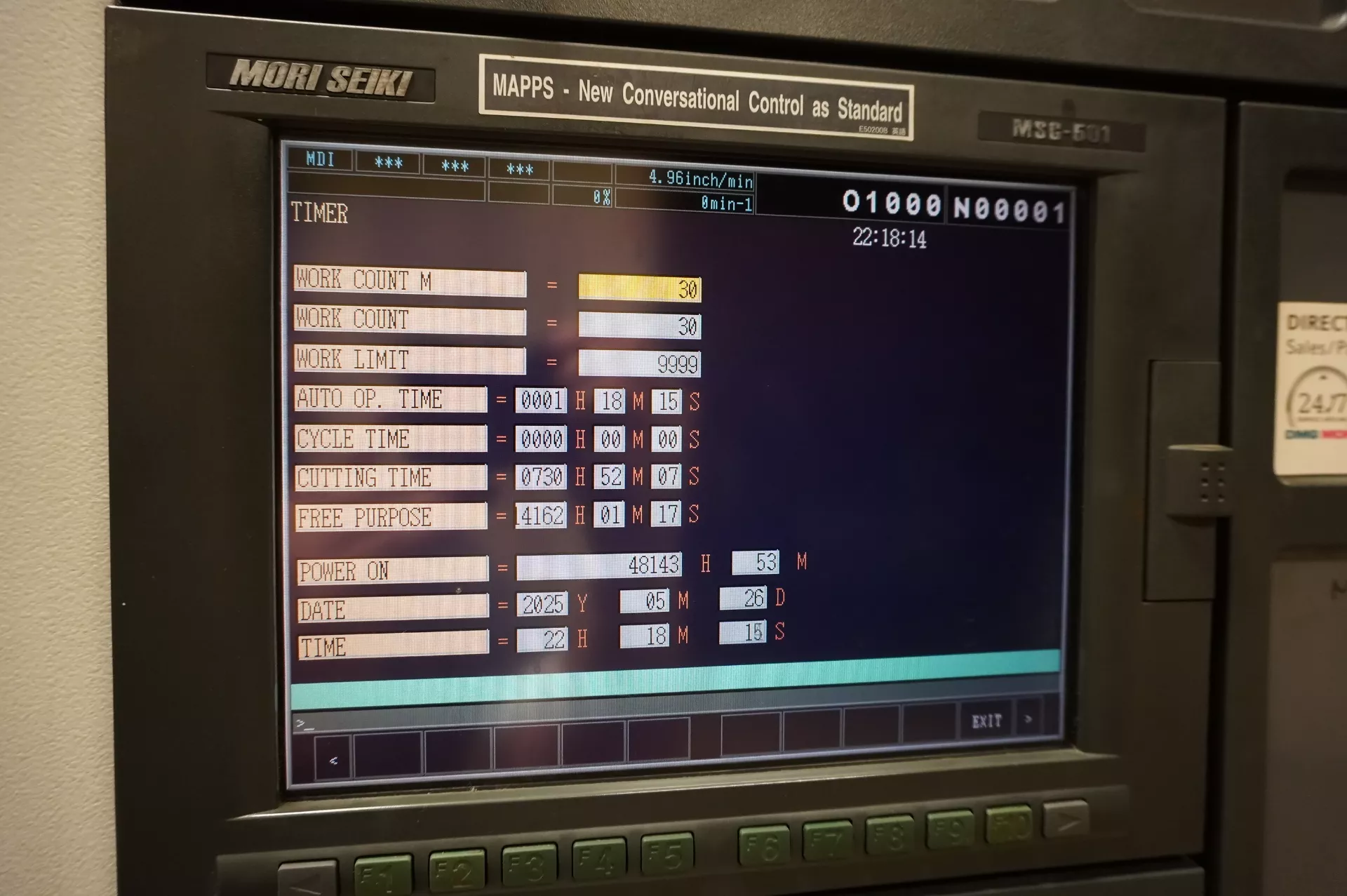

| Cutting Time: 730Hours |

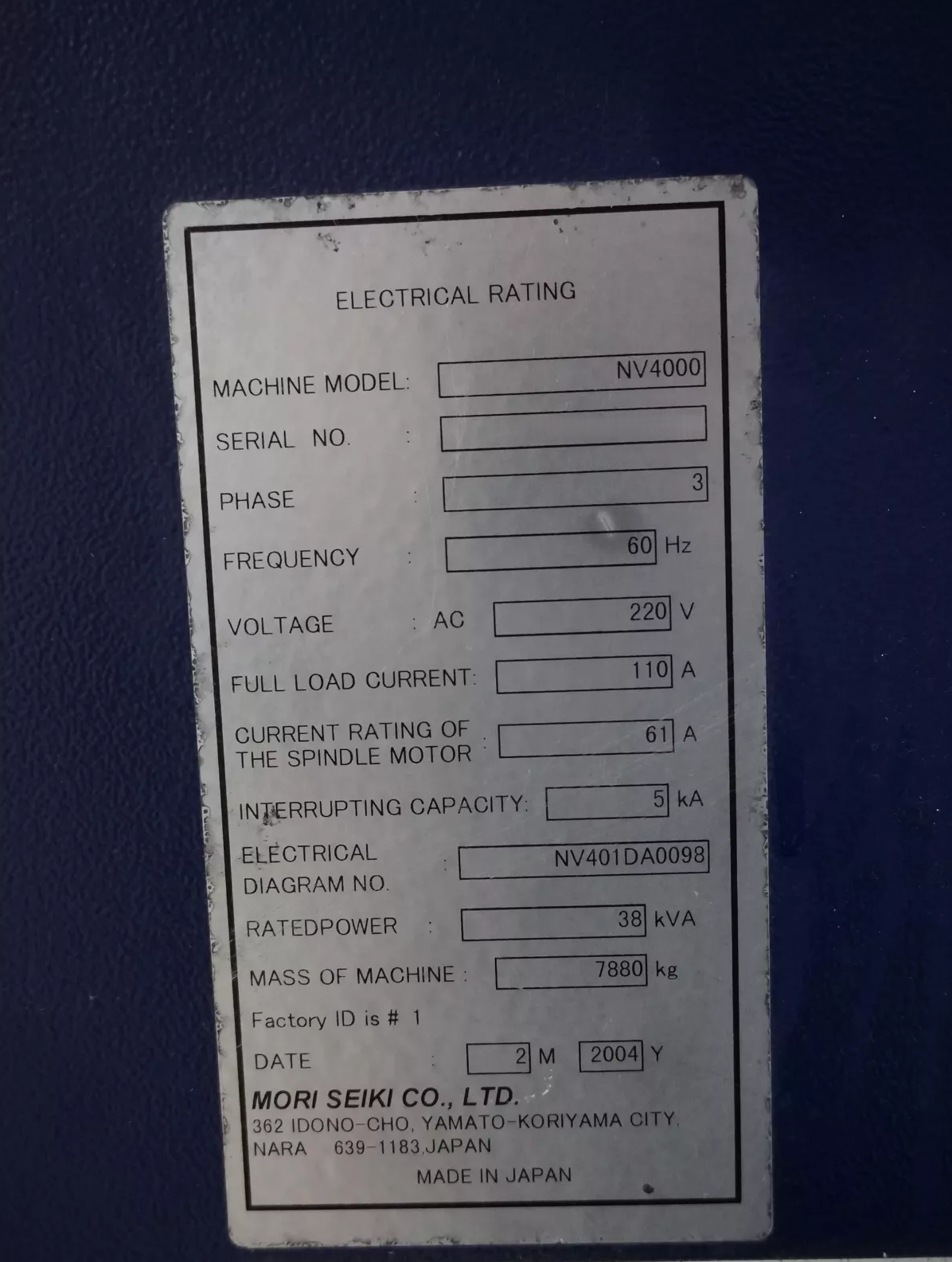

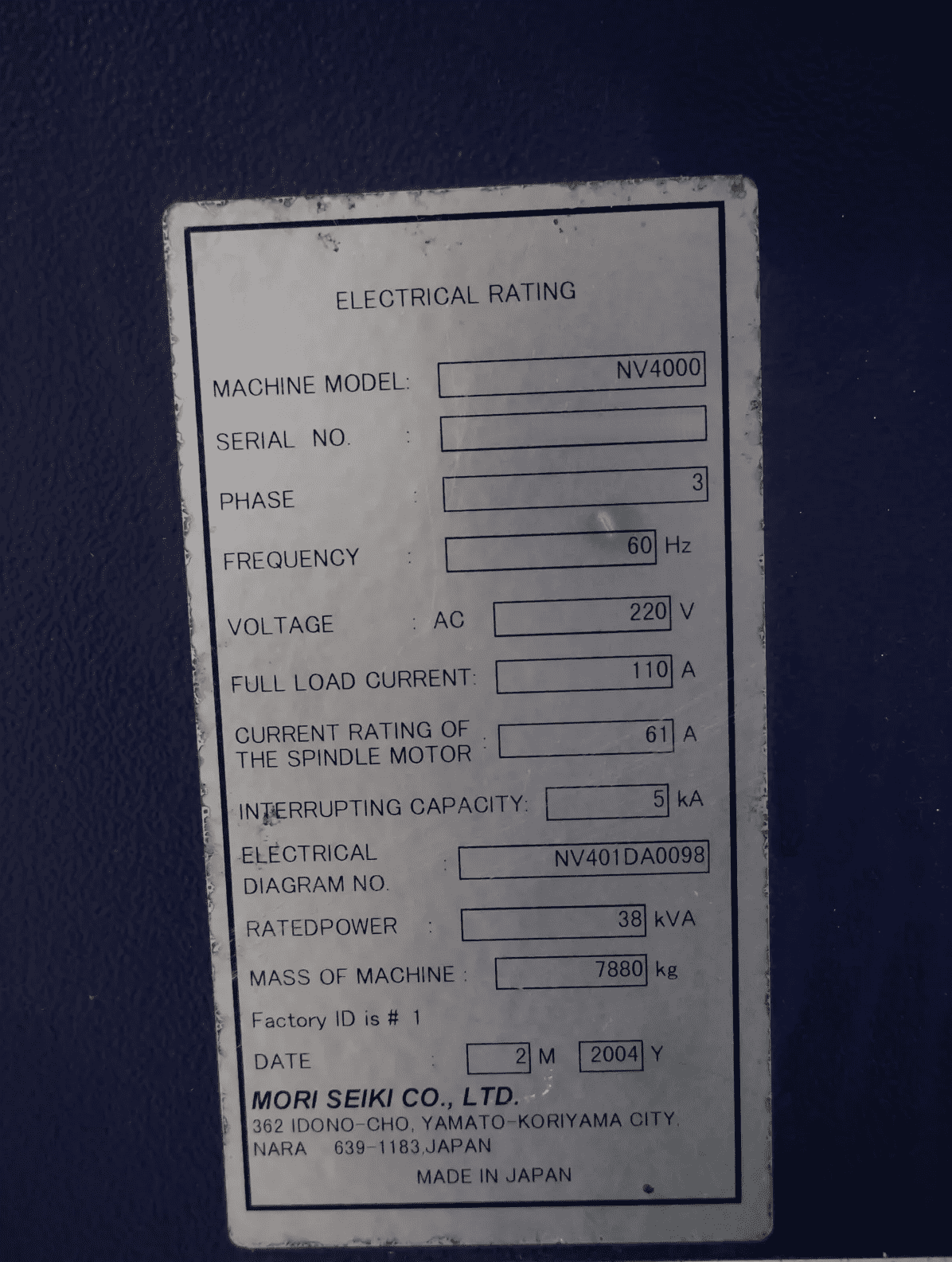

| Power Requirement: AC 220V / 3-Phase / 60 Hz / 38 kVA |
| Machine Dimensions (Approx.): 2167 mm × 2685 mm × 2771 mm |
| Machine Weight (Approx.): 8110 kg |
