Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

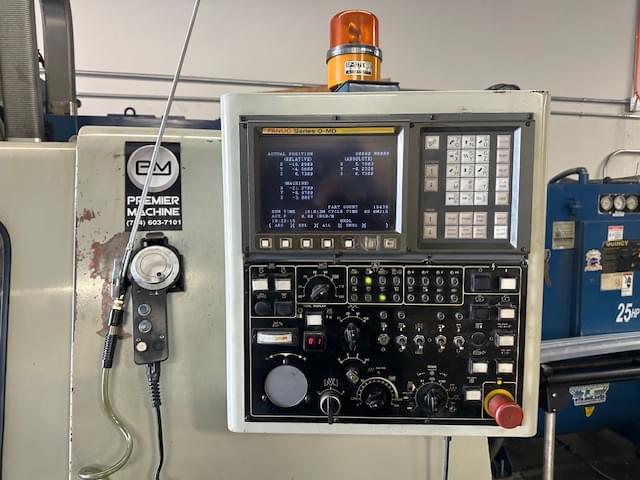

| Fanuc Series O-MD CNC Control |
| 8,000 RPM Direct Drive Spindle |
| CAT-40 Spindle Taper |
| 20 Station Automatic Tool Changer |
| Spindle Chiller Unit |
| MPG Handwheel Control |
| Rigid Tapping |
| Coolant Tank |
| Travel: |
| X Axis Travel: 37.4″ |
| Y Axis Travel: 20.5″ |
| Z Axis Travel: 20.5″ |
| Table: |
| Table Length: 39.4″ |
| Table Length: 18.0″ |
| Maximum Table Load: 1500 lbs |
| Spindle: |
| Spindle Speed: 8,000 RPM |
| Spindle Taper: CAT-40 |
| Spindle Motor: 15 HP |
| Automatic Tool Changer: |
| Capacity: 16 |
| Feed Rates: |
| Rapid Traverse (X/Y): 708″ Per Minute |
| Rapid Traverse (Z): 590″ Per Minute |
| Cutting Feed Rate: 394″ Per Minute |
| Automatic Tool Changer: |
| Capacity: 20 Tools |
| Maximum Tool Diameter: 3.1″ |
| Maximum Tool Weight: 15.4 lbs |
| General: |
| Machine Weight: Approx. 12,000 lbs |
| Power Requirement: 220V / 3 Phase / 60 Hz |
| Machine Dimensions (Approx.): 118″ × 96″ x 90″ High. |
