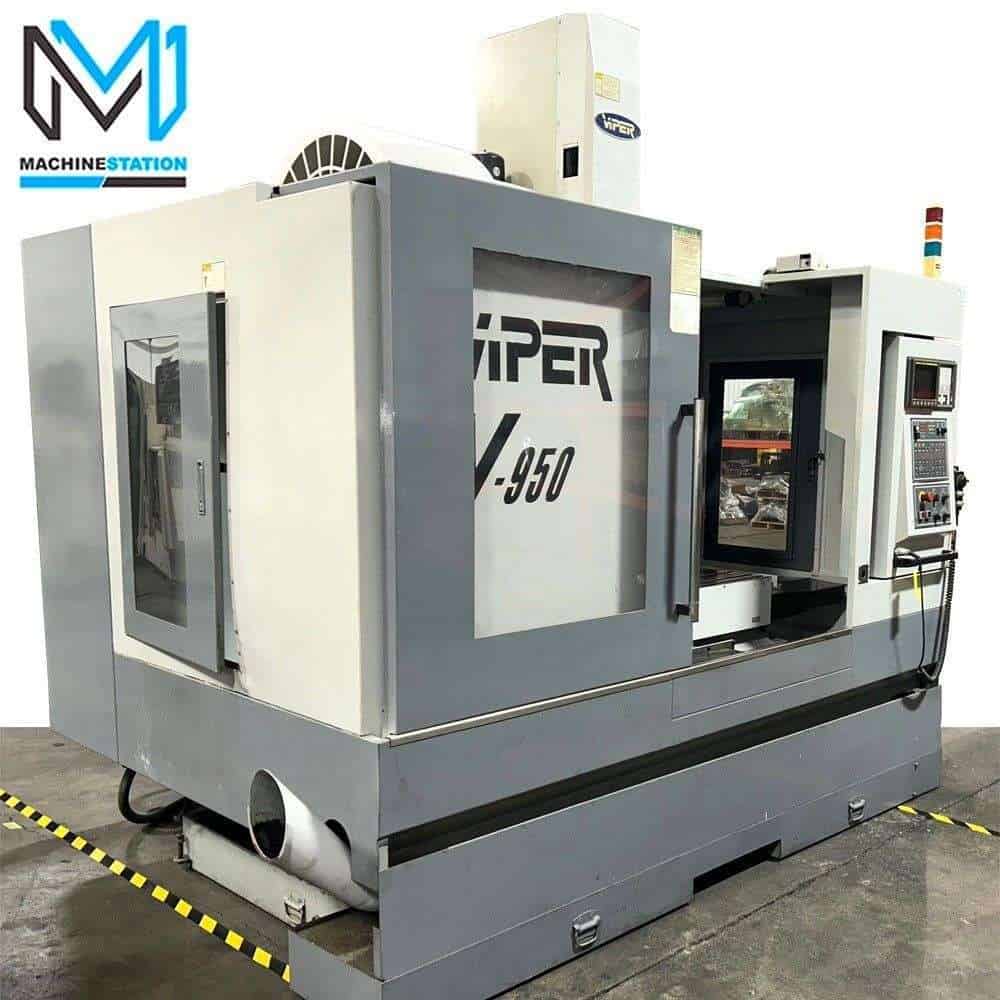

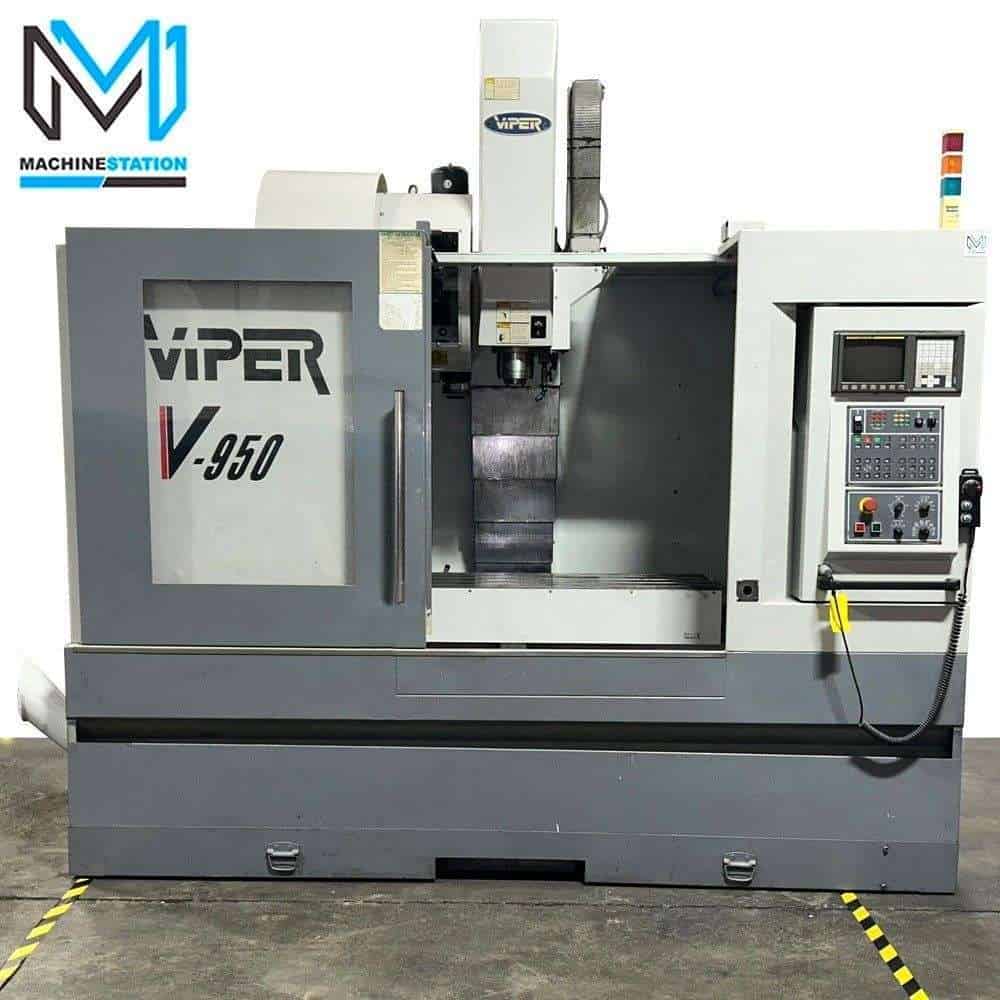

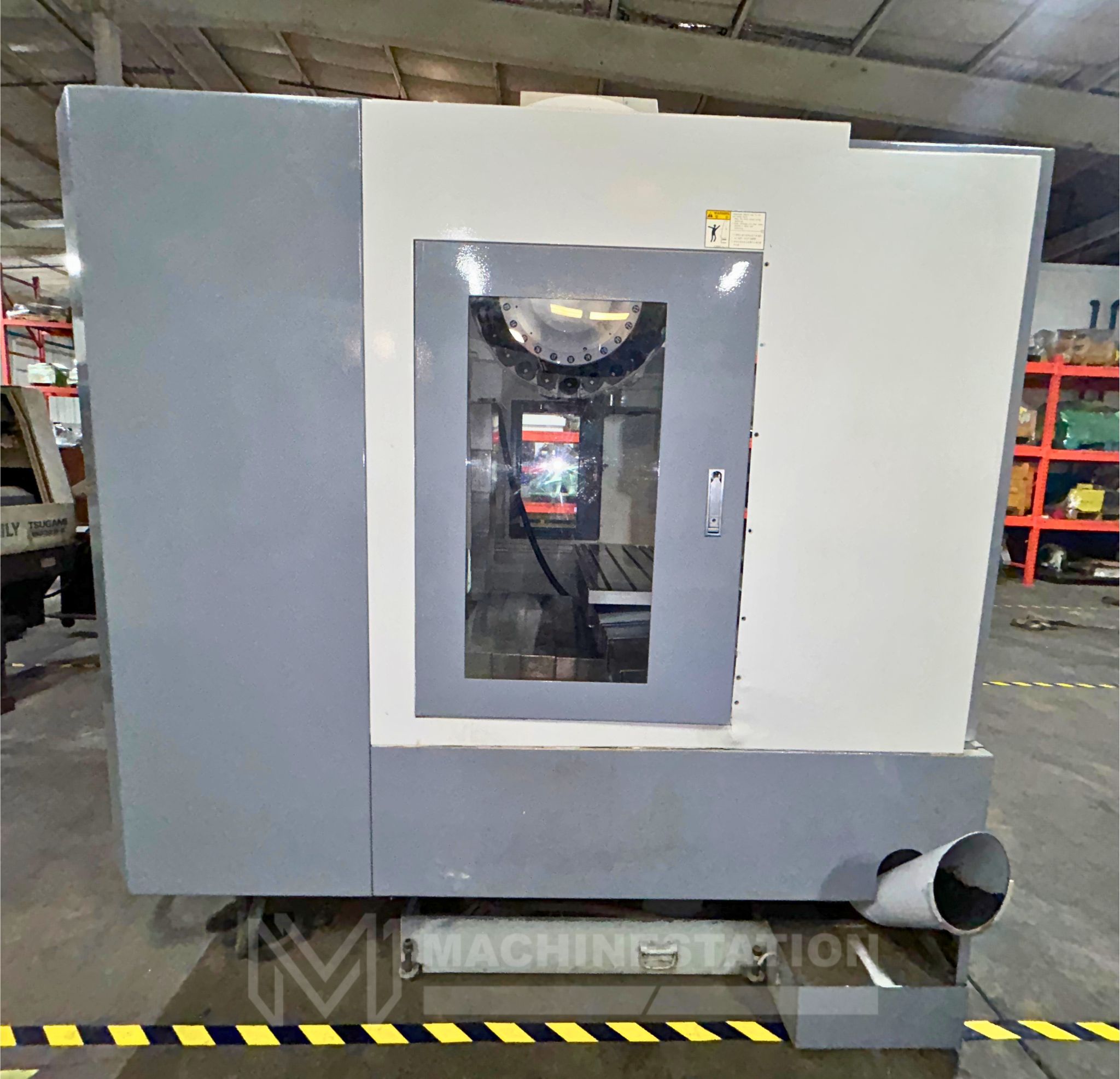

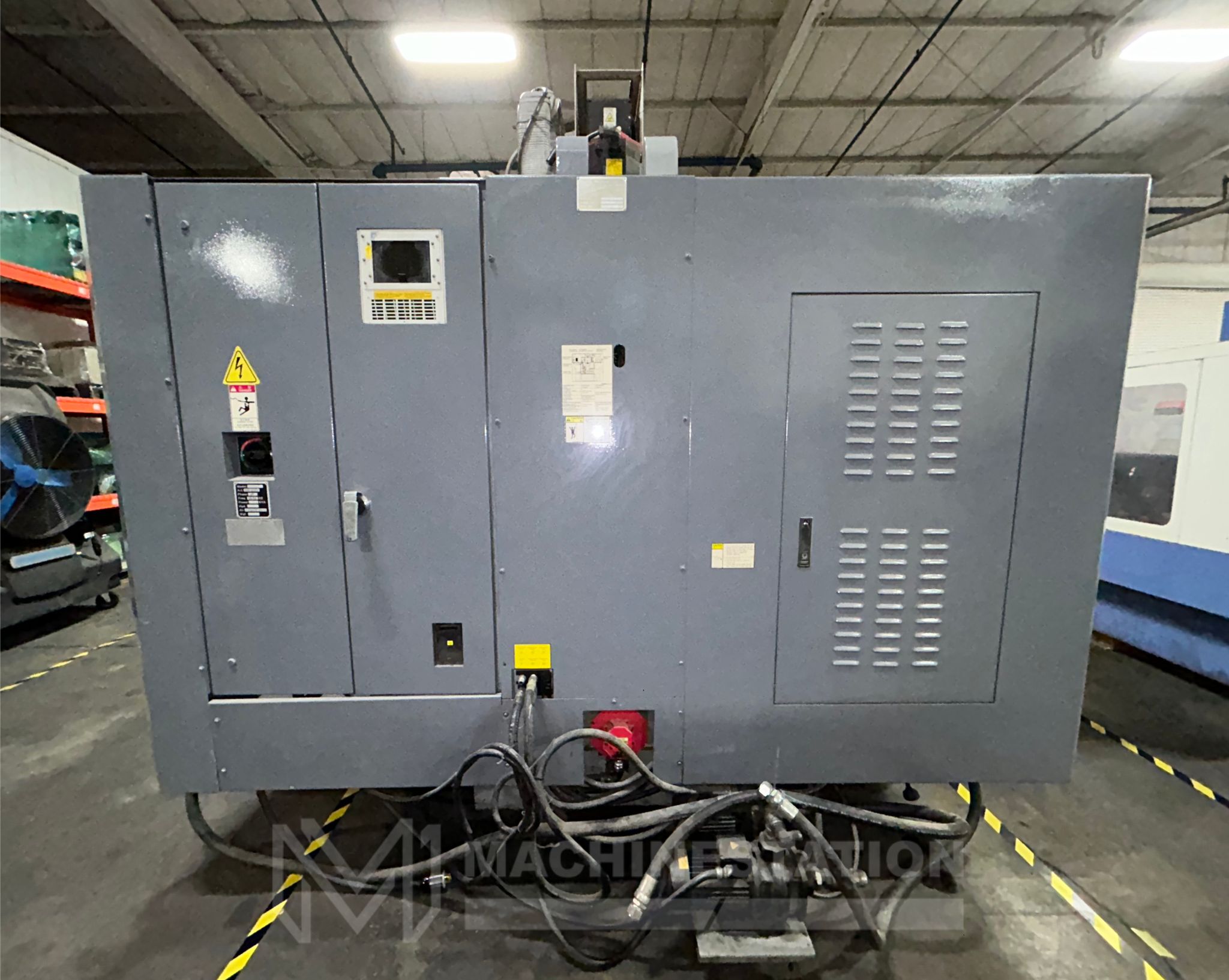

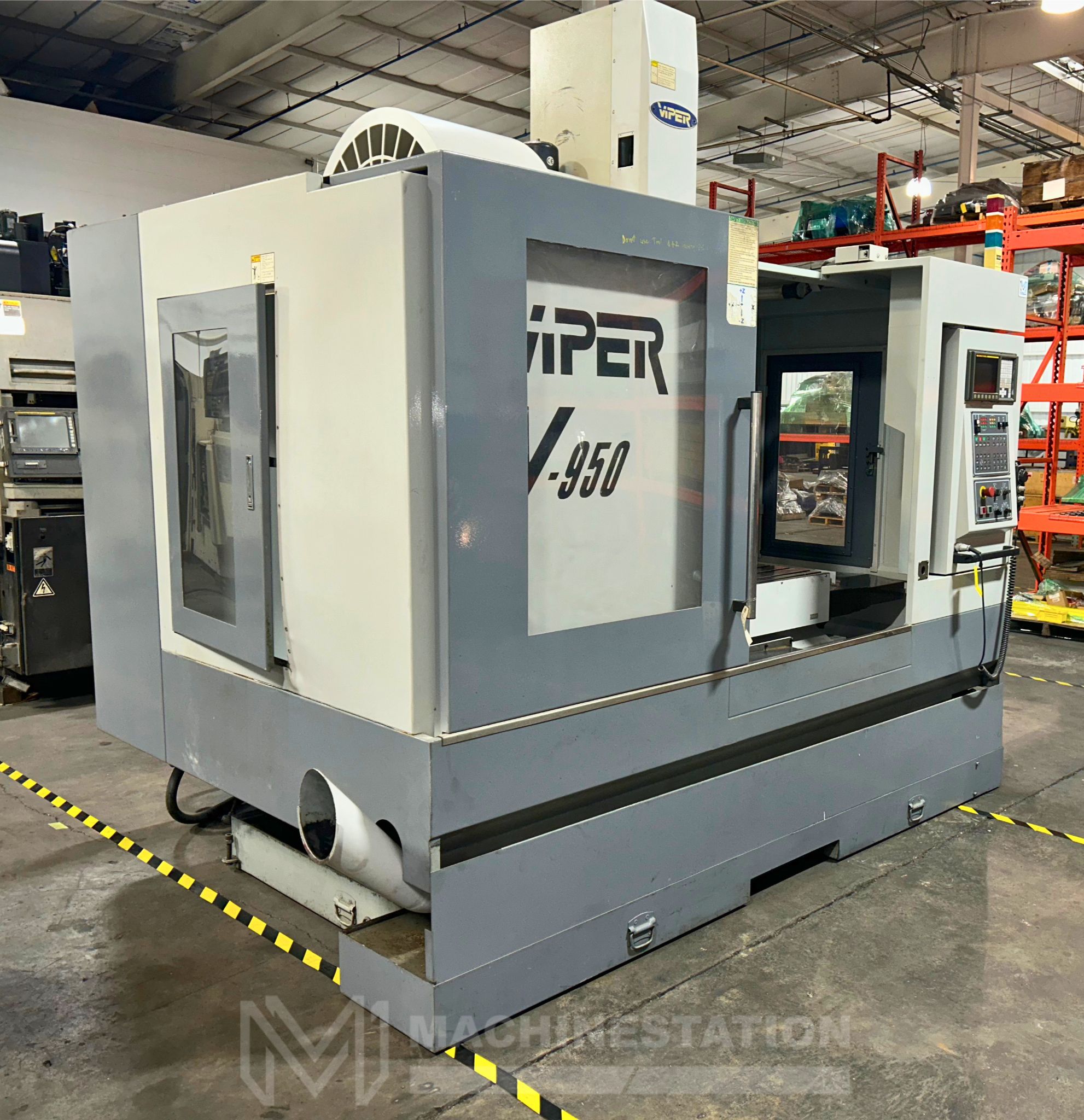

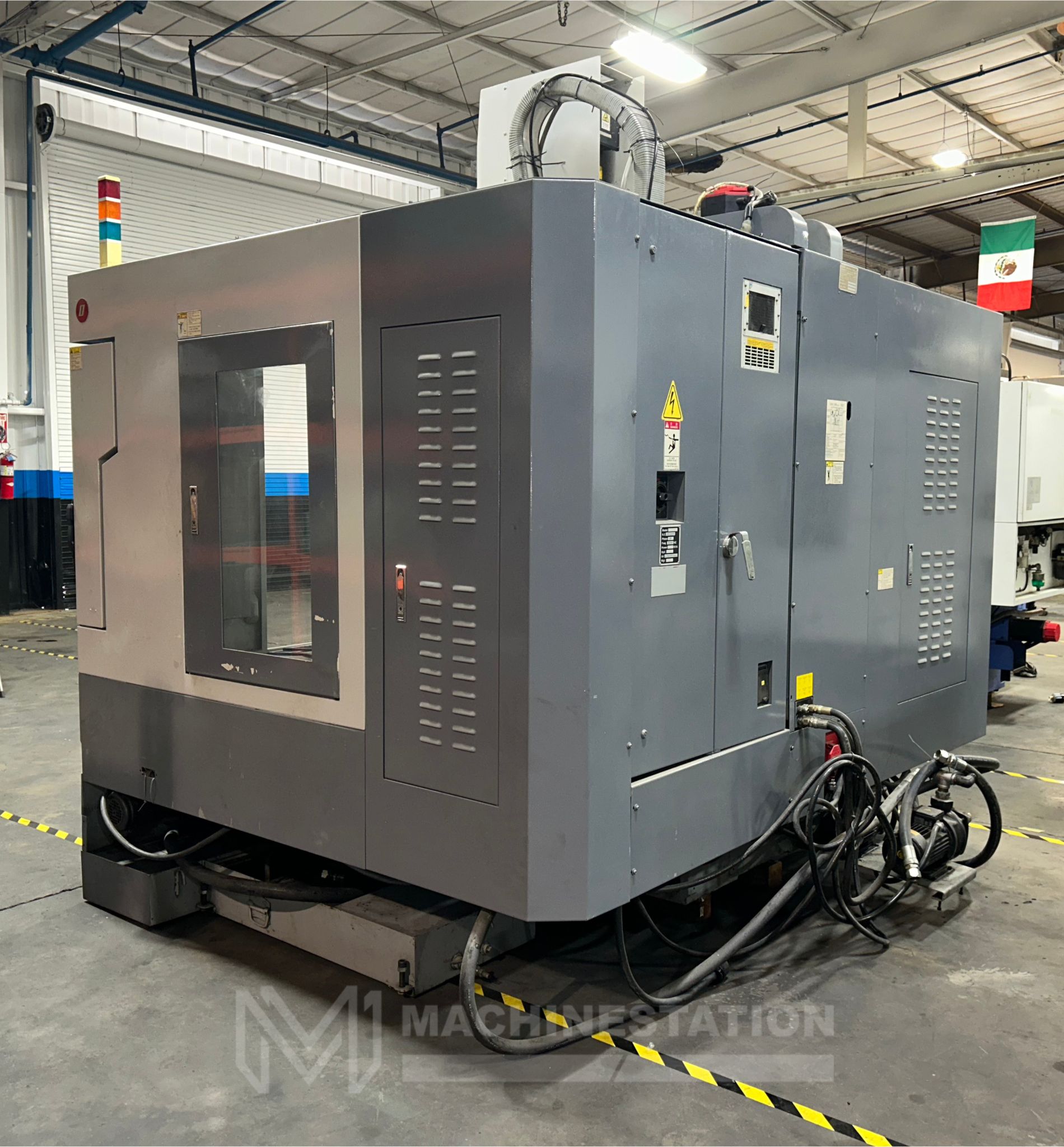

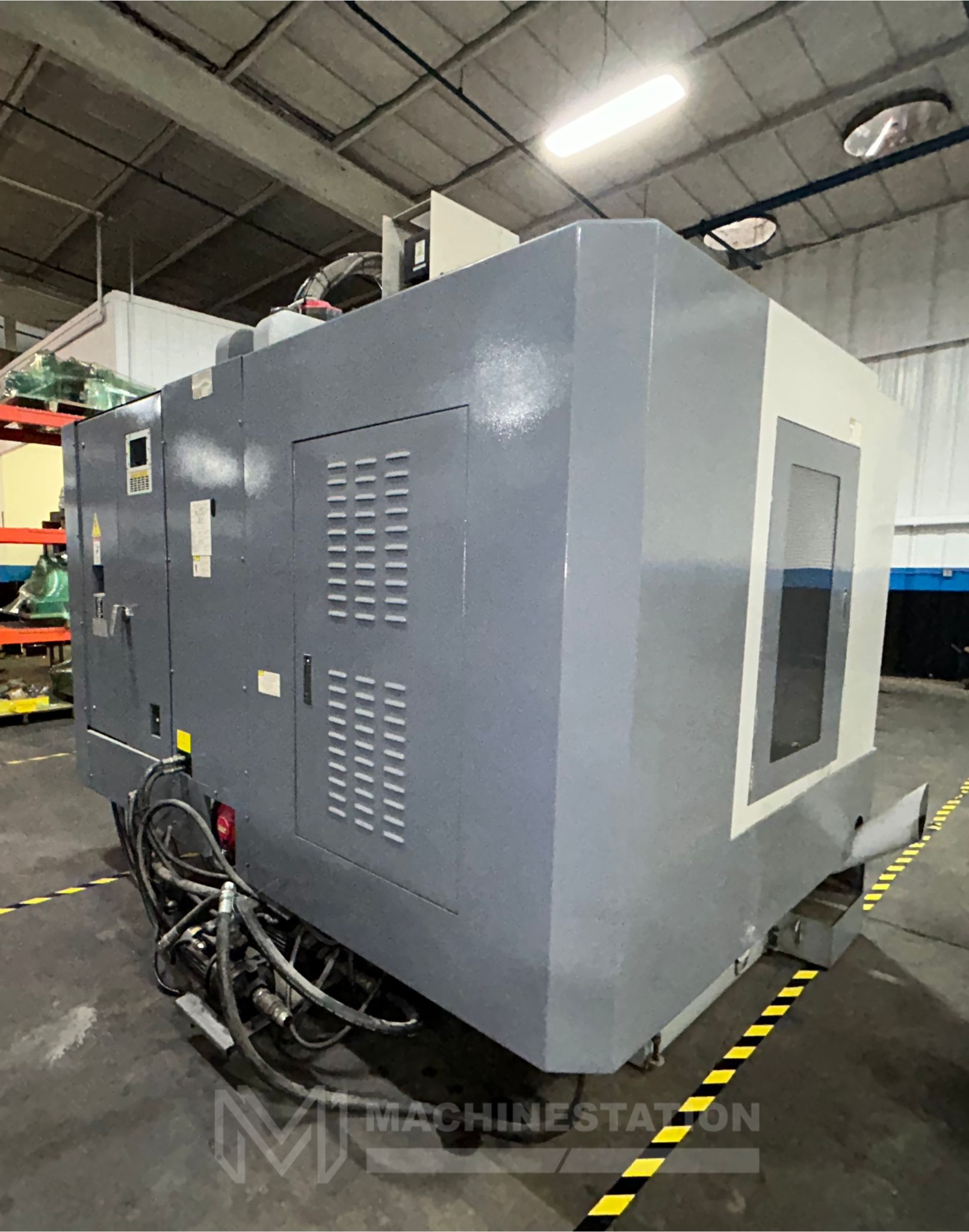

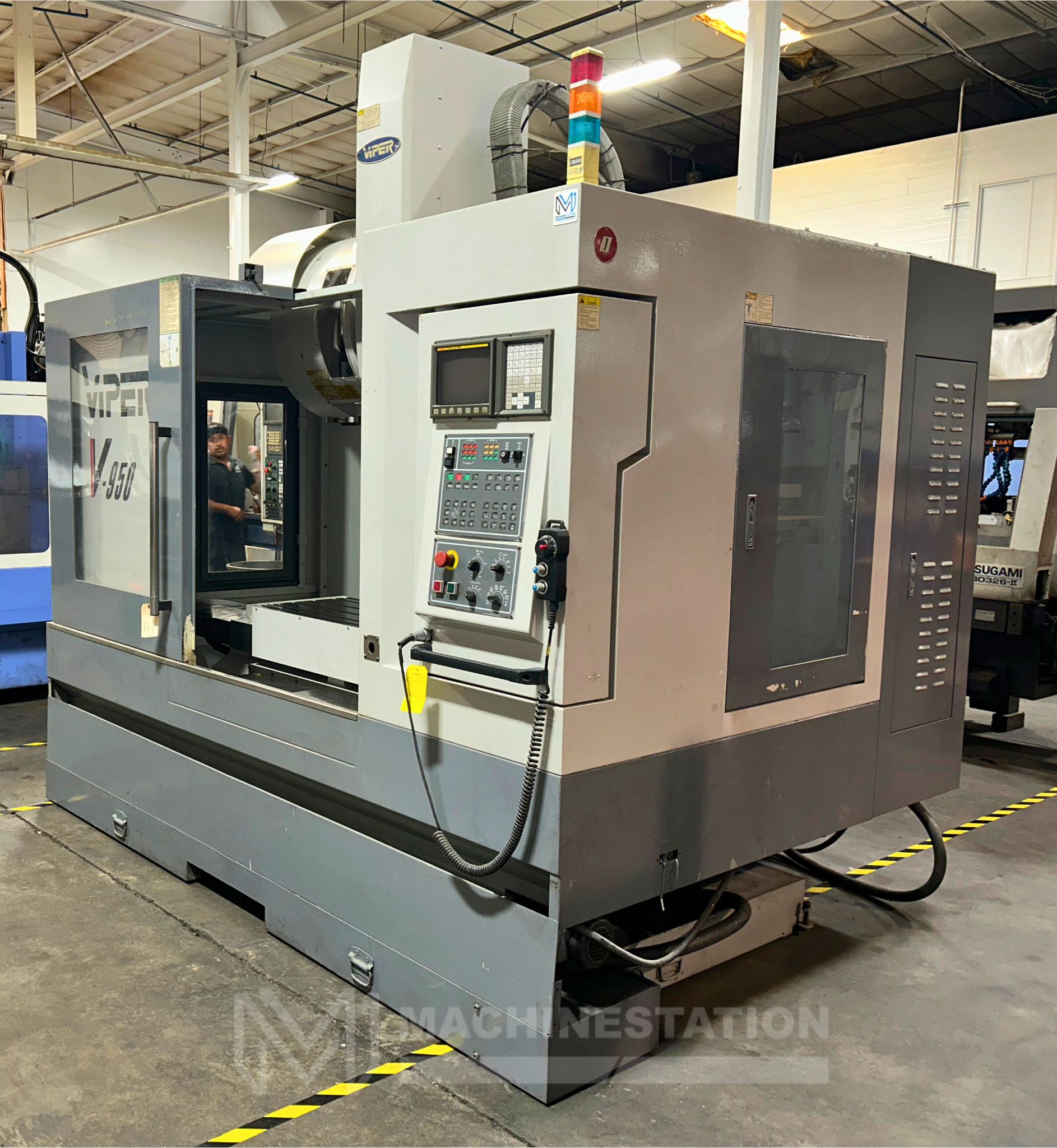

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |
| Box Way construction |

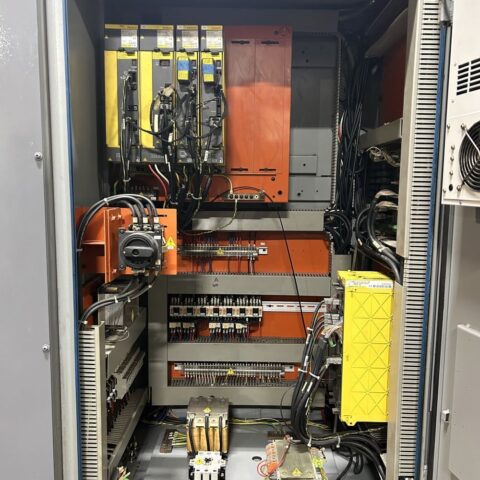

| Fanuc Oi-MB series CNC Control |
| 24 Station Automatic tool changer |
| 8,000 RPM Gear Head Spindle |
| PCMCIA Card Slot |
| RS-232 Port |
| MPG Handwheel Control |
| Rigid Tapping |
| Telescopic way covers |
| Coolant tank |
| Travels: |
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Spindle Nose to Table (Min.- Max.): 3.94″ – 28.7″ |
| Rapid Traverse Rates X, Y Axis: 708″ Per Minute |
| Rapid Traverse Rates Z Axis: 590″ Per Minute |
| Cutting Feed Rates: 400″ Per Minute |

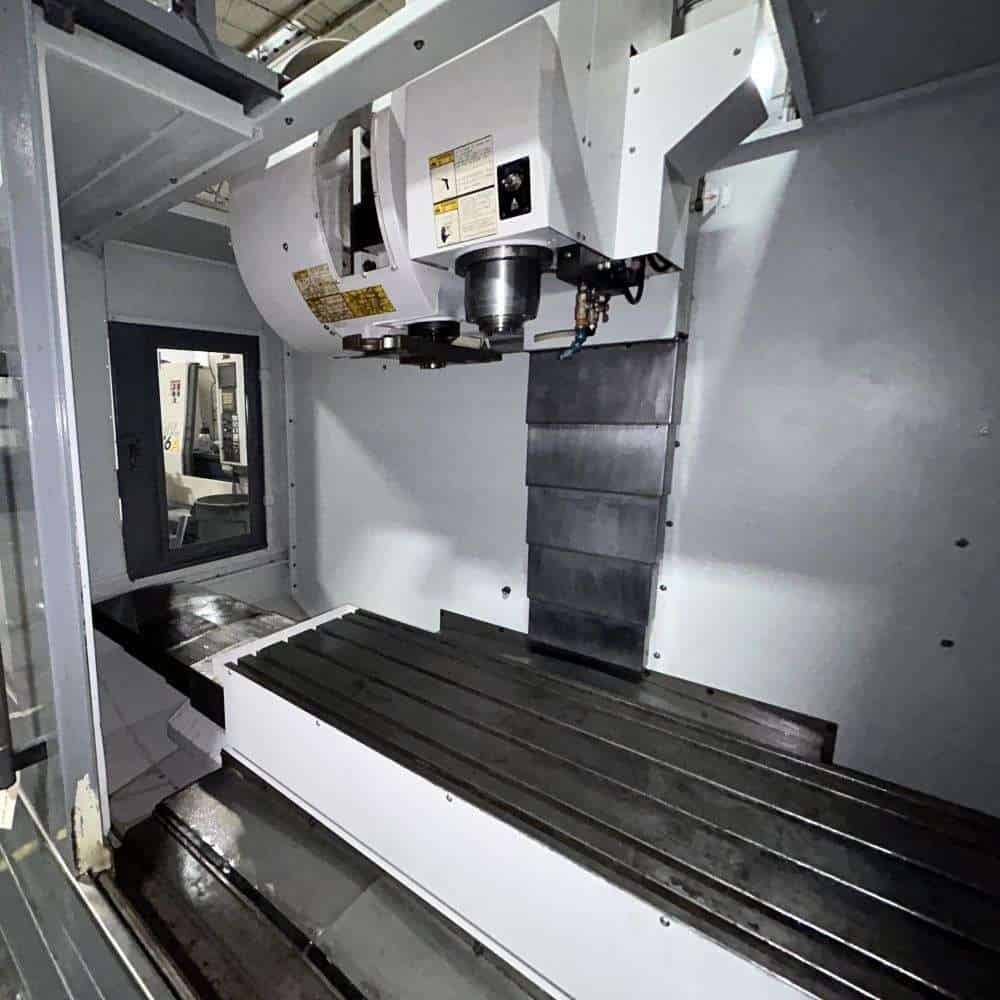

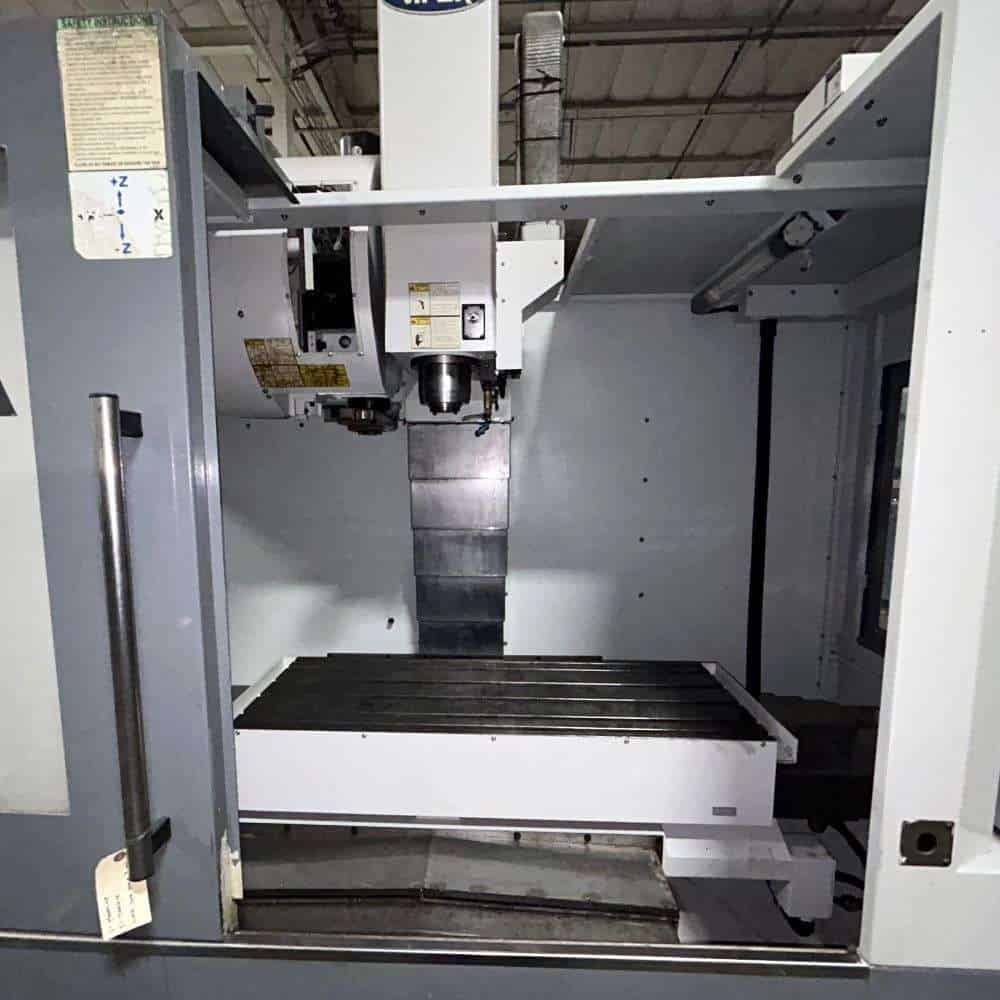

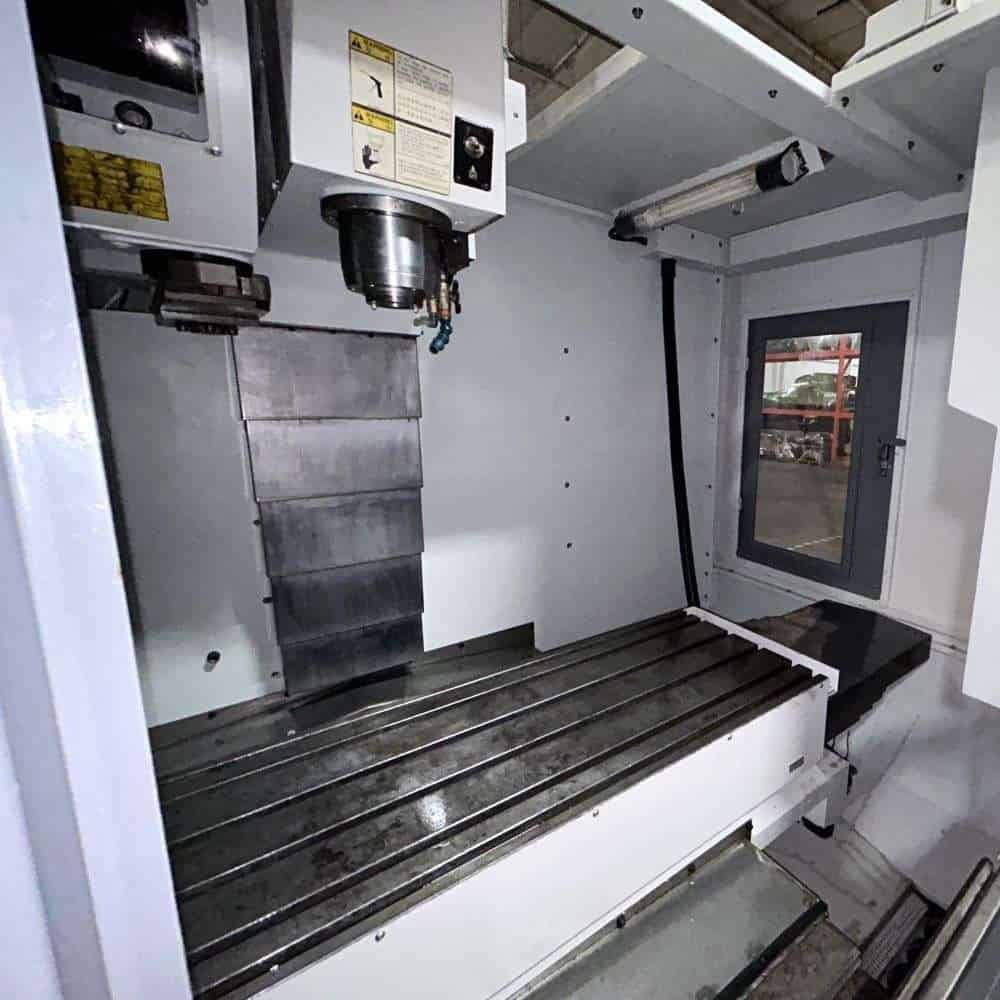

| Table: |
| Length: 50″ |
| Width: 18″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1550 lbs |

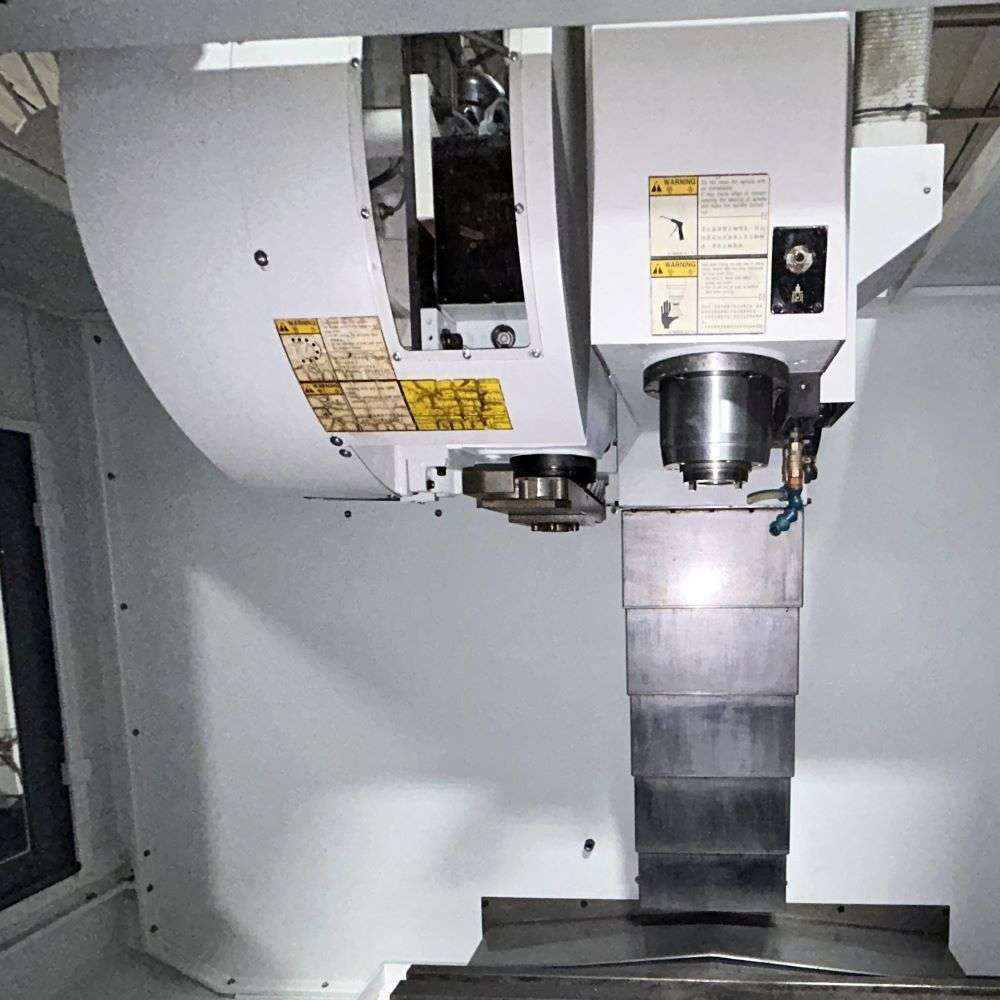

| Spindle: |
| Spindle: Taper Size: 40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
| Capacity: 24 Station |
| Tool Weight: 14 lbs |
| Max Tool Dia: 3.95″ |
| Max Tool Length: 9.84″ |
| General: |
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 3-Phase / kva |
| Overall Dimensions: 152″ x 86″ x 106″ High |
| Weight: 15,440 lbs |
