Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

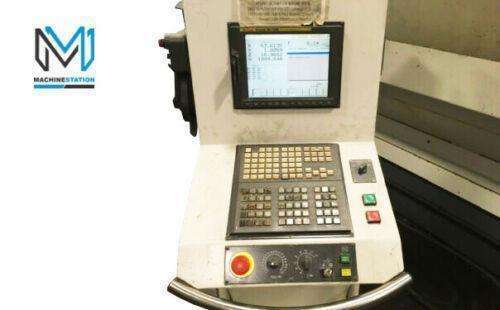

| Fanuc 18i-MB CNC Control |
| Renishaw RMI-Q Radio Controlled Probe |
| 25 HP High Torque Spindle Motor |
| 40 Taper 10000 RPM Geared Head Spindle |
| PCMCIA Card Slot |
| MPG Control |
| 50 Automatic tool changer |
| Chip Conveyor |
| Full Enclosure |
| Telescopic way covers |
| Coolant Through Spindle |
| Coolant System |
| Travels: |
| X-Axis: 145″ |
| Y-Axis: 31.5″ |
| Z-Axis: 32″ |
| Rapid Traverse Rates: 1575 Inch Per Minute |
| Cutting Feed Rates: Inch Per Minute |
| Table: |
| Length: 165″ |
| Width: 31.5″ |
| Number of Std T-Slots: |
| T-Slot Width: “ |
| Max Weight on Table: lbs |
| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 10000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
| Turret |
| Capacity: 50 Tools |
| General: |
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 23’6″ x 11′ 6″ x 12′ 3″ High |
| Weight: 48000 lbs |
