Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.

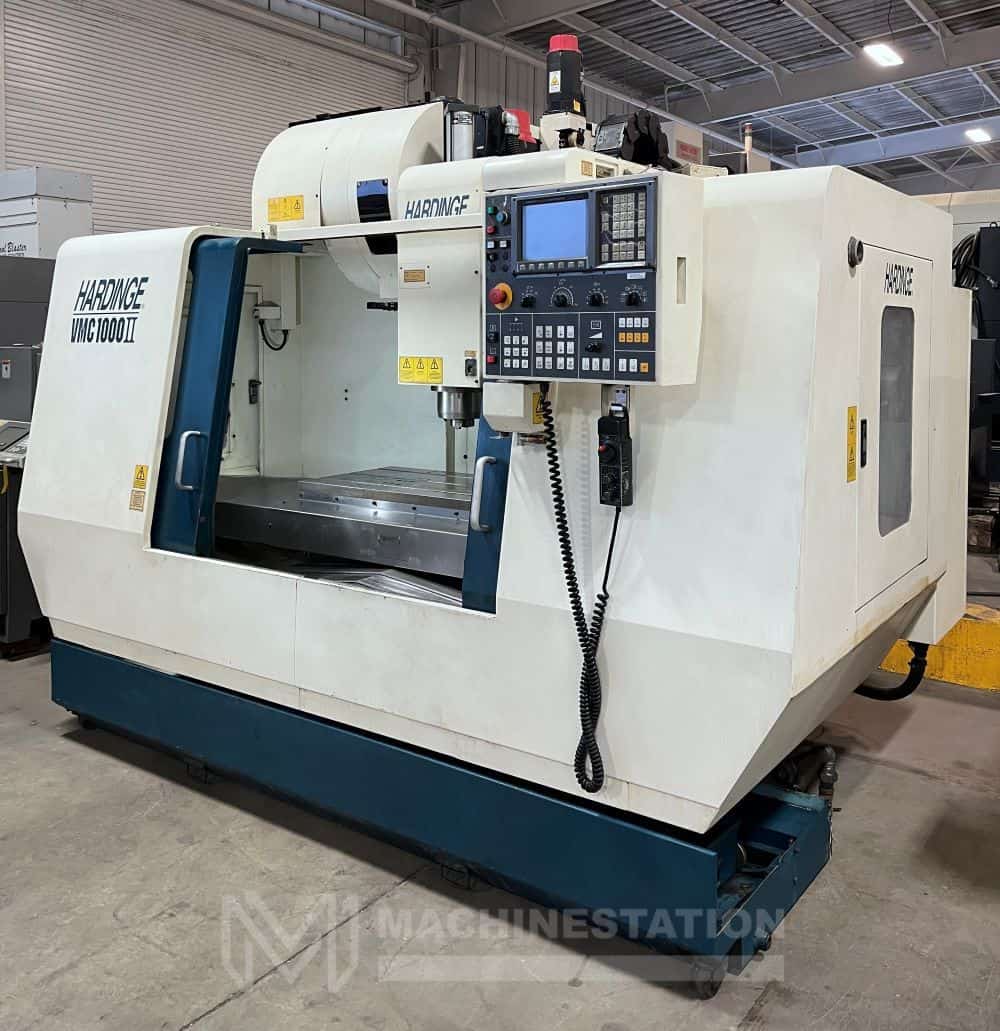

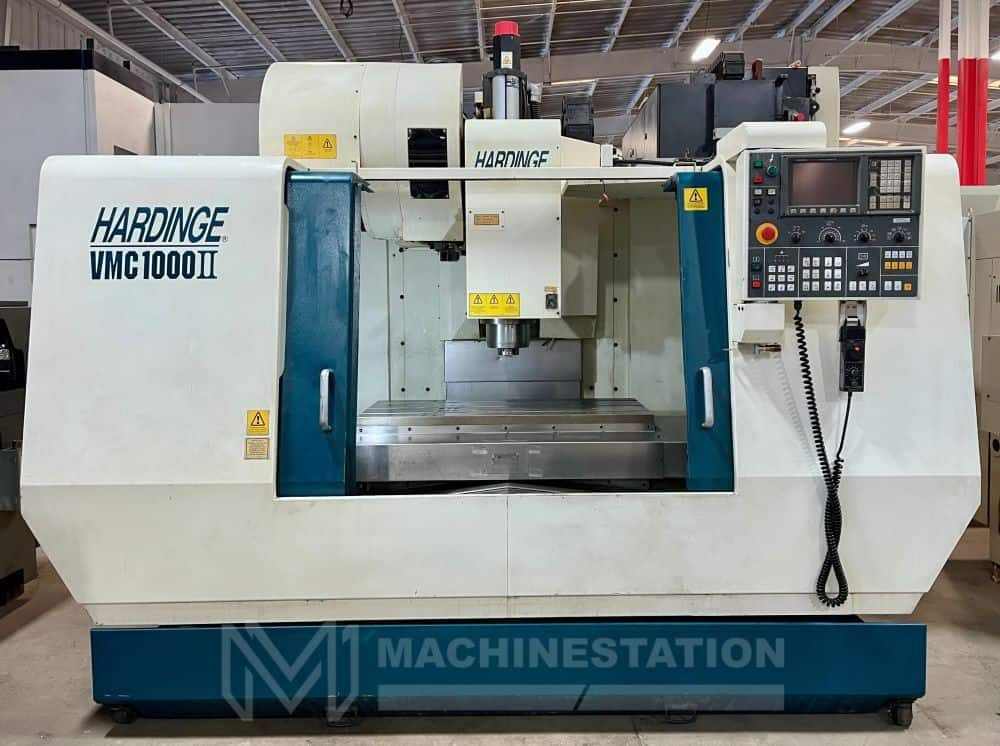

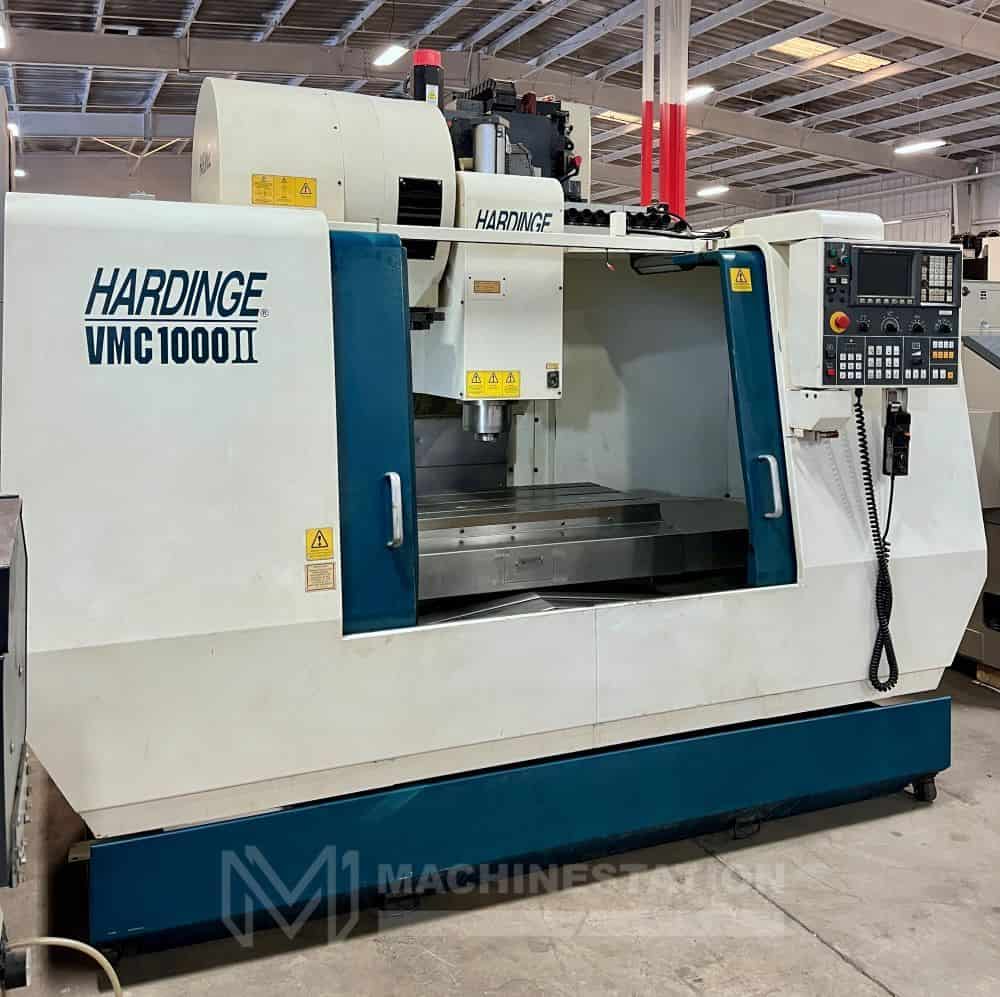

| Key Features of the Hardinge VMC 1000II: |
| Hardinge-Fanuc CNC Control System II |
| 8000 RPM Precision Spindle |
| 24 Station Automatic Tool Changer |
| 40 Taper Spindle |
| MPG Handwheel Control |
| Rigid Tapping |
| Telescopic way covers |
| Flood Coolant system |
| Levelling Pads |
| Travel: |
| X-Axis: 40.16″ |
| Y-Axis: 20.08″ |
| Z-Axis: 20.08″ |
| Rapid Traverse Rates: 1181 Inch Per Minute |
| Cutting Feed Rates: 472 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 6.1″ – 26.1″ |

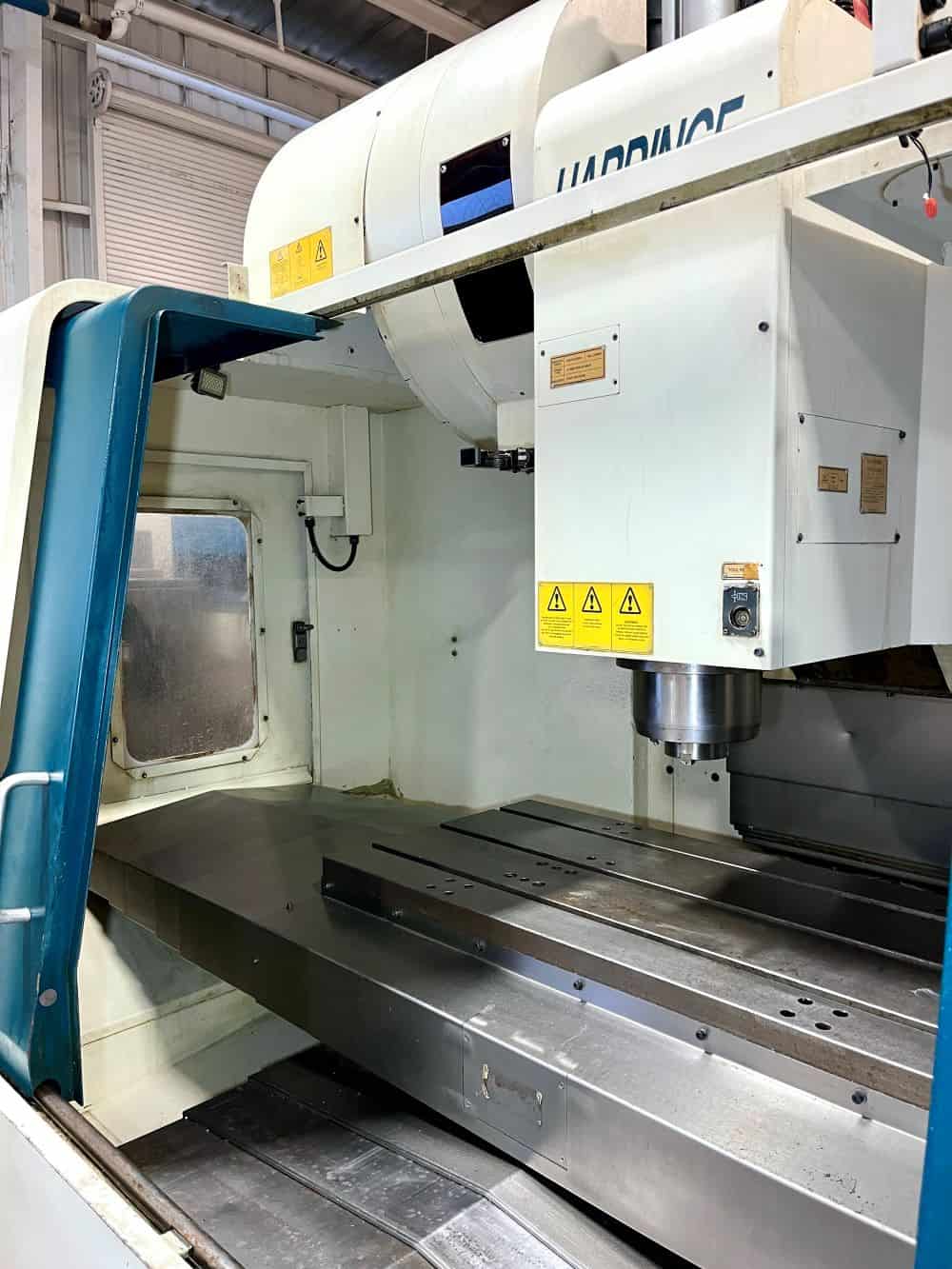

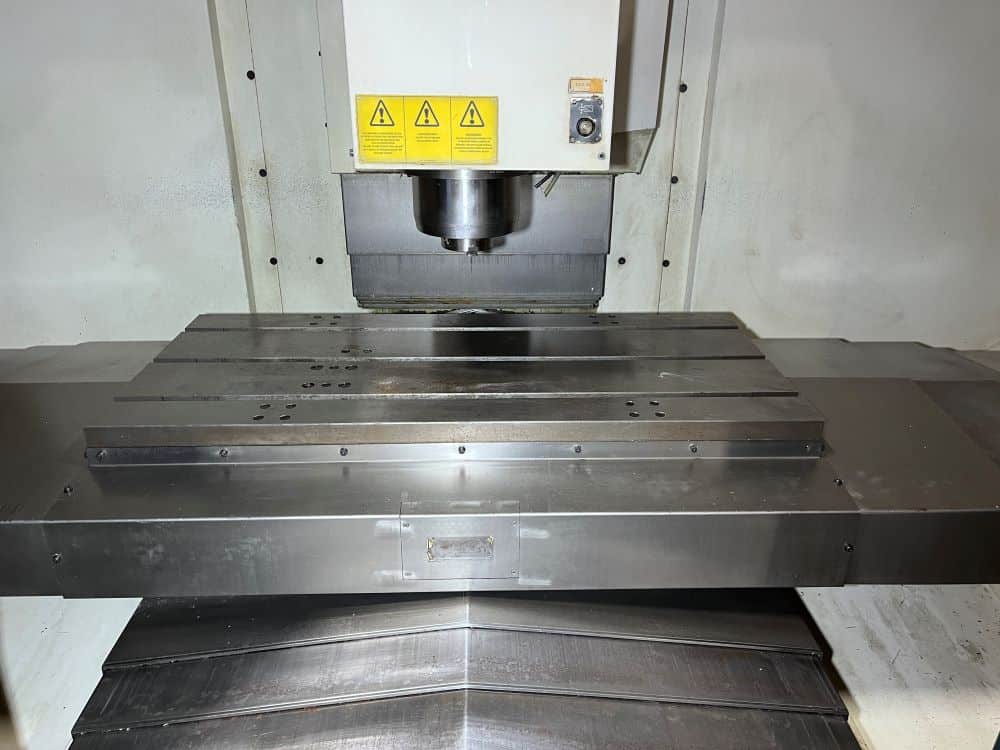

| Table: |
| Length: 44.4″ |
| Width: 20.0″ |
| Number of Std T-Slots: 3 |
| Max Weight on Table: 1540 lbs |

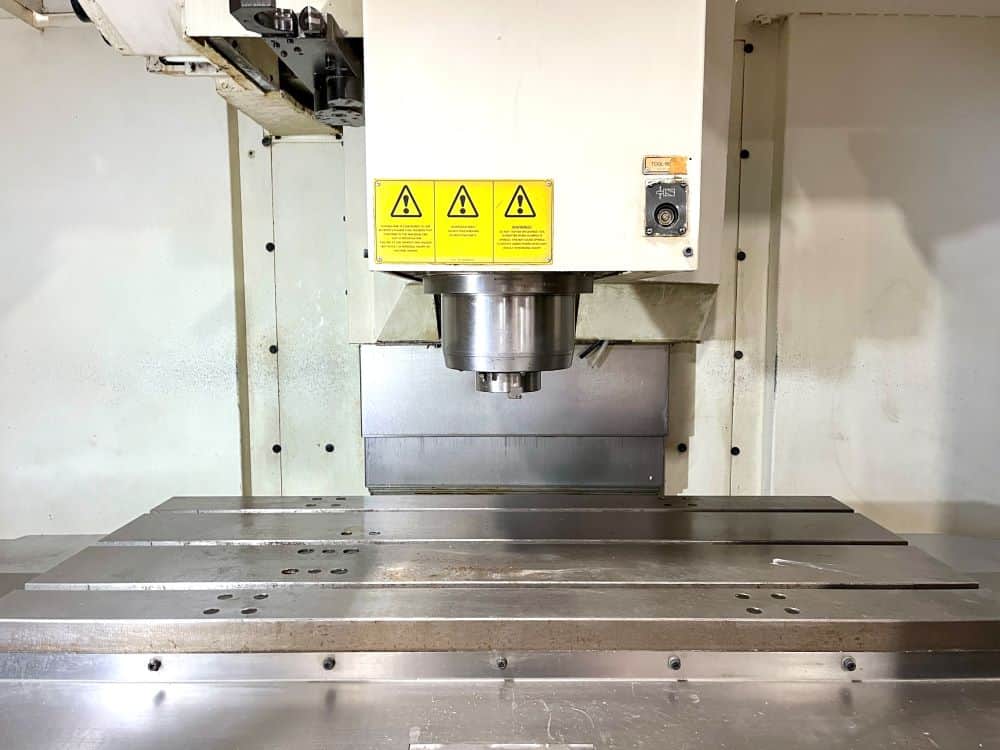

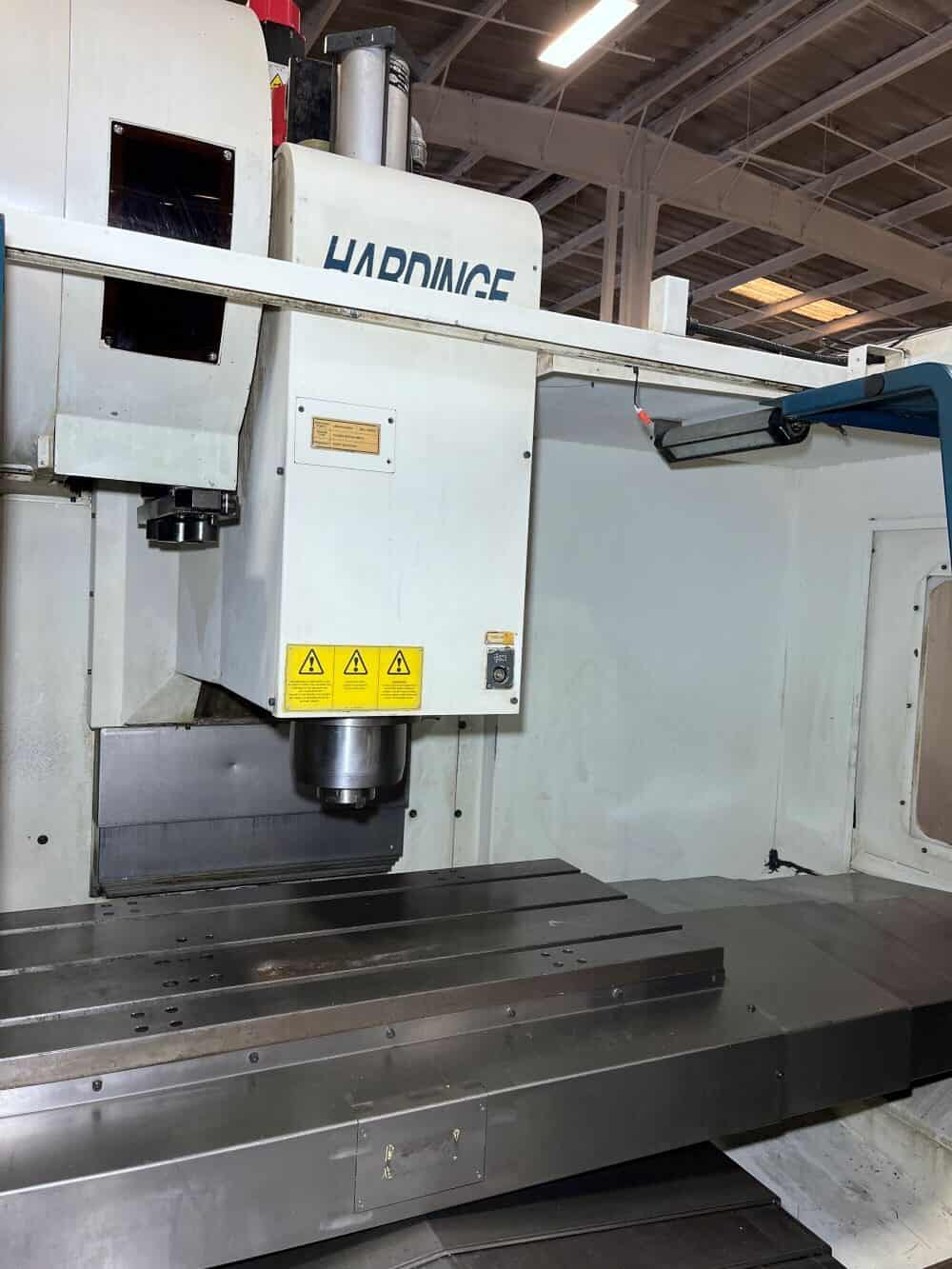

| Spindle: |
| Taper Size: 40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 20 HP |

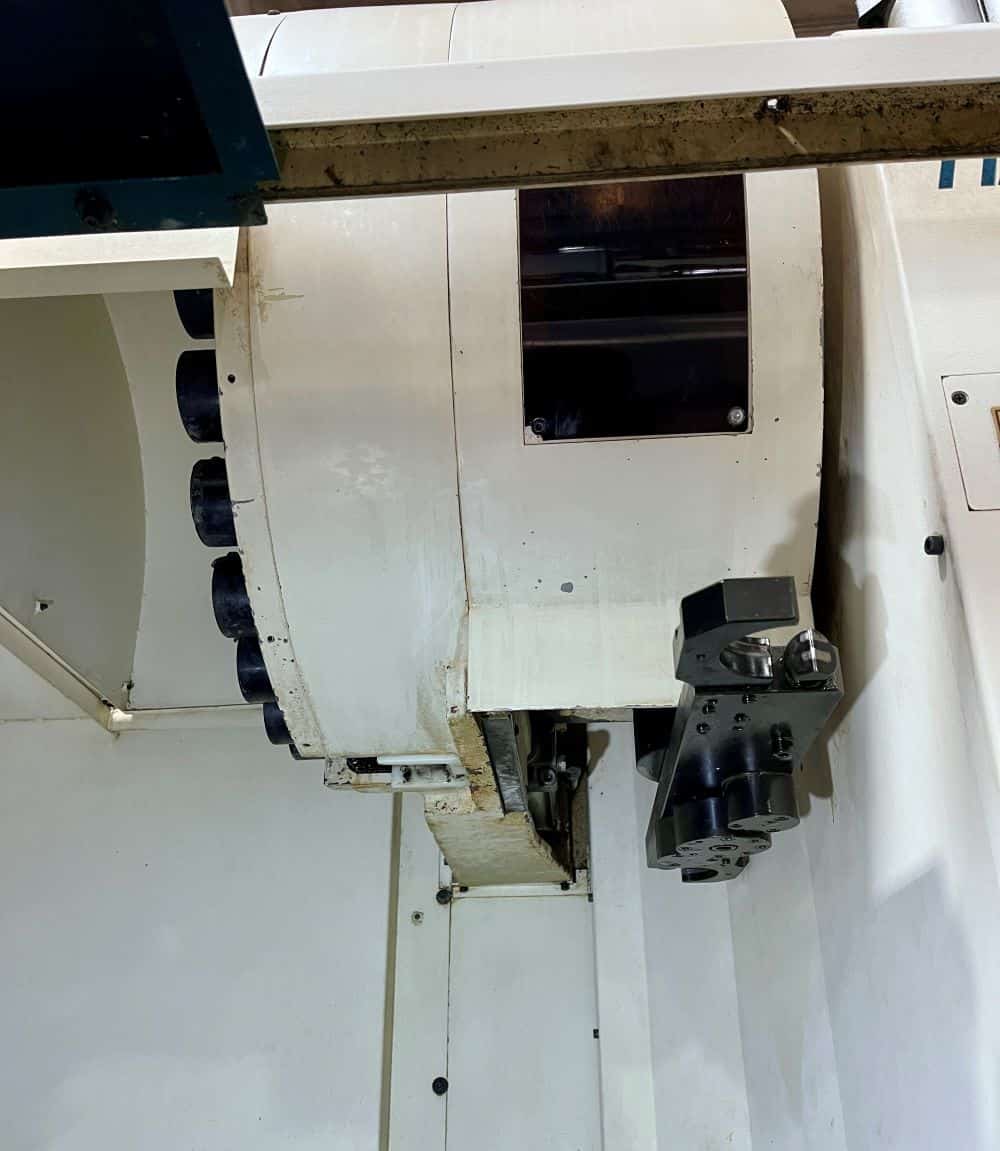

| Automatic Tool Changer: |
| Capacity: 24 Tools |
| Max Tool Weight: 13.2 lbs |
| Max Tool Dia: 5.9″ |
| Max Tool Length: 9.8″ |
| Tool Changing Time: 1.5 Seconds |
| General: |
| Air Required: 800 psi 4 scfm |

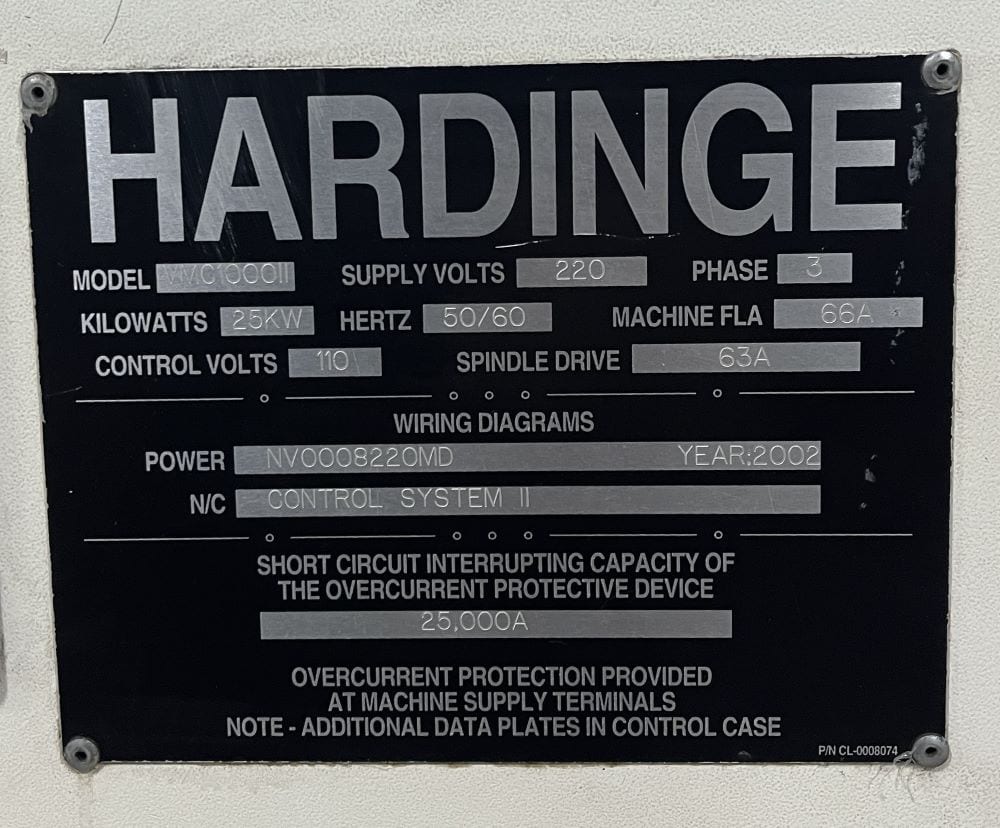

| Power: 220v / 66FLA / 3-Phase / 25 kw |
| Overall Dimensions: 126″ x 90″ x 104″ High Approx. |
| Weight: 10,500 lbs. Approx. |
