*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

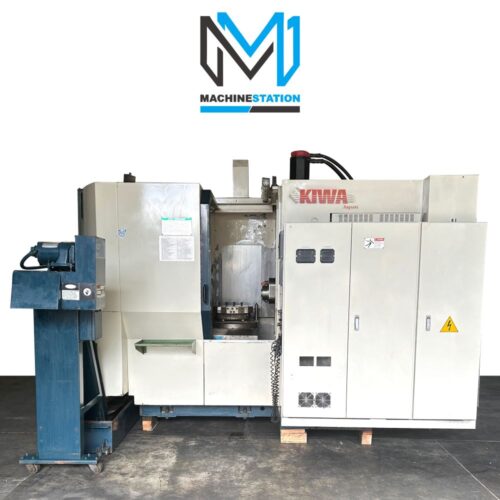

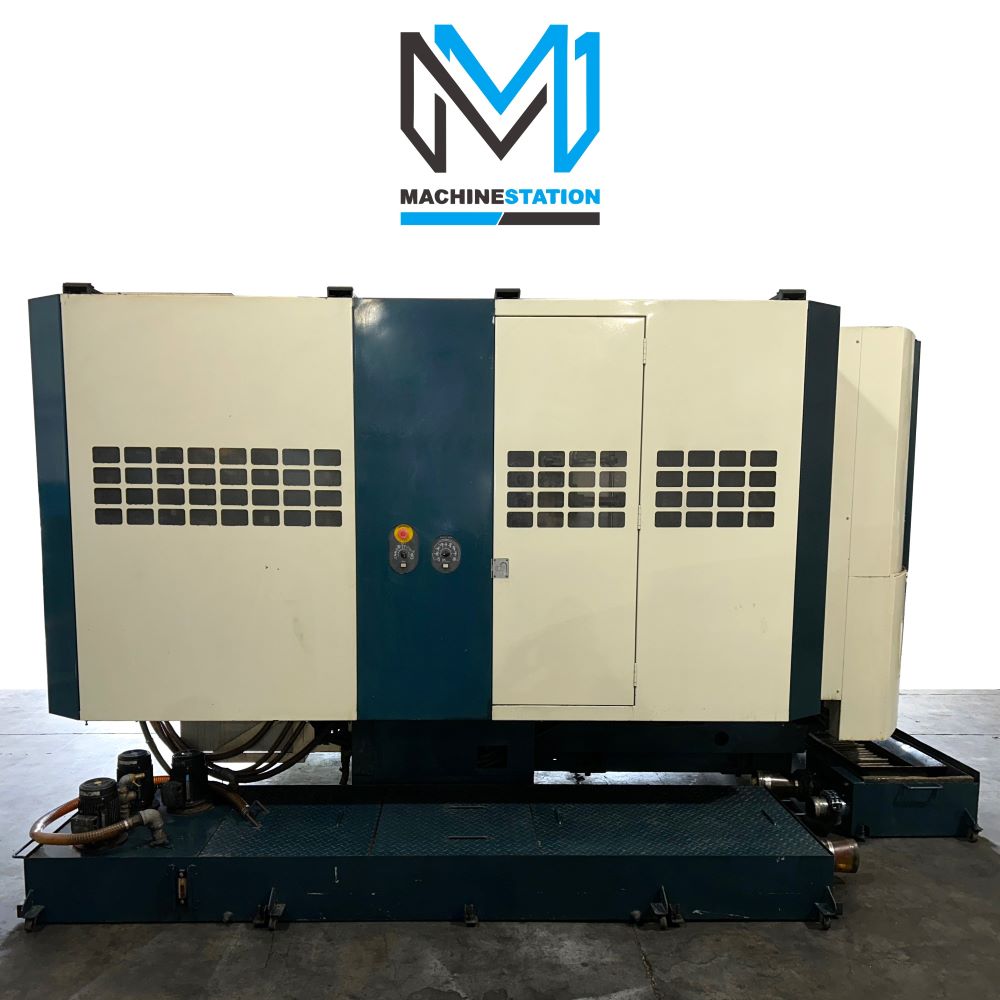

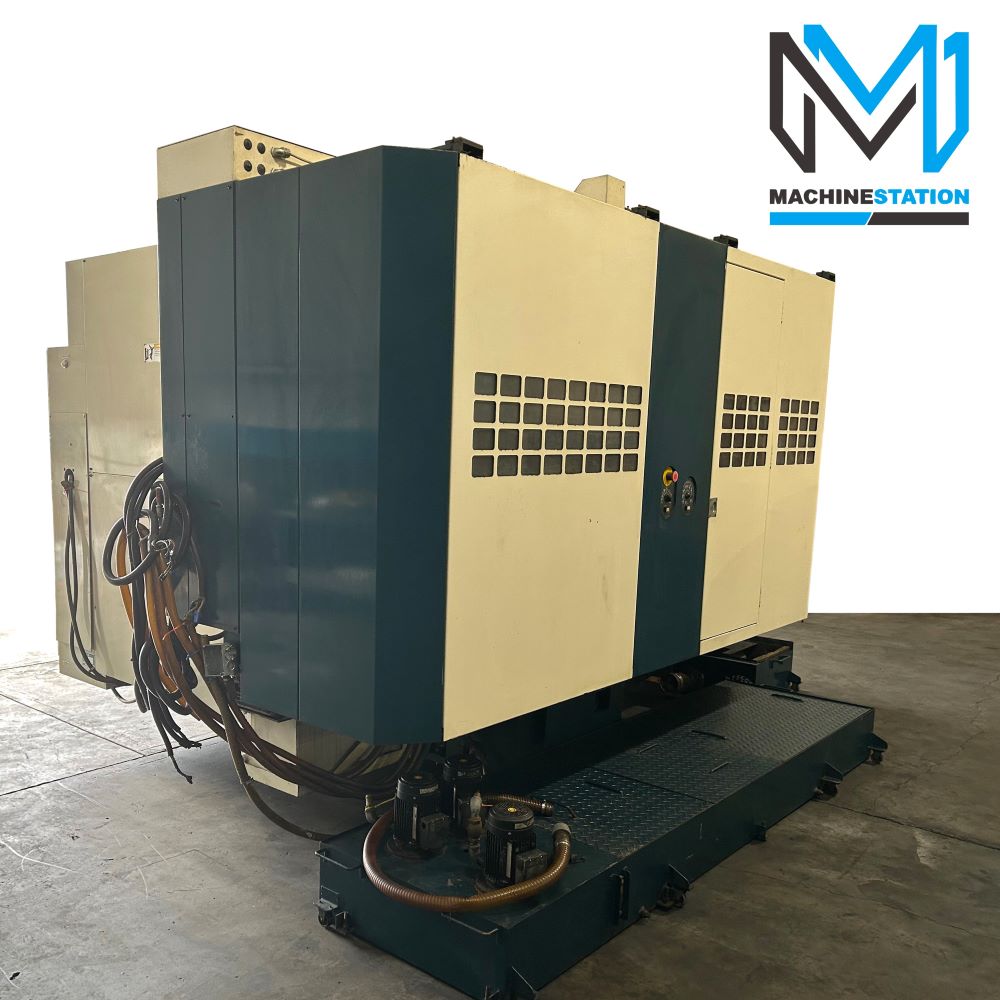

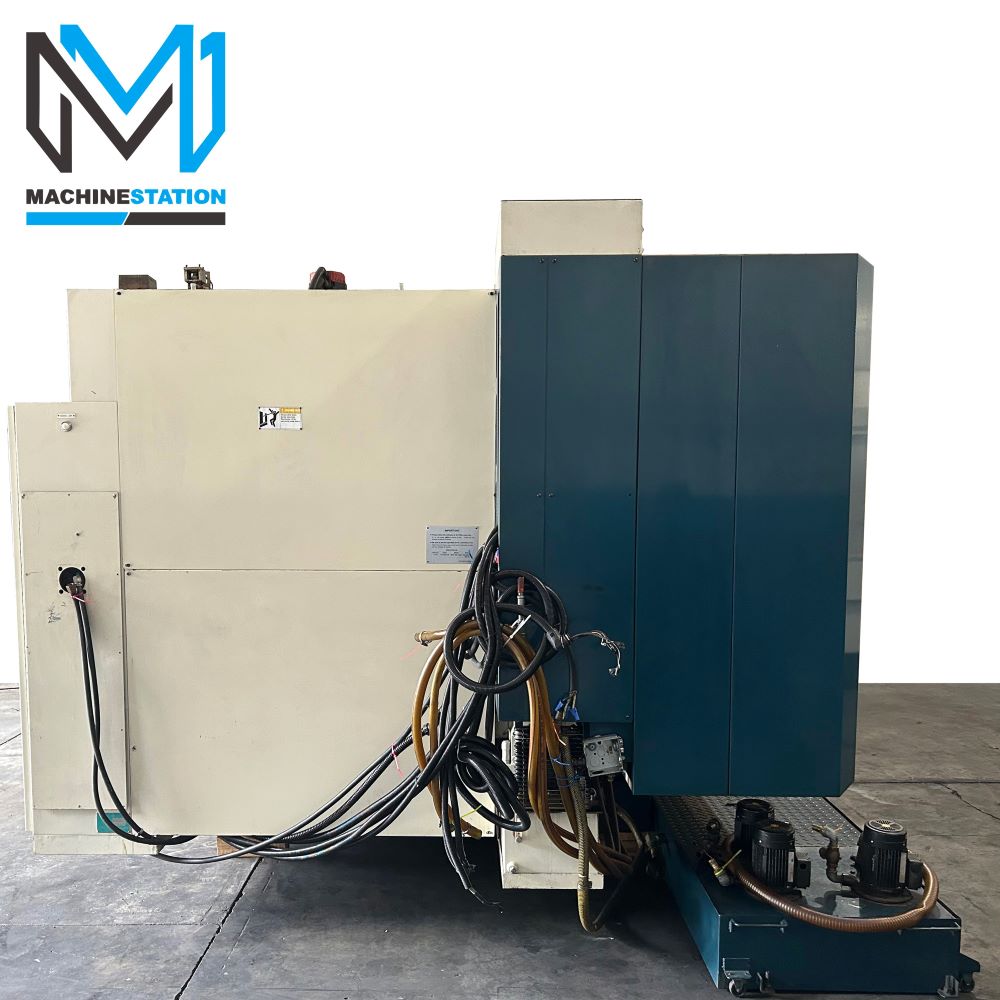

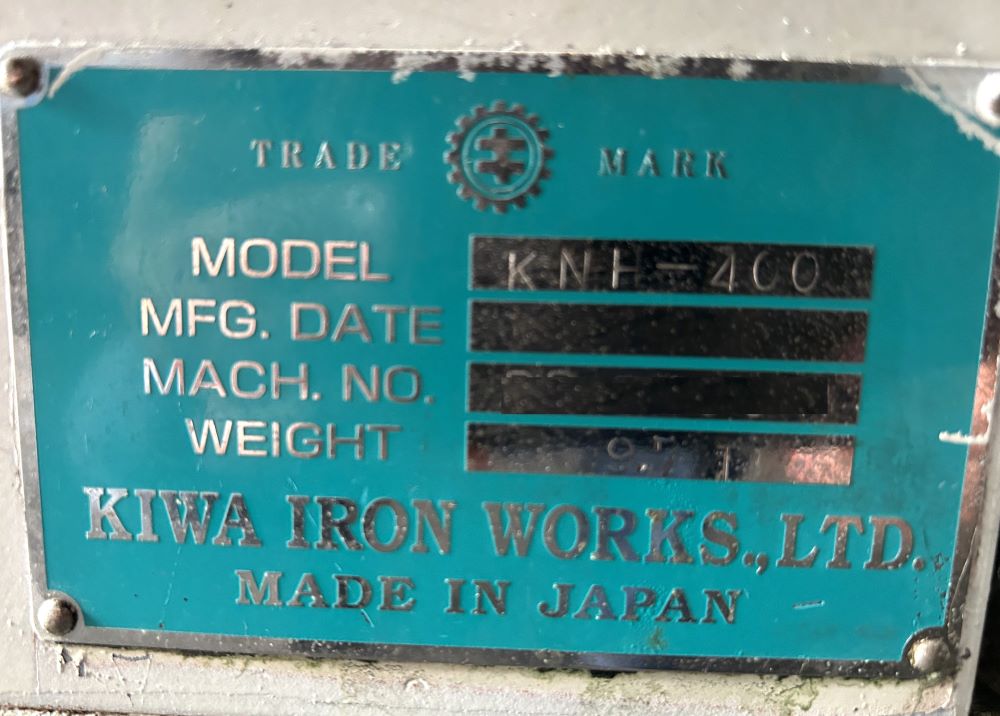

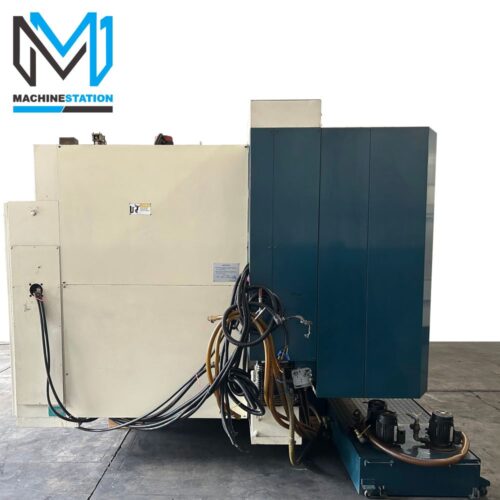

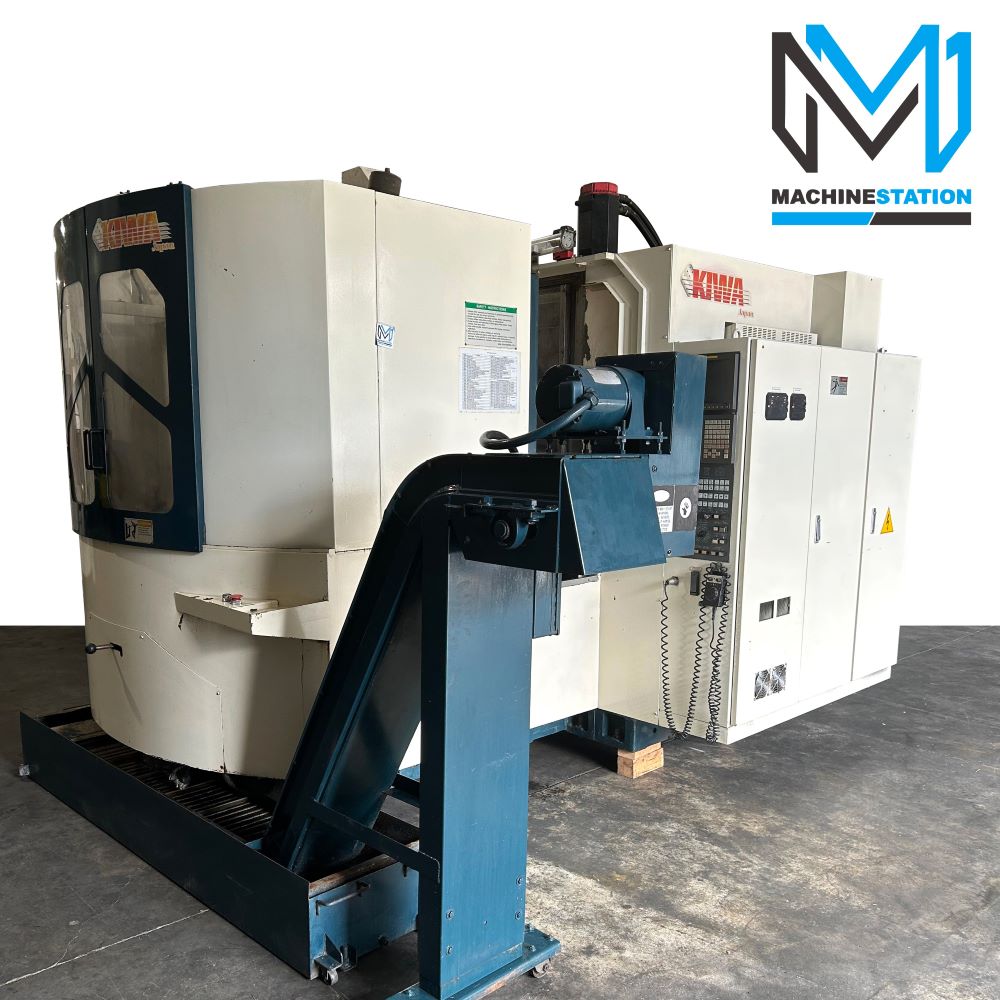

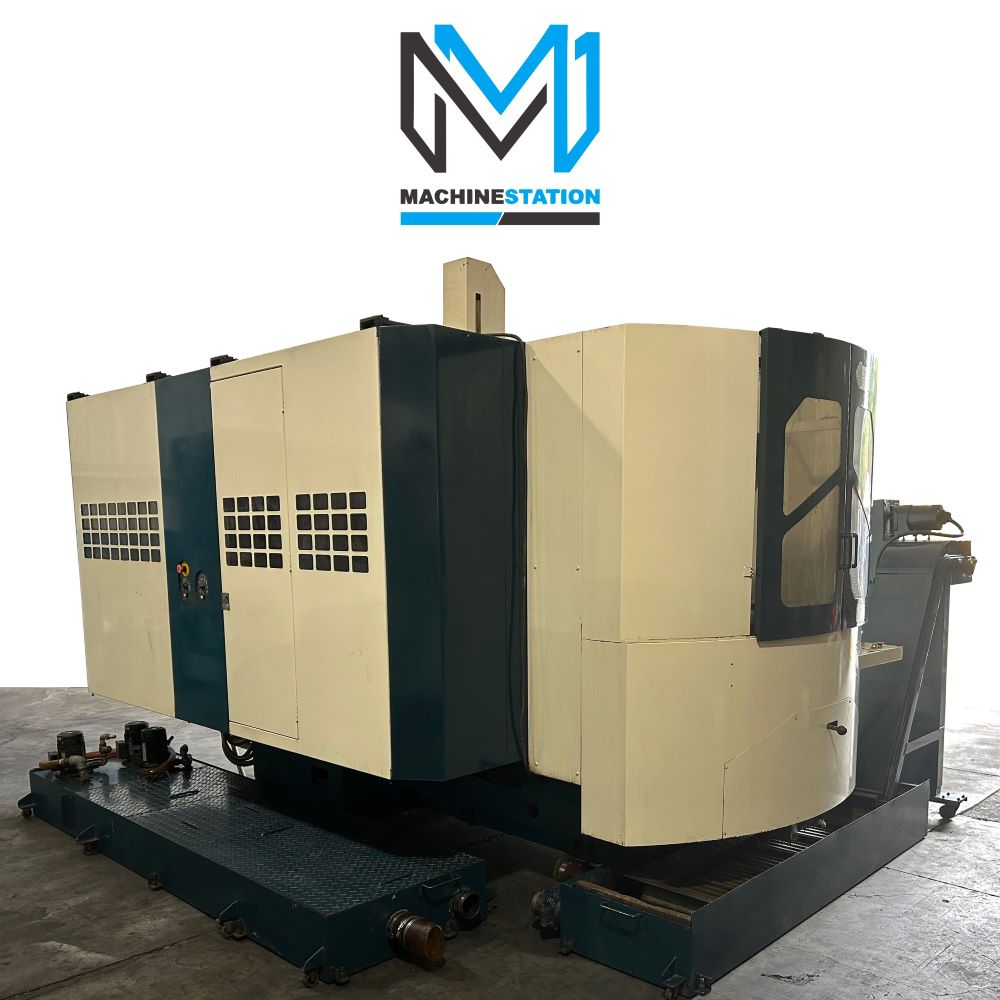

| Make: | Kiwa |
| Model No.: | KNH-400 |
| Year of Manufacture: | 2001 |
| Equipped With: |
|---|

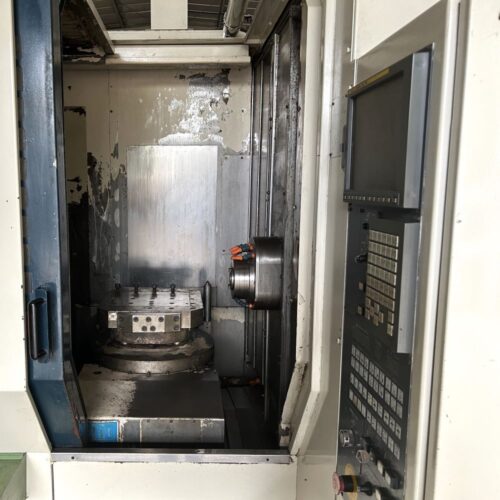

| Fanuc 18i-MA CNC Control |
| 10,000 RPM High Precision Spindle |
| Through Spindle Coolant |

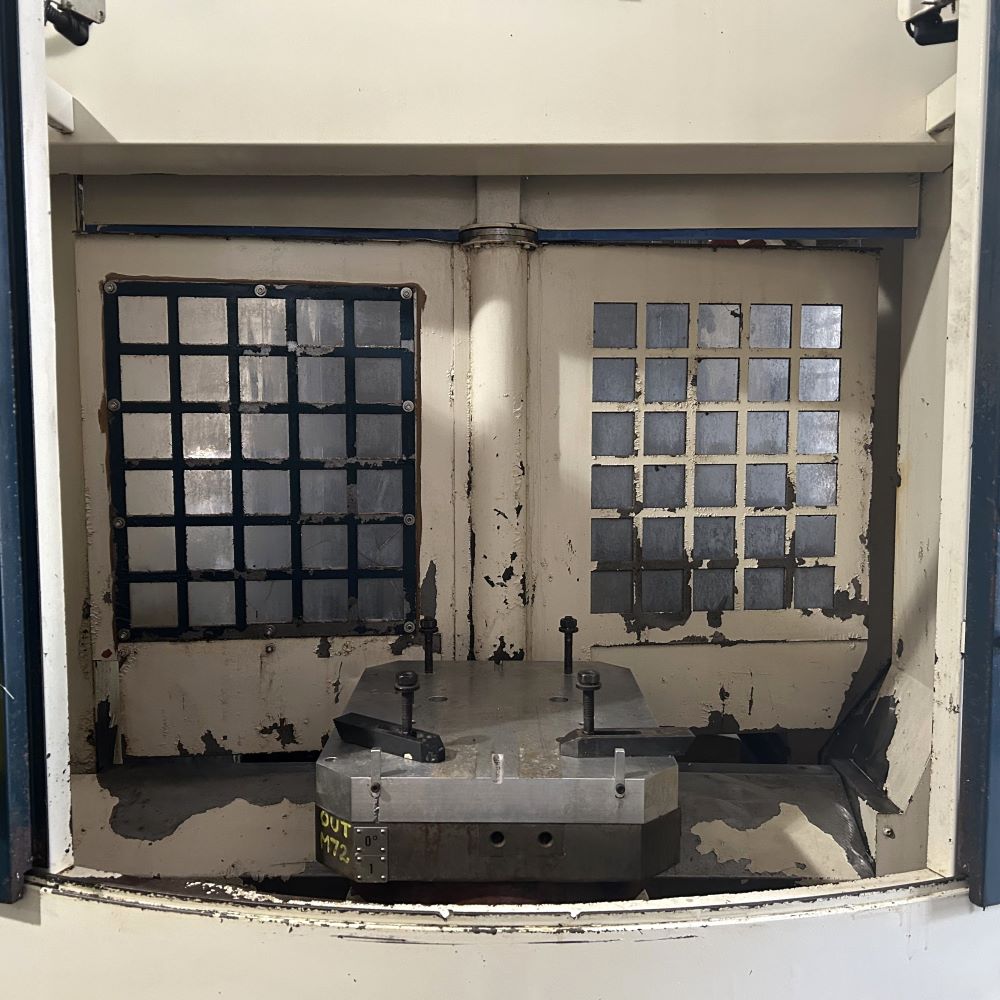

| Twin Pallet Changer |
| 64 Station Automatic Tool Changer |
| MPG Handwheel Control |
| RS-232 Port |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Coolant tank |

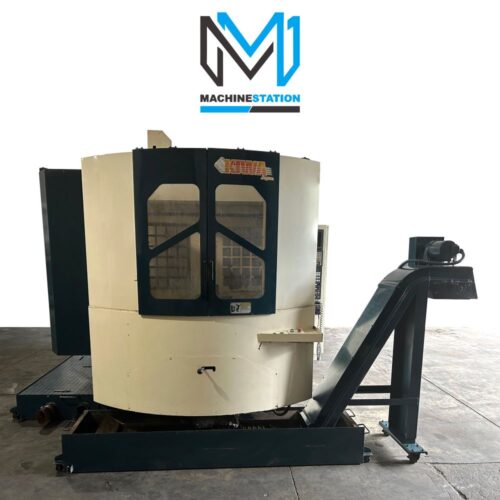

| Chip Conveyor |
| Travels: |
|---|
| X Axis: 23.62″ |
| Y Axis: 23.62″ |
| Z Axis: 19.68″ |
| B Axis: 0.001° Indexing (Full 4th Axis) |

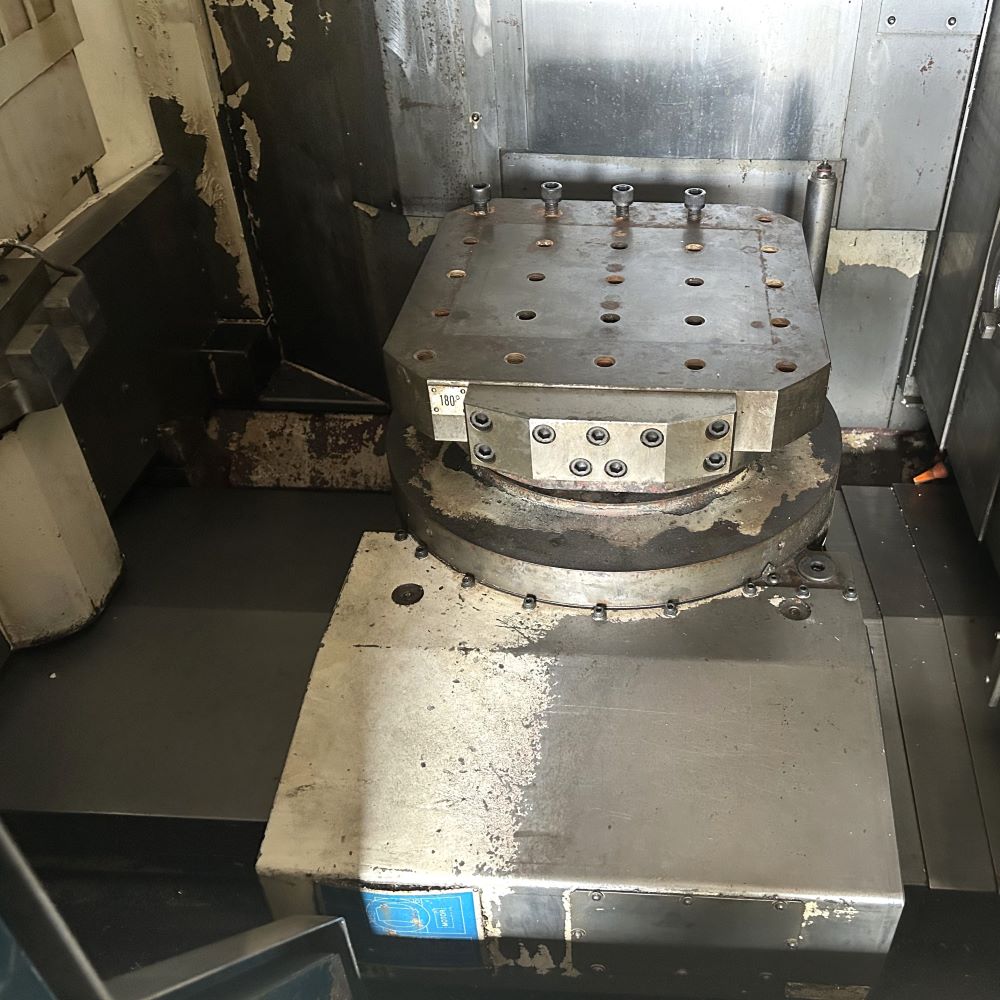

| Table: |
|---|
| Length: 15.75″ |
| Width: 15.75″ |
| Max Weight on Table: 399.2 kg |

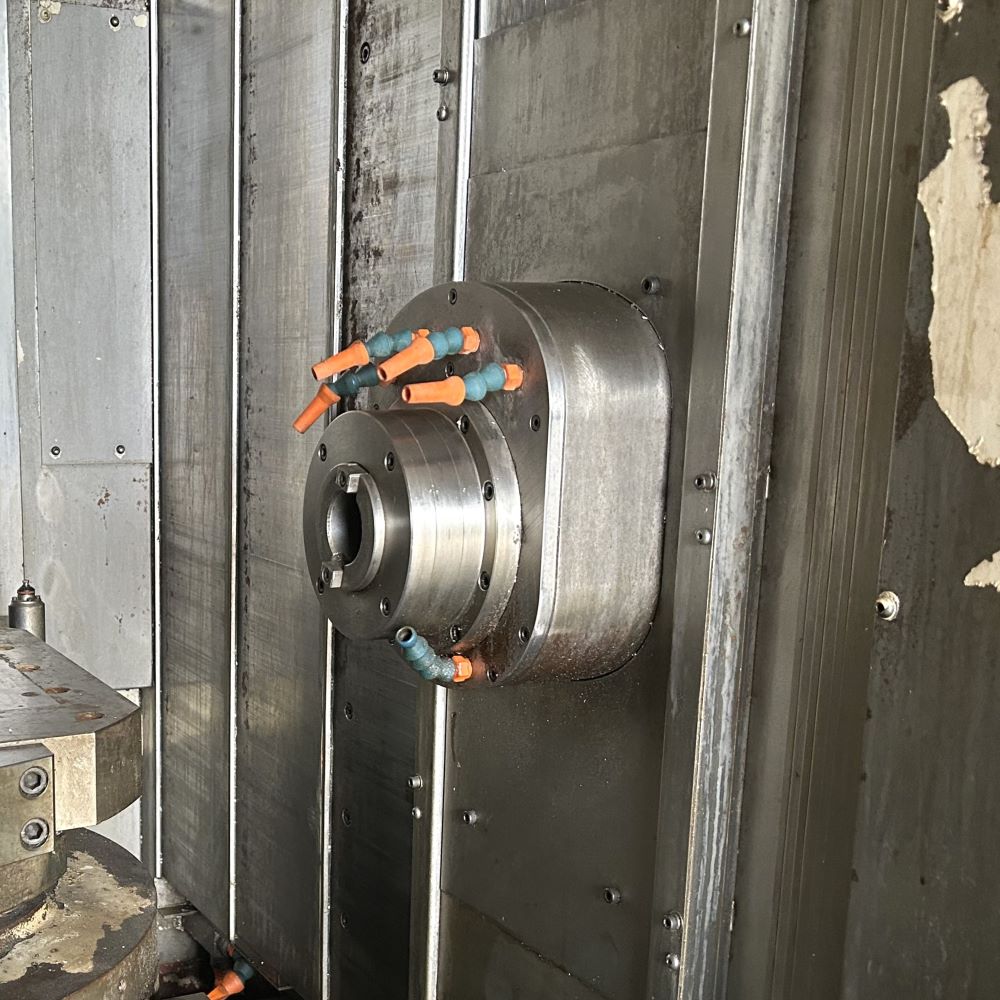

| Spindle: |
|---|
| Taper Size: 40 |
| Max. Speed: 10,000 RPM |
| Power: 18.6 kW |
| Feed rates: |
|---|
| Rapid X, Y & Z : 1968 Inch Per Minute |
| Cutting Feedrate: 1181 Inch Per Minute |
| Automatic Tool changer: |
|---|
| Capacity: 40 Tools |
| Taper: 64 |
| Max Tool Diameter: 99.06 mm |
| Max Tool Length: 11.91″ |
| Max Tool Weight: 8 kg. |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: kva / 205-220v / 3-Phase |
| Overall Dimensions: 4546.6 mm X 2413 mm x 109″ High |
| Weight: 9700.1 kg |
“No Charges for loading at list Price”
