| Make/Model: |

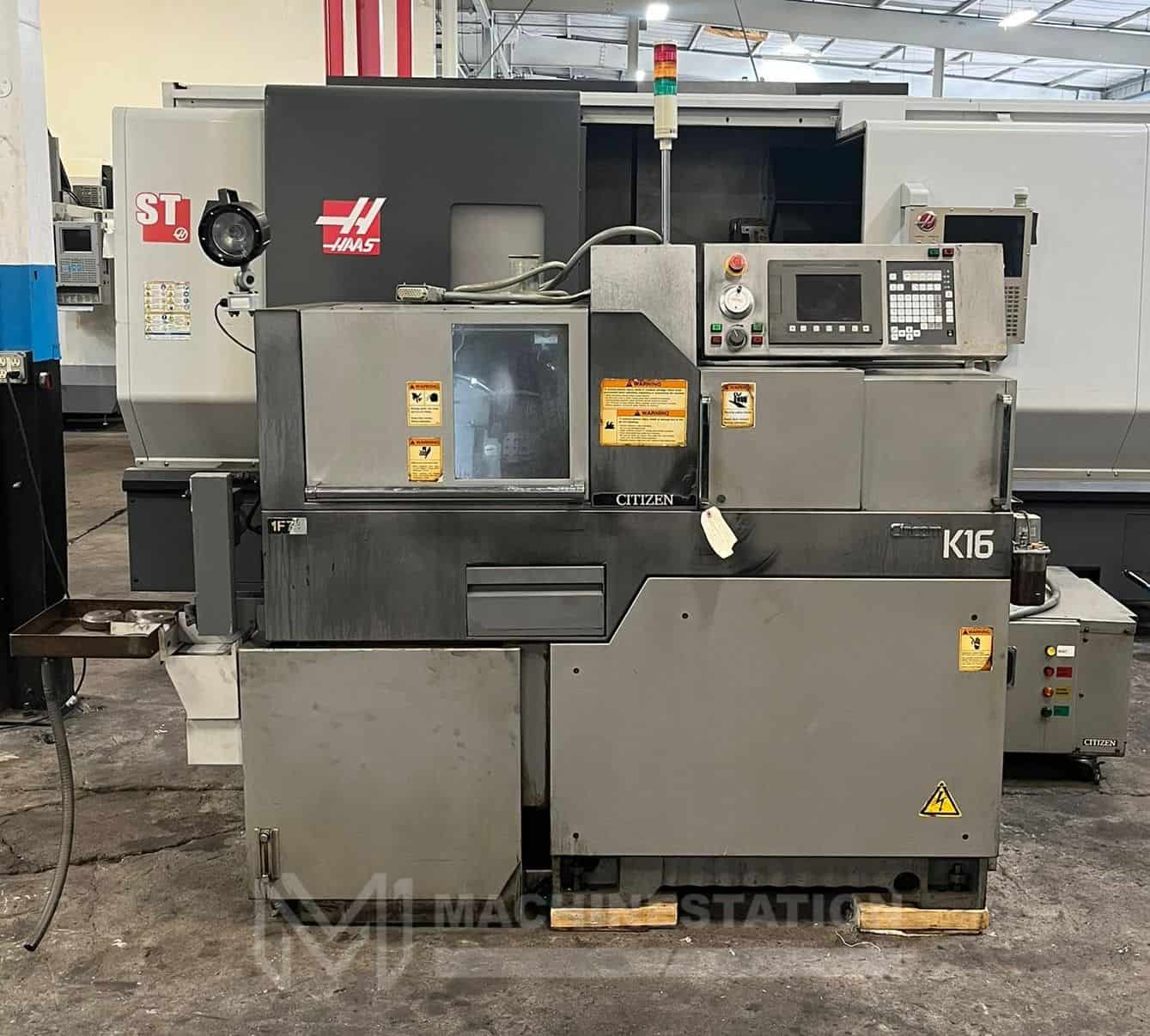

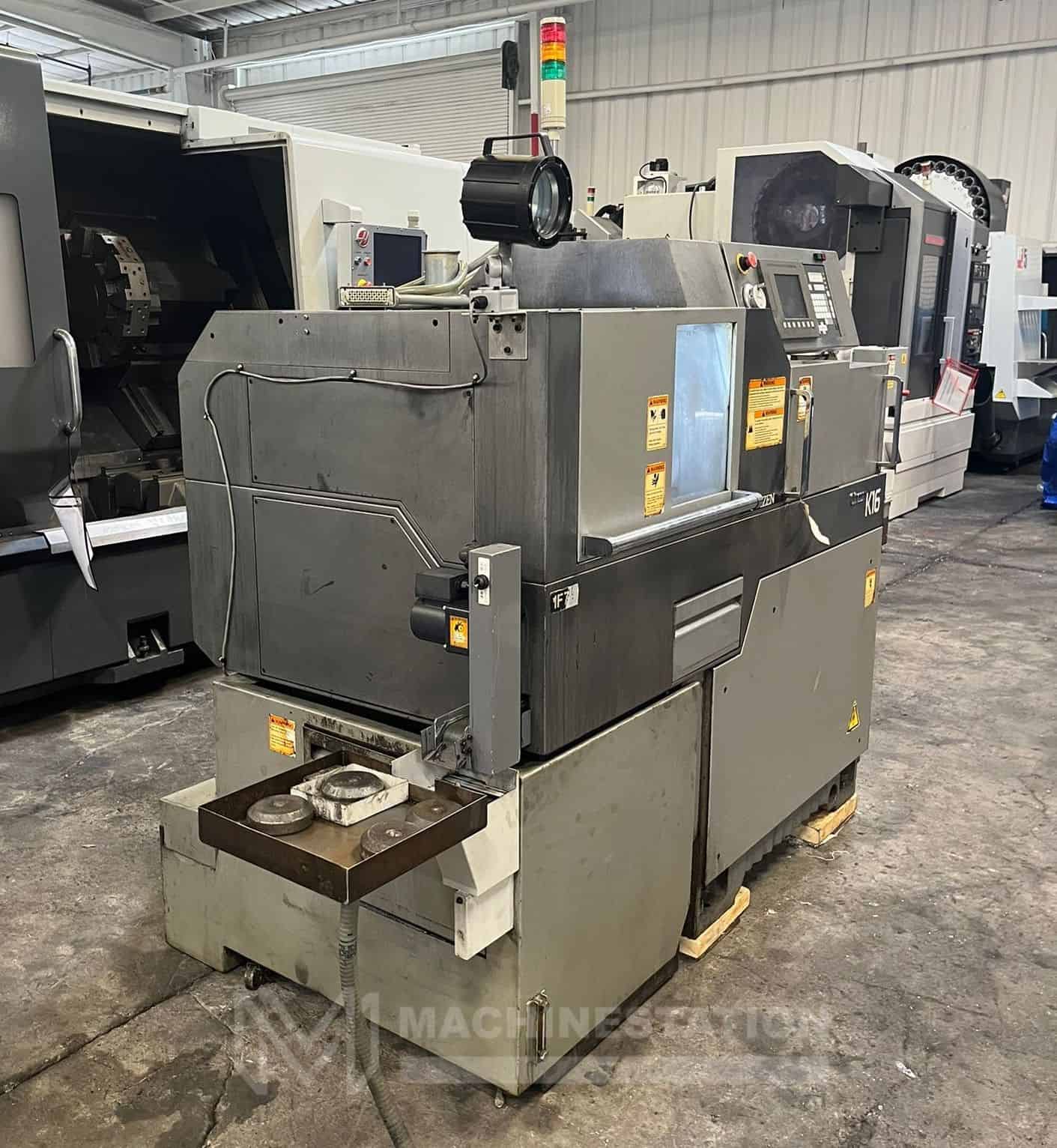

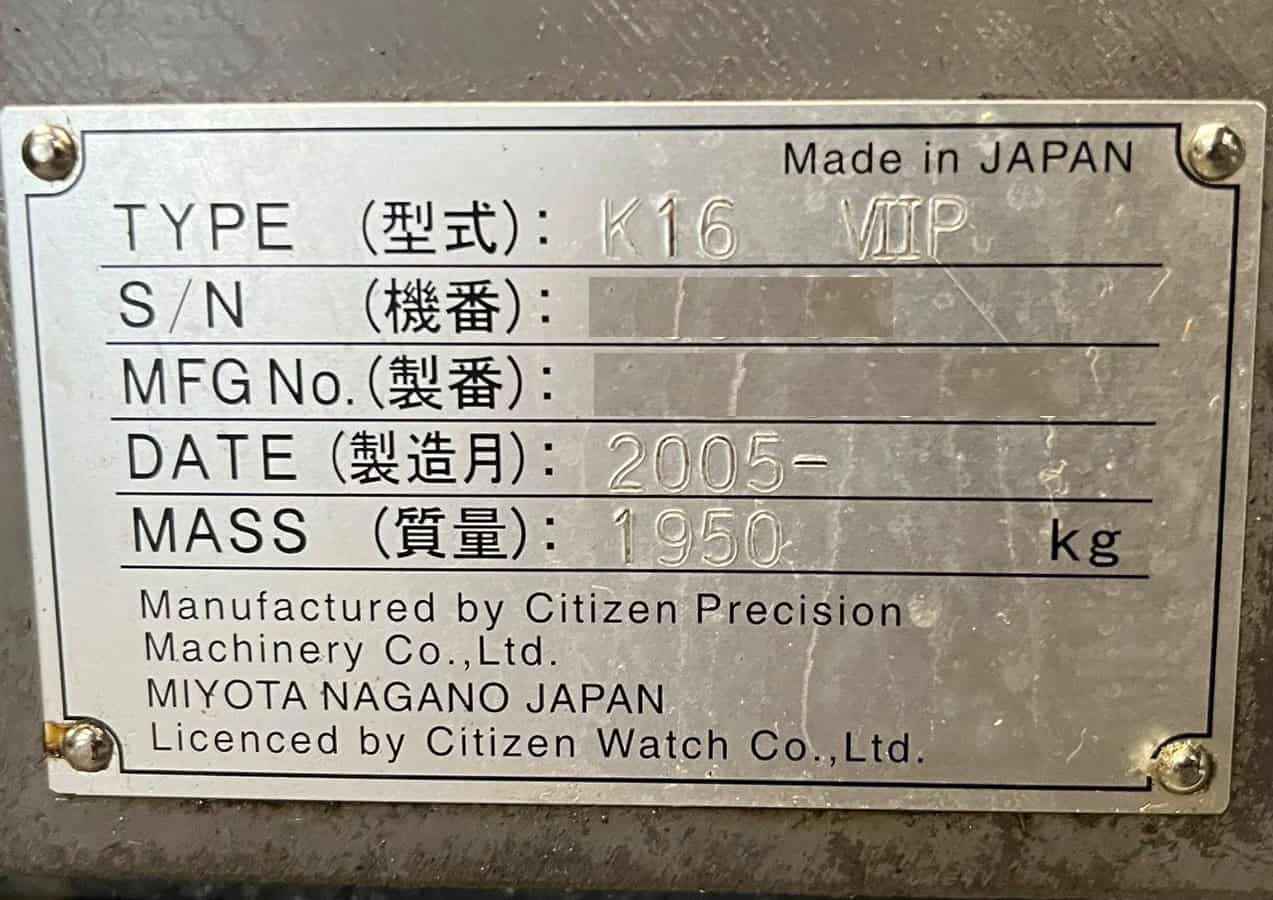

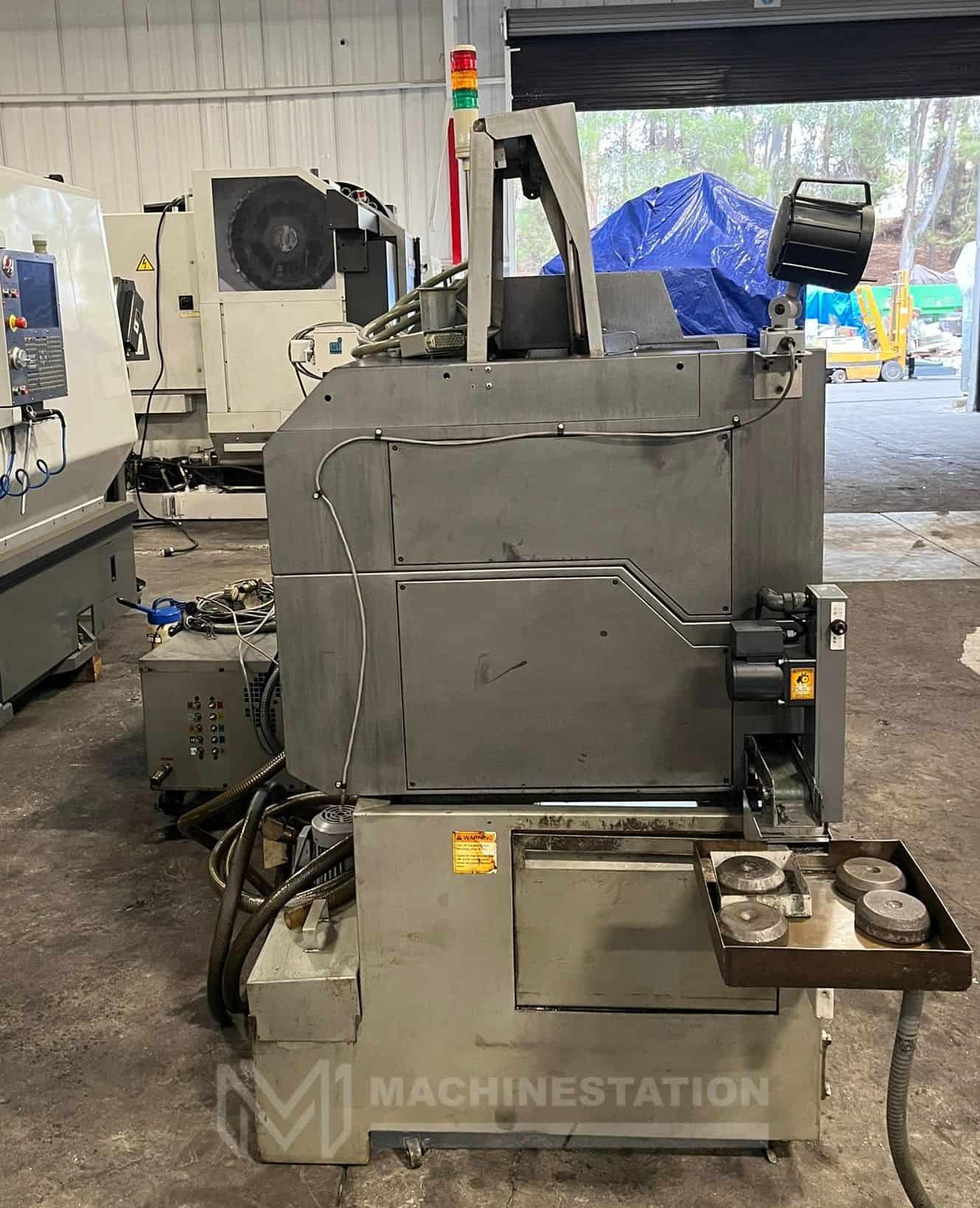

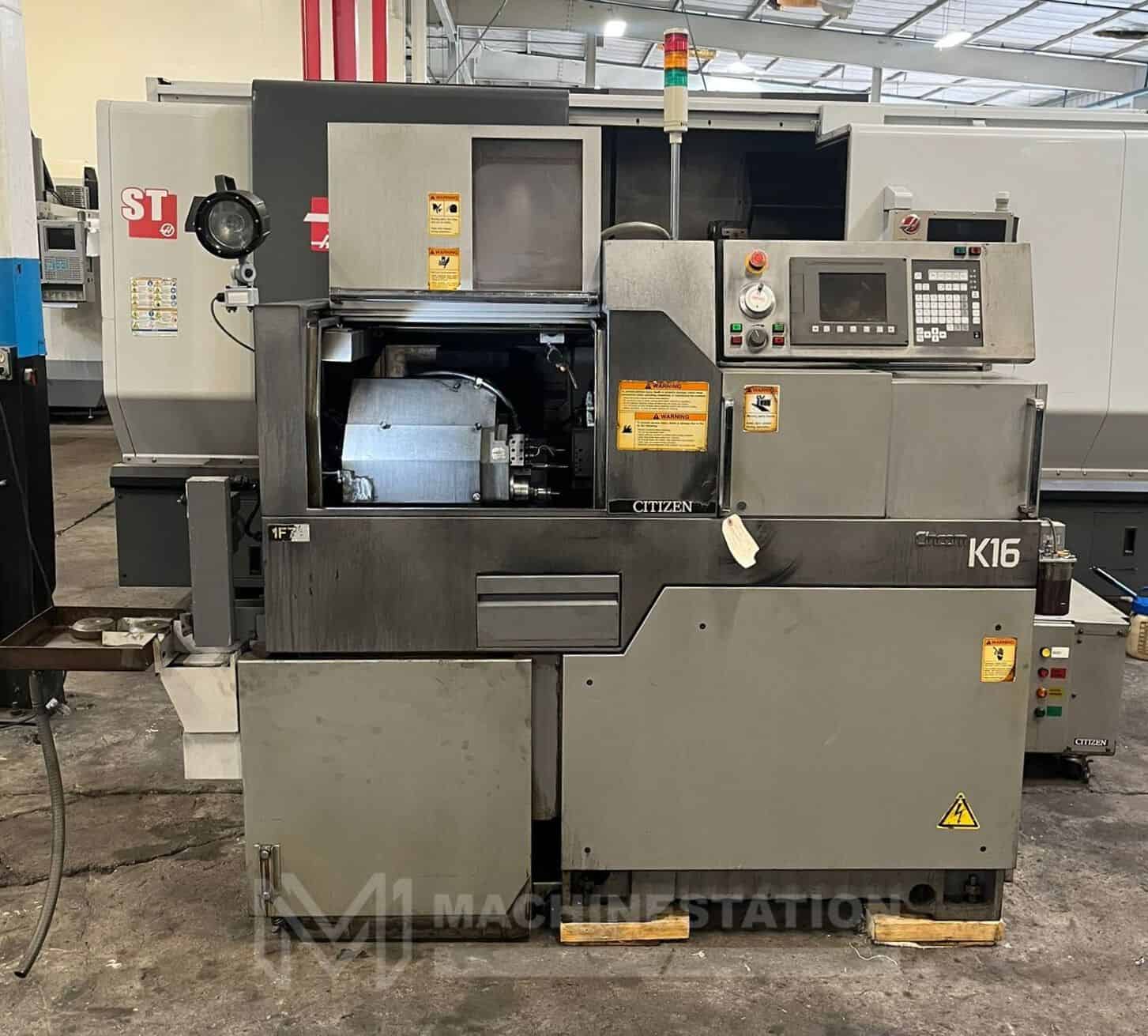

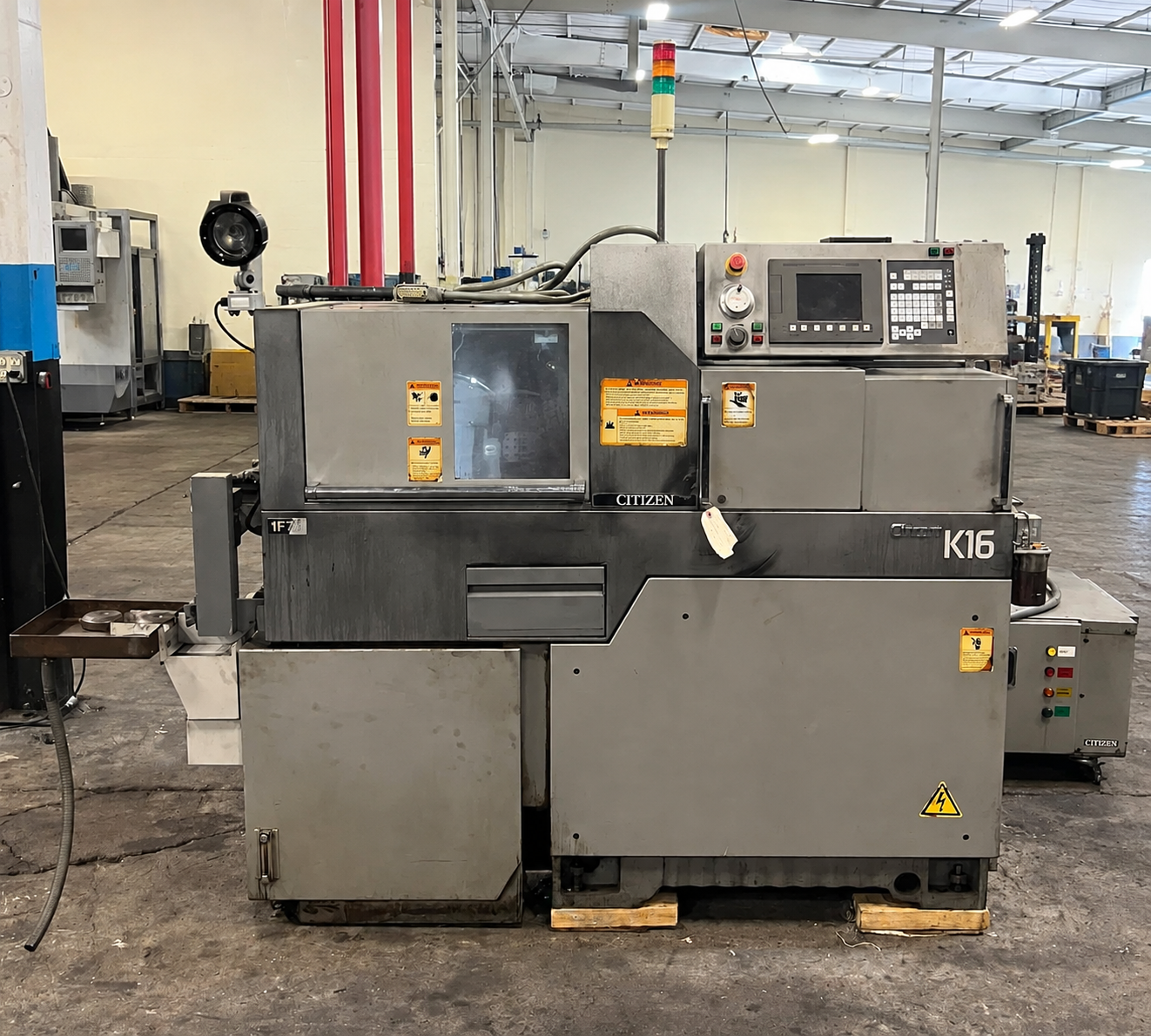

Citizen Cincom K16 VIIP |
| Year: |
2005 |
| Condition: |
Used |
| Equipped With: |

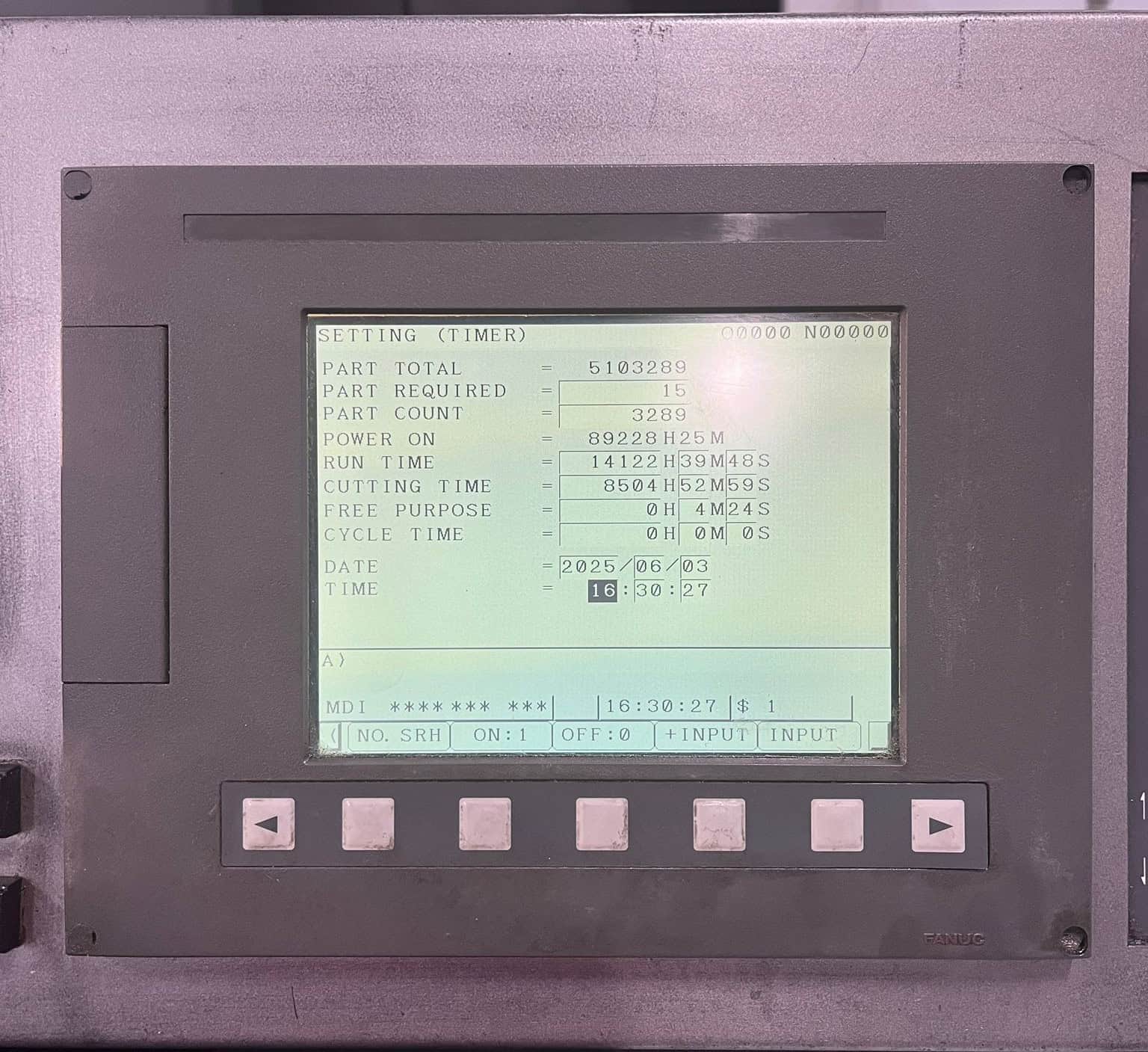

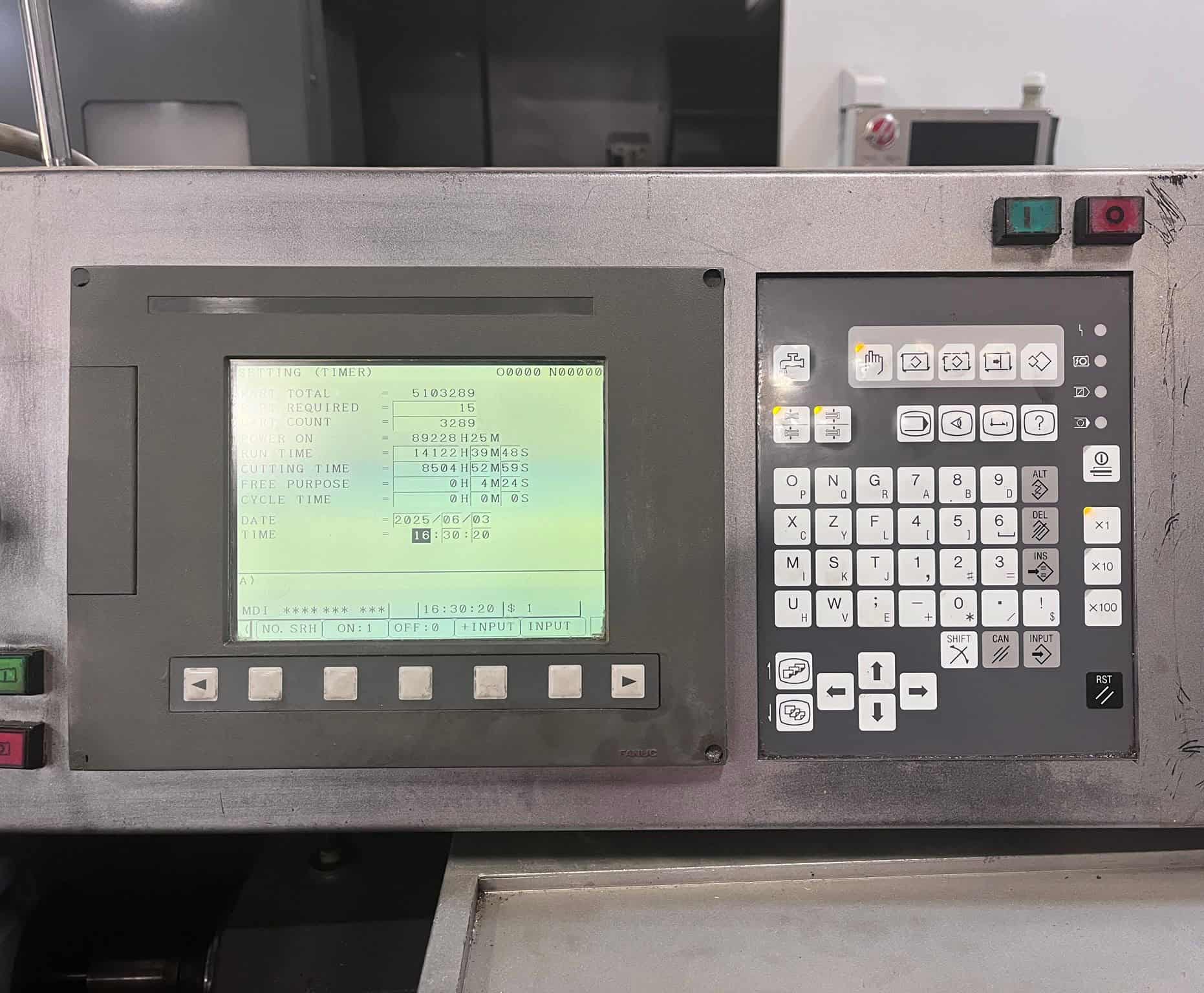

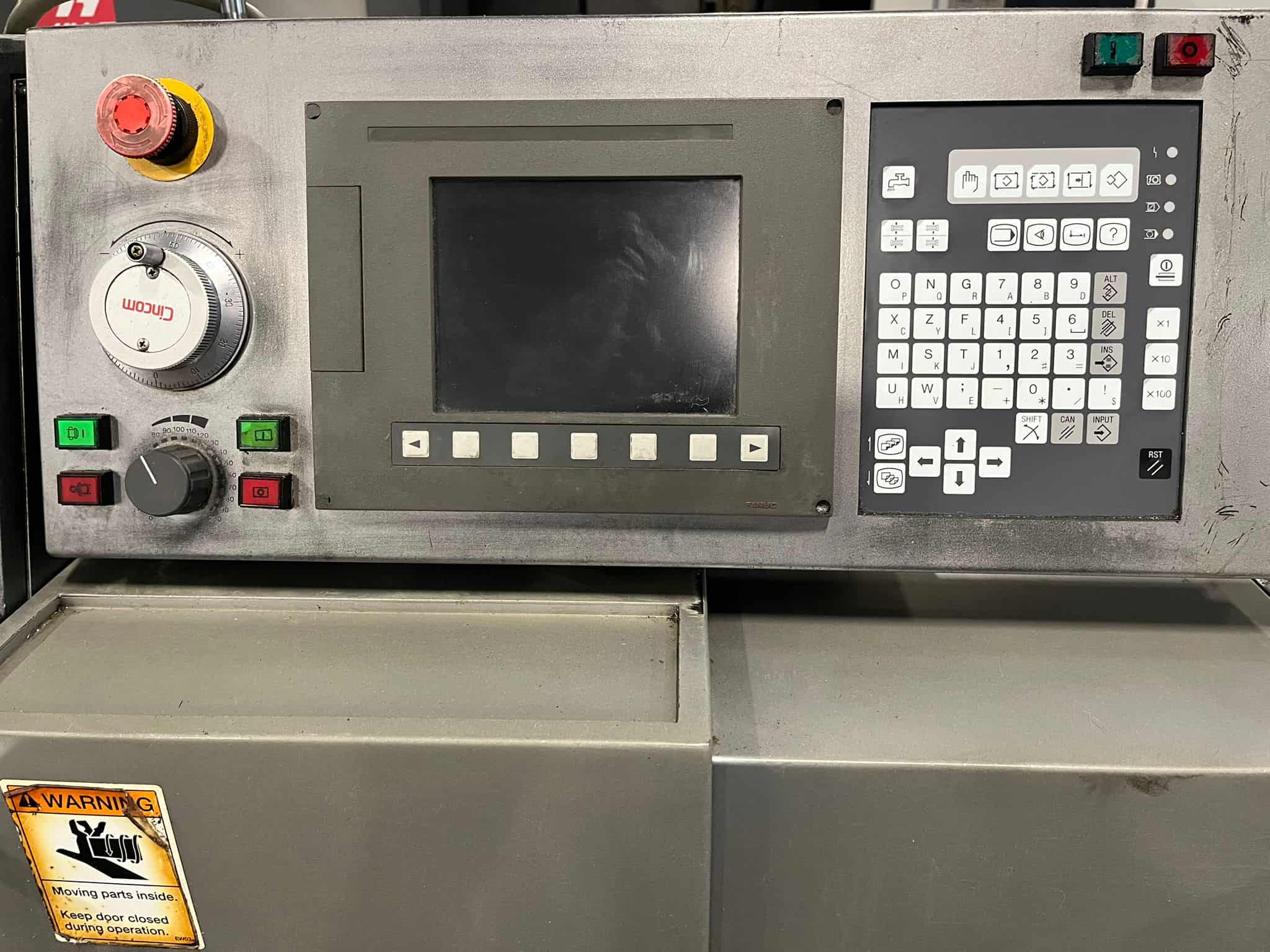

| Citizen Cincom (Fanuc) CNC Control |
| 7 Axis X1, X2, Y1, Z1, Z2, C1, C2 |
| Back Spindle |
| C & Y Axis Capable |
| Live Tools Capable |
| Long Parts Capable |
| MPG Control |
| Part Catcher |
| Part Conveyor |
| Bar Feeder Interface – Enabled |
| Main & Back Spindle Synchronization |
| High Speed Rapid Traverse |
| High Speed Program Processing |
| Absolute Position Detection |
| Automatic Lubrication System |
| Coolant System |

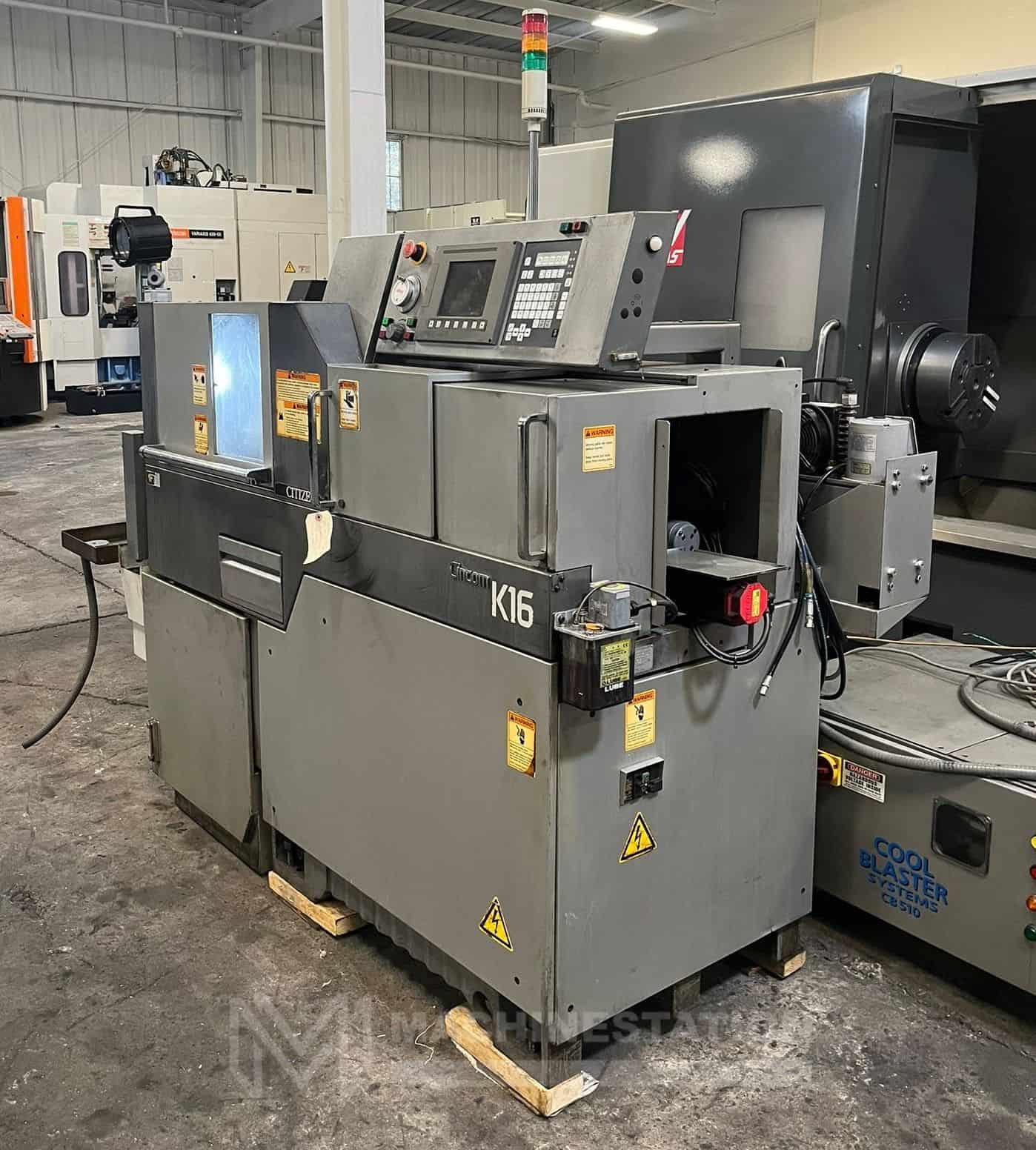

| Cool Blaster System CB510 |
| Leveling Pads |
| Capacity: |
| Max Machining Diameter: 0.63″ (16 mm) |
| Max Machining Length: 7.87″ (200 mm) |
| Max Bar Capacity: 0.63″ (16 mm) |
| Max Tool Positions: 18 |
| Spindle Through-hole Diameter: 0.79″ (20 mm) |
| Max. Workpiece Length For Front Ejection: 1.57″ (40 mm) |
| Max. Main Spindle Drilling Diameter: 0.39″ (10 mm) |
| Max. Main Spindle Tapping Diameter: M8 |
| Max. Back Spindle Chucking Diameter: 0.79″ (16 mm) |
| Max. Back Spindle Drilling Diameter: 0.24″ (6 mm) |
| Max. Back Spindle Tapping Diameter: M5 |
| Max. Cross Drilling Diameter: 0.2″ ( 5 mm) |
| Max. Cross Tapping Diameter: M4 |
| Spindle: |
| Main Spindle Indexing: 360° (Full C-Axis) |
| Main Spindle Speed: 15000 RPM |
| Back Spindle Motor: 3.7 kw |
| Back Spindle Indexing: 360° |
| Back Spindle Speed: 10000 RPM |
| Back Spindle Motor: 1.1 kw |
| Standard Tools: |
| Turning Tools: 6 |
| Stationary Tools For Front Spindle: 4 |
| Stationary Tools For Back Spindle: 4 |

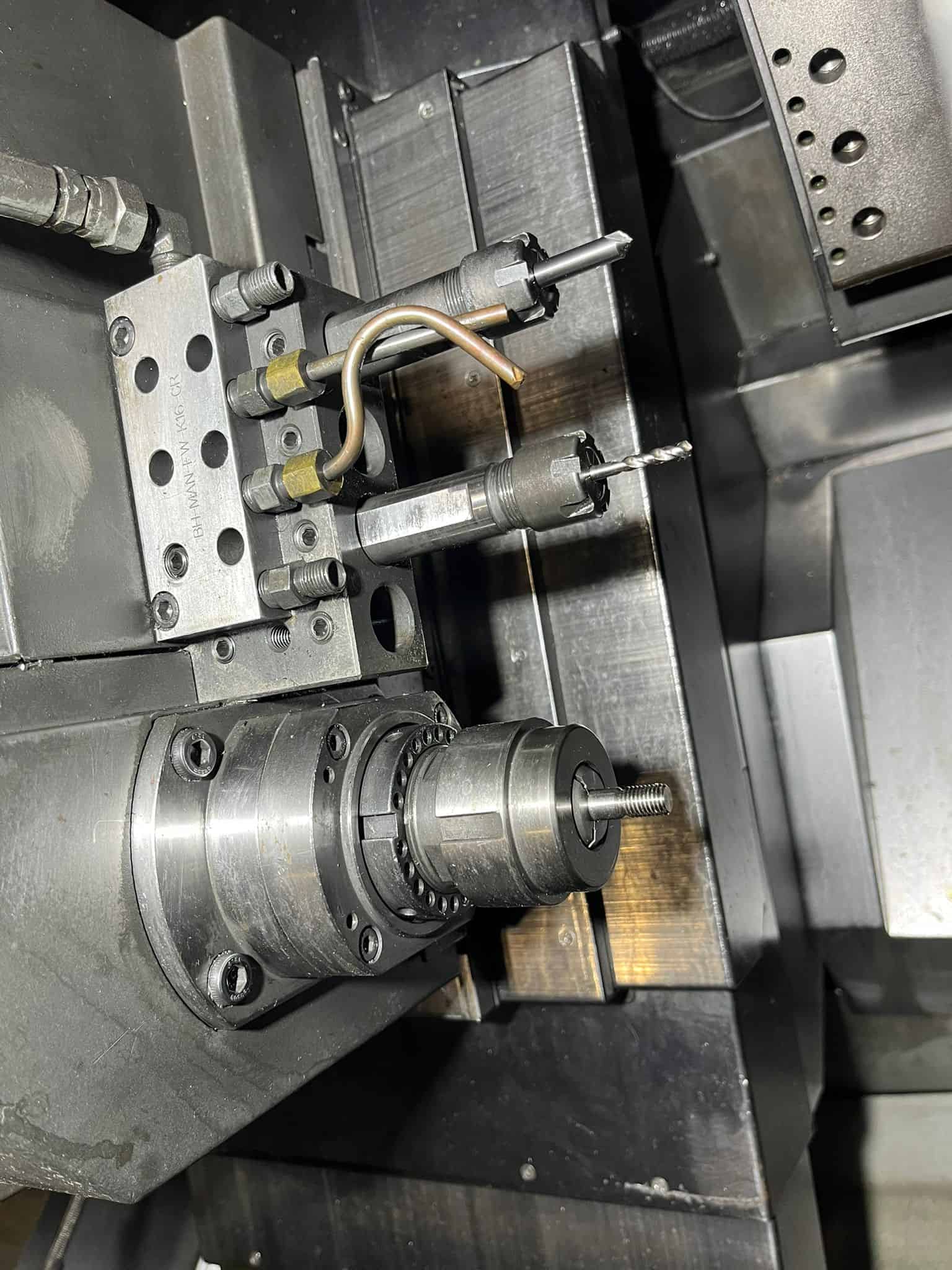

| Power Driven Tools Attachment: |
| Power Driven Tools: 4 |
| Driven Tool Speed: 6000 RPM |
| Driven Tool Motor: 0.4 kw |
| General: |
| Power Source: AC 220v / 3-Phase /60 Hz |
| Power Requirement: 8 kva |
| Overall Dimensions: 84″ x 54″ x 68″ High |
| Weight: 4300 lbs. Approx. |
| Categories | Swiss Type Lathe |
|---|
| Categories | CNC Turning Centers |
|---|
