Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

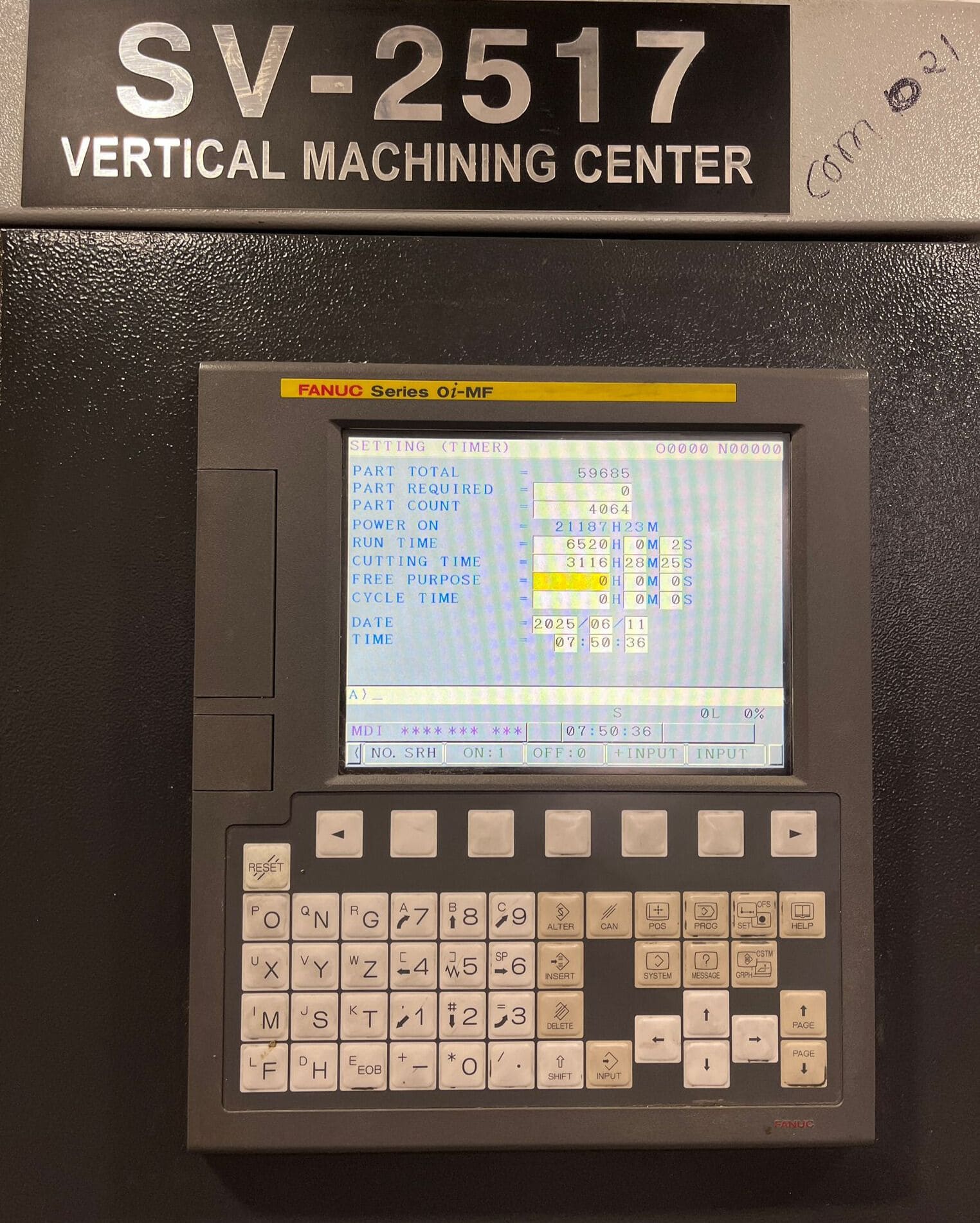

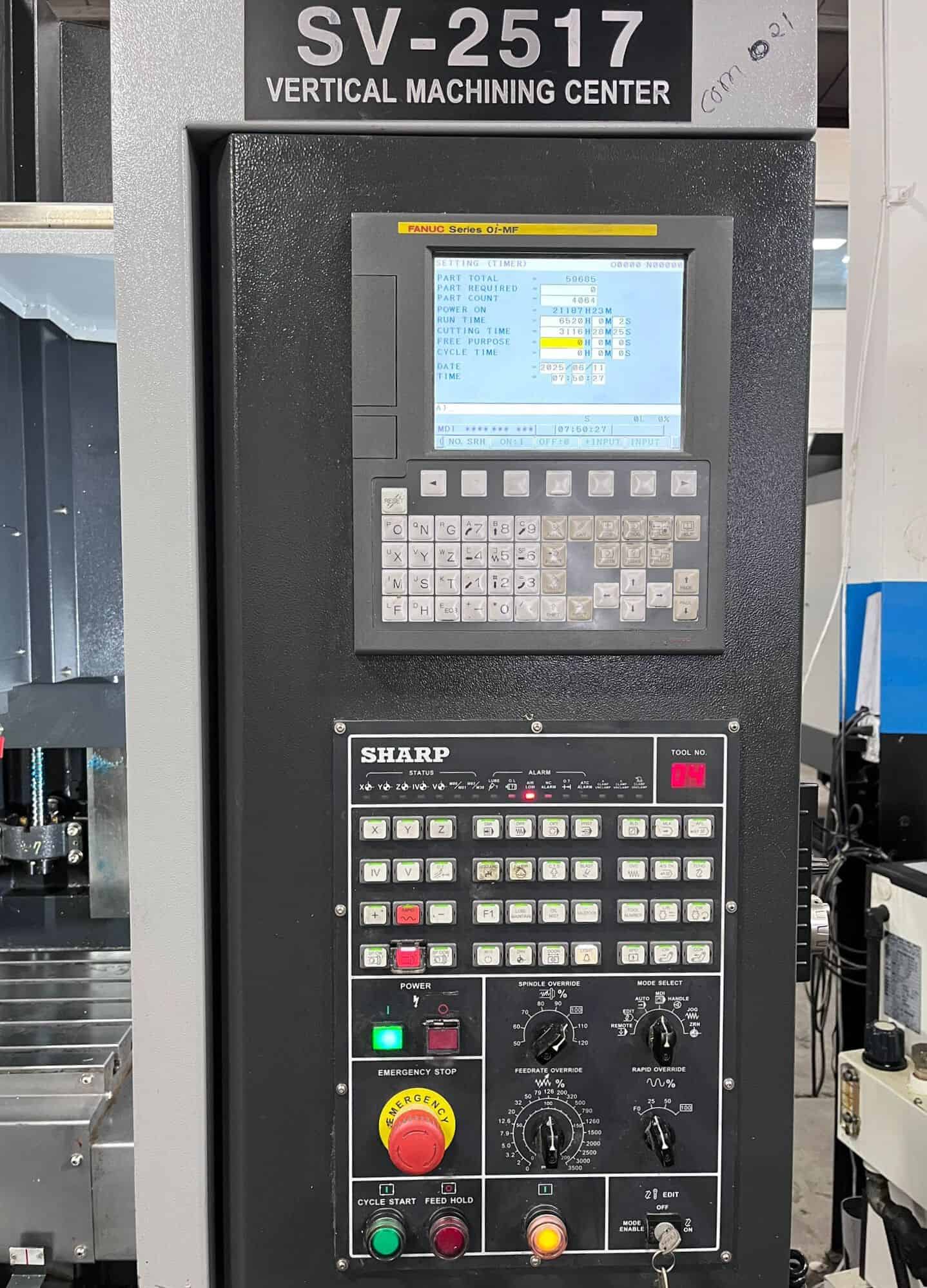

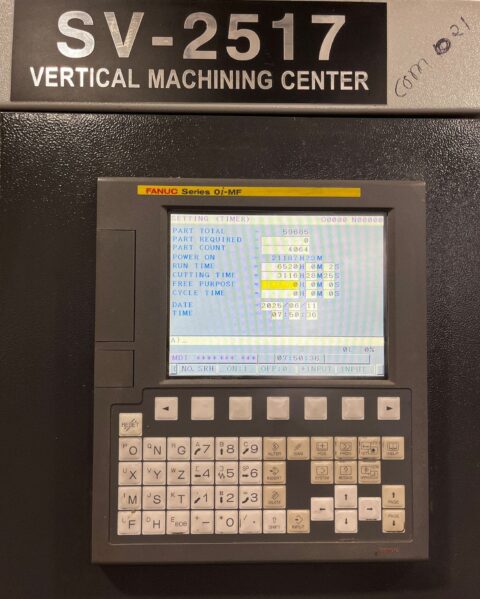

| Fanuc 0i-MF CNC Control |
| Box Way Construction All Axis |
| 12,000 RPM High Speed Spindle |
| 24 Station Side Mounted Automatic Tool Changer |
| CAT-40 Taper Spindle |
| 10 HP Spindle Motor |
| Rigid Tapping |
| USB Port & RS-232 Port |
| PCMCIA Card Slot |
| MPG Handwheel Control |

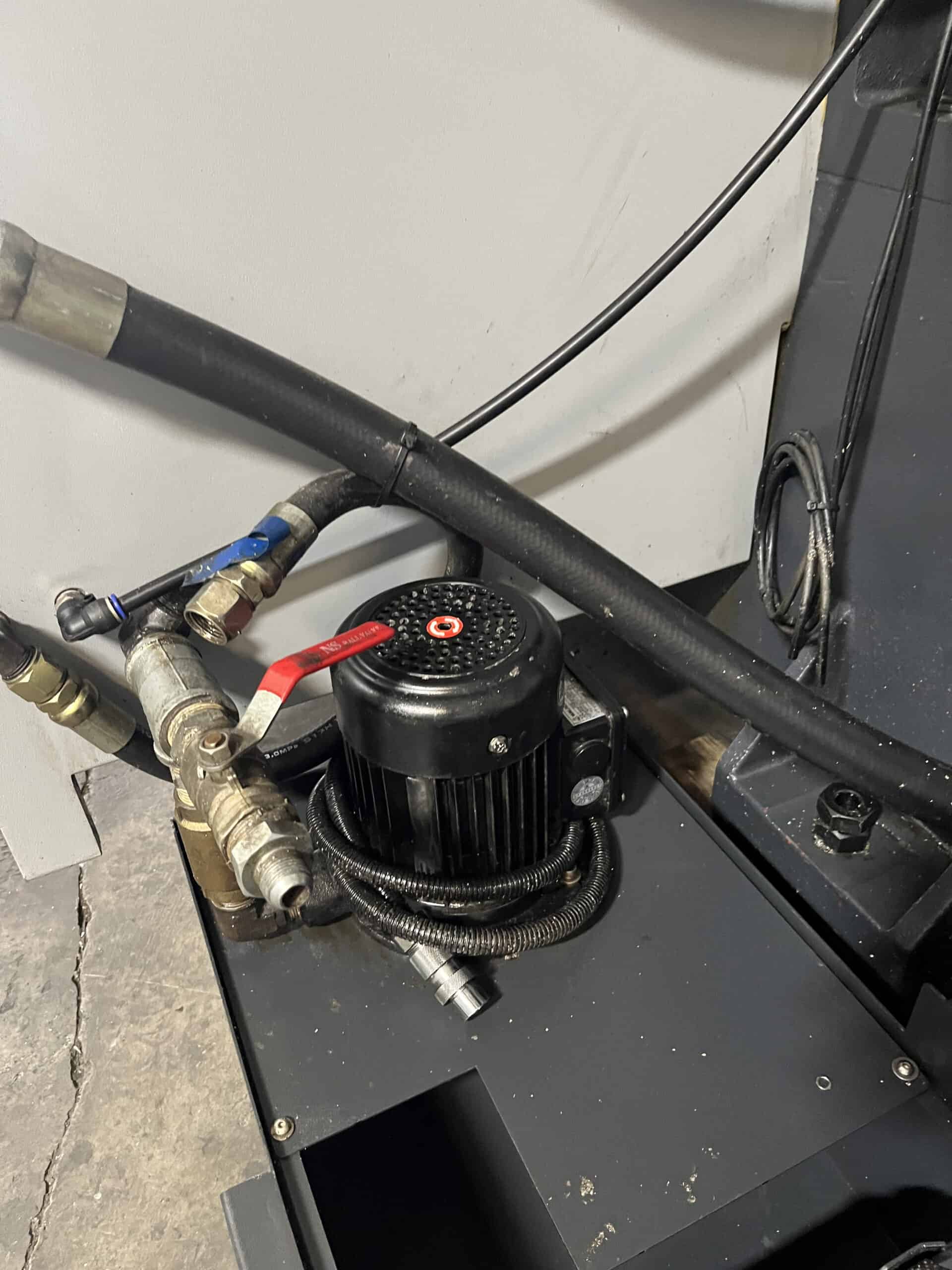

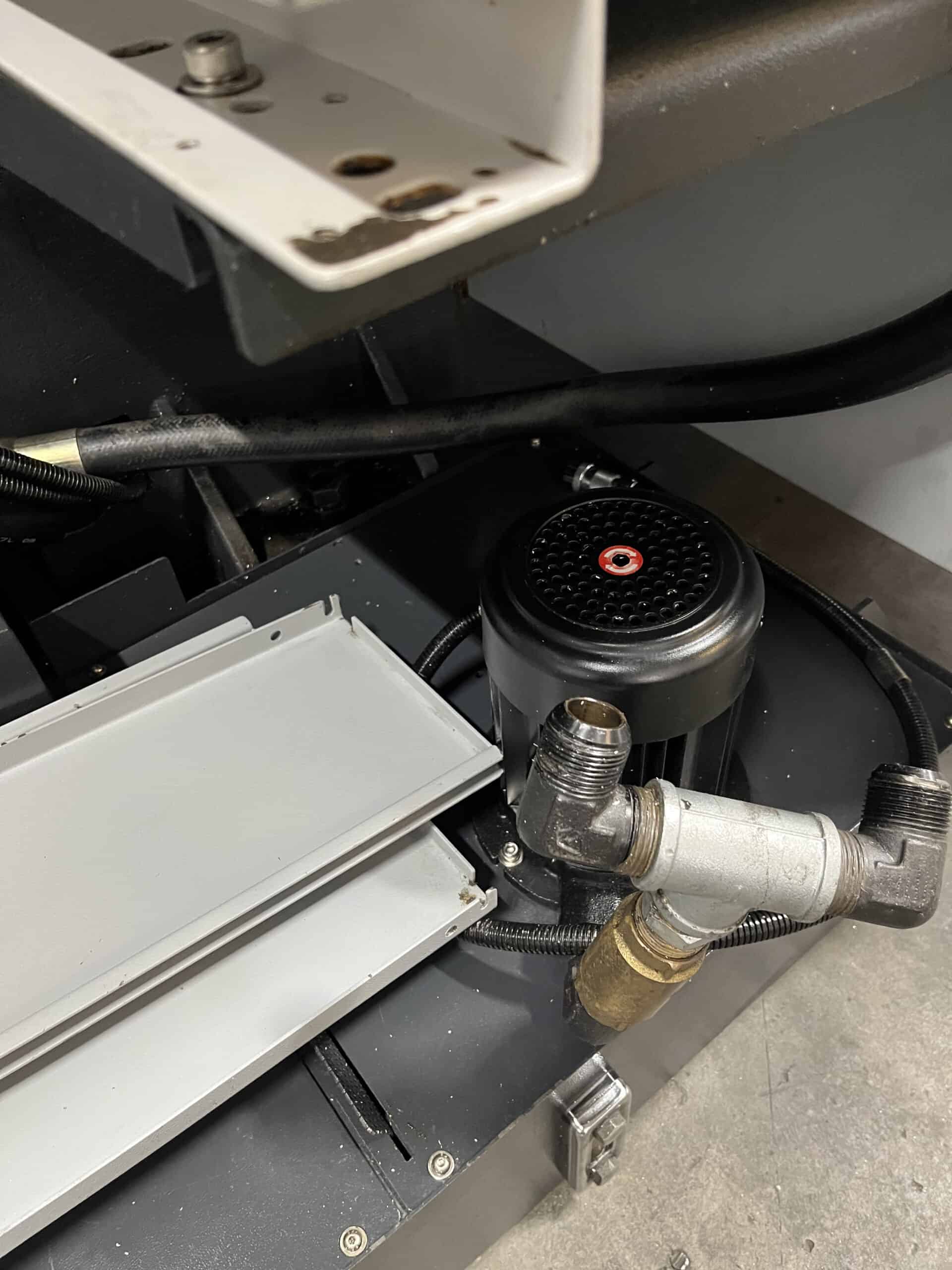

| Coolant System |
| Chip Tray |
| Levelling Pads |
| Travels: |
| X-Axis: 25.2″ |
| Y-Axis: 16.9″ |
| Z-Axis: 18.1″ |
| Rapid Traverse Rates: 787 IPM |
| Cutting Feed Rates: 394 IPM |
| Spindle Nose to Table (Min.- Max.): 3.1″ – 21.2″ |

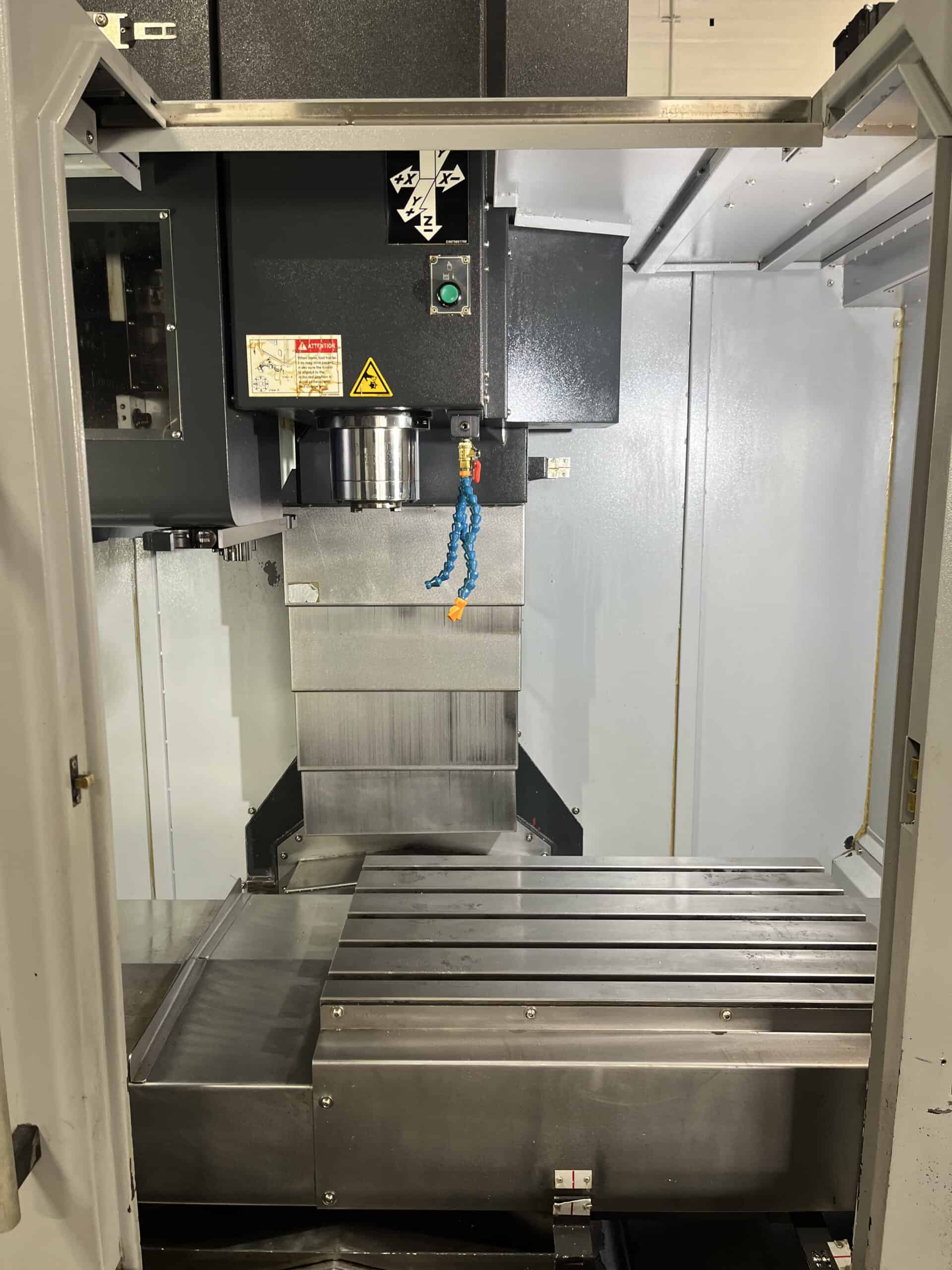

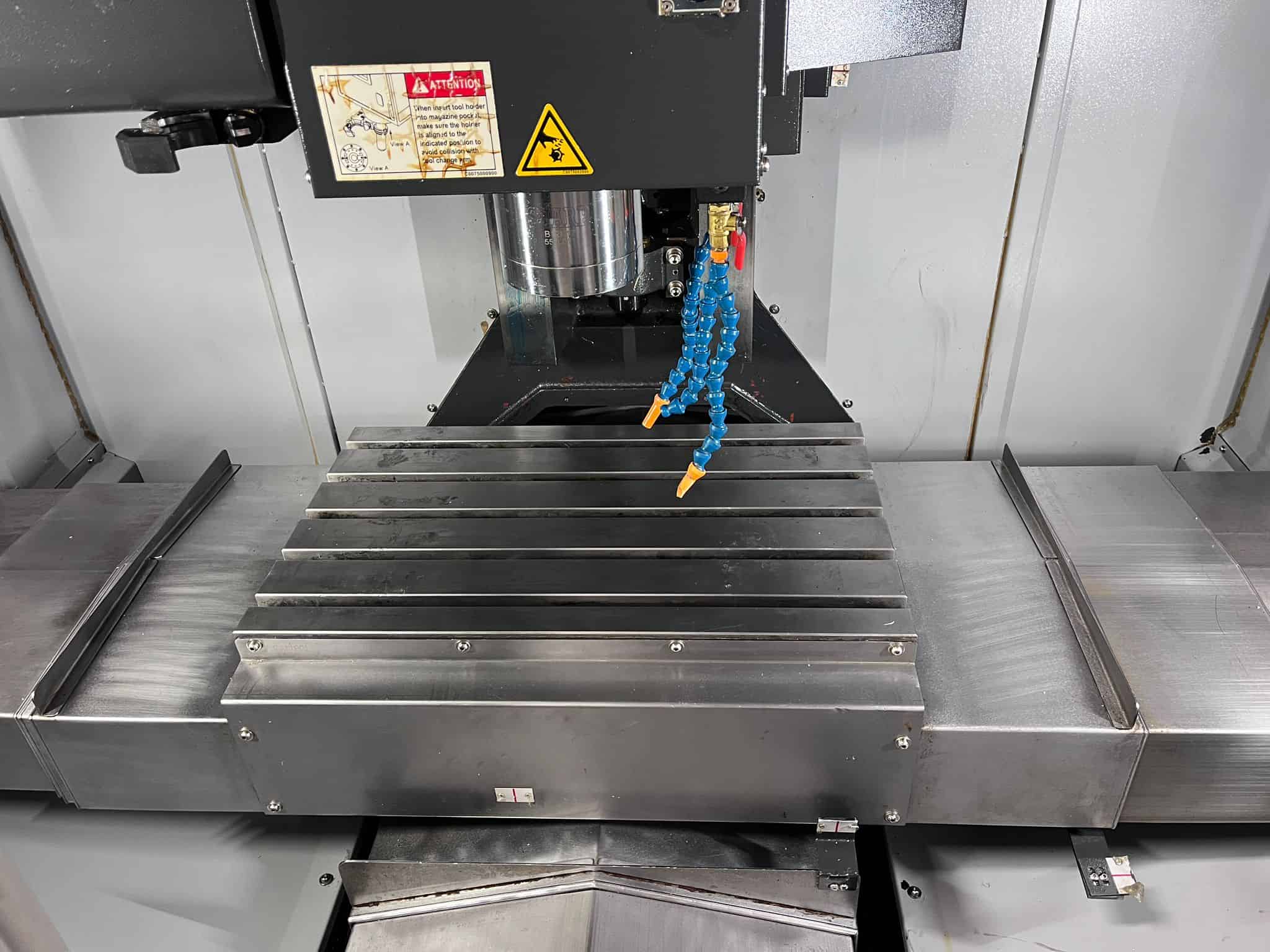

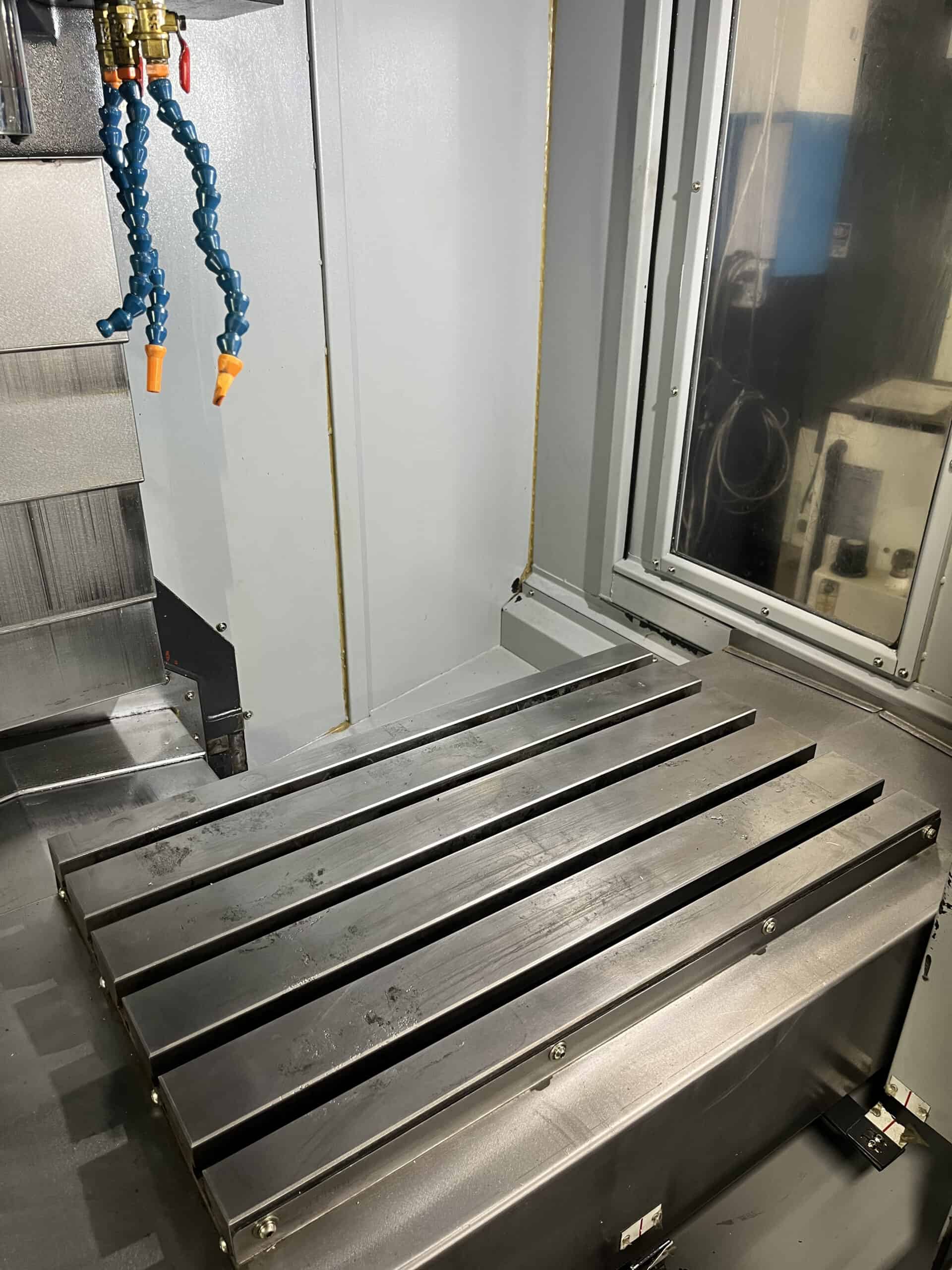

| Table: |
| Length: 27.5″ |
| Width: 16.5″ |
| T-slot (no. x width x pitch): 5 x 0.7″ x 3.14″ |
| Max Weight on Table: 660 lbs |
| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 10 HP |
| Automatic Tool Changer: |
| Capacity: 24 Station |
| Max Tool Weight: 15.4 lbs |
| Max Tool Dia: 2.9″ – 5.9″ |
| Max Tool Length: 11.8″ |
| General: |

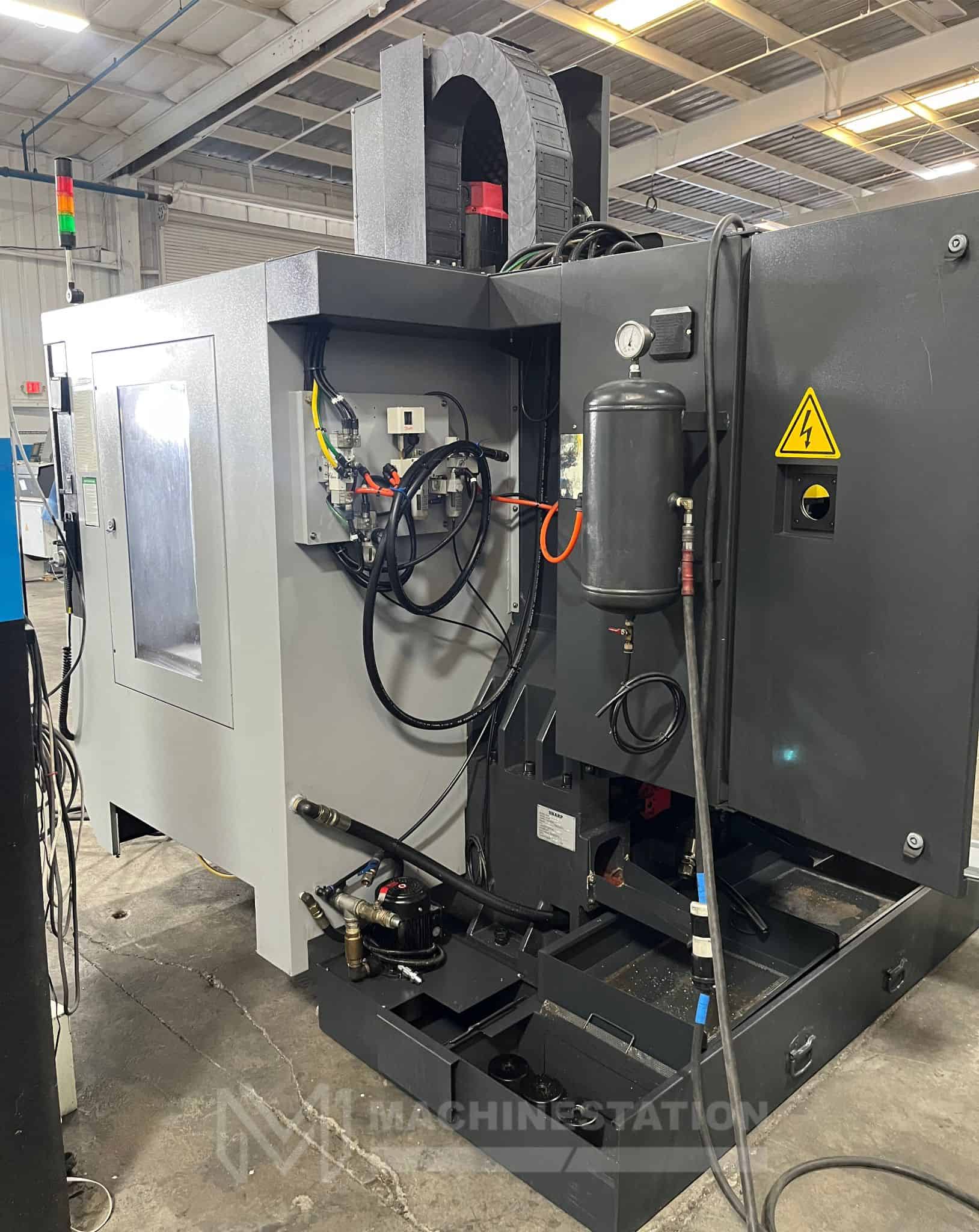

| Air Required: 80 psi, 4 scfm |

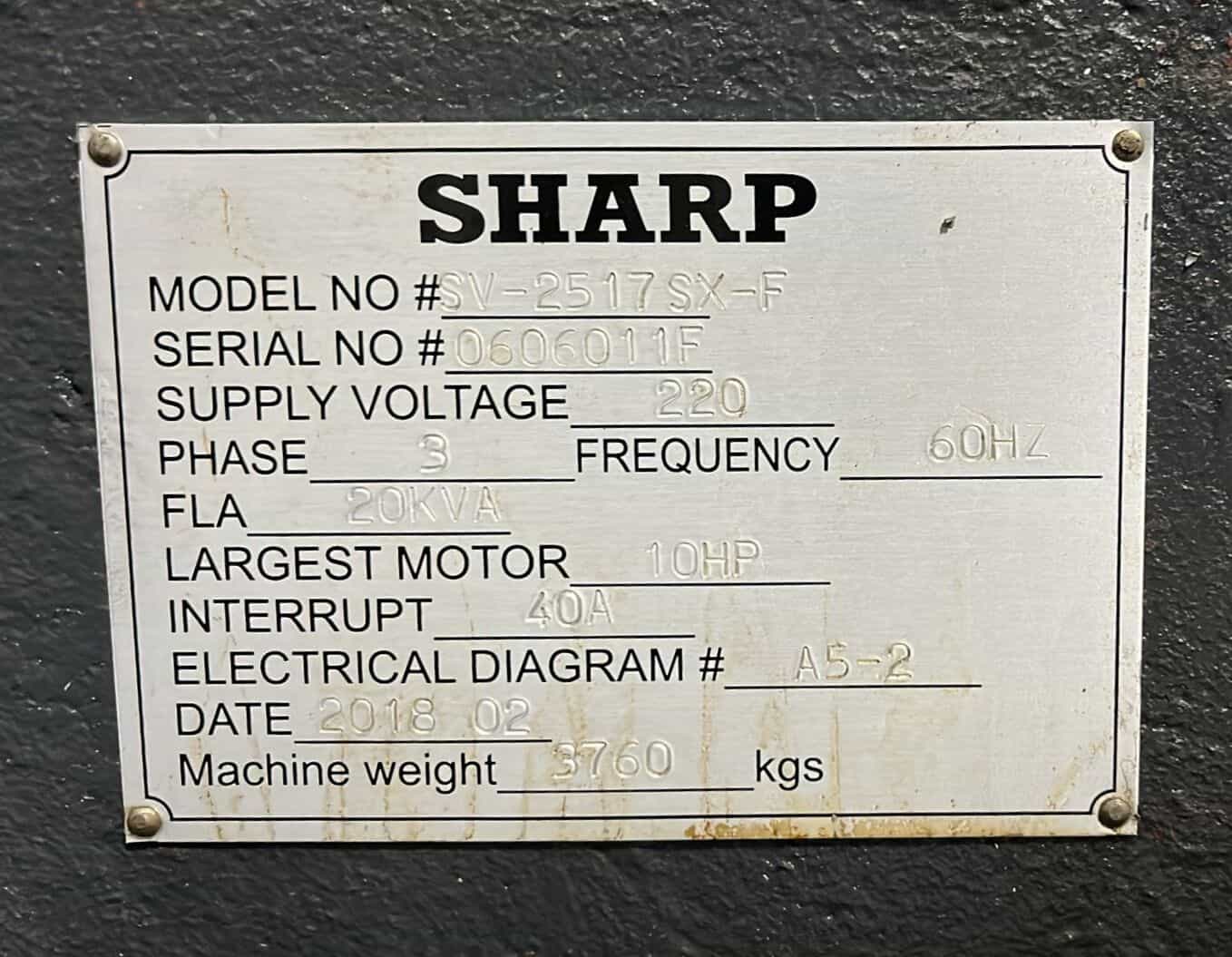

| Power: 220v / 60 Hz / 3-Phase |
| Overall Dimensions: 79″ x 101″ x 100″ High Approx. |
| Weight: 8,272 lbs Approx. |
