Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

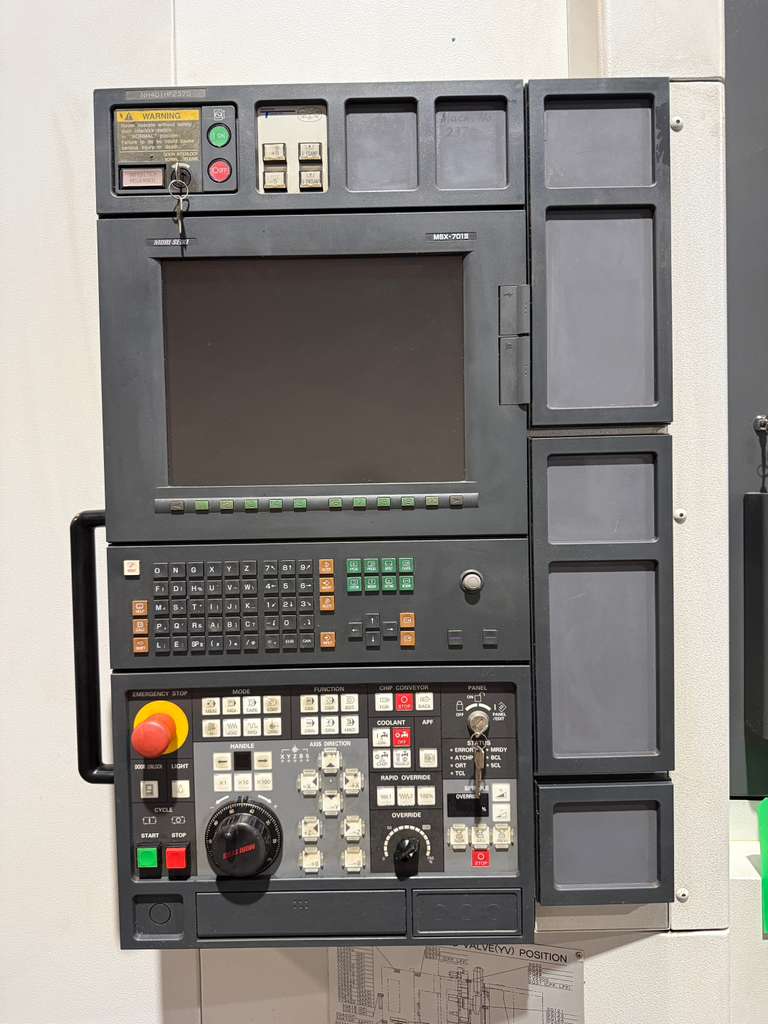

| Mori Seiki MSX-701III (Fanuc) CNC Control |

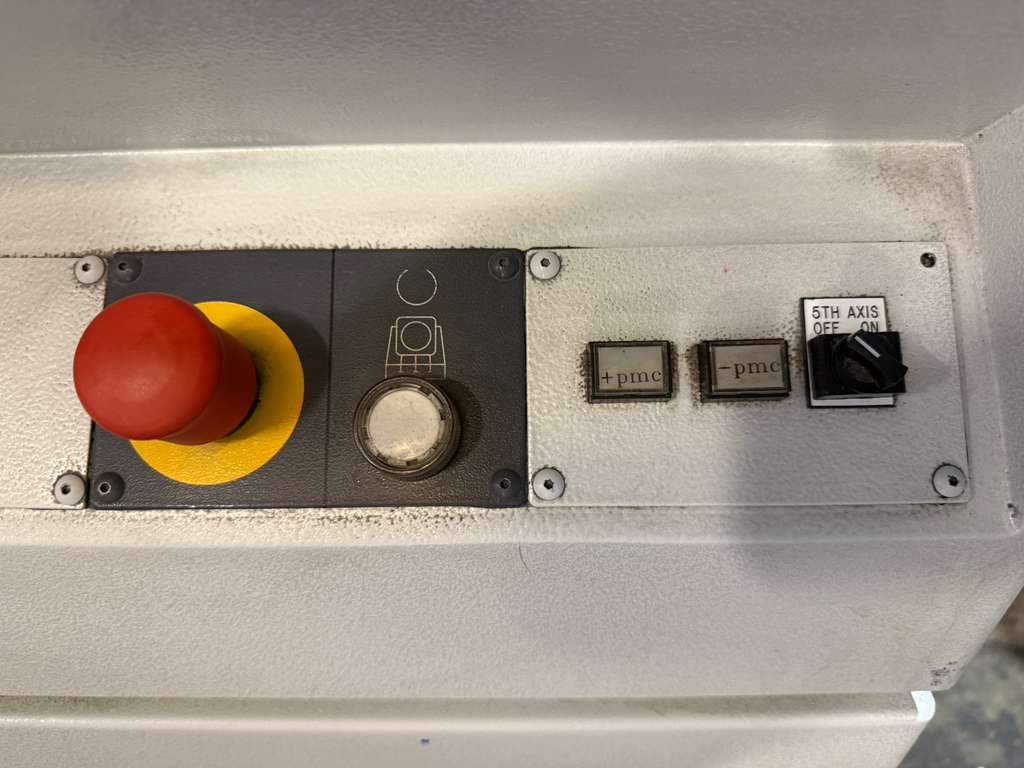

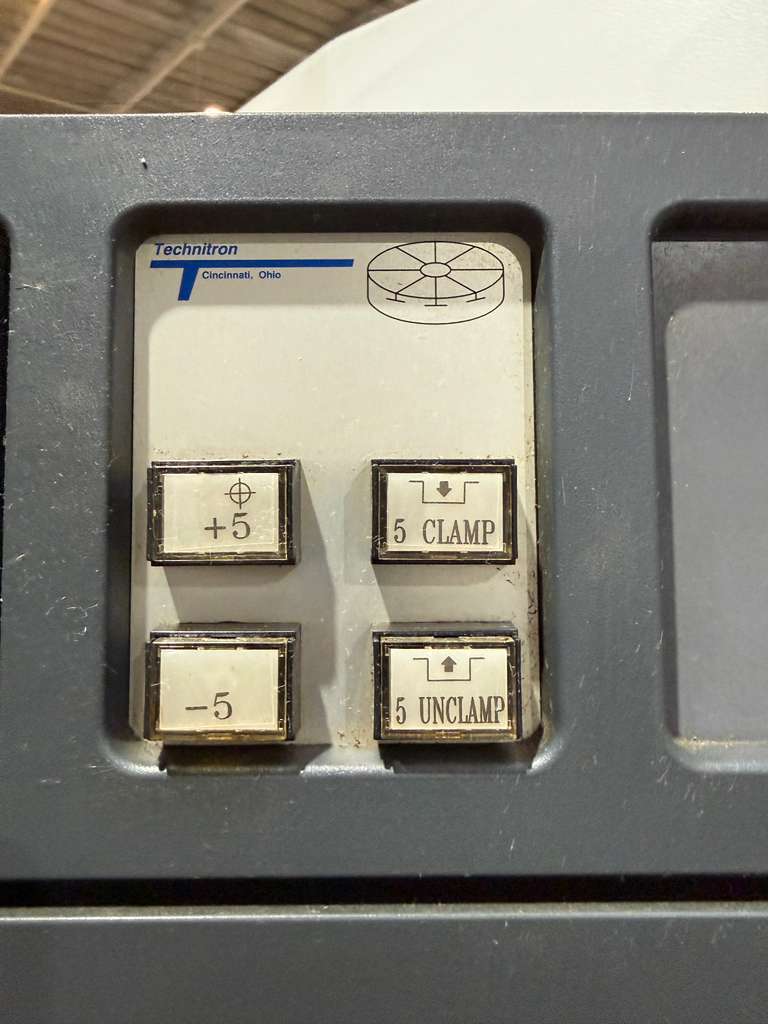

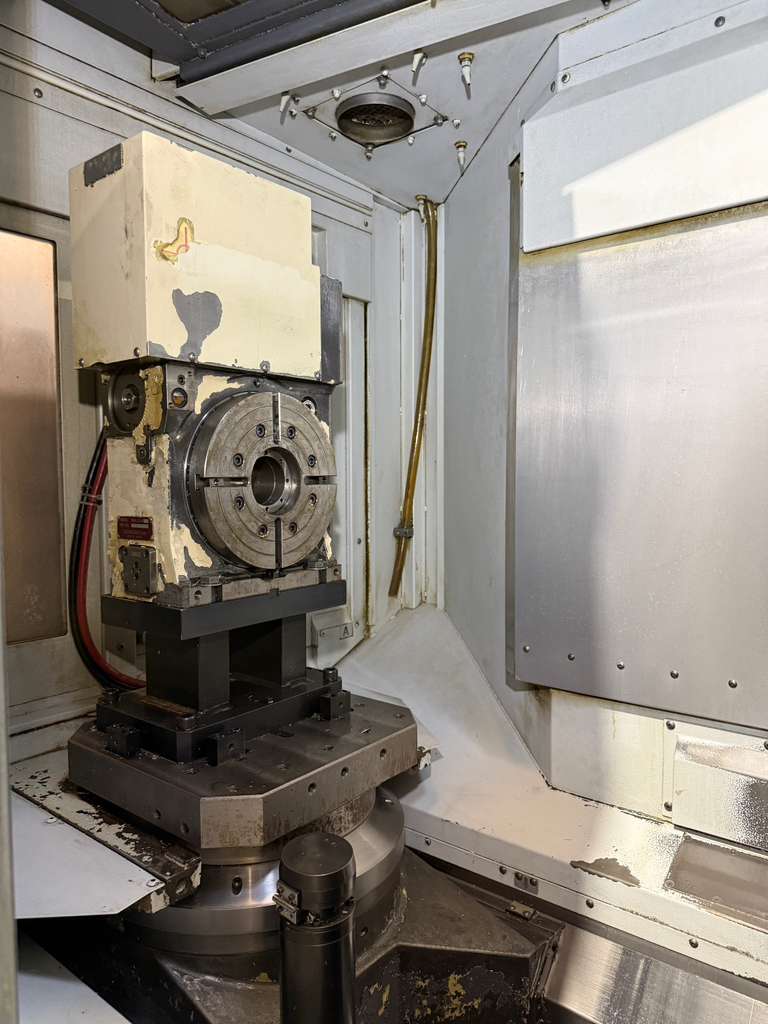

| Tsudakoma RBA 250K 5th Axis Rotary Table Installed on Table |
| 14,000 RPM High Precision Spindle |
| Twin Pallet Changer |

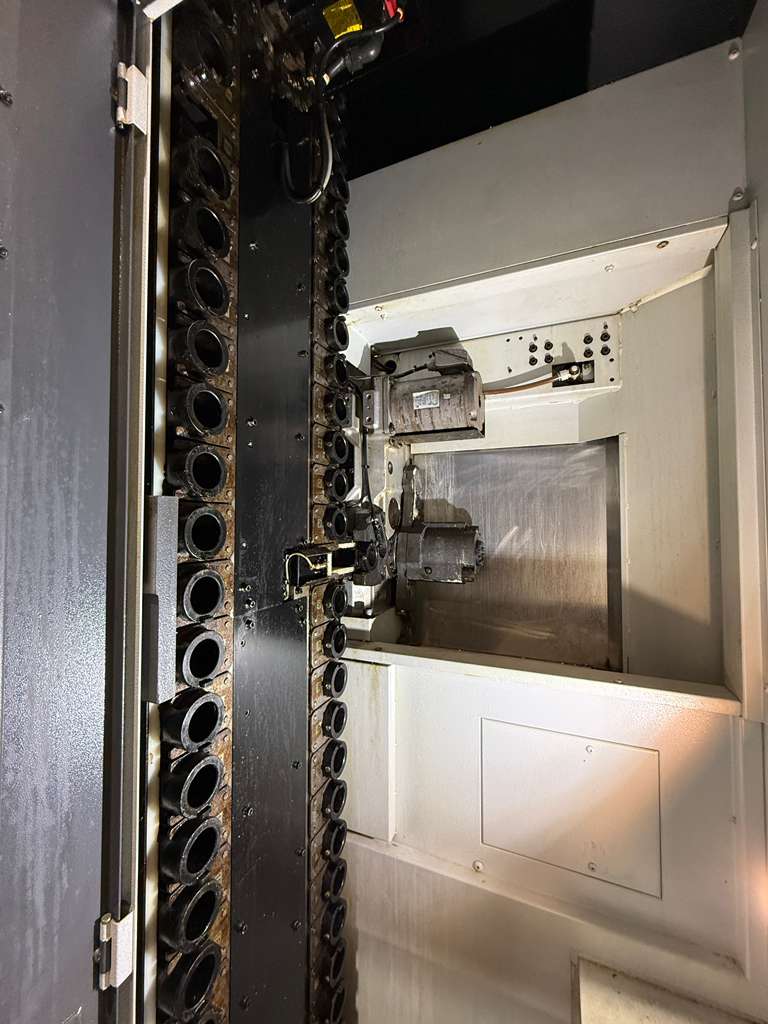

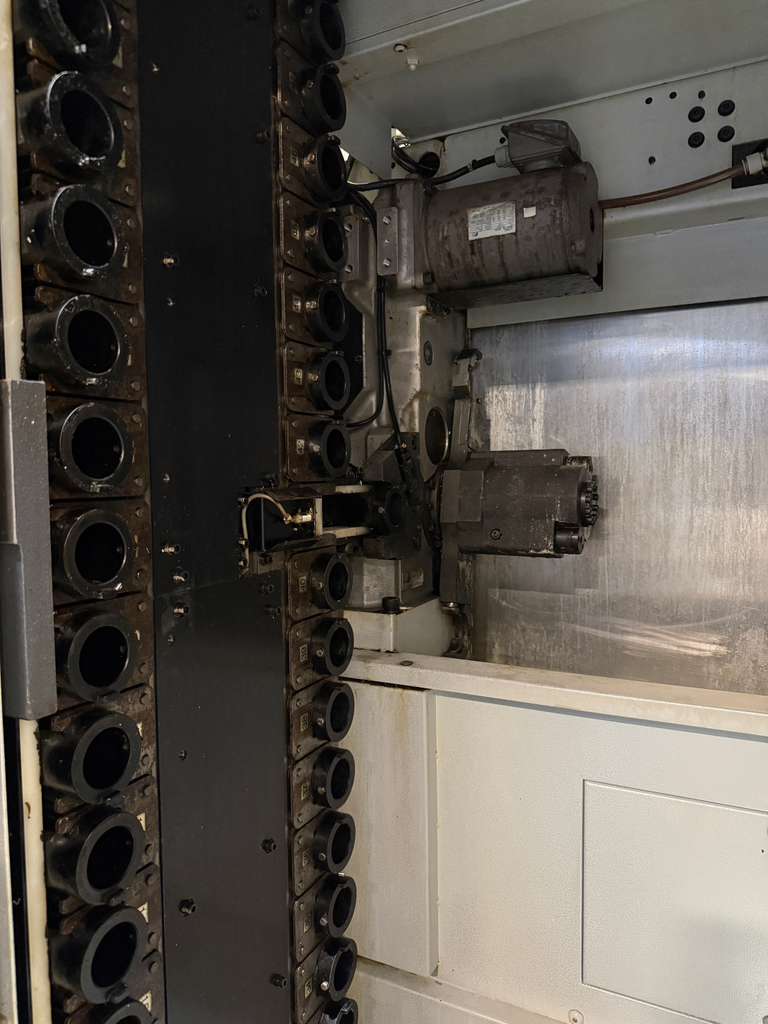

| 60 Station Automatic Tool Changer |
| Through Spindle Coolant |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |
| Spindle Chiller Unit |
| Coolant System |
| Chip Conveyor |

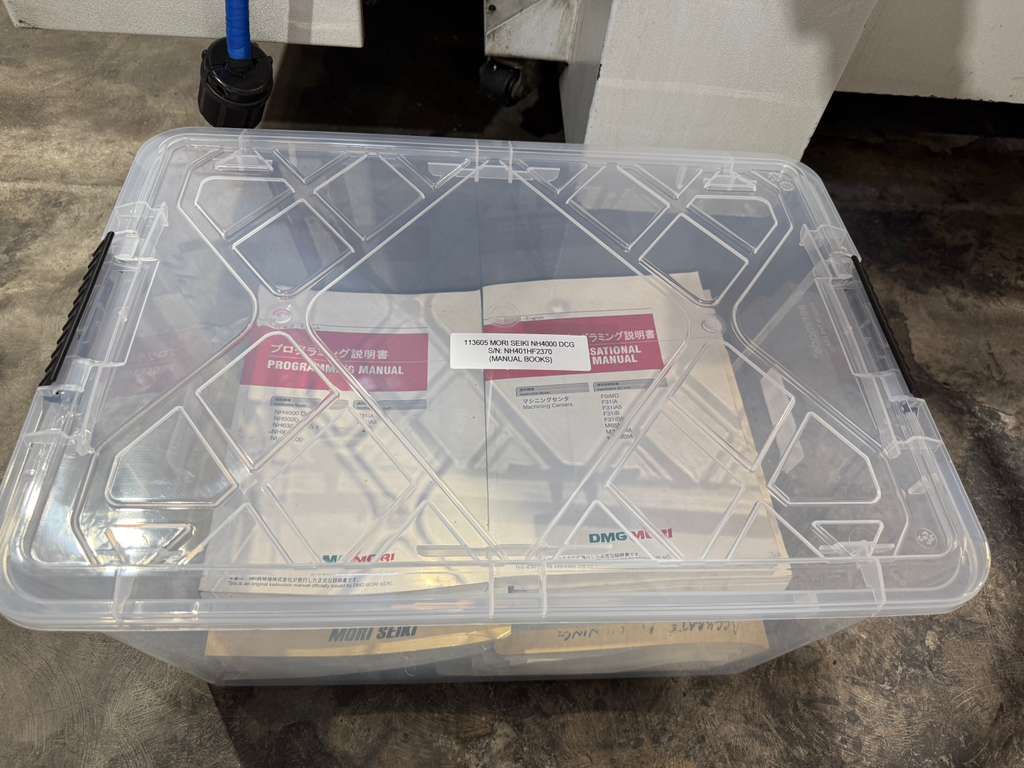

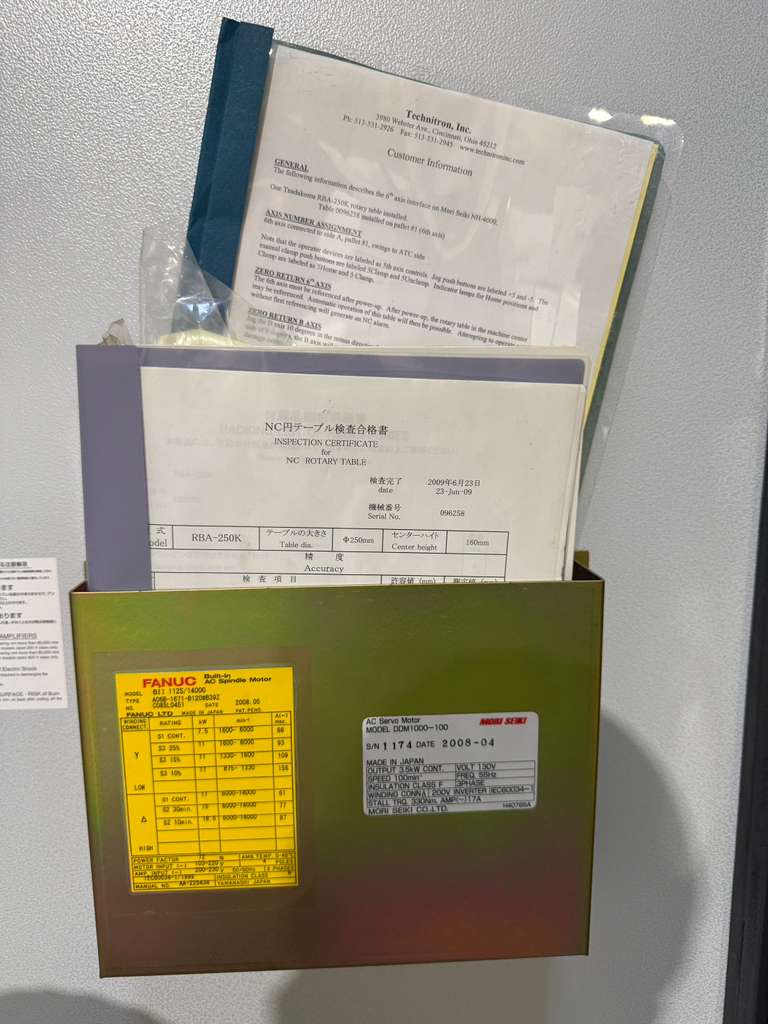

| Books & Manuals |
| Travels: |
| X Axis: 22.0″ |
| Y Axis: 22.0″ |
| Z Axis: 24.8″ |
| Distance From Pallet Surface to Spindle Center: 3.1″ – 25.2″ |
| Table: |
| Length: 15.7″ |
| Width: 15.7″ |
| Max Weight on Table: 880 lbs |
| Max Workpiece Swing Diameter: 24.8″ |
| Max Workpiece Height: 35.4″ |
| Index Time: 8 seconds 90° |

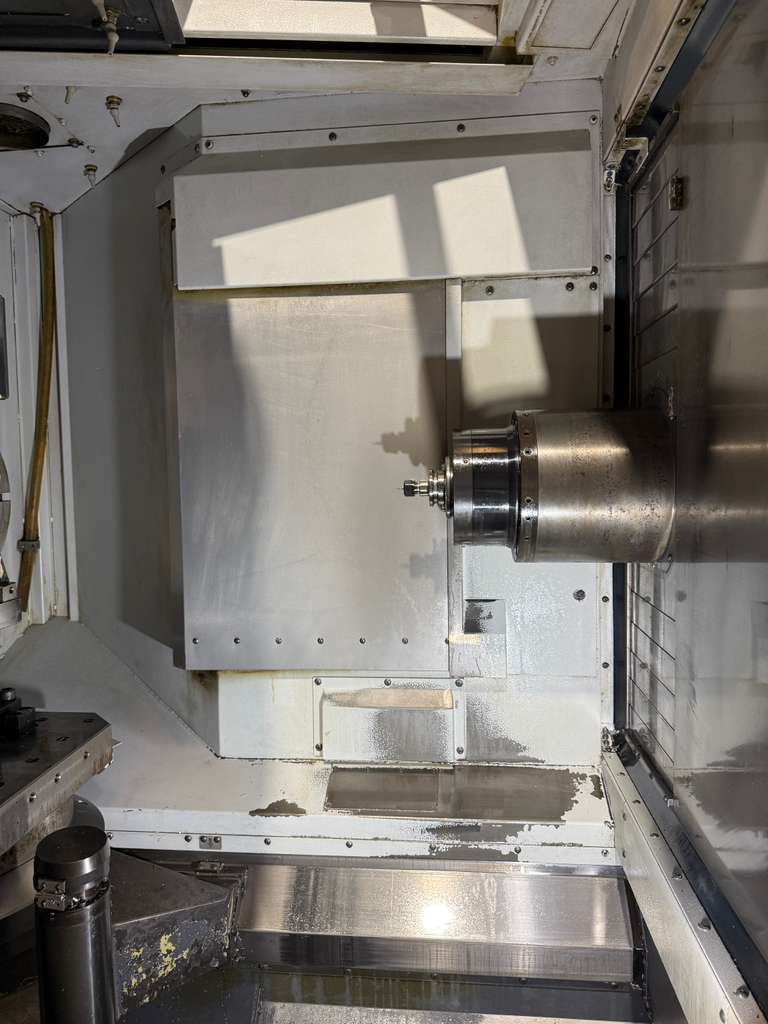

| Spindle: |
| Taper Size: BT-40 |
| Max. Speed: 14,000 RPM |
| Spindle Motor Power: 30 HP |
| Feed rates: |
| Rapid Traverse Rate X,Y,Z Axis : 1968 Inch Per Minute |
| Cutting Feedrate X,Y,Z Axis : 1968 Inch Per Minute |

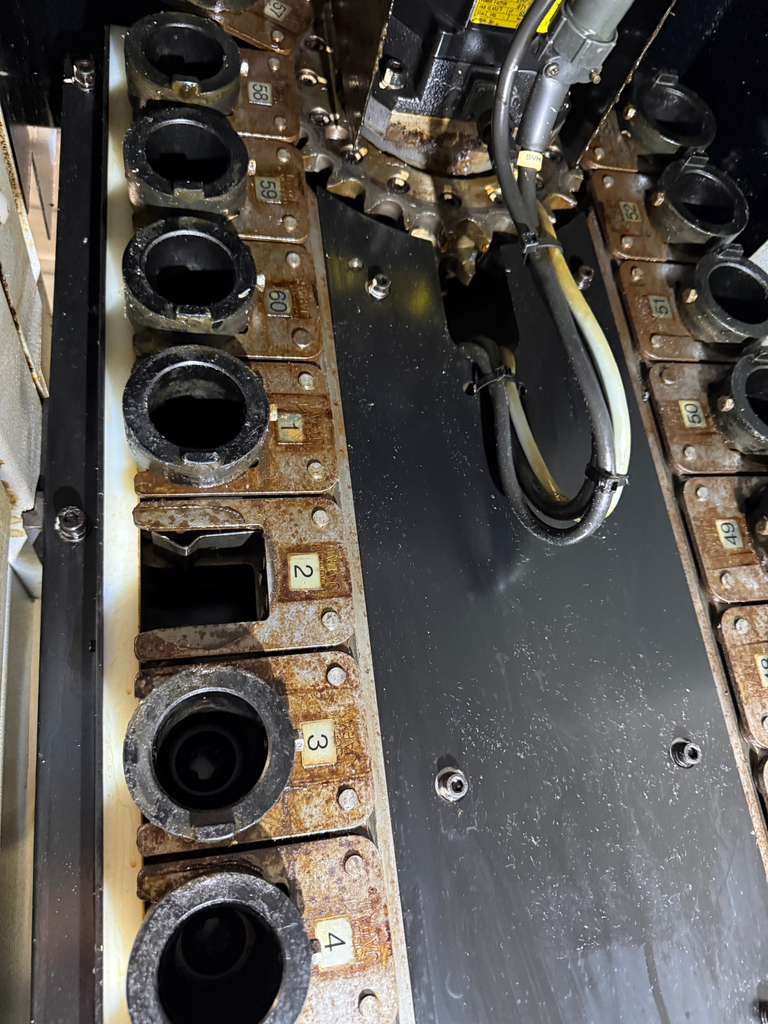

| Tool changer: |
| Capacity: 60 Tools |
| Max Tool Diameter (without adjacent tools): 5.11″ |
| Max Tool Diameter (with adjacent tools): 2.70″ |
| Max Tool Length: 15.7″ |
| Max Tool Weight: 17.6 lbs. |
| Tool to Tool Change Time: 0.9 Second |
| General: |
| Air Required: 90 psi, 4 scfm |

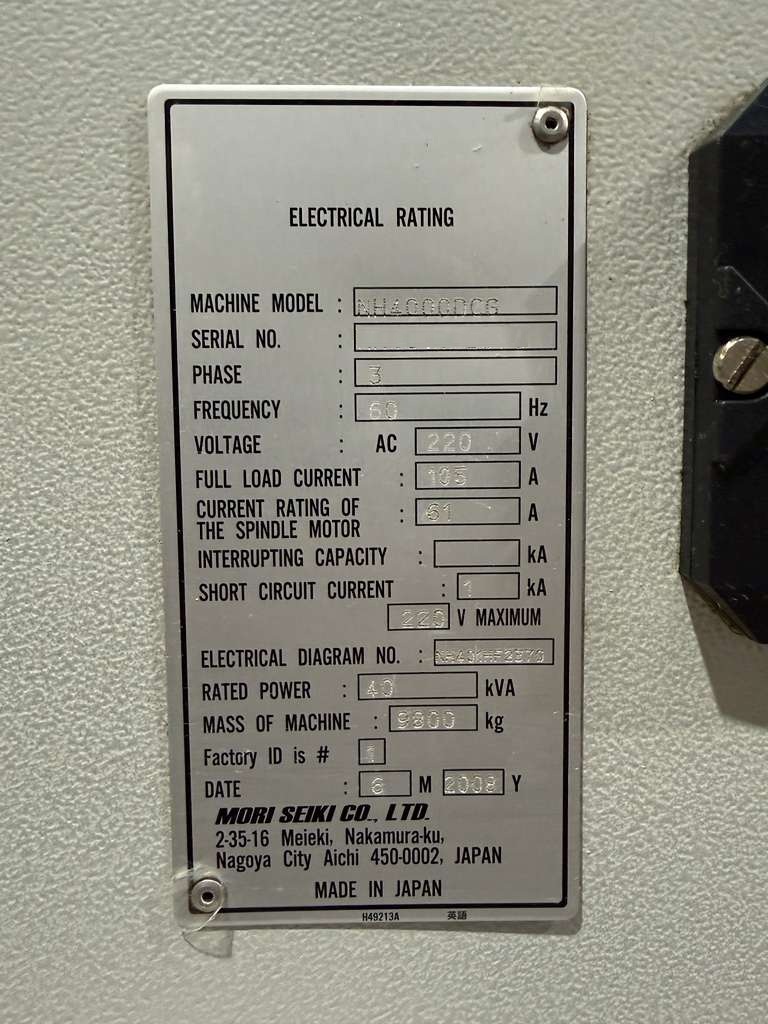

| Power: 40 kva / 220v / 3-Phase |
| Overall Dimensions: 157.6″ X 94.4″ x 106.7″ High |
| Weight: 21,605 lbs. Approx. |
