Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

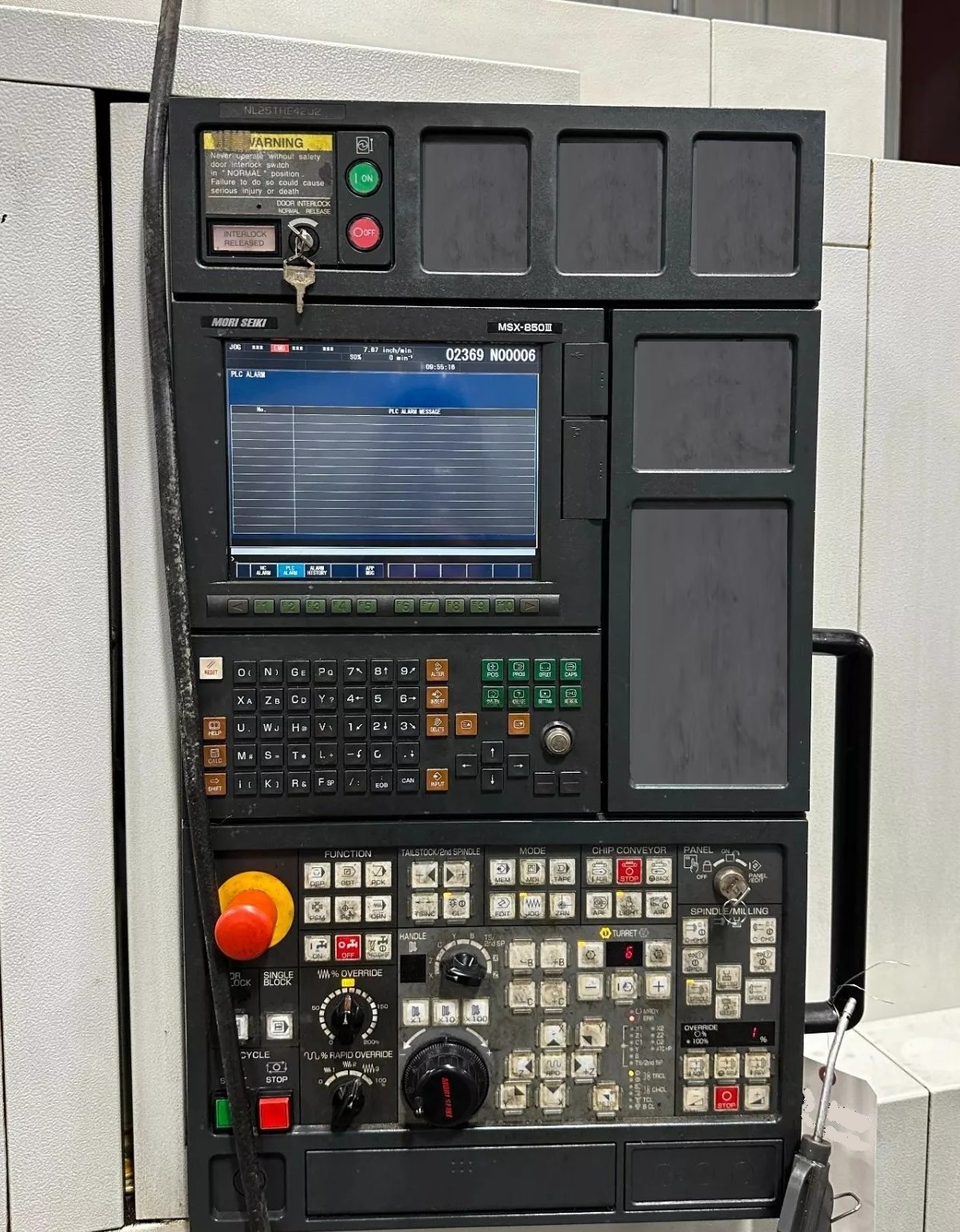

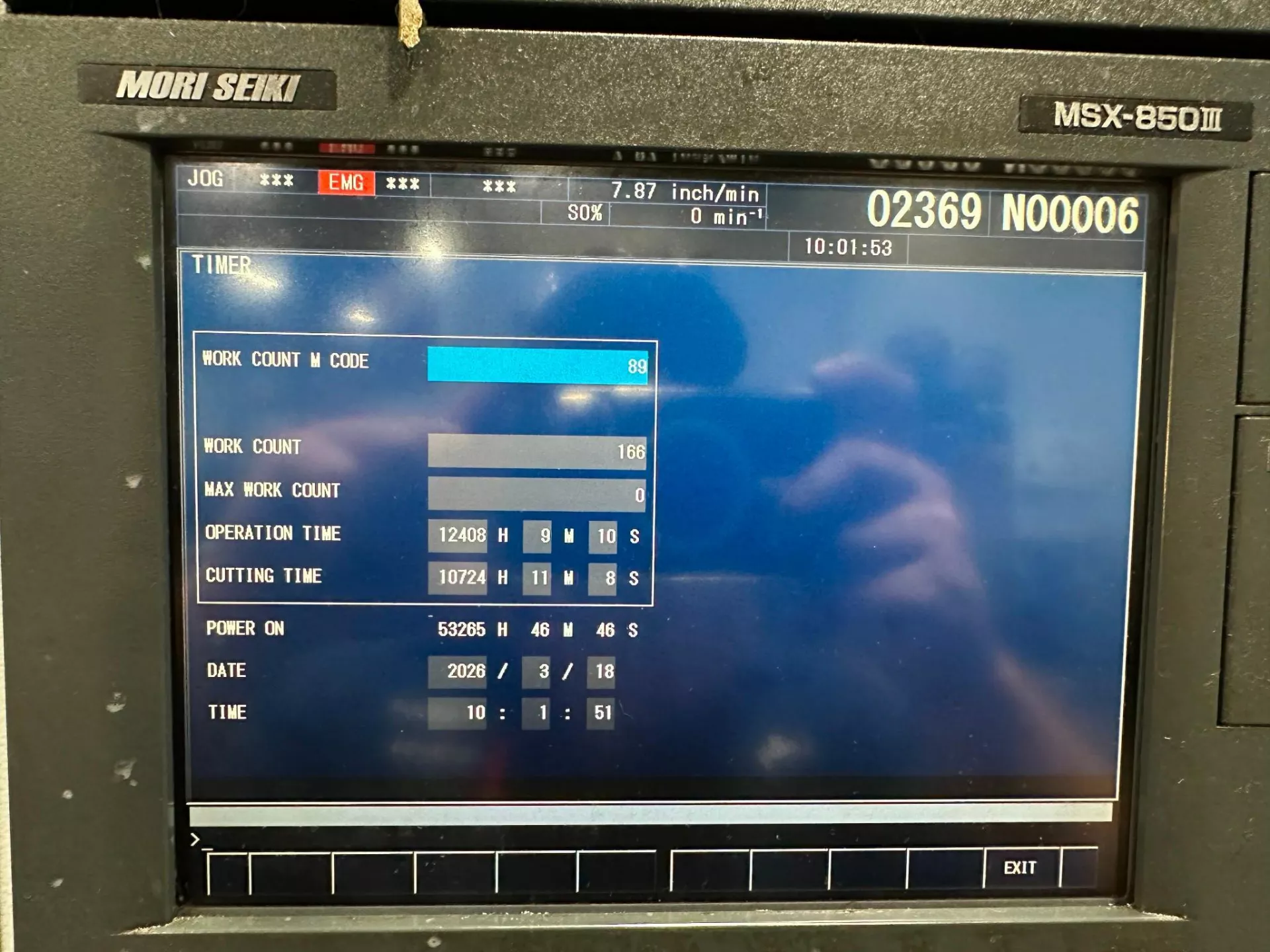

| Mori Seiki MSX-850III CNC Control |
| Heavy Duty Box Way Construction |

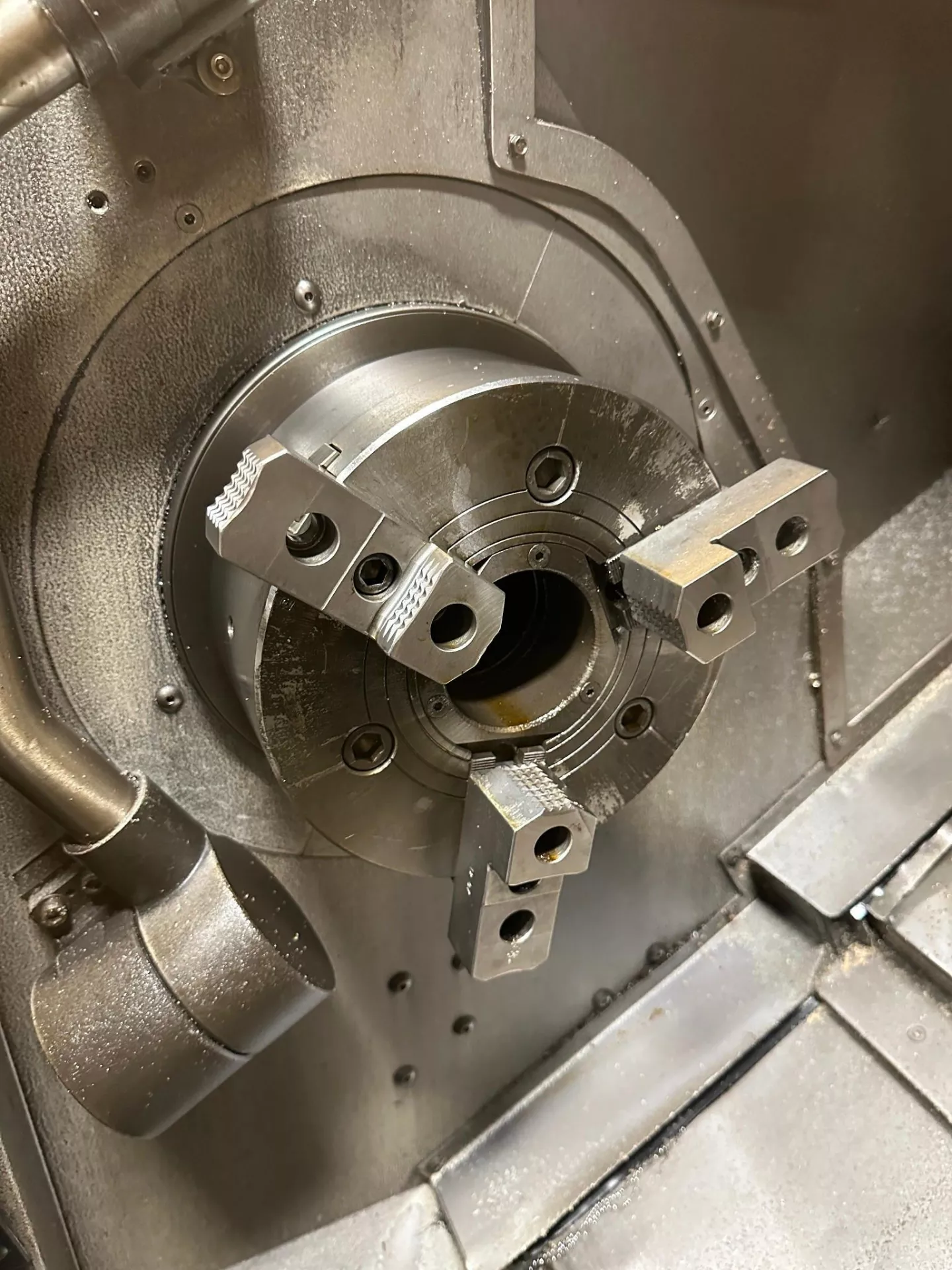

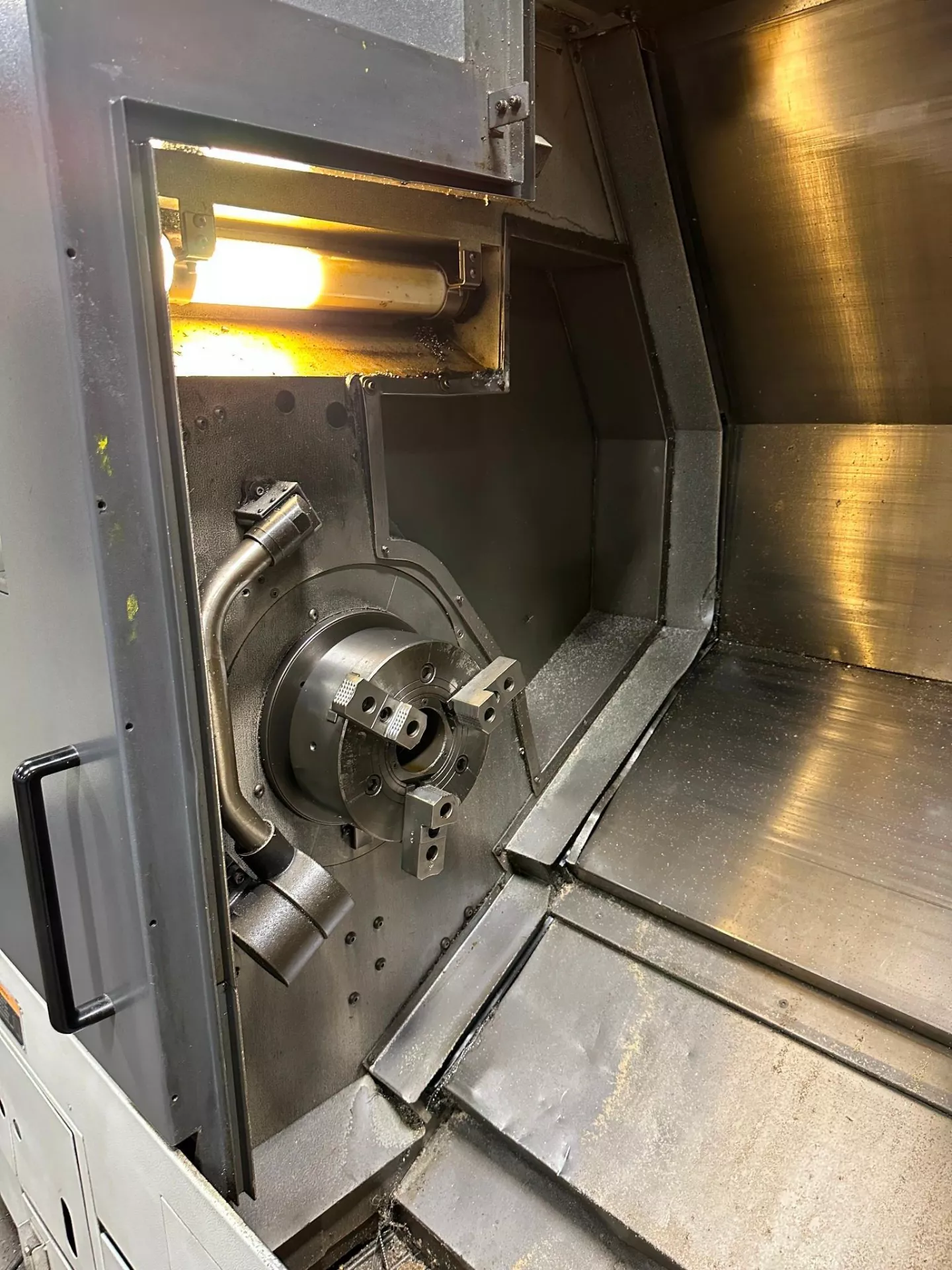

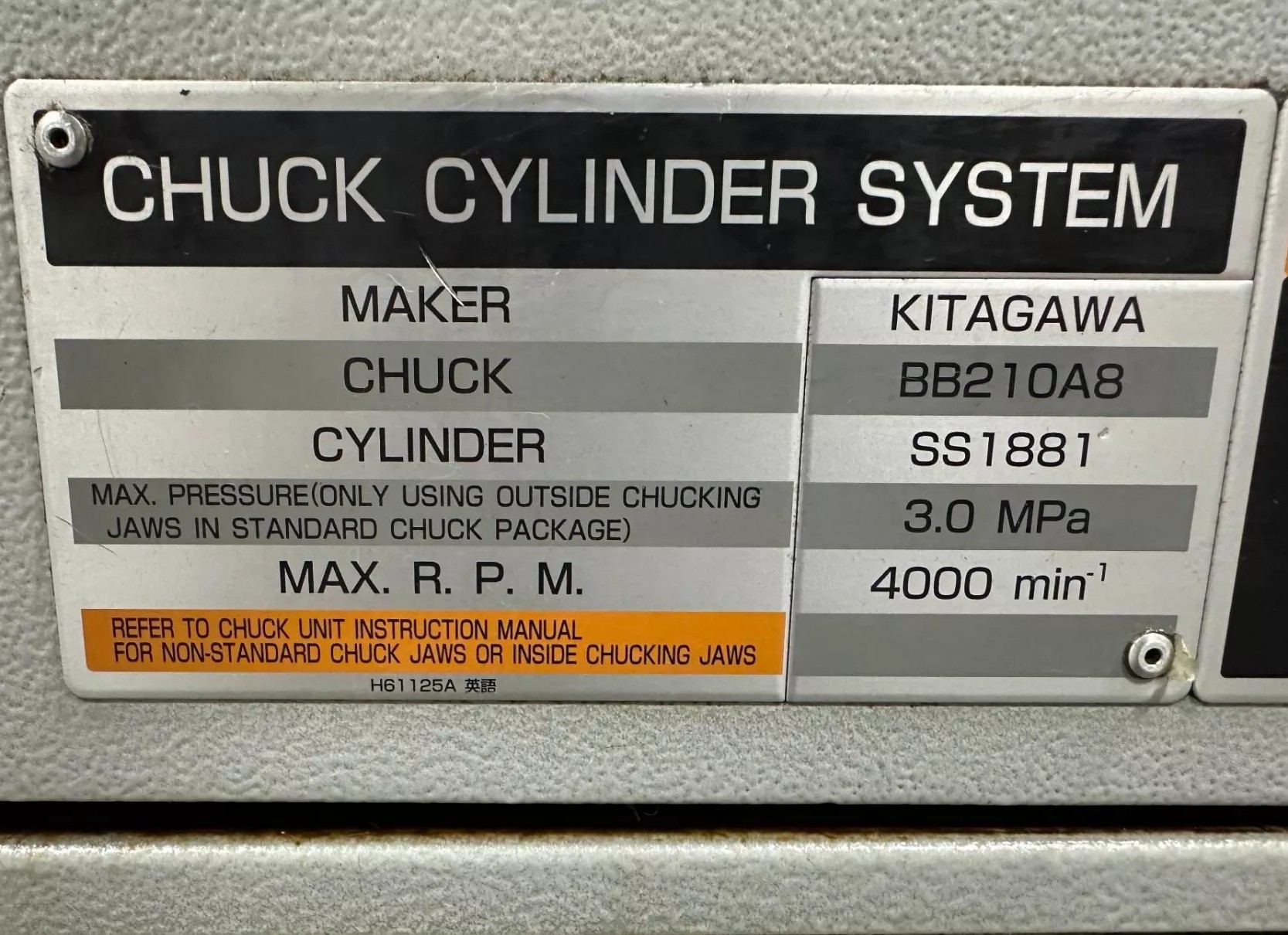

| 10″ 3-Jaw Kitagawa BB210 Hydraulic Chuck |
| Servo Controlled Full C Axis On Spindle |
| A2-8 Spindle Nose, 4000 RPM Spindle |

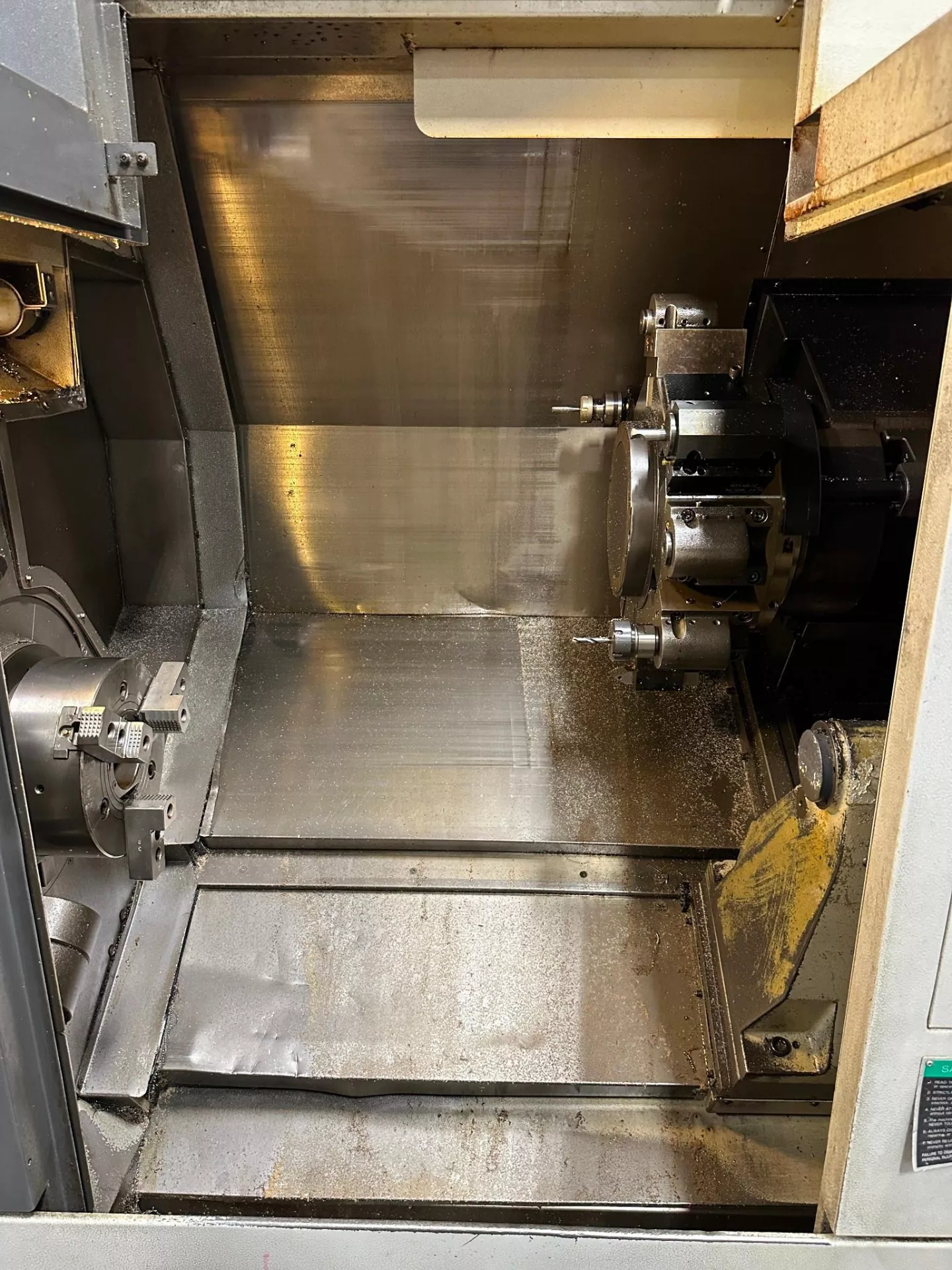

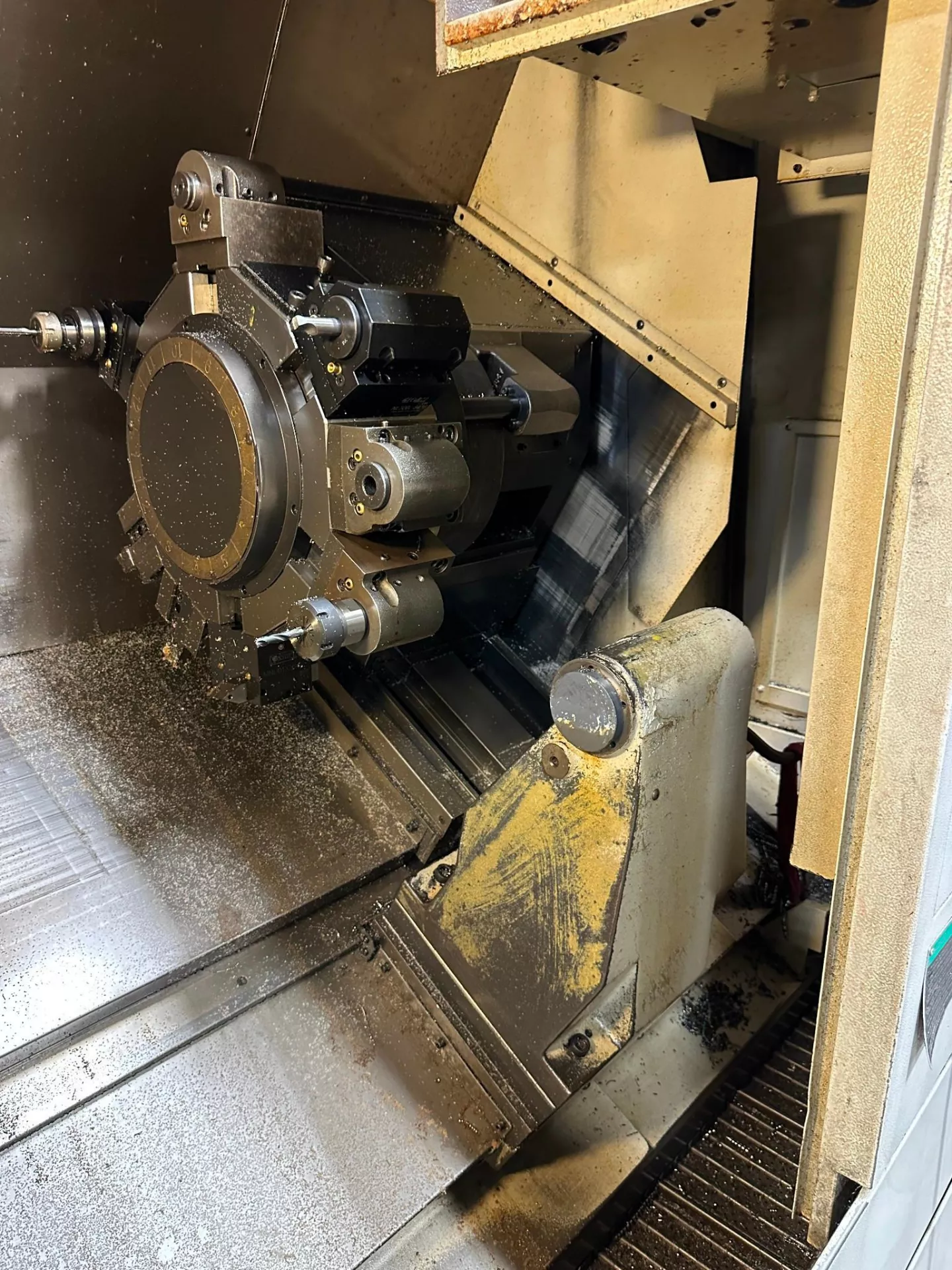

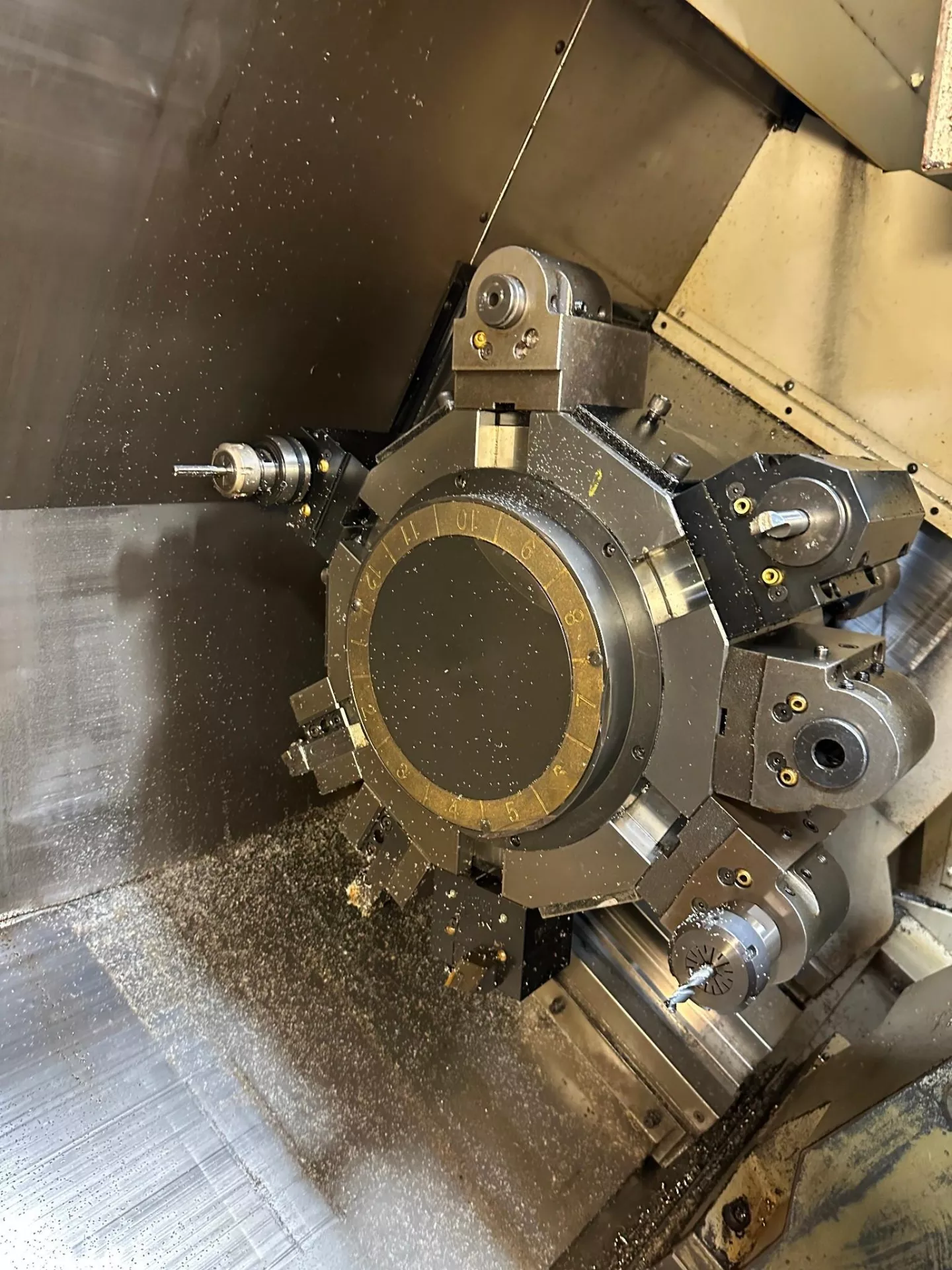

| 12 Station Live Tool Turret |
| Tool Presetter |
| Tailstock |
| Rigid Tapping |
| Coolant System |

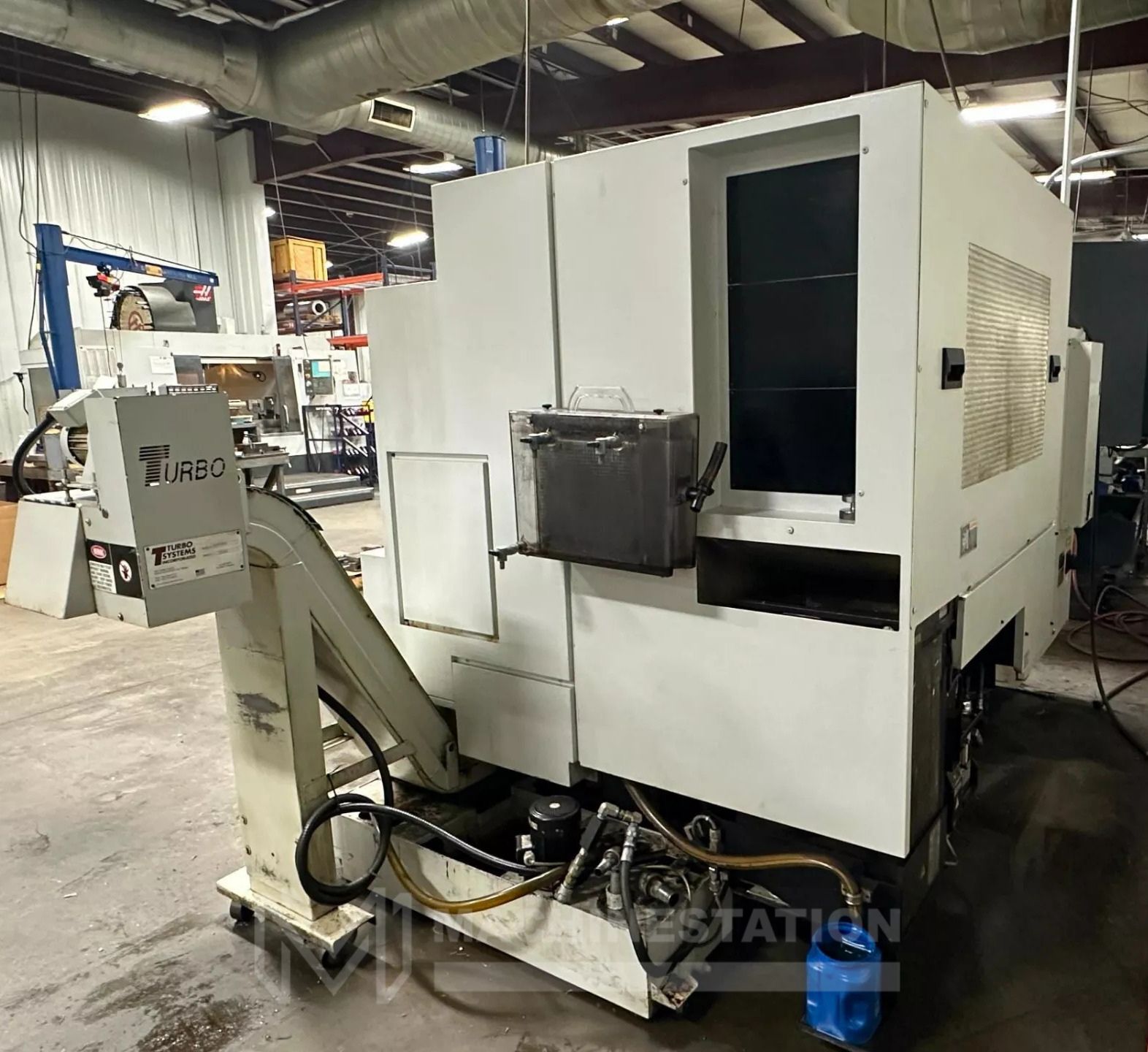

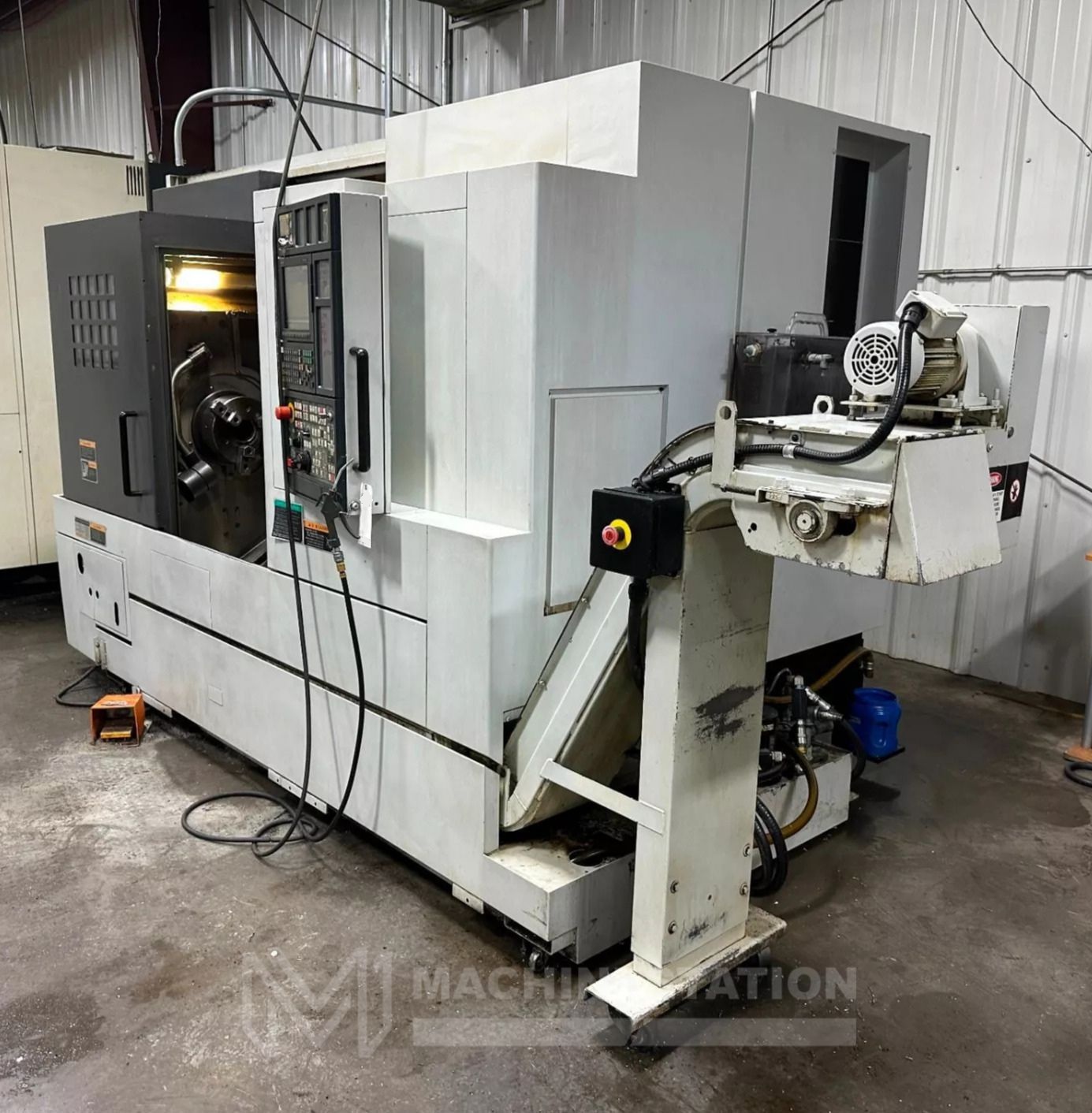

| Chip Conveyor |
| Foot Switch |
| Note: Tool holders mounted on the turret are not included with the machine |
| Capacity: |
| Max Turning Diameter: 14.0″ |
| Max Turning Length: 27.7″ |
| Swing Over Cross Slide: 29.7″ |
| Max Bar Capacity: 3.1″ |
| Travels: |
| X Axis Travel: 10.2″ |
| Z Axis Travel: 31.3″ |
| C Axis: 360 Degree (0.001) |
| Rapid Traverse Rate X & Z Axis: 1181 IPM |
| Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.6″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 25 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.25 Second |
| Rotary Tool Speed: 6000 RPM |
| Rotary Tool Motor: 7.5 HP |
| Tool Holders Type: Bolt Mounted |
| Tailstock: |
| Tailstock Tapper: MT-5 |
| Tailstock Body Travel: 28.9″ |
| Tailstock Quill Diameter: 3.1″ |
| General: |

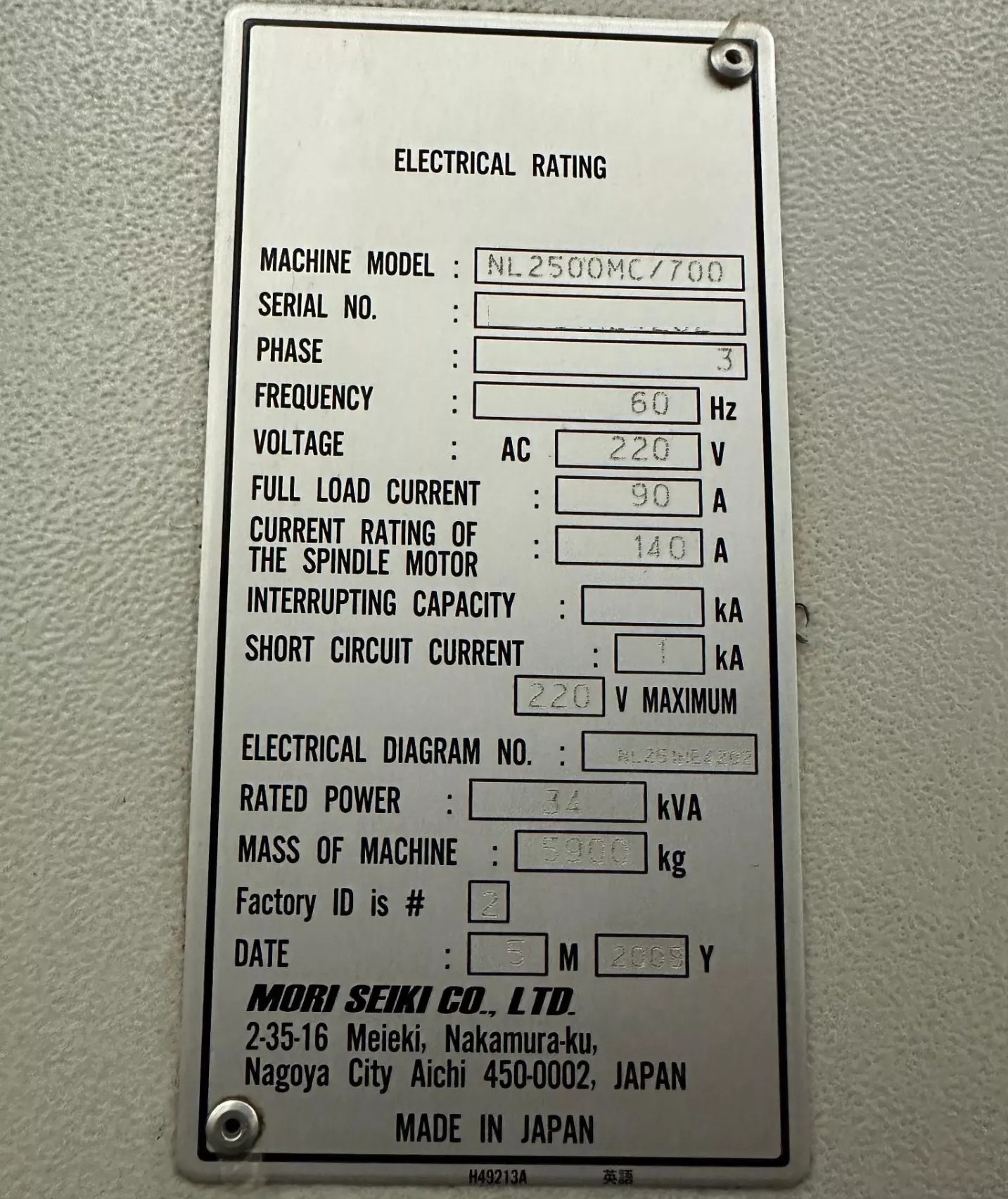

| Power Source: AC 220 V Three Phase 60 Hz |
| Power Requirement: 34 kva |
| Overall Dimensions: 122″ x 76 ″ x 83″ High Approx. |
| Weight : 13,000 lbs Approx. |
