Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

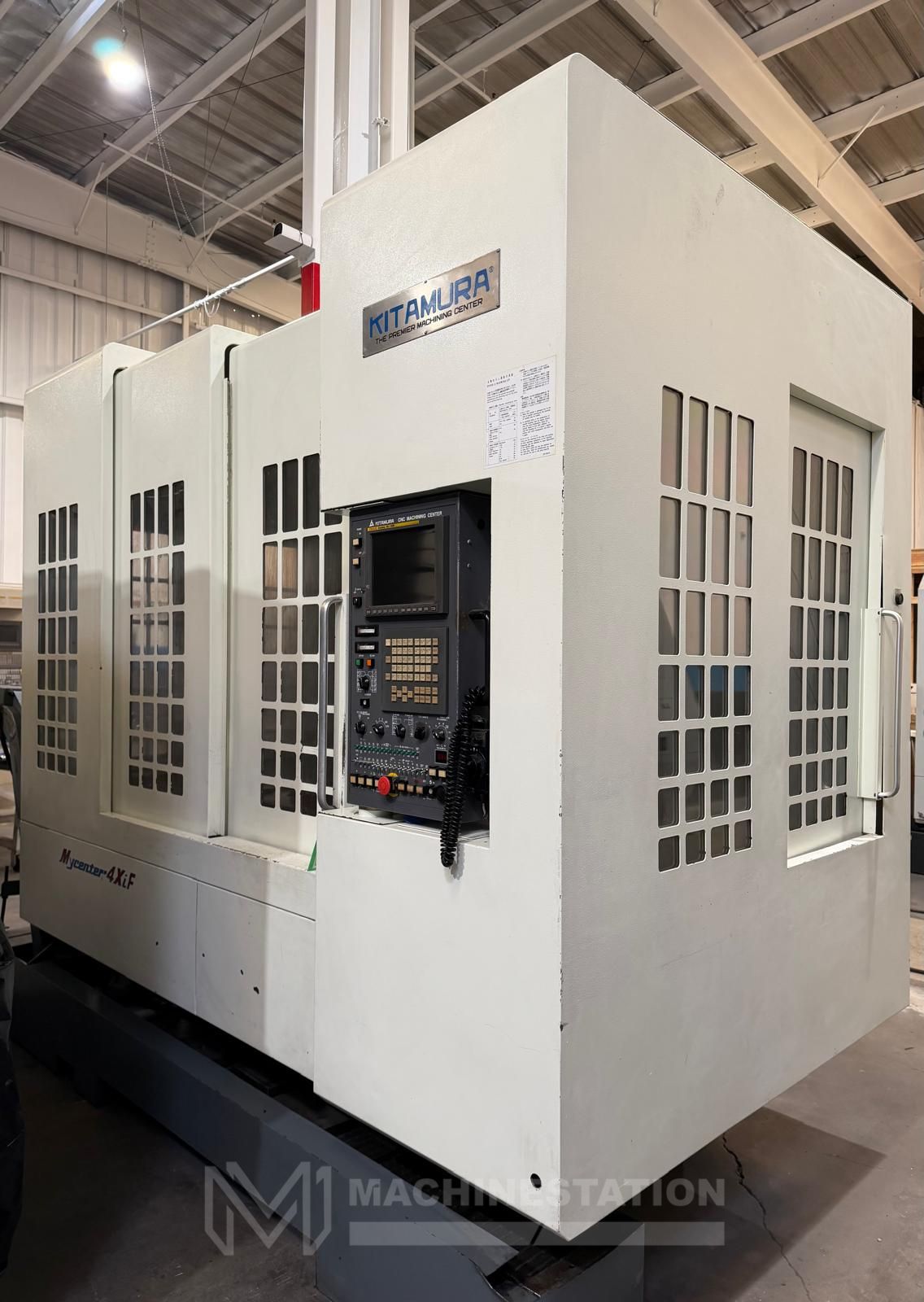

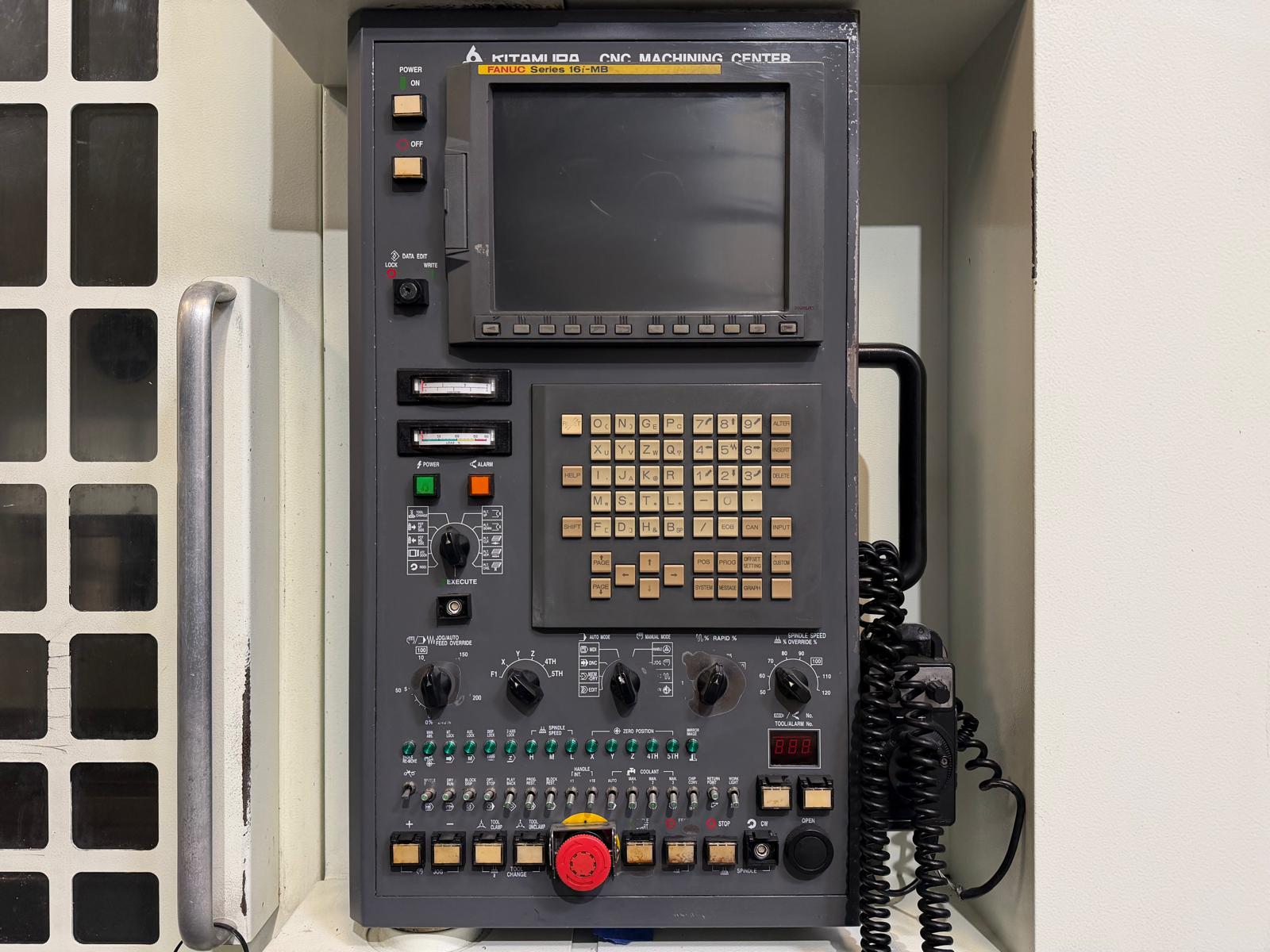

| Fanuc 16i-MB Series CNC Control |
| Heavy Duty Box Ways Construction |
| 10,000 RPM High Torque Spindle |
| Through Spindle Coolant |
| 40 Station Automatic tool changer |
| 20 HP High Torque Spindle Motor |

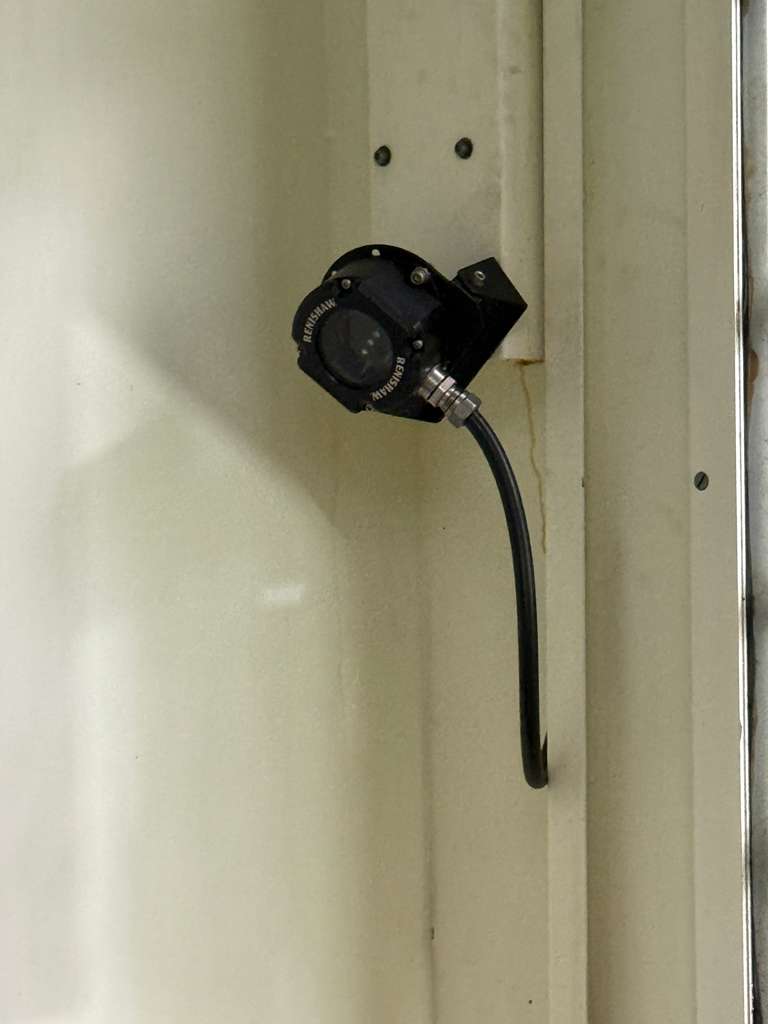

| Renishaw Receiver Installed |
| Renishaw OMP60 Tool Probe |
| CAT-50 Taper |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Chiller Unit |

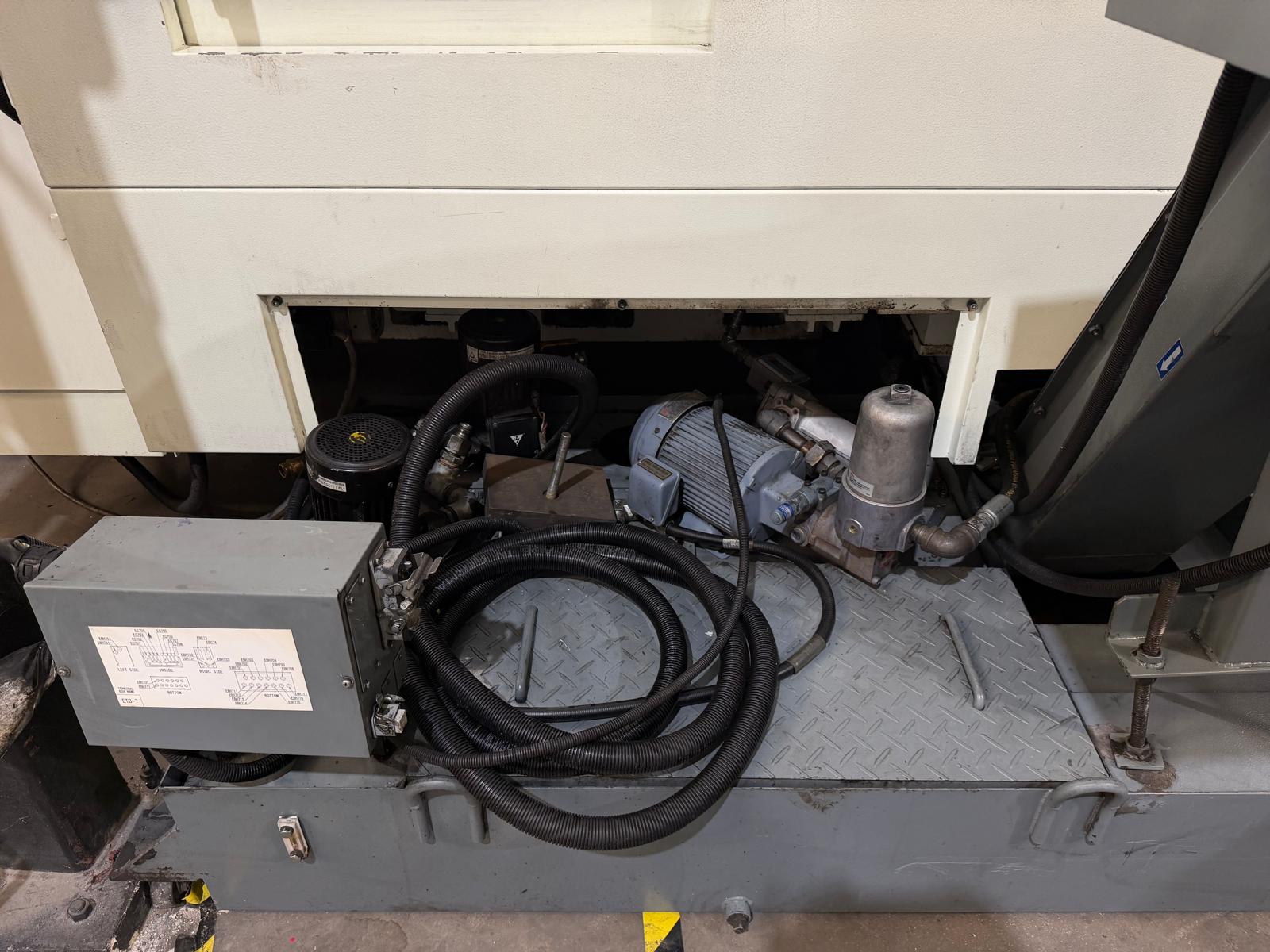

| Coolant System |

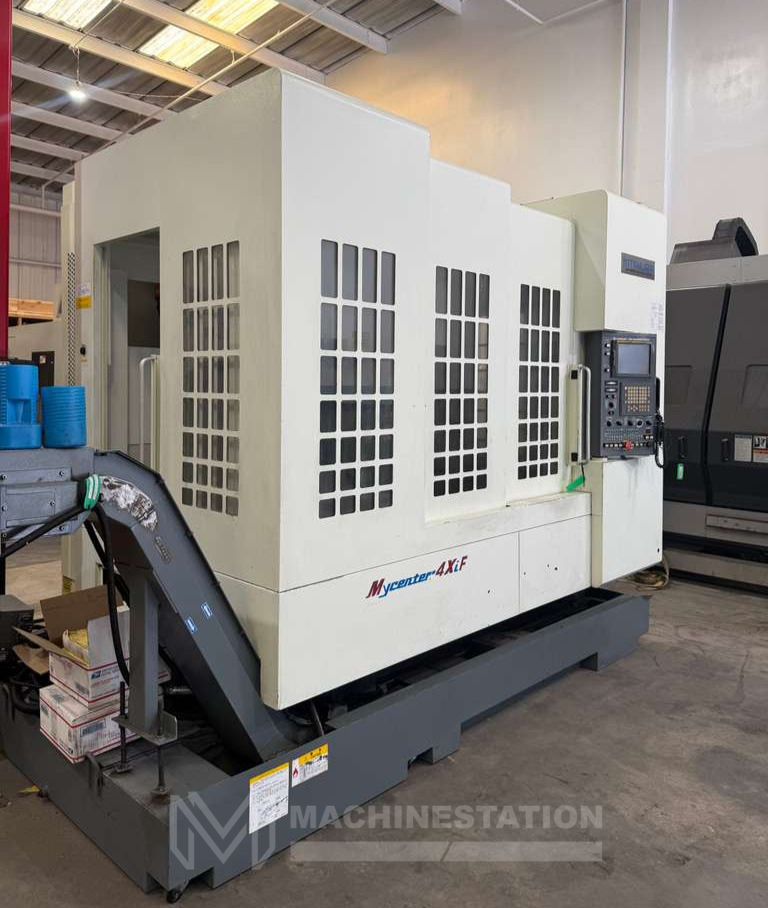

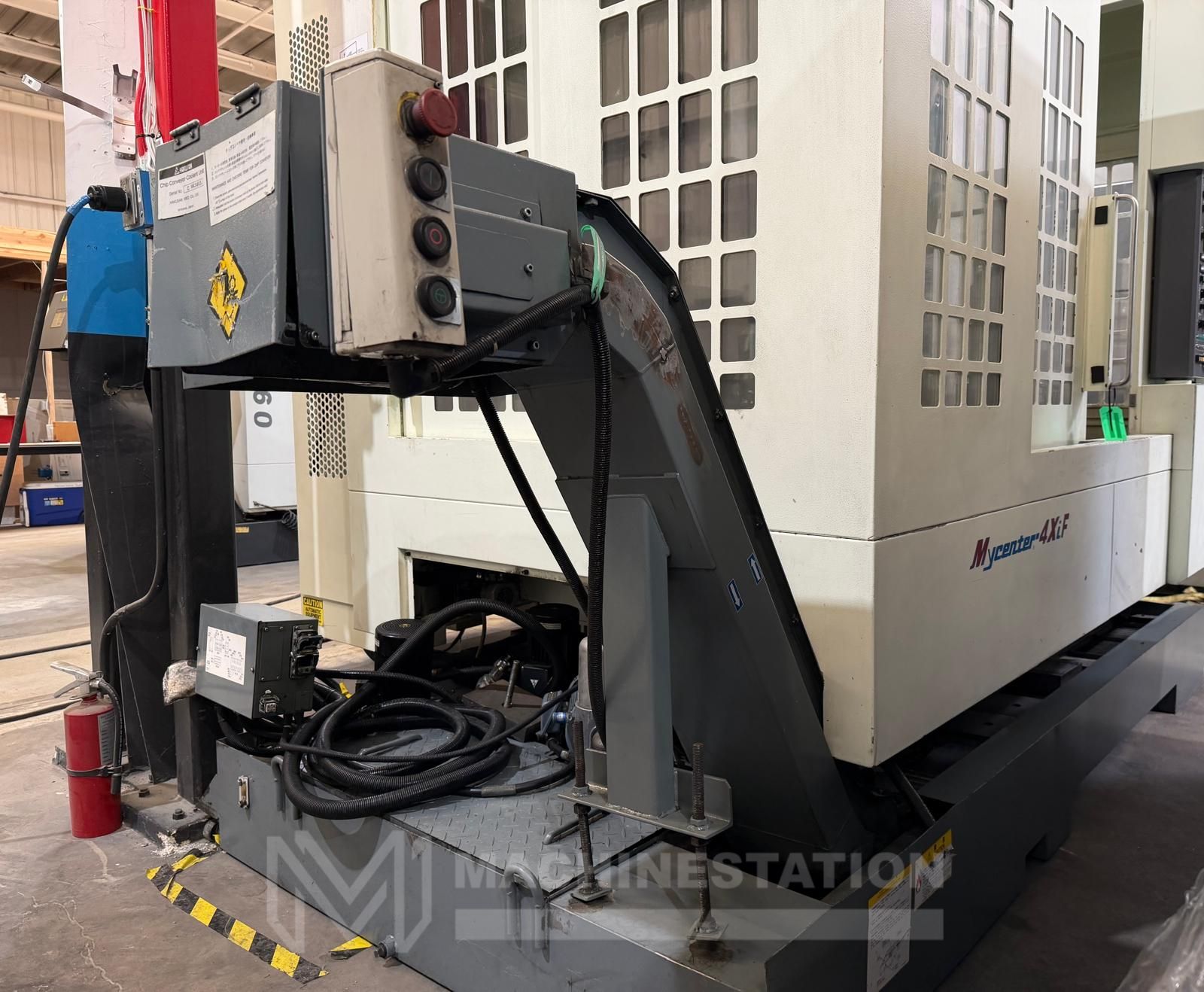

| Chip Conveyor |
| Travels: |
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ |
| Spindle Nose to Table (Min.-Max): 5.9″ – 27″ |

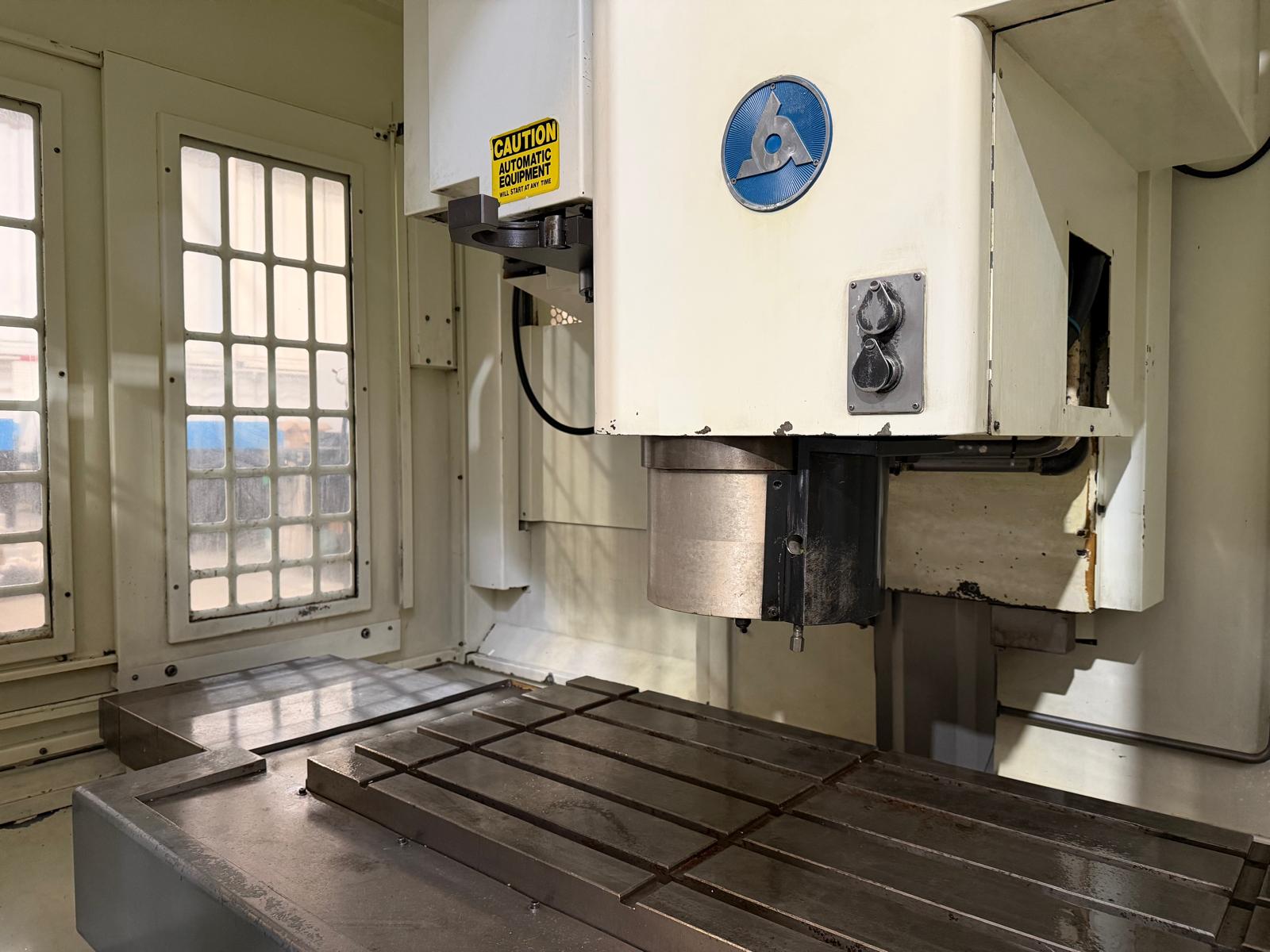

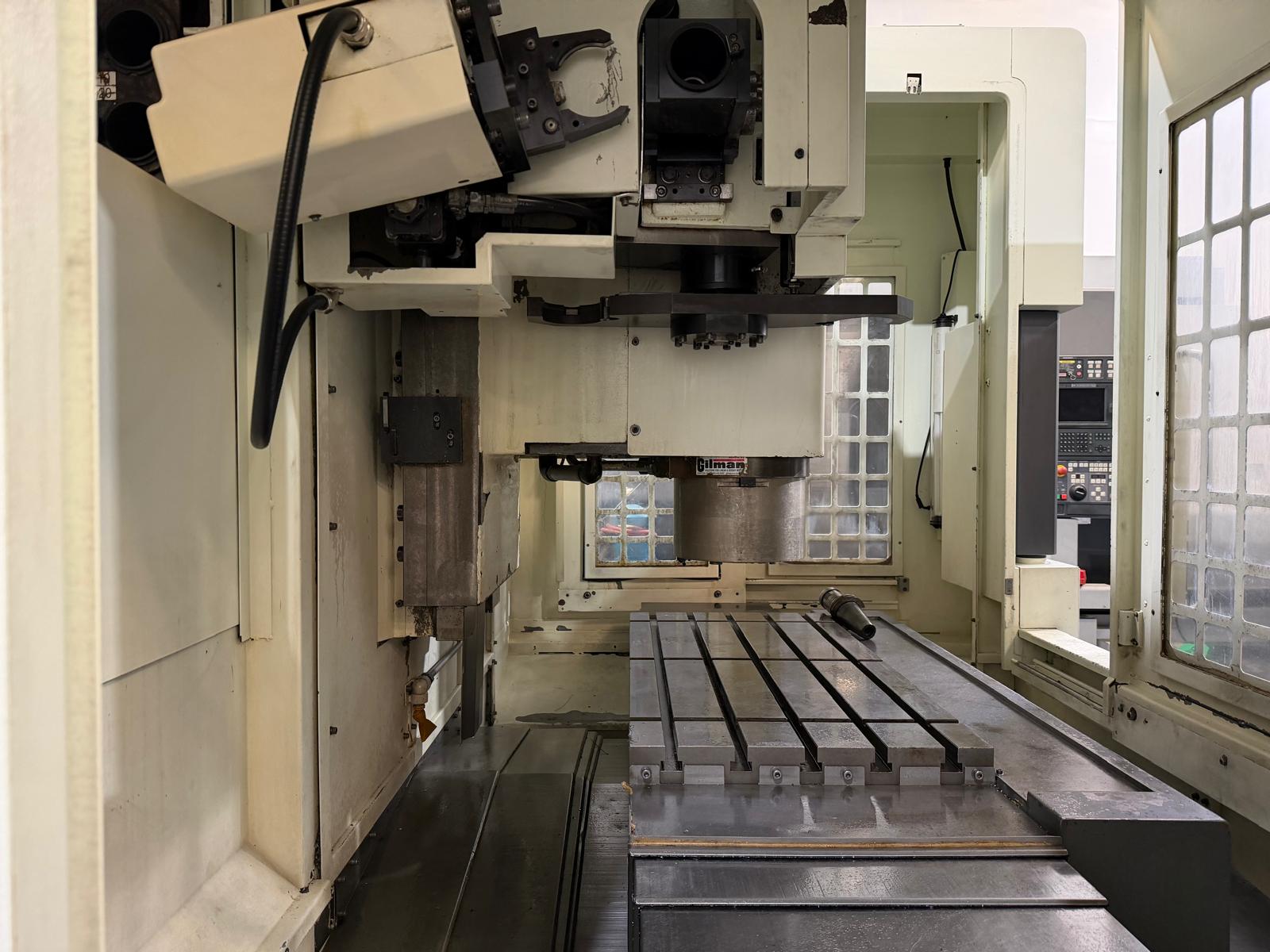

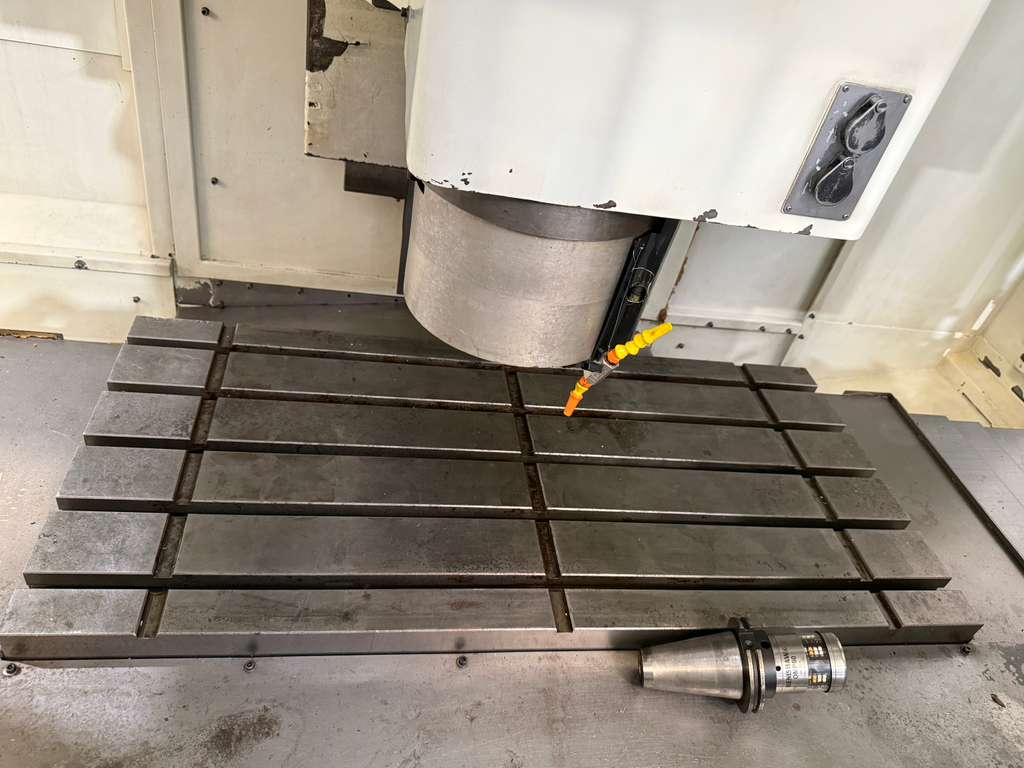

| Table: |
| Length: 43.0″ |
| Width: 20.5″ |
| Max Weight on Table: 1320 lbs |

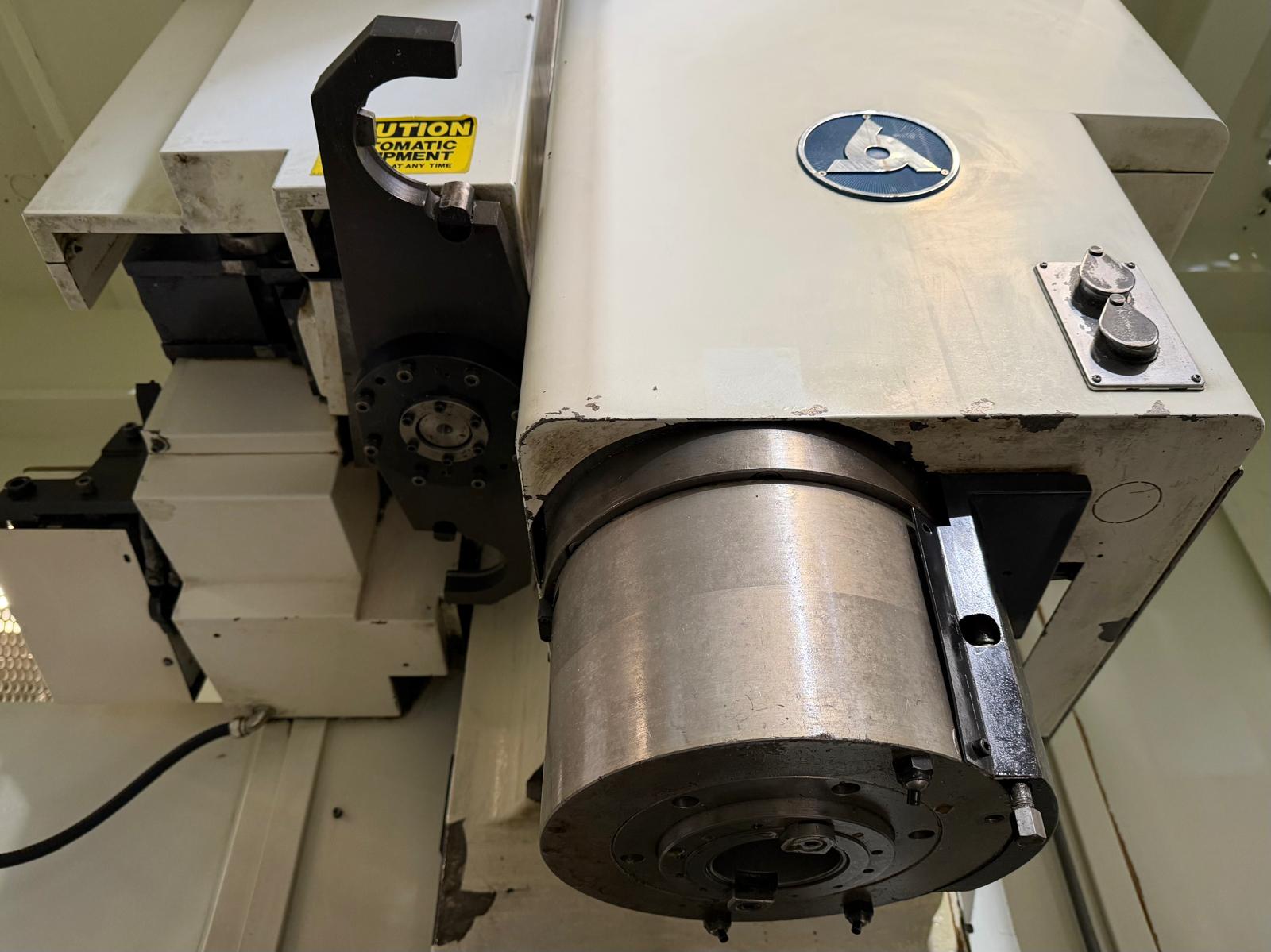

| Spindle: |
| Taper Size: CAT-50 |
| Speed Range: 10000 RPM |
| Spindle Power: 20 HP |

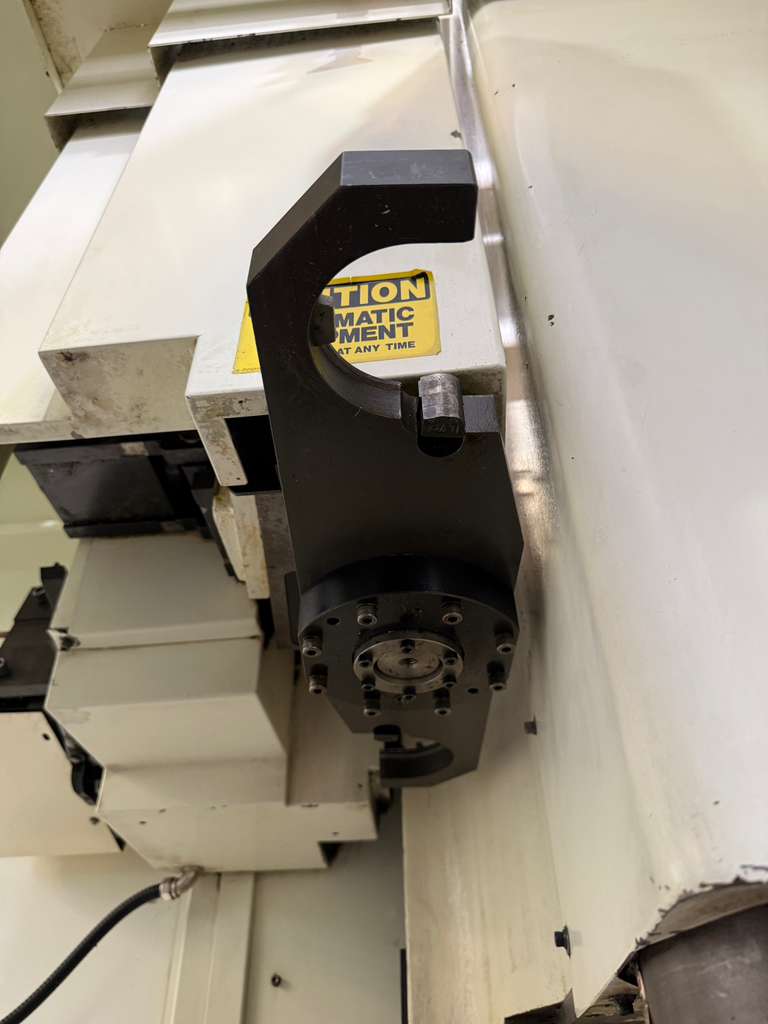

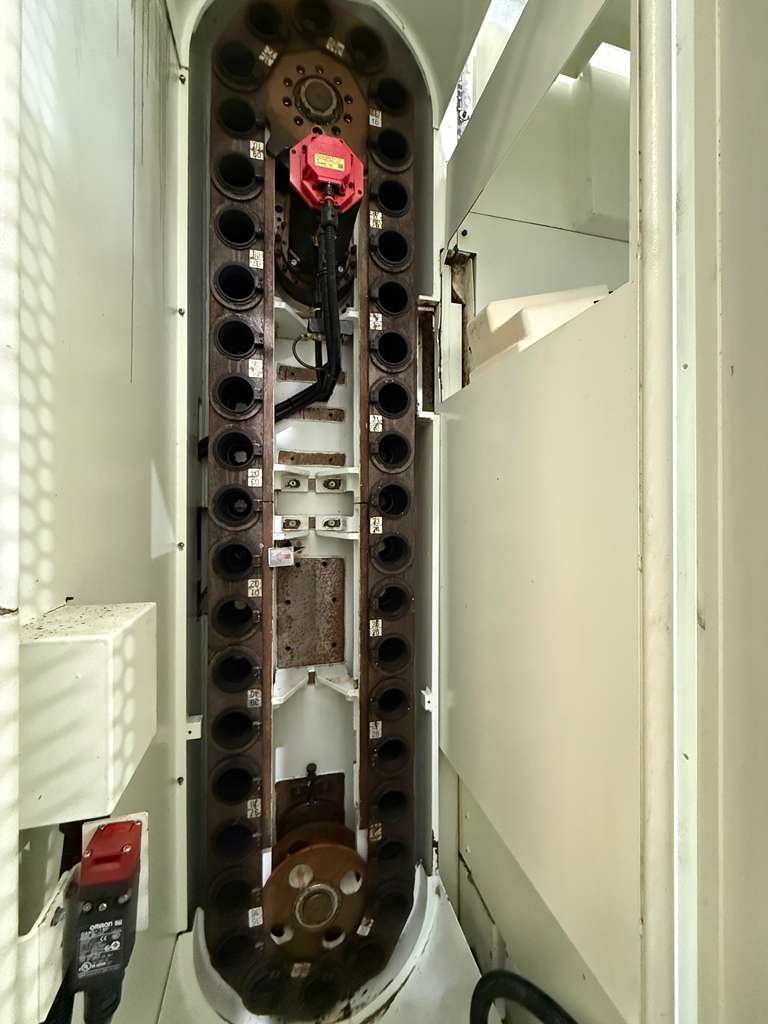

| Automatic Tool Changer: |
| Capacity: 40 Station Side Mounted |
| Tool Weight: 33 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia.: 4.33″ |
| Feed Rates: |
| Rapid Traverse Rates X & Y Axis: 1969 IPM |
| Rapid Traverse Rates Z Axis: 1417 IPM |
| General: |
| Air Required: 80 psi, 4 scfm |
| Power: 220v/ 3-Phase, 35Kva |
| Overall Dimensions: 140″ x 116″ x 120″ High |
| Weight: 18,000 lbs |
| Categories | CNC Vertical Machining Center |
|---|
| Categories | Recently Added CNC Machines, CNC Vertical Machining Centers - VMC |
|---|
