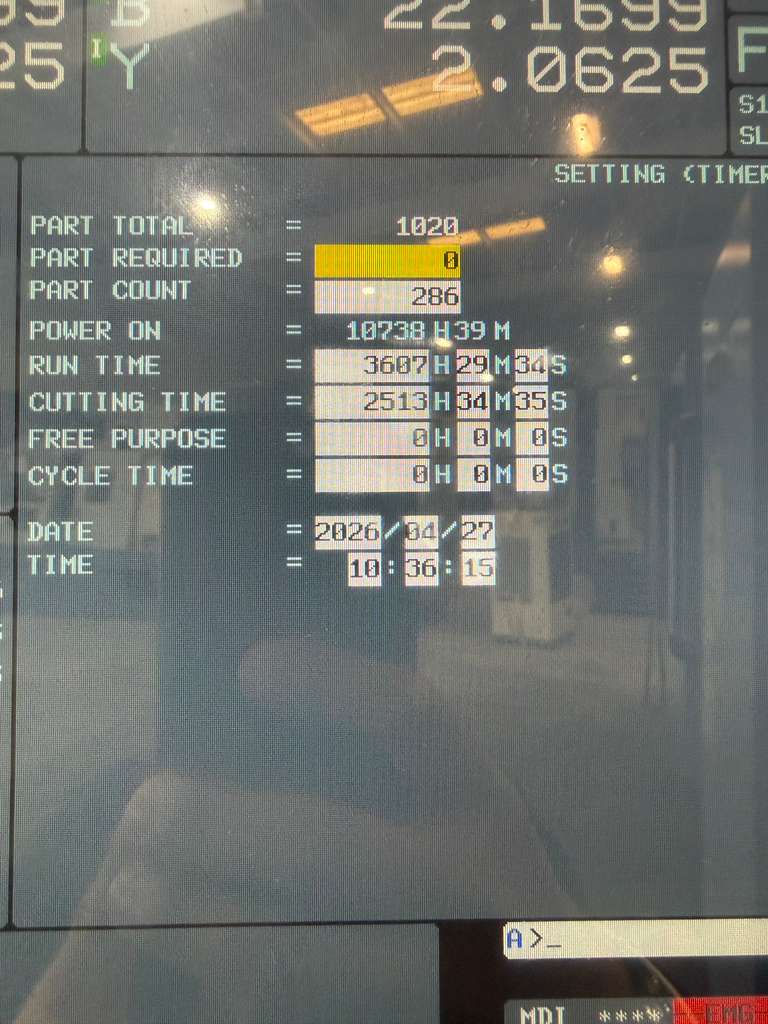

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

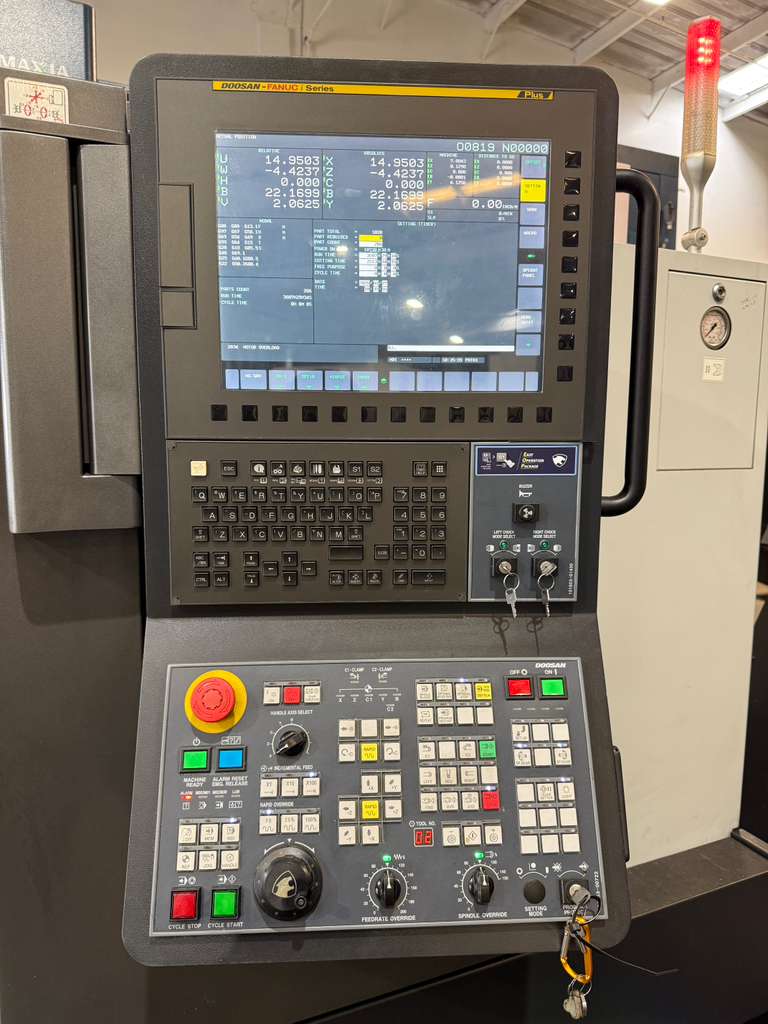

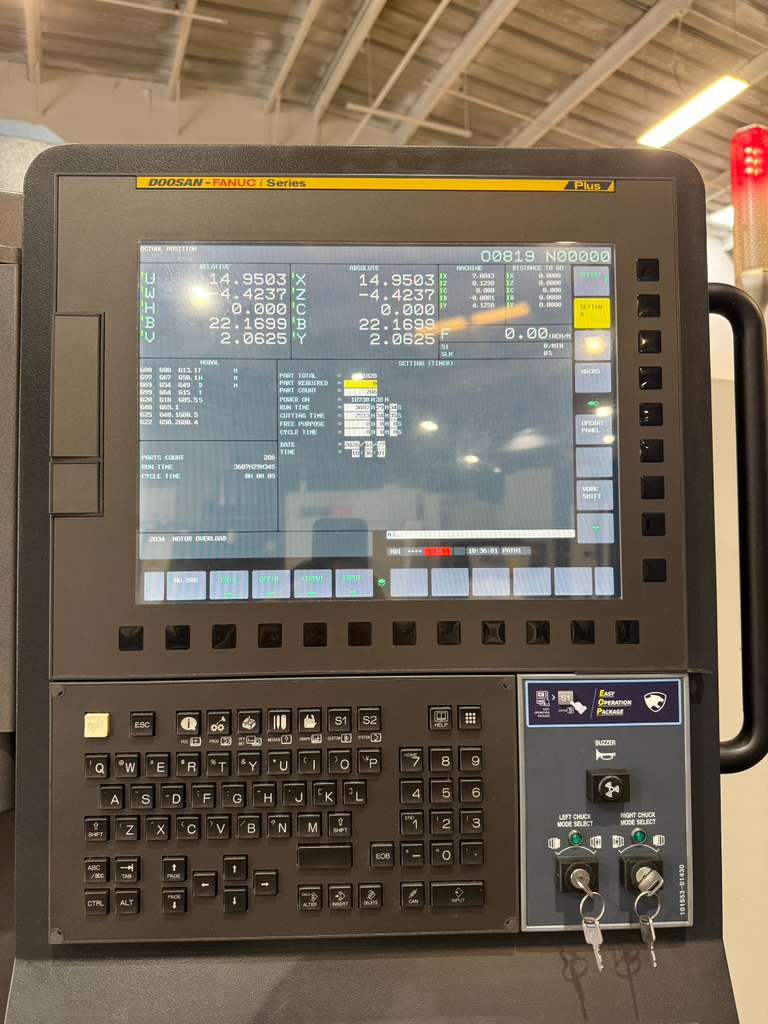

| Doosan-Fanuc i-Plus Series CNC Control |

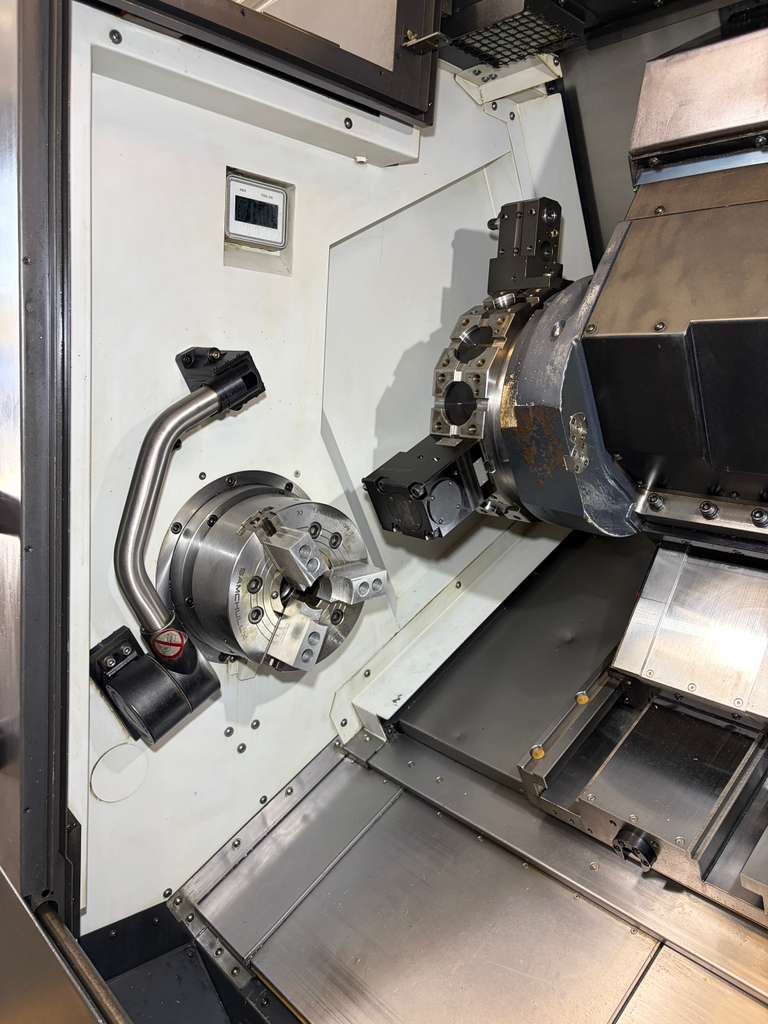

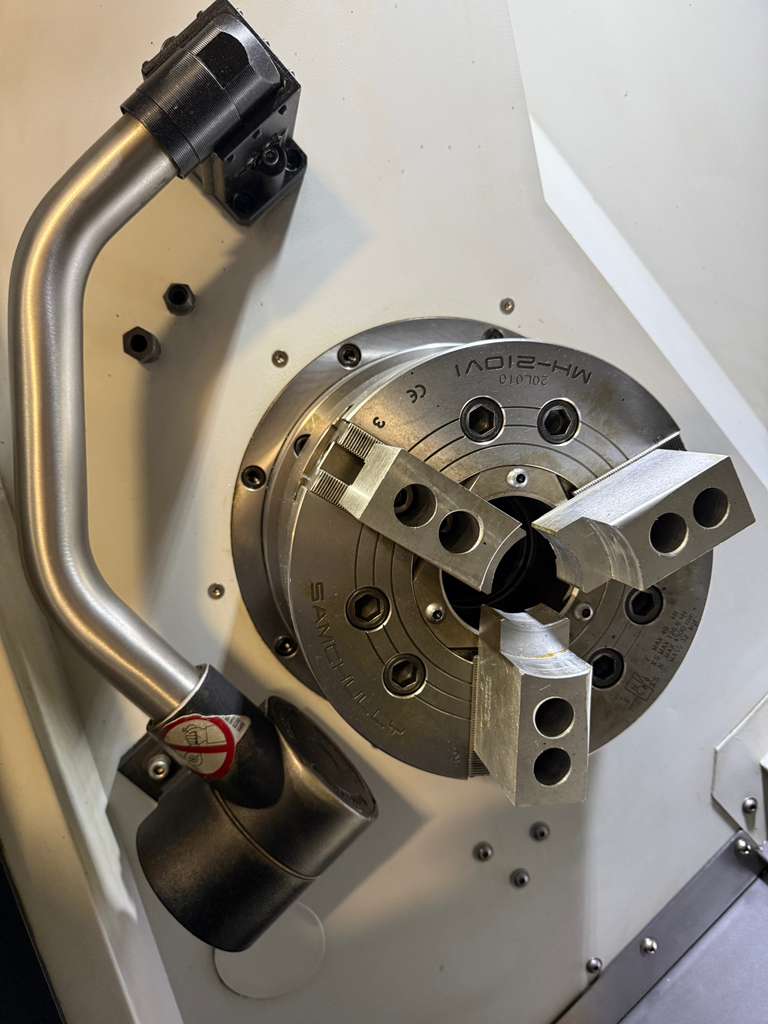

| 10″ 3-Jaw Chuck on Main Spindle |

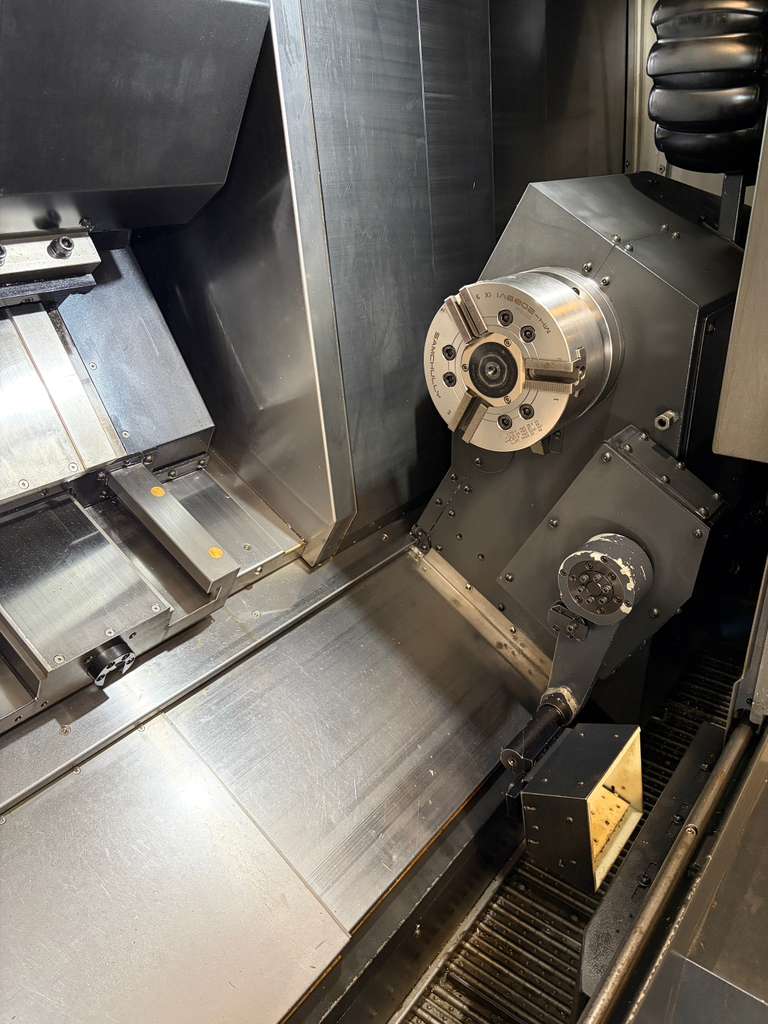

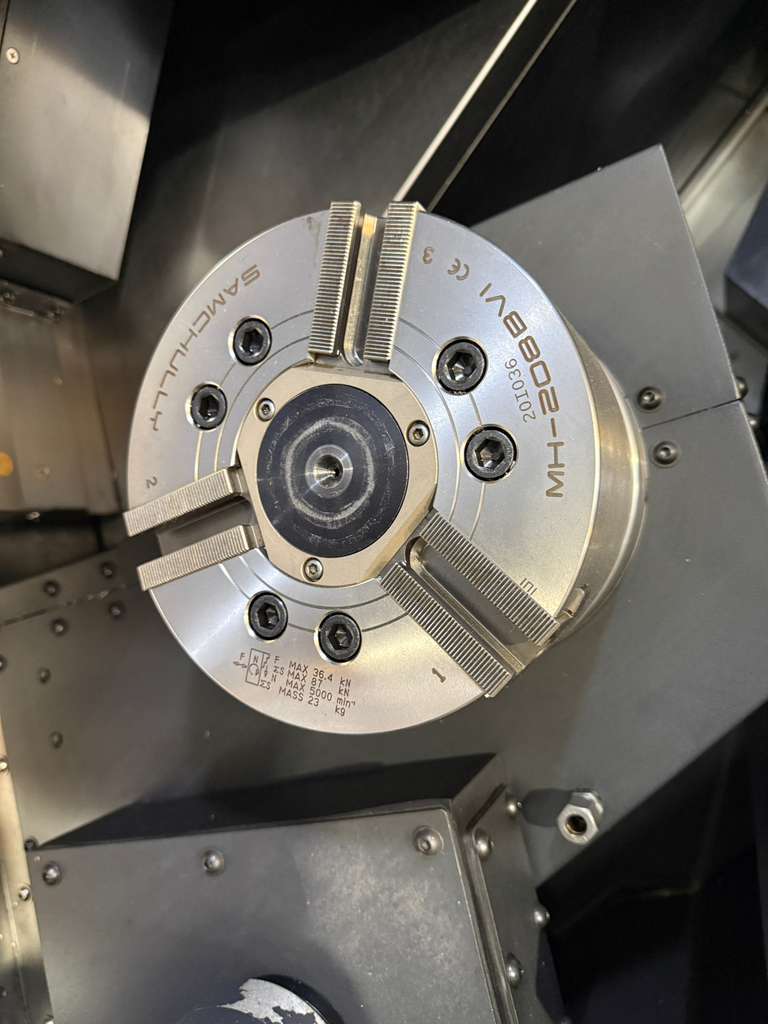

| 8″ 3-Jaw Chuck on Sub Spindle |

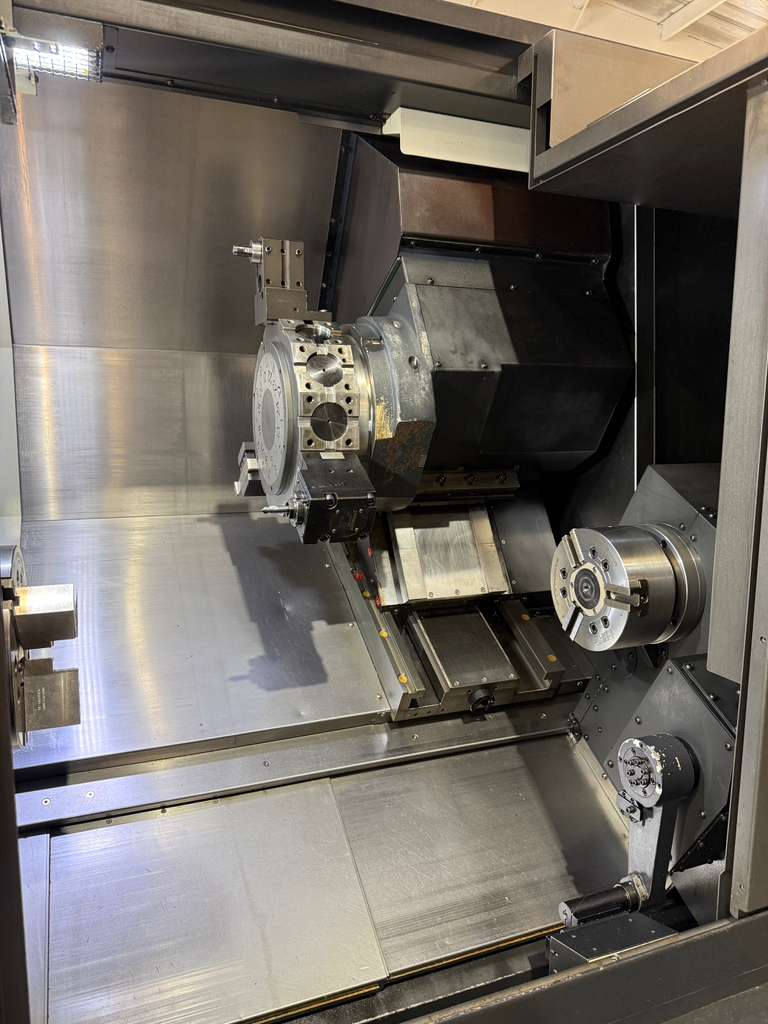

| Sub Spindle |
| Sub Spindle Parts Ejector |
| Servo Controlled Full C-Axis on Both Spindles |

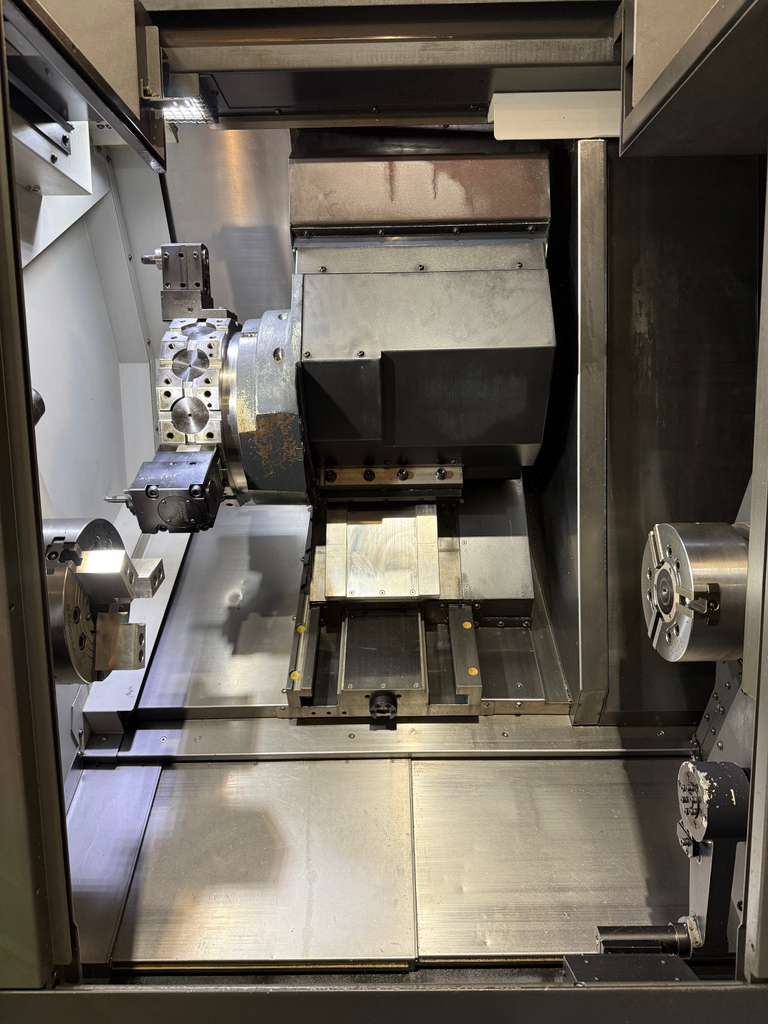

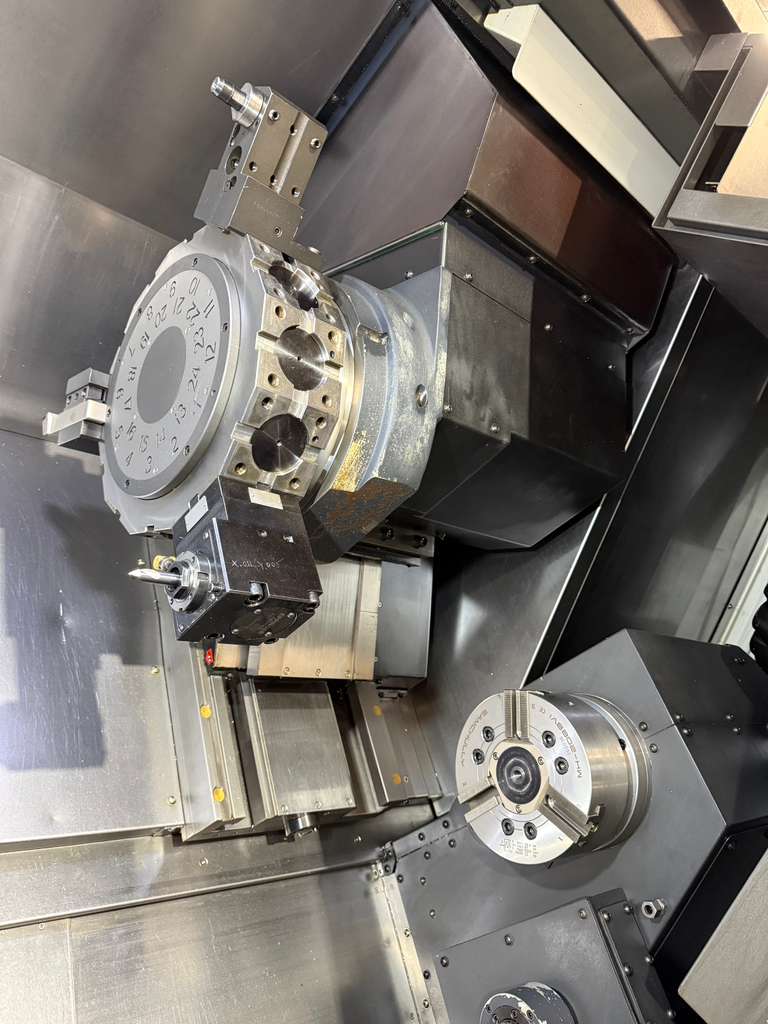

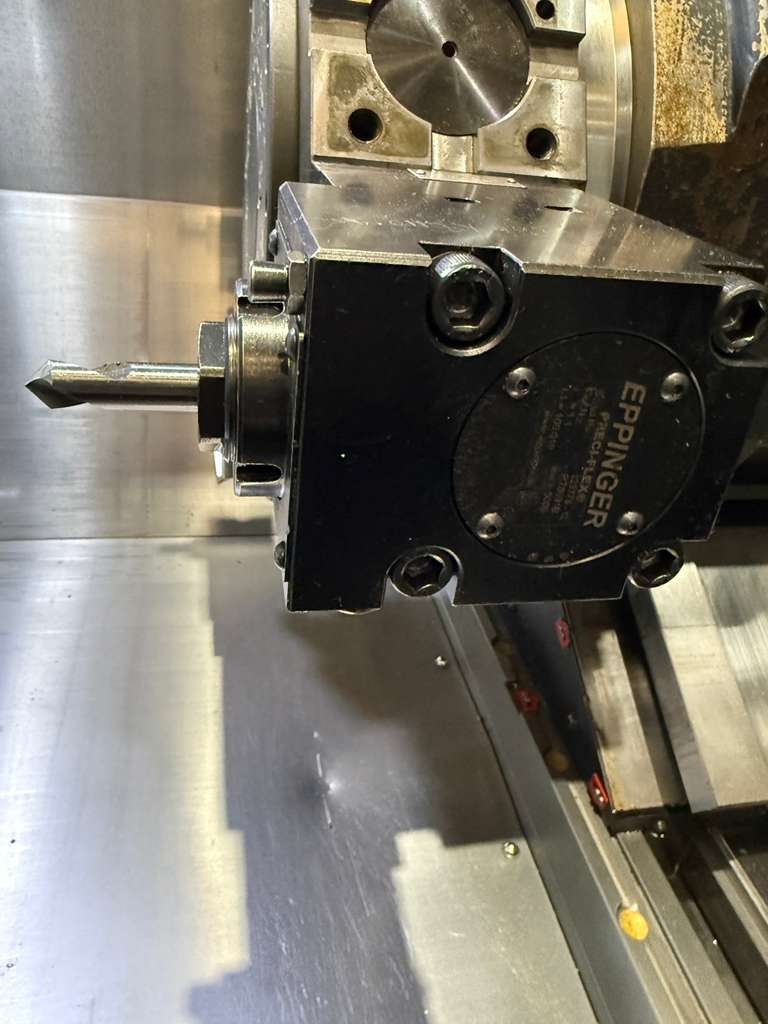

| 12-Station (24 Positions) Live Tool Turret |
| Y Axis Capable |
| Tool Presetter |
| Parts Catcher |
| Parts Conveyor |
| Bar Feeder Interface |

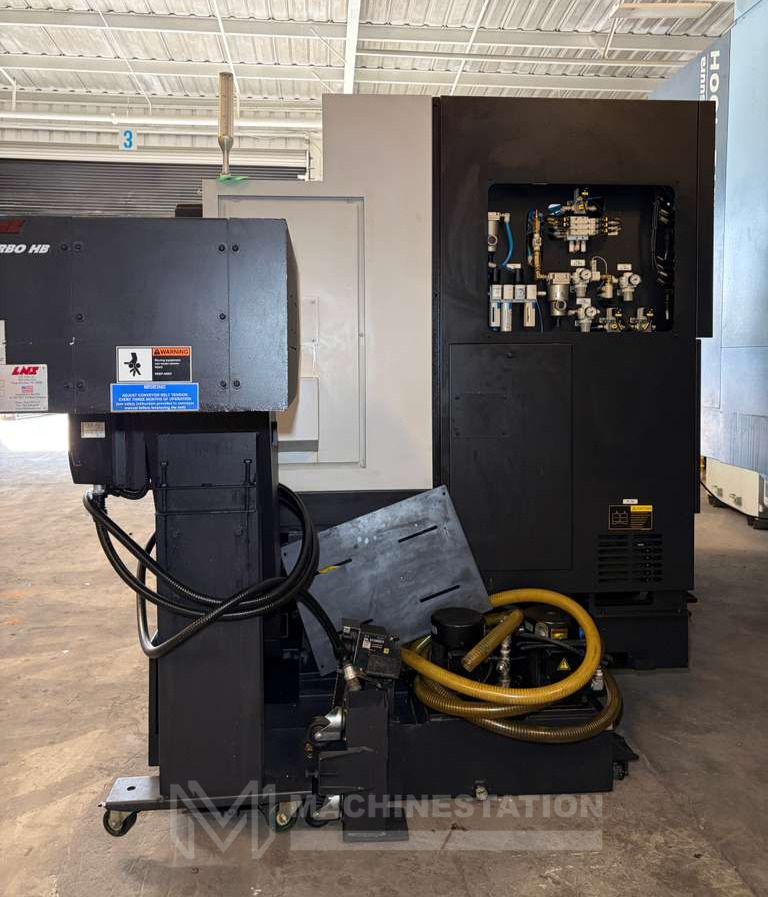

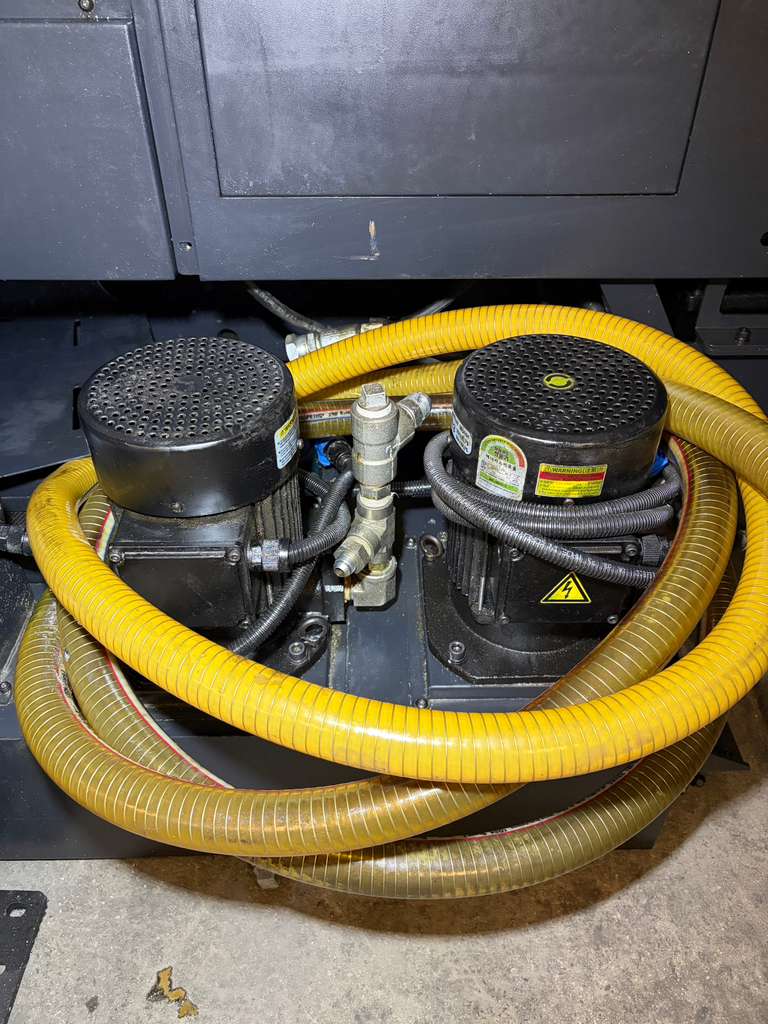

| MP Systems VR8 High Pressure Coolant System |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |

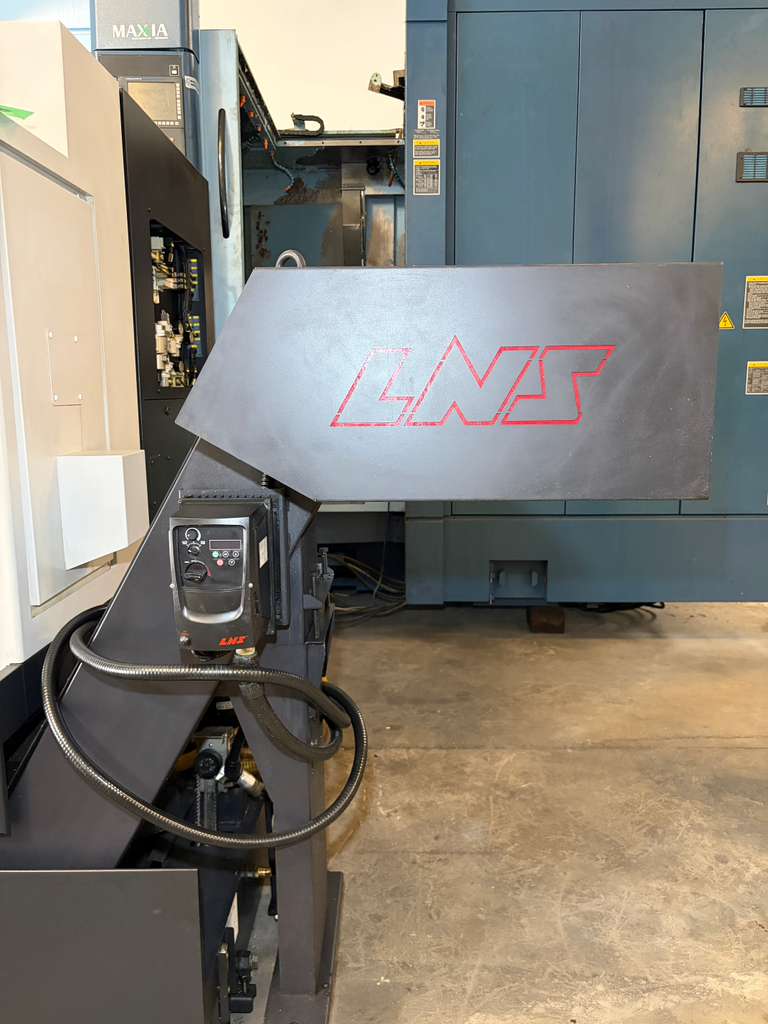

| LNS Chip Conveyor |
| Capacity: |
| Max Turning Diameter: 14.80″ |
| Max Turning Length: 29.90″ |
| Swing Over Bed: 30.70″ |
| Swing over the Saddle: 24.80″ |
| Max Bar Capacity: 3.20″ |
| Travels: |
| X Axis Travel: 10.20″ |
| Z Axis Travel: 32.70″ |
| Y Axis Travel: 4.10″ (+ 2.10″ – 2.10″) |
| B Axis Travel: 32.70″ (Sub Spindle) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Rapid Traverse B Axis: 1181 IPM |
| Rapid Traverse C Axis: 200 RPM |
| Spindle: |
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 3.60″ |
| Main Spindle Bar Capacity: 3.20″ |
| Main Spindle Speed: 4,000 RPM |
| Main Spindle Power: 30 HP |
| Sub Spindle: |
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.40″ |
| Sub Spindle Bar Capacity: 1.96″ |
| Sub Spindle Speed: 6,000 RPM |
| Sub Spindle Power: 20 HP |
| Turret: |
| Capacity: 12 Stations (24 Positions) |
| Turret Index Time: 0.15 Second |
| Live Tool Speed: 5,000 RPM |
| Live Tool Spindle Power: 10 HP |
| Tool Holders Type: BMT-65P |
| General: |

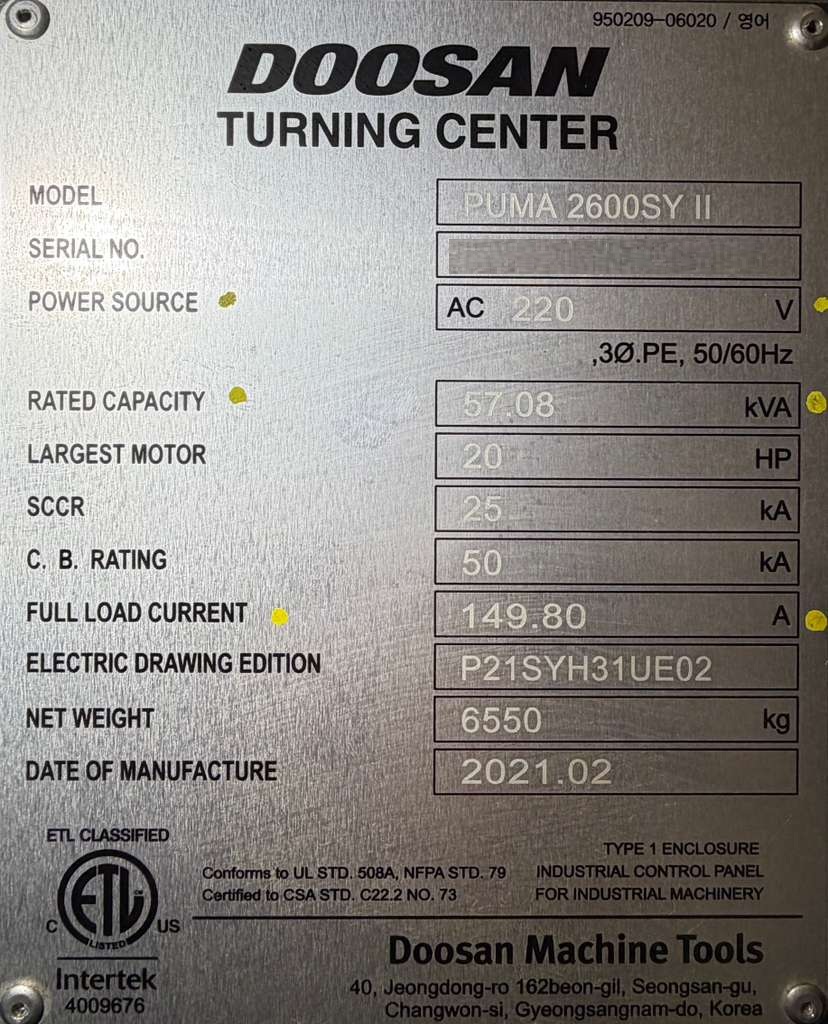

| Power Source: 220v / 3-Phase / 60 Hz/ 57.08 kva |
| Overall Dimensions: 142″ x 75″ x 85″ High Approx. |
| Weight: 14,220 lbs Approx. |
