Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

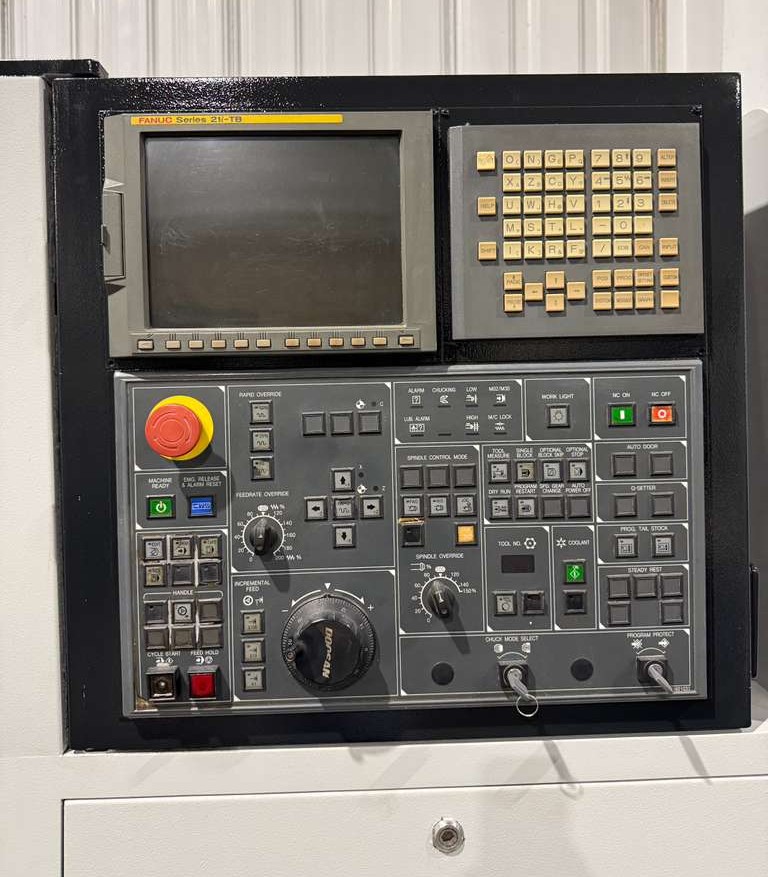

| Fanuc 21i-TB Series CNC Control |
| Heavy Duty Box Way Construction |

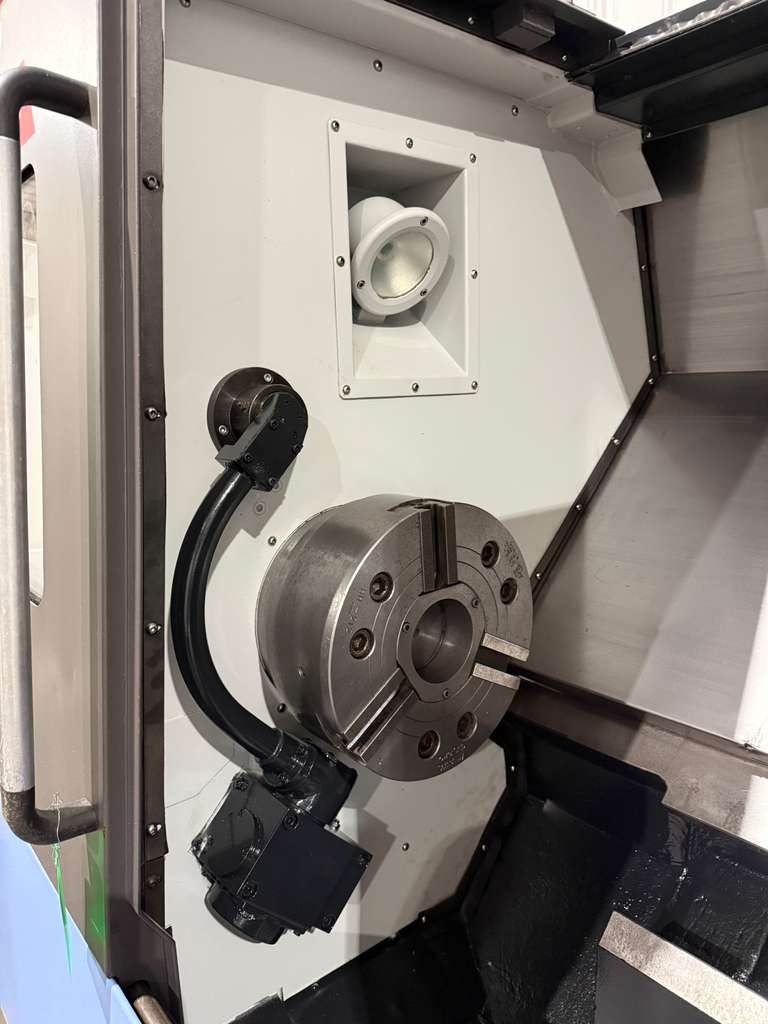

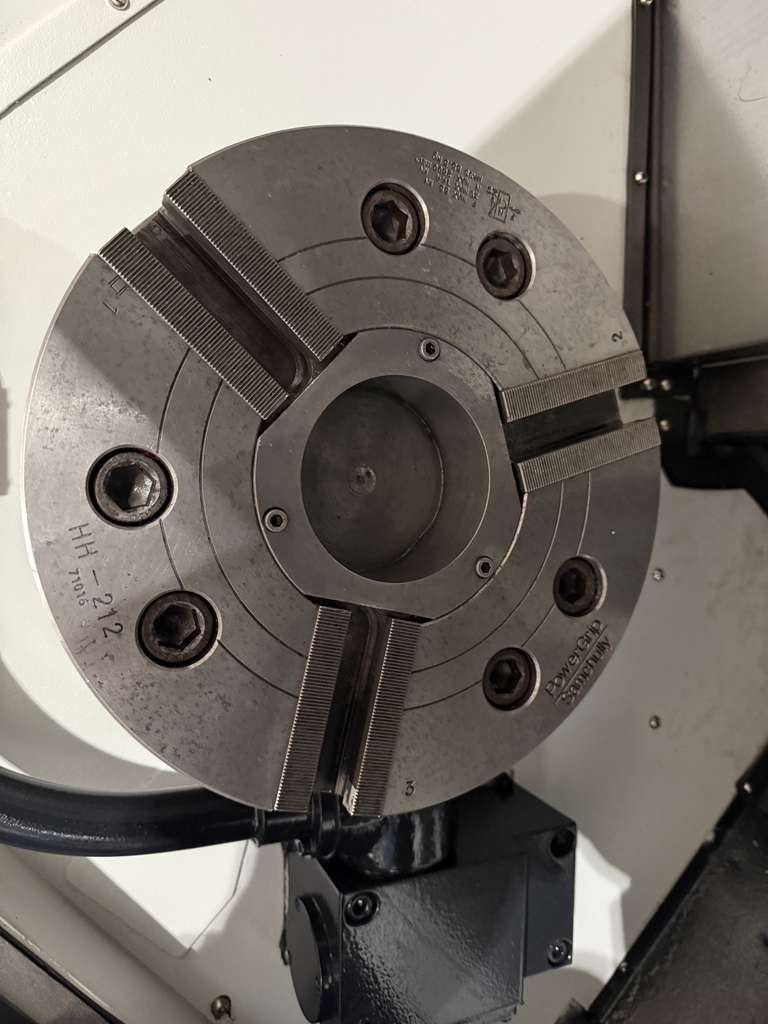

| 12″ 3-Jaw Samchully HH-212 Hydraulic Chuck |
| A2-8 Spindle Nose |

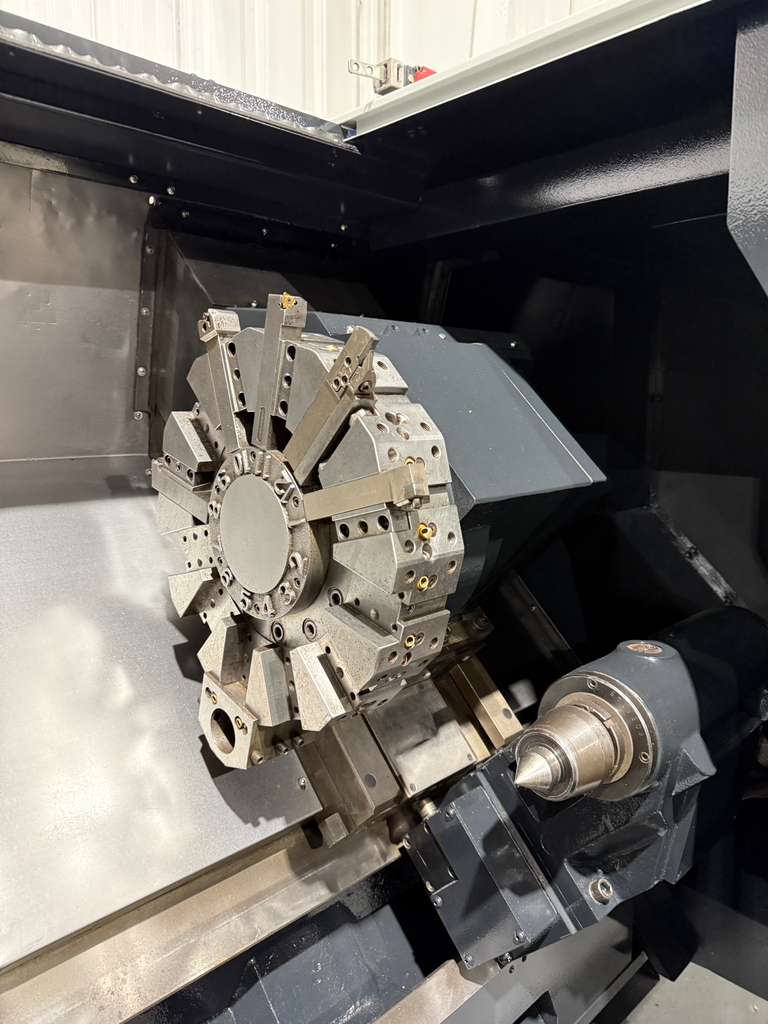

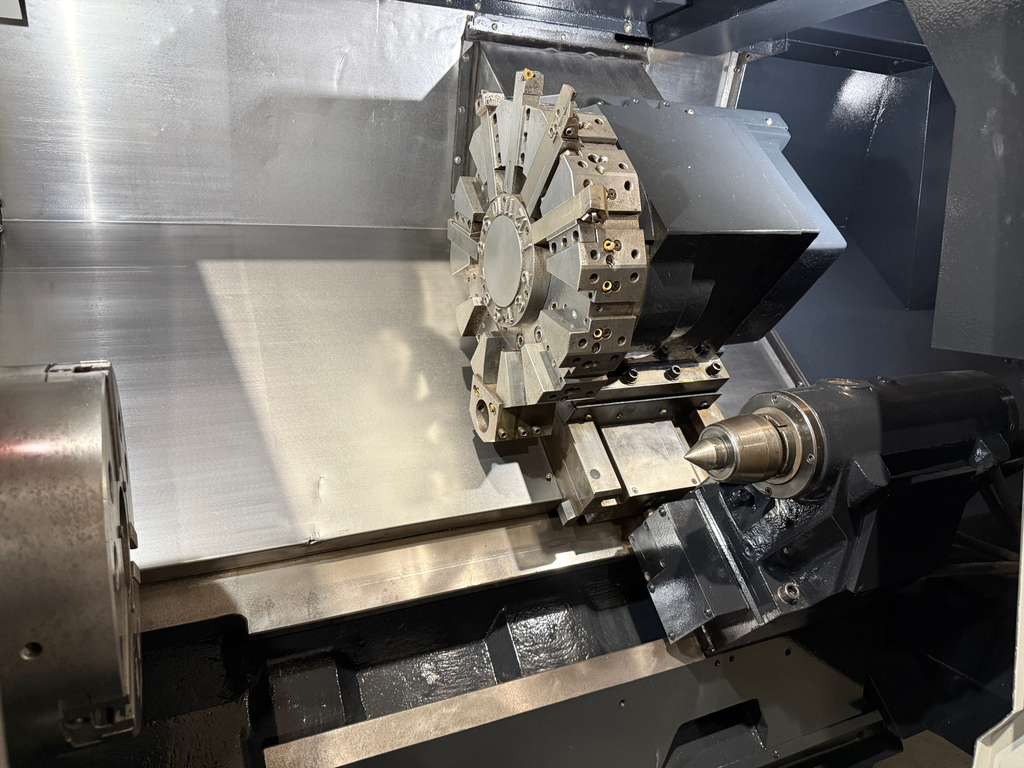

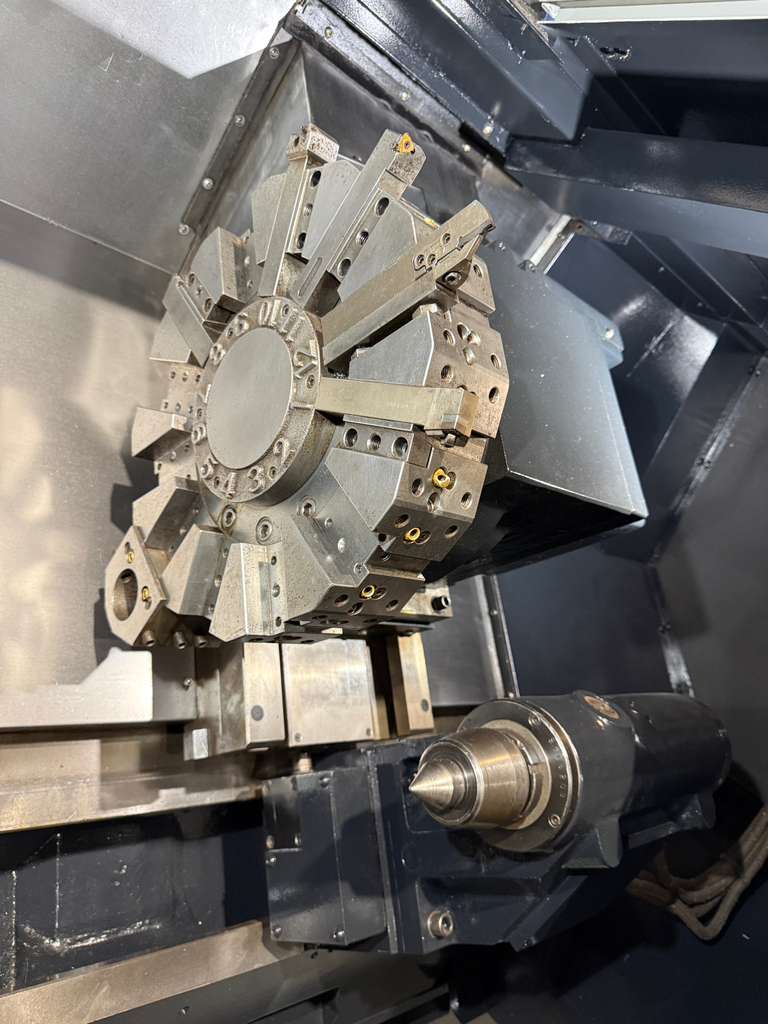

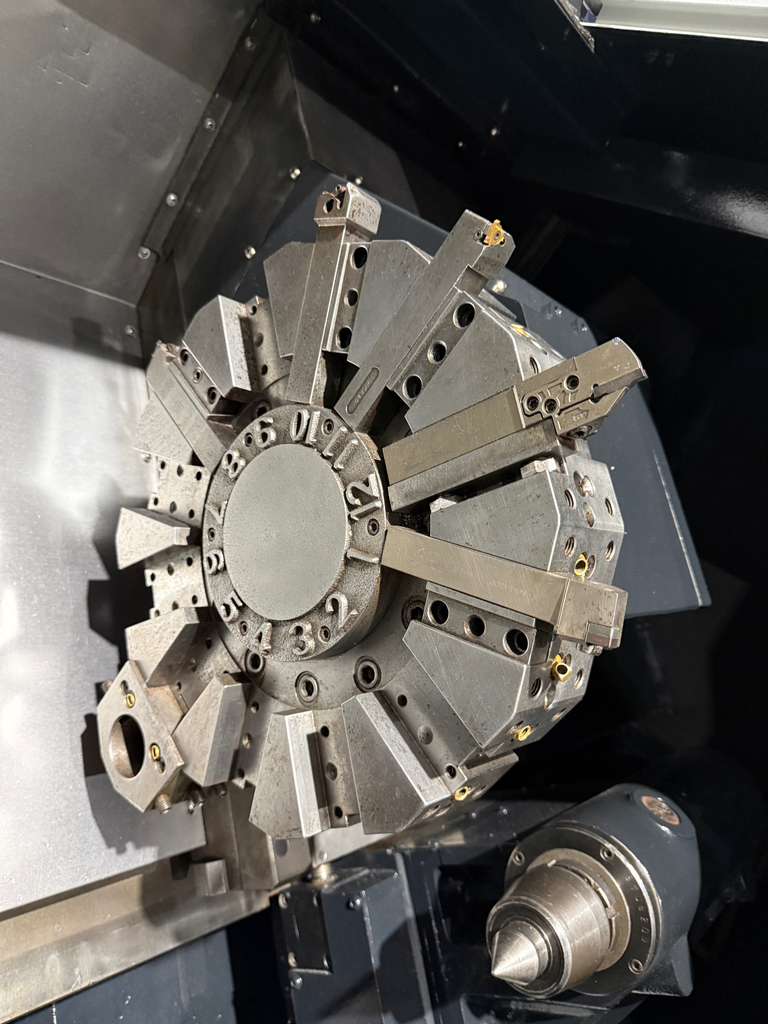

| 12 Station Automatic Turret |
| Tool Presetter |
| Hydraulic Tailstock and Quill |
| Rigid Tapping |
| PCMCIA Card Interface |
| Foot Switches |
| Coolant System |

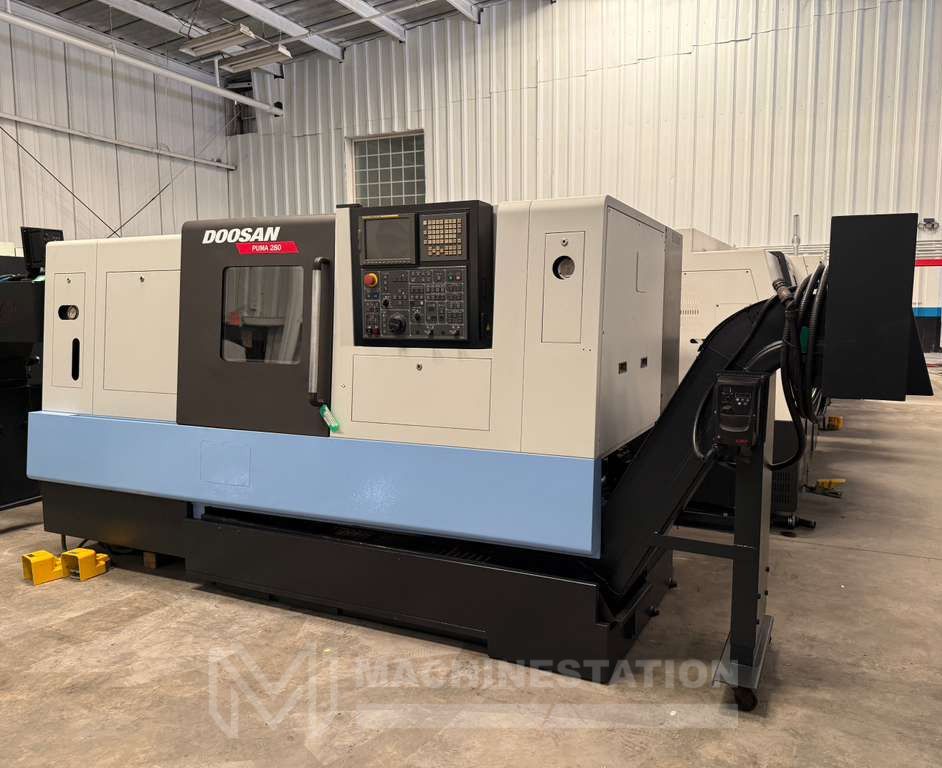

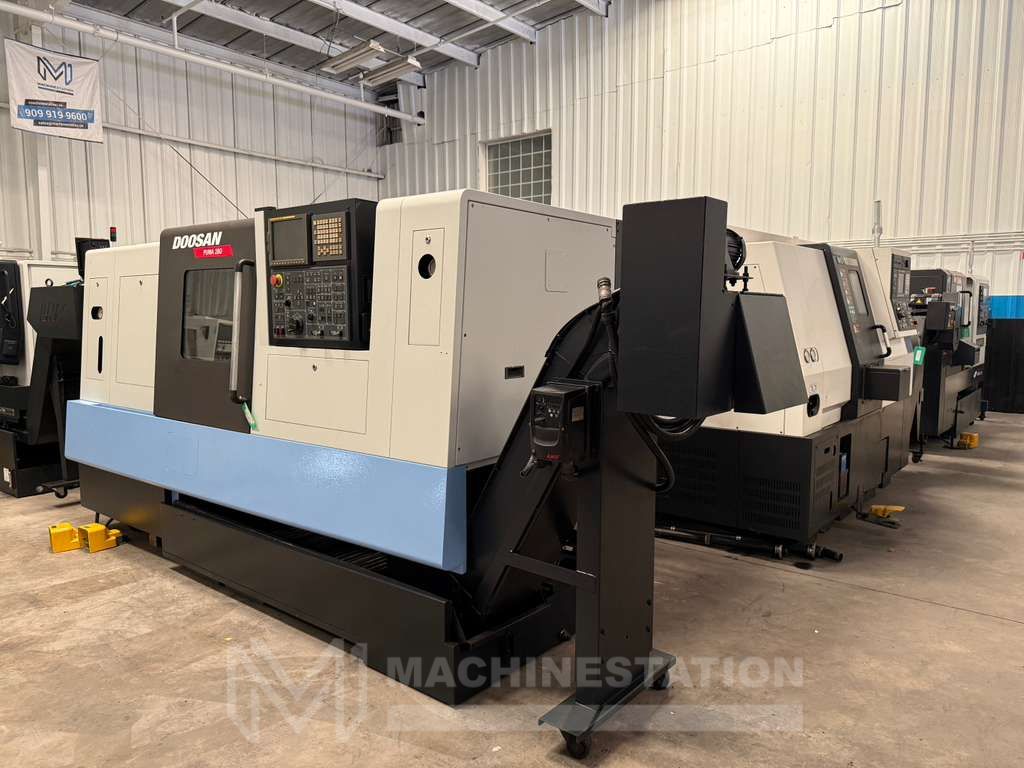

| Chip conveyor |
| (1) Boring Tool Holder, (4) Turning Tools Are Mounted on Turret (As shown in the images) |
| Capacity: |
| Max Turning Diameter: 16.53″ |
| Max Turning Length: 25.90″ |
| Swing Over Bed: 24.80″ |
| Swing Over Saddle: 19.68″ |
| Max Bar Capacity: 2.99″ |
| Travel: |
| X Axis Travel: 9.52″ |
| Z Axis Travel: 26.77″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.38″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 25 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| OD Tool Size: 1.0″ x 1.0″ |
| Boring Tool Diameter: 2.0″ |
| Tailstock: |
| Tailstock Taper: MT- 5 |
| Tailstock Quill Dia.: 4.0″ |
| Tailstock Quill Travel: 4.0″ |
| General: |

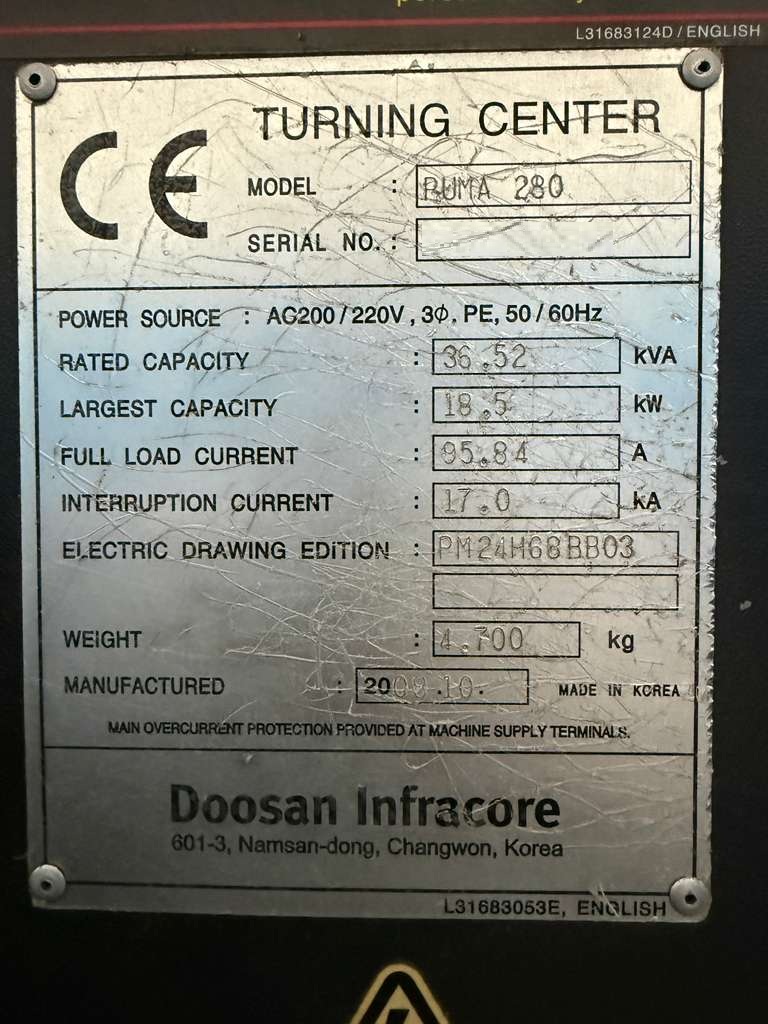

| Power: 36.52 kva / 220v / 3-Phase / 50/60 Hz |
| Overall Dimensions: 135″ x 66″ x 68″ High |
| Weight: 10,360 lbs |
