Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

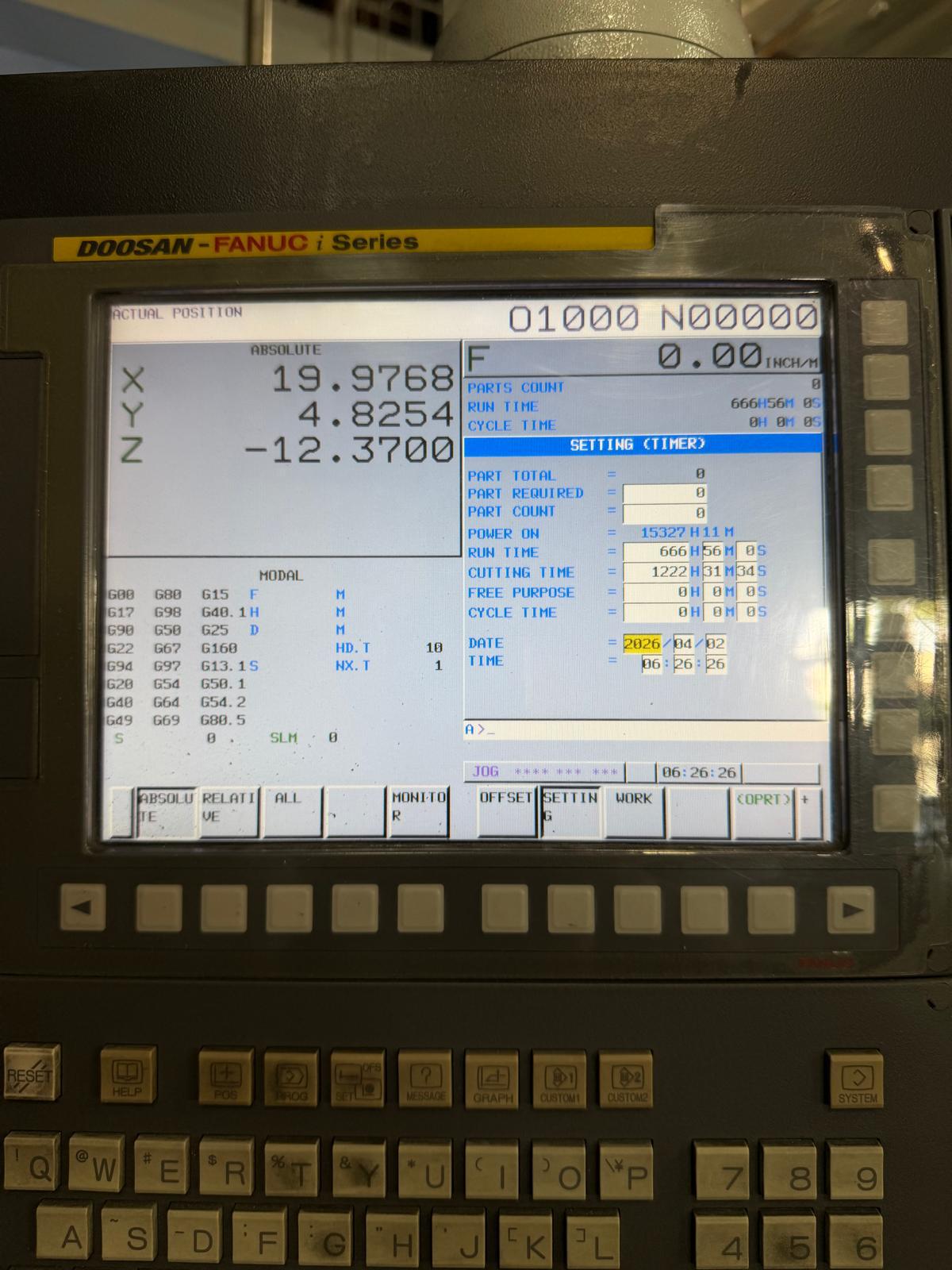

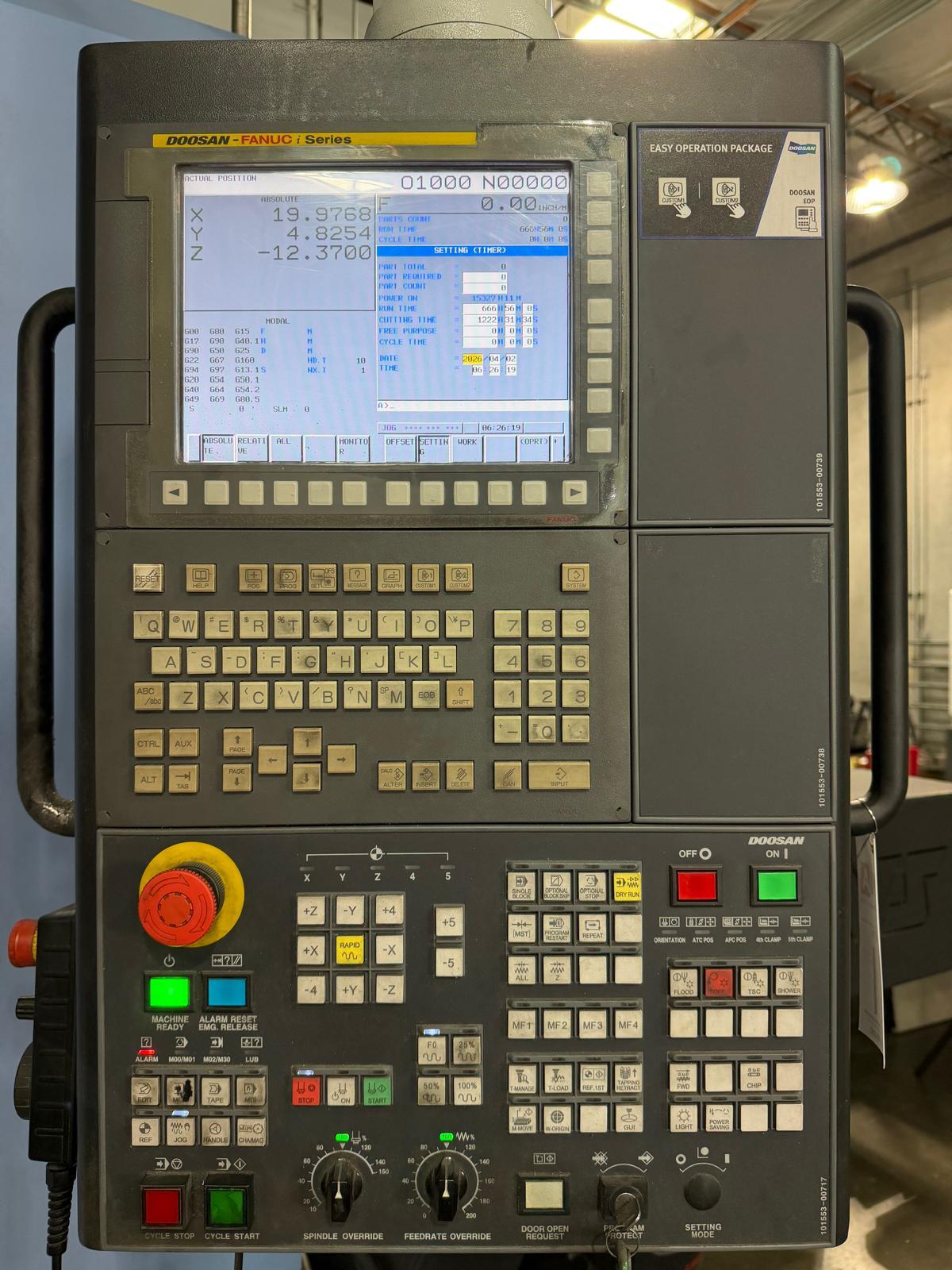

| Doosan Fanuc i-Series CNC Control |
| 12,000 RPM High Speed Spindle |
| Through Spindle Coolant |
| 30 Station Automatic Tool changer |
| CAT-40 Taper Spindle |
| USB Drive |
| PCMCIA Card Slot |
| MPG Hand Wheel Control |

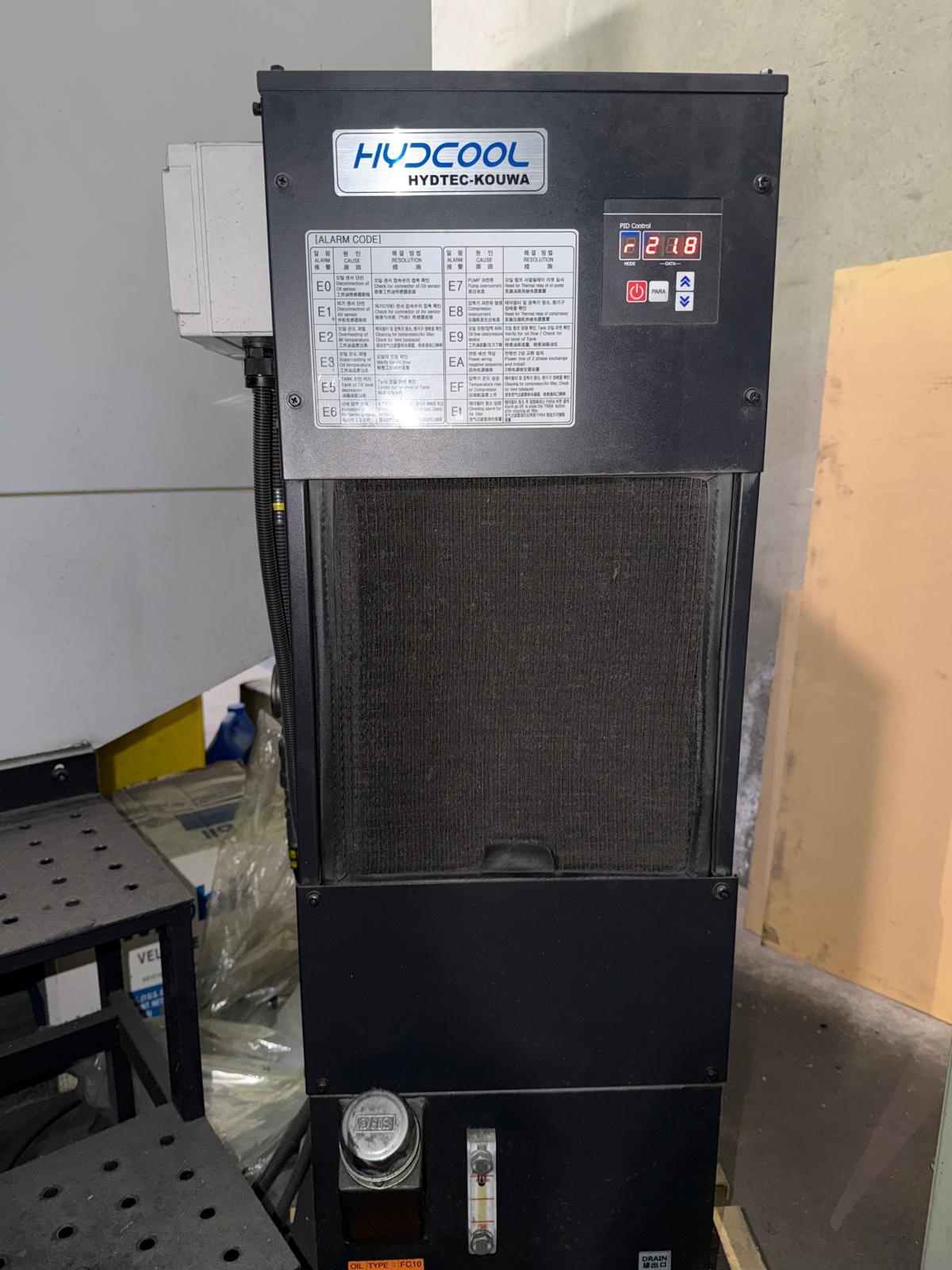

| Spindle Chiller Unit |
| Automatic Lubrication System |
| Rigid Tapping |

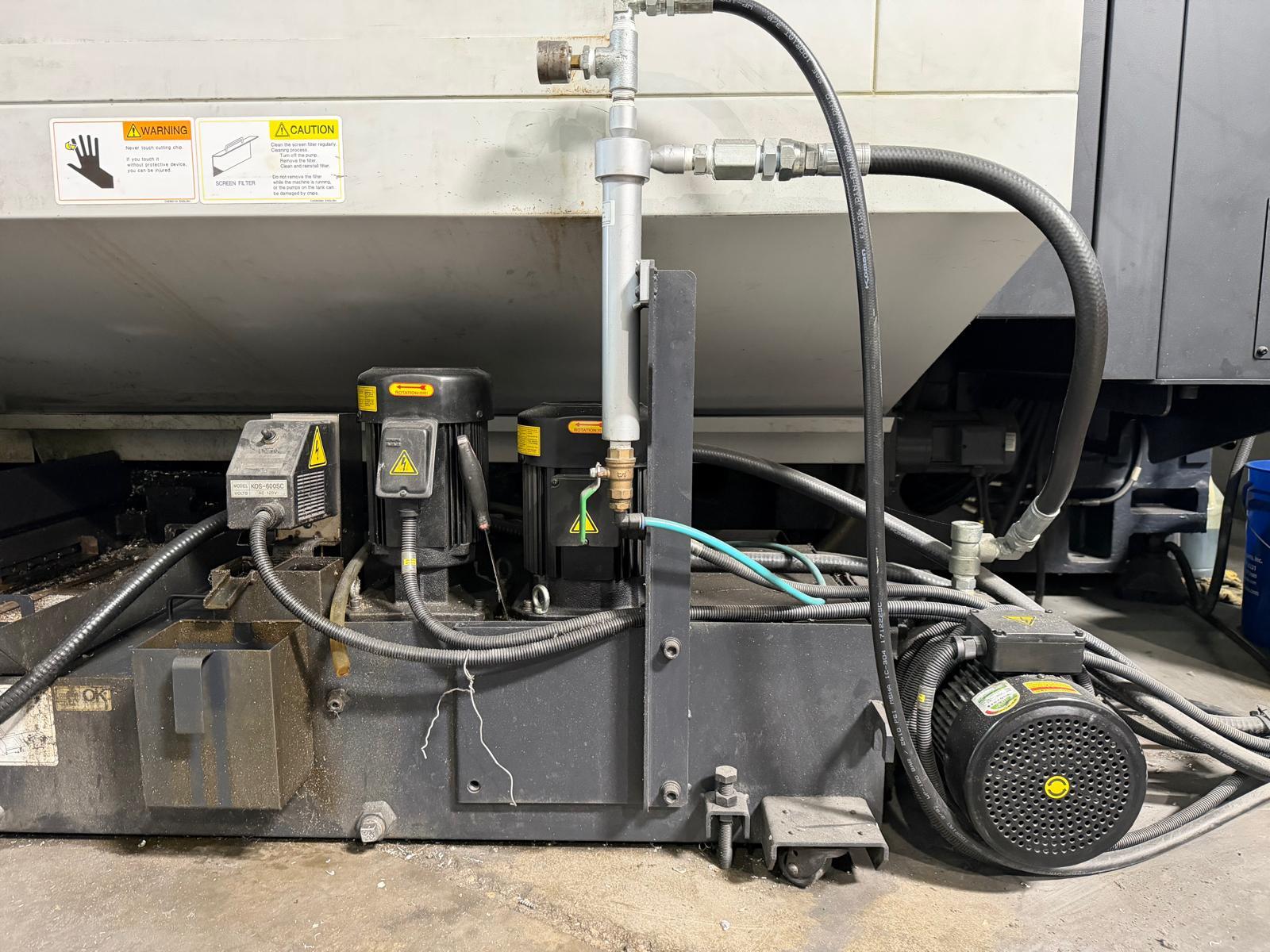

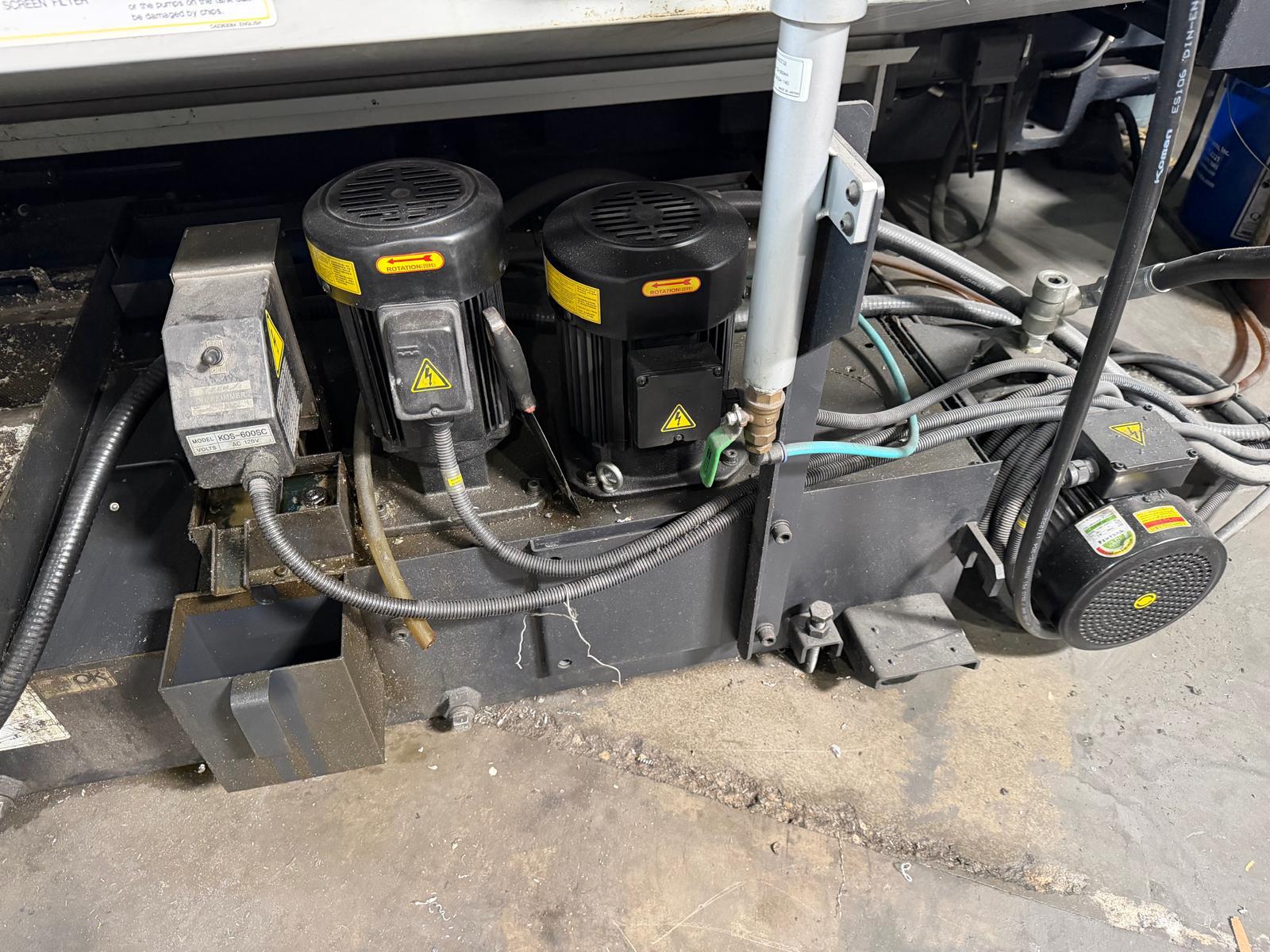

| Coolant System |

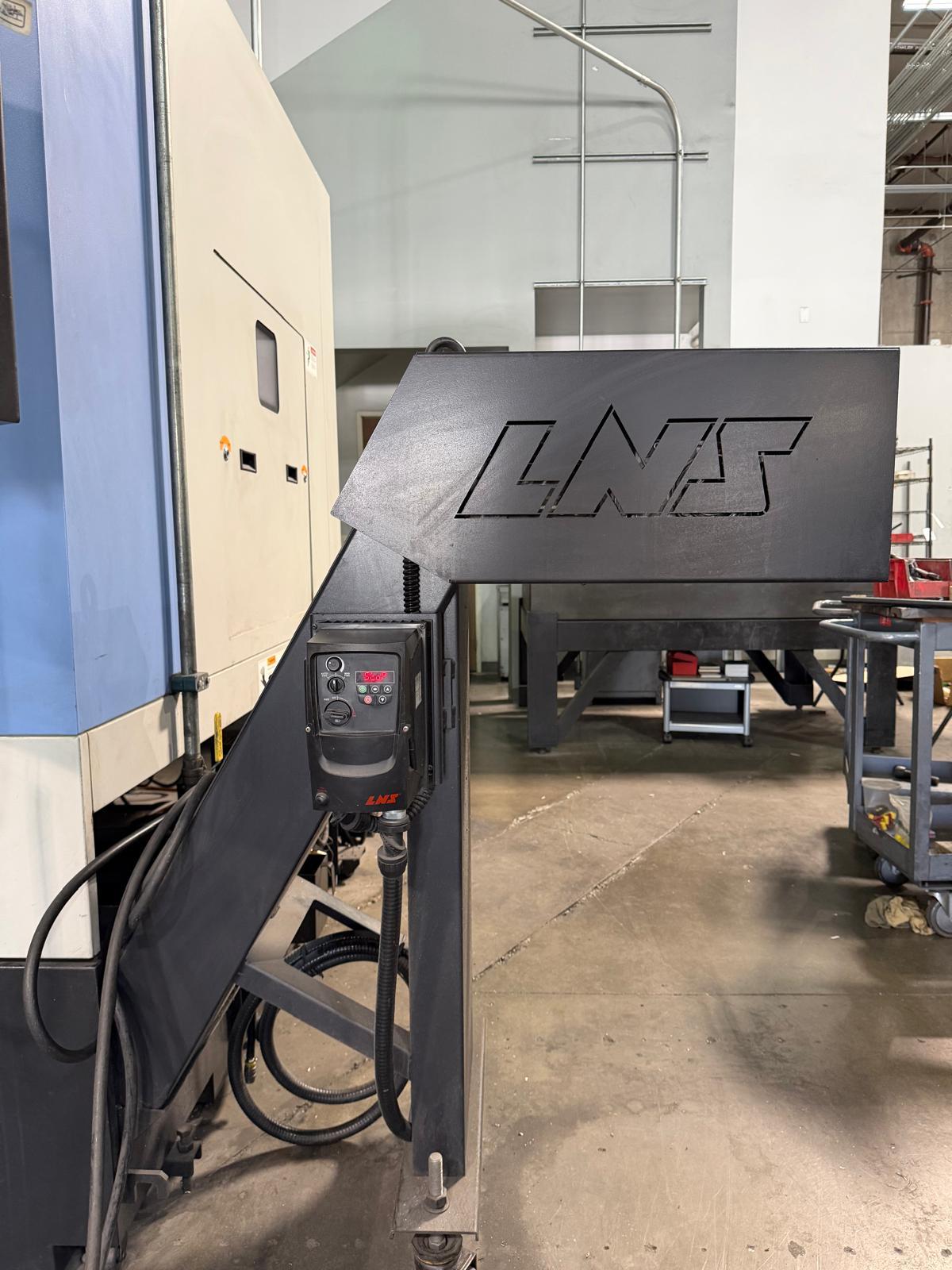

| Chip Conveyor |
| Travels: |
| X-Axis: 64.2″ |
| Y-Axis: 30.0″ |
| Z-Axis: 25.6″ |
| Rapid Traverse Rates X & Y Axis: 1181 IPM |
| Rapid Traverse Rates Z Axis: 945 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 31.5″ |

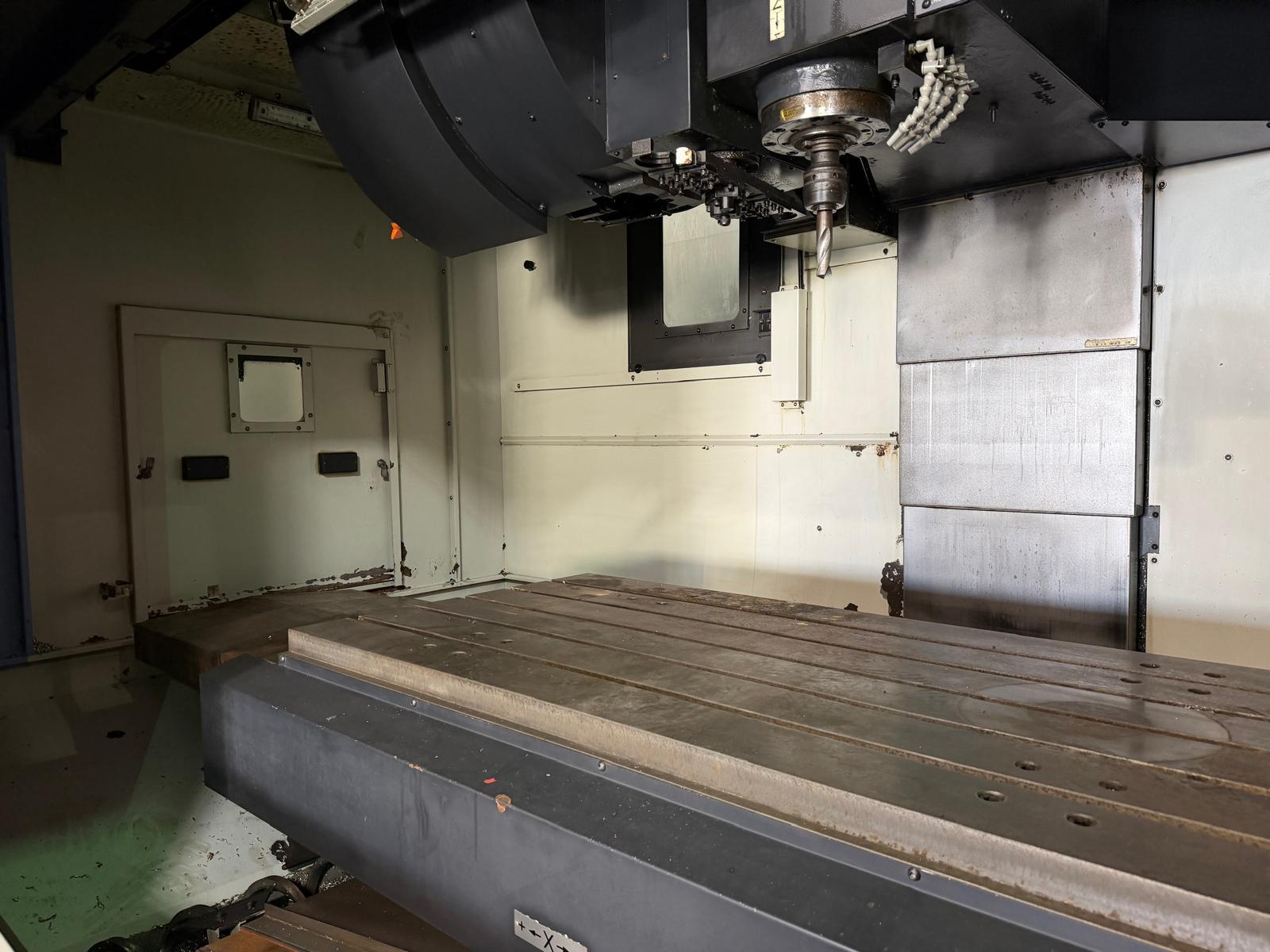

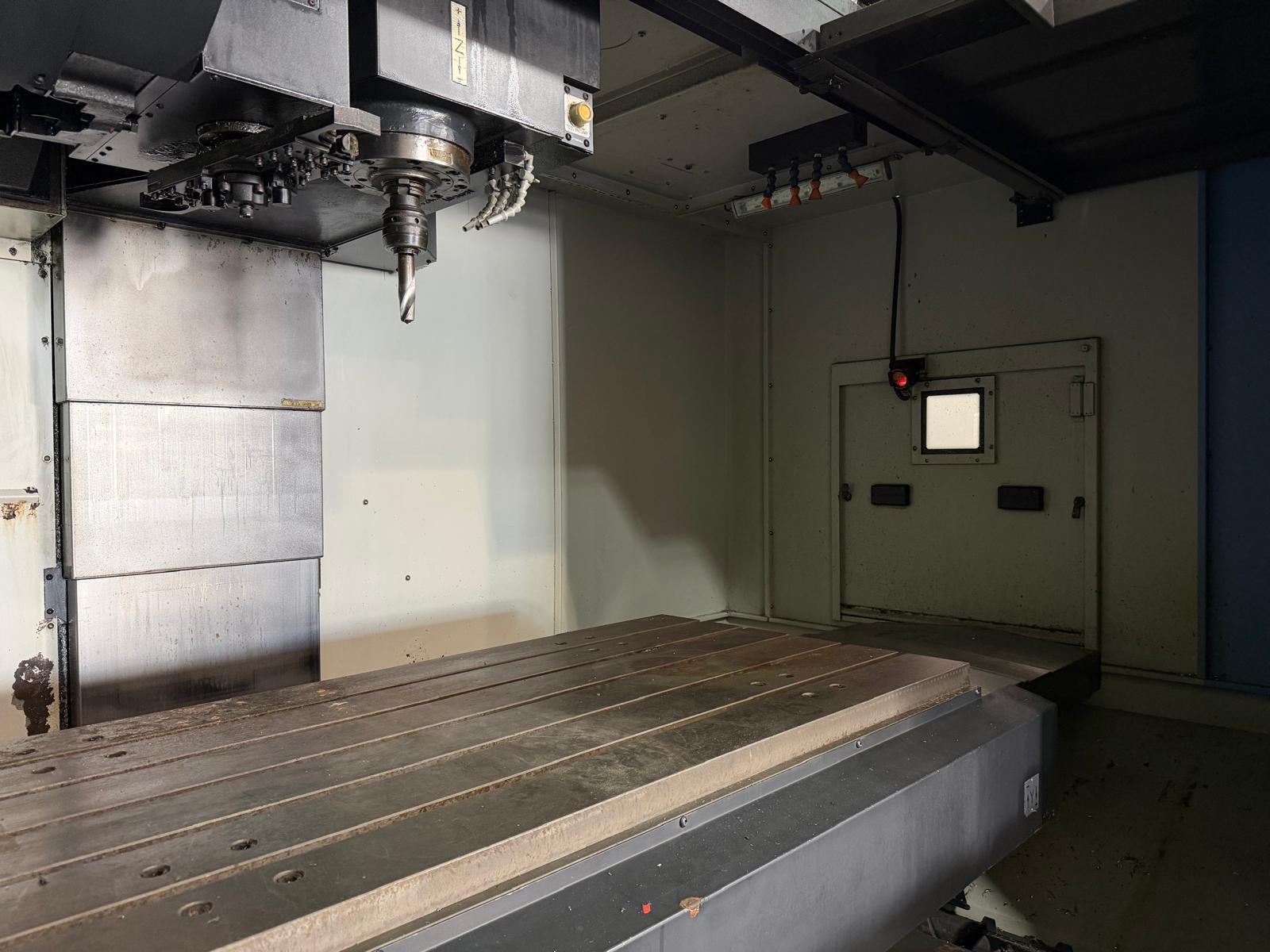

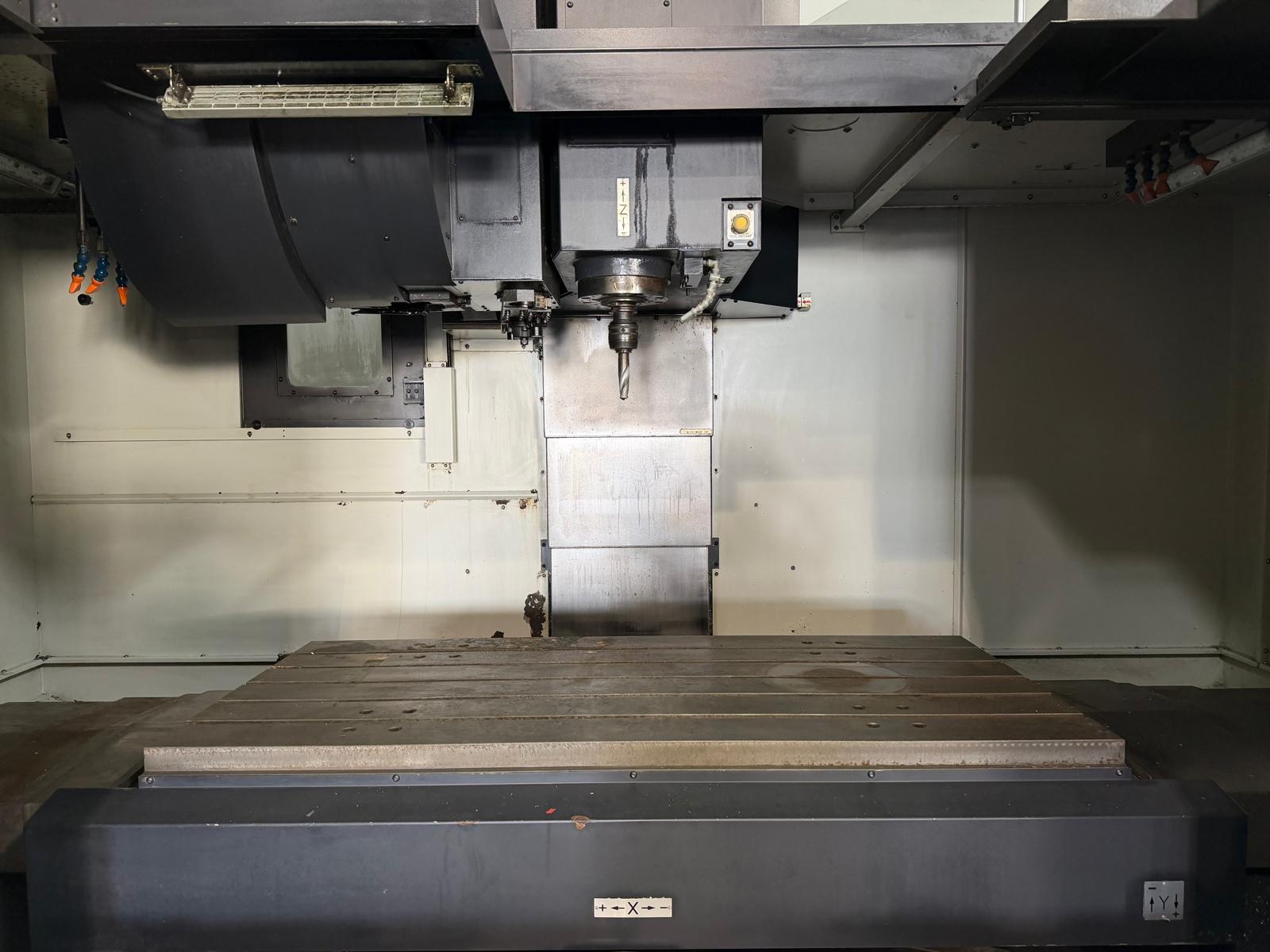

| Table: |
| Length: 64.2″ |
| Width: 29.9″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 4.9″ x 0.7″ |
| Max Weight on Table: 3306 lbs |

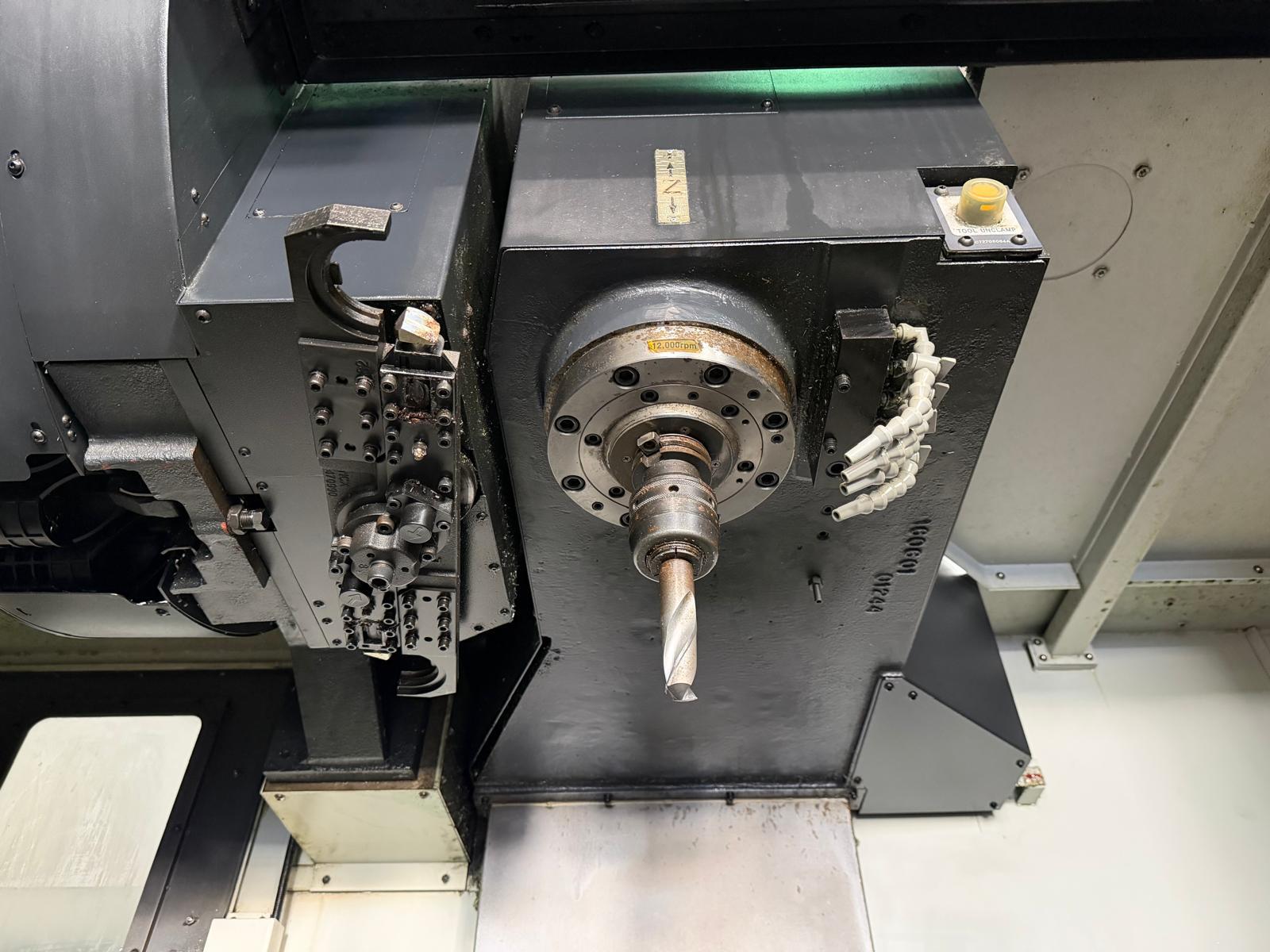

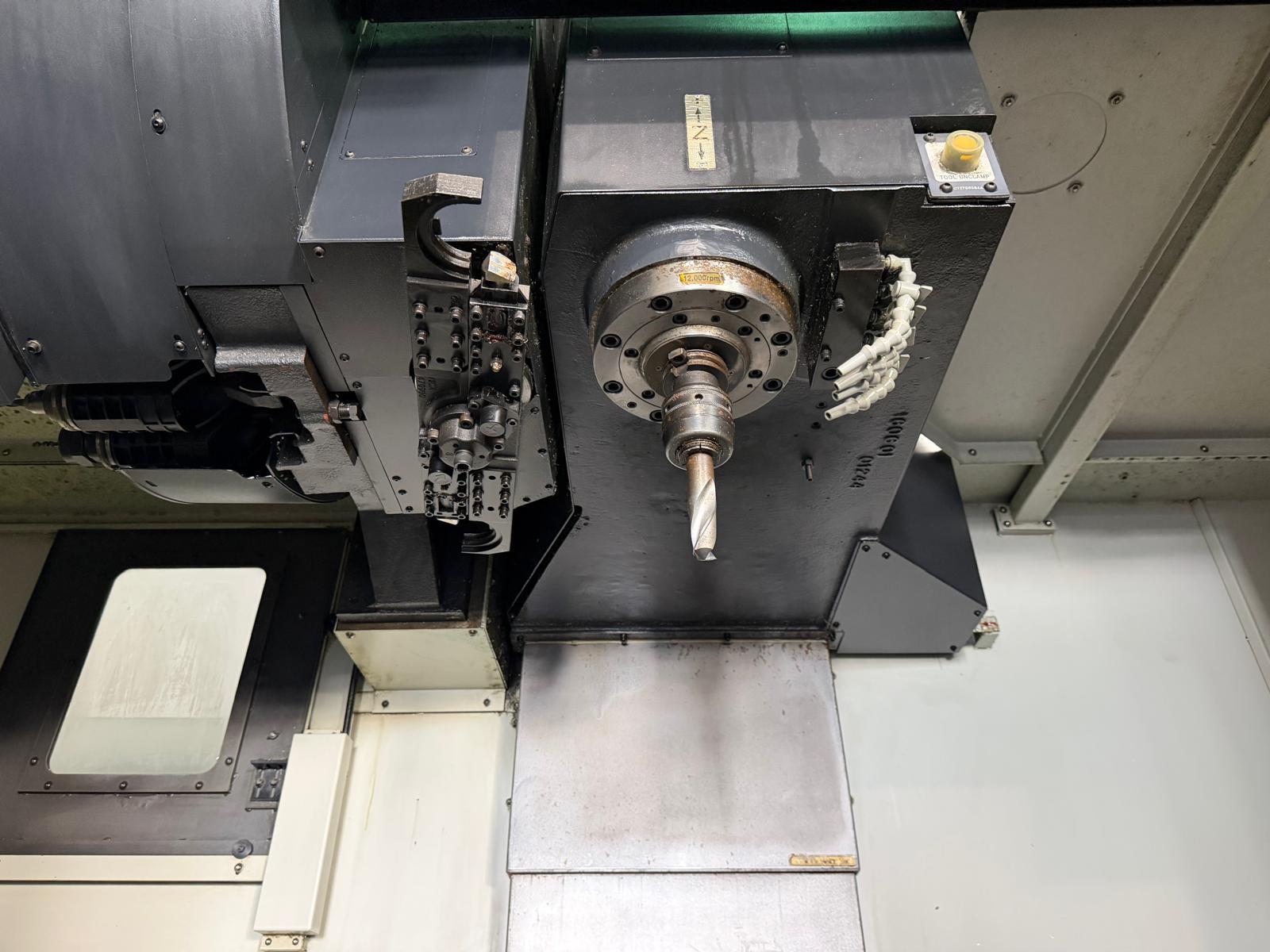

| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 21 HP |
| Automatic Tool Changer: |
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.1″ -4.9″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 1.3 Seconds |
| General: |
| Air Required: 90 psi 4 scfm |

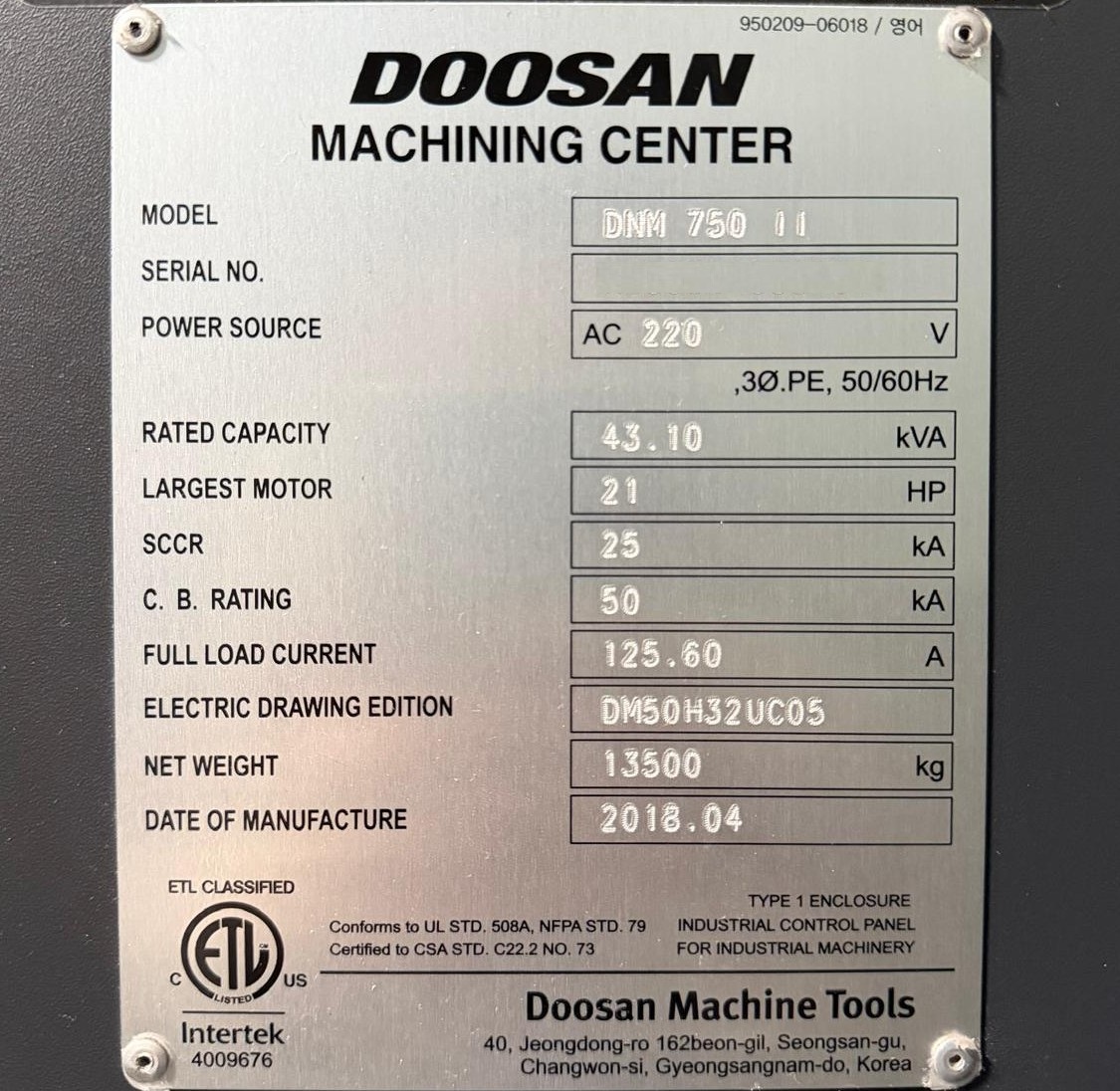

| Power: 220v / 43.1 kva / 3-Phase / 50/60 Hz |
| Overall Dimensions: 151″ x 137″ x 125″ High Approx. |
| Weight: 29,760 lbs |
