Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

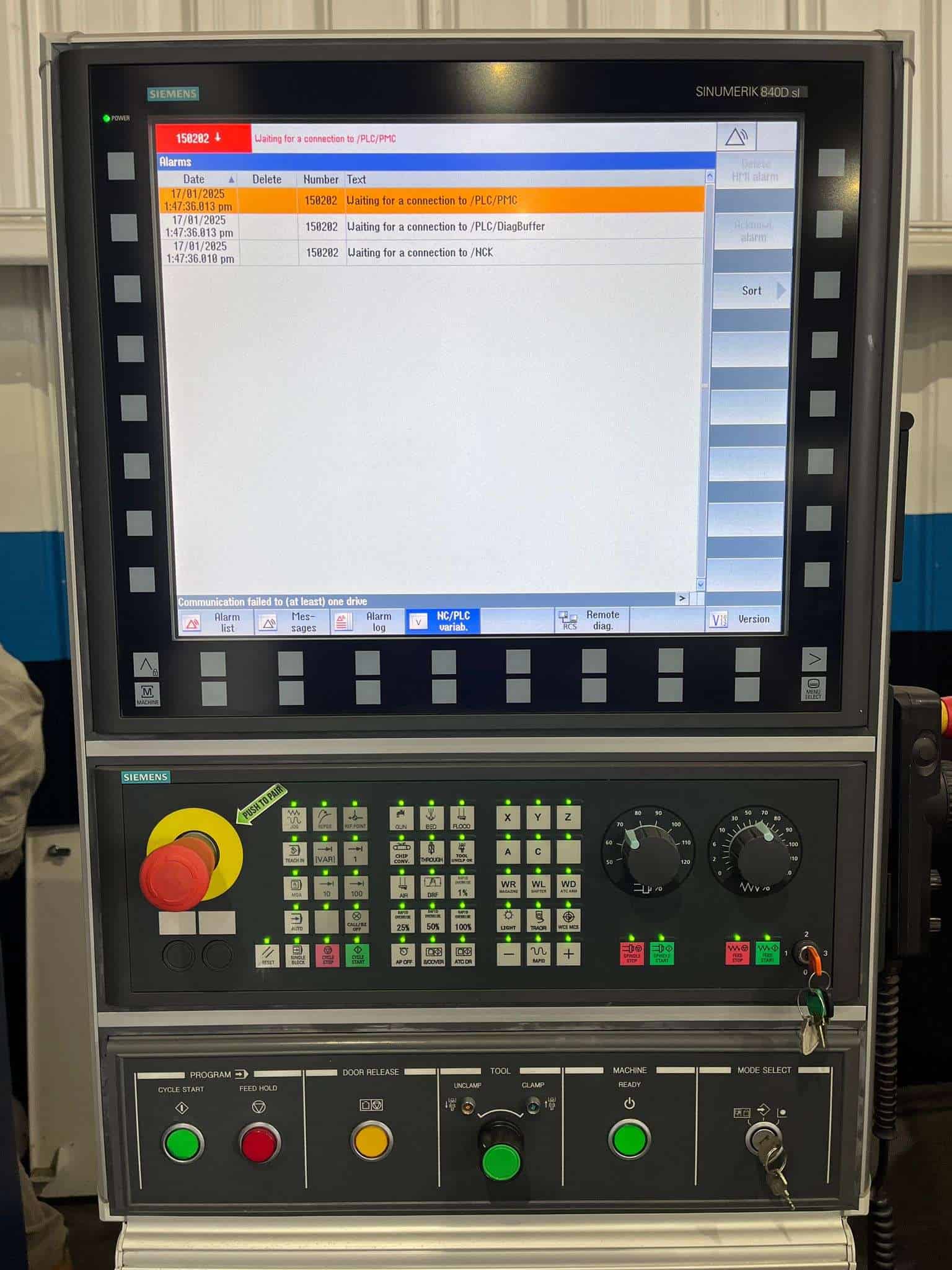

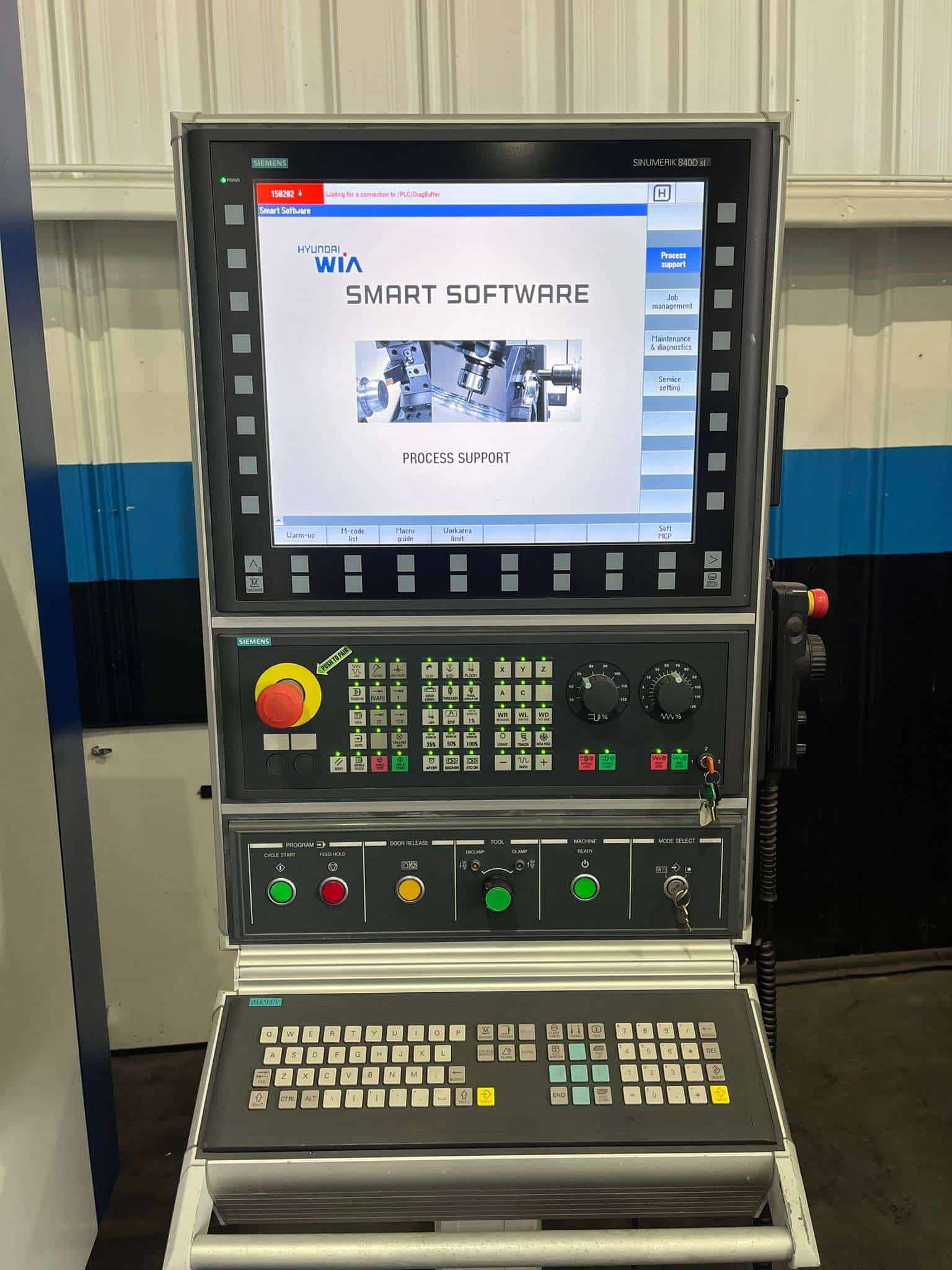

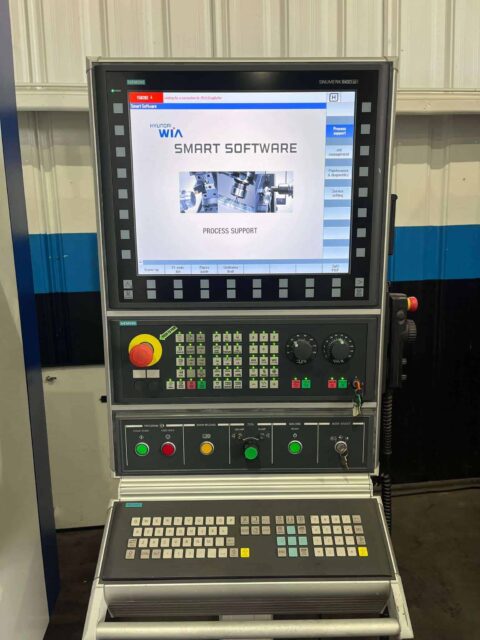

| Siemens Sinumerik 840D sl CNC Control |
| Travelling Column Design |
| 5 Axis Simultaneous Machining |

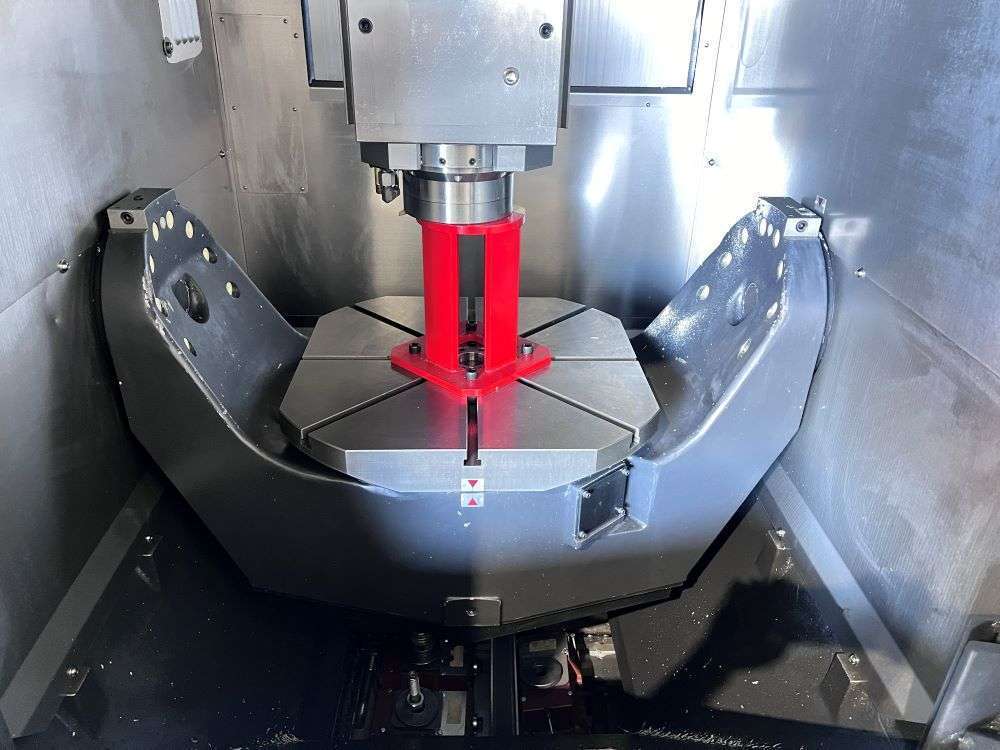

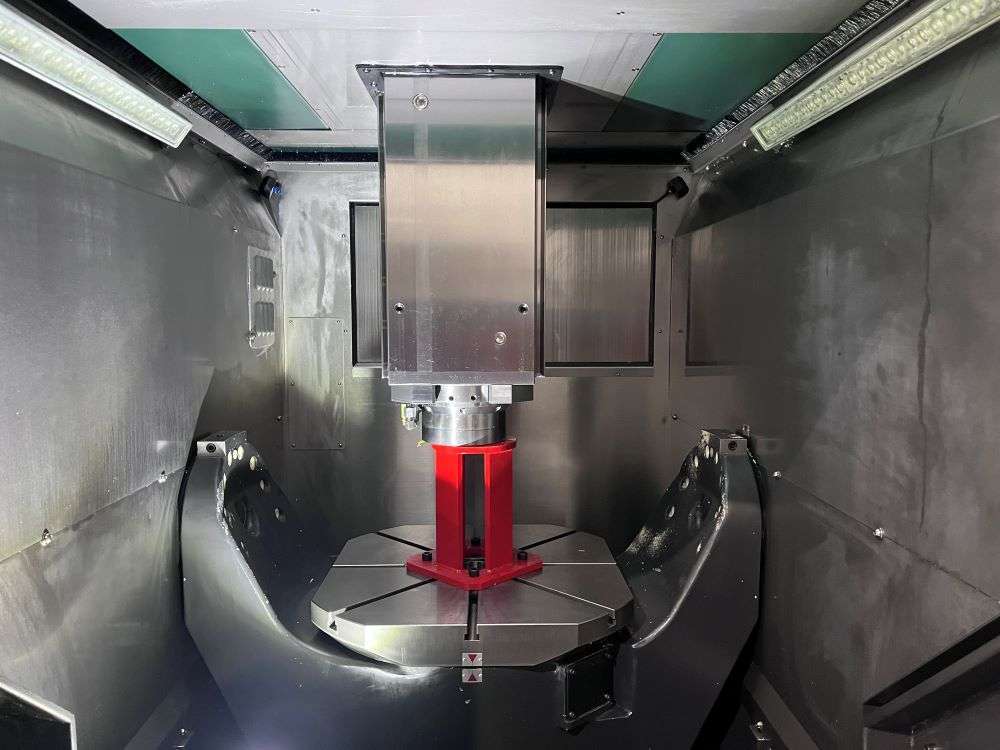

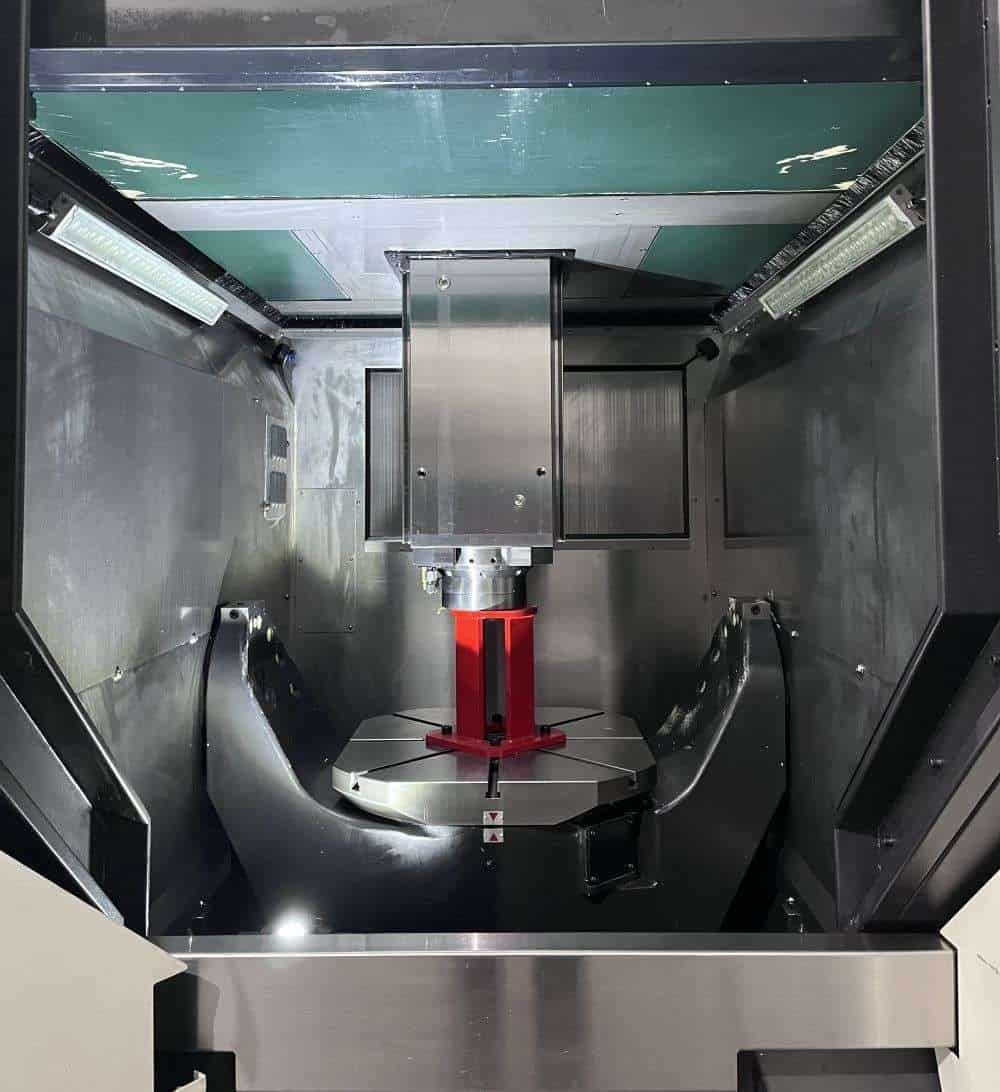

| ø 24.8″ Trunnion Table |
| 15,000 RPM High Speed Spindle |
| 102 Station Automatic Tool Changer |
| High Speed Machining |
| HSK-A63 Spindle Taper |

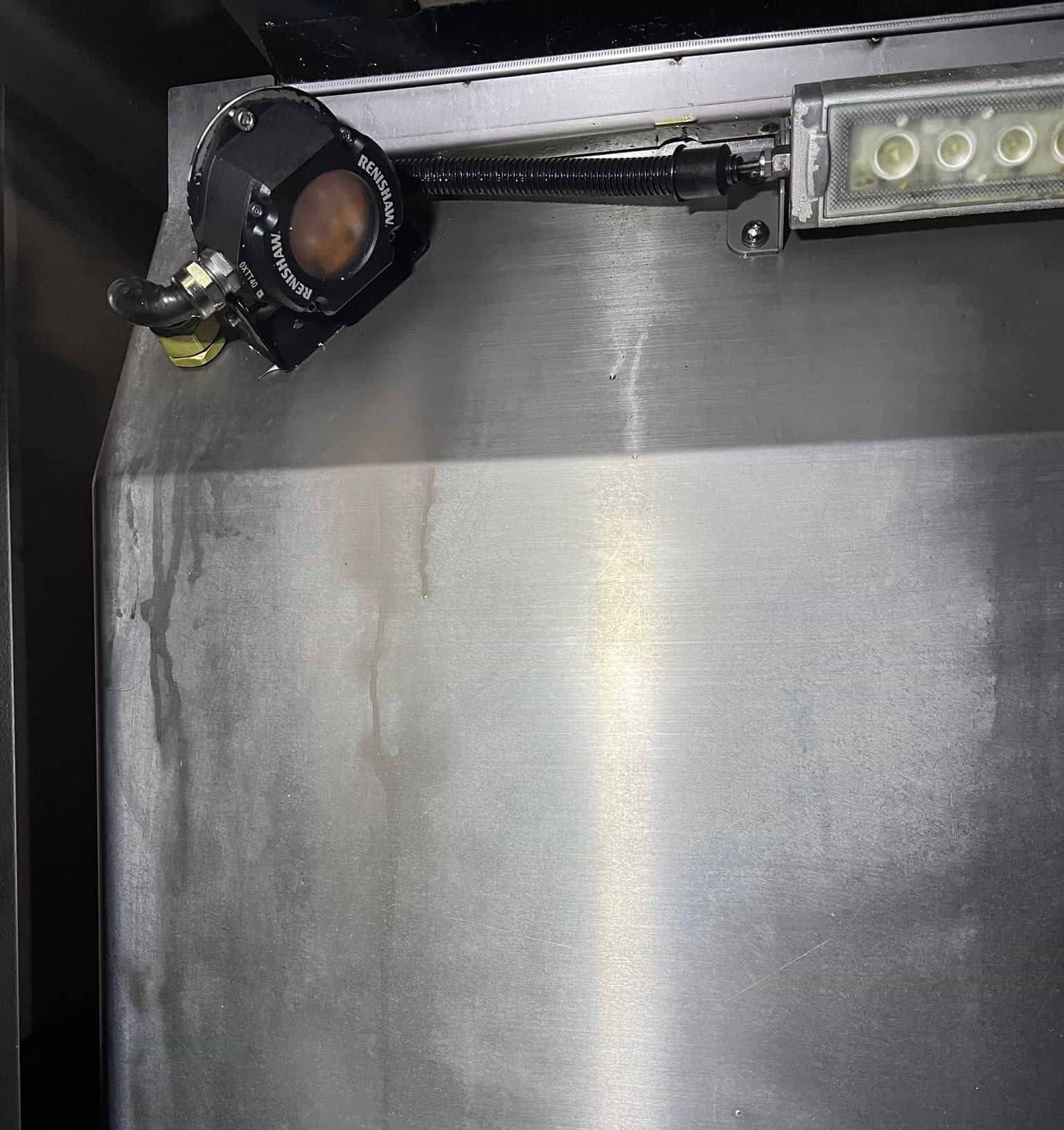

| Renishaw Probing System Ready (Probe Needed) |
| Linear Scales |
| Rotary Scales |
| Through Spindle Coolant – 100 PSI |

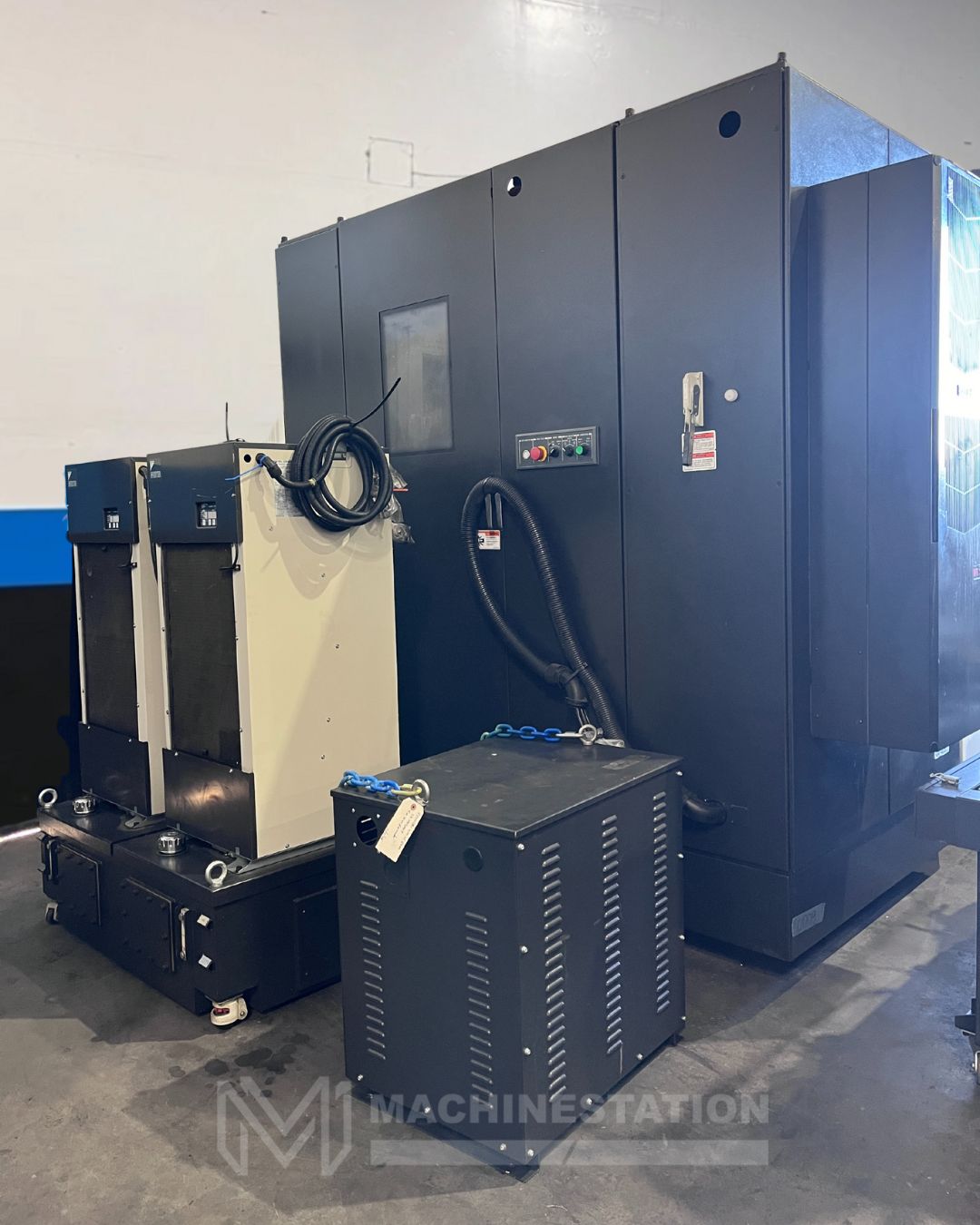

| Spindle Chiller Unit |

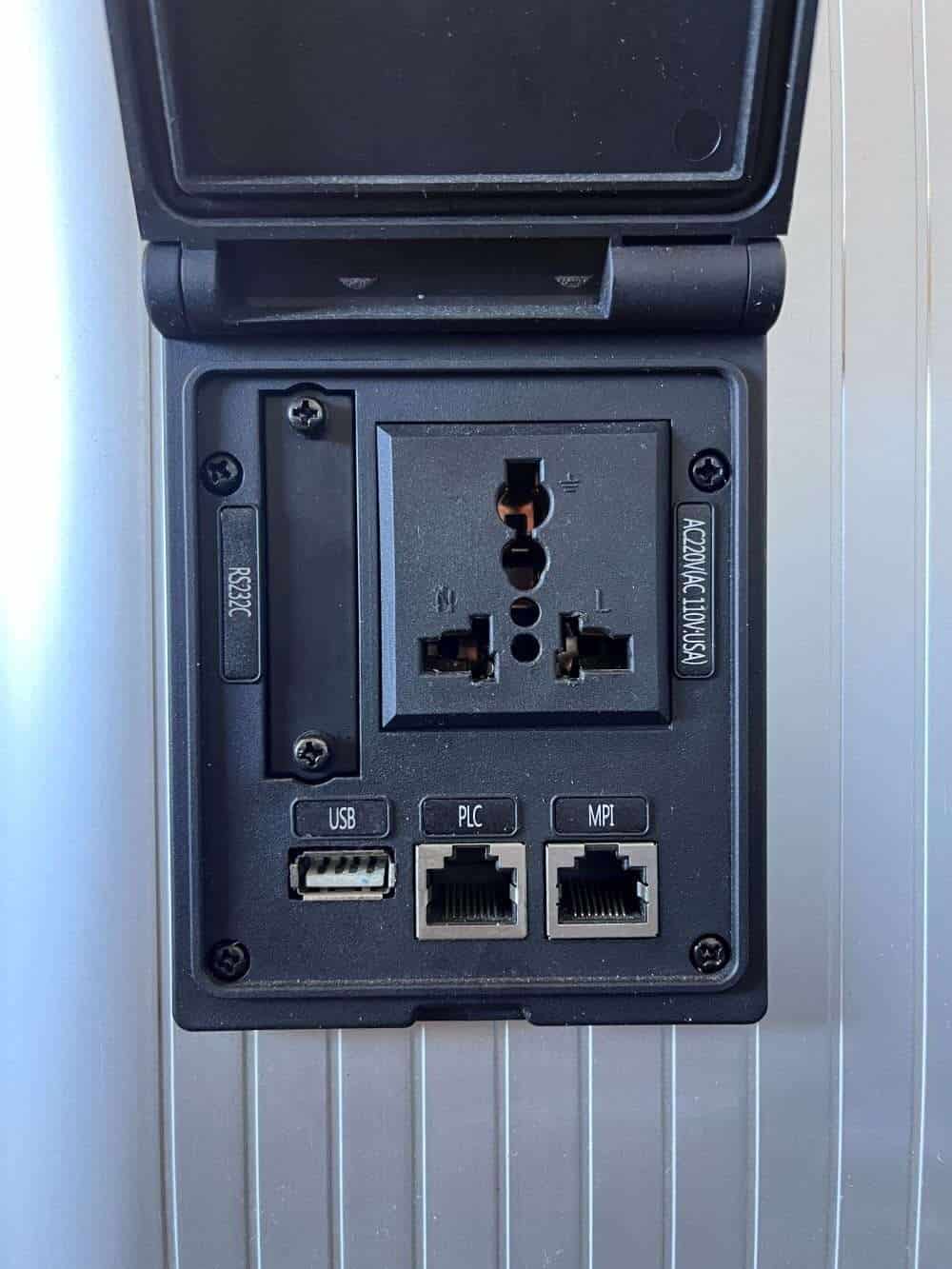

| Pan Drive Slot & RS-232 Port |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |

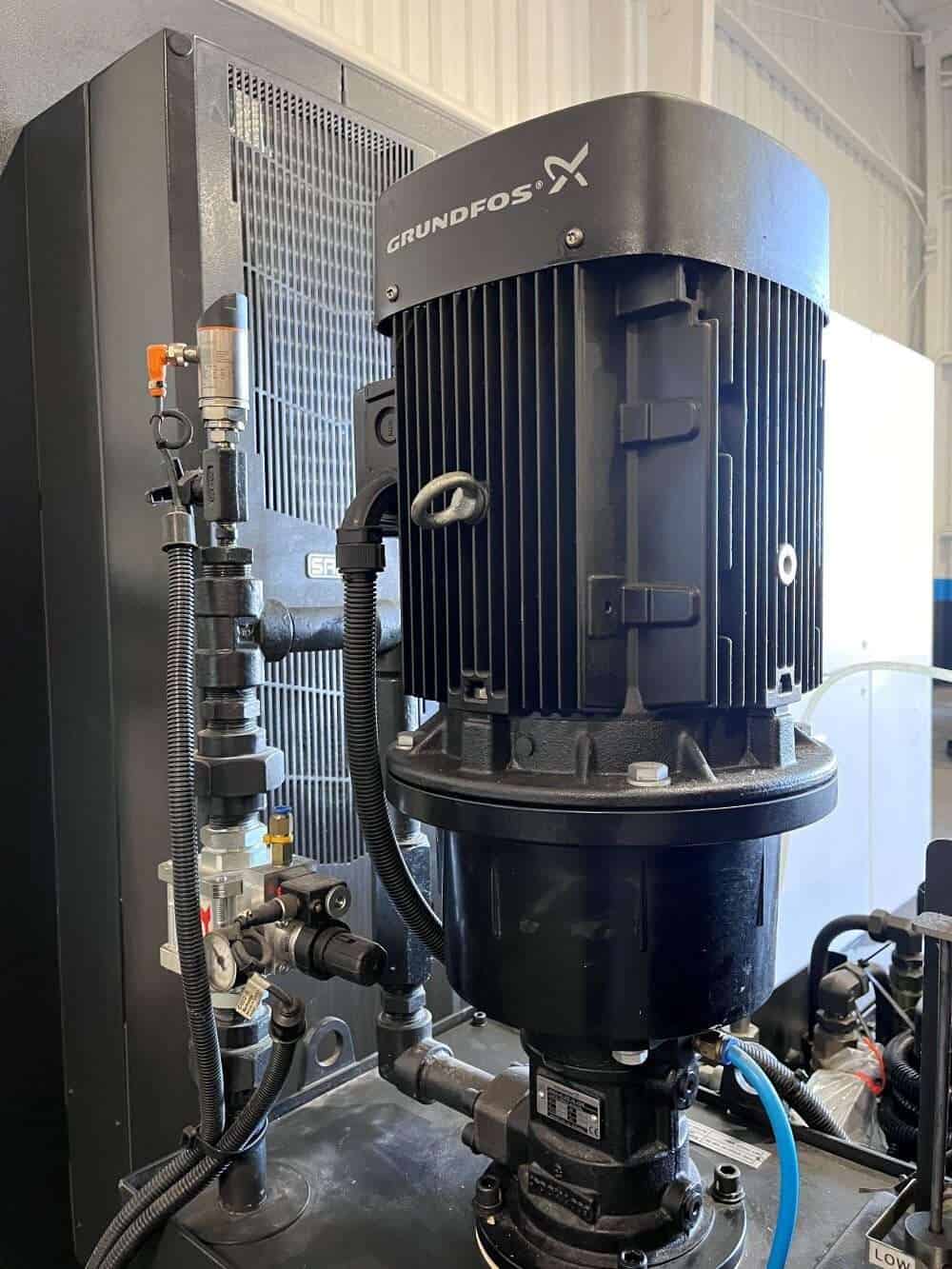

| High Pressure Coolant System |

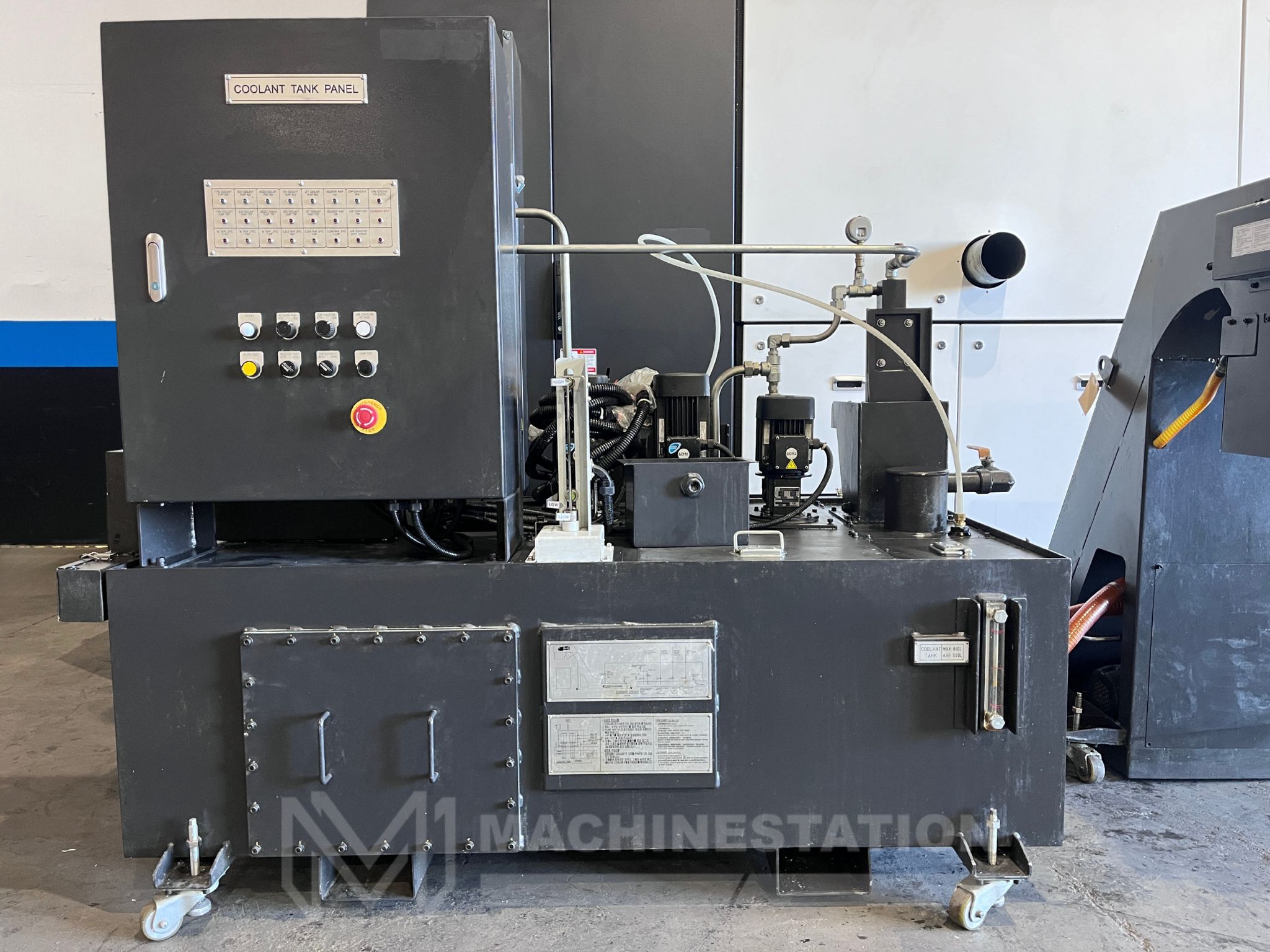

| Coolant Tank |
| Chip Conveyor |

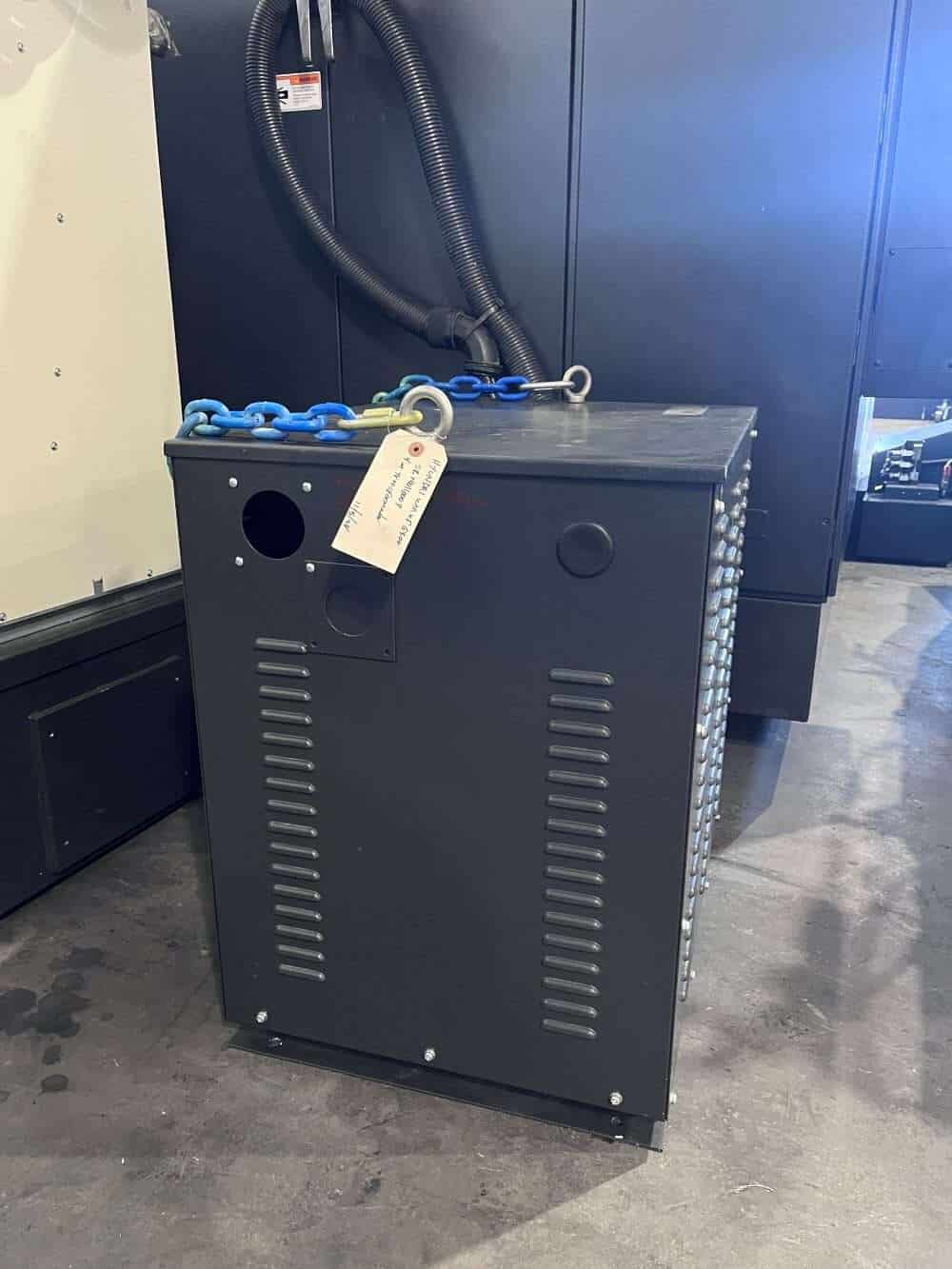

| Transformer |
| Levelling Pads |
| Table: |
| Table size: ø 24.8″ |
| Max Part Diameter: 31.5″ |
| Max Part Height: 19.7″ |
| Max Weight on Table: 1323 lbs |
| Travel: |
| X Axis: 25.6″ |
| Y Axis: 23.6″ |
| Z Axis: 19.7″ |
| A Axis: +120° -30° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Distance From Table Top to Spindle Nose: 8.7″ – 28.3″ |
| Rapid Traverse X, Y, Z Axis: 2362 Inch Per Minute |
| Rapid Traverse A Axis: 70 RPM |
| Rapid Traverse C Axis: 110 RPM |
| Spindle: |
| Taper Size: HSK-A63 |
| Speed Range: 15,000 RPM |
| Spindle Power: 35 HP |
| Tool Changer: |
| Capacity: 102 Tools |
| Taper: HSK-A63 |
| Max Tool Diameter: 3.5″ – 4.9″ |
| Max Tool Height: 11.8″ |
| Tool Change Time: 4.5 Seconds |

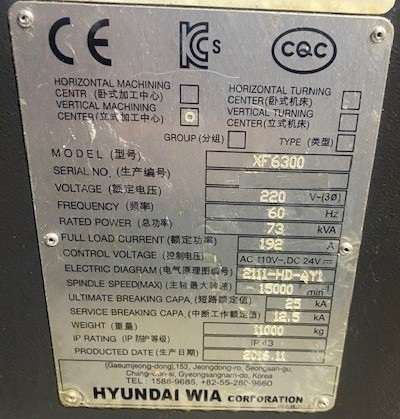

| General: |
| Air Required: 80 psi, 4 scfm |
| Power: 73 kva / 220v / 3-Phase |
| Machine Dimensions: 83.5″ x 172″ x 120″ High |
| Floor Dimensions: 198″ x 172″ (Length x Width) |
| Weight: 24,250 lbs. Approx. |
