Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| SKU: | 113517 |

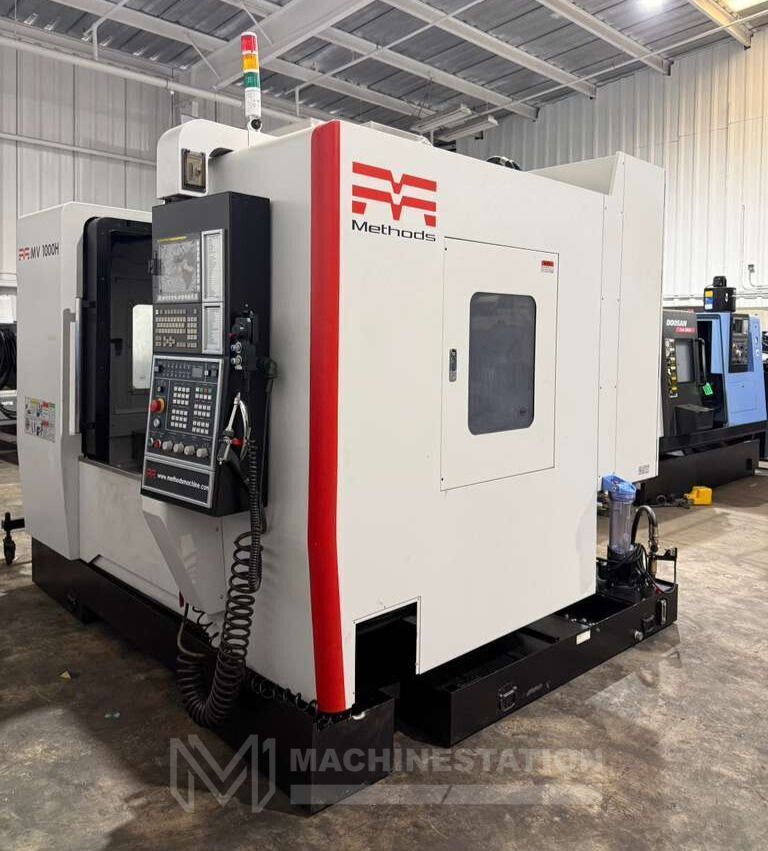

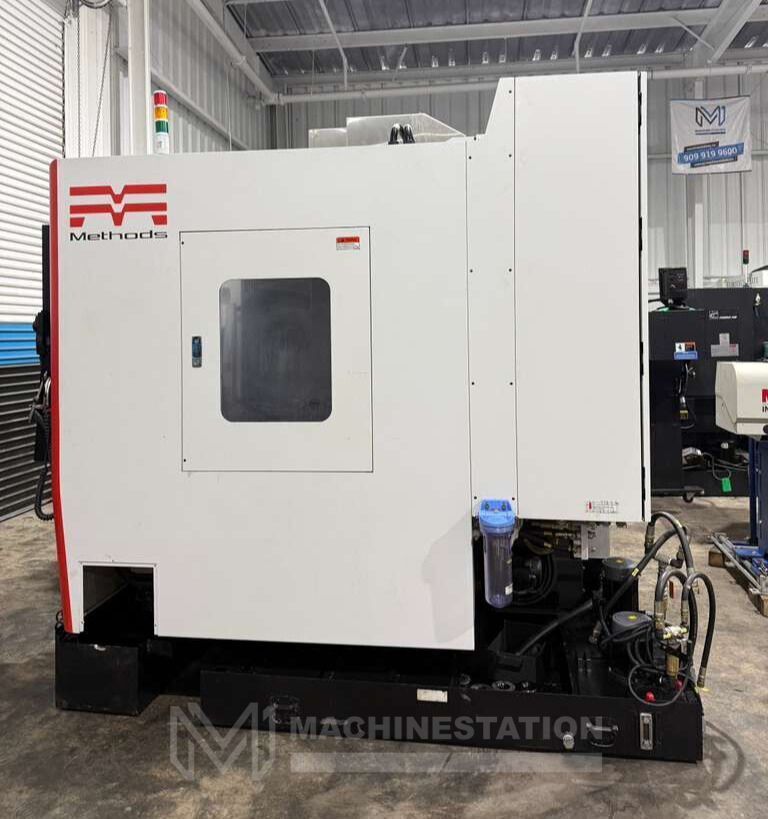

| Make: | Methods |
| Model: | MV-1000H |
| Year: | 2019 (Sold & Installed in 2022) |
| Features: |
|---|

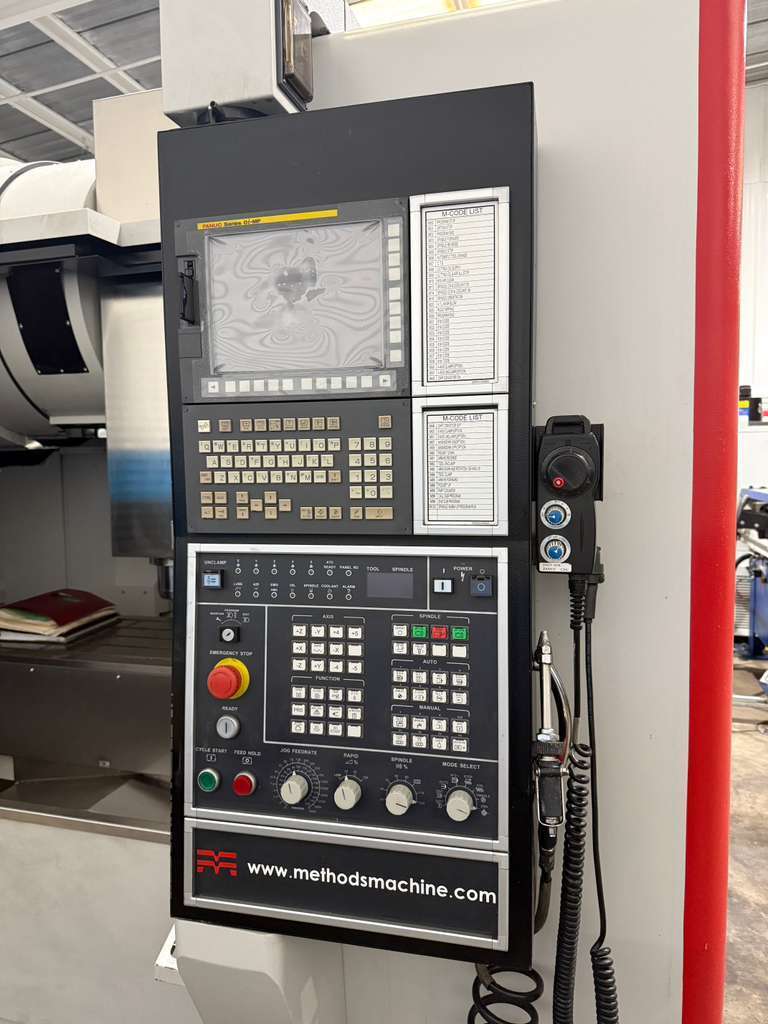

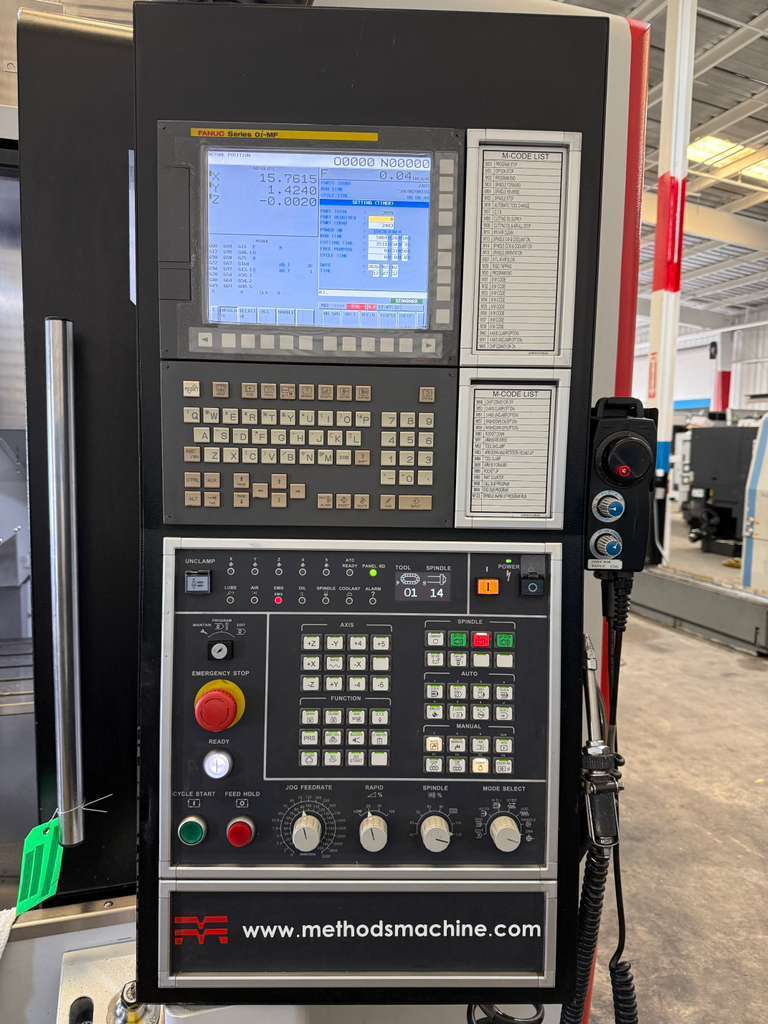

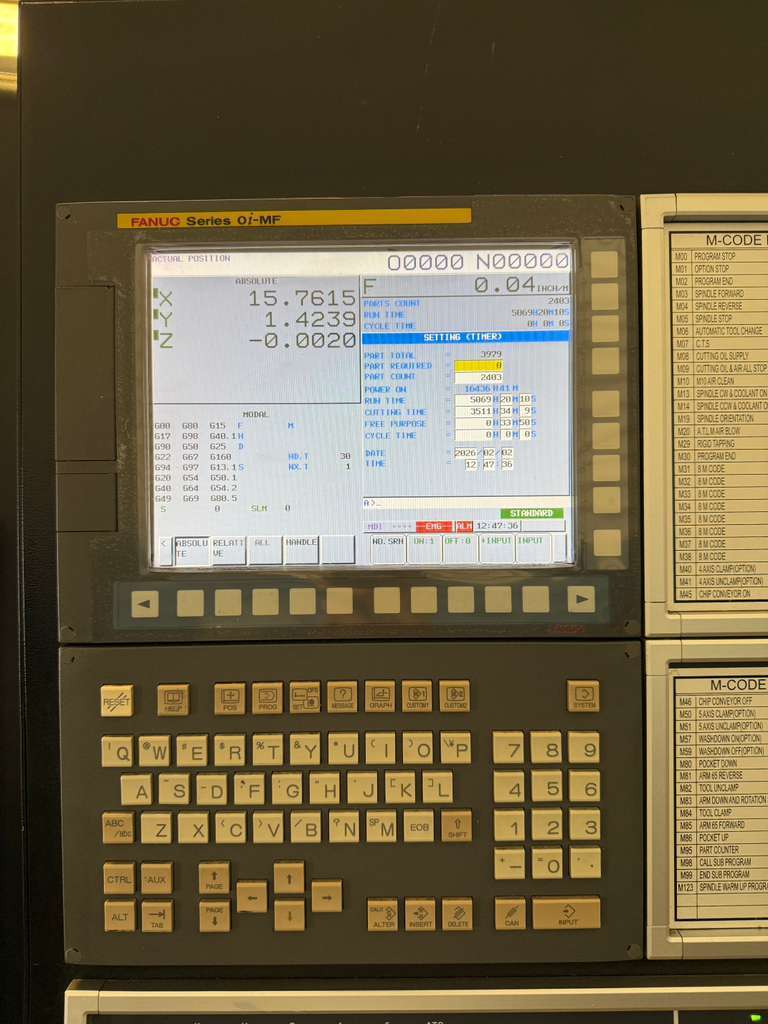

| Fanuc Oi-MF Series CNC Control |
| X, Y Axis Roller Guidways Z Axis Box Way |

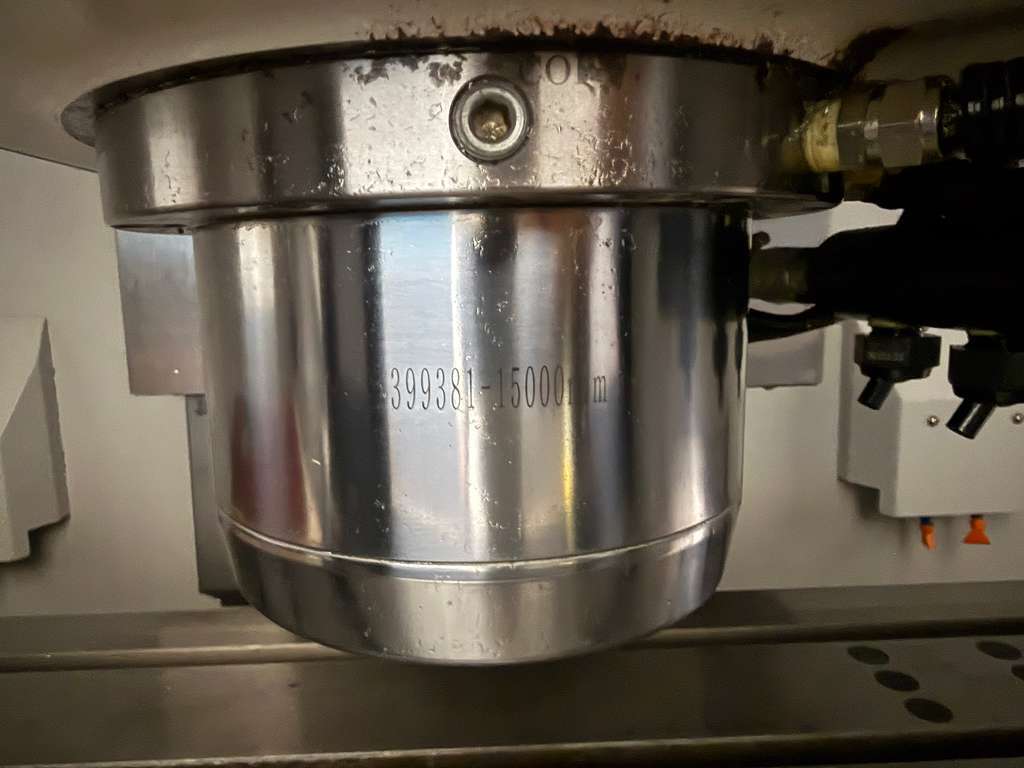

| 15,000 RPM High Speed Spindle |
| Through Spindle Coolant – 300 psi |

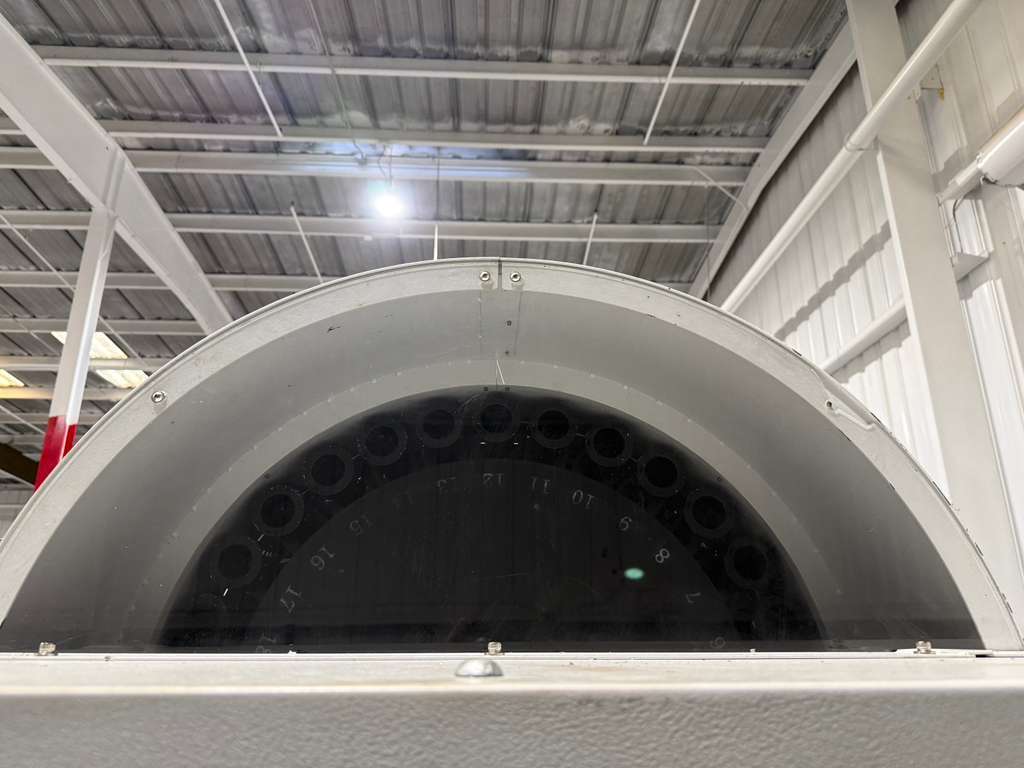

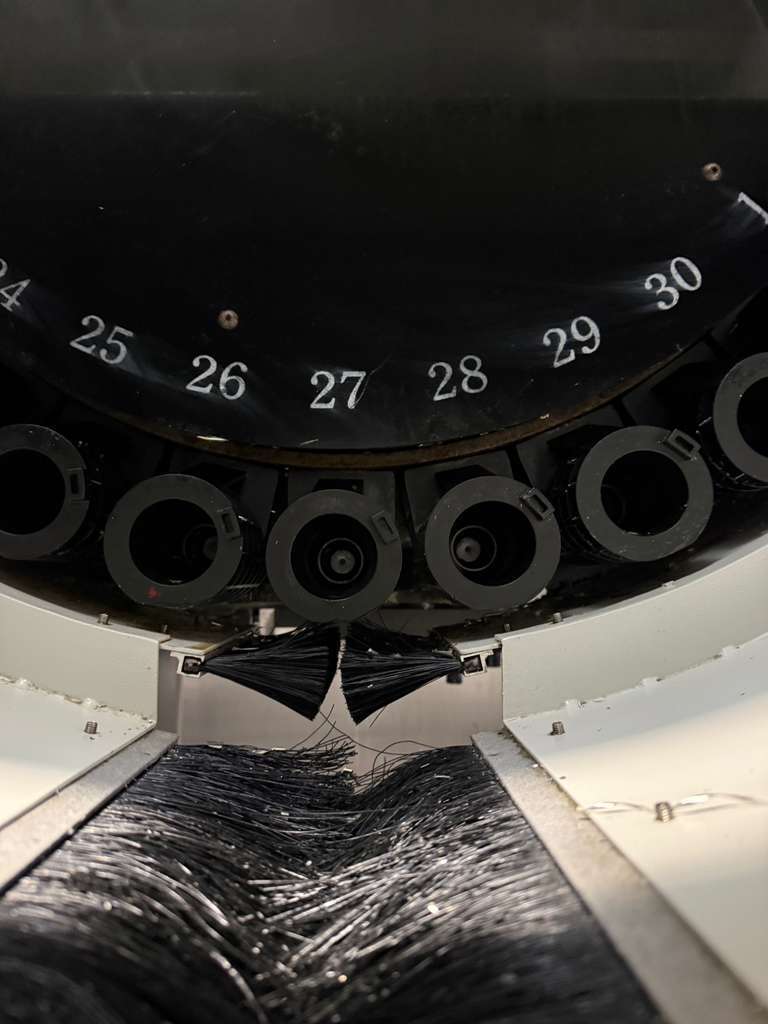

| 30 Station Side Mounted Automatic Tool changer |
| BT-40 Big Plus Taper Spindle |
| MPG Handwheel Control |
| USB, PCMCIA, RS232C |

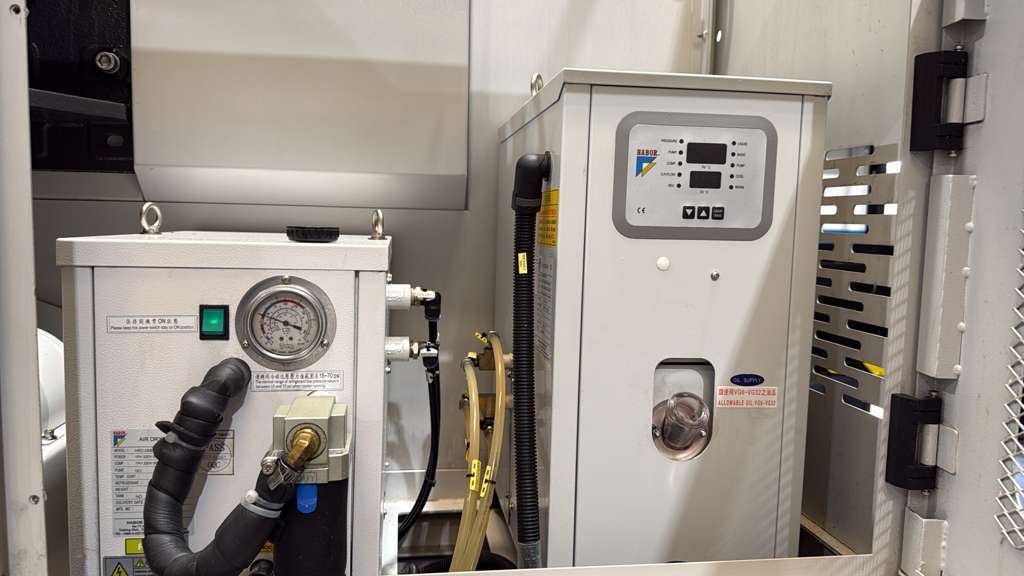

| Spindle Chiller Unit |
| Rigid Tapping |

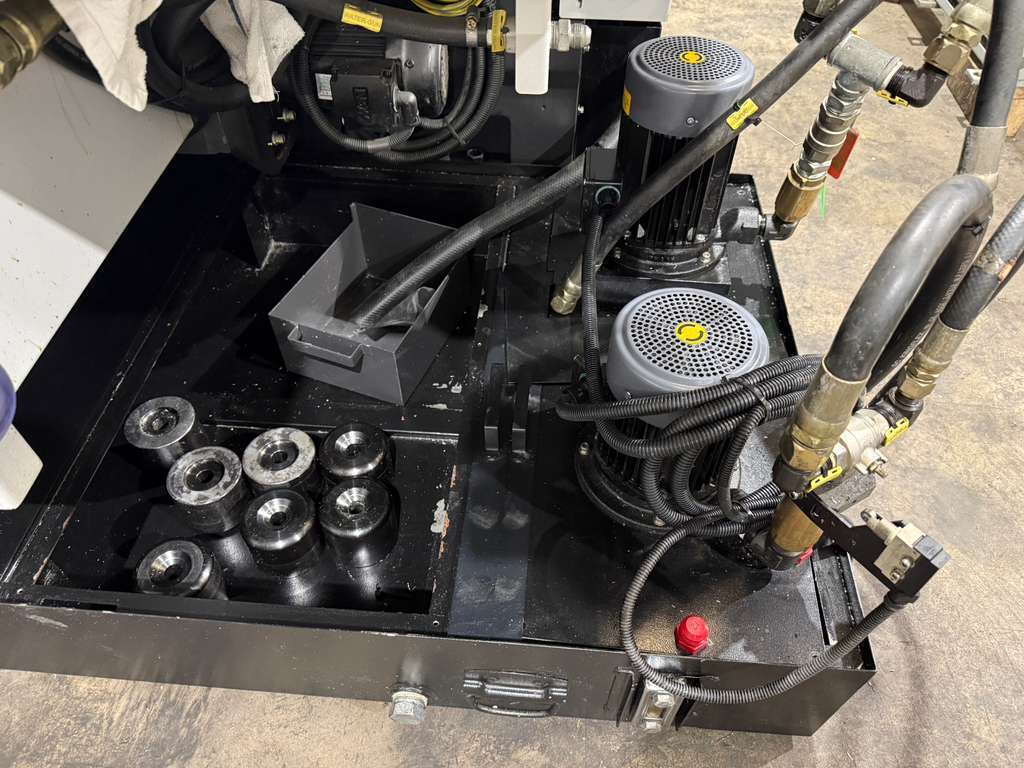

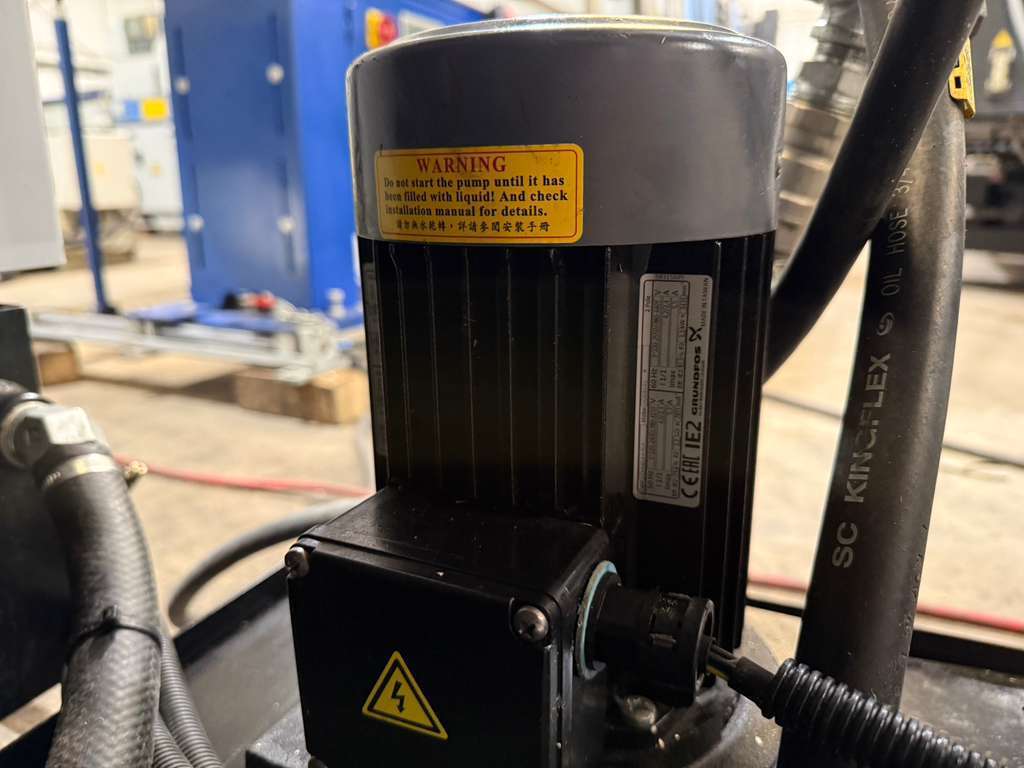

| Coolant System |
| Chip Conveyor |
| Levelling Pads |
| (5) Tool Holders are Included with the Machine |

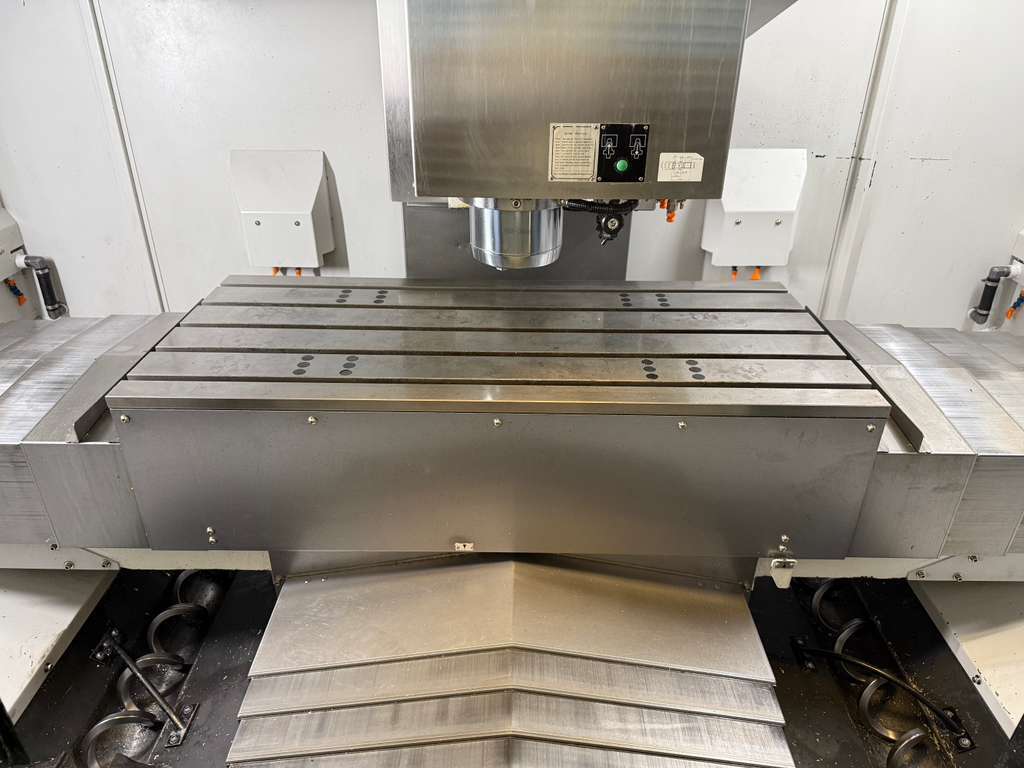

| Table: |
|---|
| Length: 42.2″ |
| Width: 20.5″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.70″ X 3.93″ |
| Max Weight on Table: 1102 lbs |
| Travels: |
|---|
| X-Axis: 39.40″ |
| Y-Axis: 20.47″ |
| Z-Axis: 20.70″ |
| Rapid Traverse Rates X & Y Axis: 2362 IPM |
| Rapid Traverse Rates Z Axis: 1181 IPM |
| Cutting Feed Rates X & Y Axis: 1181 IPM |
| Cutting Feed Rates Z Axis: 787 IPM |
| Spindle Nose to Table (Min.- Max.): 3.94″ – 24.60″ |

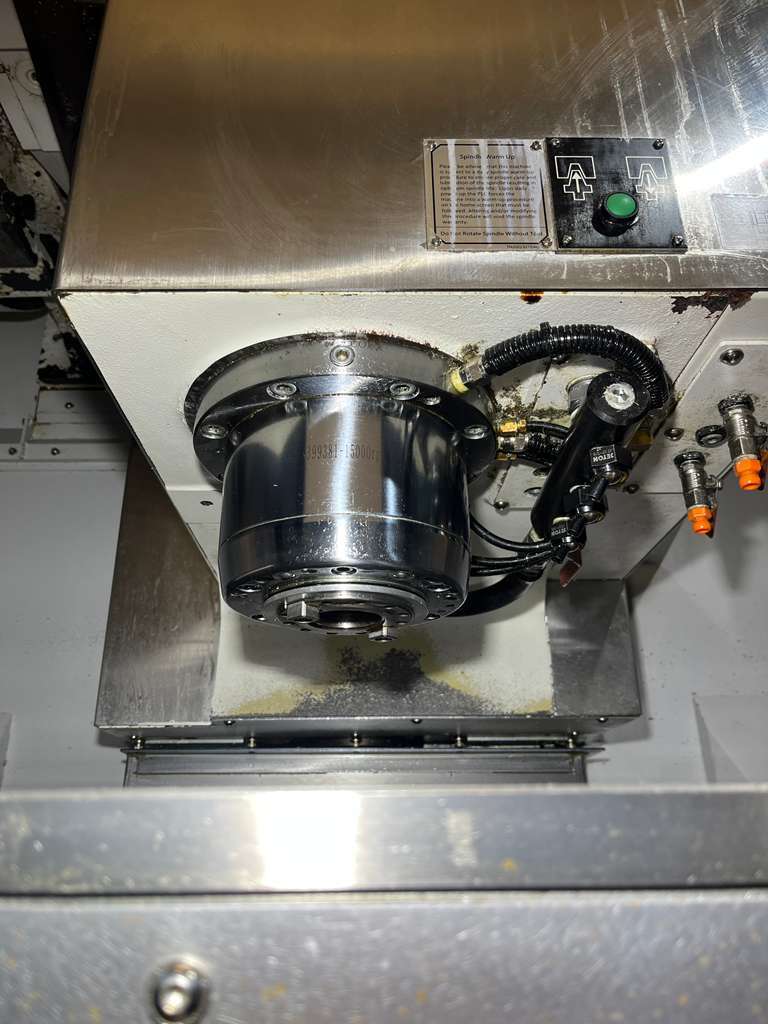

| Spindle: |
|---|
| Taper Size: BT-40 Big Plus |
| Speed Range: 15,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 15.43 lbs |
| Max Tool Dia: 3.10″ – 5.90″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time (Tool to Tool): 1.5 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

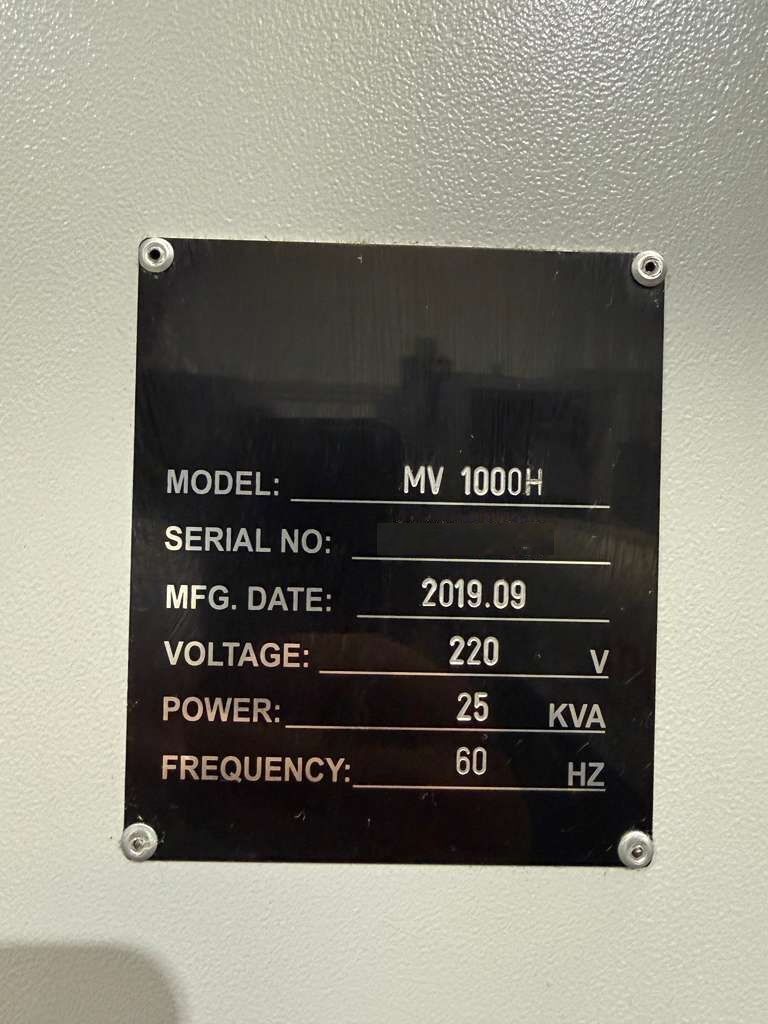

| Power: 220v / 25 kva / 3-Phase |
| Overall Dimensions: 154.3″ x 96.3″ x 118″ High (With Chip Conveyor) |
| Weight: 15,760 lbs |
