Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
|---|

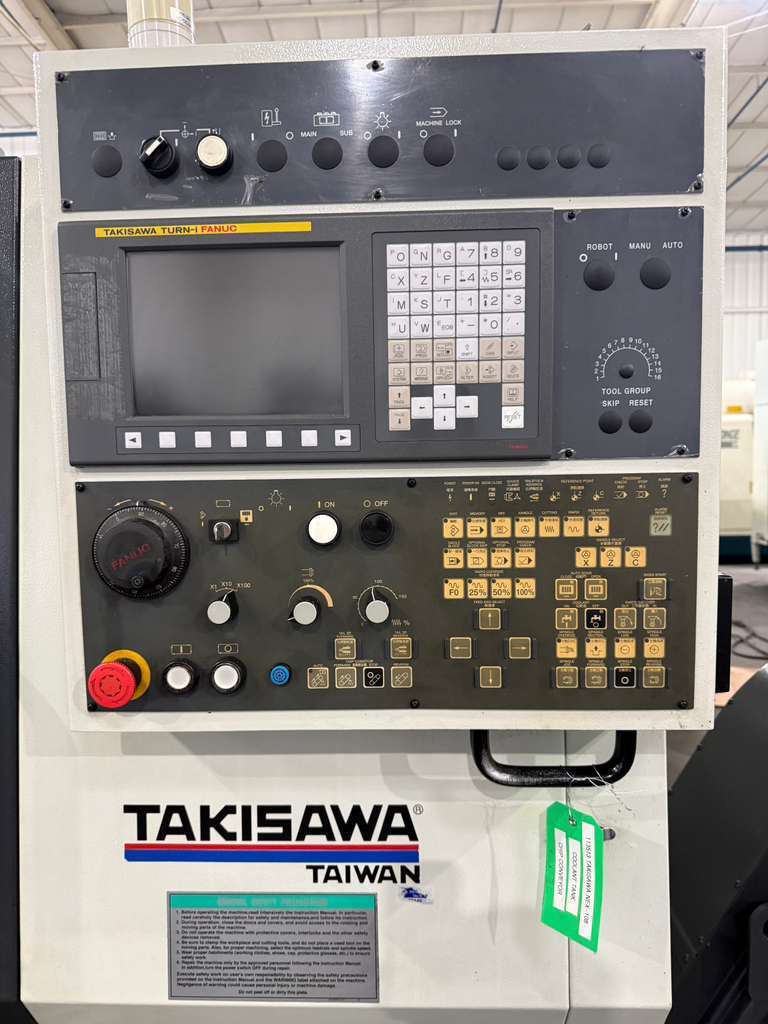

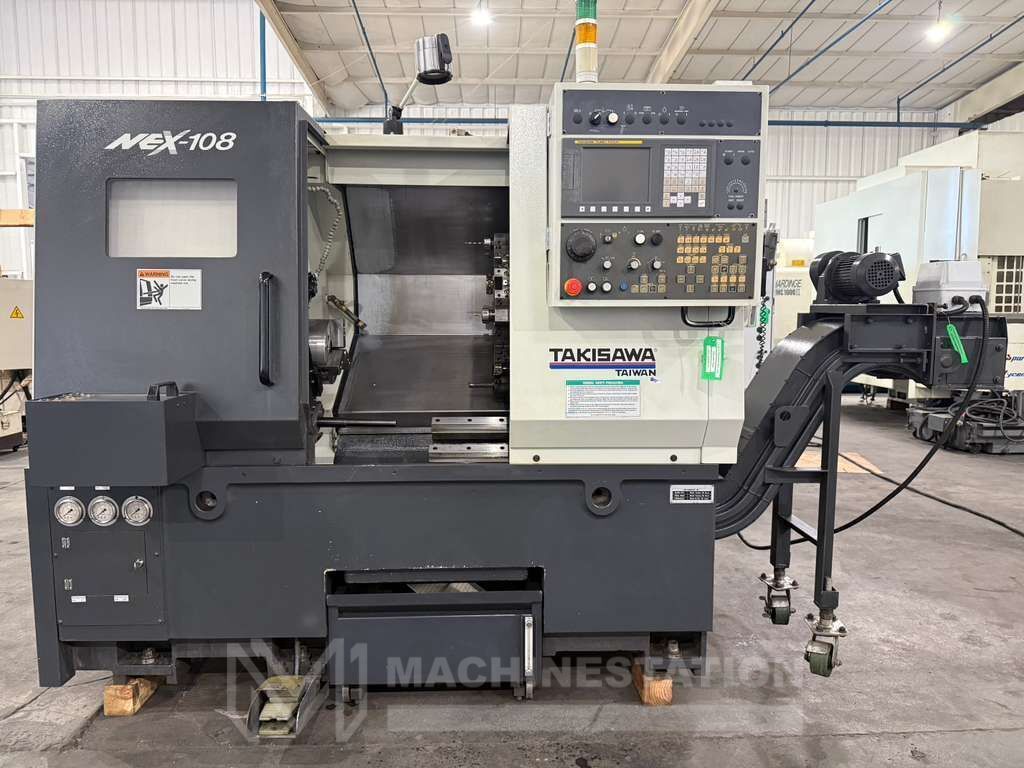

| Takisawa Turn-i Fanuc CNC Control |
| Linear Ways Construction |

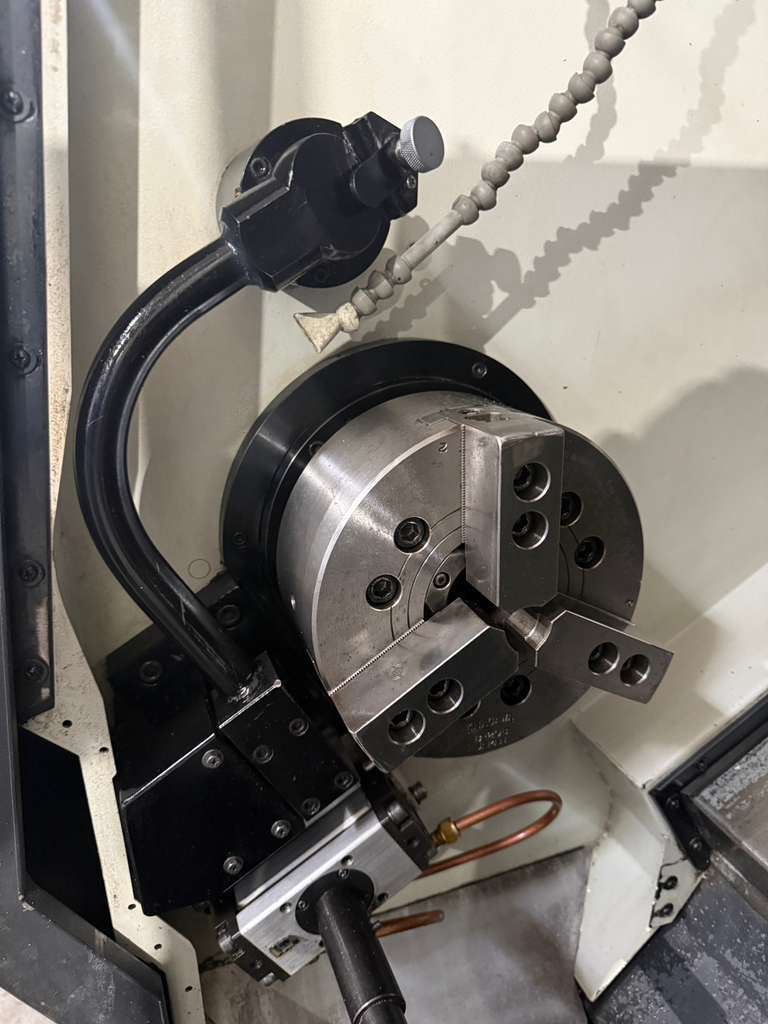

| 8″ 3-Jaw Hydraulic Chuck |

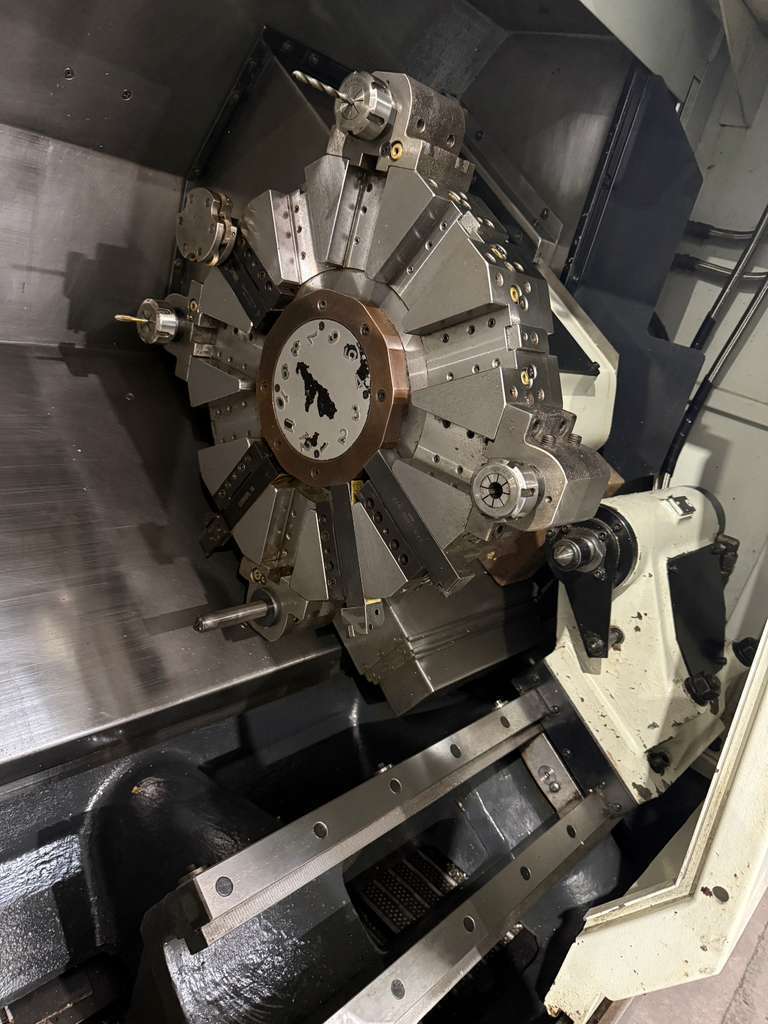

| 12-Station Automatic Turret |
| Tool Presetter |
| Tailstock |
| PCMCIA Card Interface |

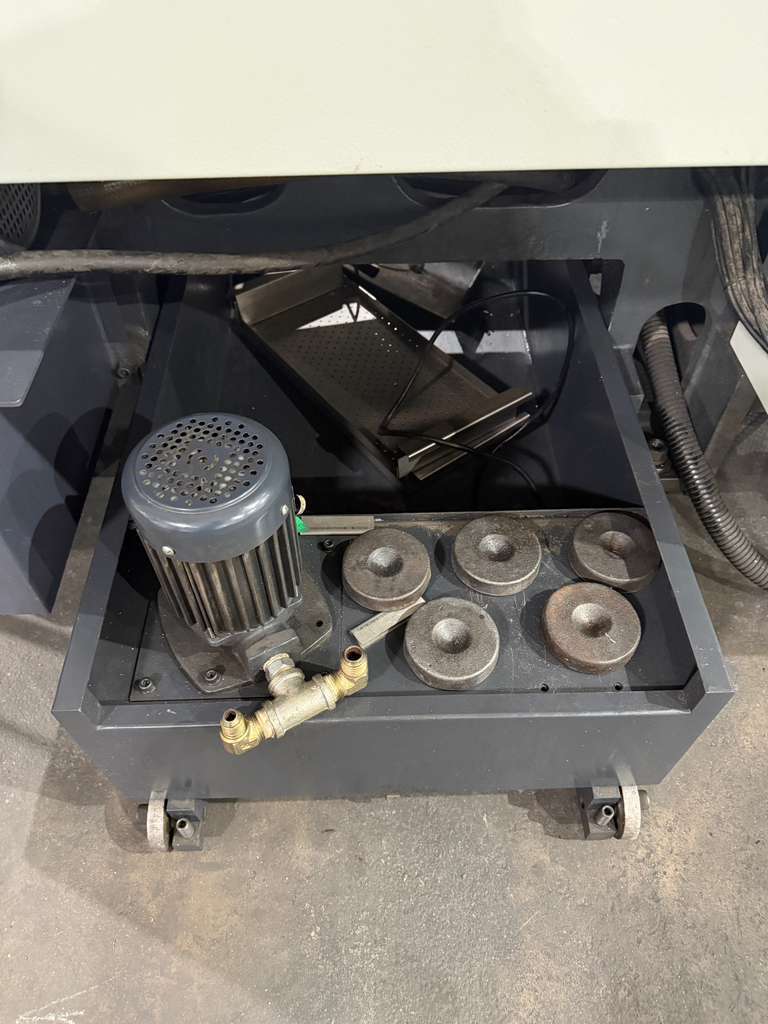

| Coolant Tank |
| Automatic Lubrication Unit |
| Foot Switch |
| Chip Conveyor |
| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter: 12.60″ |
| Max Turning Length: 18.93″ |
| Swing Over Bed: 15.75″ |
| Swing Over Cross Slide: 12.60″ |
| Max Bar Capacity: 2.04″ |
| Travels: |
|---|
| X Axis Travel: 7.08″ |
| Z Axis Travel: 20.87″ |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.48″ |
| Spindle Speed: 4,000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turning Tool Shank: 1.0″ |
| Boring Bar Shank Diameter: 1.57″ |
| Tool Holders Type: Bolt Mounted |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Body Travel: 16.73″ |
| Tailstock Quill Diameter: 2.95″ |
| Tailstock Quill Travel : 3.93″ |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 50/60 Hz |
| Power Requirement: 21 kva |
| Overall Dimensions: 86″ x 65″ x 70″ High Approx. |
| Weight : 8,377 lbs Approx. |
