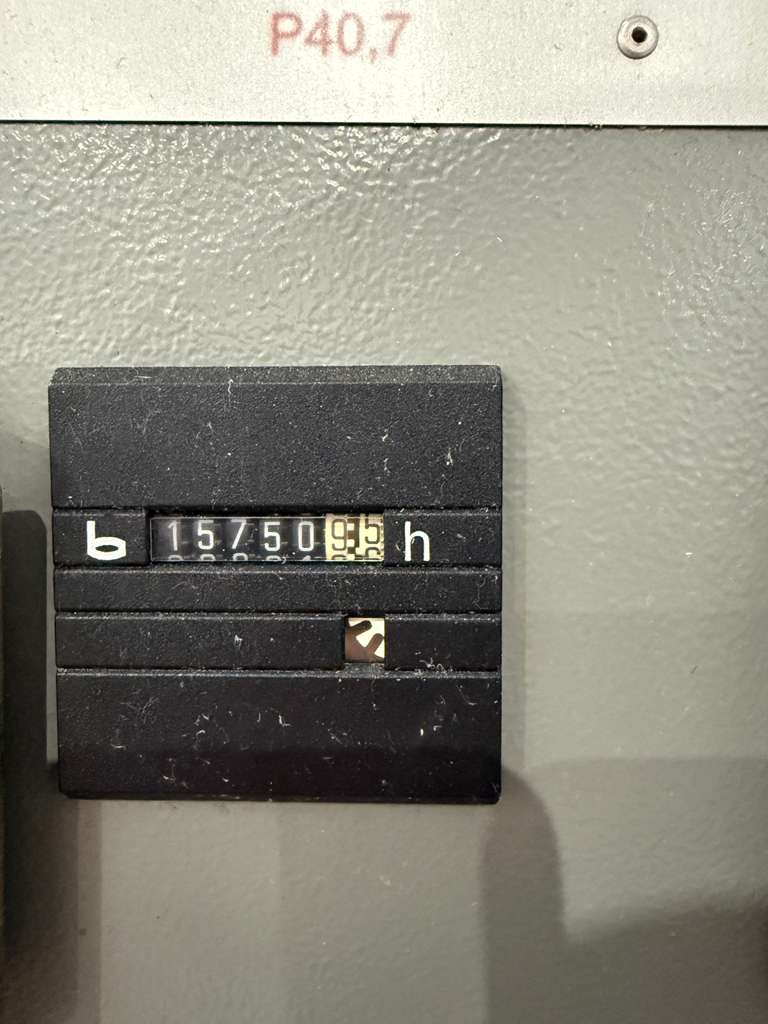

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

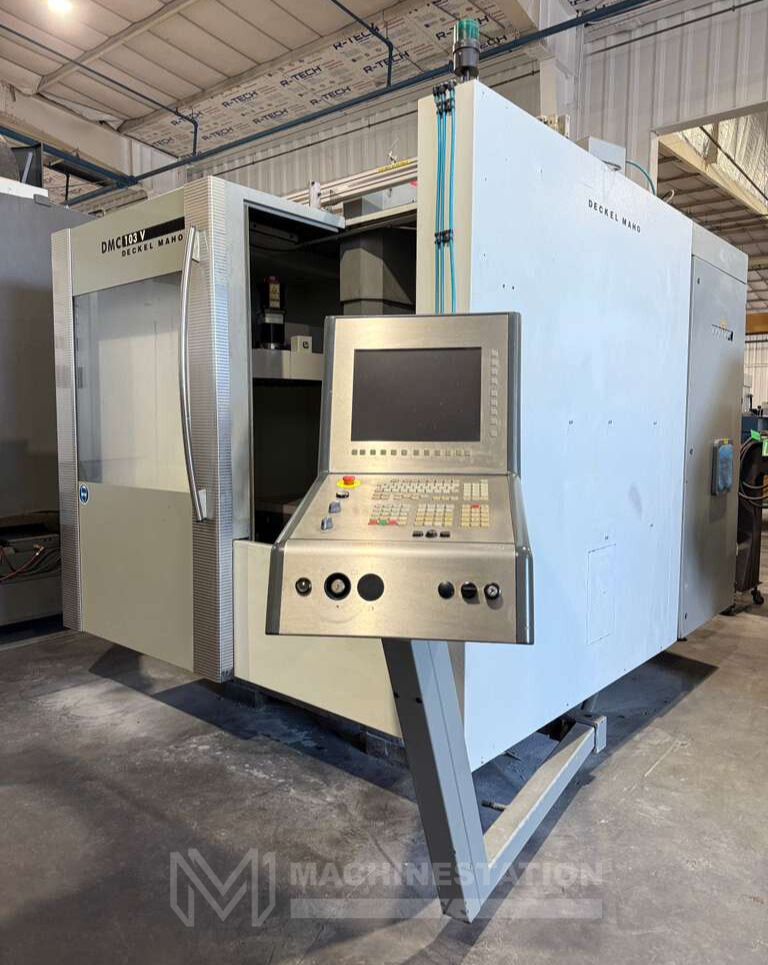

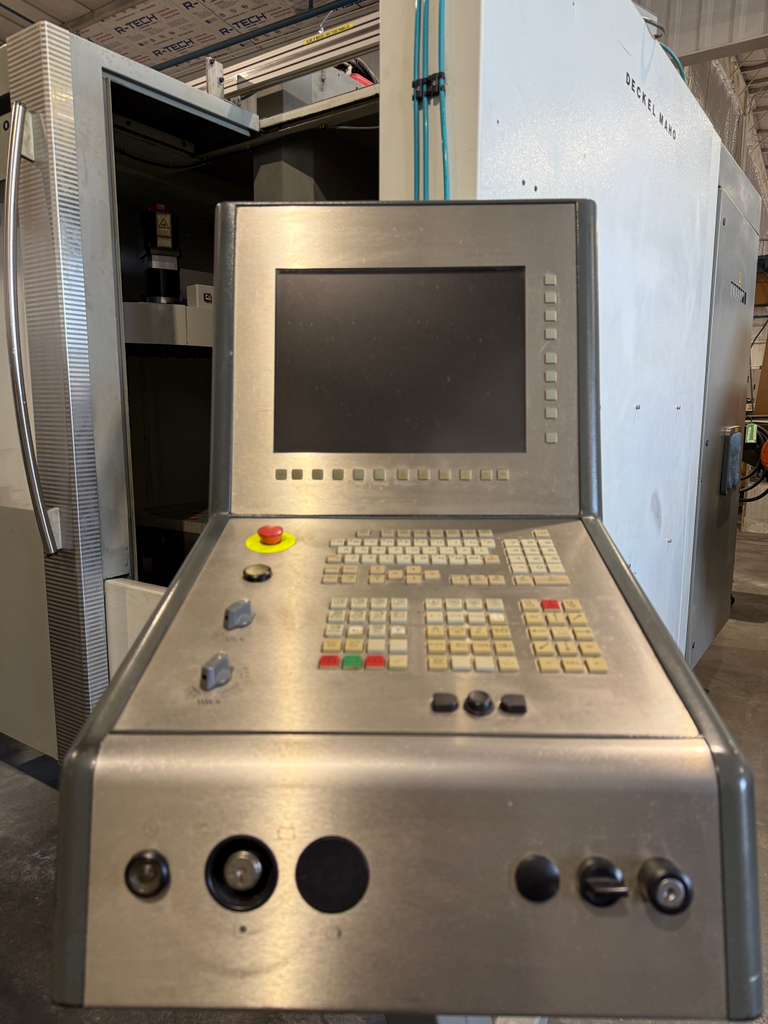

| Fanuc 180i Series CNC Control |
| 10,000 RPM Spindle |
| Through Spindle Coolant |
| 24 Station Automatic Tool Changer |
| 40 Taper Spindle |
| Rigid Tapping |

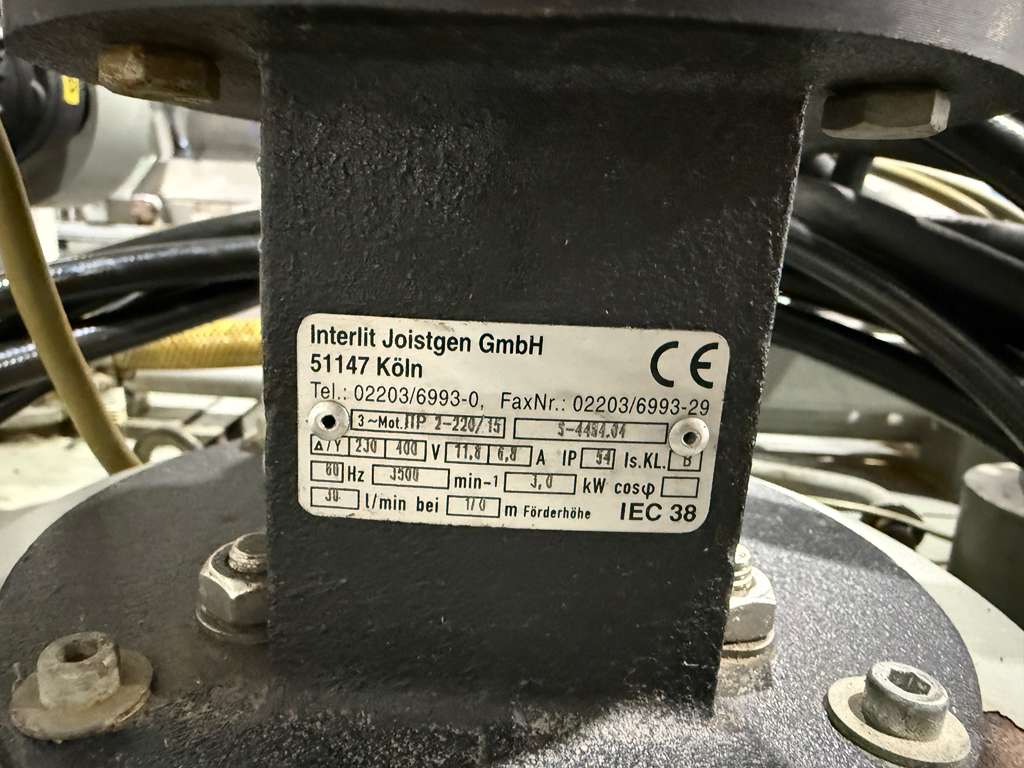

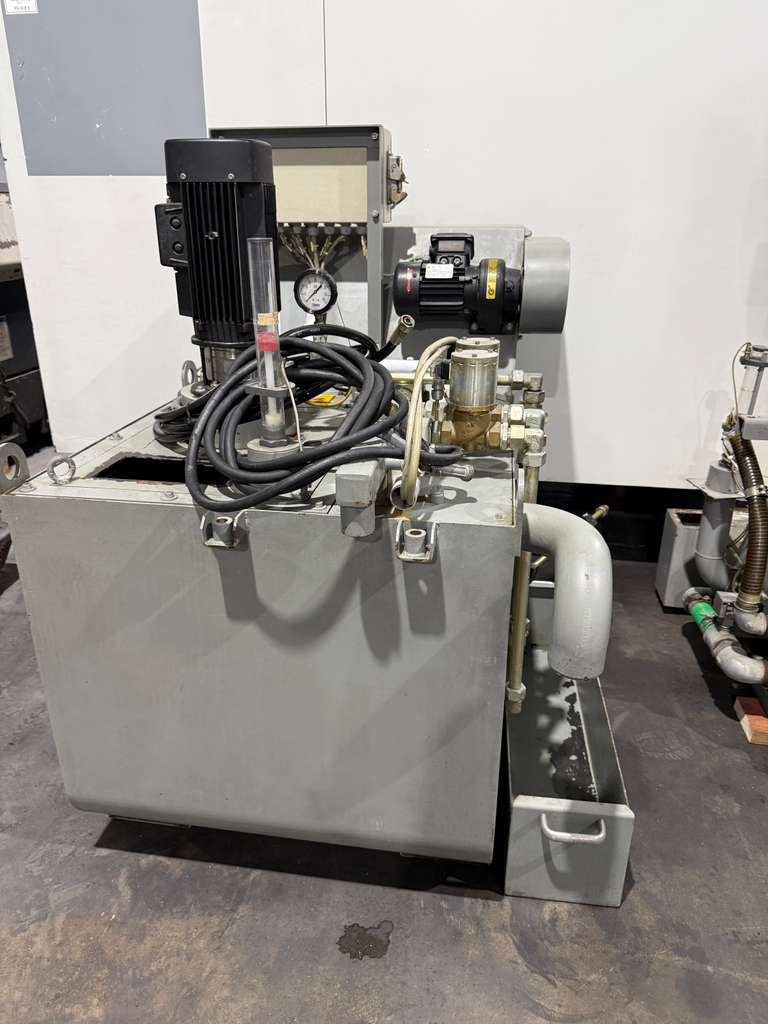

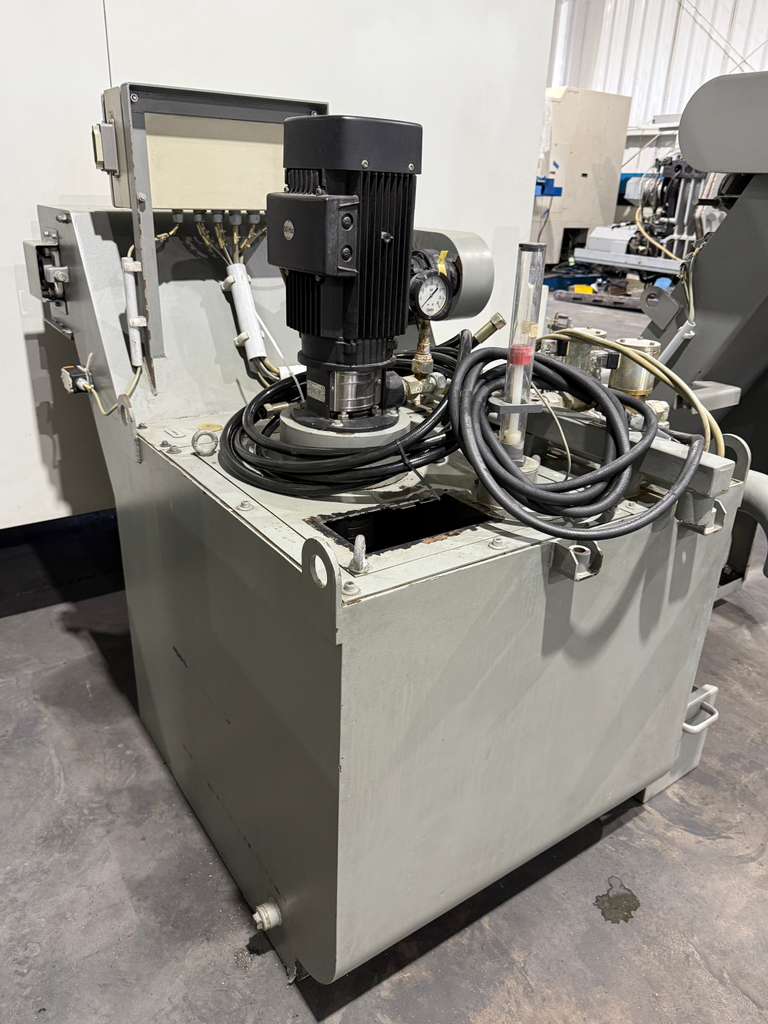

| Coolant system |

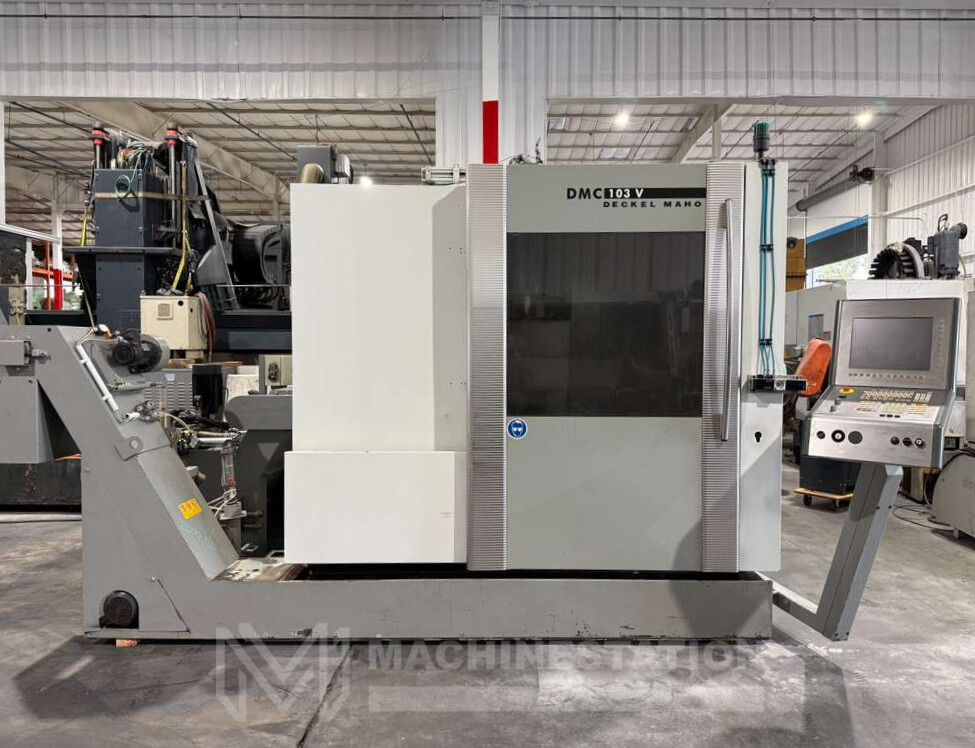

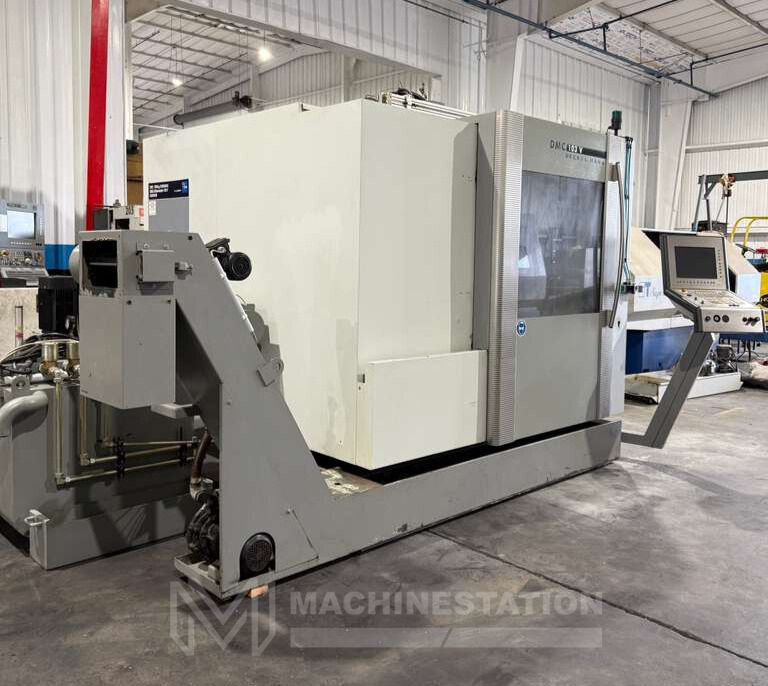

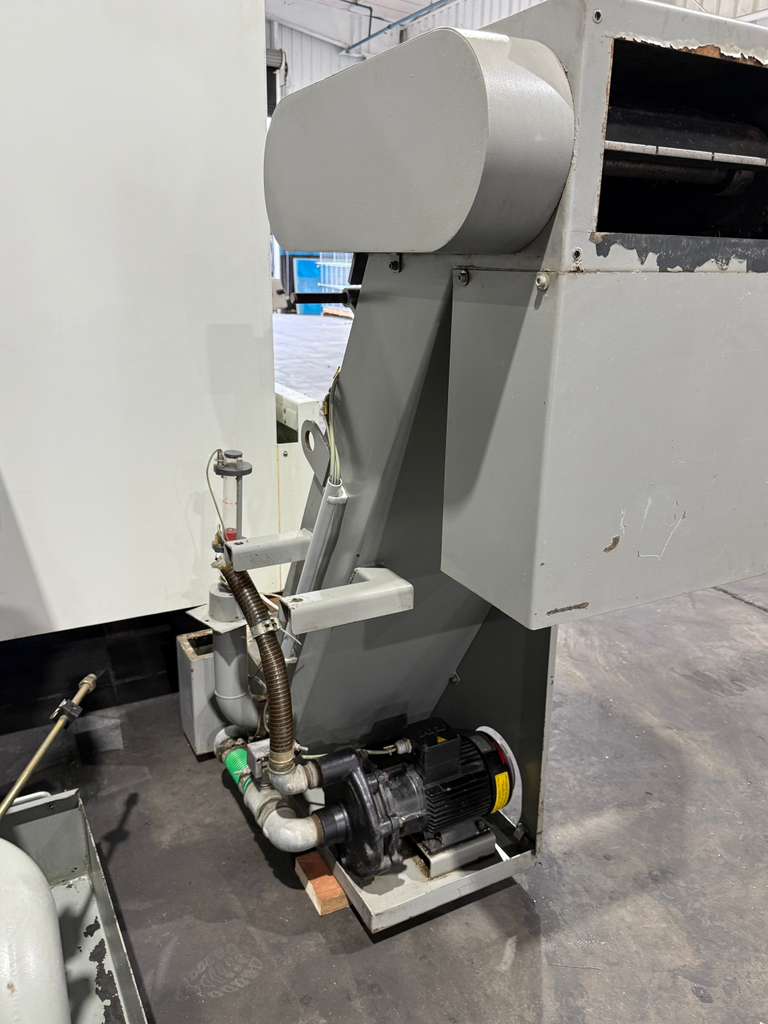

| Chip Conveyor |
| Travels: |
| X-Axis: 39.37″ |
| Y-Axis: 23.62″ |
| Z-Axis: 23.62″ |
| Rapid Traverse Rates: 1181 Inch Per Minute |

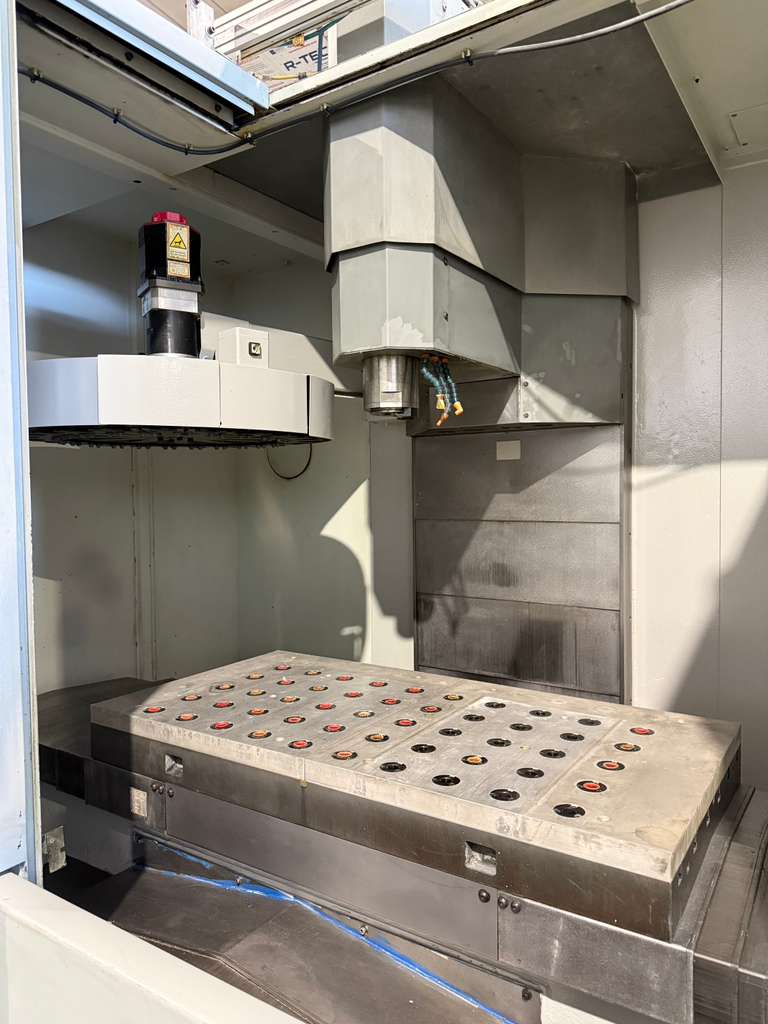

| Table: |
| Length: 47.24″ |
| Width: 23.62″ |
| Max Weight on Table: 1103 lbs |
| Spindle: |
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |

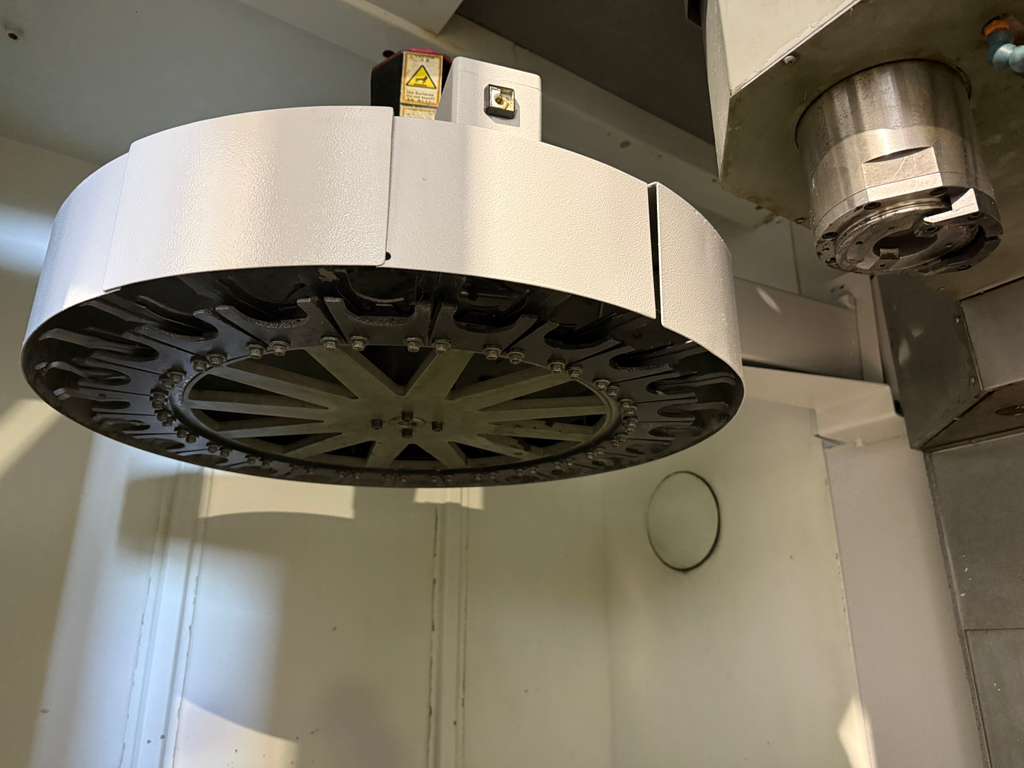

| Automatic Tool Changer: |
| Capacity: 24 Station |
| Tool Weight: 15.43 lbs |
| Max Tool Dia: 3.14″ |
| General: |
| Air Required: 80 psi 4 scfm |

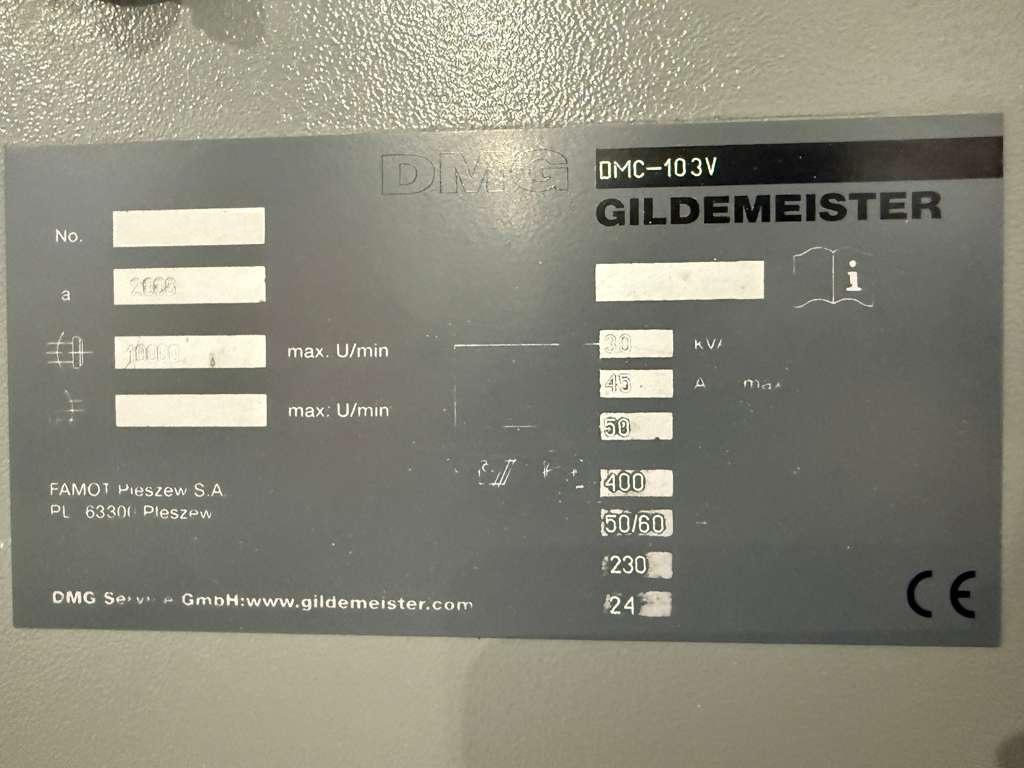

| Power: 400v / 30 kva / 3-Phase / 50/60 Hz |
| Overall Dimensions: 118″ x 102″ x 110″ High Approx. |
| Weight: 14,330 lbs Approx. |
| Categories | CNC Vertical Machining Centers - VMC |
|---|

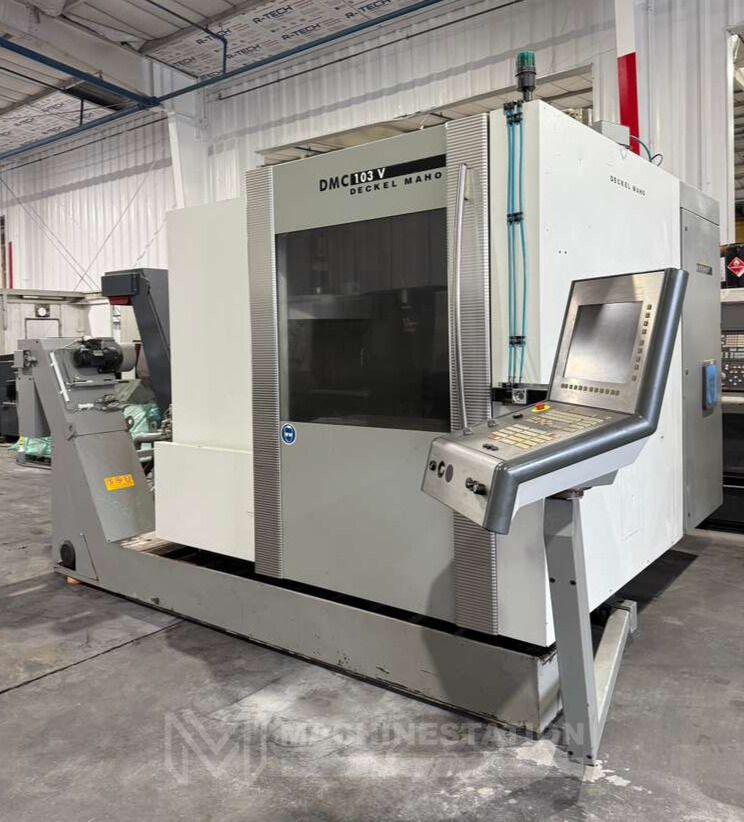

| Series | DMG Mori Seiki DMC Series |
|---|
| Categories | CNC Vertical Machining Centers - VMC |
|---|
