*All specifications are approximations and are subject to verification. Additionally, it comes as shown in the images. Therefore, please give us a call if you have any questions before purchasing. Finally, please note that all sales are final.*

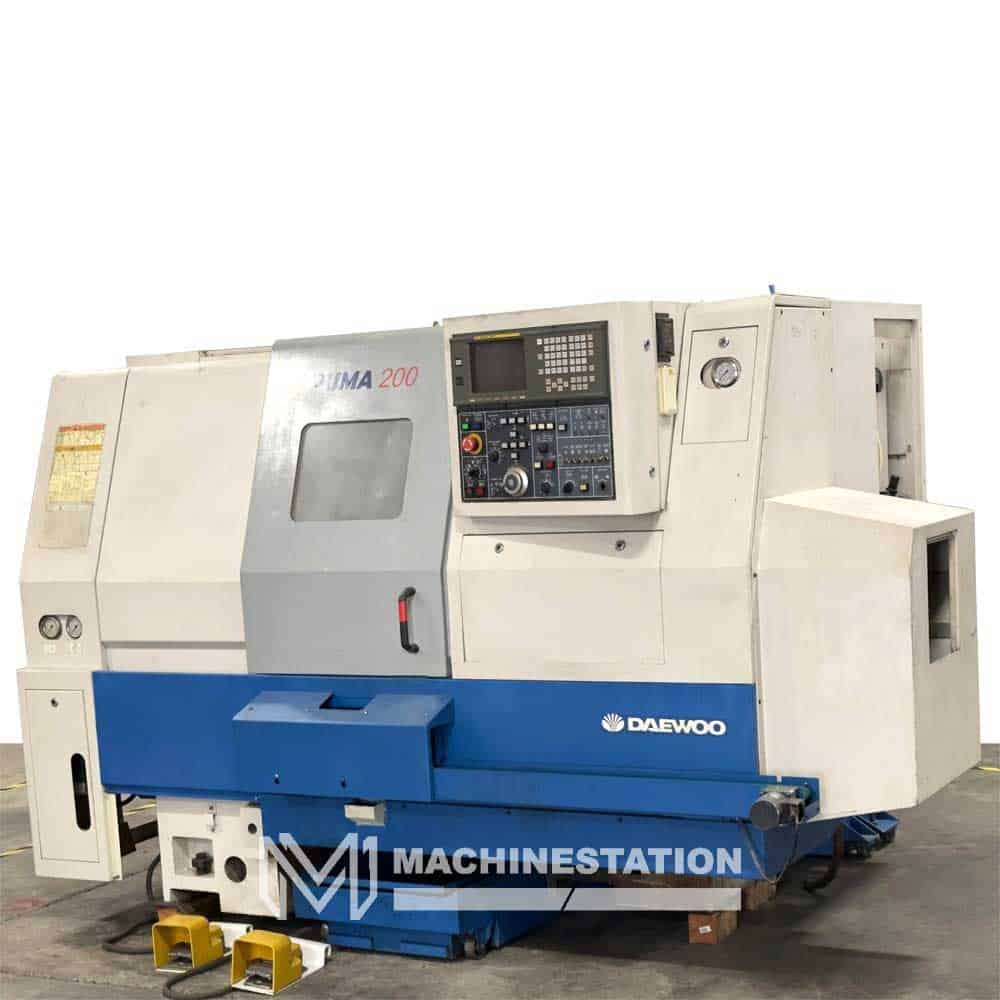

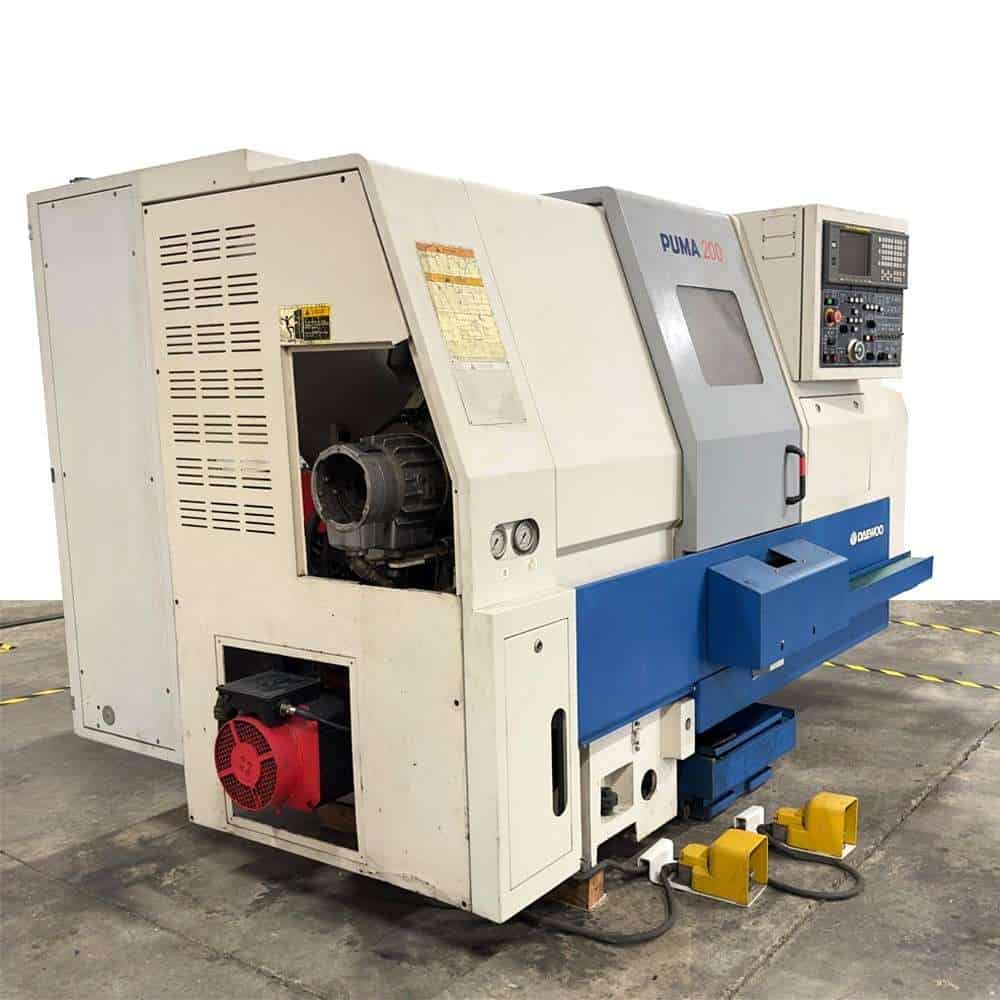

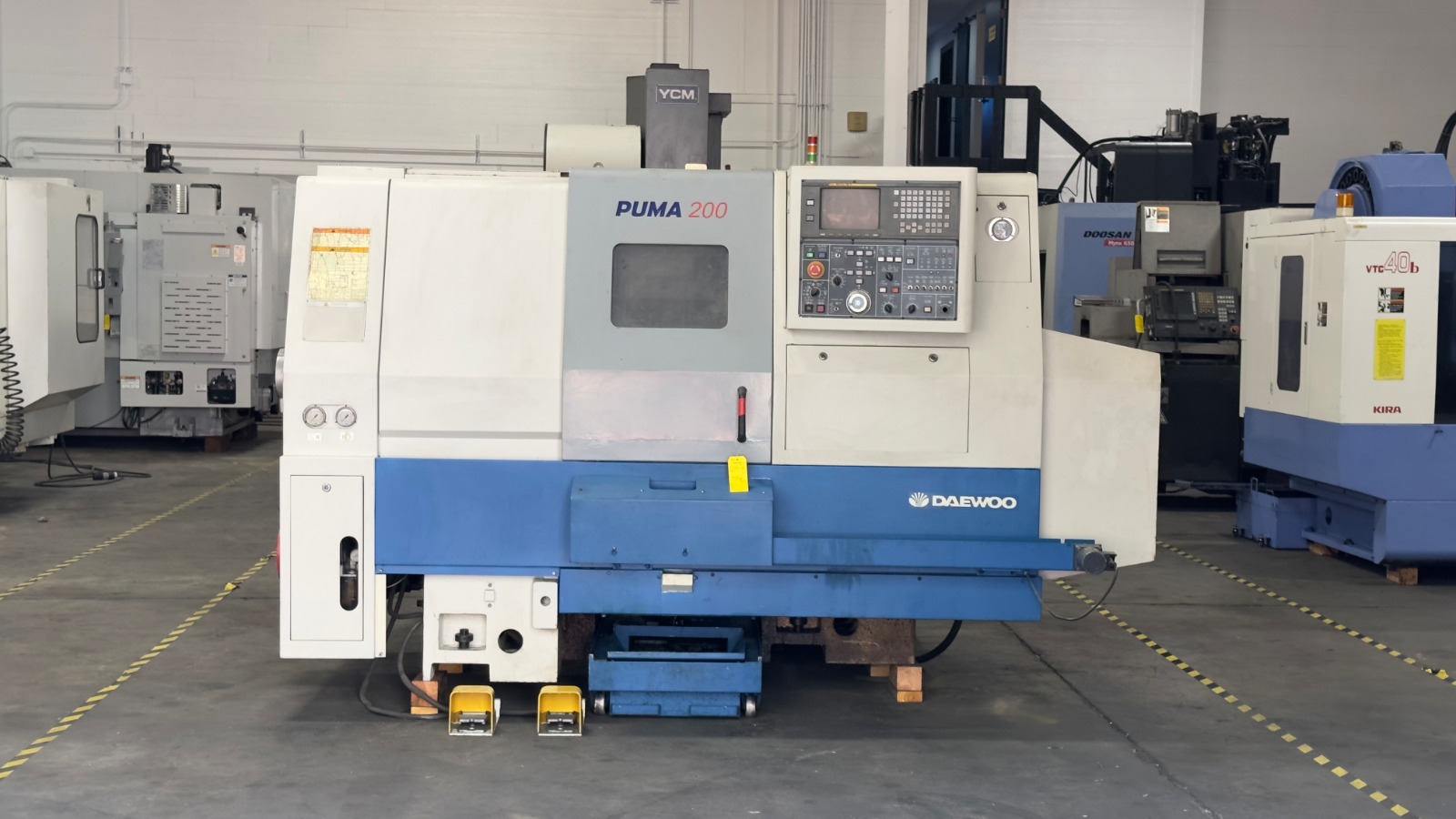

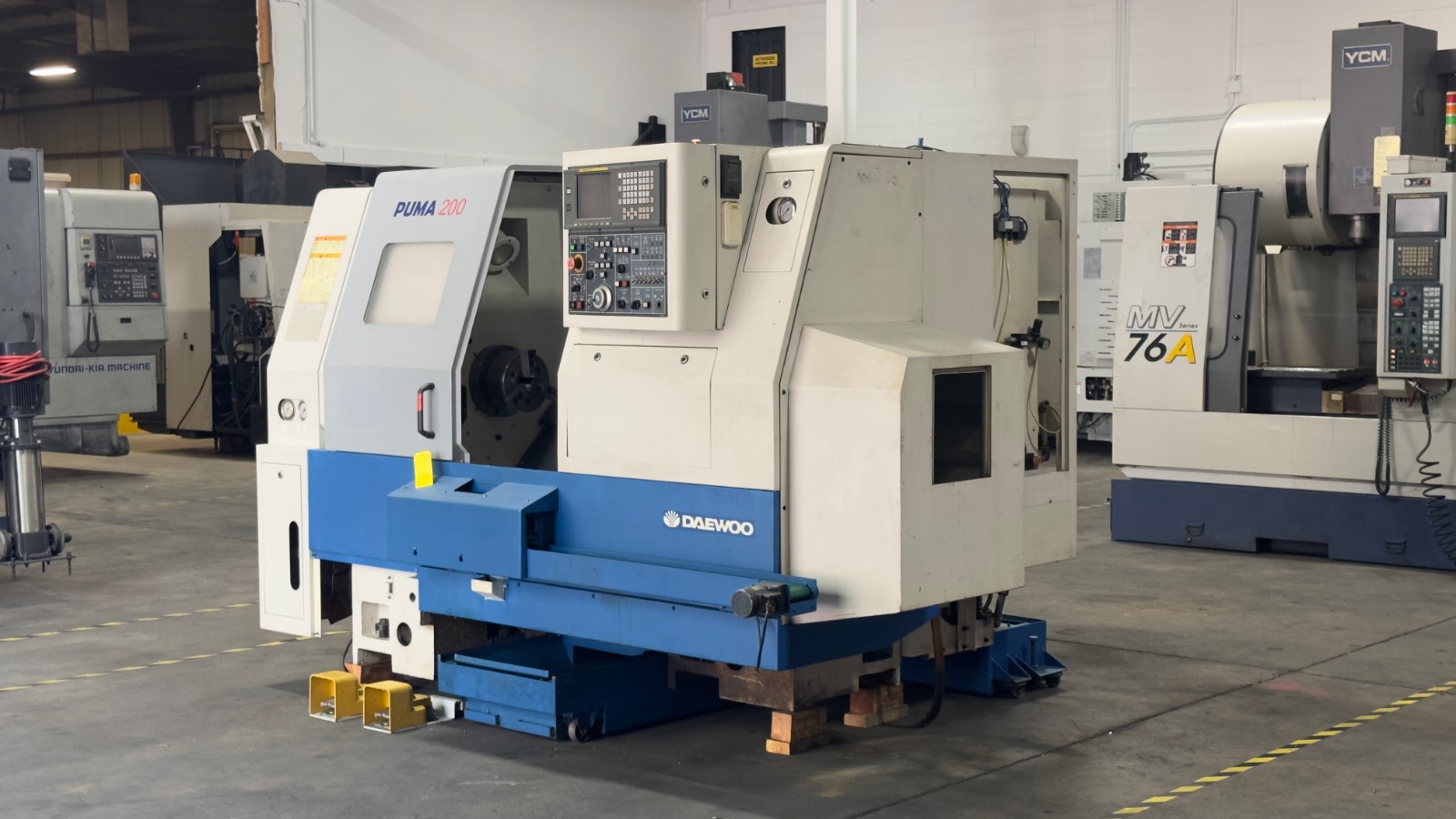

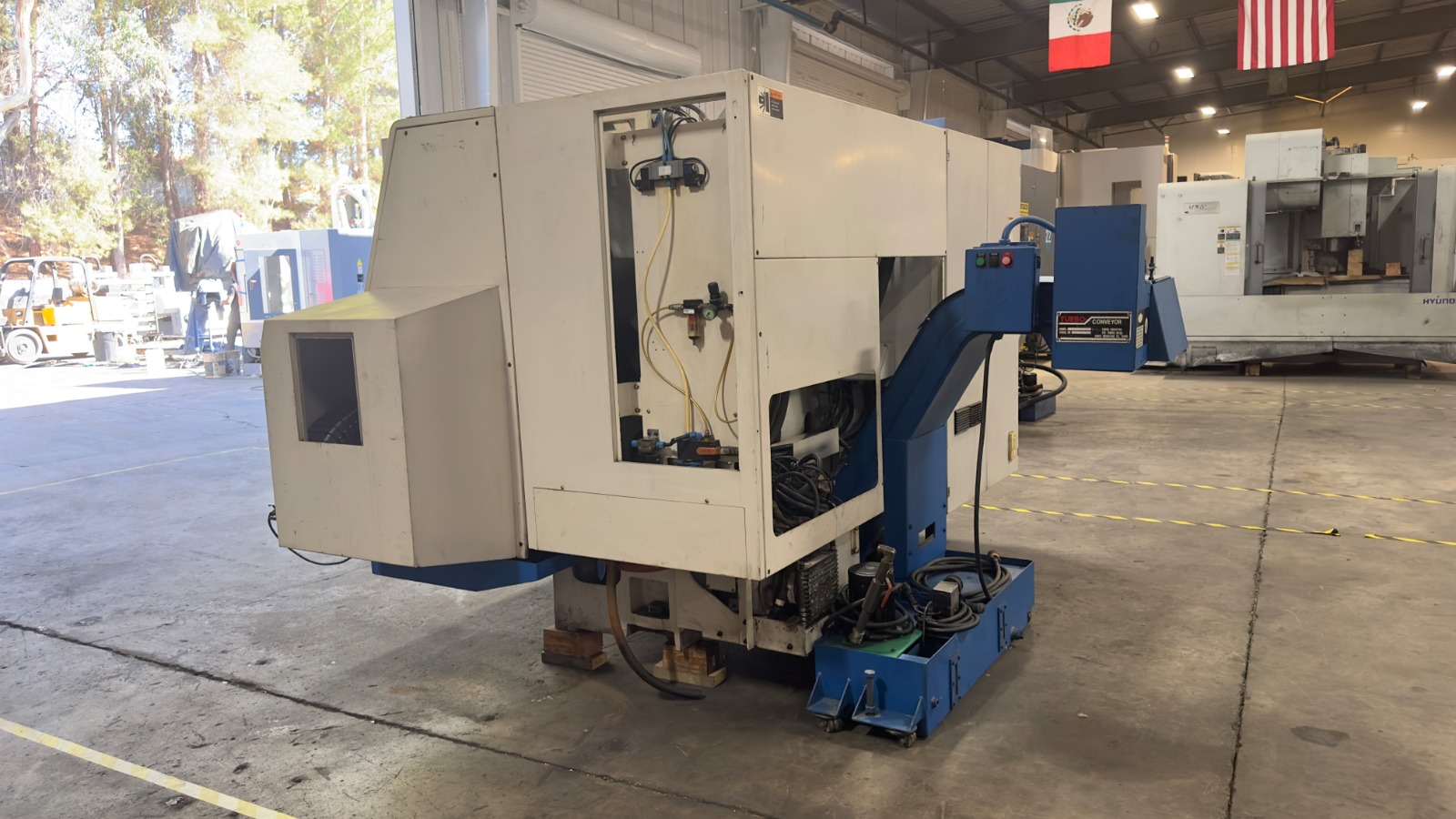

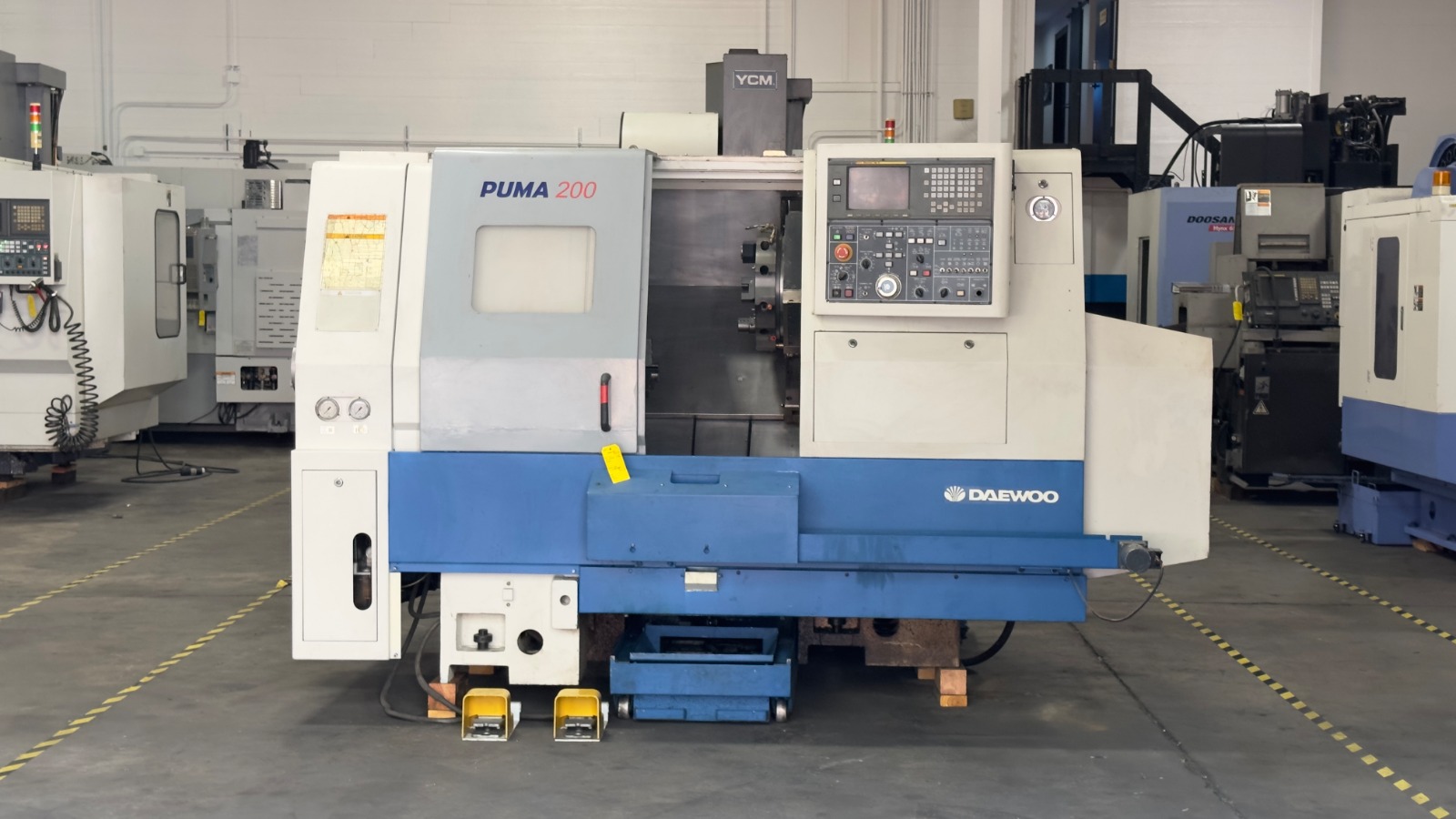

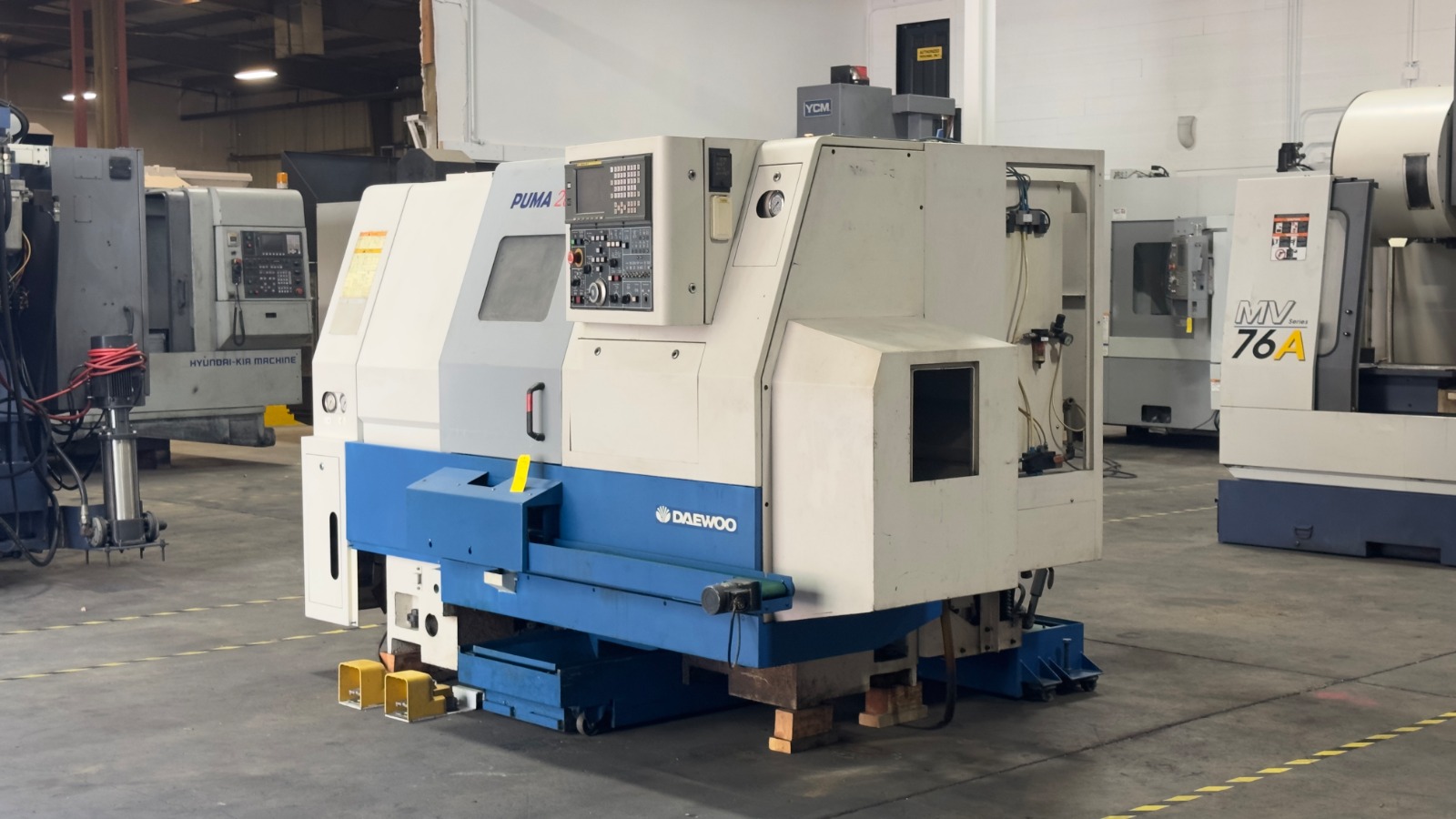

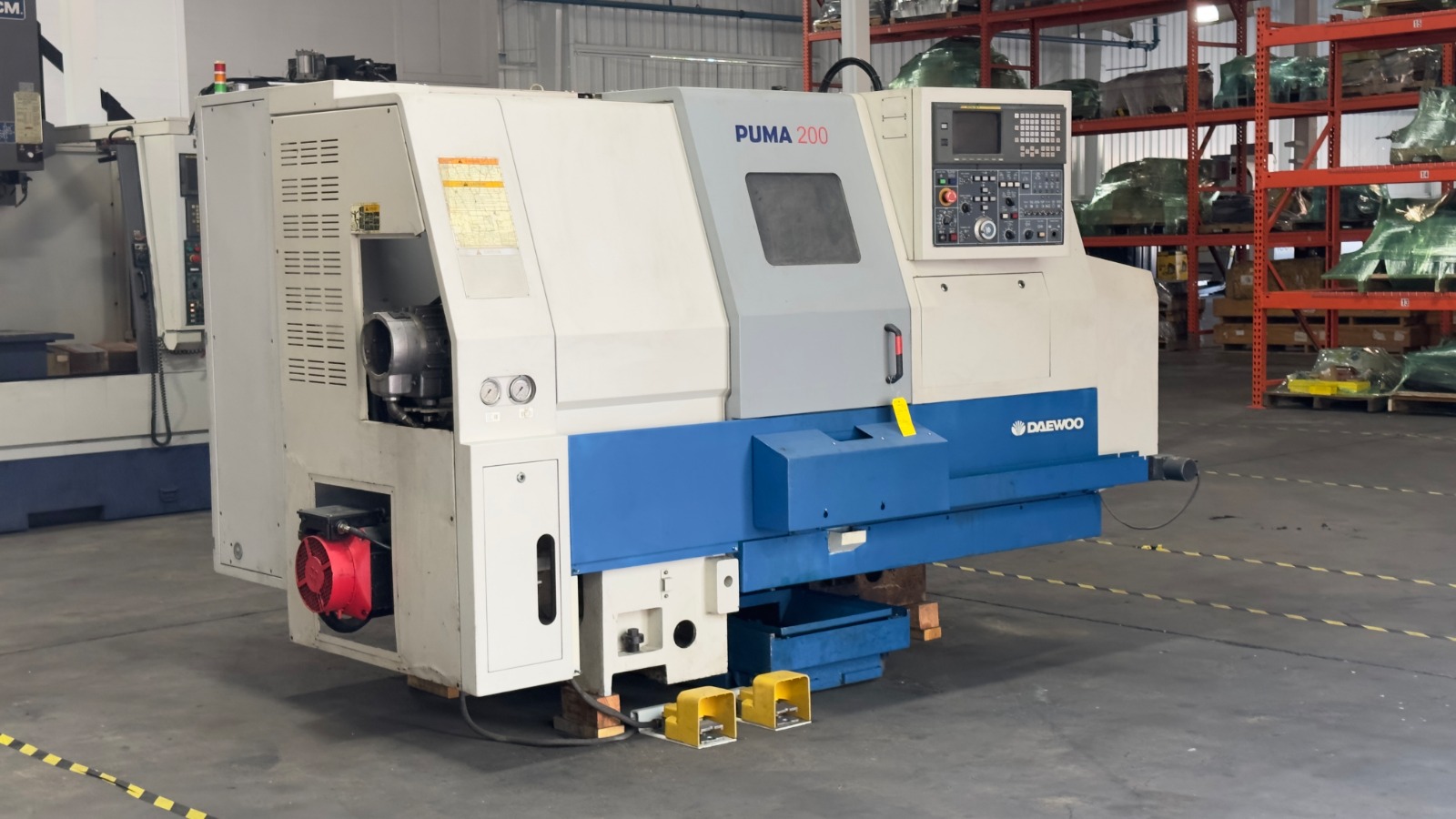

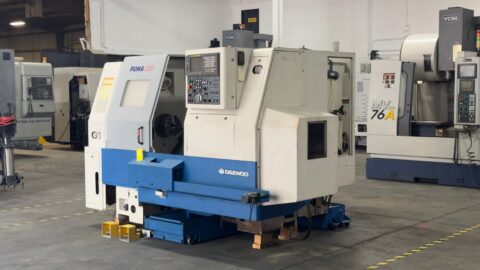

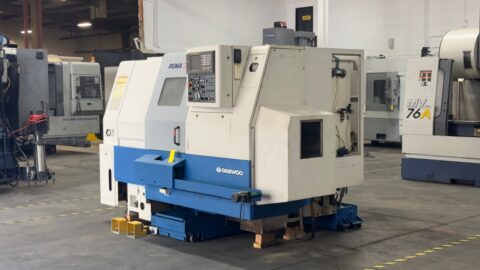

| SKU: | 50101 |

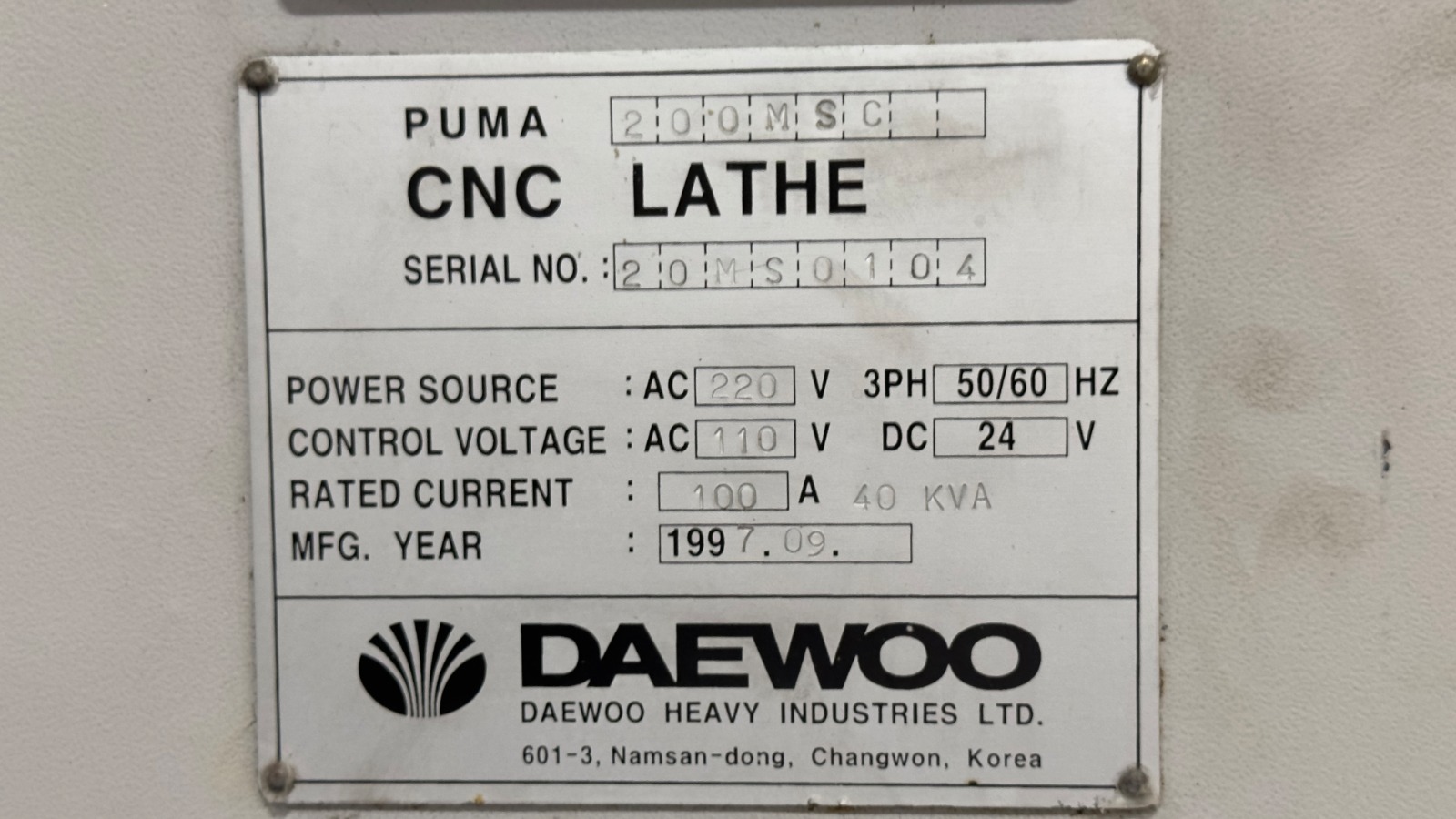

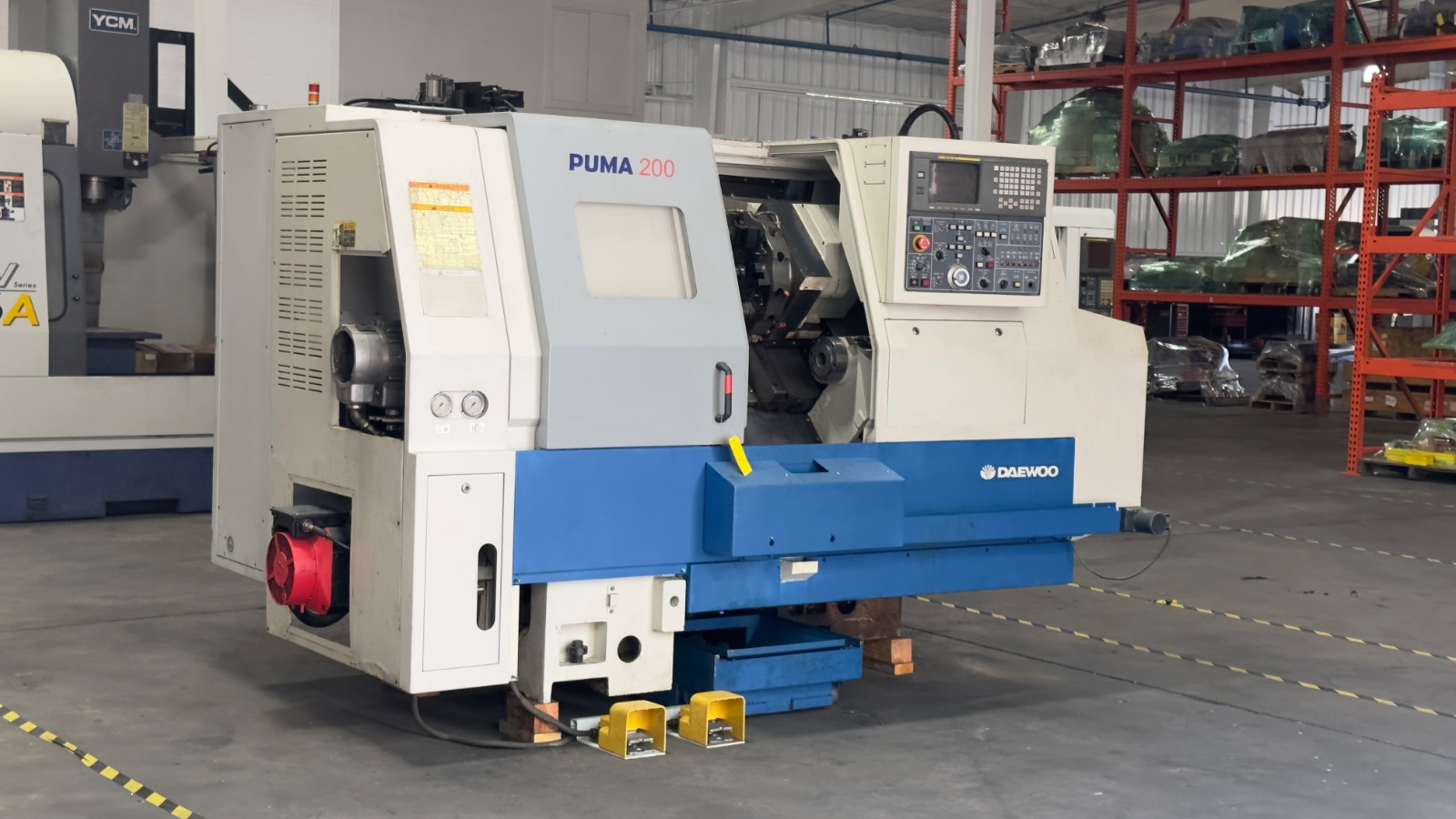

| Make: | Daewoo |

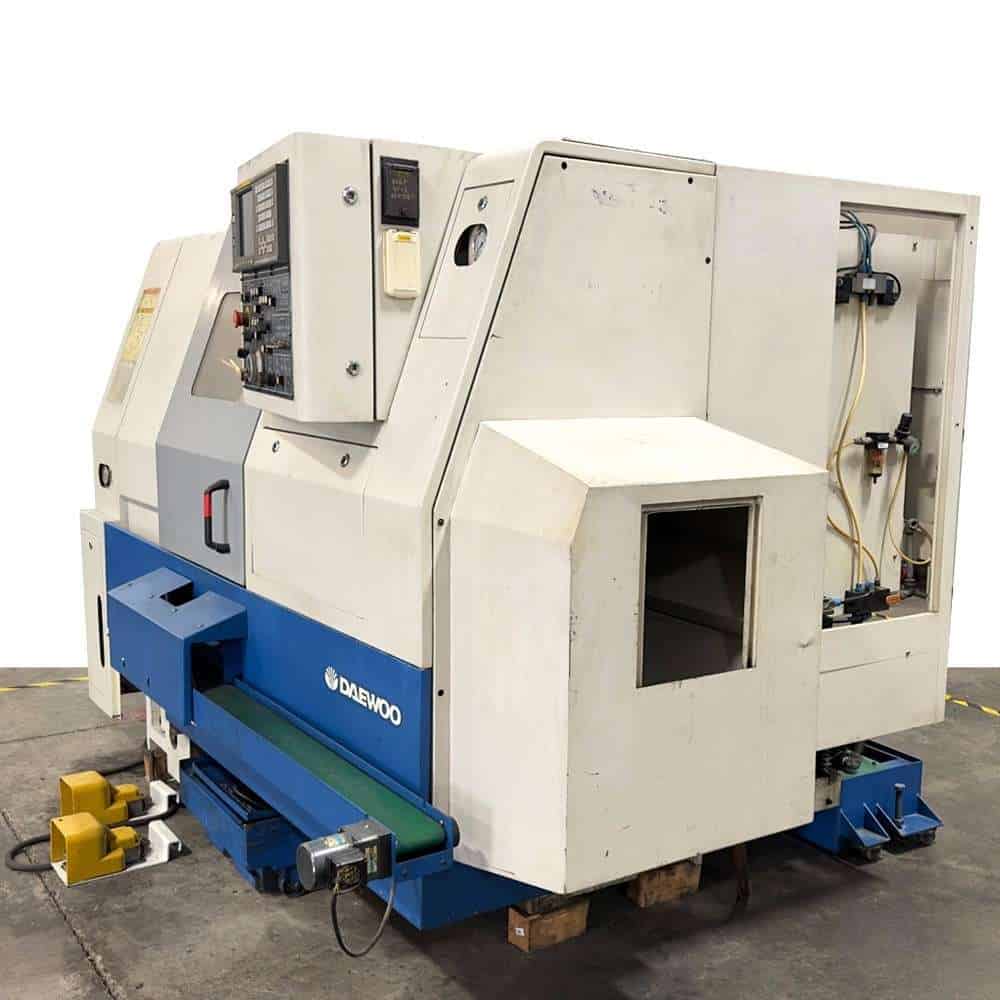

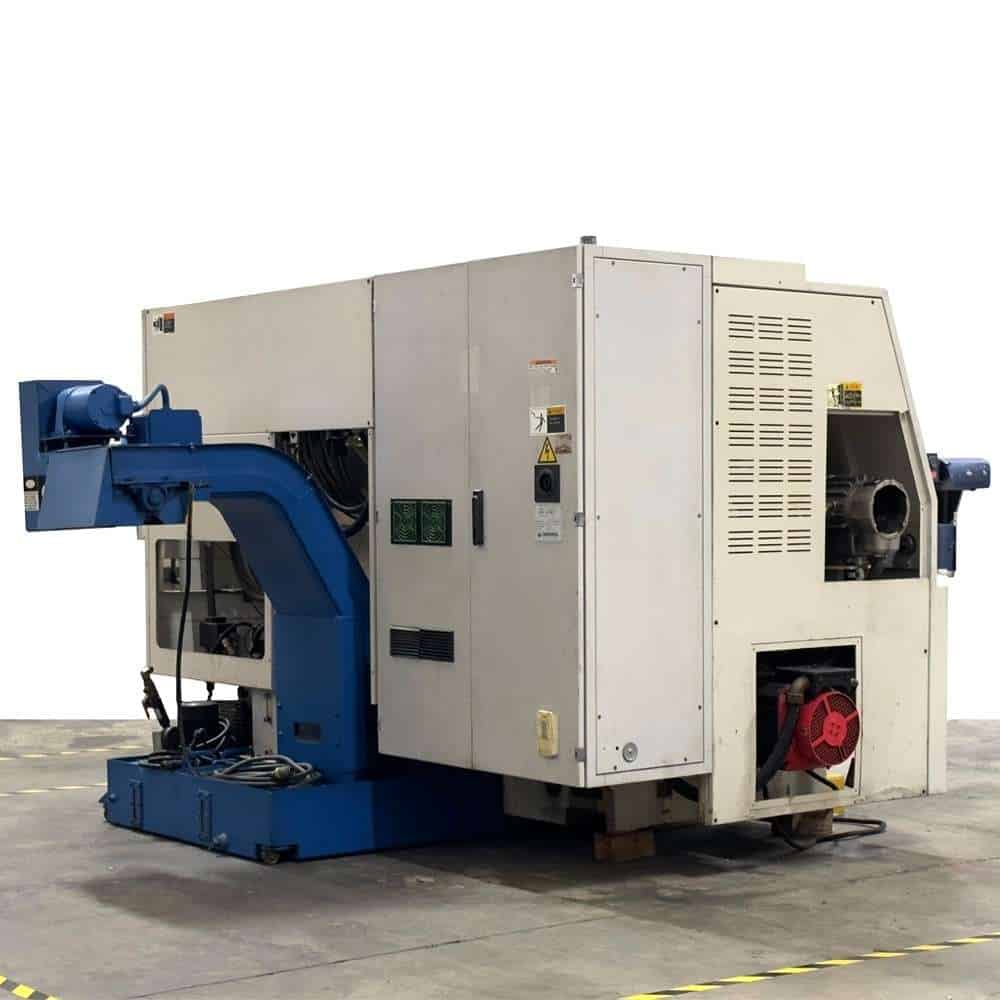

| Model: | Puma 200MSC |

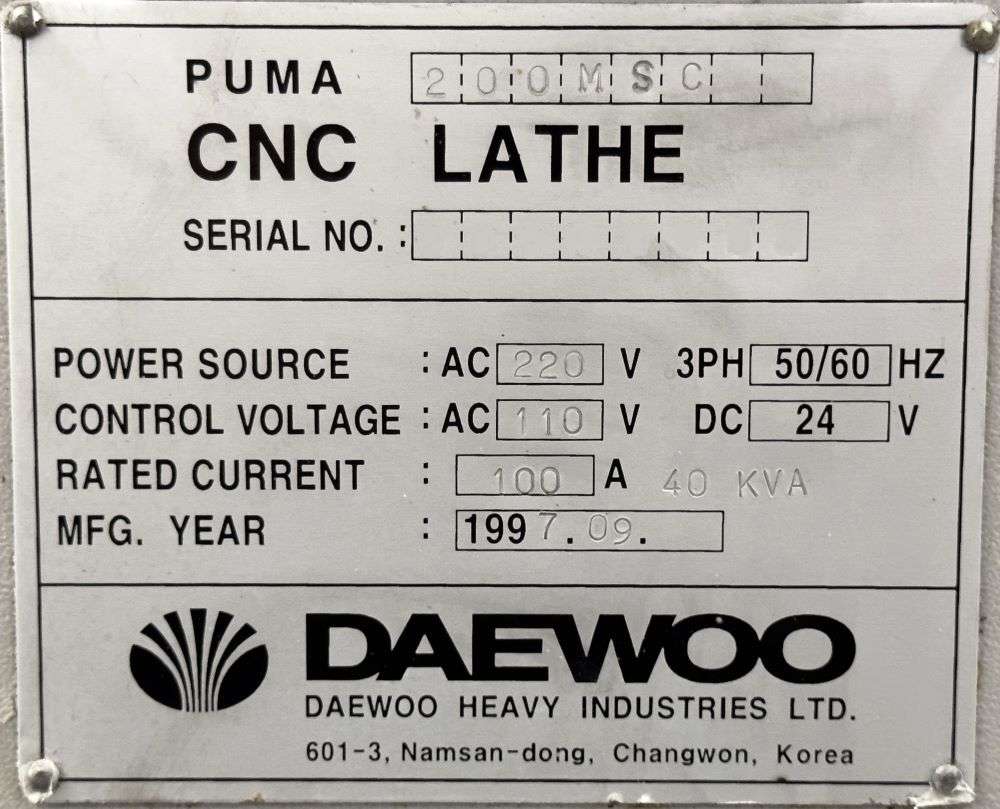

| Year: | 1997 |
| Features: |
|---|

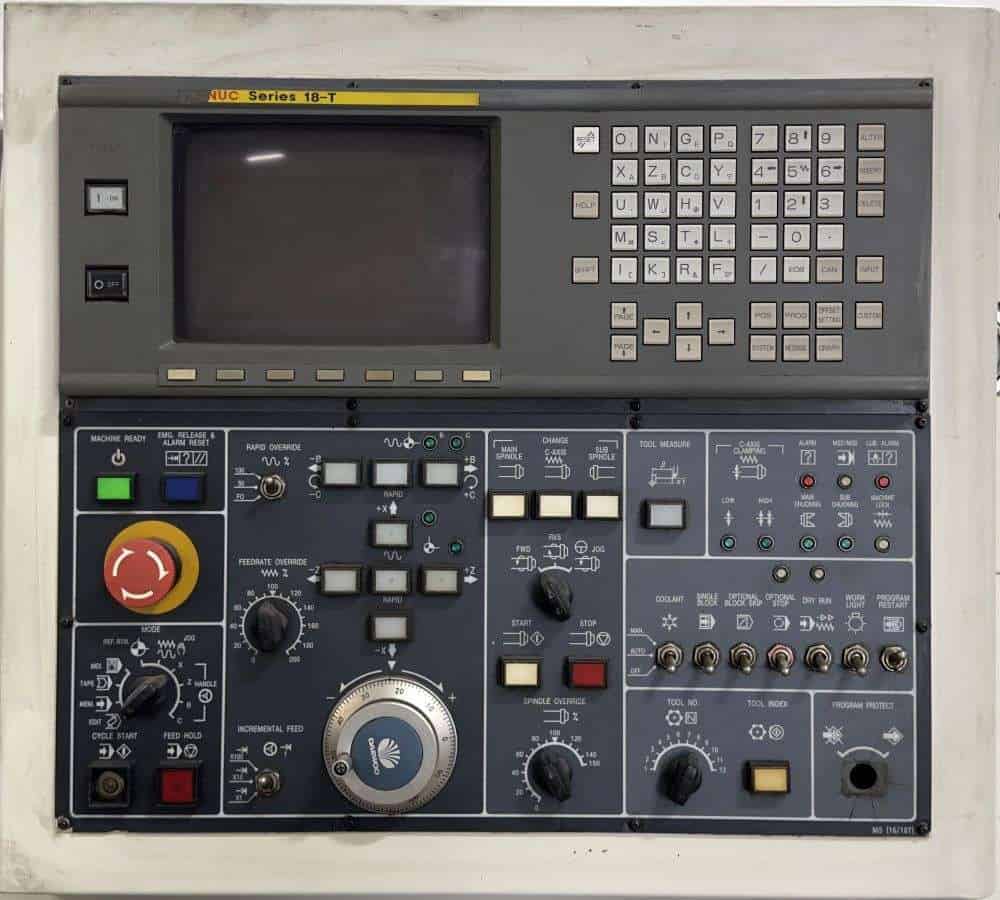

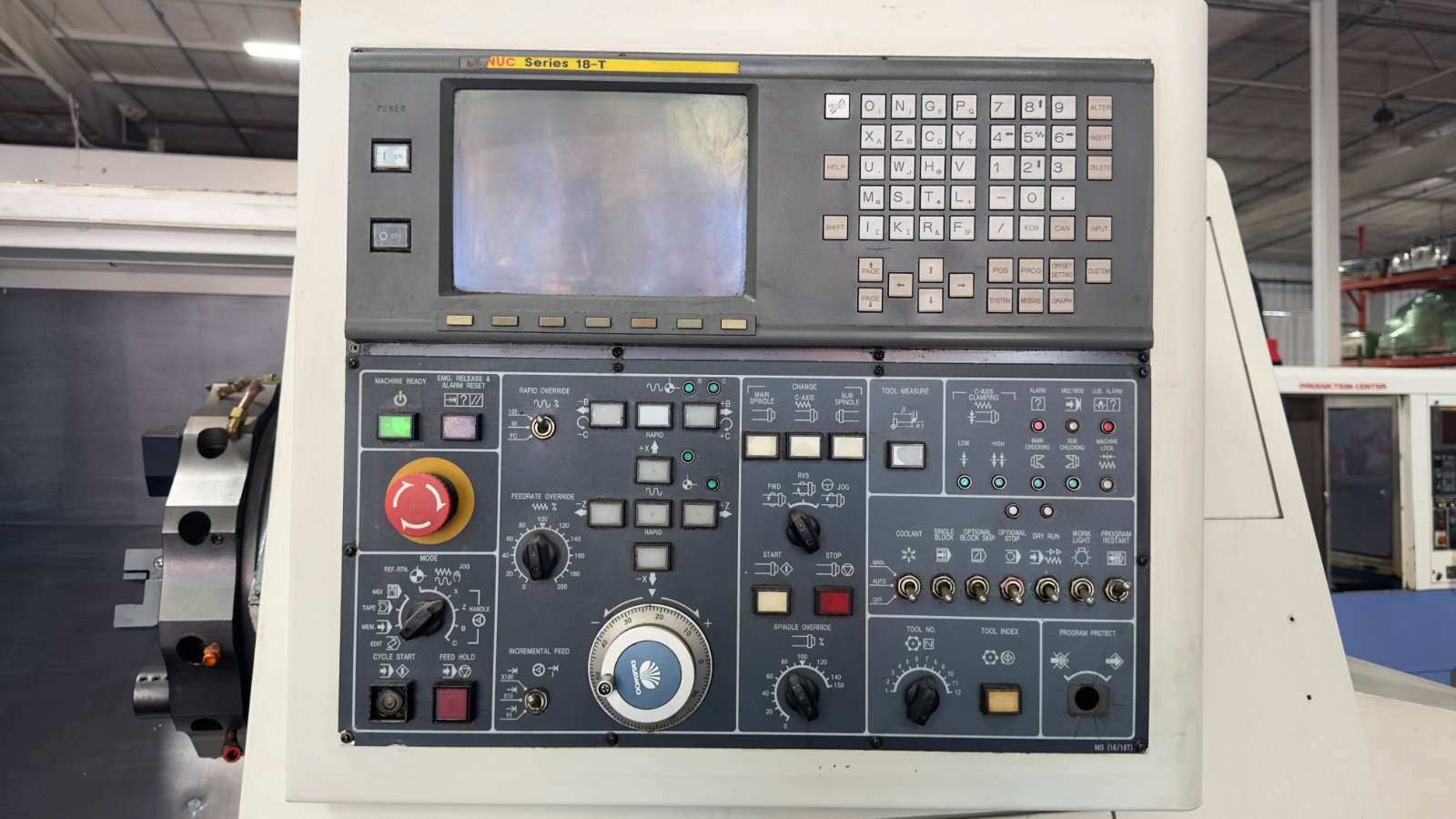

| Fanuc 18-T Series CNC Control |

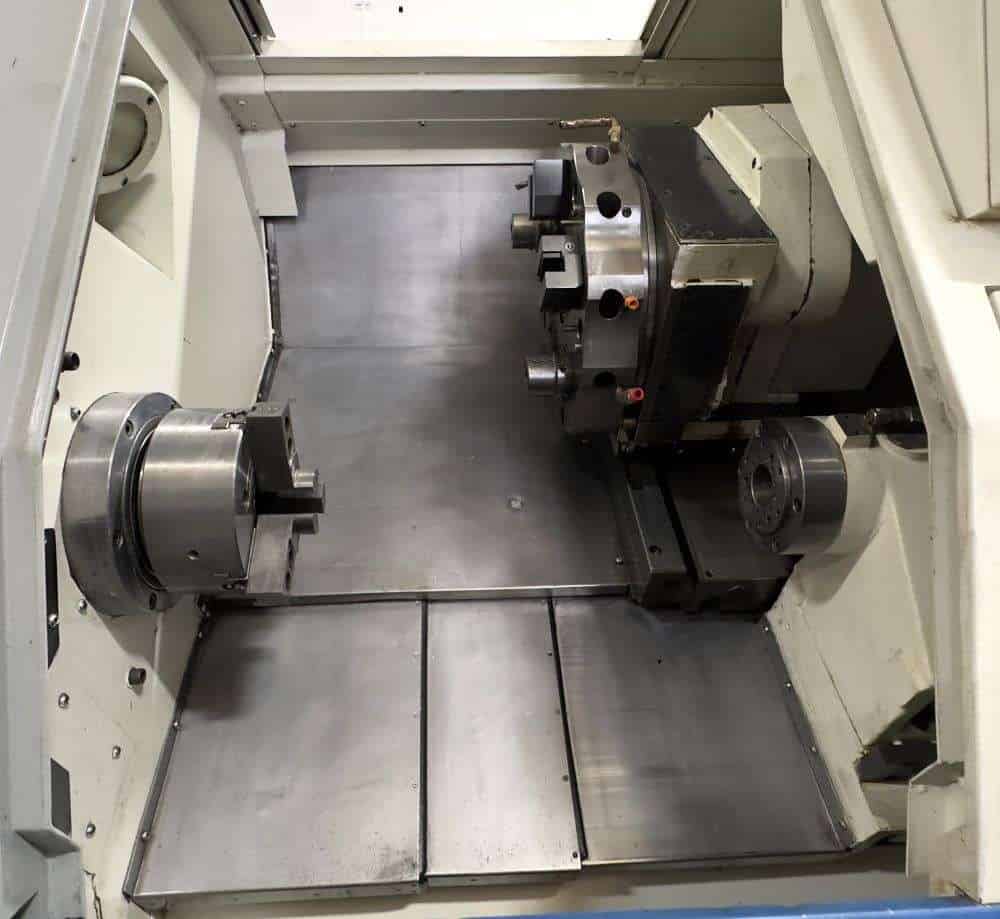

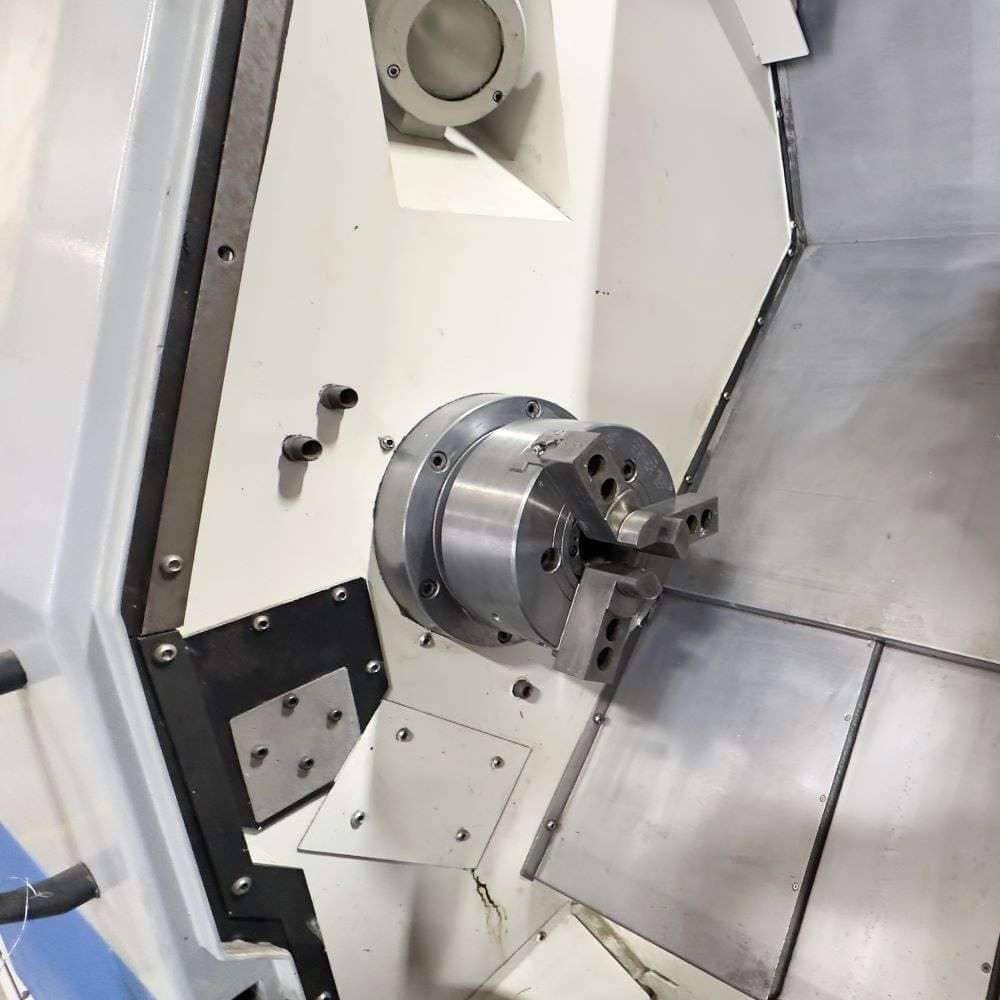

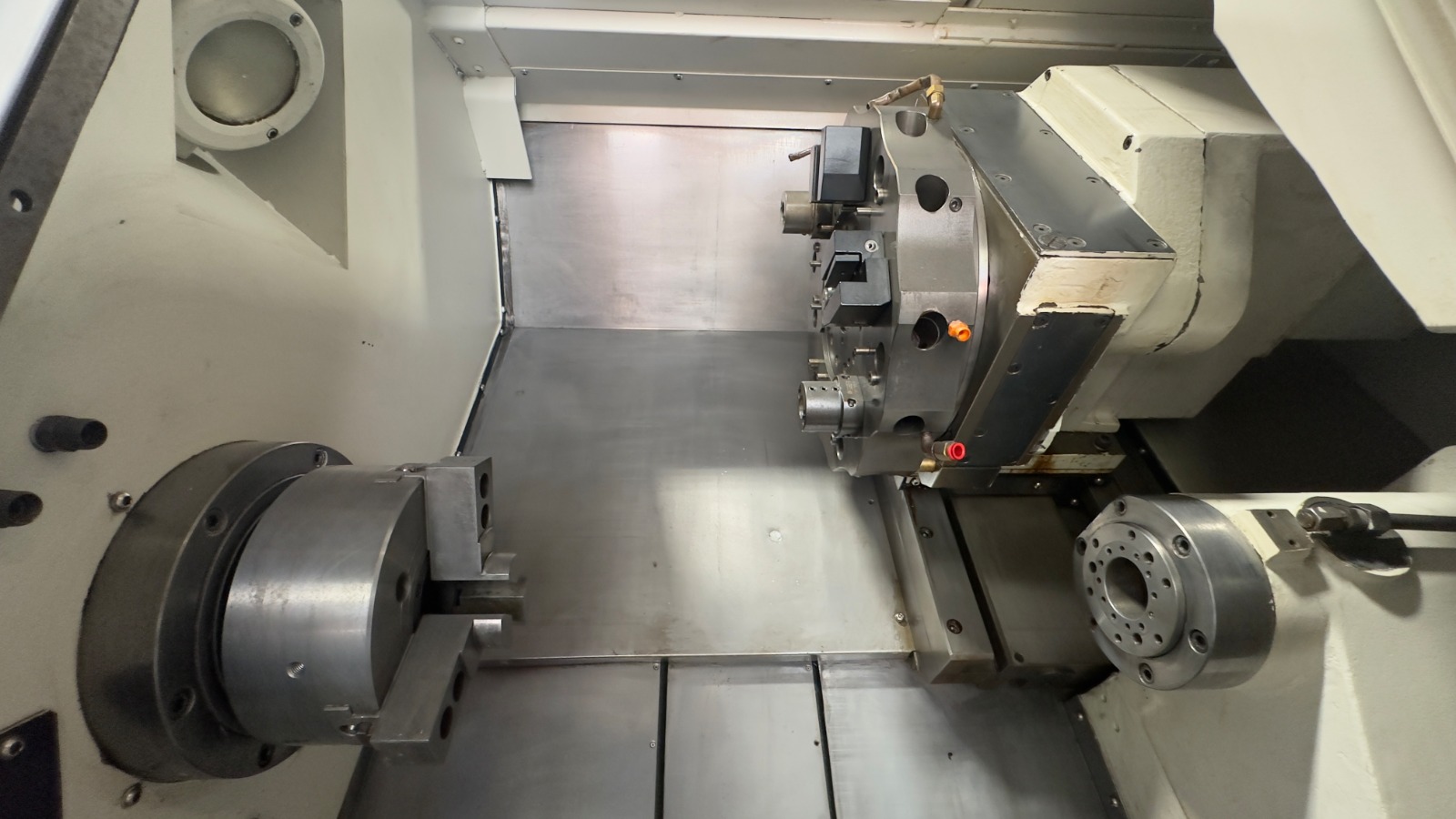

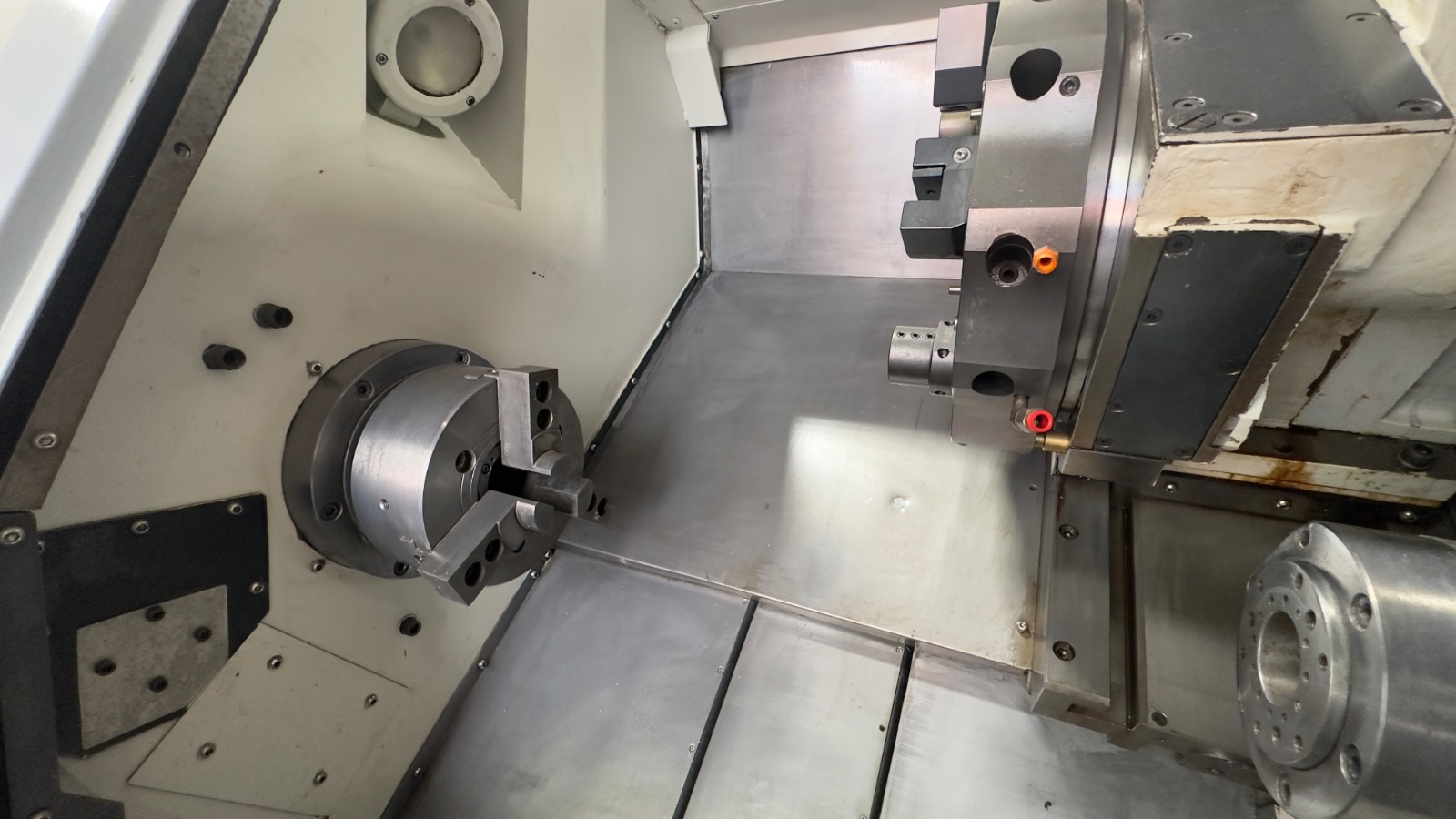

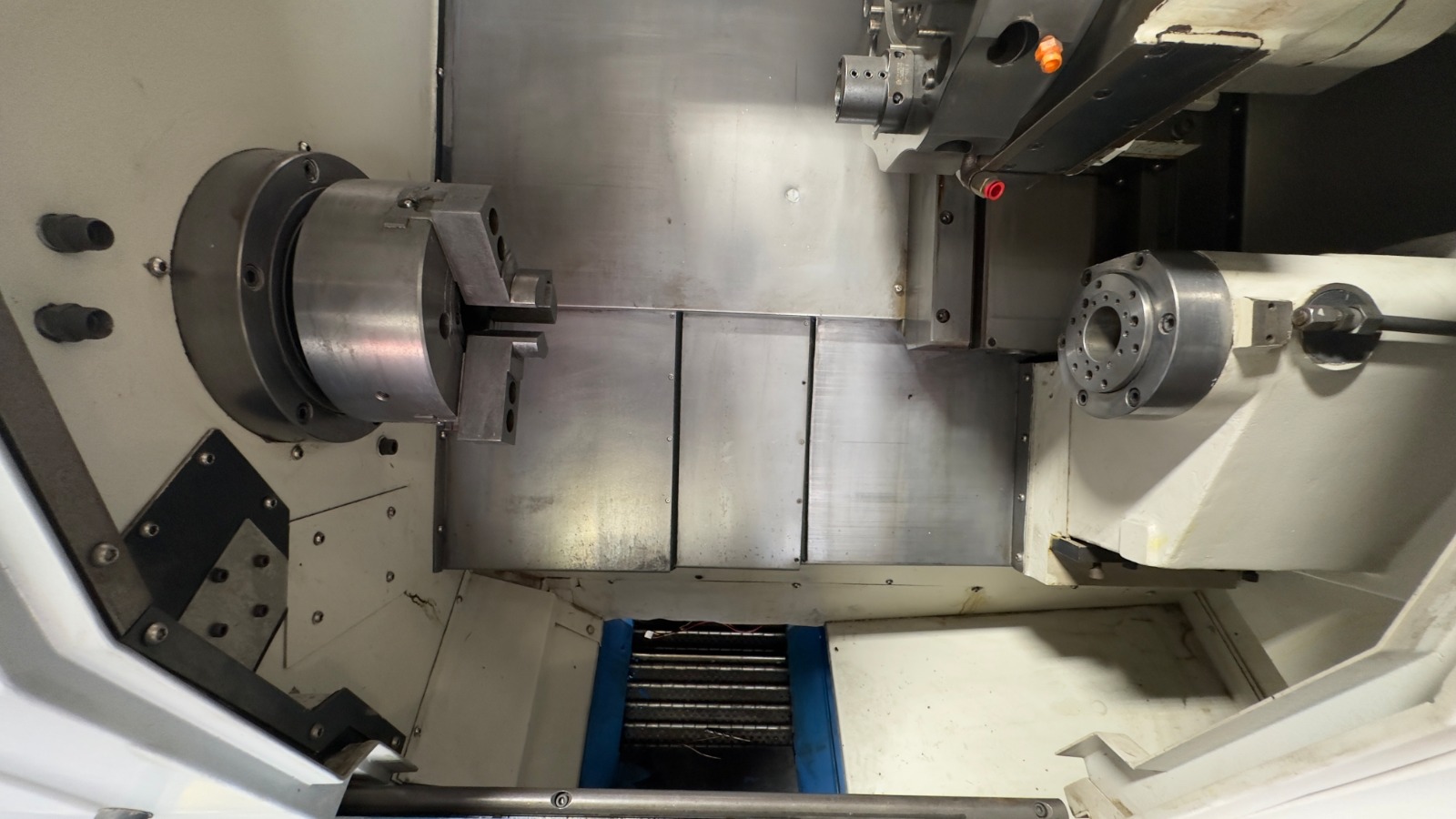

| 8″ 3-Jaw Hydraulic Chuck |

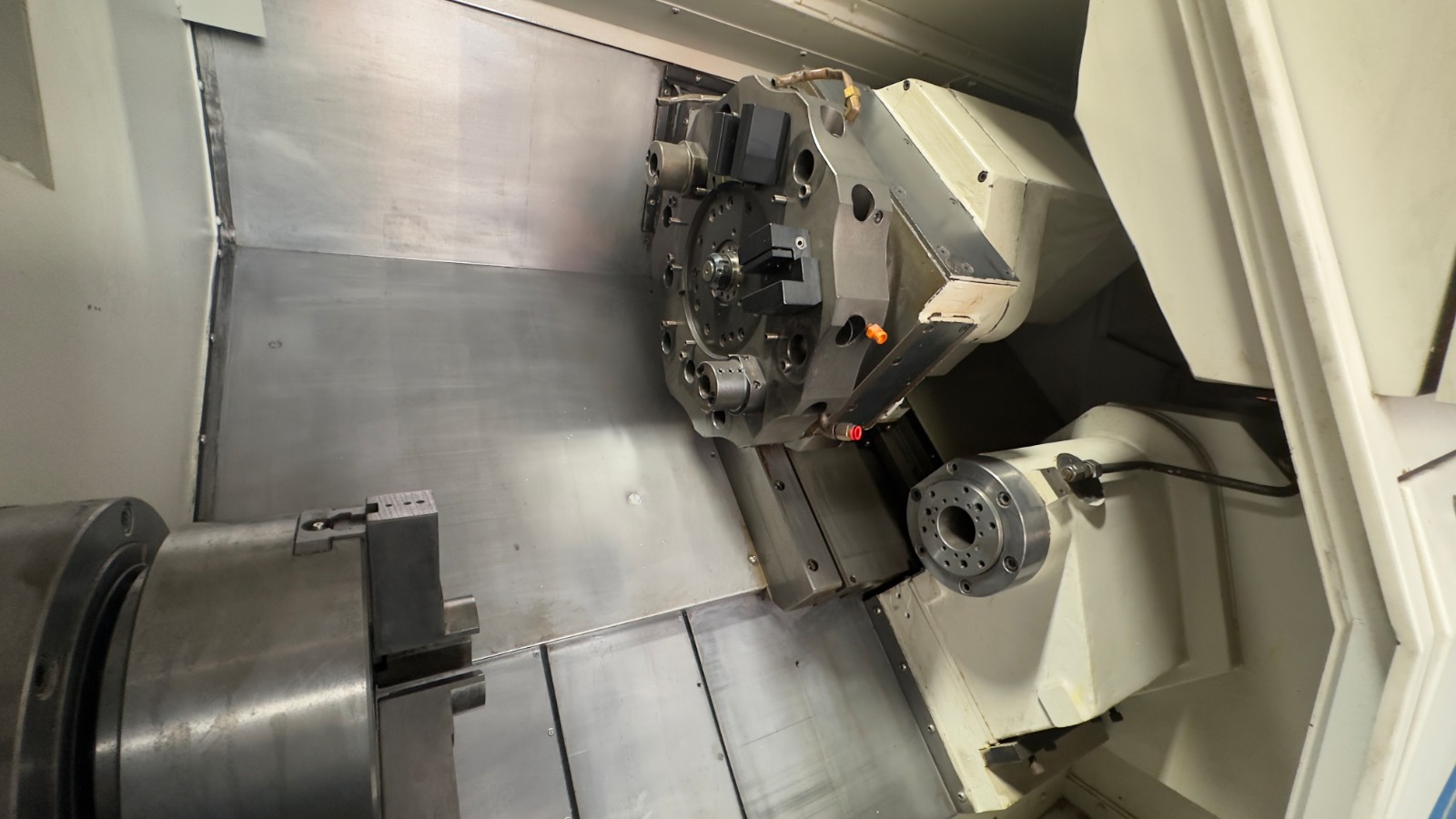

| 12 Station Live Tool Turret |
| Sub Spindle |
| RS-232 Port |

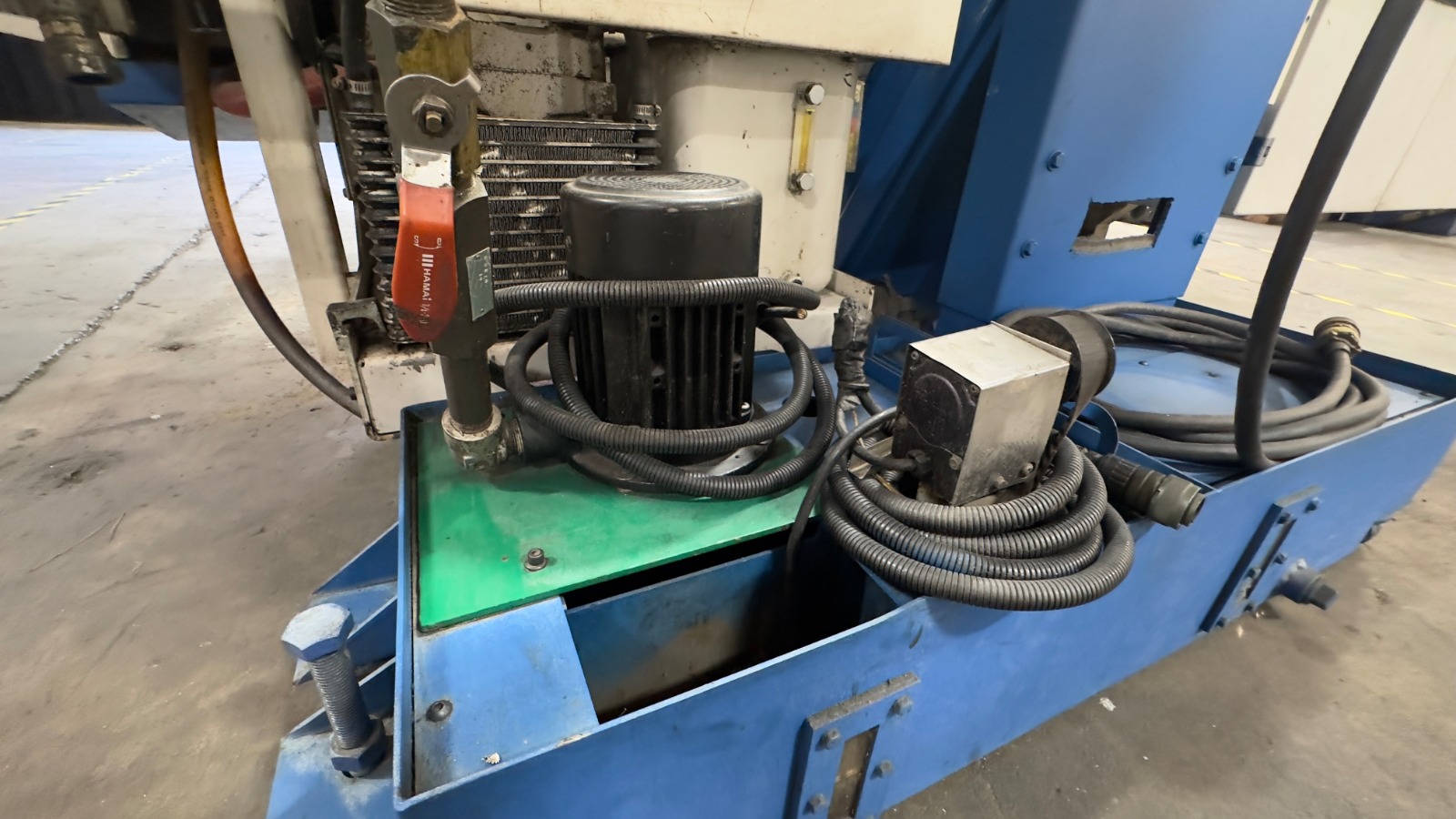

| Coolant System |

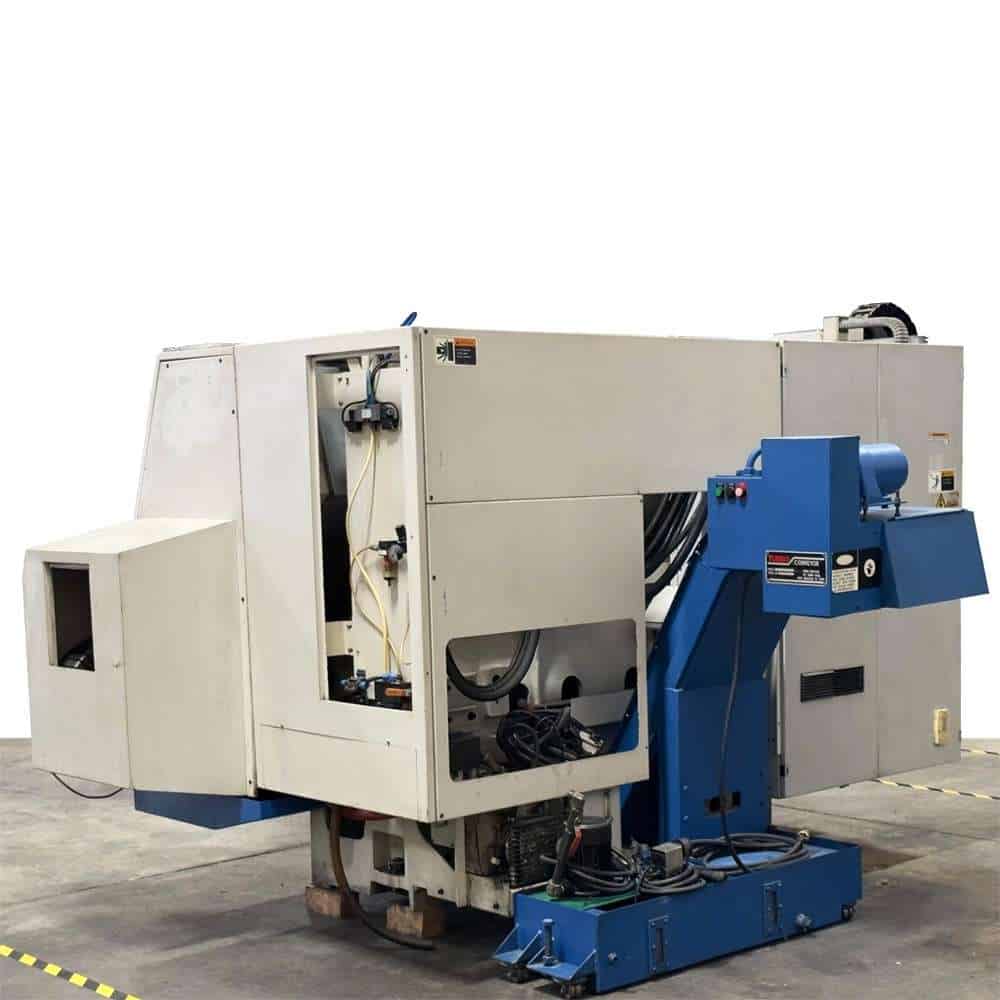

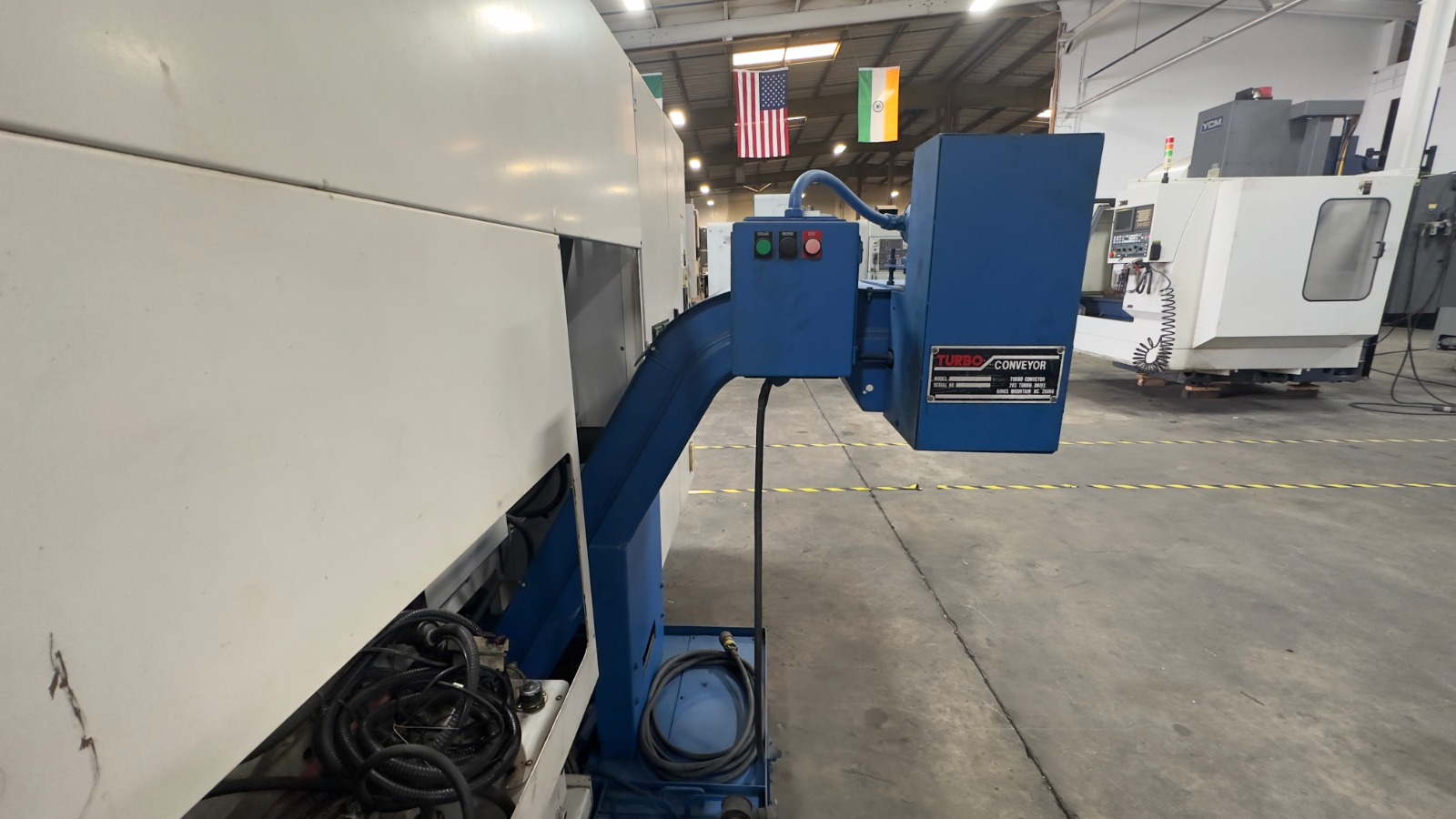

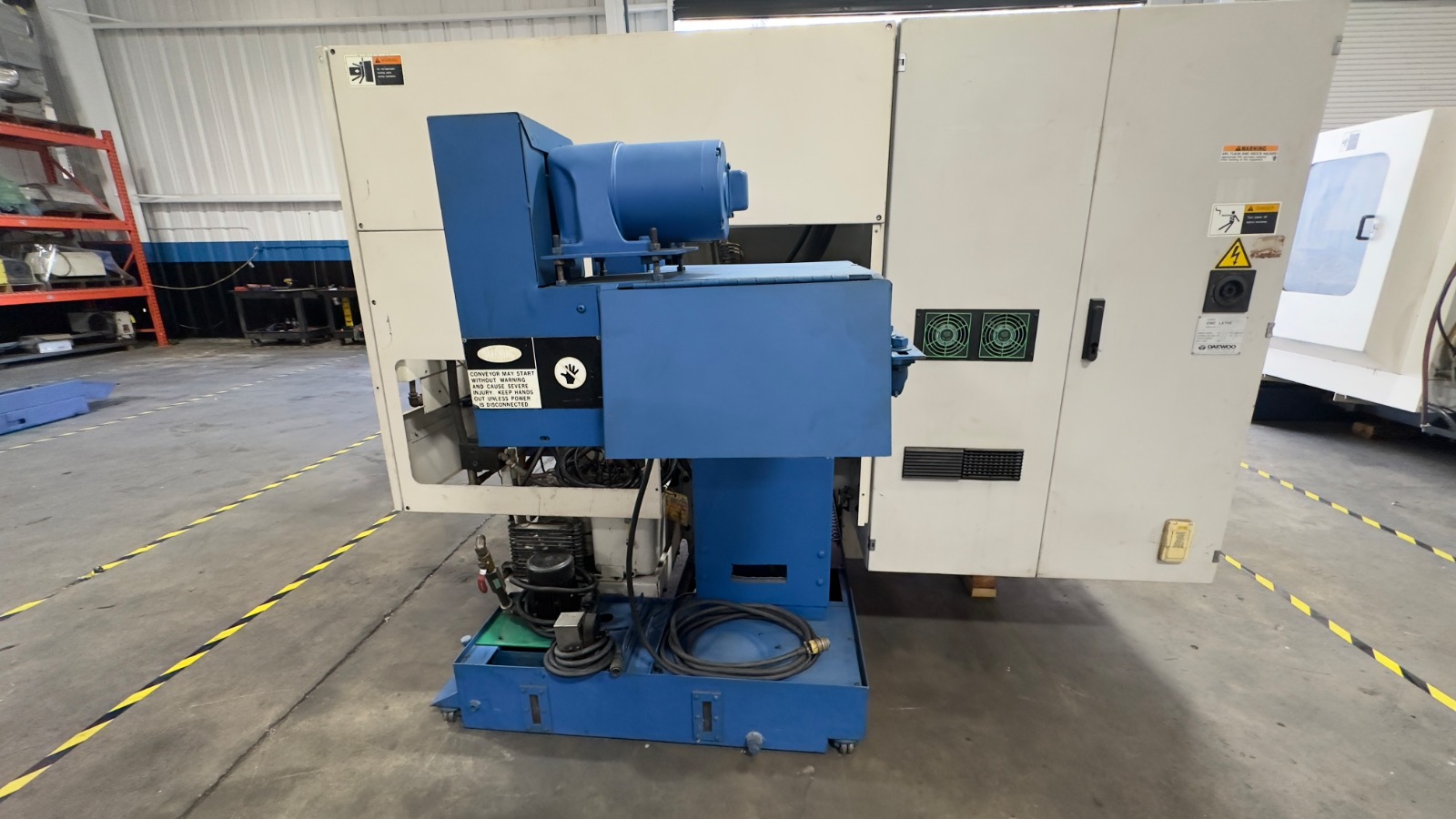

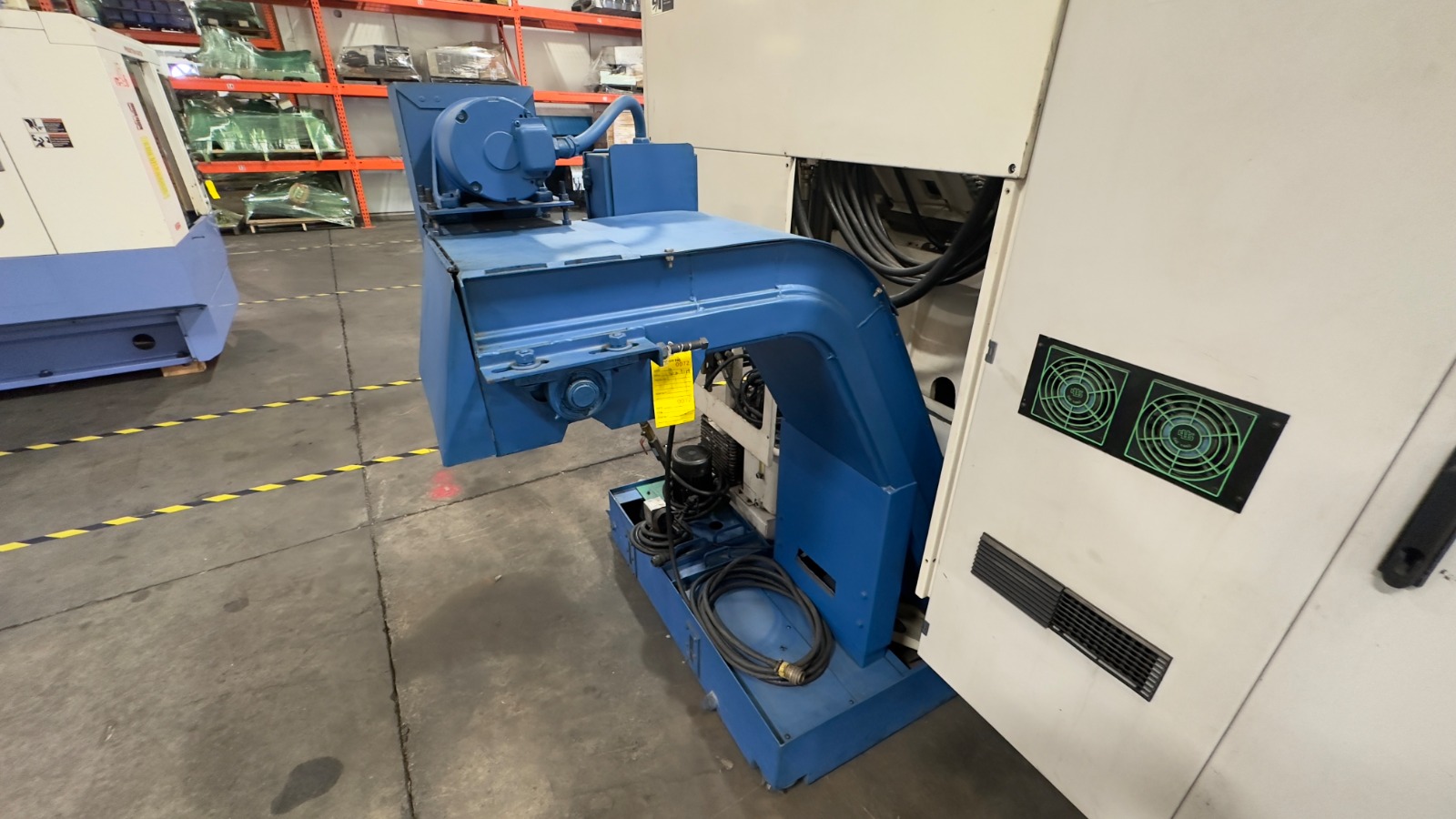

| Chip Conveyor |
| Automatic Lubrication System |

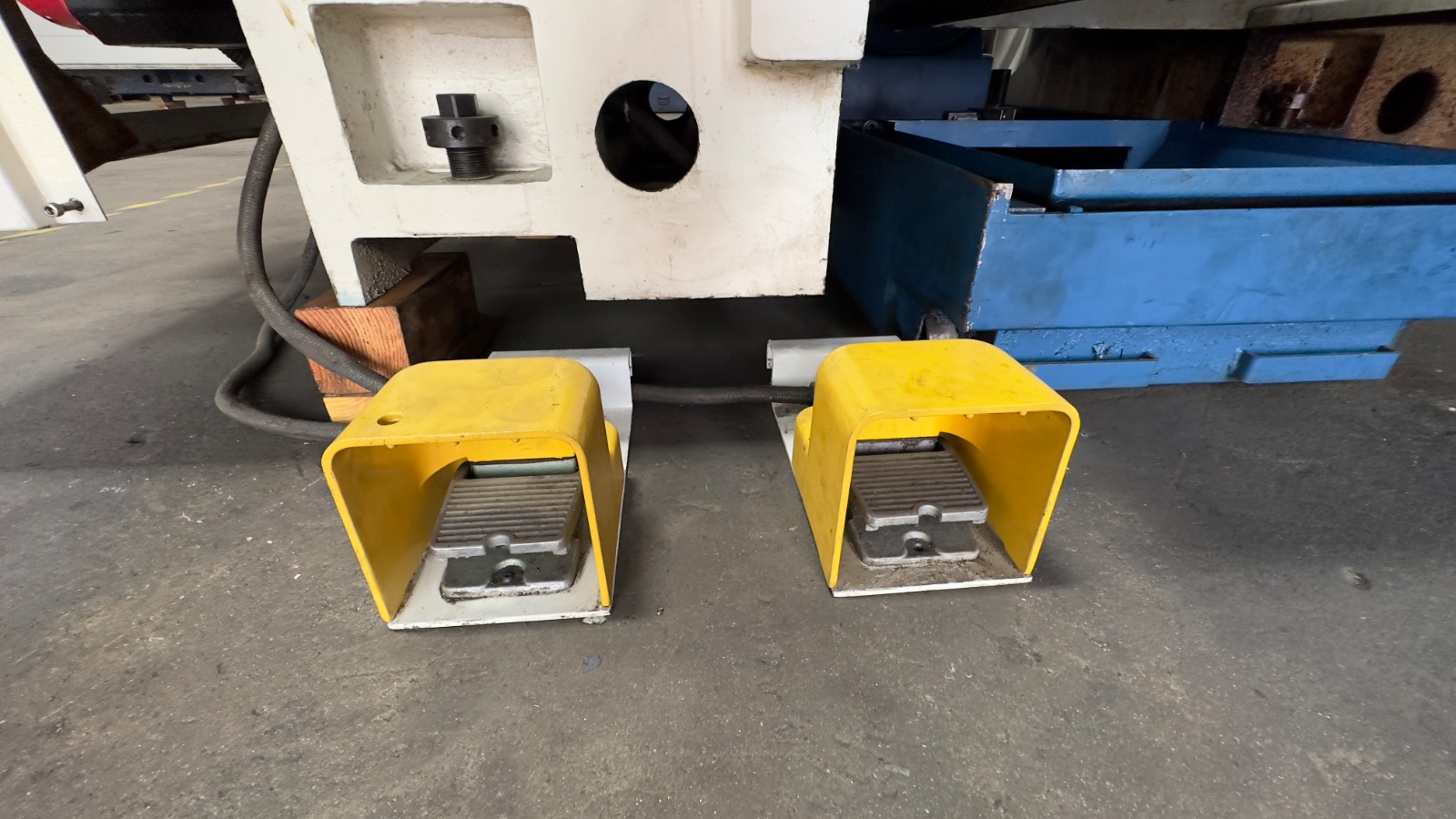

| Foot Switches |
| Specifications: |
|---|
| Capacity: |
| Max Turning Diameter: 13.4″ |
| Max Turning Length: 17″ |
| Max Bar Capacity: 2.5″ |
| Swing Over Cross Slide: 13.0″ |
| Swing Over Bed: 20.1″ |
| Distance Between Spindles: 18″ |
| Travel: |
|---|
| X Axis Travel: 8.7″ |
| Z Axis Travel: 17.3″ |
| B Axis Travel: 16.9″ |
| C Axis: 0.001° |
| Rapid Traverse X Axis: 2007 cm/min |
| Rapid Traverse Z Axis: 2400 cm/min |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.99″ |
| Spindle Speed: 45-4500 RPM |

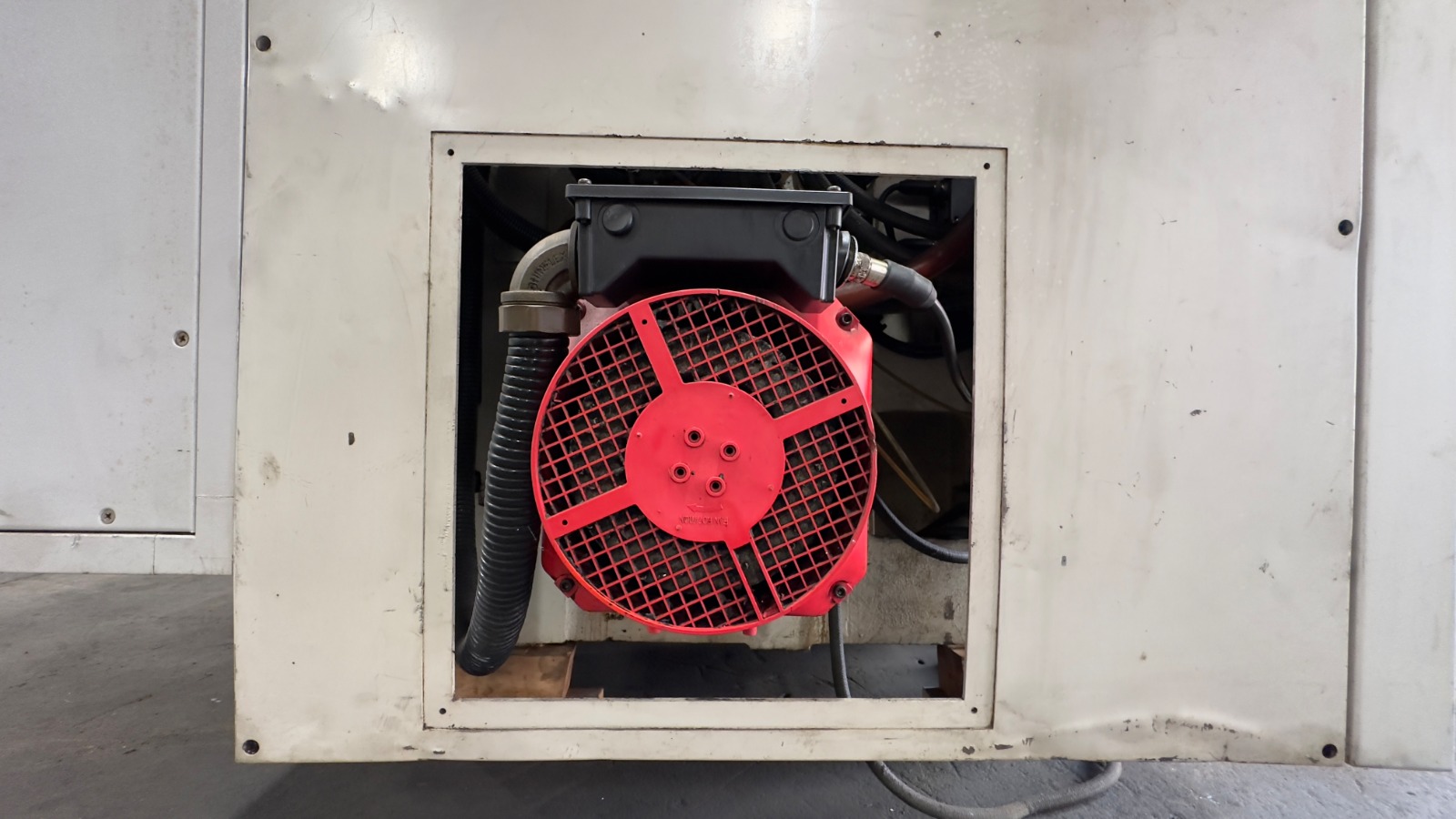

| Spindle Motor: 14.9 kW |
| Sub Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: ″ |
| Spindle Speed: 60-6000 RPM |
| Spindle Motor: 5.6 kW |

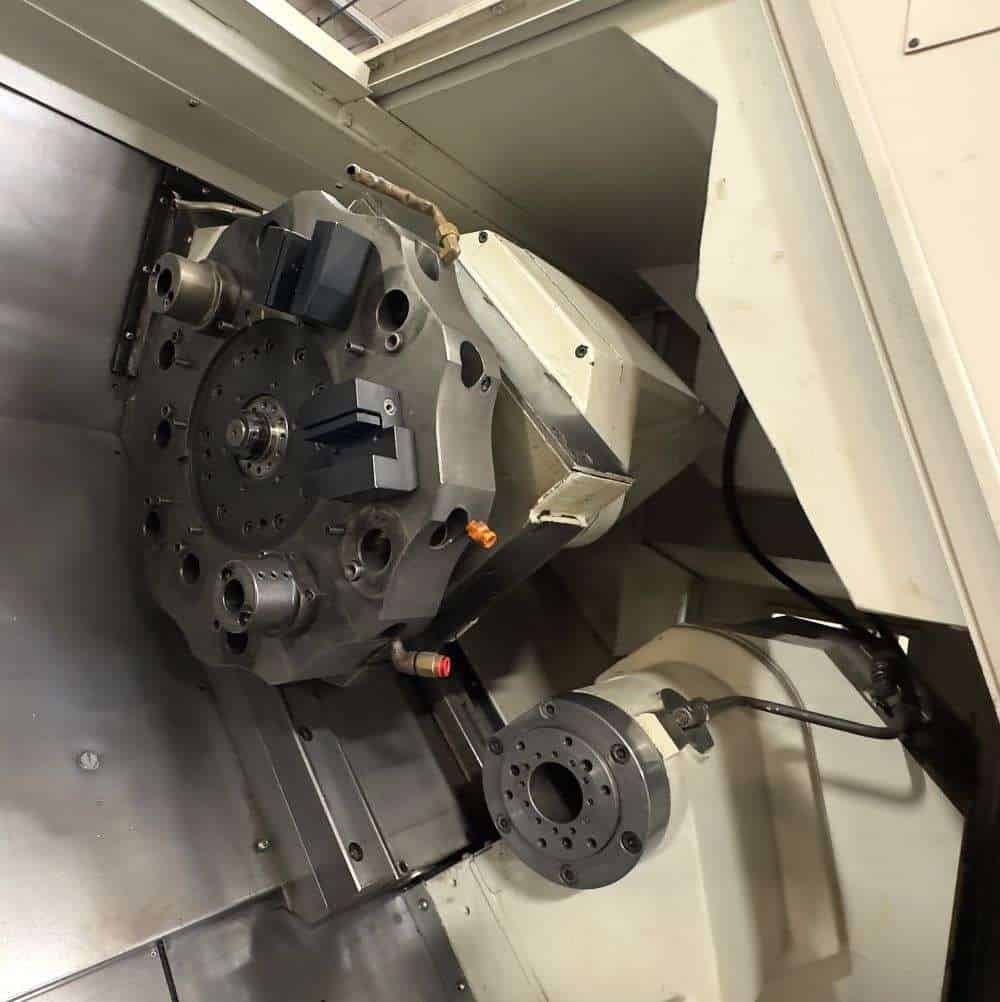

| Turret: |
|---|
| Turret Capacity: 12 Live Stations |
| Turret Index Time: 0.5 Second |
| Live Tool Speed: 60 – 6000 RPM |
| Live Tool Motor: 3.7 kW |
