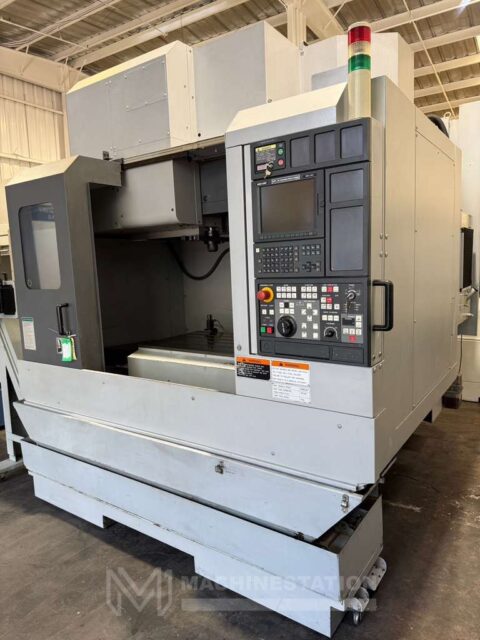

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

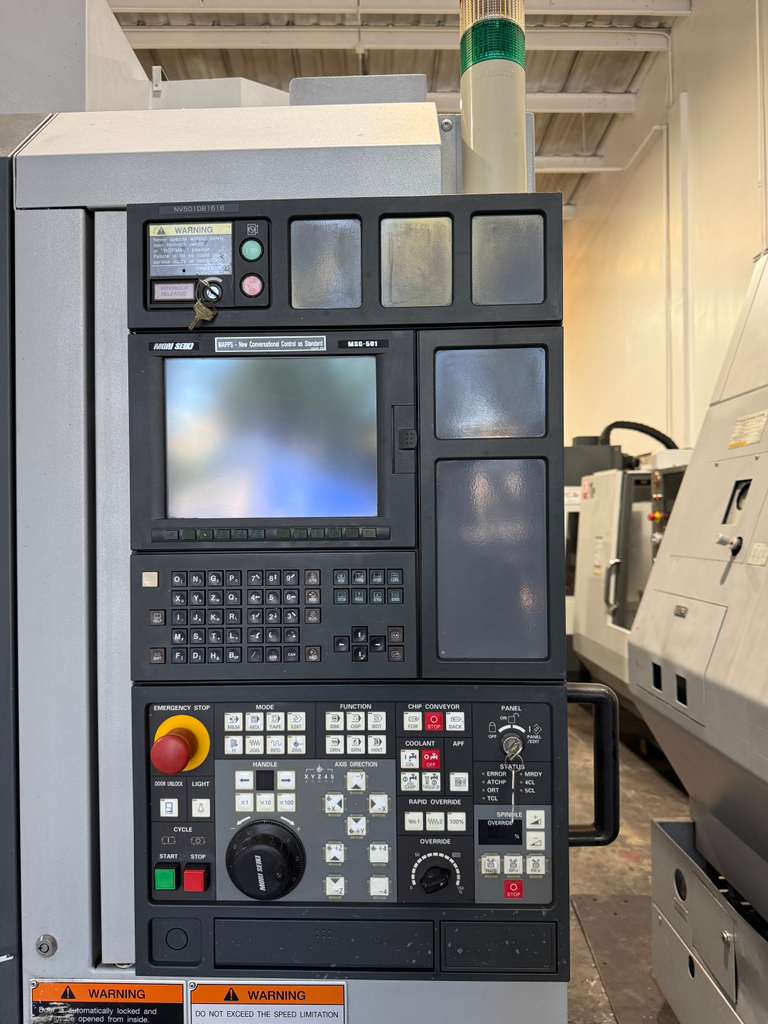

| MSG-501 (Fanuc 18i) series CNC Control |
| 12,000 RPM High Precision Spindle |

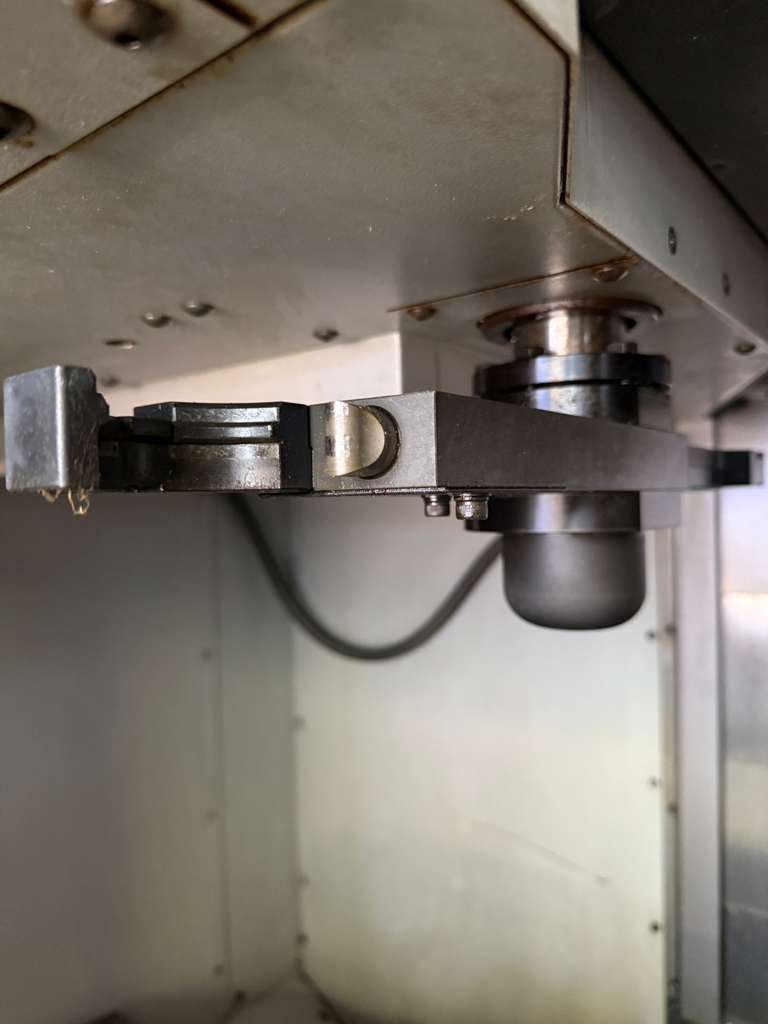

| Renishaw Probing System (Probe Included) |

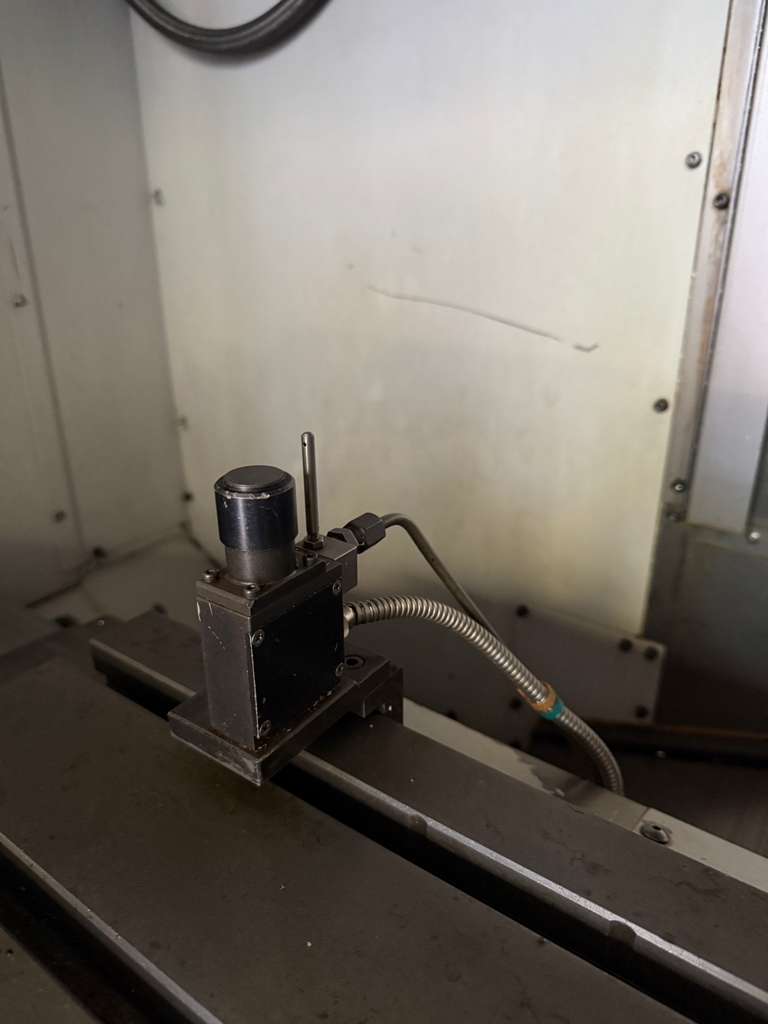

| Tool Pre-setter |
| CAT-40 Taper Spindle |

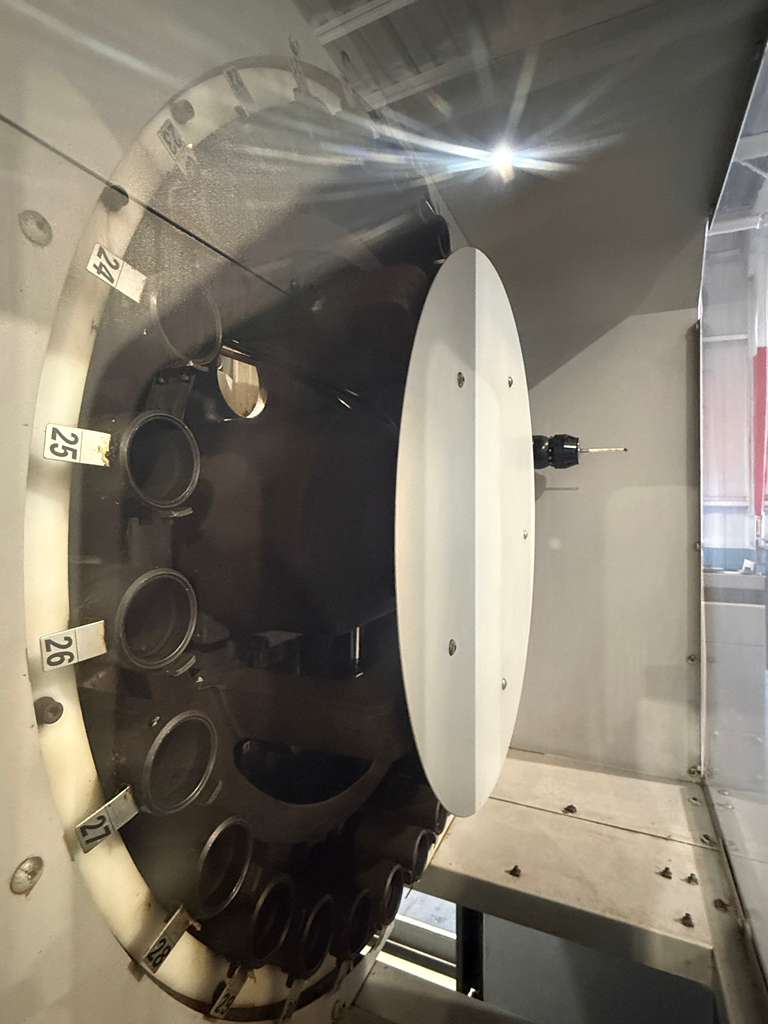

| 24 Station Automatic Tool Changer |
| 30 HP high torque spindle motor |
| Spindle Chiller Unit |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Books & Manuals |
| Travel: |
| X-Axis: 31.50″ |
| Y-Axis: 20.10″ |
| Z-Axis: 20.10″ |
| Rapid Traverse Rates: 1654 Inch Per Minute |
| Cutting Feed Rates: 630 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″ |
| Table: |
| Length: 43.30″ |
| Width: 23.60″ |
| Number of Std T-Slots: 6 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2640 lbs |
| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
| Capacity: 24 |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 5.90″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 0.9 Seconds |
| General: |
| Air Required: 90 psi, 4 scfm |

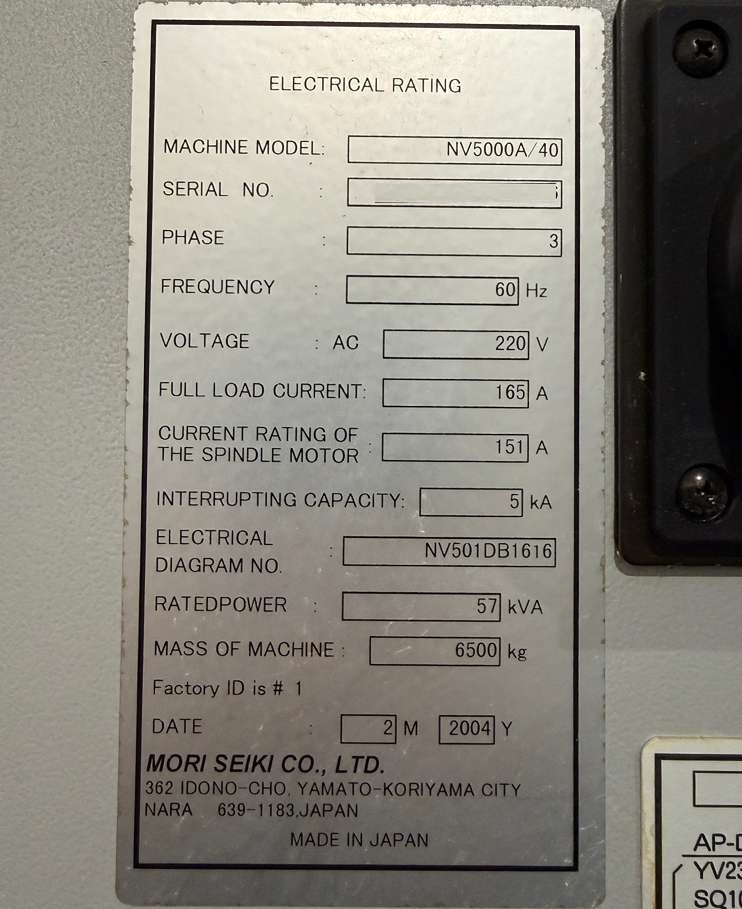

| Power: 220v / 57 KVA / 3-Phase |
| Overall Dimensions: 142″ x 101″ x 110″ High |
| Weight: 14,330 lbs |
