Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
|---|

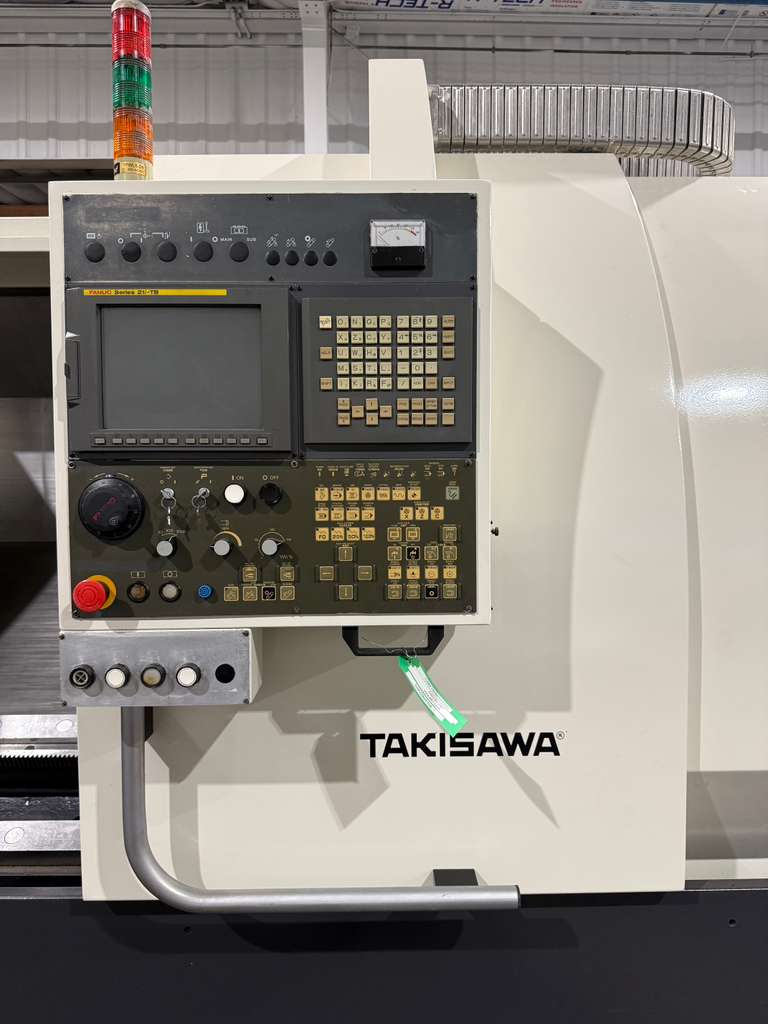

| Fanuc 21i-TB CNC Control |

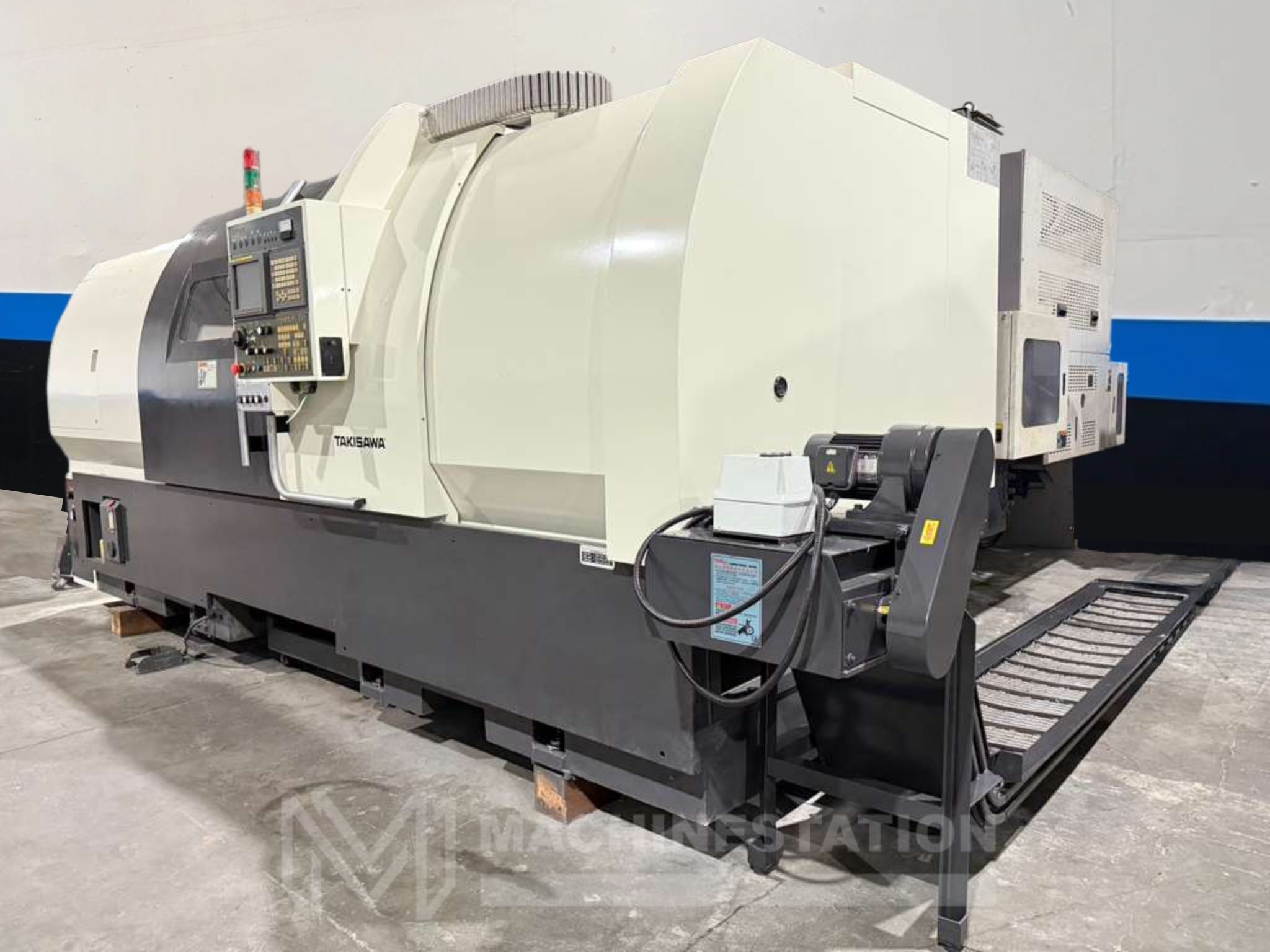

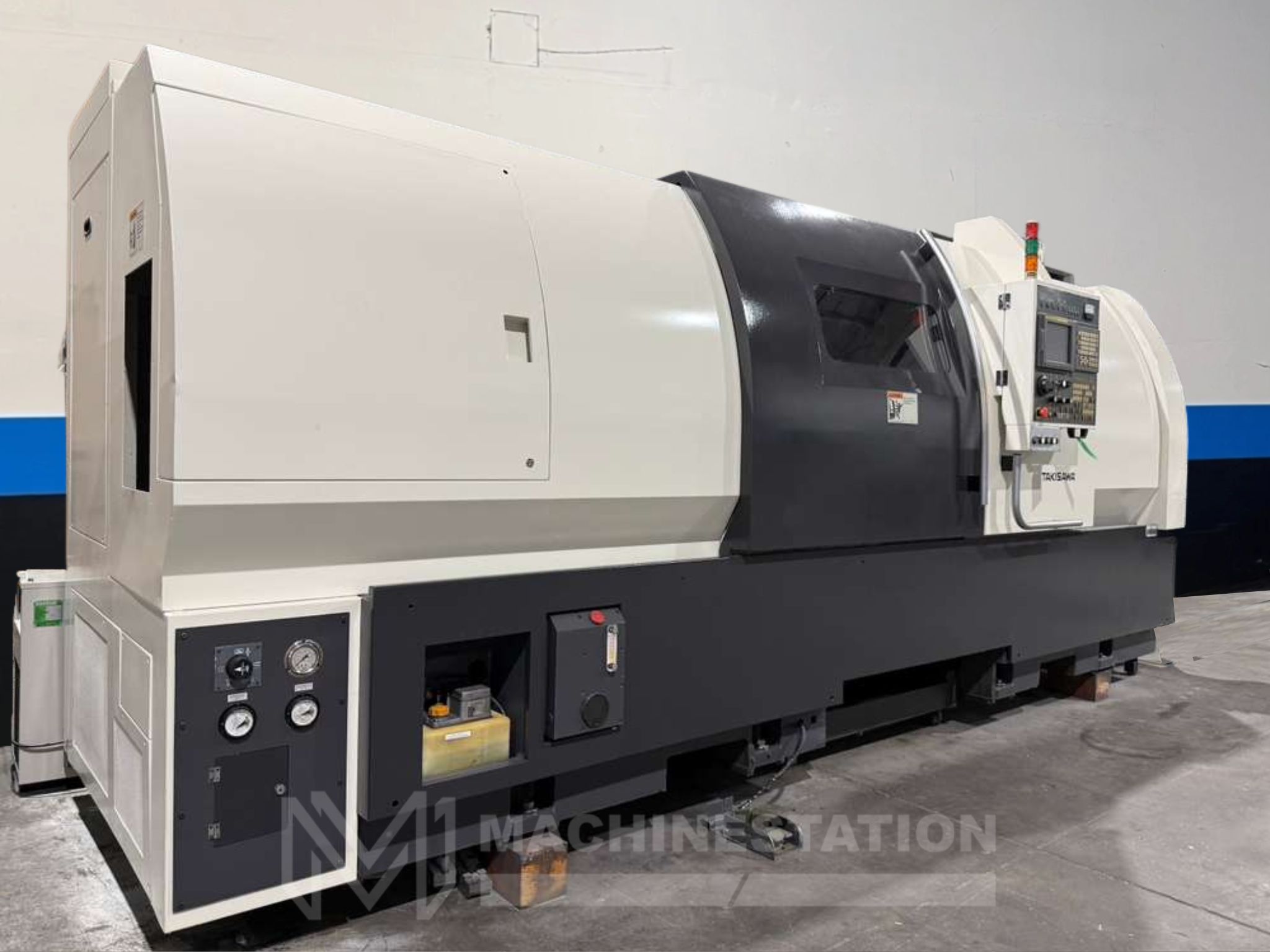

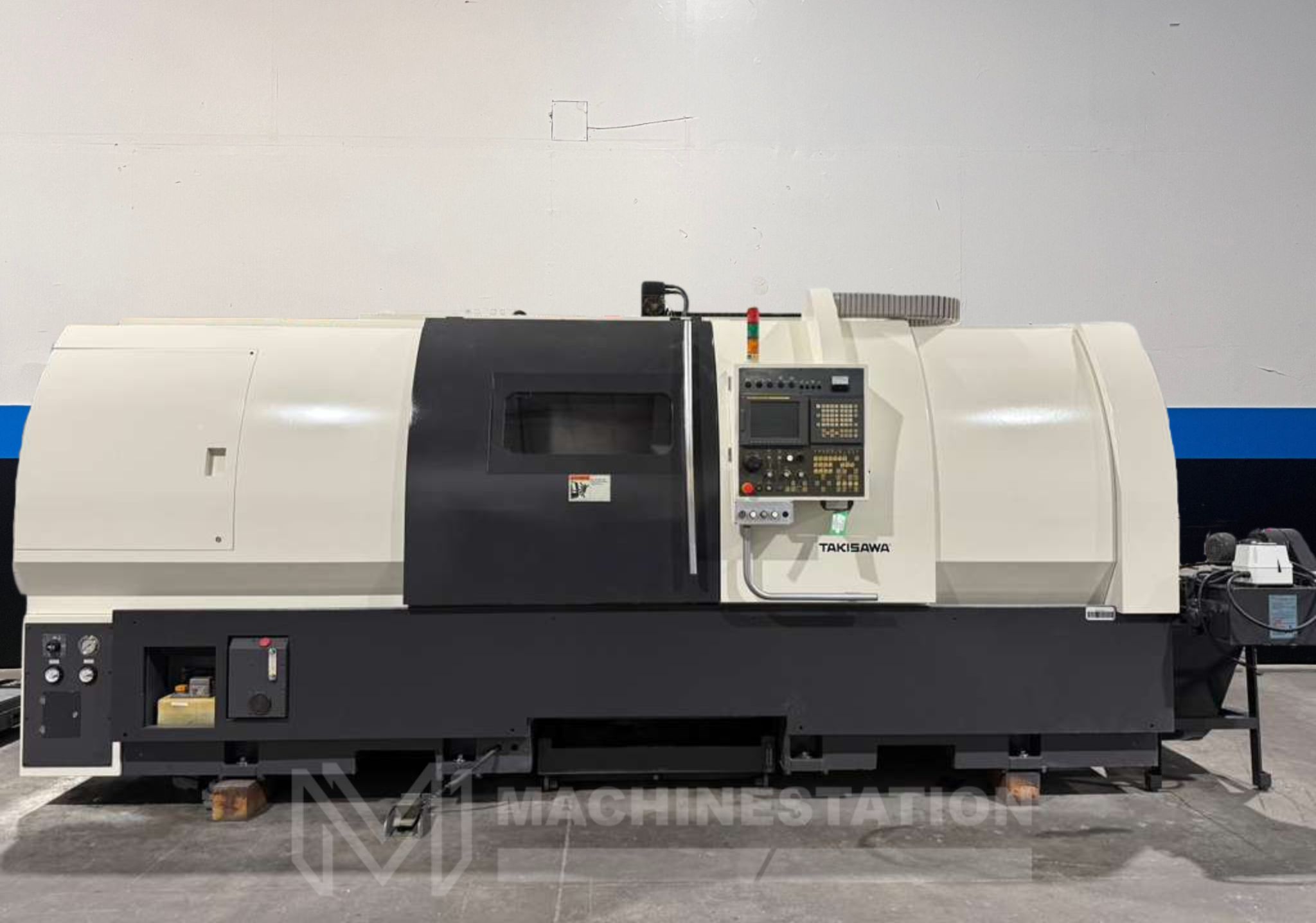

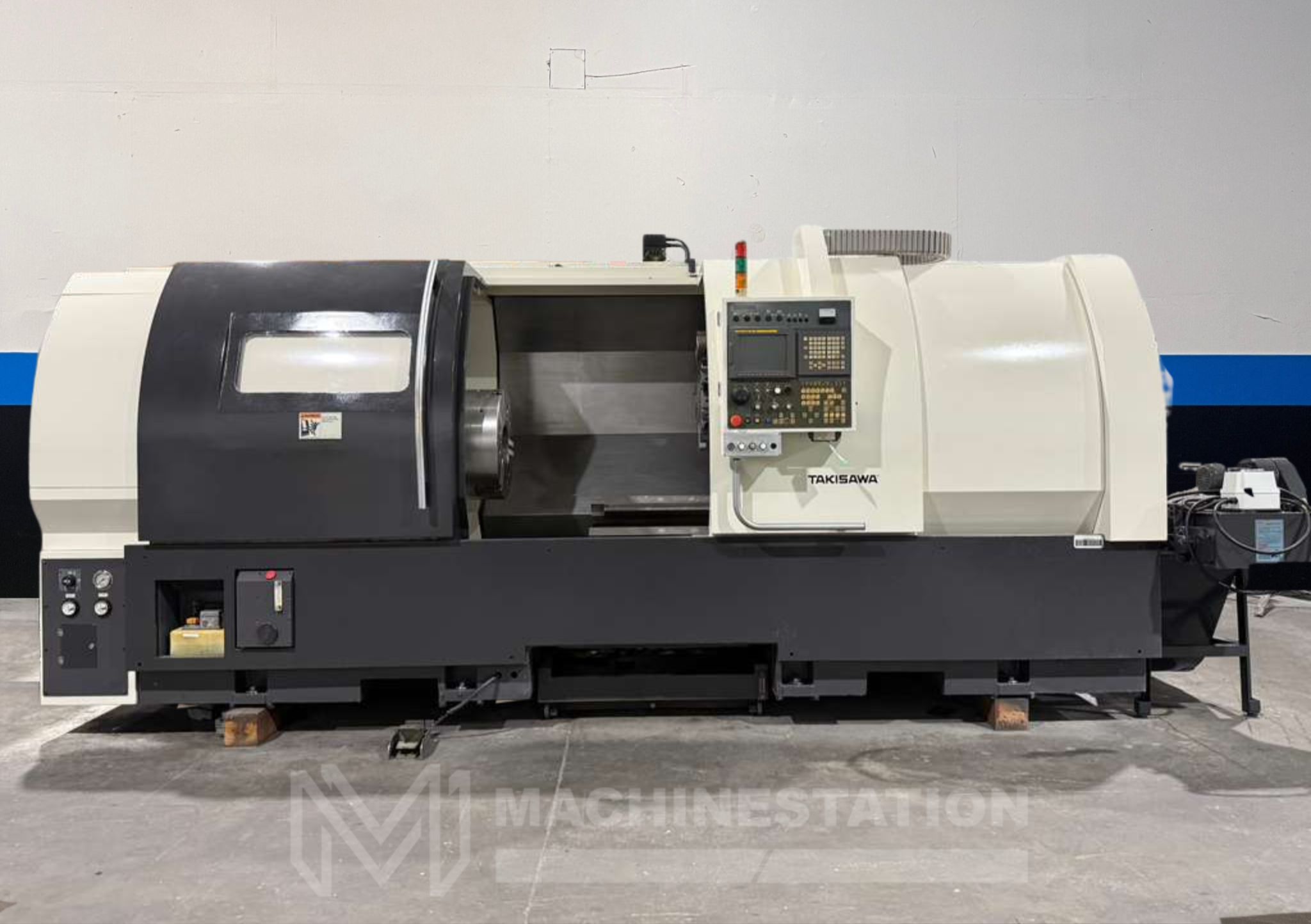

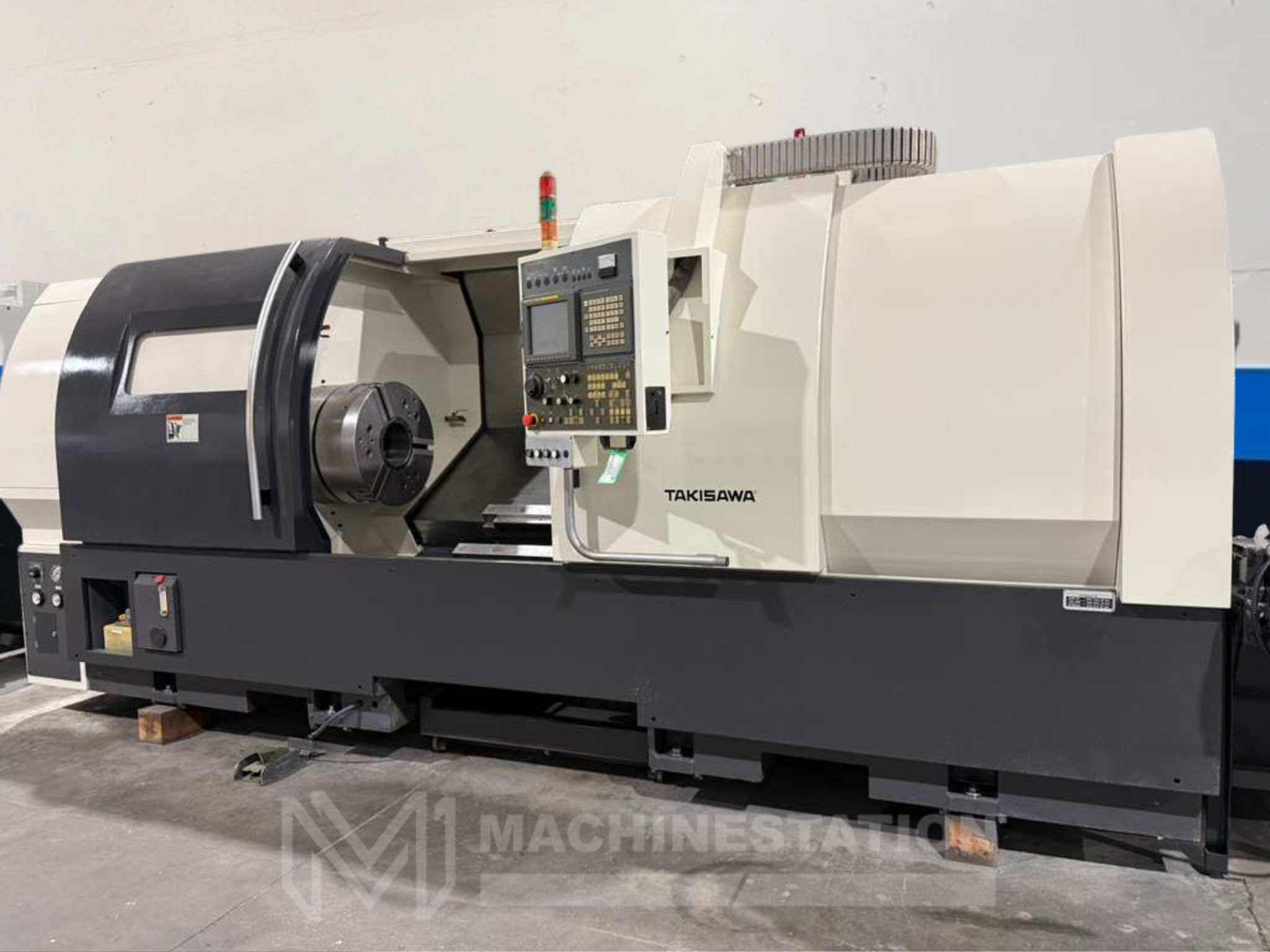

| Long Bed Box Way Machine |

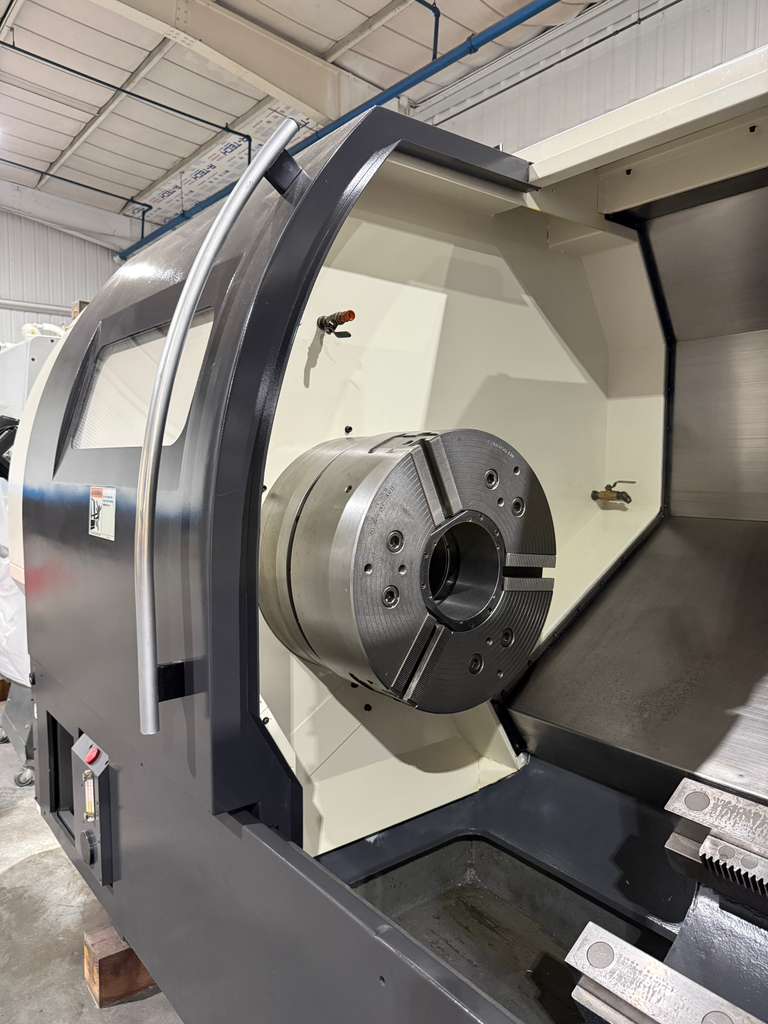

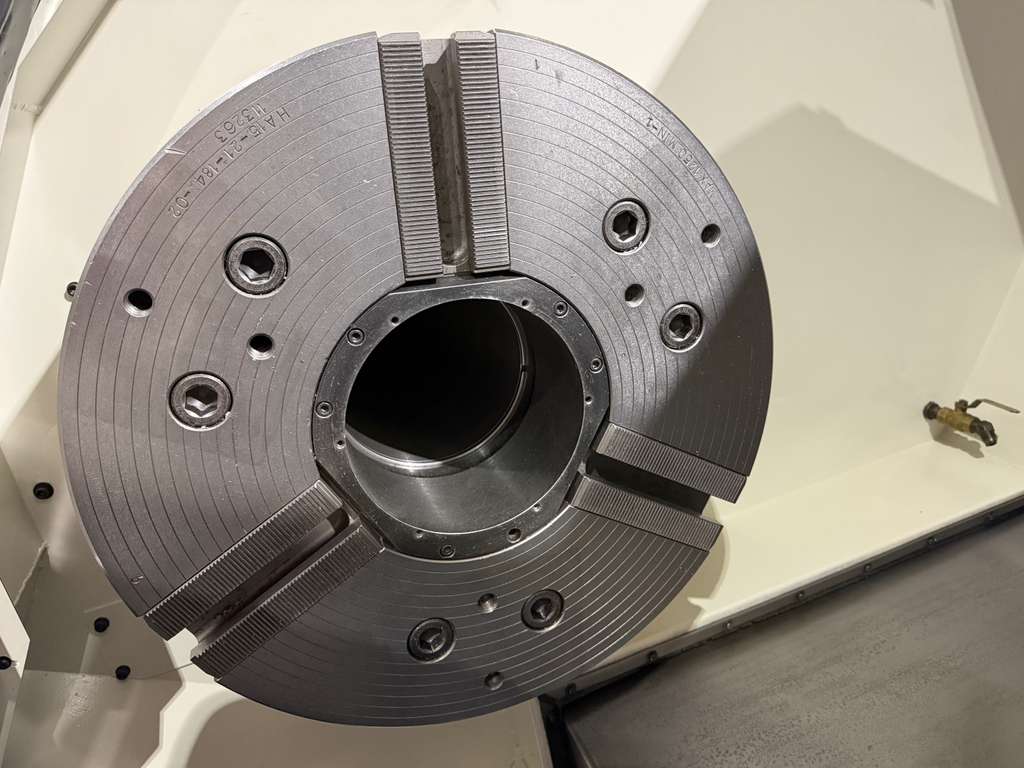

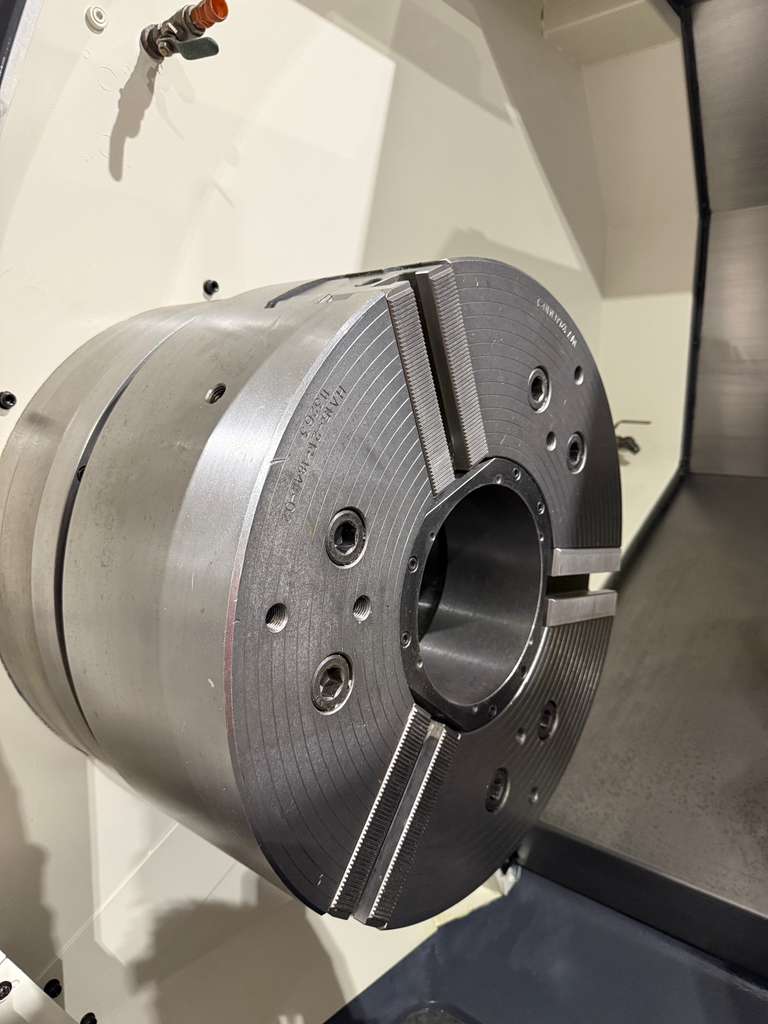

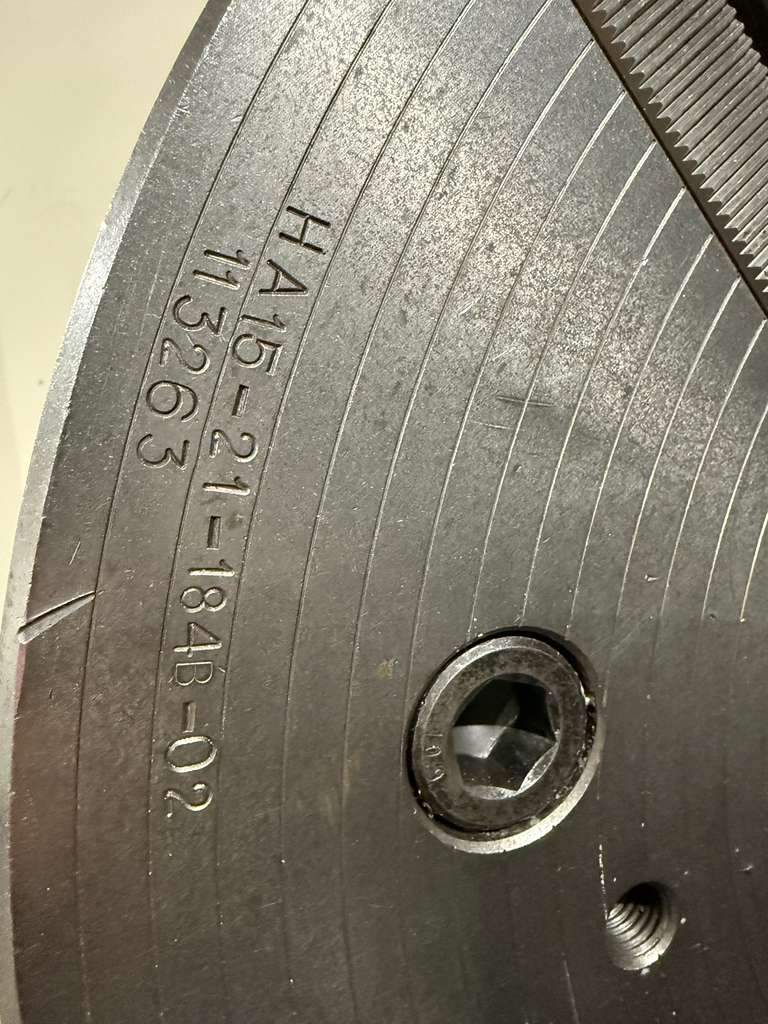

| 21″ 3-Jaw Hydraulic Chuck |
| 7.87″ Big Bore, A2-15 Spindle |

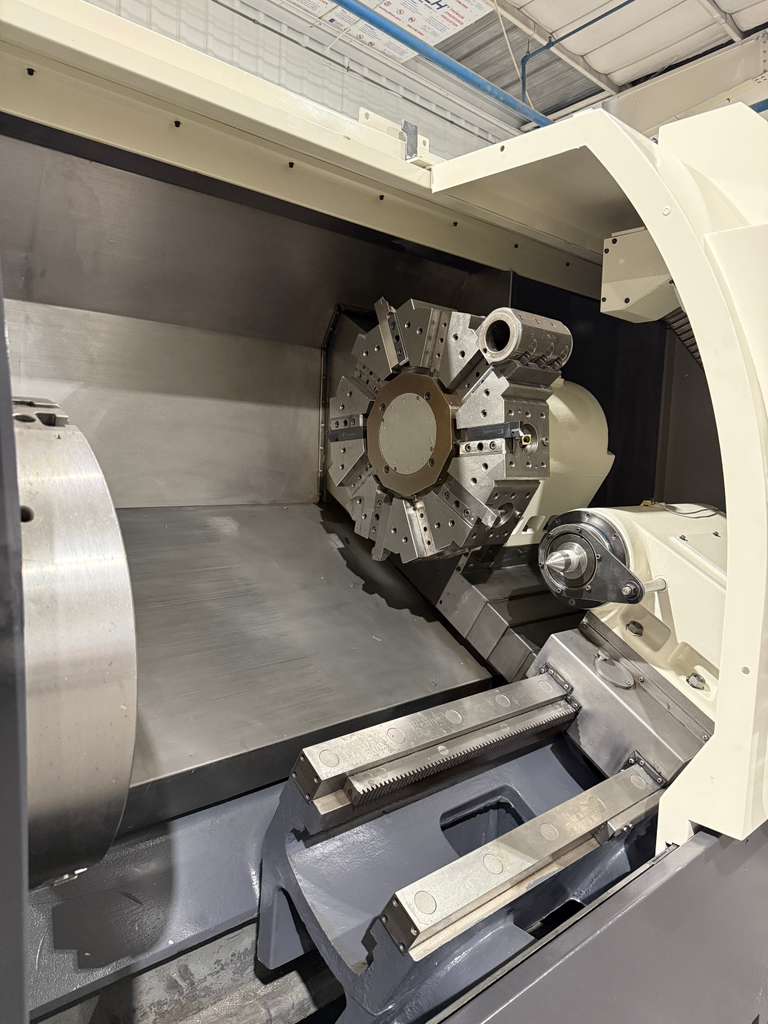

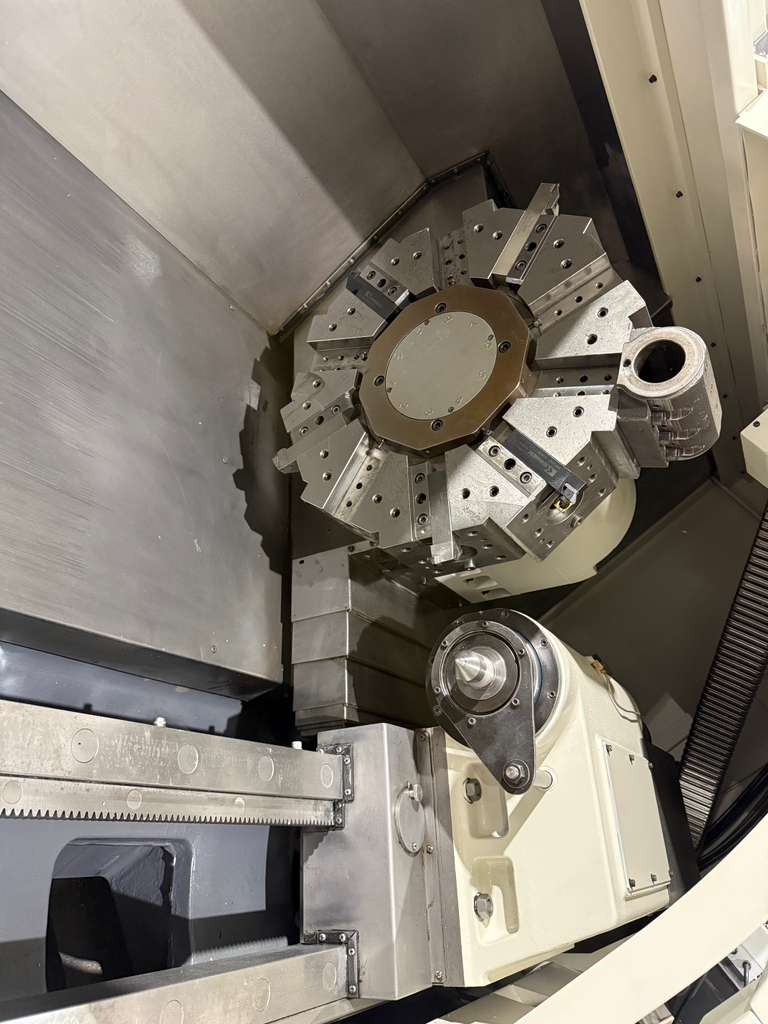

| 10 Station Automatic Turret |
| 35 HP High Torque Spindle |
| High Precision Geared Head Spindle for powerful Torque |
| Hydraulic Tailstock and Power Quill |
| PCMCIA Card Interface |
| Coolant System |

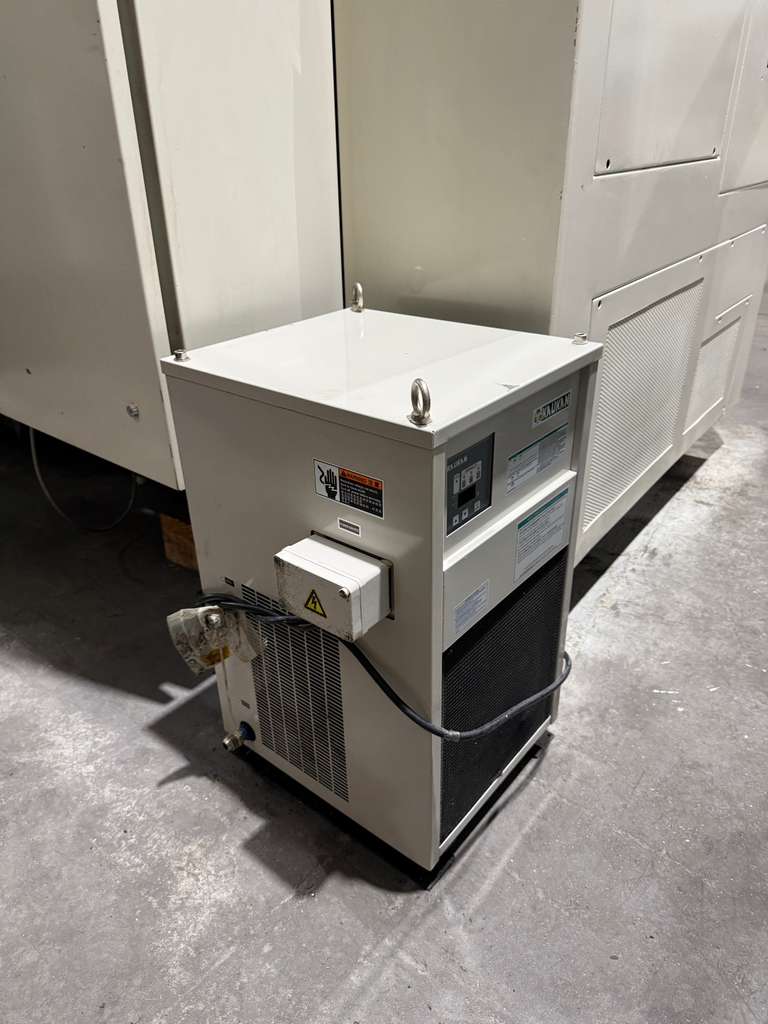

| Spindle Chiller Unit |

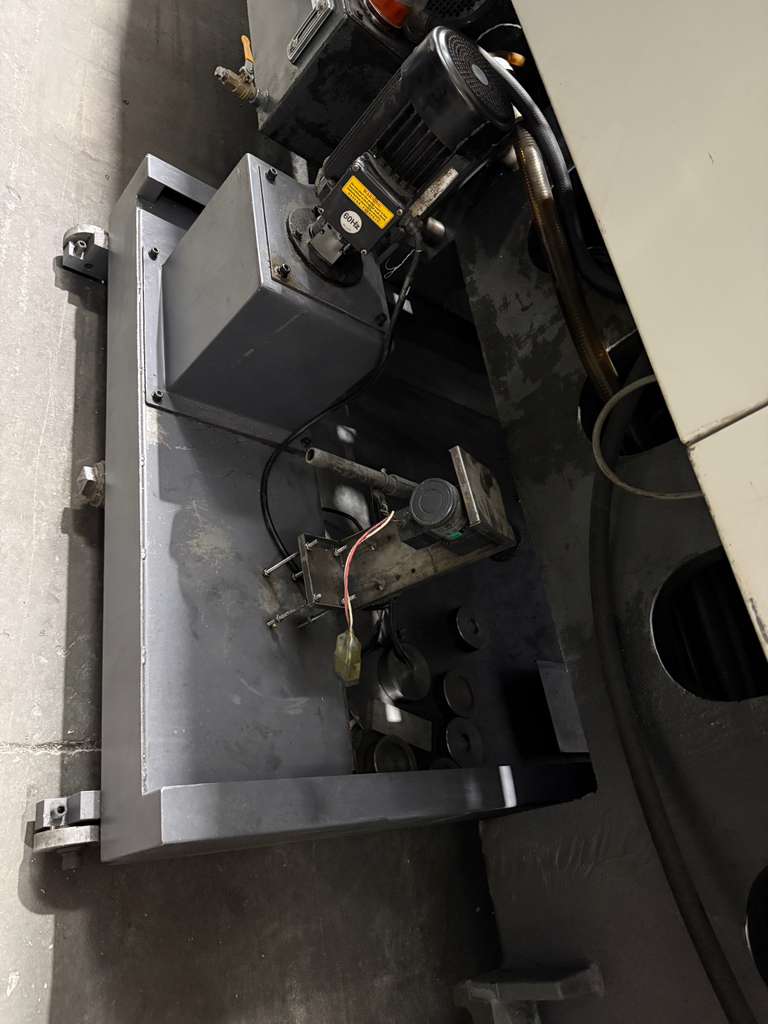

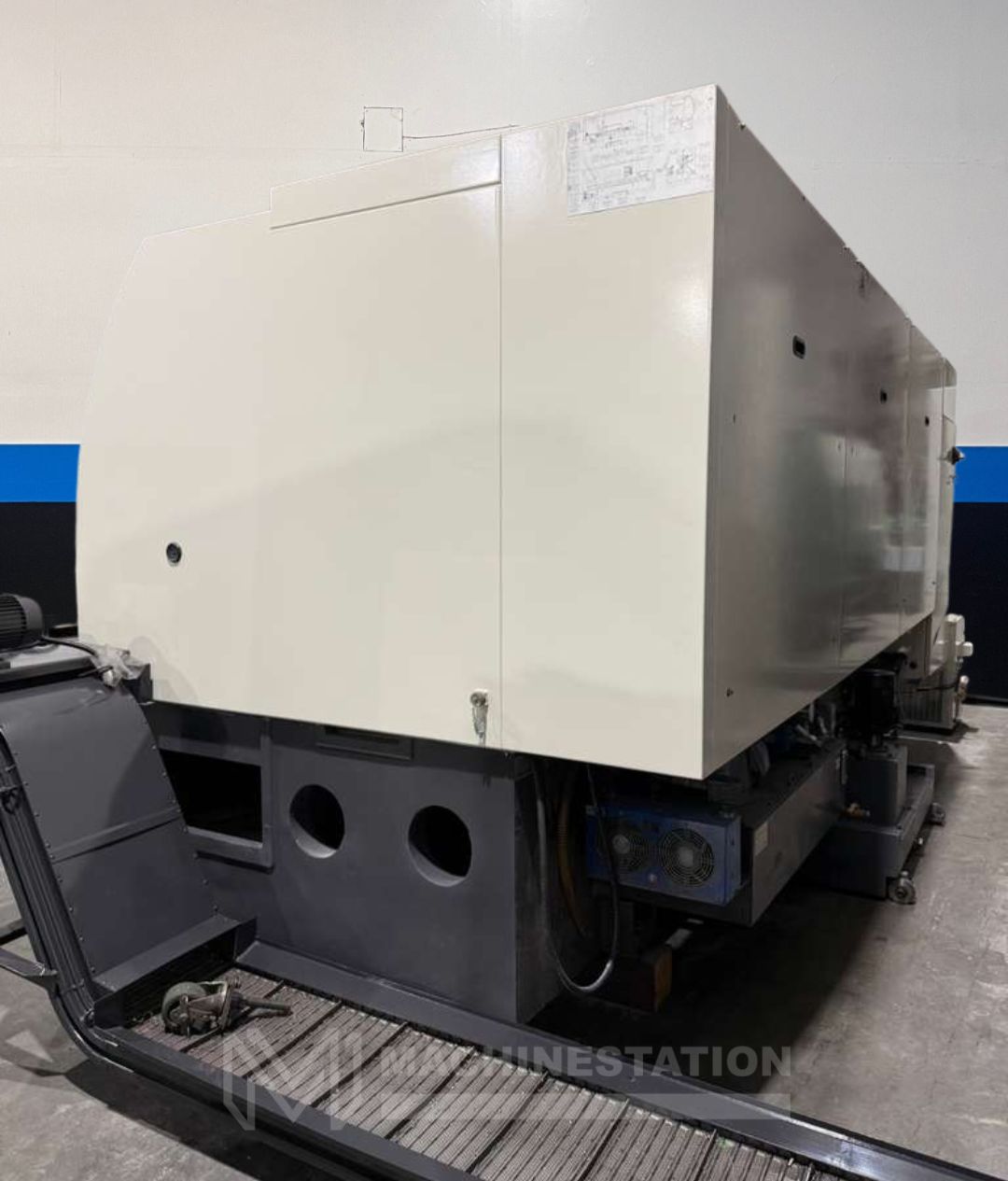

| Chip conveyor |

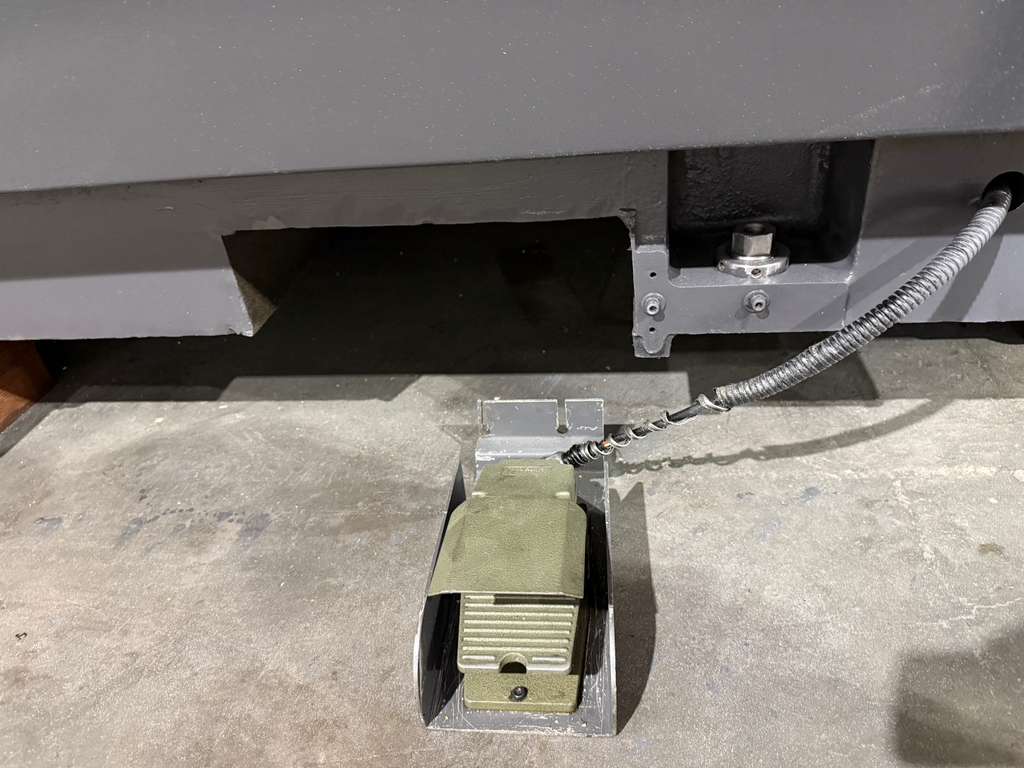

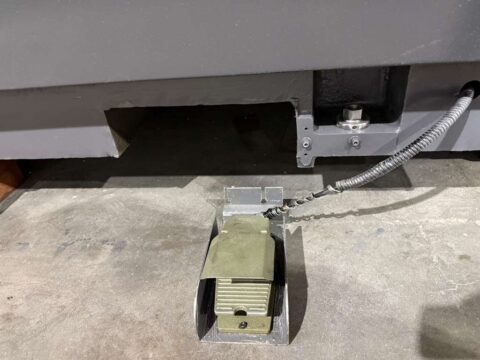

| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 24.0″ |
| Max Turning Length: 60.0″ |
| Max Bar Capacity: 7.25″ |
| Max Swing Over Bed: 36.0″ |
| Travel: |
|---|
| X Axis Travel: 13.38″ |
| Z Axis Travel: 60.00″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 944 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Bore: 7.87″ |
| Spindle Speed: 12 – 1200 RPM |
| Spindle Motor: 35 HP |
| Turret: |
|---|
| Capacity: 10 Stations |
| Turning Tool Size: 1.26″ |
| Boring Tool Diameter: 2.56″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Stroke.: 7.87″ |
| Tailstock Body Travel: 55.11″ |
| General: |
|---|
| Power: 220v / 54 kva / 3-Phase |
| Overall Dimensions: 186.6″ x 83.86″ x 82.28″ High Approx. |
| Weight: 24,200 lbs. Approx. |
