*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 111886 |

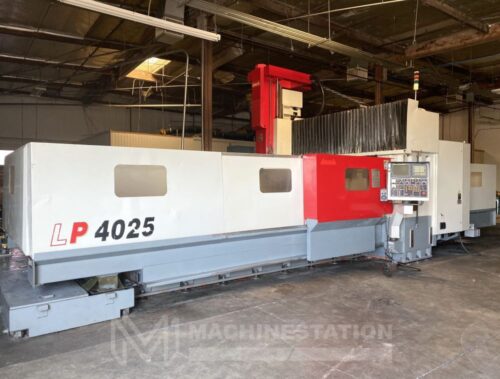

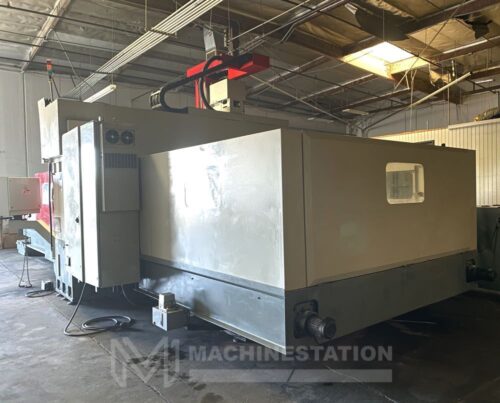

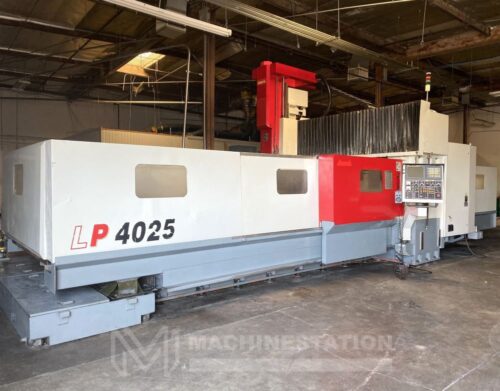

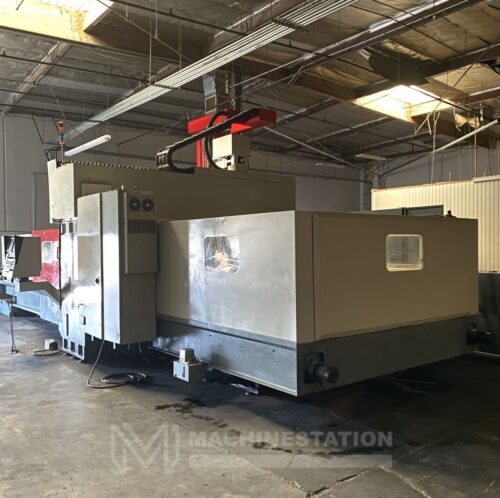

| Make: | Awea |
| Model: | LP4025 |
| Condition: | Used – Good |
| Equipped With: |
|---|

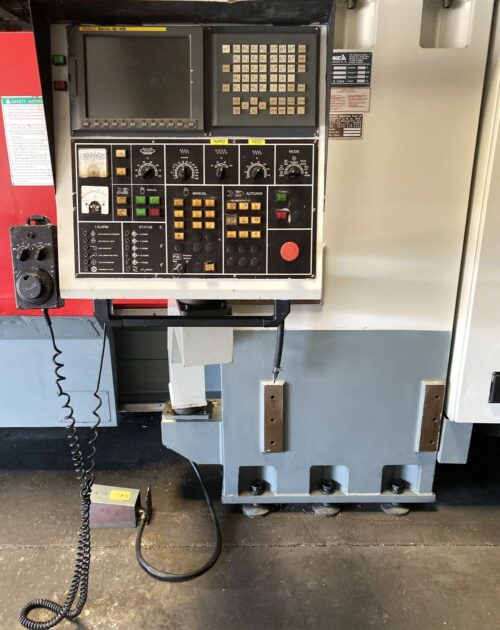

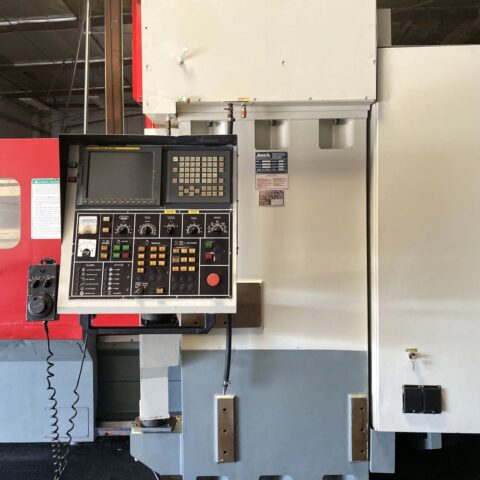

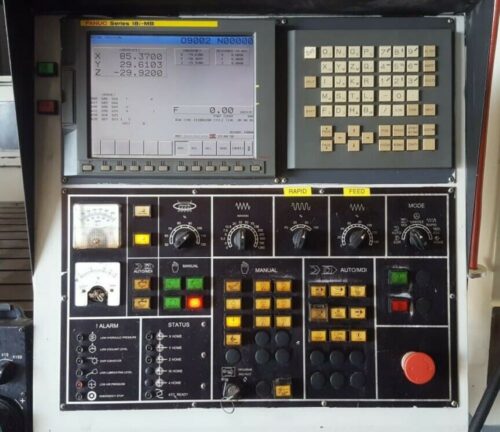

| Fanuc 18iMB CNC Control |

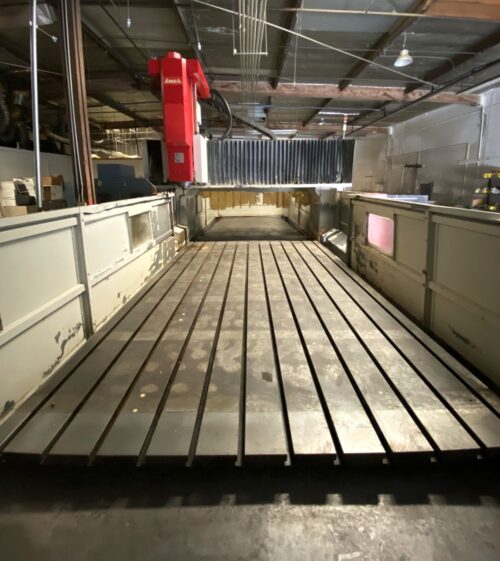

| 158″ X 98″ Table |
| 40 Station Side Mount Tool Changer |
| 50 Taper Geared Head |
| 6000 RPM Spindle |
| Coolant Thru Spindle |
| Powerful 26.1 kW high torque spindle motor |
| PCMCIA Card Slot |
| RS-252 Port |
| Spindle Orientation |
| Portable manual pulse generator |
| Flood coolant with large separate coolant tank Base |
| Flush Chip Disposal with Dual Auger |
| Chip Conveyor |

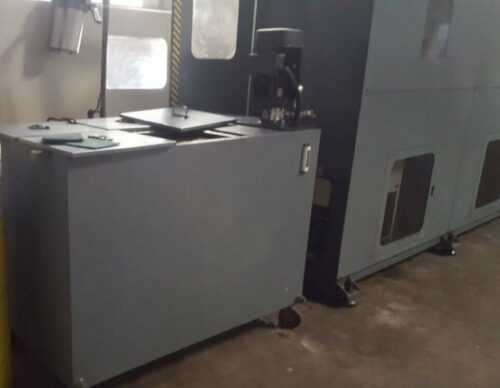

| Chiller Unit |
| Levelling Pads |
| Replacement Cost over $500,000.00 |
| Note: Machine is dismantled and Ready to be loaded on the Truck |
| Travels: |
|---|
| X-Axis: 158.0″ |
| Y-Axis: 98.6″ |
| Z-Axis: 30.9″ |
| Distance Between Columns: 106.2″ |
| Spindle Nose to Table (Min.- Max.): 8.6″- 39.57″ |
| Feed rates: Rapid X,Y & Z: 590 inch per minute |
| Cutting Feedrate: .04″ – 376″ inch per minute |
| Table: |
|---|
| Length: 164.6″ |
| Width: 94.4″ |
| T-Slot: 0.87″ Wide X 20 X 7.87″ |
| Max Weight on Table: 14968.5 kg |
| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 6000 RPM |
| Spindle Power: 26.1 kW |
| Automatic Arm Type Tool Changer: |
|---|
| 50 Taper |
| Capacity: 40 |
| Max Tool Weight: 19.5 kg |
| Max Tool Length: 13.77″ |
| Max Tool Dia.: 5.2 – 7.7″ |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

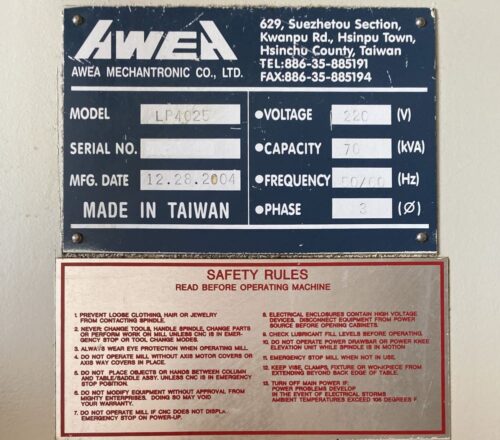

| Power: 220v / 3-Phase, 70 Kva |
| Floor Dimensions: 34’6″ X 17’6″ x 130″ High |
| with Hydraulic Unit, Chip Conveyor, Chiller unit |
| Weight: 39734.7 kg. |
