*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

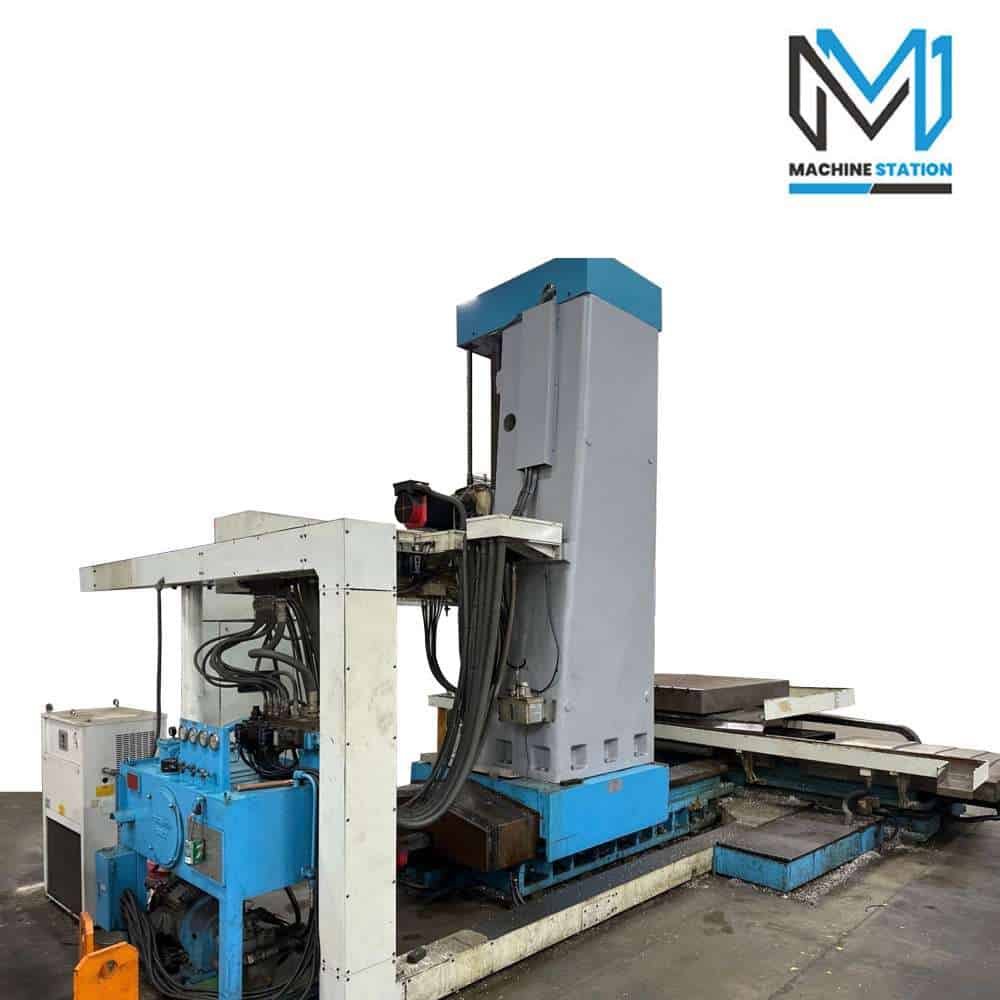

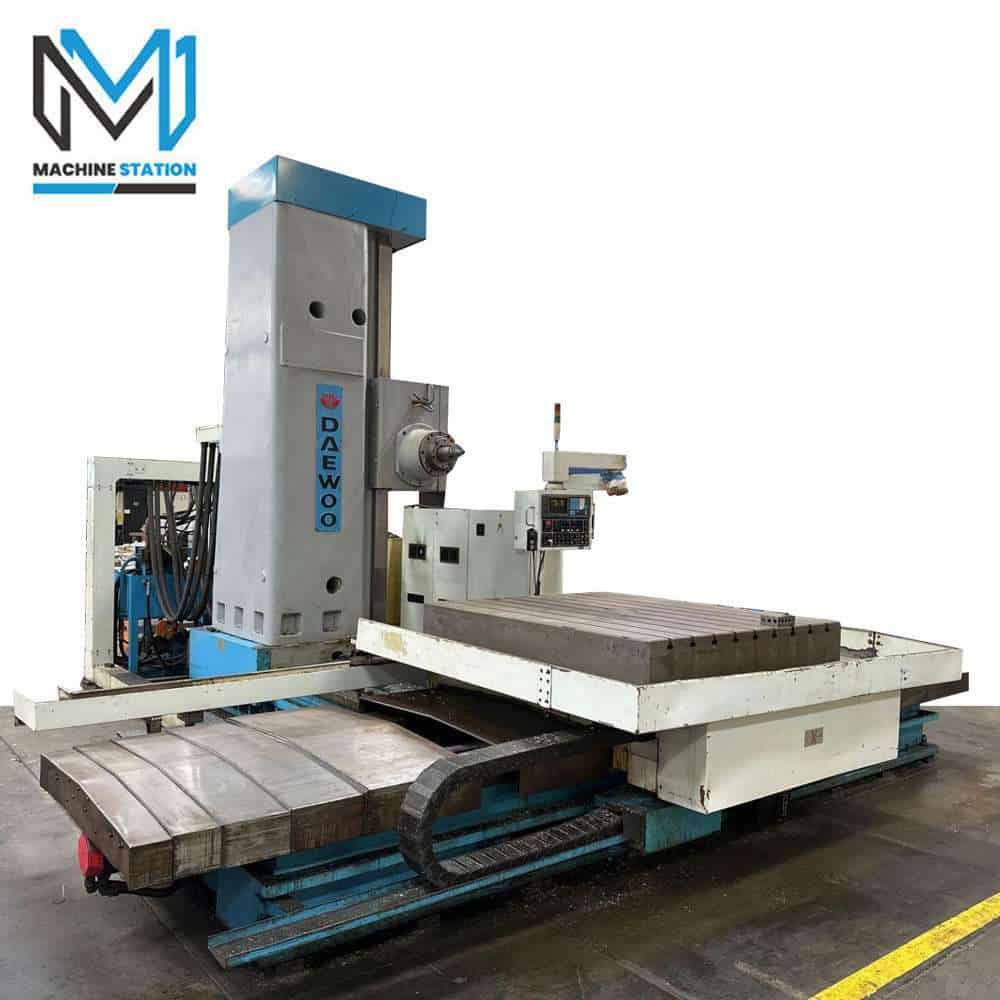

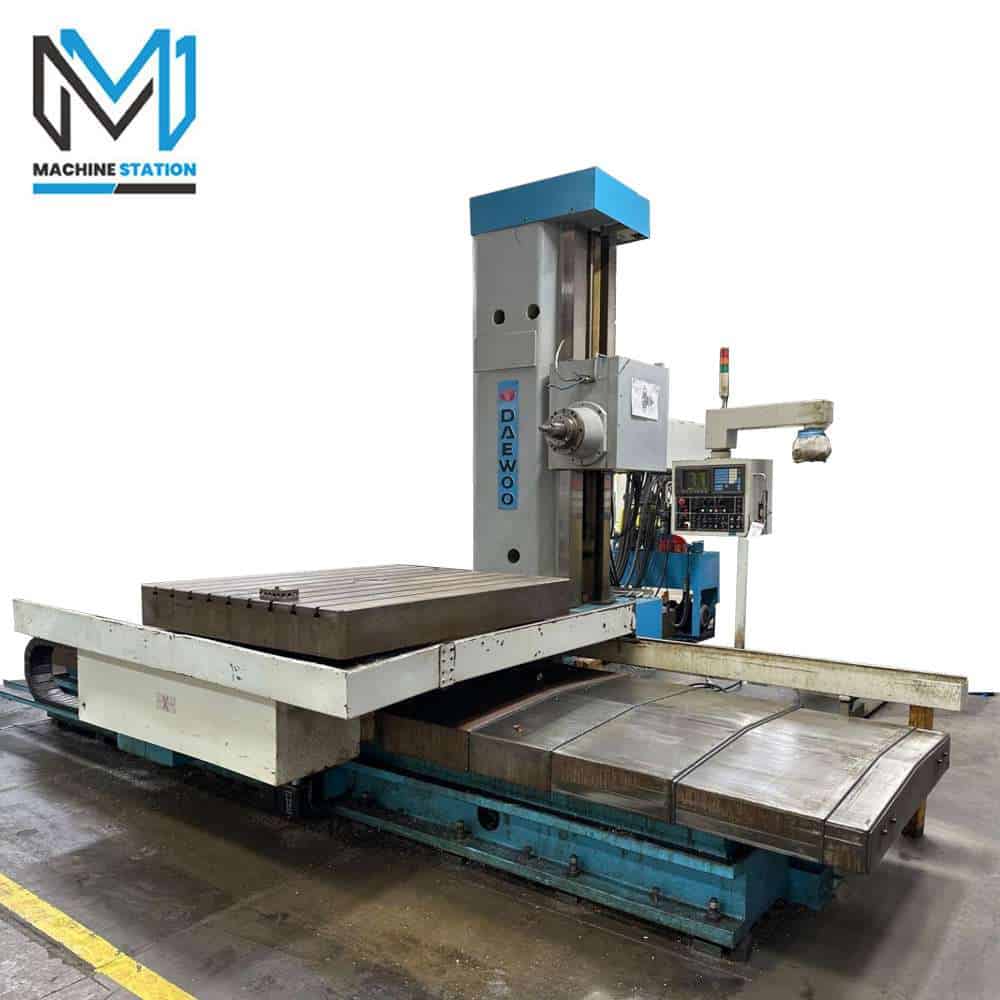

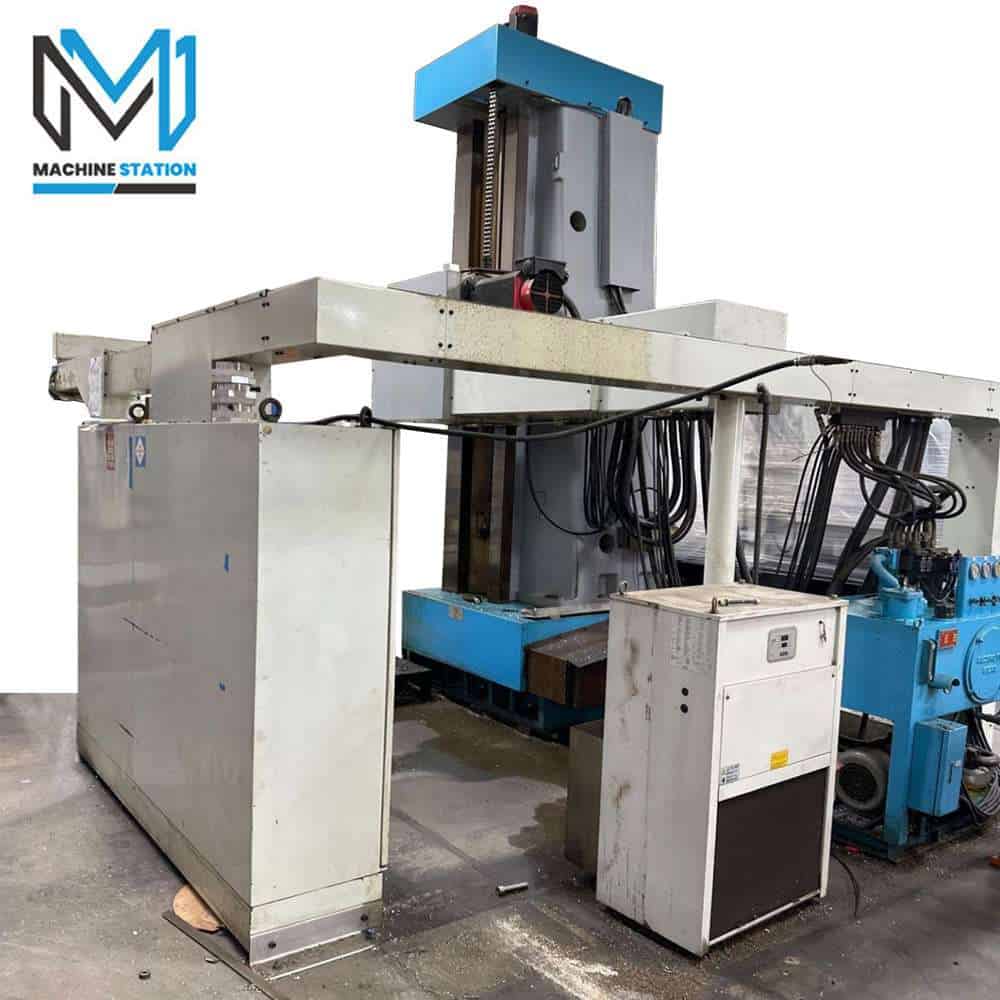

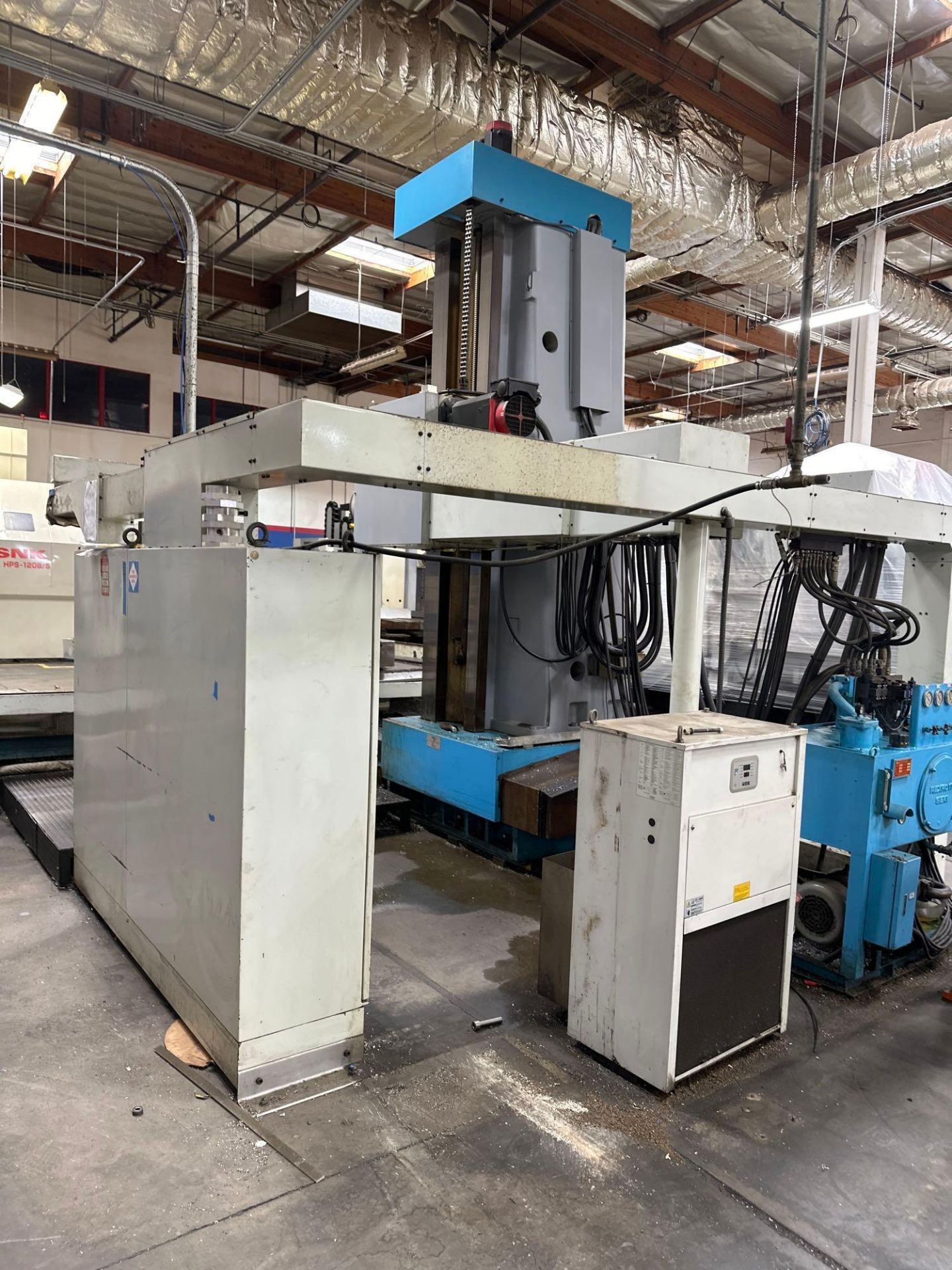

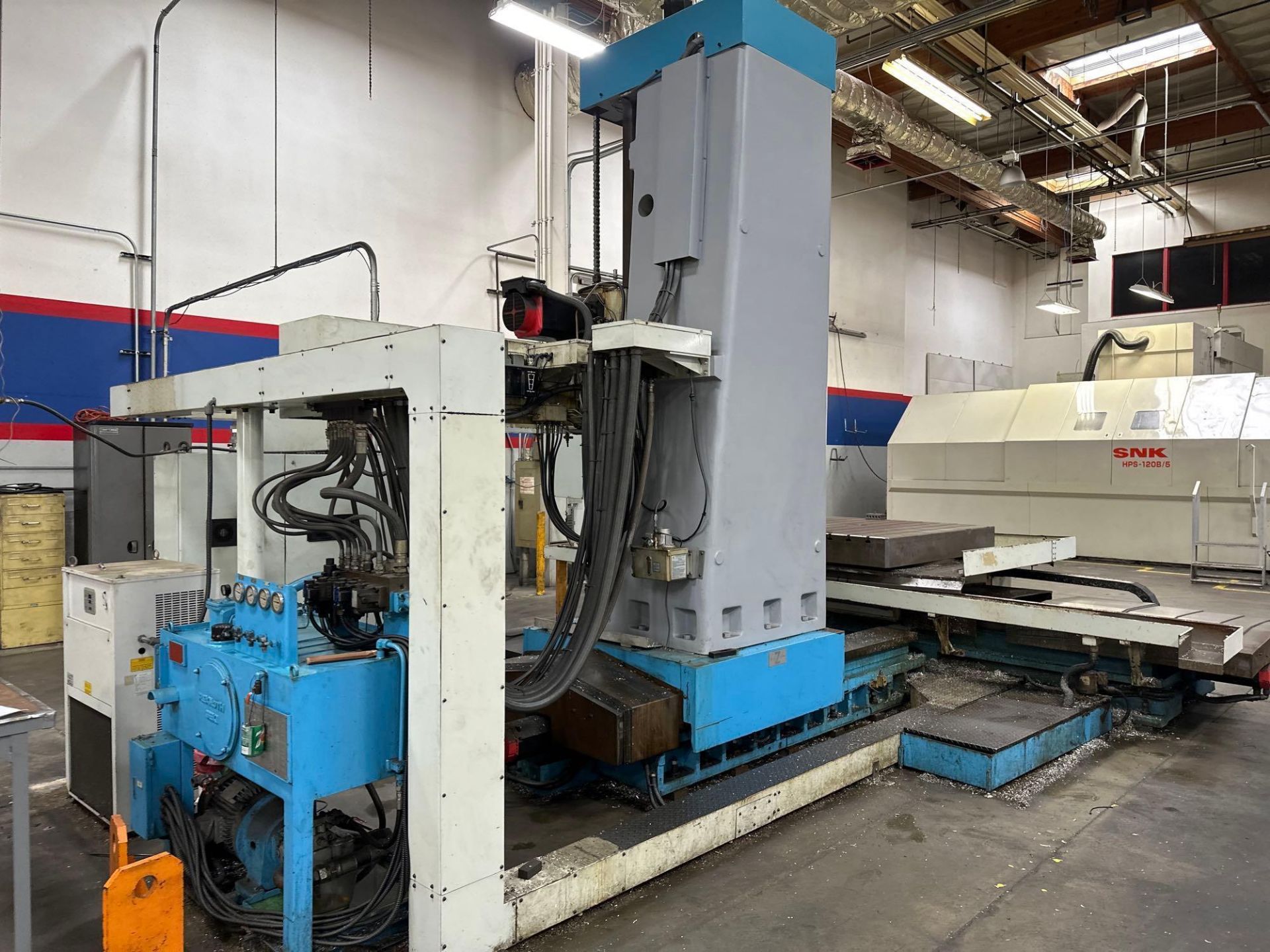

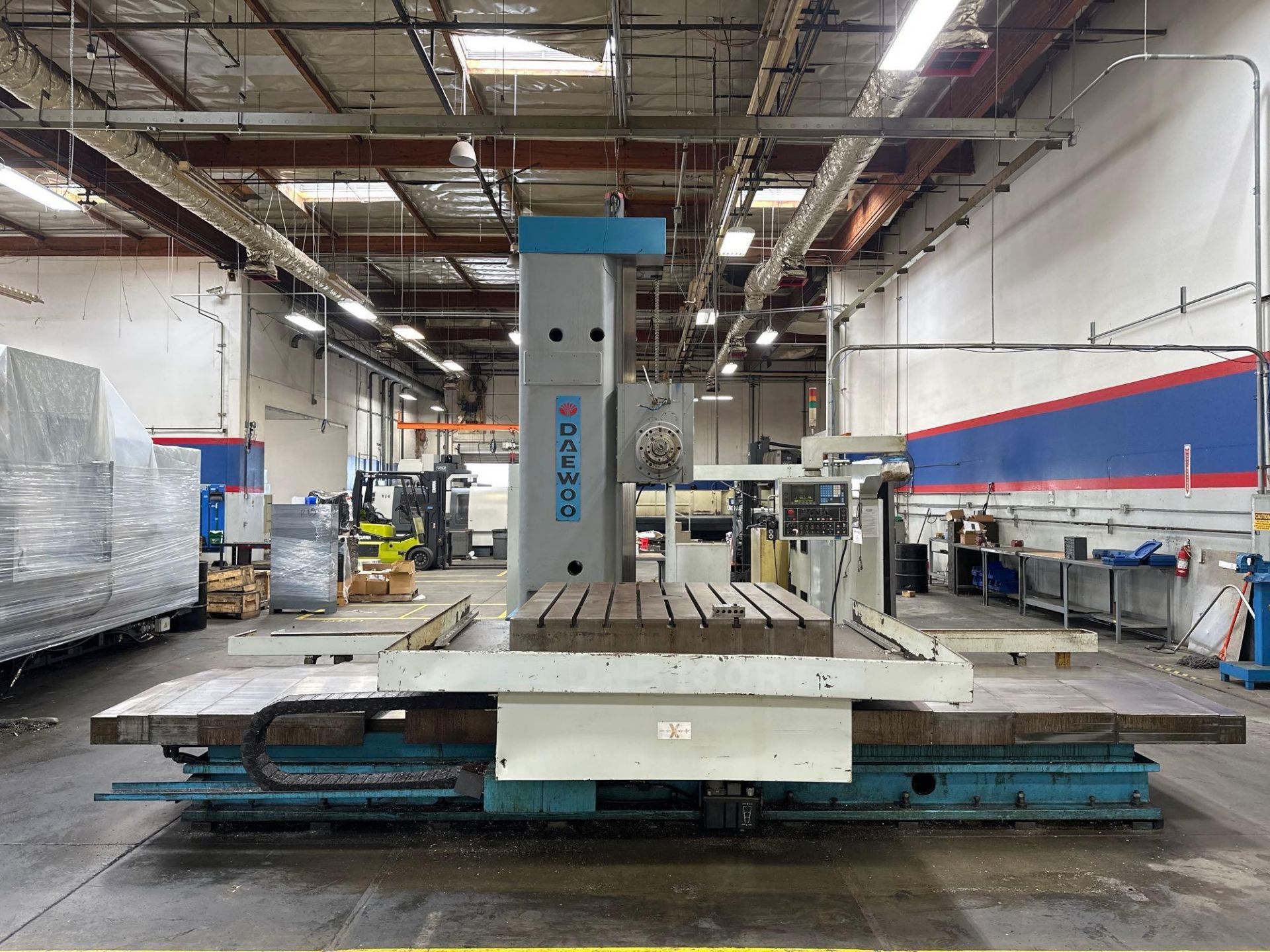

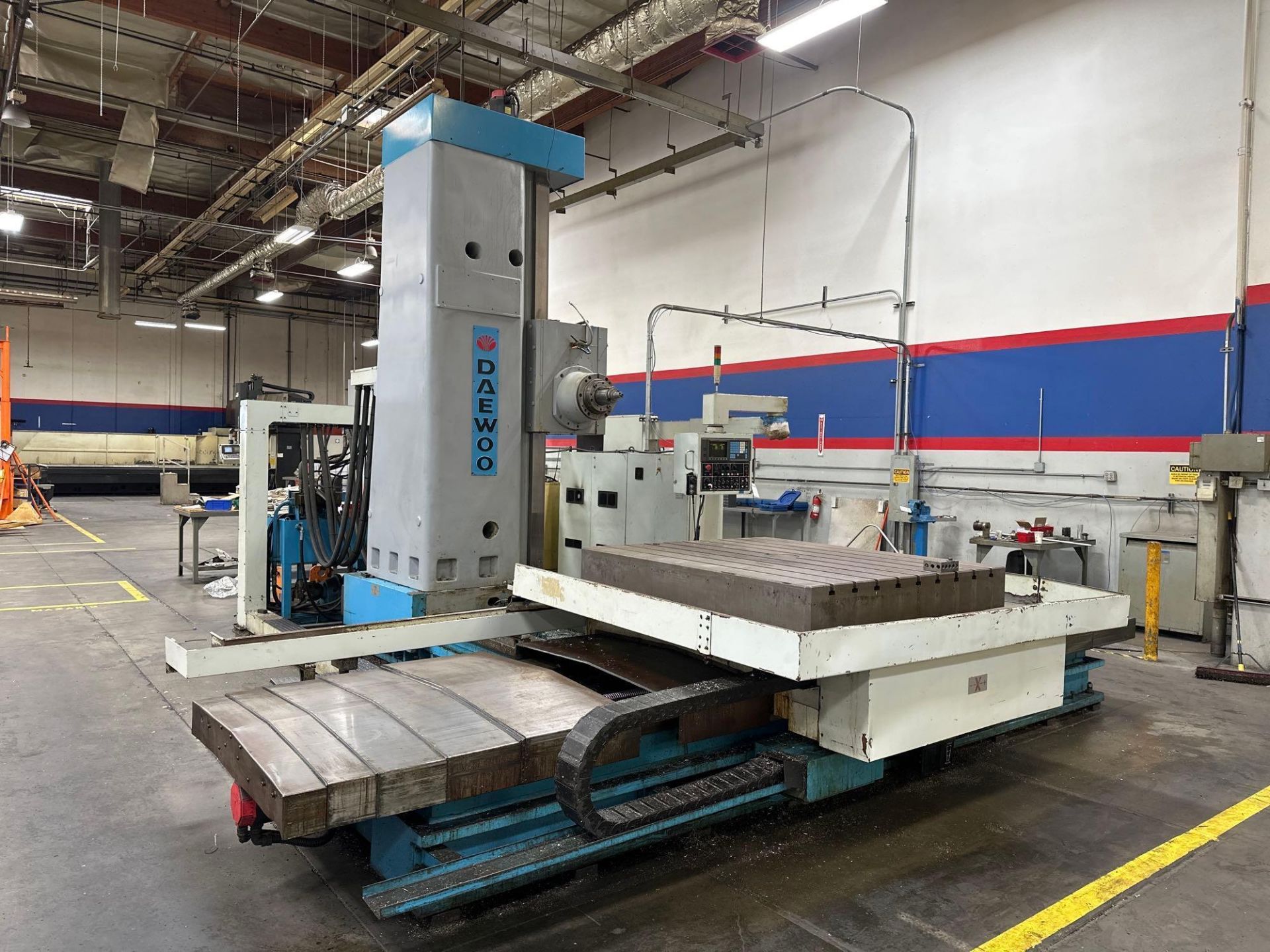

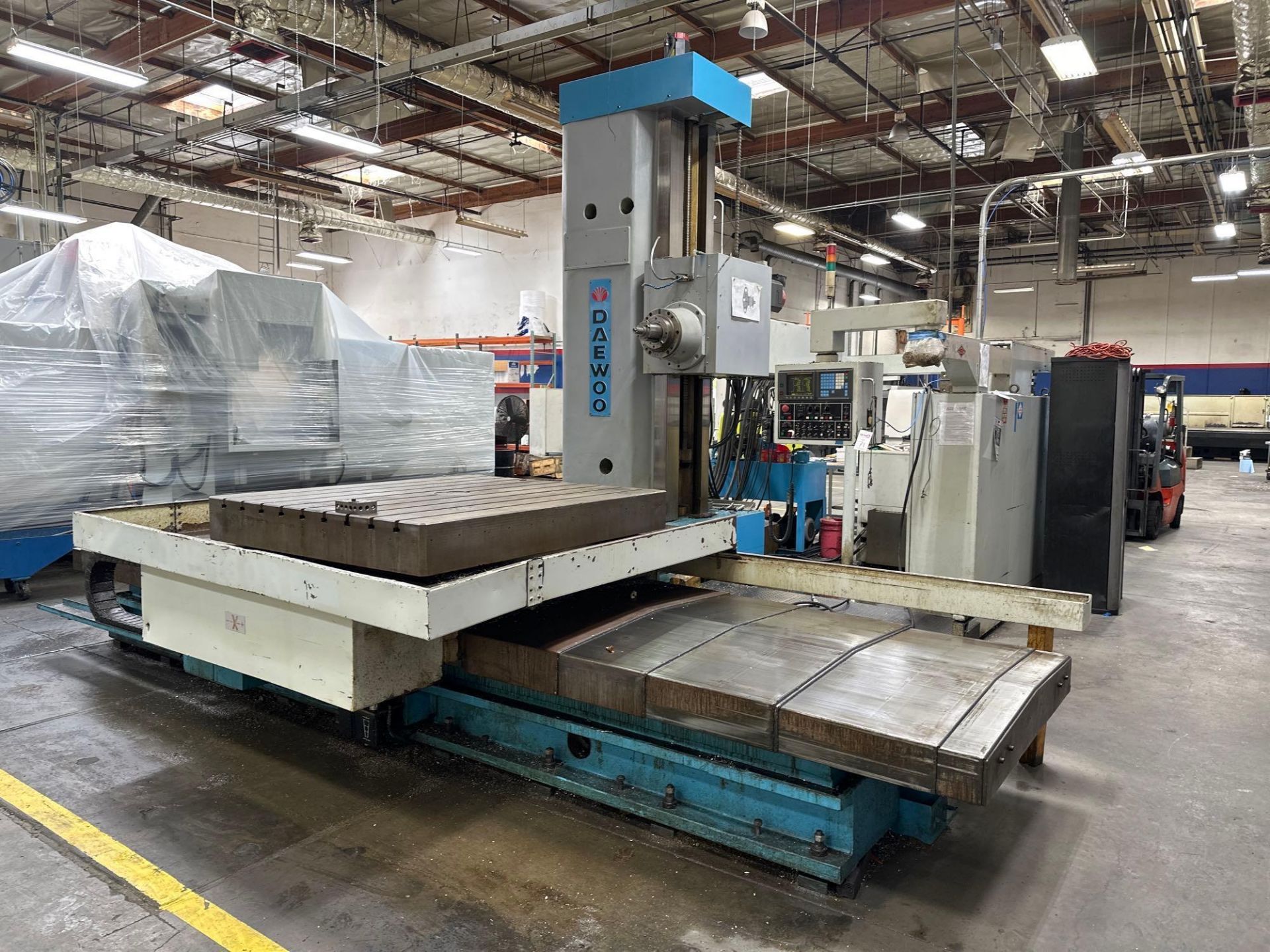

The Daewoo DNB-130R CNC Horizontal Table Type Boring Mill is a highly reliable machine designed for heavy-duty applications. Equipped with a Fanuc 15-M CNC Control and a powerful 25 HP spindle, The machine delivers exceptional precision and performance, making it an ideal choice for large-scale industrial operations.
Additionally, it features robust table load capacities and advanced rigid tapping capabilities, ensuring maximum efficiency in demanding machining tasks.
| Features of Daewoo DNB-130R Boring Mill: |
|---|

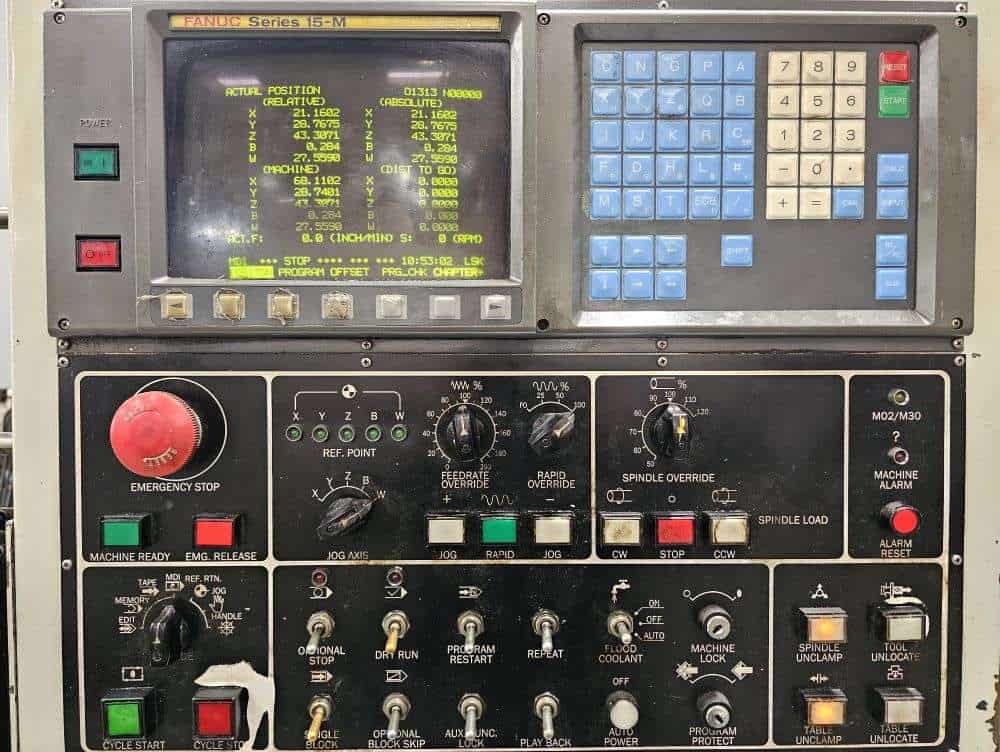

| Fanuc 15-M CNC Control |
| 5.1″ Spindle Diameter |
| Gear Head Spindle for Powerful Torque |
| 1 Degree Indexing 4th Axis Rotary Table |
| Heavy Table Load Capacities |
| Remote Jog Handle |
| Rigid Tapping |
| Telescopic Way Covers |
| Specifications: |
|---|
| Travels: |
| X Axis: 78.7″ |
| Y Axis: 62.9″ |
| Z Axis: 43.3″ |
| W Axis: 27.6″ |

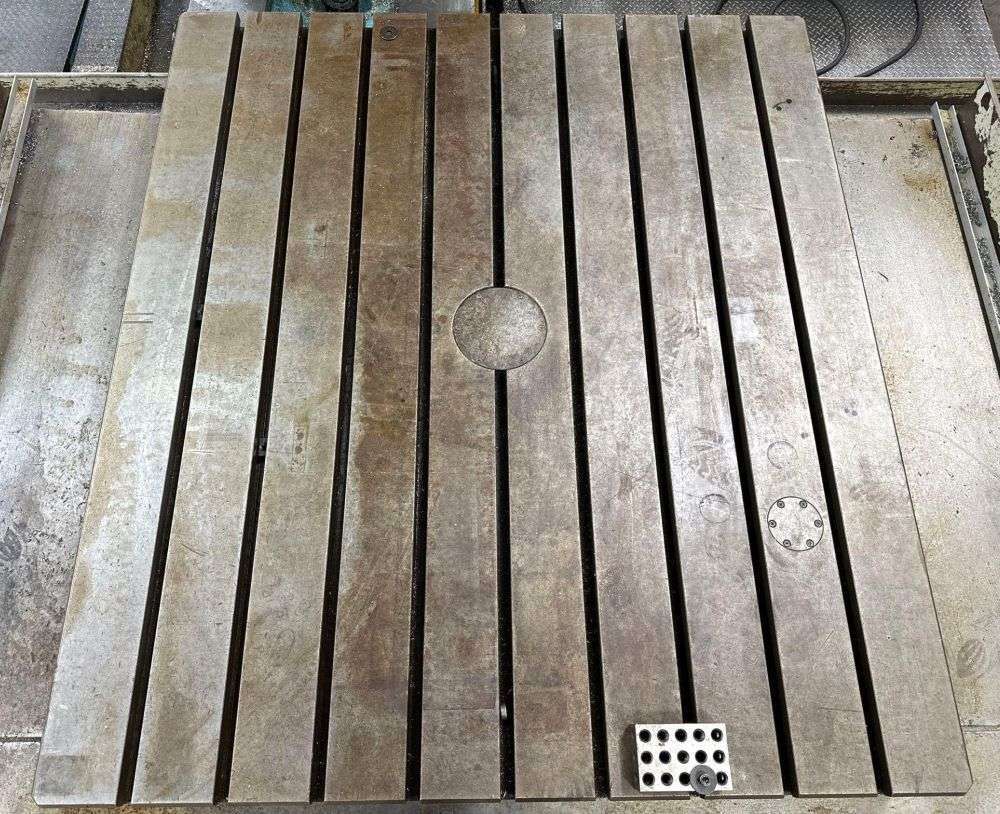

| Rotary Table: |
|---|
| Length: 70.9″ |
| Width: 62.9″ |
| Max Weight on Table: 20,000 lbs |
| Indexing: 1 Degree |
| Spindle: |
|---|

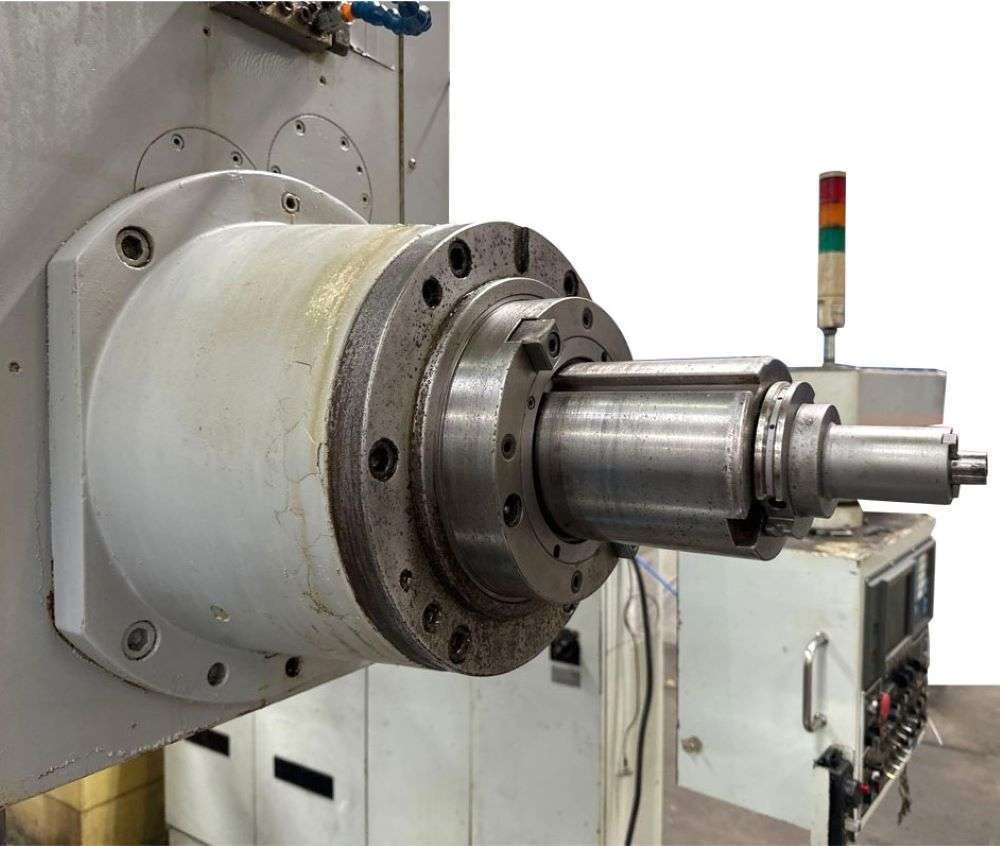

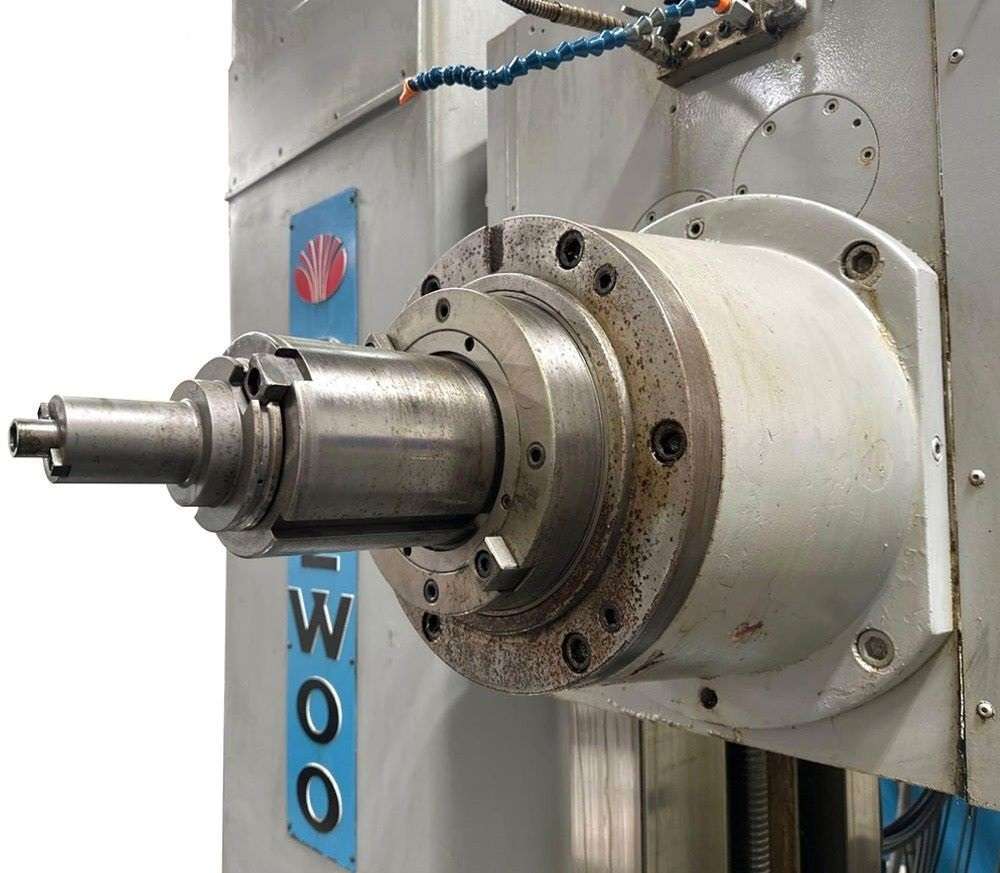

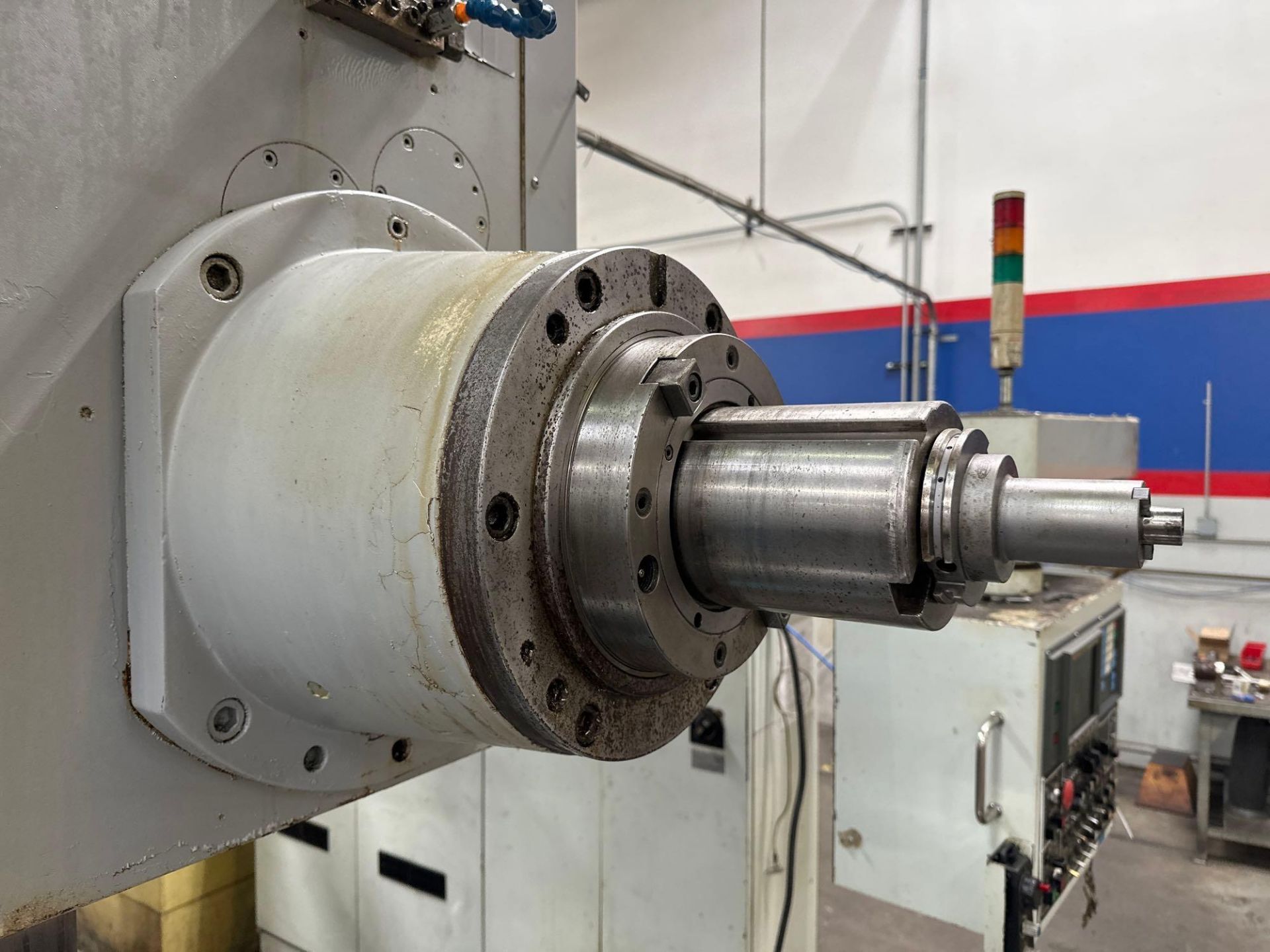

| Bar Diameter: 5.1″ |
| Spindle Speed: 2000 RPM |
| Spindle Taper: CAT-50 |
| Power: 25 HP |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: 66FLA / 205-220v / 3-Phase |
| Floor Dimensions: 240″ x 168″ x 108″ High |
| Shipping Dimensions: Call for Dimensions |
| Weight: 48000 lbs. Approx. |
Looking to upgrade your machining capabilities? Explore our extensive CNC boring mill collection for unmatched precision and efficiency. The Daewoo Doosan DNB-130R CNC Horizontal Table Type Boring Mill stands out with its high-performance design, perfect for heavy-duty applications in industries such as aerospace, automotive, and metal fabrication.Whether you need enhanced accuracy or faster production times, this machine is engineered to deliver exceptional results. Browse our full range of CNC machinery, including lathes, milling machines, and more, to find the ideal solution for your manufacturing needs and elevate your operations today!
