Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

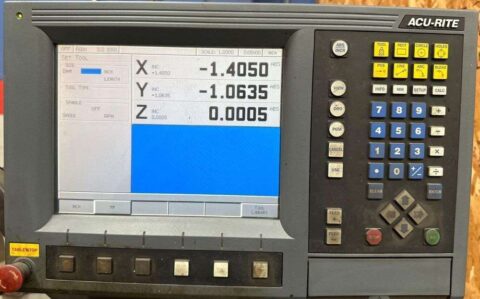

| ACU-RITE 3-Axis CNC Control |

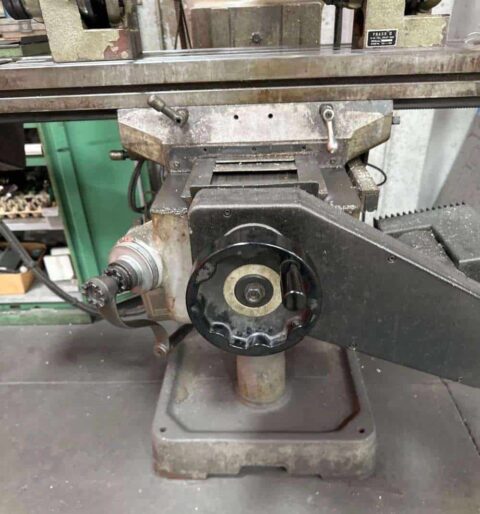

| Hardened and ground table surface, saddle, and knee |
| 60 – 4200 RPM Variable Spindle Speed |

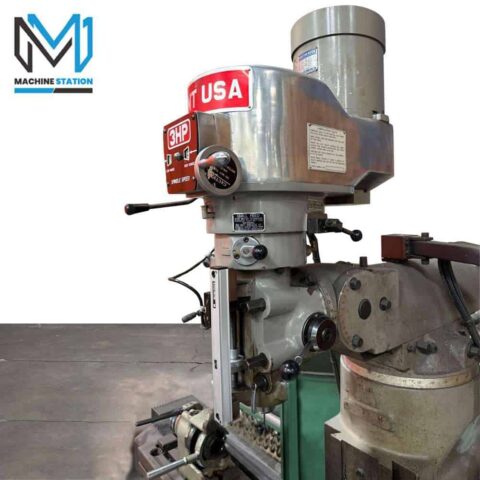

| 90° | 45° Head Movement (Right or Left | Front or Back) |
| 3 HP Spindle Motor |
| Capacity: |
| Maximum Table Longitudinal Travel: 35″ |
| Maximum Table Cross Travel : 12″ |
| Maximum Knee Travel: 15″ |
| Maximum Ram Travel: 14.5″ |
| Maximum Spindle Travel: 5″ |
| Head Movement (Right or Left | Front or Back): 90° | 45° |
| Spindle to Column (min-max): 6-3/4″ – 18-1/2″ |
| Spindle Nose to Table (min-max): 3-1/4″ – 18-1/4″ |
| Table: |
| Working Surface: 9″ x 42″ |
| T-Slot Number, Size: 3, 5/8″ |
| Spindle: |
| Spindle Taper: R-8 |
| Spindle Motor: 3 HP |
| Range of Spindle Speeds : Low: 60 – 500 High: 500 – 4,200 RPM |
| Quill Down Feed Rates: .0015 – .003 – .006 (IPR) |
| Diameter of Quill: 3-3/8″ |
| Number of Spindle Speeds: Mechanical Variable Speed |
| Head Tilt (Right to left each way): 90 Degrees |
| Head Tilt (Front and Back each way): 45 Degrees |
| General: |
| Overall Machine Dimensions (WxDxH): 86″ x 67″ x 84″ |
| Electrical: 220/440V, 3 phase, 60 Hz |
| Net Weight (approx.): 2450 lbs |
