Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

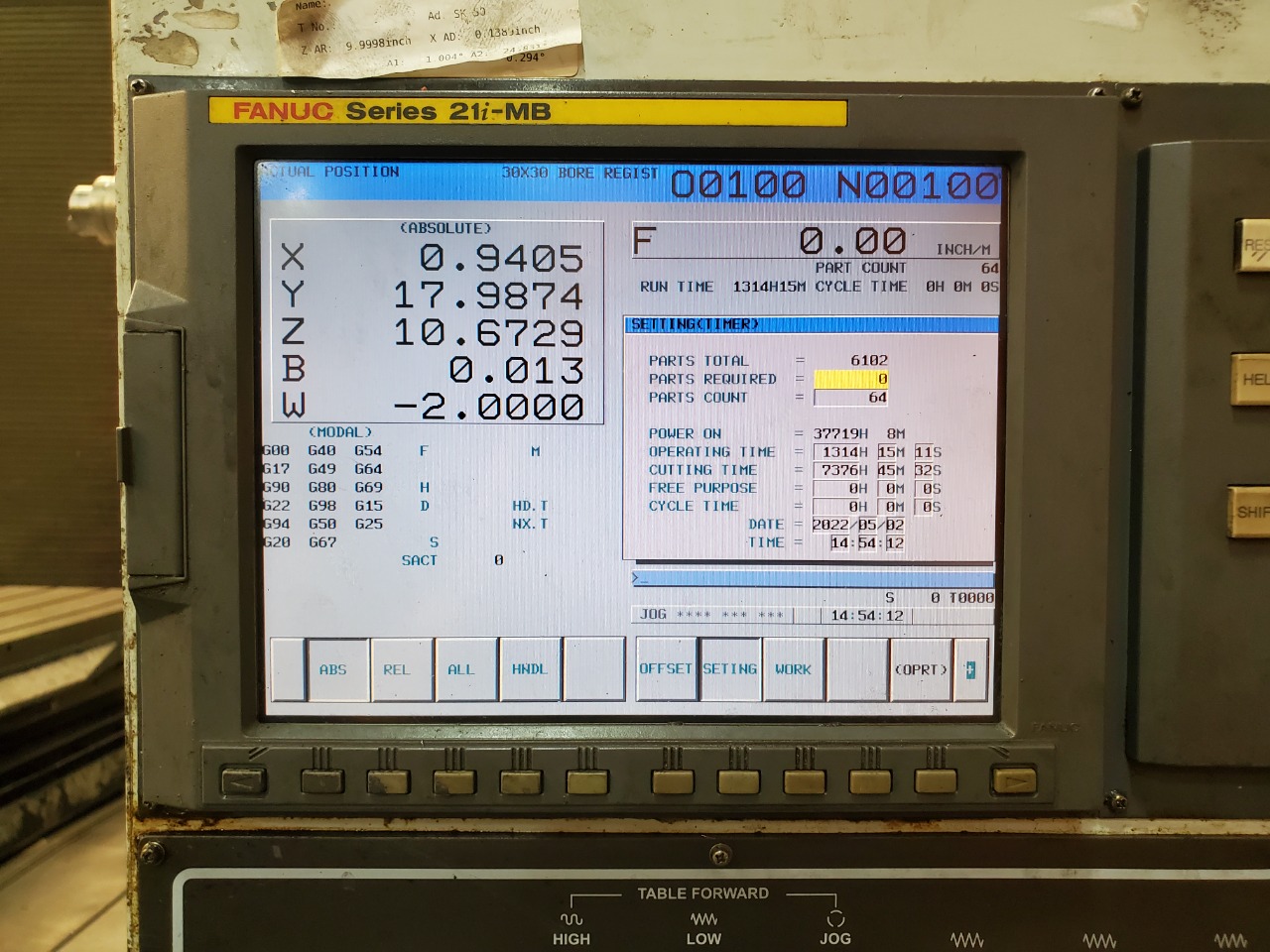

| Fanuc 21i-MB CNC Control |
| 4.33″ Spindle Diameter |
| Gear Head Spindle for Powerful Torque |

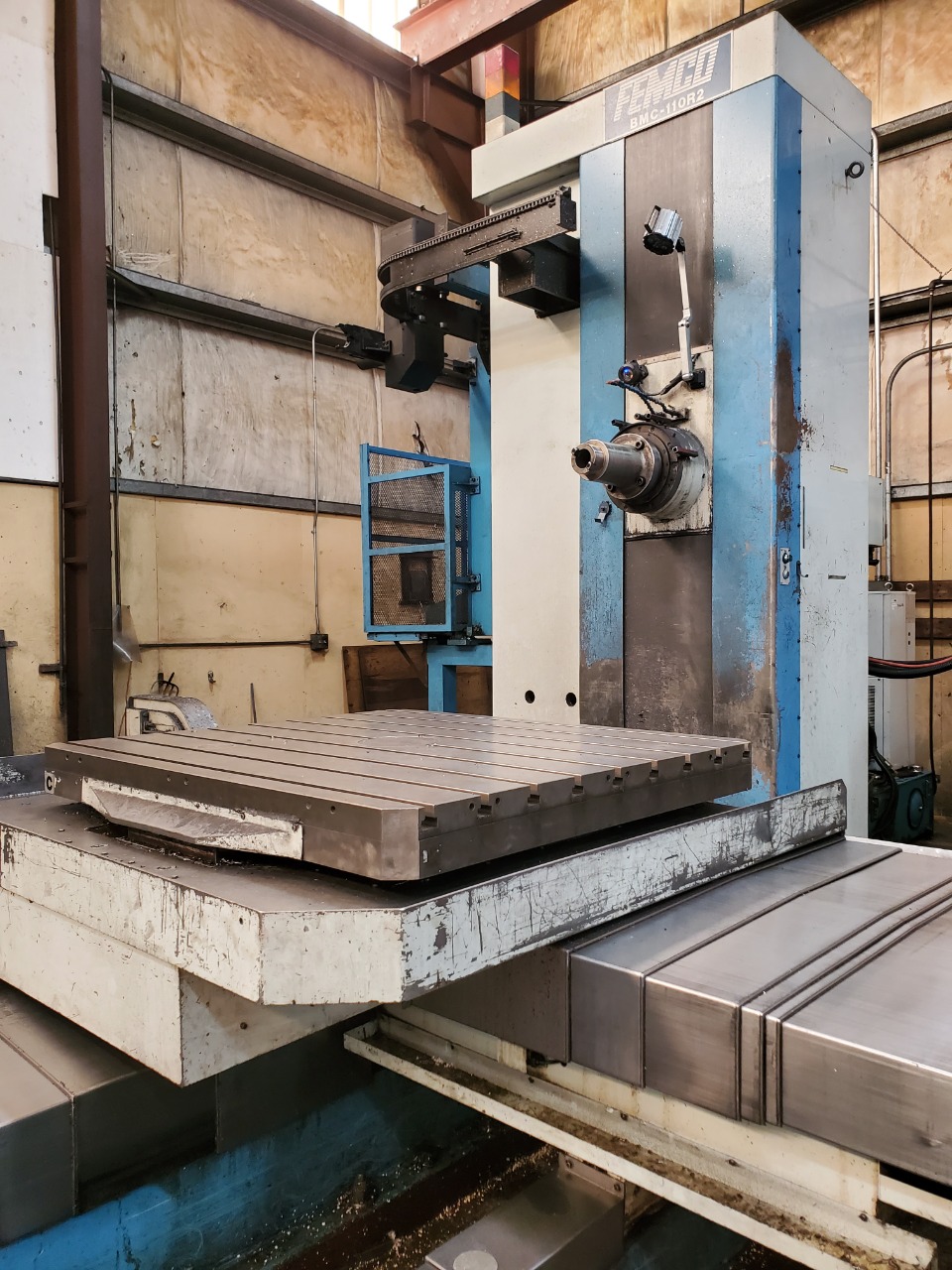

| Full 4th Axis Rotary Table |
| Heavy Table Load Capacities |

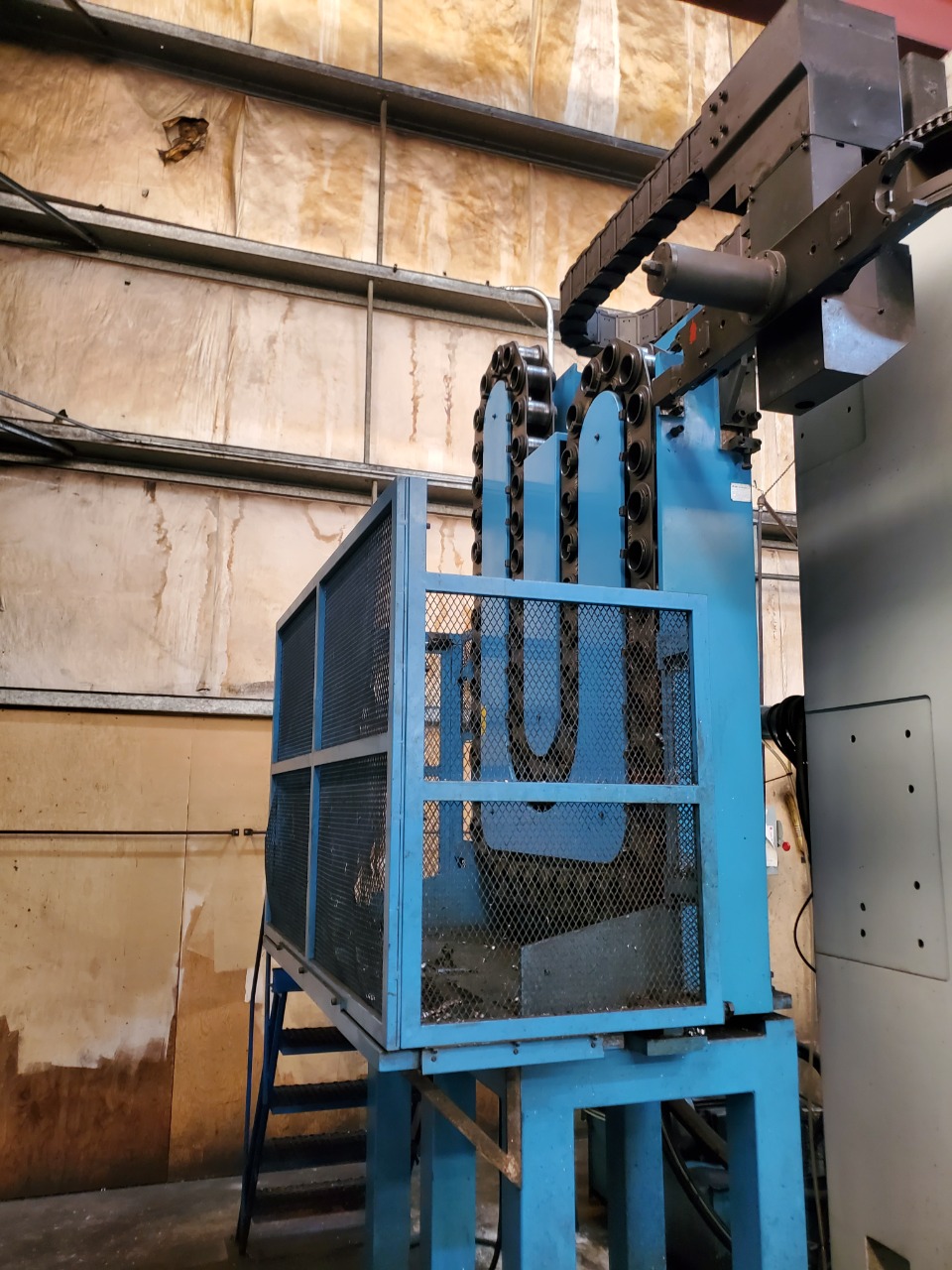

| 60 Tools Side Mount Tool Changer |
| Through Spindle Coolant |
| Remote Jog Handle |
| Rigid Tapping |
| X,Y,Z Axis Linear Scales |
| Telescopic Way Covers |
| Travels: |
| Table Cross Travel (X Axis): 78.74″ |
| Headstock Travel (Y Axis): 70.87″ |
| Table Longitudinal (Z Axis): 64.96″ |
| Bar Stroke (W Axis): 19.69″ |
| Rotary Table: |
| Length: 62.99″ |
| Width: 56.69″ |
| Max Weight on Table: 6299.9 kg |
| Rapid Rotation of Table: 0.72 RPM |

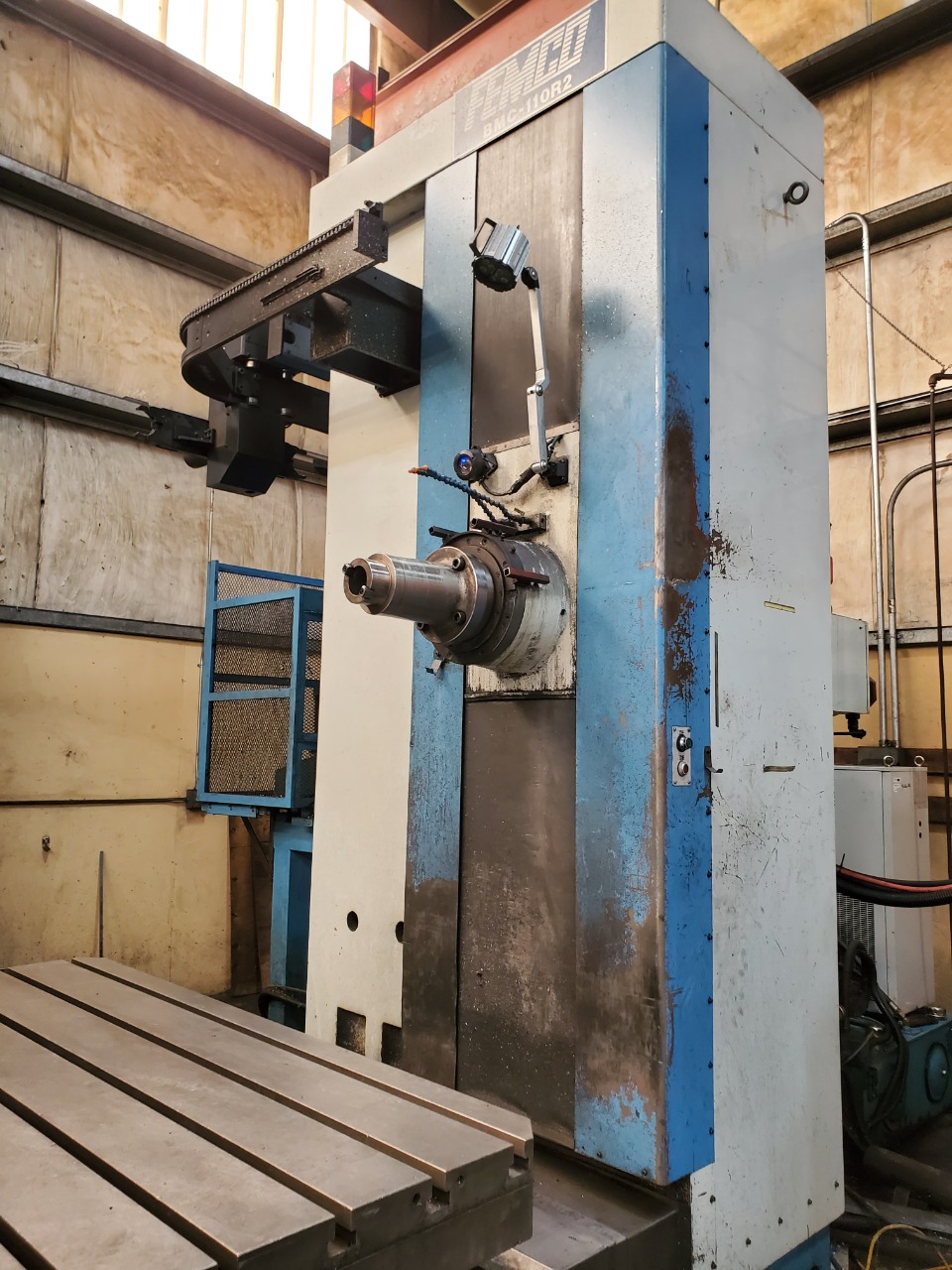

| Spindle: |
| Bar Diameter: 4.33″ |
| Spindle Speed: 635 – 2500 RPM |
| Power: 26.1 kW |
| Spindle Taper: 50 |
| Feed Rates: |
| Rapid X, Y & Z Axis: 394 Inch Per Minute |
| Rapid W Axis: 157 Inch Per Minute |

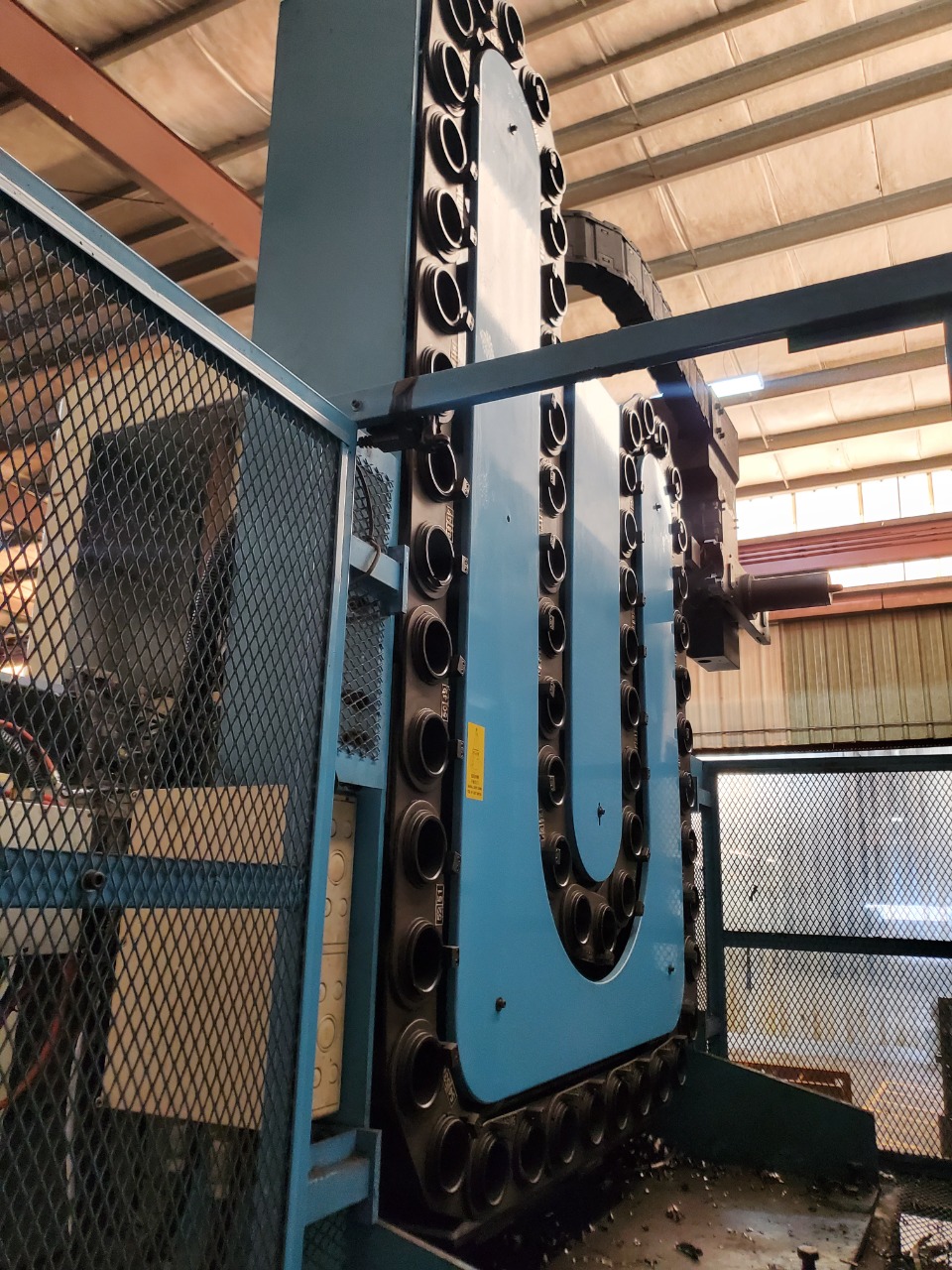

| Tool Changer: |
| Capacity: 60 Tools |
| Taper: 50 |
| Max Tool Size: 4.72″ – 9.84″ |
| Max Tool Length: 15.75″ |
| Max Tool Weight: 24.9 kg. |
| Tool to Tool Change Time: 15 Second |
| General: |
| Air Required: 90 psi, 4 scfm |

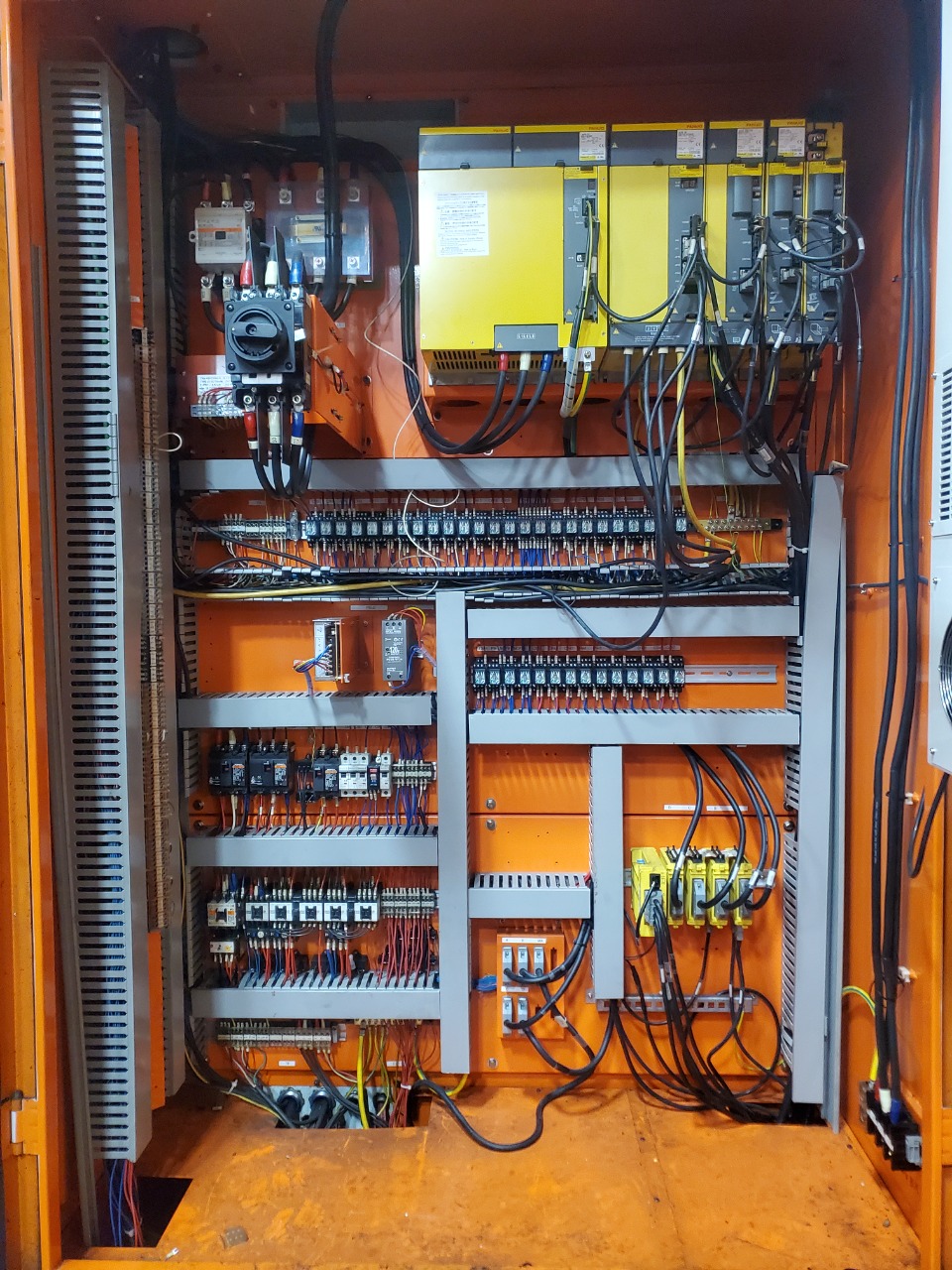

| Power: 66FLA / 205-220v / 3-Phase |
| Overall Dimensions: 308″ X 244″ x 147″ High |
| Weight: 18999.6 kg. Approx |
